Page 1

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

KS0678

written permission of LCD Driver IC Team.

November. 1999.

Prepared by: Si-Wang, Sung

mail to : [email protected]

Ver. 0.2

Contents in this document are subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

Page 2

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

KS0678 Specification Revision History

Version Content Date

0.0 Original Aug.1999

0.1 The content of page 17 has been modified Aug.1999

0.2 The content of page 18 has been modified Nov.1999

Page 3

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

CONTENTS

INTRODUCTION .................................................................................................................................................4

FEATURES.........................................................................................................................................................4

BLOCK DIAGRAM..............................................................................................................................................5

PIN ASSIGNMENTS............................................................................................................................................ 6

PIN DESCRIPTIONS...........................................................................................................................................7

OPERATION DESCRIPTION...............................................................................................................................8

DISPLAY DATA TRANSFER............................................................................................................................8

EXTENSION OF OUTPUT ...............................................................................................................................8

RELATIONSHIP BETWEEN INPUT DATA VALUE AND OUTPUT VOLTAGE..................................................8

ABSOLUTE MAXIMUM RATINGS ....................................................................................................................15

RECOMMENDED OPERATION CONDITIONS.................................................................................................. 15

DC CHARACTERISTICS ................................................................................................................................... 16

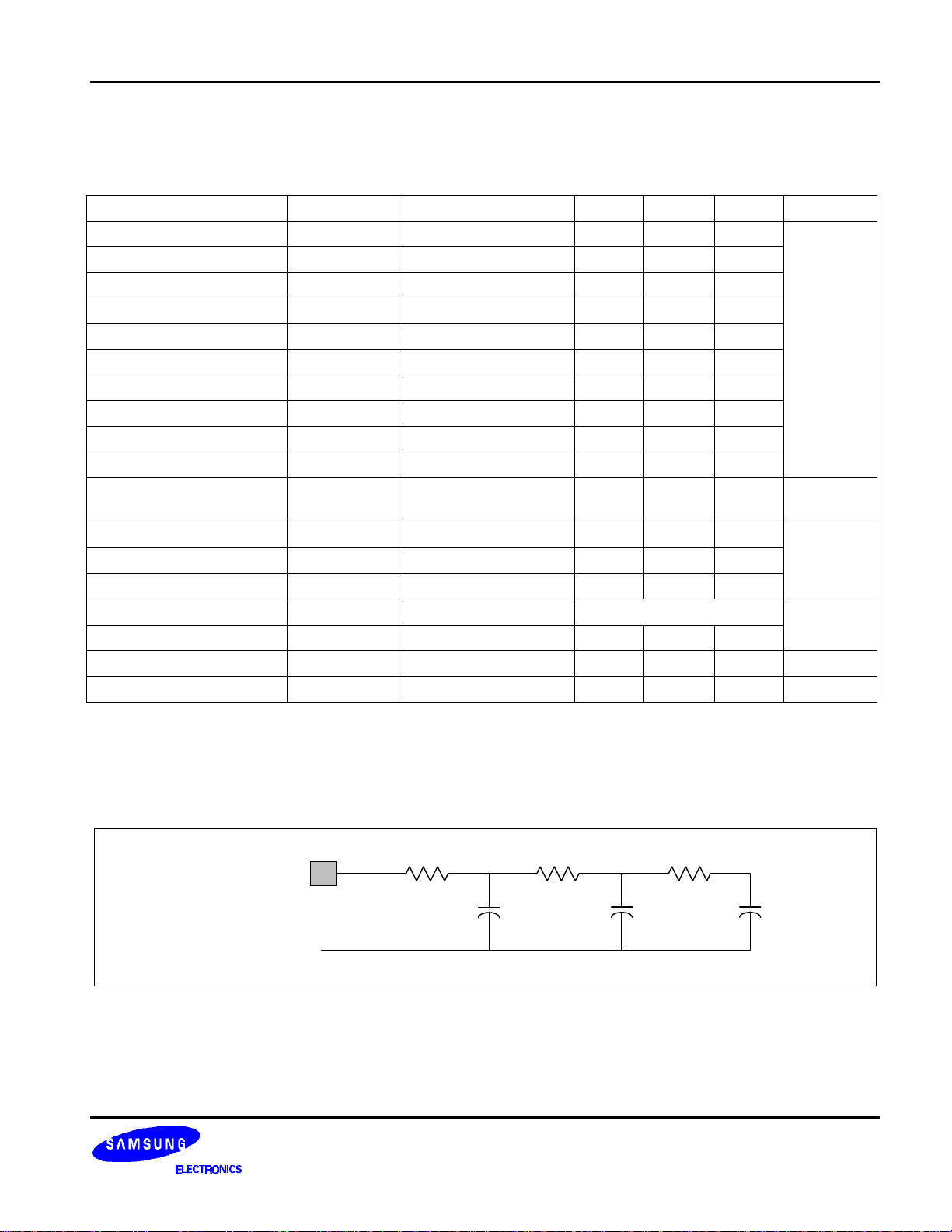

AC CHARACTERISTICS ................................................................................................................................... 17

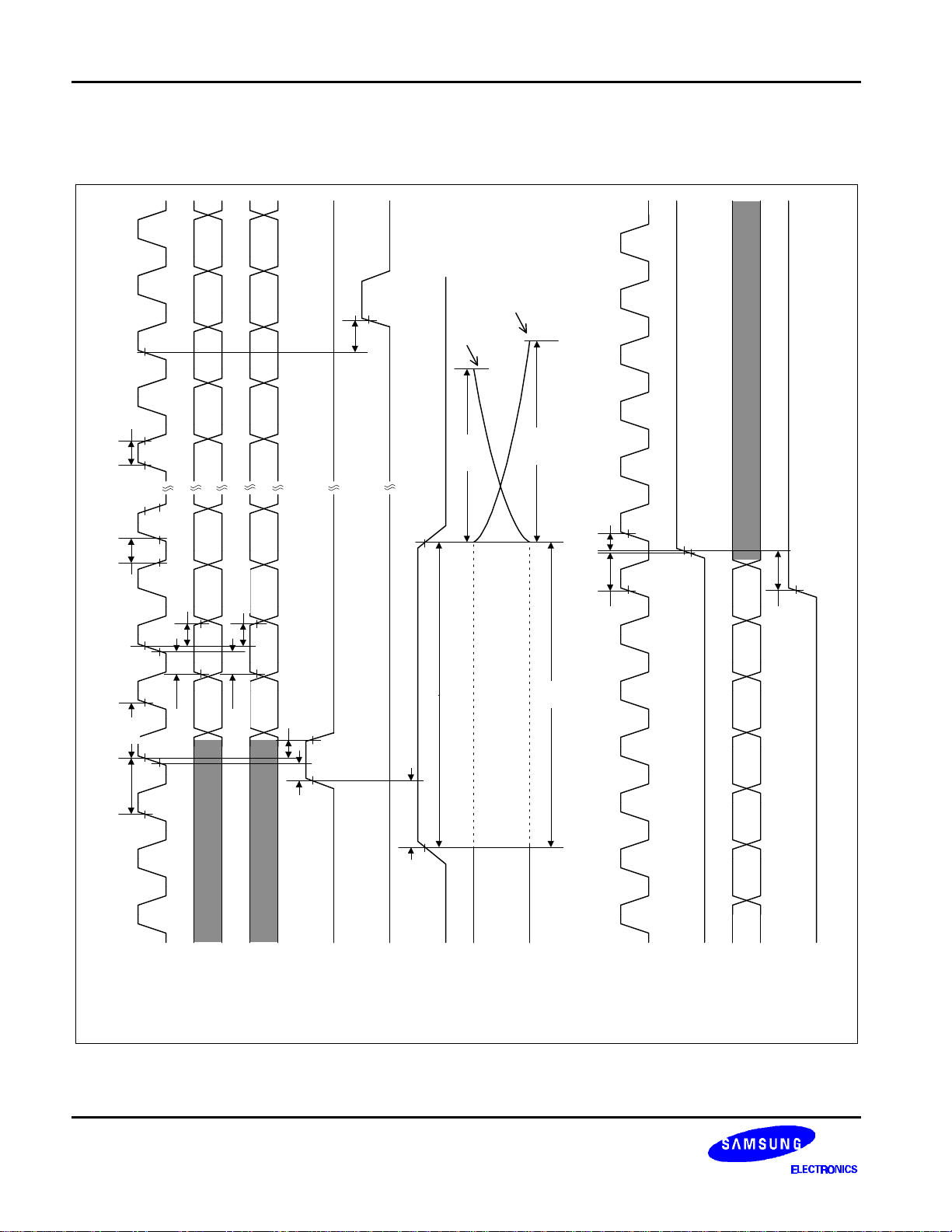

WAVEFORMS...................................................................................................................................................18

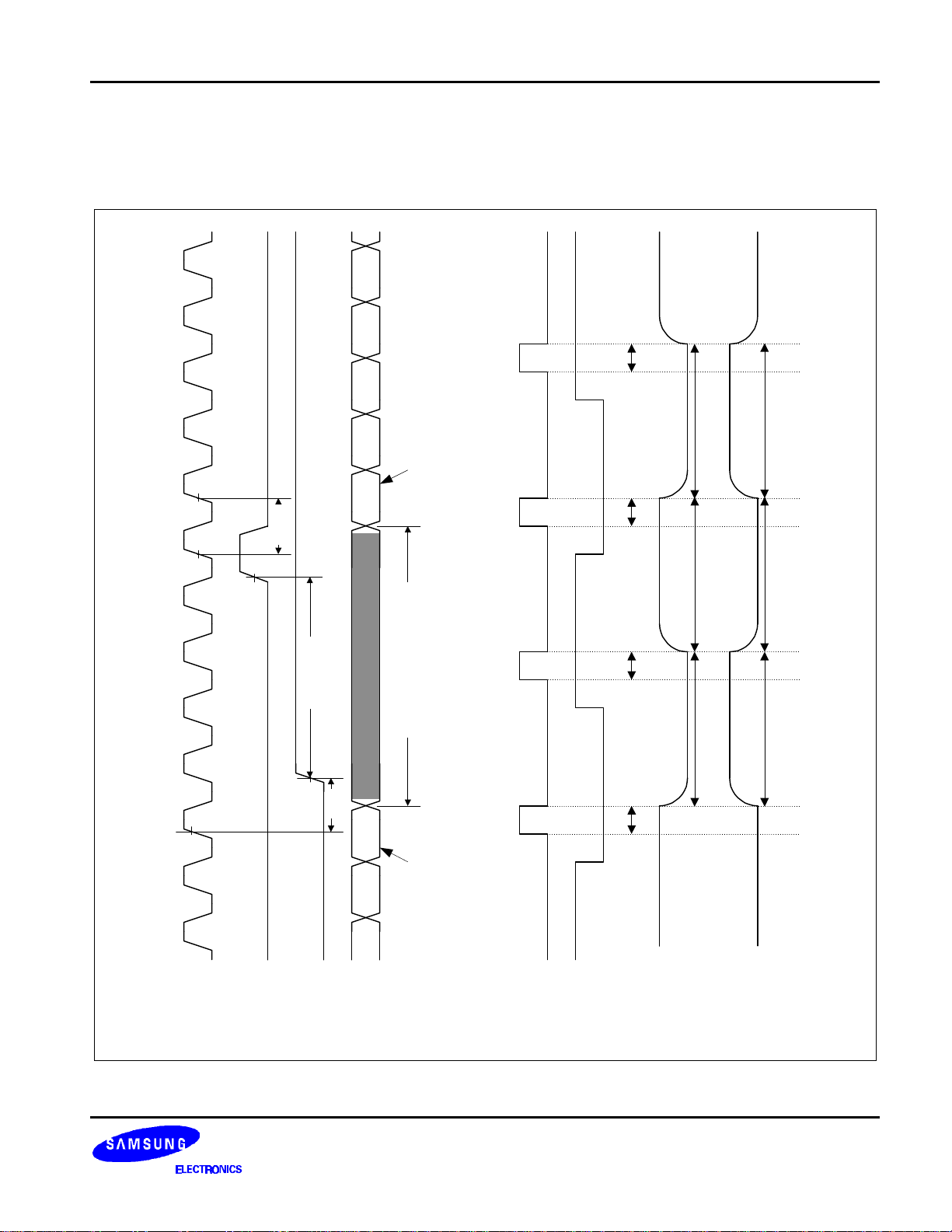

RELATIONSHIPS BETWEEN CLK1, START PULSE (DIO1, DIO2) AND BLANKING PERIOD........................19

Page 4

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

INTRODUCTION

The KS0678 is a 420 channel output, TFT-LCD source driver for 64 gray scale displays. Data input is based on digital input consisting of 6 bits by 6 dots, which can realize a full-color display of 260,000 colors by output of 64 values gamma-corrected.

This device has an internal D/A (Digital-to-Analog) converter for each output and 10 (5-by-2) external power supplies. Because the output dynamic range is as large as 4.8 - 7.8 Vp-p, it is unnecessary to operate level inversion of the LCD's common electrode. Besides, to be able to deal with dot-line inversion when mounted on a single-side, output gray scale voltages with different polarity can be output to the odd number output pins and the even output pins.

KS0678 can be adopted to larger panel, and SHL (shift direction selection) pin makes use of the LCD panel connection conveniently. Maximum operation clock frequency is 45 MHz at a 2.7 V logic operation. it can be applied to the TFT-LCD panel of SXGA+(1400 * RGB) standards.

FEATURES

• TFT active matrix LCD source driver LSI

• 64 Gary-scale is possible through 10 (5 by 2) external power supply and D/A converter

• Both dot inversion display and N-line inversion display are possible

• CMOS level input

• Compatible with gamma-correction

• Input data inversion function (DATPOL1, 2)

• Logic supply voltage: 2.7 - 3.6 V

• LCD driver supply voltage: 5.0 - 8.0 V

• Output dynamic range: 4.8 - 7.8 Vp-p

• Maximum operating frequency: fMAX = 45 MHz (internal data transmission rate at 2.7 V operation)

• Output: 420 outputs

• TCP

Page 5

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

Y001

BLOCK DIAGRAM

POL VGMA1 -

VGMA10

CLK1

RPO2 RPO1

Line Repair

Amp

RPI2

RPI1

Y420

6 6 6 6 6 6

Y419

Y418

Output Buffer

D/A Converter

Data Latch

Y003

Y002

DATPOL1 DATPOL2

D00 - D05 D10 - D15 D20 - D25 D30 - D35 D40 - D45 D50 - D55

CLK2

Data Register

6 6 6 6 6 6

Data Control

70bit Shift Register

DIO2 DIO1

SHL

TEST

Figure 1. KS0678 Block Diagram

Page 6

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

PIN ASSIGNMENTS

Y001 Y002 Y003 Y004

Y417 Y418 Y419 Y420

KS0678

(Top View)

RPI1

RPO1

DIO1

D00 D01 D02 D03 D04 D05 D10 D11 D12 D13 D14 D15 D20 D21 D22 D23 D24 D25

TEST DATPOL2 DATPOL1

POL CLK1 CLK2

VSS1 VGMA1 VGMA2 VGMA3 VGMA4 VGMA5

VSS2

VDD2 VGMA6 VGMA7 VGMA8 VGMA9

VGMA10

SHL

VDD1

D30 D31 D32 D33 D34 D35 D40 D41 D42 D43 D44 D45 D50 D51 D52 D53 D54 D55

DIO2

RPO2

RPI2

Figure 2. KS0678 Pin Assignments

Page 7

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

PIN DESCRIPTIONS

Symbol Pin Name Description

VDD1 Logic power supply 2.7 - 3.6 V VDD2 Driver power supply 5.0 - 8.0 V VSS1 Logic ground Ground (0 V) VSS2 Driver ground Ground (0 V)

Y1 to Y420 Driver outputs The D/A converted 64 gray-scale analog voltage is output.

D0<0:5>

- D5<0:5>

SHL

DIO1 Start pulse input / output

DIO2 Start pulse input / output

DATPOL1 DATPOL2

POL Polarity input

CLK2 Shift clock input

CLK1 Latch input

VGMA1

–

VGMA10

RPI1, RPO1 RPI2, RPO2

TEST Test input

Display data input

Shift direction control

input

Data inversion input

Gamma corrected power

supplies

Line-repair AMP input /

output

The display data is input with a width of 36 bits, gray-scale data (6 bits) by 6 dots (R,G,B) DX0: LSB, DX5: MSB

This pin controls the direction of shift register in cascade connection. The shift direction of the shift registers is as follows. SHL = H: DIO1 input, Y1 → Y420, DIO2 output SHL = L: DIO2 input, Y420 → Y1, DIO1 output

SHL = H: Used as the start pulse input pin. SHL = L: Used as the start pulse output pin.

SHL = H: Used as the start pulse output pin. SHL = L: Used as the start pulse input pin.

DATPOL1, 2 = L: Display data is not inverted DATPOL1 = H: Display data of D0<0:5> - D2<0:5> is inverted DATPOL2 = H: Display data of D3<0:5> - D5<0:5> is inverted

POL = H: The reference voltage for odd number outputs are VGMA1 – VGMA5 and those for even number outputs are VGMA6 – VGMA10. POL = L: The reference voltage for odd number outputs are VGMA6 – VGMA10 and those for even number outputs are VGMA1 – VGMA5.

Refer to the shift register's shift clock input. The display data is loaded to the data register at the rising edge of CLK2.

Latches the contents of the data register at rising edge and transfers them to the D/A converter. Also, after CLK1 input, clears the internal shift register contents. After 1 pulse input on start, operates normally. CLK1 input timing refers to the "Relationships between CLK1 start pulse (DIO1, DIO2) and blanking period" of the switching characteristic waveform. Outputs the G/S data at falling edge.

Input the gamma corrected power supplies from external source. VDD2 > VGMA1 > VGMA2 > ……… > VGMA9 > VGMA10 > VSS2 Keep gray-scale power supply unchanged during the gray-scale voltage output.

The Structure of the line-repair amp is the same as that of the analog output. RPI1 (RPI2) → impedance changed → RPO1 (RPO2)

TEST = L: Normal operation mode TEST = H: Test mode (OP AMP CUT-OFF, Rpd = 15kΩ)

Page 8

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

OPERATION DESCRIPTION

DISPLAY DATA TRANSFER

When DIO1 (or DIO2) pulse is loaded into internal latch on the rising edge of CLK2, DIO1 (or DIO2) pulse enables the operation of data transfer, so display data is valid on the next rising edge of CLK2. Once all the data of 420 channels are loaded into internal latch, it goes into stand-by state automatically, and any new data is not accepted even though CLK2 is provided until next DIO1 (or DIO2) input. When next DIO1 (or DIO2) is provided, new display data is valid on the 2nd rising edge of CLK2 after the rising edge of DIO1 (or DIO2).

EXTENSION OF OUTPUT

Output pin can be adjusted to an extended screen by cascade connection.

(1) SHL = "L"

Connect DIO1 pin of previous stage to the DIO2 pin of next stage and all the input pins except DIO1 and DIO2 are connected together in each device.

(2) SHL = "H"

Connect DIO2 pin of previous stage to the DIO1 pin of next stage and all the input pins except DIO2 and DIO1 are connected together in each device.

RELATIONSHIP BETWEEN INPUT DATA VALUE AND OUTPUT VOLTAGE

The LCD drive output voltages are determined by the input data and 10 (5 by 2) gamma corrected power supplies (VGMA1 - VGMA10). Besides, to be able to deal with dot line inversion when mounted on a singleside, gradation voltages with different polarity can be output to the odd number output pins and the even number output pins. Among 5-by-2 gamma corrected voltages, input gray-scale voltages of the same polarity with respect to the common voltage, for the respective 5 gamma corrected voltages of VGMA1 - VGMA5 and VGMA6 - VGMA10.

SHL = H

OUTPUT

SHL = L

OUTPUT

Y1 Y2 Y3

First Last

D00 - D05 D10 - D15 D20 - D25 D30 - D35 D40 - D45 D50 - D55DATA

D00 - D05 D10 - D15

Last

......

Y3 Y418

D20 - D25

......

Y418

D30 - D35 D40 - D45 D50 - D55DATA

Y419 Y420

First

Figure 3. Relationship between Shift Direction and Output Data

Page 9

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

VDD2

VGMA1

VGMA2

VGMA3 VGMA4

VGMA5 VGMA6

VGMA7 VGMA8

VGMA9

VGMA10

VSS2

00H 08H 10H 18H 20H 28H 30H 38H 3FH

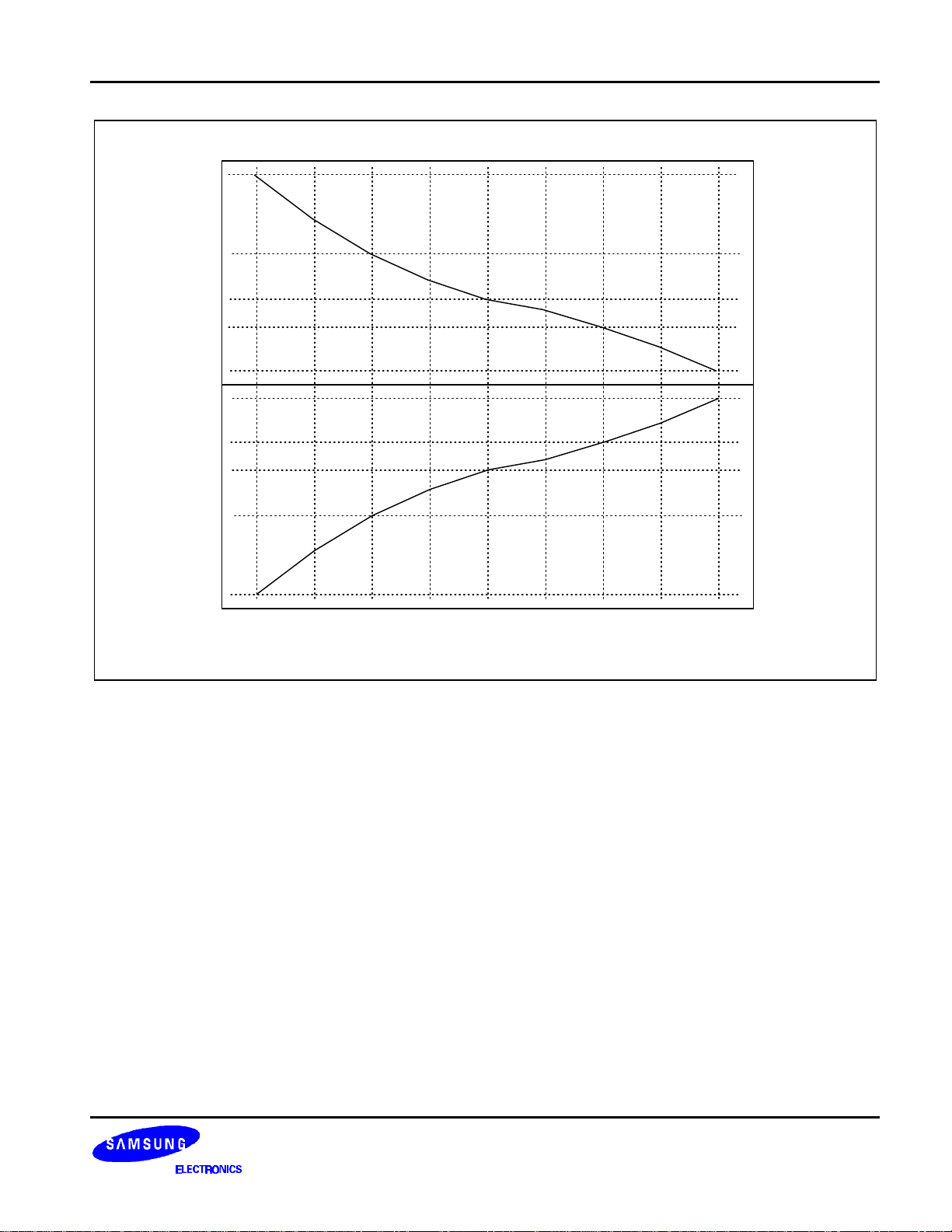

Figure 4. Gamma Correction Curve

VCOM

Input data

Page 10

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

Table 1. Resistor Strings (R0 - R62, unit: ΩΩ)

Name Value Name Value Name Value Name Value

R0 500 R16 330 R32 175 R48 210 R1 500 R17 330 R33 175 R49 220 R2 500 R18 330 R34 170 R50 230 R3 500 R19 320 R35 170 R51 240 R4 500 R20 300 R36 165 R52 250 R5 500 R21 280 R37 165 R53 260 R6 500 R22 270 R38 165 R54 270 R7 500 R23 260 R39 165 R55 290 R8 500 R24 250 R40 170 R56 300

R9 500 R25 240 R41 170 R57 310 R10 500 R26 230 R42 170 R58 320 R11 500 R27 220 R43 175 R59 340 R12 450 R28 210 R44 175 R60 340 R13 450 R29 200 R45 175 R61 340 R14 400 R30 190 R46 180 R62 340 R15 370 R31 180 R47 200

Page 11

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

Table 2. Relationship between Input Data and Output Voltage Value

Input data

00H 01H 02H 03H 04H 05H 06H 07H

08H

09H 0AH 0BH 0CH 0DH 0EH 0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H 1AH 1BH 1CH 1DH 1EH 1FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 1 1 0 0 0 1 0 0 0 0 0 1 0 1 0 0 0 1 1 0 0 0 0 1 1 1 0 0 1 0 0 0 0 0 1 0 0 1 0 0 1 0 1 0 0 0 1 0 1 1 0 0 1 1 0 0 0 0 1 1 0 1 0 0 1 1 1 0 0 0 1 1 1 1 0 1 0 0 0 0 0 1 0 0 0 1 0 1 0 0 1 0 0 1 0 0 1 1 0 1 0 1 0 0 0 1 0 1 0 1 0 1 0 1 1 0 0 1 0 1 1 1 0 1 1 0 0 0 0 1 1 0 0 1 0 1 1 0 1 0 0 1 1 0 1 1 0 1 1 1 0 0 0 1 1 1 0 1 0 1 1 1 1 0 0 1 1 1 1 1

G/S Output voltage

VH0 VH1 VH2 VH3 VH4 VH5 VH6 VH7

VH8

VH9 VH10 VH11 VH12 VH13 VH14 VH15

VH16 VH17 VH18 VH19 VH20 VH21 VH22 VH23

VH24 VH25 VH26 VH27 VH28 VH29 VH30 VH31

VGMA1 + (VGMA2 - VGMA1) × 500 / 7670 VGMA1 + (VGMA2 - VGMA1) × 1000 / 7670 VGMA1 + (VGMA2 - VGMA1) × 1500 / 7670 VGMA1 + (VGMA2 - VGMA1) × 2000 / 7670 VGMA1 + (VGMA2 - VGMA1) × 2500 / 7670 VGMA1 + (VGMA2 - VGMA1) × 3000 / 7670 VGMA1 + (VGMA2 - VGMA1) × 3500 / 7670

VGMA1 + (VGMA2 - VGMA1) × 4000 / 7670 VGMA1 + (VGMA2 - VGMA1) × 4500 / 7670 VGMA1 + (VGMA2 - VGMA1) × 5000 / 7670 VGMA1 + (VGMA2 - VGMA1) × 5500 / 7670 VGMA1 + (VGMA2 - VGMA1) × 6000 / 7670 VGMA1 + (VGMA2 - VGMA1) × 6450 / 7670 VGMA1 + (VGMA2 - VGMA1) × 6900 / 7670 VGMA1 + (VGMA2 - VGMA1) × 7300 / 7670

VGMA2 + (VGMA3 - VGMA2) × 330 / 4140

VGMA2 + (VGMA3 - VGMA2) × 660 / 4140

VGMA2 + (VGMA3 - VGMA2) × 990 / 4140 VGMA2 + (VGMA3 - VGMA2) × 1310 / 4140 VGMA2 + (VGMA3 - VGMA2) × 1610 / 4140 VGMA2 + (VGMA3 - VGMA2) × 1890 / 4140 VGMA2 + (VGMA3 - VGMA2) × 2160 / 4140

VGMA2 + (VGMA3 - VGMA2) × 2420 / 4140 VGMA2 + (VGMA3 - VGMA2) × 2670 / 4140 VGMA2 + (VGMA3 - VGMA2) × 2910 / 4140 VGMA2 + (VGMA3 - VGMA2) × 3140 / 4140 VGMA2 + (VGMA3 - VGMA2) × 3360 / 4140 VGMA2 + (VGMA3 - VGMA2) × 3570 / 4140 VGMA2 + (VGMA3 - VGMA2) × 3770 / 4140 VGMA2 + (VGMA3 - VGMA2) × 3960 / 4140

VGMA1

VGMA2

NOTE: VDD2 > VGMA1 > VGMA2 > VGMA3 > VGMA4 > VGMA5

Page 12

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (Continued)

Input data

20H 21H 22H 23H 24H 25H 26H 27H

28H

29H 2AH 2BH 2CH 2DH 2EH 2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H 3AH 3BH 3CH 3DH 3EH 3FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0

0 0 0 0 1

0 0 0 1 0

0 0 0 1 1

0 0 1 0 0

0 0 1 0 1

0 0 1 1 0

0 0 1 1 1

1 1 0 1 0 0 0 1 0 1 0 0 1 1 0 1 0 1 0 1 0 1 0 1 1 1 0 1 1 0 0 1 0 1 1 0 1 1 0 1 1 1 0 1 0 1 1 1 1 1 1 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 0 1 1 0 0 1 1 1 1 0 1 0 0 1 1 0 1 0 1 1 1 0 1 1 0 1 1 0 1 1 1 1 1 1 0 0 0 1 1 1 0 0 1 1 1 1 0 1 0 1 1 1 0 1 1 1 1 1 1 0 0 1 1 1 1 0 1 1 1 1 1 1 0 1 1 1 1 1 1

G/S Output voltage

VH32 VH33 VH34 VH35 VH36 VH37 VH38 VH39

VH40 VH41 VH42 VH43 VH44 VH45 VH46 VH47

VH48 VH49 VH50 VH51 VH52 VH53 VH54 VH55

VH56 VH57 VH58 VH59 VH60 VH61 VH62 VH63

VGMA3 + (VGMA4 - VGMA3) × 175 / 2765 VGMA3 + (VGMA4 - VGMA3) × 350 / 2765 VGMA3 + (VGMA4 - VGMA3) × 520 / 2765 VGMA3 + (VGMA4 - VGMA3) × 690 / 2765 VGMA3 + (VGMA4 - VGMA3) × 855 / 2765 VGMA3 + (VGMA4 - VGMA3) × 020 / 2765

VGMA3 + (VGMA4 - VGMA3) × 1185 / 2765 VGMA3 + (VGMA4 - VGMA3) × 1350 / 2765

VGMA3 + (VGMA4 - VGMA3) × 1520 / 2765 VGMA3 + (VGMA4 - VGMA3) × 1690 / 2765 VGMA3 + (VGMA4 - VGMA3) × 1860 / 2765 VGMA3 + (VGMA4 - VGMA3) × 2035 / 2765 VGMA3 + (VGMA4 - VGMA3) × 2210 / 2765 VGMA3 + (VGMA4 - VGMA3) × 2385 / 2765 VGMA3 + (VGMA4 - VGMA3) × 2565 / 2765

VGMA4 + (VGMA5 - VGMA4) × 210 / 4260 VGMA4 + (VGMA5 - VGMA4) × 430 / 4260 VGMA4 + (VGMA5 - VGMA4) × 660 / 4260

VGMA4 + (VGMA5 - VGMA4) × 900 / 4260 VGMA4 + (VGMA5 - VGMA4) × 1150 / 4260 VGMA4 + (VGMA5 - VGMA4) × 1410 / 4260 VGMA4 + (VGMA5 - VGMA4) × 1680 / 4260

VGMA4 + (VGMA5 - VGMA4) × 1970 / 4260 VGMA4 + (VGMA5 - VGMA4) × 2270 / 4260 VGMA4 + (VGMA5 - VGMA4) × 2580 / 4260 VGMA4 + (VGMA5 - VGMA4) × 2900 / 4260 VGMA4 + (VGMA5 - VGMA4) × 3240 / 4260 VGMA4 + (VGMA5 - VGMA4) × 3580 / 4260 VGMA4 + (VGMA5 - VGMA4) × 3920 / 4260

VGMA3

VGMA4

VGMA5

Page 13

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

Table 2. Relationship between Input Data and Output Voltage Value (Continued)

Input data

00H 01H 02H 03H 04H 05H 06H 07H

08H

09H 0AH 0BH 0CH 0DH 0EH 0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H 1AH 1BH 1CH 1DH 1EH 1FH

DX5 DX4 DX3 DX2 DX1 DX0

G/S Output voltage

VL0 VL1 VL2 VL3 VL4 VL5 VL6 VL7

VL8

VL9 VL10 VL11 VL12 VL13 VL14 VL15

VL16 VL17 VL18 VL19 VL20 VL21 VL22 VL23

VL24 VL25 VL26 VL27 VL28 VL29 VL30 VL31

VGMA10 + (VGMA9 - VGMA10) × 500 / 7670 VGMA10 + (VGMA9 - VGMA10) × 1000 / 7670 VGMA10 + (VGMA9 - VGMA10) × 1500 / 7670 VGMA10 + (VGMA9 - VGMA10) × 2000 / 7670 VGMA10 + (VGMA9 - VGMA10) × 2500 / 7670 VGMA10 + (VGMA9 - VGMA10) × 3000 / 7670 VGMA10 + (VGMA9 - VGMA10) × 3500 / 7670

VGMA10 + (VGMA9 - VGMA10) × 4000 / 7670 VGMA10 + (VGMA9 - VGMA10) × 4500 / 7670 VGMA10 + (VGMA9 - VGMA10) × 5000 / 7670 VGMA10 + (VGMA9 - VGMA10) × 5500 / 7670 VGMA10 + (VGMA9 - VGMA10) × 6000 / 7670 VGMA10 + (VGMA9 - VGMA10) × 6450 / 7670 VGMA10 + (VGMA9 - VGMA10) × 6900 / 7670 VGMA10 + (VGMA9 - VGMA10) × 7300 / 7670

VGMA9 + (VGMA8 - VGMA9) × 330 / 4140 VGMA9 + (VGMA8 - VGMA9) × 660 / 4140

VGMA9 + (VGMA8 - VGMA9) × 990 / 4140 VGMA9 + (VGMA8 - VGMA9) × 1310 / 4140 VGMA9 + (VGMA8 - VGMA9) × 1610 / 4140 VGMA9 + (VGMA8 - VGMA9) × 1890 / 4140 VGMA9 + (VGMA8 - VGMA9) × 2160 / 4140

VGMA9 + (VGMA8 - VGMA9) × 2420 / 4140 VGMA9 + (VGMA8 - VGMA9) × 2670 / 4140 VGMA9 + (VGMA8 - VGMA9) × 2910 / 4140 VGMA9 + (VGMA8 - VGMA9) × 3140 / 4140 VGMA9 + (VGMA8 - VGMA9) × 3360 / 4140 VGMA9 + (VGMA8 - VGMA9) × 3570 / 4140 VGMA9 + (VGMA8 - VGMA9) × 3770 / 4140 VGMA9 + (VGMA8 - VGMA9) × 3960 / 4140

VGMA10

VGMA9

NOTE: VGMA6 > VGMA7 > VGMA8 > VGMA9 > VGMA10 > VSS2

Page 14

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (Continued)

Input data

20H 21H 22H 23H 24H 25H 26H 27H

28H

29H 2AH 2BH 2CH 2DH 2EH 2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H 3AH 3BH 3CH 3DH 3EH 3FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0

0 0 0 0 1

0 0 0 1 0

0 0 0 1 1

0 0 1 0 0

0 0 1 0 1

0 0 1 1 0

0 0 1 1 1

G/S Output voltage

VL32 VL33 VL34 VL35 VL36 VL37 VL38 VL39

VL40 VL41 VL42 VL43 VL44 VL45 VL46 VL47

VL48 VL49 VL50 VL51 VL52 VL53 VL54 VL55

VL56 VL57 VL58 VL59 VL60 VL61 VL62 VL63

VGMA8 + (VGMA7 - VGMA8) × 175 / 2765 VGMA8 + (VGMA7 - VGMA8) × 350 / 2765 VGMA8 + (VGMA7 - VGMA8) × 520 / 2765 VGMA8 + (VGMA7 - VGMA8) × 690 / 2765

VGMA8 + (VGMA7 - VGMA8) × 855 / 2765 VGMA8 + (VGMA7 - VGMA8) × 1020 / 2765 VGMA8 + (VGMA7 - VGMA8) × 1185 / 2765

VGMA8 + (VGMA7 - VGMA8) × 1350 / 2765 VGMA8 + (VGMA7 - VGMA8) × 1520 / 2765 VGMA8 + (VGMA7 - VGMA8) × 1690 / 2765 VGMA8 + (VGMA7 - VGMA8) × 1860 / 2765 VGMA8 + (VGMA7 - VGMA8) × 2035 / 2765 VGMA8 + (VGMA7 - VGMA8) × 2210 / 2765 VGMA8 + (VGMA7 - VGMA8) × 2385 / 2765 VGMA8 + (VGMA7 - VGMA8) × 2565 / 2765

VGMA7 + (VGMA6 - VGMA7) × 210 / 4260

VGMA7 + (VGMA6 - VGMA7) × 430 / 4260

VGMA7 + (VGMA6 - VGMA7) × 660 / 4260

VGMA7 + (VGMA6 - VGMA7) × 900 / 4260 VGMA7 + (VGMA6 - VGMA7) × 1150 / 4260 VGMA7 + (VGMA6 - VGMA7) × 1410 / 4260 VGMA7 + (VGMA6 - VGMA7) × 1680 / 4260

VGMA7 + (VGMA6 - VGMA7) × 1970 / 4260 VGMA7 + (VGMA6 - VGMA7) × 2270 / 4260 VGMA7 + (VGMA6 - VGMA7) × 2580 / 4260 VGMA7 + (VGMA6 - VGMA7) × 2900 / 4260 VGMA7 + (VGMA6 - VGMA7) × 3240 / 4260 VGMA7 + (VGMA6 - VGMA7) × 3580 / 4260 VGMA7 + (VGMA6 - VGMA7) × 3920 / 4260

VGMA8

VGMA7

VGMA6

Page 15

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

ABSOLUTE MAXIMUM RATINGS

Table 3. Absolute Maximum Ratings (VSS1 = VSS2 = 0 V)

Parameter Symbol Ratings Unit

Logic supply voltage VDD1 -0.3 to 5.5 V

Driver supply voltage VDD2 -0.3 to 9.0 V

VGMA1 - 10 -0.3 to VDD2 + 0.3

RPI1, RPI2 -0.3 to VDD2 + 0.3Input voltage

Others -0.3 to VDD1 + 0.3

DIO1, 2 -0.3 to VDD1 + 0.3

Output voltage

Operating power dissipation Pd 150 mW

Operation temperature Top -20 to 75

Storage temperature Tstg -55 to 125

Y1 to Y420 -0.3 to VDD2 + 0.3

RPO1, RPO2 -0.3 to VDD2 + 0.3

°C °C

CAUTIONS:

If LSIs are stressed beyond those listed above “absolute maximum ratings”, they may be permanently destroyed. These are stress ratings only, and functional operation of the device at these or any other condition beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability. Turn on power order: VDD1 → control signal input → VDD2 → VGMA1 - VGMA10 or VDD1 & VDD2 → control signal input & VGMA1 - VGMA10 Turn off power order: VGMA1 - VGMA10 → VDD2 → control signal input → VDD1

RECOMMENDED OPERATION CONDITIONS

Table 4. Recommended Operation Conditions (Ta = -20 to 75 °°C, VSS1 = VSS2 = 0 V) Parameter Symbol Min. Typ. Max. Unit

Logic supply voltage VDD1 2.7 3.0 3.6 V

Driver supply voltage VDD2 5.0 7.0 8.0 V

Gamma corrected voltage

Driver part output voltage Vyo VSS2 + 0.1 - VDD2 - 0.1 V

Maximum clock frequency fmax VDD1 = 2.7 V 45 MHz

VGMA1 - VGMA5 0.5 VDD2 - VDD2 - 0.1 V

VGMA6 - VGMA10 VSS2 + 0.1 - 0.5 VDD2 V

Output load capacitance CL - - 150 pF/PIN

Page 16

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

DC CHARACTERISTICS

Table 5. DC Characteristics (Ta = -20 to 75 °°C, VDD1 = 2.7 to 3.6 V, VDD2 = 5.0 to 8.0 V, VSS1 = VSS2 = 0 V)

Parameter Symbol Condition Min. Typ. Max. Unit

High level input voltage VIH 0.7VDD1 - VDD1

Low level input voltage VIL 0 - 0.3VDD1

SHL, CLK2, D00 - D55, CLK1, POL, DATPOL1,

Input leakage current IL -1 - 1

Input Capacitance Cin

High level output

voltage

Low level output

voltage

VOH DIO1 (DIO2), IO = -1.0 mA VDD1-0.5 - -

VOL DIO1 (DIO2), IO = +1.0 mA - - 0.5

Resistor R0 - R62

IVOH1

DATPOL2, DIO1 (DIO2)

Refer to Table 1. Resistor

Strings

VDD2 = 8.0 V,

Vx = 2.5 V, Vyo = 7.5 V

(1)

- 5 10 pF

Rn × 0.7 - Rn × 1.3 Ω

- -1.0 -0.5 mA

Driver output current

IVOL1

IVOH2

Line-repair Driver

output current

IVOL2

VDD2 = 8.0 V,

Vx = 5.5 V, Vyo = 0.5 V

VDD2 = 8.0 V,

Vx = 2.5 V, Vyo = 7.5 V

VDD2 = 8.0 V,

Vx = 5.5 V, Vyo = 0.5 V

(1)

0.5 1.0 - mA

- -3.0 -1.5 mA

1.5 3.0 - mA

µA

Output voltage

deviation

Output RMS voltage

deviation

∆VO

dVrms

Input data : 00H to 3FH -

(2)

Input data : 00H to 3FH -

±10 ±20

±5 ±15

Output voltage range Vyo Input data : 00H to 3FH VSS2 + 0.1 - VDD2 - 0.1 V

Logic part dynamic

current

IDD1 VDD1 = 3.0 V

(3)

- 4.0 5.5

VDD1 = 3.0 V, VDD2 = 8.0 V,

Driver part dynamic

current

NOTES:

1. Vyo is the output voltage of analog output pins Y1 to Y420. Vx is the voltage applied to analog output pins Y1 to Y420.

2. dVrms is a maximum deviation value from ideal difference between high output and low output at the same gray scale.

3. CLK1 period is defined to be 15 µs at fCLK2 = 30.5 MHz, data pattern = 101010 (checkerboard pattern), Ta = 25 °C

4. The current consumption per driver when SXGA+ single-sided mounting (10 drivers) is connected in cascade

5. No load

IDD2

VGMA1 = 7.5 V, VGMA5 = 4.5 V, VGMA6 = 3.5 V,

VGMA10 = 0.5 V

- 4.0 7.0

(3) (4) (5)

Page 17

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

AC CHARACTERISTICS

Table 6. AC Characteristics (Ta = -20 to 75 °°C, VDD1 = 2.7 to 3.6 V, VDD2 = 5.0 to 8.0 V, VSS1 = VSS2 = 0 V)

Parameter Symbol Condition Min. Typ. Max. Unit

Clock pulse width PWCLK - 22 - -

Clock pulse low period PWCLK(L) - 6 - -

Clock pulse high period PWCLK(H) - 6 - -

Data setup time tSETUP1 Refer to NOTE1 2 - -

Data hold time tHOLD1 Refer to NOTE1 2 - -

Start pulse setup time tSETUP2 Refer to NOTE1 2 - -

Start pulse hold time tHOLD2 Refer to NOTE1 2 - -

DATPOL-CLK2 setup time tSETUP4 Refer to NOTE1 2 - -

DATPOL-CLK2 hold time tHOLD4 Refer to NOTE1 2 - -

Start pulse delay time tPLH1 CL = 20pF - - 12

CLK1 setup time tSETUP3 - 1 - -

Driver output delay time1 tPHL1 Refer to NOTE2, 4 - - 4 Driver output delay time2 tPHL2 Refer to NOTE3, 4 - - 8

CLK1 pulse high period PWCLK1 - 0.2 - -

Data invalid period tINV

DIO1 (2) ↑ → CLK2 ↑

Last data timing tLDT - 1 - -

CLK1-CLK2 time tCLK1 - CLK2

POL-CLK1 time tPOL - CLK1

CLK1 ↑ → CLK2 ↑

POL ↑or ↓ → CLK1 ↑

8 - - ns 6 - - ns

CLK2

period

µs

CLK2

period

NOTES:

1. Input condition (VIH = 0.7 VDD1, VIL = 0.3 VDD1)

2. The value is specified when the drive voltage value reaches the target output voltage level of 90%

3. The value is specified when the drive voltage value reaches the target output voltage level of 6-bit accuracy.

4. Yout Load Condition

10k

YOUT

Ω

VCOM = 0.5VDD2

20k

Ω

30pF 30pF 30pF

20k

Ω

Figure 5. Yout Load Condition

Page 18

KS0678 6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER

INVALID DATA

(DIO1 output)

POL

tPOL-CLK1

WAVEFORMS (VIH = 0.7 VDD1, VIL = 0.3 VDD1)

PWCLK(H)

VIL

VIH

PWCLK(L)

1st LAST-1 LAST

tINV

tHOLD1

1st

DATA

tSETUP1

tHOLD4

tSETUP4

tHOLD2

tPLH1

Target output voltage

Target output voltage 90%

tPHL1

PWCLK1

tPHL2

HI-Z

tCLK1-CLK2

tLDT

0.5VDD1

LAST

DATA

PWCLK

CLK2

INVALID DATA

DXX

DATPOL1

DATPOL2

tSETUP2

DIO1 input

(DIO2 input)

tSETUP3

CLK1

DIO2 output

Figure 6. Waveforms

Y(1:420)

CLK2

CLK1

DXX

Page 19

6 BIT 420 CHANNEL TFT-LCD SOURCE DRIVER KS0678

VGMA6 - VGMA10VGMA1 - VGMA5

number output

VGMA1 - VGMA5

RELATIONSHIPS BETWEEN CLK1, START PULSE (DIO1, DIO2) AND BLANKING PERIOD

2nd

DATA

First data in

1st

the next line

DATA

VGMA6 - VGMA10

CLK2

1CLK2

0.5VDD1

DIO1 input

(DIO2 input)

3CLK2(Min.)

CLK1

INVALID DATA

tLDT

Nth

N-1th

DXX

blanking time = Min. 5CLK2

DATA

Last data

CLK1

HI-Z HI-Z HI-Z

HI-Z

POL

VGMA1 - VGMA5

VGMA6 - VGMA10

Y2N-1:odd

number output

Y2N:even

Figure 7. Waveforms
