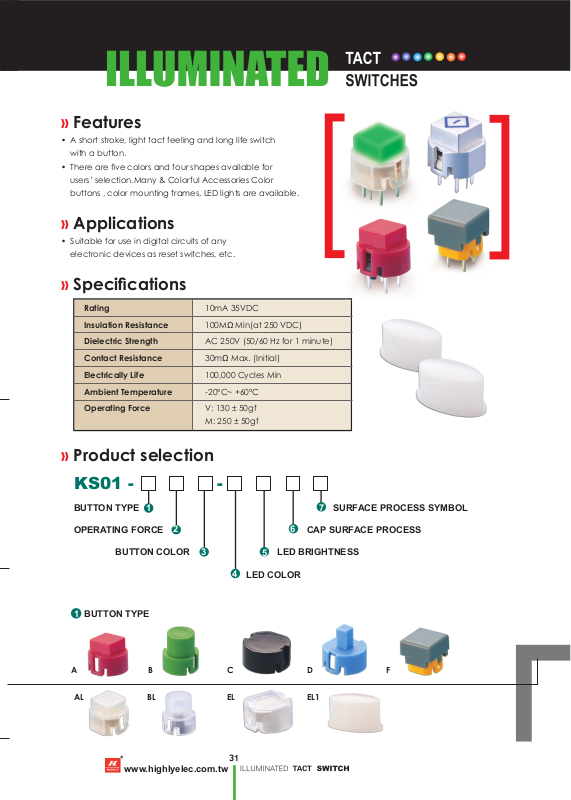

Datasheet KS01-AV-RED Specification

www.highlyelec.com.tw

» Features

• A short stroke, light tact feeling and long life switch

with a button.

• There are  ve colors and four shapes available for

users’ selection.Many & Colorful Accessories Color

buttons , color mounting frames, LED lights are available.

» Applications

• Suitable for use in digital circuits of any

electronic devices as reset switches, etc.

» Speci cations

Rating 10mA 35VDC

Insulation Resistance 100MΩ Min(at 250 VDC)

Dielectric Strength AC 250V (50/60 Hz for 1 minute)

Contact Resistance 30mΩ Max. (Initial)

Electrically Life 100,000 Cycles Min

Ambient Temperature -20°C~ +60°C

Operating Force V: 130 ± 50gf

M: 250 ± 50gf

» Product selection

KS01 - -

BUTTON TYPE SURFACE PROCESS SYMBOL

OPERATING FORCE CAP SURFACE PROCESS

BUTTON COLOR LED BRIGHTNESS

LED COLOR

1 BUTTON TYPE

A B C D F

AL BL EL EL1

31

1

2

3

4

5

6

7

www.highlyelec.com.tw

4 LED COLOR

1 Red

2 Yellow

3 Green

4 Blue

5 White

6 Pure Green

12 Red / Yellow

13 Red / Green

23 Yellow/ Green

_ Non-illuminated

2 OPERATING FORCE

V 130 ± 50gf

M 250 ± 50gf

3 BUTTON COLOR

_ illuminated

R Red

Y Yellow

G Green

B Blue

W White

BK Black

5 LED BRIGHTNESS

�

_ Standard

C Customization

6 CAP SURFACE PROCESS

1 Misty Silver

2 Bright Silver

3 Gold

7 CAP SURFACE

PROCESS SYMBOL

01 02 03

04 05 06

07 08 09

10 11 12

13 14

ok

ok

32

» Operating characteristics

�

Unit: mm

Dimensions Circuit P.C.B Layout

KS01-A

» LED Speci cations

Color VR IF Recommended VF

Operating Current Nom Max

Red DC 5V 20mA 20mA 1.7V 2.4V

Green DC 5V 20mA 20mA 1.9V 2.4V

Yellow DC 5V 20mA 20mA 1.9V 2.4V

Blue DC 5V 20mA 20mA 3.0V 3.6V

White DC 5V 20mA 20mA 3.0V 3.6V

www.highlyelec.com.tw

» Operating characteristics

�

Unit: mm

Dimensions Circuit P.C.B Layout

KS01-B

KS01-C

KS01-D

KS01-F

33

www.highlyelec.com.tw

» Operating characteristics

�

Unit: mm

Dimensions Circuit P.C.B Layout

KS01-AL

KS01-BL

KS01-EL

KS01-EL1

34
