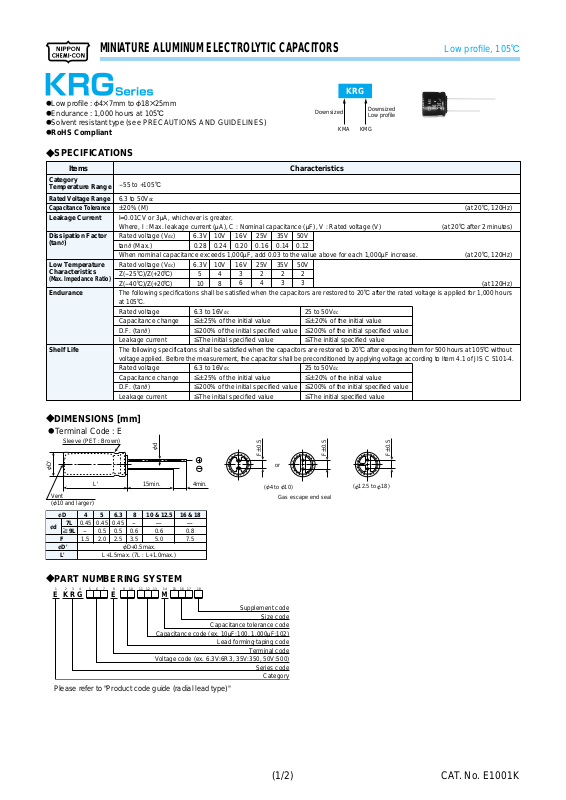

Page 1
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
@Low profi le : F4B7mm to F18B25mm
@Endurance : 1,000 hours at 105C
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
-
55 to +105C
6.3 to 50Vdc
P20% (M)
I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
16V
Rated voltage (V
tanE (Max.)
dc)
0.28
0.24
10V
6.3V
0.20
25V
0.16
When nominal capacitance exceeds 1,000MF, add 0.03 to the value above for each 1,000MF increase.
16V
Rated voltage (V
Z(
-
25C)/Z(+20C)
Z(
-
40C)/Z(+20C)
dc)
4
5
8
10
10V
6.3V
25V
3
6
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 105C.
Rated voltage 6.3 to 16V
dc 25 to 50Vdc
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage 6.3 to 16V
dc 25 to 50Vdc
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
Low profi le, 105
C
KRG
Downsized
Characteristics
35V
50V
0.14
0.12
35V
2
4
50V
2
2
3
3
Downsized
Low profile
KMGKMA
(at 20C, 120Hz)
(at 20C after 2 minutes)
(at 20C, 120Hz)
(at 120Hz)
DIMENSIONS [mm]
?
@Terminal Code : E
Sleeve (PET : Brown)
FD'
L' 15min. 4min.
Vent
(F10 and larger)
4
fD
0.45
7L
fd
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E K RG A A A E A A A A A A A A NM
fD'
L'
F
]9L
-
1.5
6.3
5
0.45
0.45
0.5
0.5
2.5
2.0
FD+0.5max.
L+1.5max. (7L : L+1.0max.)
Please refer to "Product code guide (radial lead type)"
Fd
8
10 & 12.5
-
0.6
3.5
16 & 18
-
0.6
5.0
Capacitance code (ex. 10MF:100, 1,000MF:102)
Voltage code (ex. 6.3V:6R3, 35V:350, 50V:500)
-
0.8
7.5
FP0.5
or
(F4 to F10)
Gas escape end seal
Supplement code
Size code
Capacitance tolerance code
Lead forming·taping code
Terminal code
Series code
Category
FP0.5
FP0.5
(F12.5 to F18)
(1/2)
CAT. No. E1001K
Page 2
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
Cap
WV
dc)
(V
6.3
10,000 18B20 0.55 1,440 EKRG6R3ESS103MM20S
10
10,000 18B25 0.51 1,700 EKRG100ESS103MM25S
16
25
: Enter the appropriate lead forming or taping code.
SS
Case size
(mF)
fDbL(mm)
47 5B7 0.28 50 EKRG6R3ESS470ME07D
330 6.3B9 0.28 175 EKRG6R3ESS331MF09D
1,000 10B9 0.28 365 EKRG6R3ESS102MJ09S
4,700 16B15 0.37 1,010 EKRG6R3ESS472ML15S
6,800 18B15 0.43 1,190 EKRG6R3ESS682MM15S
22 4B7 0.24 35 EKRG100ESS220MD07D
100 5B9 0.24 93 EKRG100ESS101ME09D
100 6.3B7 0.24 80 EKRG100ESS101MF07D
220 6.3B9 0.24 154 EKRG100ESS221MF09D
470 8B9 0.24 272 EKRG100ESS471MH09D
1,000 10B12.5 0.24 445 EKRG100ESS102MJC5S
2,200 12.5B15 0.27 690 EKRG100ESS222MK15S
3,300 16B15 0.30 940 EKRG100ESS332ML15S
4,700 18B15 0.33 1,120 EKRG100ESS472MM15S
6,800 18B20 0.39 1,330 EKRG100ESS682MM20S
33 5B7 0.20 53 EKRG160ESS330ME07D
47 6.3B7 0.20 68 EKRG160ESS470MF07D
100 6.3B7 0.20 97 EKRG160ESS101MF07D
220 8B9 0.20 205 EKRG160ESS221MH09D
330 8B9 0.20 251 EKRG160ESS331MH09D
470 10B9 0.20 290 EKRG160ESS471MJ09S
1,000 12.5B13 0.20 515 EKRG160ESS102MK13S
2,200 16B15 0.23 830 EKRG160ESS222ML15S
3,300 18B15 0.26 1,050 EKRG160ESS332MM15S
4,700 18B20 0.29 1,260 EKRG160ESS472MM20S
6,800 18B25 0.35 1,560 EKRG160ESS682MM25S
10 4B7 0.16 30 EKRG250ESS100MD07D
22 5B7 0.16 46 EKRG250ESS220ME07D
33 6.3B7 0.16 63 EKRG250ESS330MF07D
47 5B9 0.16 75 EKRG250ESS470ME09D
47 6.3B7 0.16 71 EKRG250ESS470MF07D
100 6.3B9 0.16 121 EKRG250ESS101MF09D
330 10B9 0.16 270 EKRG250ESS331MJ09S
tane
Rated ripple
current
(mArms/
105c,120Hz)
Part No.
Low profi le, 105
Cap
WV
dc)
(V
470 10B12.5 0.16 370 EKRG250ESS471MJC5S
1,000
25
2,200
3,300
4,700
10 5B7 0.14 36 EKRG350ESS100ME07D
22 6.3B7 0.14 57 EKRG350ESS220MF07D
33 5B9 0.14 67 EKRG350ESS330ME09D
33 6.3B7 0.14 64 EKRG350ESS330MF07D
100 8B9 0.14 155 EKRG350ESS101MH09D
35
220 10B9 0.14 235 EKRG350ESS221MJ09S
330 10B12.5 0.14 340 EKRG350ESS331MJC5S
470 12.5B13 0.14 415 EKRG350ESS471MK13S
1,000
2,200
1.0 4B7 0.12 10 EKRG500ESS1R0MD07D
1.0 5B9 0.12 12 EKRG500ESS1R0ME09D
2.2 4B7 0.12 15 EKRG500ESS2R2MD07D
2.2 5B9 0.12 18 EKRG500ESS2R2ME09D
3.3 4B7 0.12 18 EKRG500ESS3R3MD07D
3.3 5B9 0.12 22 EKRG500ESS3R3ME09D
4.7 4B7 0.12 25 EKRG500ESS4R7MD07D
4.7 5B9 0.12 27 EKRG500ESS4R7ME09D
10 5B9 0.12 46 EKRG500ESS100ME09D
50
10 6.3B7 0.12 44 EKRG500ESS100MF07D
22 5B9 0.12 61 EKRG500ESS220ME09D
22 6.3B7 0.12 57 EKRG500ESS220MF07D
33 6.3B9 0.12 80 EKRG500ESS330MF09D
47 6.3B9 0.12 95 EKRG500ESS470MF09D
100 10B9 0.12 170 EKRG500ESS101MJ09S
220 10B12.5 0.12 290 EKRG500ESS221MJC5S
330 12.5B13 0.12 370 EKRG500ESS331MK13S
470 16B15 0.12 535 EKRG500ESS471ML15S
1,000
Case size
(mF)
fDbL(mm)
12.5B15 0.16 590 EKRG250ESS102MK15S
18B15 0.19 970 EKRG250ESS222MM15S
18B20 0.22 1,220 EKRG250ESS332MM20S
18B25 0.25 1,470 EKRG250ESS472MM25S
16B15 0.14 720 EKRG350ESS102ML15S
18B20 0.17 1,110 EKRG350ESS222MM20S
18B20 0.12 830 EKRG500ESS102MM20S
tane
Rated ripple
current
(mArms/
105c,120Hz)
Part No.
C
RATED RIPPLE CURRENT MULTIPLIERS
?
@Frequency Mul ti pli ers
Capacitance (mF)
Frequency (Hz)
to 4.7
10 to 47
100 to 1,000
2,200 to
50
0.65
0.75
0.80
0.85
120
1.00
1.00
1.00
1.00
300
1.35
1.25
1.15
1.03
1k
1.75
1.50
1.30
1.05
10k
2.30
1.75
1.40
1.08
100k
2.50
1.80
1.50
1.08
(2/2)
CAT. No. E1001K
