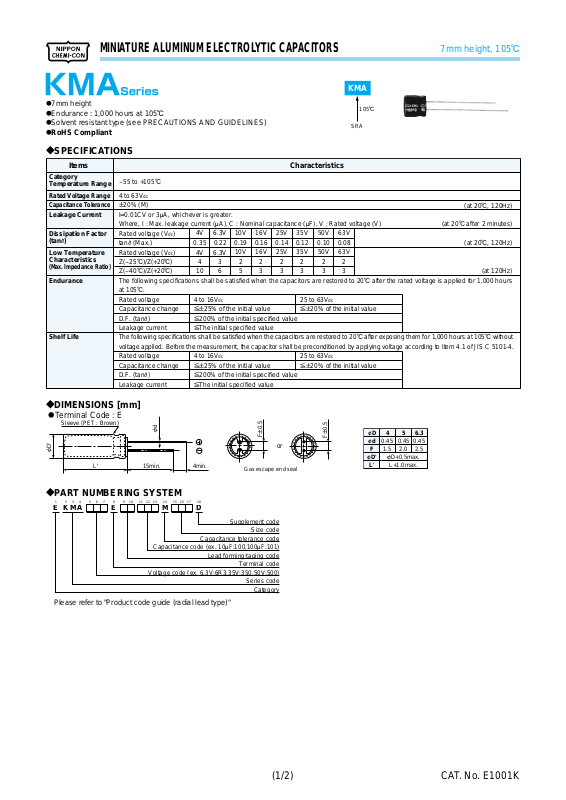

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
@7mm height
@Endurance : 1,000 hours at 105C
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
-
55 to +105C
4 to 63Vdc
P20% (M)
I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Rated voltage (V
tanE (Max.)
Rated voltage (V
Z(
-
25C)/Z(+20C)
Z(
-
40C)/Z(+20C)
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 105C.
Rated voltage 4 to 16V
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage 4 to 16V
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
4V
dc)
dc)
6.3V
0.35
0.22
4V
6.3V
4
3
10
6
dc 25 to 63Vdc
dc 25 to 63Vdc
10V
0.19
10V
2
5
16V
0.16
16V
7mm height, 105
C
KMA
105C
SRA
Characteristics
(at 20C, 120Hz)
25V
0.12
0.14
35V
25V
2
2
2
3
3
3
0.10
50V
2
3
0.08
63V
2
3
63V
50V
35V
(at 20C after 2 minutes)
(at 20C, 120Hz)
(at 120Hz)
DIMENSIONS [mm]
?
@Terminal Code : E
Sleeve (PET : Brown)
FD'
L' 15min. 4min.
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E KMA AA A E A A A A A A A A DM
Fd
Capacitance tolerance code
Capacitance code (ex. 10MF:100,100MF:101)
Voltage code (ex. 6.3V:6R3,35V:350,50V:500)
Please refer to "Product code guide (radial lead type)"
FP0.5
Gas escape end seal
Supplement code
Size code
Lead formingยทtaping code
Terminal code
Series code
Category
FP0.5
or
fD
fd
F
fD'
L'
0.45
0.45
2.0
1.5
FD+0.5max.
L+1.0max.
0.45
2.5
6.3
5
4
(1/2)
CAT. No. E1001K
Page 2
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
Cap
WV
dc)
(V
4
6.3
10
16
25
: Enter the appropriate lead forming or taping code.
SS
Case size
(mF)
fDbL(mm)
33 4B7 0.35 26 EKMA4R0ESS330MD07D
47 4B7 0.35 34 EKMA4R0ESS470MD07D
100 5B7 0.35 61 EKMA4R0ESS101ME07D
220 6.3B7 0.35 95 EKMA4R0ESS221MF07D
22 4B7 0.22 31 EKMA6R3ESS220MD07D
47 5B7 0.22 47 EKMA6R3ESS470ME07D
33 5B7 0.19 43 EKMA100ESS330ME07D
100 6.3B7 0.19 80 EKMA100ESS101MF07D
10 4B7 0.16 25 EKMA160ESS100MD07D
22 5B7 0.16 39 EKMA160ESS220ME07D
47 6.3B7 0.16 59 EKMA160ESS470MF07D
100 6.3B7 0.16 97 EKMA160ESS101MF07D
33 6.3B7 0.14 53 EKMA250ESS330MF07D
47 6.3B7 0.14 71 EKMA250ESS470MF07D
tane
Rated ripple
current
(mArms/
105c,120Hz)
Part No.
7mm height, 105
Cap
(V
WV
dc)
35
50
63
Case size
(mF)
fDbL(mm)
4.7 4B7 0.12 20 EKMA350ESS4R7MD07D
10 5B7 0.12 30 EKMA350ESS100ME07D
22 6.3B7 0.12 47 EKMA350ESS220MF07D
33 6.3B7 0.12 64 EKMA350ESS330MF07D
1.0 4B7 0.10 10 EKMA500ESS1R0MD07D
2.2 4B7 0.10 15 EKMA500ESS2R2MD07D
3.3 4B7 0.10 18 EKMA500ESS3R3MD07D
4.7 5B7 0.10 23 EKMA500ESS4R7ME07D
10 6.3B7 0.10 34 EKMA500ESS100MF07D
22 6.3B7 0.10 57 EKMA500ESS220MF07D
1.0 4B7 0.08 11 EKMA630ESS1R0MD07D
2.2 4B7 0.08 17 EKMA630ESS2R2MD07D
3.3 5B7 0.08 21 EKMA630ESS3R3ME07D
4.7 6.3B7 0.08 26 EKMA630ESS4R7MF07D
10 6.3B7 0.08 43 EKMA630ESS100MF07D
tane
Rated ripple
current
(mArms/
105c,120Hz)
C
Part No.
(2/2)
CAT. No. E1001K
