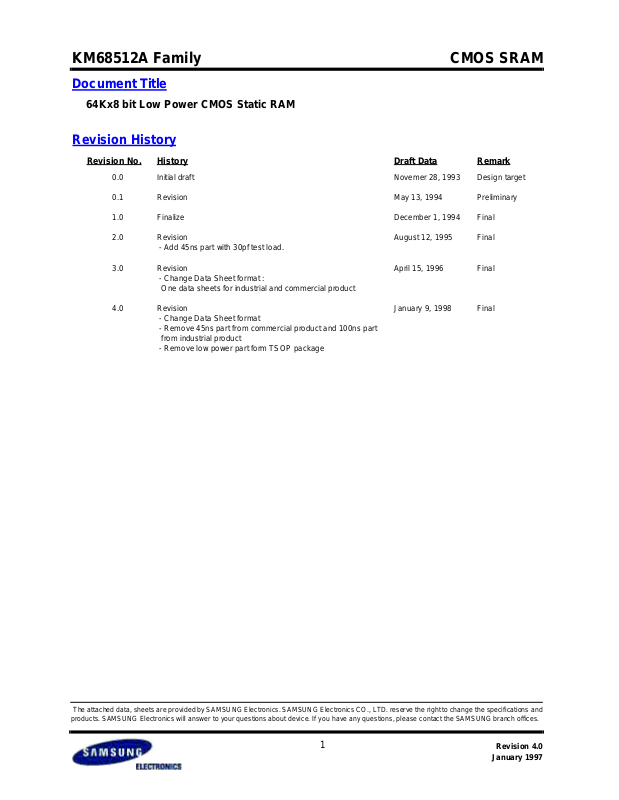

KM68512A Family CMOS SRAM
Document Title
64Kx8 bit Low Power CMOS Static RAM
Revision History
Revision No.
0.0
0.1
1.0
2.0
3.0
4.0
History
Initial draft
Revision
Finalize
Revision
- Add 45ns part with 30pf test load.
Revision
- Change Data Sheet format :
One data sheets for industrial and commercial product
Revision
- Change Data Sheet format
- Remove 45ns part from commercial product and 100ns part
from industrial product
- Remove low power part form TSOP package
Draft Data
Novemer 28, 1993
May 13, 1994
December 1, 1994
August 12, 1995
April 15, 1996
January 9, 1998
Remark
Design target
Preliminary
Final
Final
Final
Final
The attached data, sheets are provided by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the specifications and
products. SAMSUNG Electronics will answer to your questions about device. If you have any questions, please contact the SAMSUNG branch offices.
1
Revision 4.0
January 1997
Page 2
KM68512A Family CMOS SRAM
64Kx8 bit Low Power CMOS Static RAM
FEATURES
• Process Technology: Poly Load
• Organization: 64Kx8
• Power Supply Voltage: 4.5~5.5V
• Low Data Retention Voltage: 2V(Min)
• Three state output and TTL Compatible
• Package Type: 32-SOP-525, 32-TSOP1-0820F
GENERAL DESCRIPTION
The KM68512A families are fabricated by SAMSUNG′s
advanced CMOS process technology. The families support
various operating temperature ranges and have various
package types for user flexibility of system design. The
families also support low data retention voltage for battery
back-up operation with low data retention current.
PRODUCT FAMILY
Product Family Operating Temperature VCC Range Speed
(ISB1, Max)
KM68512AL
KM68512AL-L 20µA
KM68512ALI
KM68512ALI-L 50µA
PIN DESCRIPTION
1
N.C
2
N.C
A14
3
A12
4
A7
5
A6
6
A5
7
A4
8
A3
A2
A1
A0
I/O1
I/O2
I/O3
VSS
32-SOP
9
10
11
12
13
14
15
16
Name Function
CS1, CS2 Chip Select Inputs
OE Output Enable Input
WE Write Enable Input
A0~A15 Address Inputs
I/O1~I/O8 Data Inputs/Outputs
Vcc Power
Vss Ground
N.C No Connection
Commercial (0~70°C)
4.5 to 5.5V
Industrial (-40~85°C) 70ns
VCC
32
A15
31
CS2
30
A11
A13
CS2
A15
VCC
A14
A12
WE
1
A9
2
A8
3
4
5
6
7
8
NC
9
NC
10
11
12
A7
13
A6
14
A5
15
A4
16
32-TSOP
Type1 - Forward
WE
29
A13
28
A8
27
A9
26
25
A11
24
OE
23
A10
22
CS1
21
I/O8
20
I/O7
19
I/O6
18
I/O5
17
I/O4
55/70ns

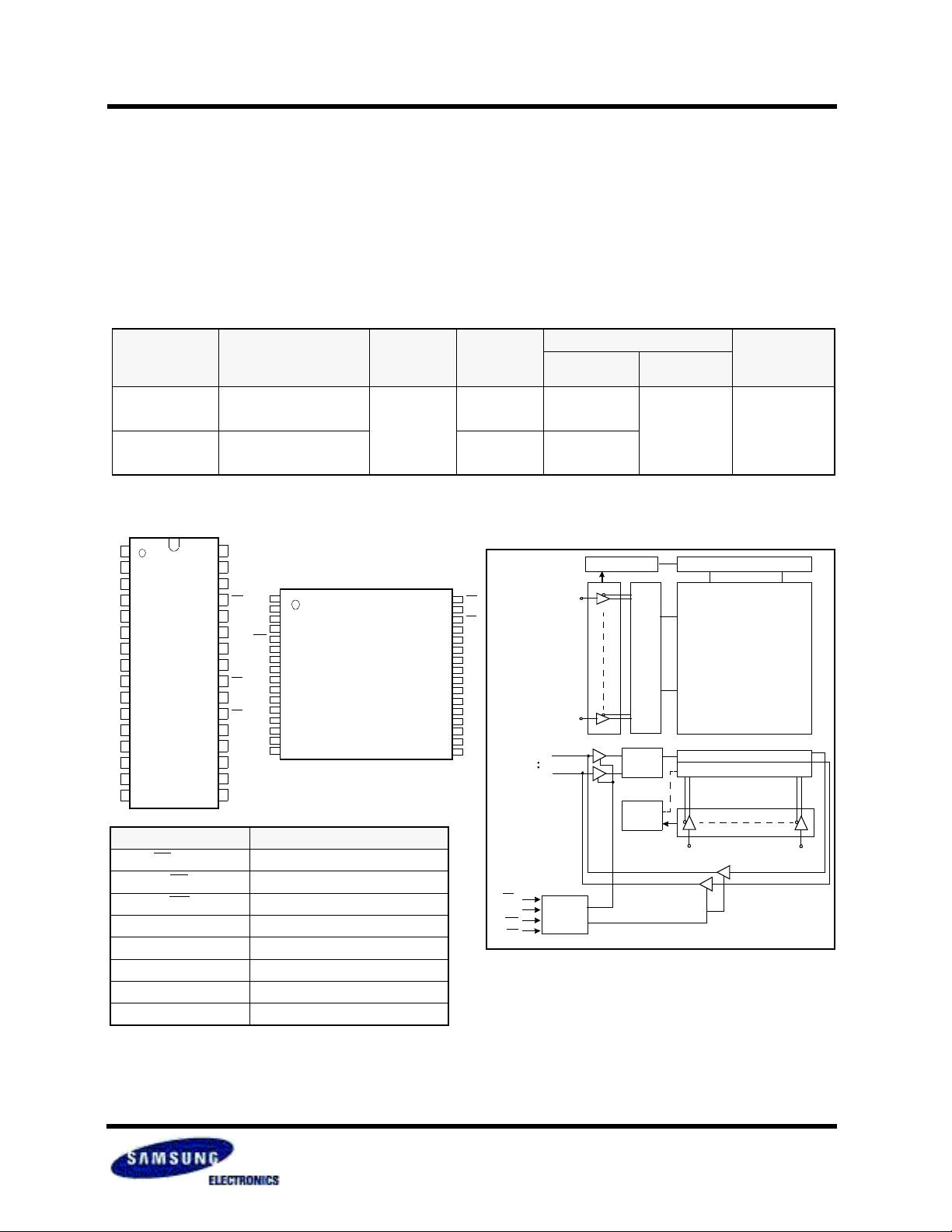

FUNCTIONAL BLOCK DIAGRAM
I/O1
I/O8
A3
A4
A5
A6
A7
A12
A13
A14
A15
Control
Logic
32
OE
A10
31
CS1
30
I/O8
29
I/O7
28
27
I/O6
26
I/O5
25
I/O4
24
VSS
23
I/O3
22
I/O2
21
I/O1
20
A0
19
A1
18
A2
17
A3
CS1
CS2
WE
OE
Power Dissipation
Standby
100µA
100µA
Clk gen.
Row
select
Data
cont
Data
cont
Operating
(ICC2, Max)
70mA
Precharge circuit.
Memory array
512 rows
128×8 columns
A0 A1 A2 A8 A9 A11A10
PKG Type
32-SOP
32-TSOP1-F
I/O Circuit
Column select
