Page 1
Items
Performance Characteristics
Operating Temperature
Range
-55～+105℃
Voltage Range
4～100V
Capacitance Range
0.1～6800μF
Capacitance Tolerance
±20% at 120 Hz, 20℃
Leakage Current
For Φ4～Φ10, after 2 minutes’ application of rated voltage, leakage current is not more than 0.01CV or 3(μA),
whichever is greater.
For Φ12.5～Φ16, after 1 minute’s application of rated voltage, leakage current is not more than 0.03CV or 4(μA),
whichever is greater.
Tan δ
Measurement frequency: 120Hz, Temperature: 20℃
Rated voltage (V.DC)
4
6.3
10
16
25
35
50
63
100
Tanδ
(max)
Φ4～Φ10
0.35
0.26
0.20
0.16
0.14
0.12
0.12
0.12
0.12
Φ12.5～Φ16
0.42
0.38
0.34
0.30
0.26
0.22
0.18
0.14
0.12
Stability at Low
Temperature
Measurement frequency: 120Hz
Rated voltage (V.DC)
4
6.3
10
16
25
35
50
63
100
Impedance
ratio
ZT/Z20 (max)
Φ4～Φ10
Z(-25℃)/Z
(20℃)
7 4 3 2 2 2 2 2 3
Z(-55℃)/Z
(20℃)
15 8 6 4 4 3 3 3 4
Φ12.5～Φ16
Z(-25℃)/Z
(20℃)
7 5 4 3 2 2 2 2 2
Z(-55℃)/Z
(20℃)
17
12
10 8 5 4 3 3 3
Load Life
After 2000 hours’ (1000 hours’
for Φ4～Φ6.3x5.4) application
of rated voltage at 105℃,
capacitors meet the
characteristics requirements
listed at right .
Capacitance
Change
Within ±20% of the initial value for capacitors
of 10V or more, and within ±30% of the initial
value for capacitors of 4V & 6.3V
Tanδ
200% or less of the initial specified value
Leakage Current
Initial specified value or less
Shelf Life
After leaving capacitors under no load at 105℃ for 1000 hours, they meet the specified value for load life
characteristics listed above.
Resistance to Soldering
Heat
After reflow soldering and restored at
room temperature, they meet the
characteristics requirements listed at
right.
Capacitance Change
Within ±10% of the initial value
Tanδ
Initial specified value or less
Leakage Current
Initial specified value or less
Applicable Standards
JIS C-5141 and JIS C-5102

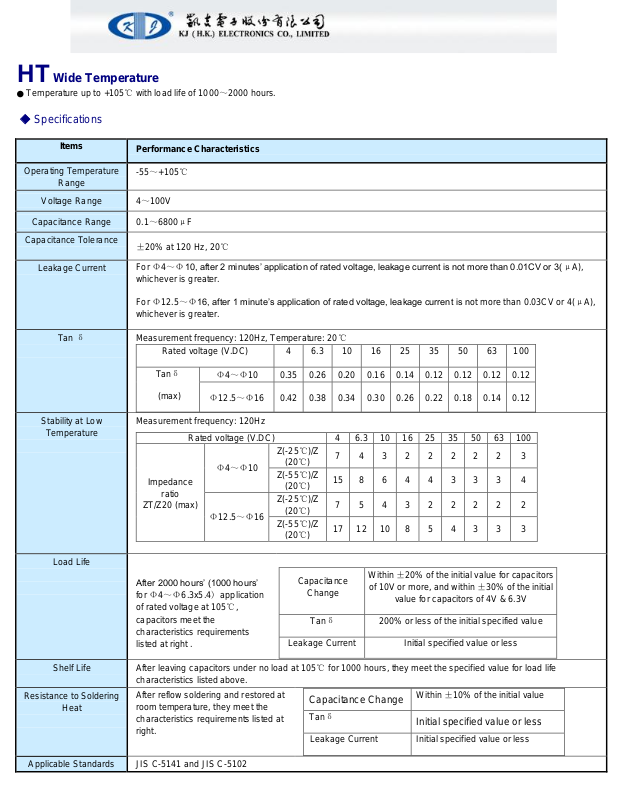

HT Wide Temperature
Temperature up to +105℃ with load life of 1000～2000 hours.
Specifications
Page 2
Dimensions & Marking
(mm)
D×L
Φ4×5.4
Φ5×5.4
Φ6.3×5.4
Φ6.3×7.7
Φ8×6.2
Φ8×10.5
Φ10×10.5
Φ10×13.5
Φ12.5×13.5
Φ12.5×16
Φ16×16.5
A
1.8
2.1
2.4
2.4
3.3
2.9
3.2
3.2
4.7
4.7
5.5 B 4.3
5.3
6.6
6.6
8.3
8.3
10.3
10.3
12.8
12.8
16.3
C
4.3
5.3
6.6
6.6
8.3
8.3
10.3
10.3
12.8
12.8
16.3
E ± 0.2
1.0
1.3
2.2
2.2
2.2
3.1
4.4
4.4
4.4
4.4
6.7 L 5.4
5.4
5.4
7.7
6.2
10.5
10.5
13.5
13.5
16.0
16.5
*1 Voltage mark [6V] represents 6.3V for Ф4～Ф10; *2 [L±0.3] is applicable to Φ6.3×7.7 and Φ8×6.2;
*3 [L±0.5] is applicable to Φ8×10.5～Ф10; *4 [L±1.0] is applicable to Φ12.5～Ф16.
Re: Date code and series type — 1st digit for Year; 2nd digit for Quarter, 4 quarter codes in one year are 1, 4, 7, O; 3rd character for Series; HT Series = T
Page 3
Standard size & Maximum permissible ripple current
WV
Cap.(μF)
4
6.3
10
16
25
0G
0J
1A
1C
1E
4.7
4R7
4×5.4
13
10
100
4×5.4
18
5×5.4
(4×5.4)
20
(14)
22
220
4×5.4
22
5×5.4
(4×5.4)
25
(20)
5×5.4
(4×5.4)
27
(20)
6.3×5.4
(5×5.4)
36
(25)
33
330
5×5.4
(4×5.4)
30
(18)
5×5.4
(4×5.4)
27
(22)
5×5.4
(4×5.4)
30
(22)
6.3×5.4
(5×5.4)
40
(28)
6.3×5.4
(5×5.4)
44
(29)
47
470
5×5.4
(4×5.4)
36
(24)
5×5.4
(4×5.4)
33
(25)
6.3×5.4
(5×5.4)
41
(30)
6.3×5.4
(5×5.4)
48
(31)
6.3×5.4
(8×6.2)
48
(91)
100
101
6.3×5.4
(5×5.4)
60
(43)
6.3×5.4
(5×5.4)
50
(39)
6.3×5.4
(8×6.2)
53
(110)
6.3×5.4
(8×6.2)
60
(120)
6.3×7.7
91
150
151
6.3×5.4
52
6.3×5.4
55
6.3×5.4
62
6.3×7.7
95
8×10.5
(6.3×7.7)
140
(100)
220
221
6.3×5.4
57
6.3×7.7
(6.3×5.4)
105
(67)
6.3×7.7
(8×6.2)
105
(105)
8×10.5
(6.3×7.7)
(8×6.2)
150
(105)
(85)
8×10.5
175
330
331
6.3×7.7
100
6.3×7.7
105
8×10.5
196
8×10.5
195
10×10.5
(8×10.5)
240
(220)
470
471
6.3×7.7
105
8×10.5
(6.3x7.7)
210
(120)
10×10.5
(8×10.5)
260
(210)
10×10.5
(8×10.5)
295
(230)
10×10.5
280
680
681
8×10.5
210
8×10.5
210
10×10.5
270
10×10.5
315
10×13.5
400
1000
102
8×10.5
230
10×10.5
(8×10.5)
300
(230)
10×10.5
315
12.5×13.5
(10×13.5)
(10×10.5)
500
(390)
(340)
12.5×13.5
580
1500
152
10×10.5
315
10×13.5
(10×10.5)
450
(315)
10×13.5
460
12.5×13.5
550
12.5×16
850
2200
222
10×13.5
(10×10.5)
440
（340）
12.5×13.5
(10×13.5)
620
(500)
12.5×13.5
680
16×16.5
(12.5×16)
950
(750)
16×16.5
1050
3300
332
10×13.5
490
12.5×16
(12.5×13.5)
700
(660)
16×16.5
1000
16×16.5
1000
4700
472
12.5×13.5
600
16×16.5
1000
6800
682
16×16.5
(12.5×16)
950
（650）
Case Size
Ripple
Current
Ripple Current (mA rms) at 105℃ 120Hz
Page 4
Standard size & Maximum permissible ripple current
WV
Cap.(μF)
35
50
63
100
1V
1H
1J
2A
0.1
0R1
4×5.4
0.7
4×5.4
0.7
0.22
R22
4×5.4
1.6
4×5.4
1.6
0.33
R33
4×5.4
2.5
4×5.4
2.5
0.47
R47
4×5.4
3.5
4×5.4
3.5
1
010
4×5.4
7
4×5.4
7
4×5.4
7
2.2
2R2
4×5.4
11
4×5.4
11
6.3×5.4
14
3.3
3R3
4×5.4
13
4×5.4
13
5×5.4
13
6.3×7.7
(6.3×5.4)
(8×6.2)
32
(20)
(30)
4.7
4R7
4×5.4
14
5×5.4
(4×5.4)
16
(13)
5×5.4
16
6.3×7.7
(6.3×5.4)
35
(21)
10
100
5×5.4
(4×5.4)
21
(14)
6.3×5.4
24
6.3×7.7
(6.3×5.4)
(8×6.2)
39
(24)
(25)
8×10.5
(6.3×7.7)
77
(35)
22
220
6.3×5.4
38
6.3×7.7
(6.3×5.4)
(8×6.2)
51
(42)
(70)
8×10.5
(6.3×7.7)
98
(49)
10×10.5
(8×10.5)
126
(84)
33
330
6.3×5.4
(8×6.2)
42
(84)
6.3×7.7
60
8×10.5
112
10×10.5
133
47
470
6.3×7.7
(6.3×5.4)
70
(50)
8×10.5
(6.3×7.7)
120
(63)
10×10.5
(8×10.5)
160
(119)
12.5×13.5
(10×13.5)
(10×10.5)
250
(160)
(140)
68
680
12.5x13.5
(10x13.5)
300
(180)
100
101
8×10.5
(6.3×7.7)
120
(84)
10×10.5
(8×10.5)
170
(140)
12.5×13.5
(10×13.5)
(10×10.5)
270
(210)
(196)
16×16.5
(12.5x13.5)
450
(380)
150
151
8×10.5
155
10×10.5
170
10×13.5
225
220
221
10×10.5
(8×10.5)
220
(190)
10×13.5
(10×10.5)
280
(220)
16×16.5
(12.5×13.5)
(10x13.5)
560
(470)
(235)
16×16.5
550
330
331
10×10.5
245
16×16.5
(12.5×13.5)
(10x13.5)
600
(420)
(295)
16×16.5
(12.5×16)
700
(510)
470
471
12.5×13.5
(10×13.5)
(10×10.5)
520
(375)
(280)
16×16.5
(12.5×16)
700
(520)
16×16.5
750
680
681
12.5×13.5
(10×13.5)
530
(395)
16×16.5
750
1000
102
16×16.5
(12.5×16)
750
(600)
Case Size
Ripple
Current
Ripple Current (mA rms) at 105℃ 120Hz
Page 5
Frequency Correction Factor of Rated Ripple Current
Frequency
Capacitance (μF)
50Hz
120Hz
300Hz
1kHz
10kHz~
Φ4～Φ10
0.1～68
0.70
1.00
1.17
1.36
1.50
100～3300
0.85
1.00
1.08
1.20
1.30
Φ12.5～Φ16
～68
0.75
1.00
1.35
1.57
2.00
100～680
0.80
1.00
1.23
1.34
1.50
1000～6800
0.85
1.00
1.10
1.13
1.15
Copyright 2007 KJ (HK) Electronics Co,. Limited All rights reserved.
