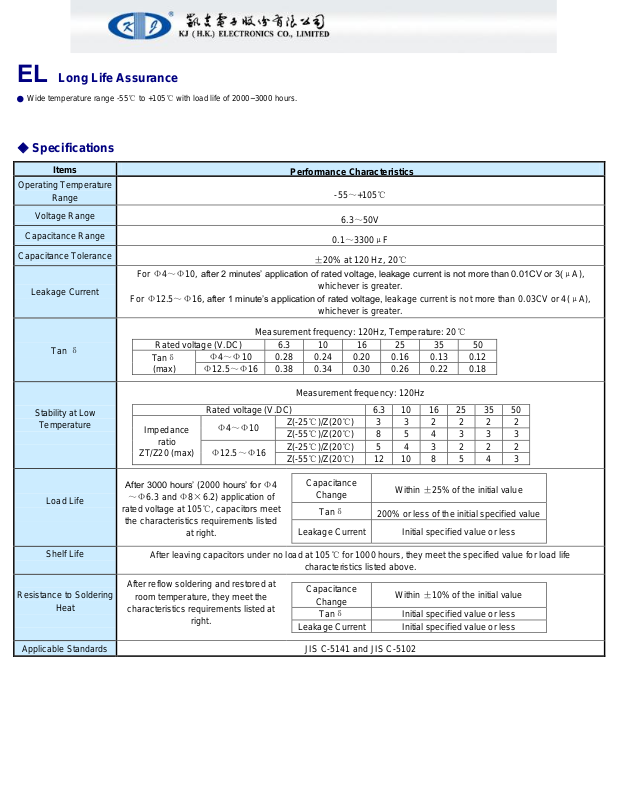

Page 1
Items
Performance Characteristics
Operating Temperature
Range
-55～+105℃
Voltage Range
6.3～50V
Capacitance Range
0.1～3300μF
Capacitance Tolerance
±20% at 120 Hz, 20℃
Leakage Current
For Φ4～Φ10, after 2 minutes’ application of rated voltage, leakage current is not more than 0.01CV or 3(μA),
whichever is greater.
For Φ12.5～Φ16, after 1 minute’s application of rated voltage, leakage current is not more than 0.03CV or 4(μA),
whichever is greater.
Tan δ
Measurement frequency: 120Hz, Temperature: 20℃
Rated voltage (V.DC)
6.3
10
16
25
35
50
Tanδ
(max)
Φ4～Φ10
0.28
0.24
0.20
0.16
0.13
0.12
Φ12.5～Φ16
0.38
0.34
0.30
0.26
0.22
0.18
Stability at Low
Temperature
Measurement frequency: 120Hz
Rated voltage (V.DC)
6.3
10
16
25
35
50
Impedance
ratio
ZT/Z20 (max)
Φ4～Φ10
Z(-25℃)/Z(20℃)
3 3 2 2 2 2 Z(-55℃)/Z(20℃)
8 5 4 3 3
3
Φ12.5～Φ16
Z(-25℃)/Z(20℃)
5 4 3 2 2 2 Z(-55℃)/Z(20℃)
12
10 8 5 4 3
Load Life
After 3000 hours’ (2000 hours’ for Φ4
～Φ6.3 and Φ8×6.2) application of
rated voltage at 105℃, capacitors meet
the characteristics requirements listed
at right.
Capacitance
Change
Within ±25% of the initial value
Tanδ
200% or less of the initial specified value
Leakage Current
Initial specified value or less
Shelf Life
After leaving capacitors under no load at 105℃ for 1000 hours, they meet the specified value for load life
characteristics listed above.
Resistance to Soldering
Heat
After reflow soldering and restored at
room temperature, they meet the
characteristics requirements listed at
right.
Capacitance
Change
Within ±10% of the initial value
Tanδ
Initial specified value or less
Leakage Current
Initial specified value or less
Applicable Standards
JIS C-5141 and JIS C-5102
EL Long Life Assurance
Wide temperature range -55℃ to +105℃ with load life of 2000~3000 hours.
Specifications
Page 2
（mm）
D×L
Φ4×5.8
Φ5×5.8
Φ6.3×5.8
Φ6.3×7.7
Φ8×6.2
Φ8×10.5
Φ10×10.5
Φ10×13.5
Φ12.5×13.5
Φ12.5×16
Φ16×16.5
A
1.8
2.1
2.4
2.4
3.3
2.9
3.2
3.2
4.7
4.7
5.5 B 4.3
5.3
6.6
6.6
8.3
8.3
10.3
10.3
12.8
12.8
16.3
C
4.3
5.3
6.6
6.6
8.3
8.3
10.3
10.3
12.8
12.8
16.3
E±0.2
1.0
1.3
2.2
2.2
2.2
3.1
4.4
4.4
4.4
4.4
6.7
L
5.8
5.8
5.8
7.7
6.2
10.5
10.5
13.5
13.5
16.0
16.5

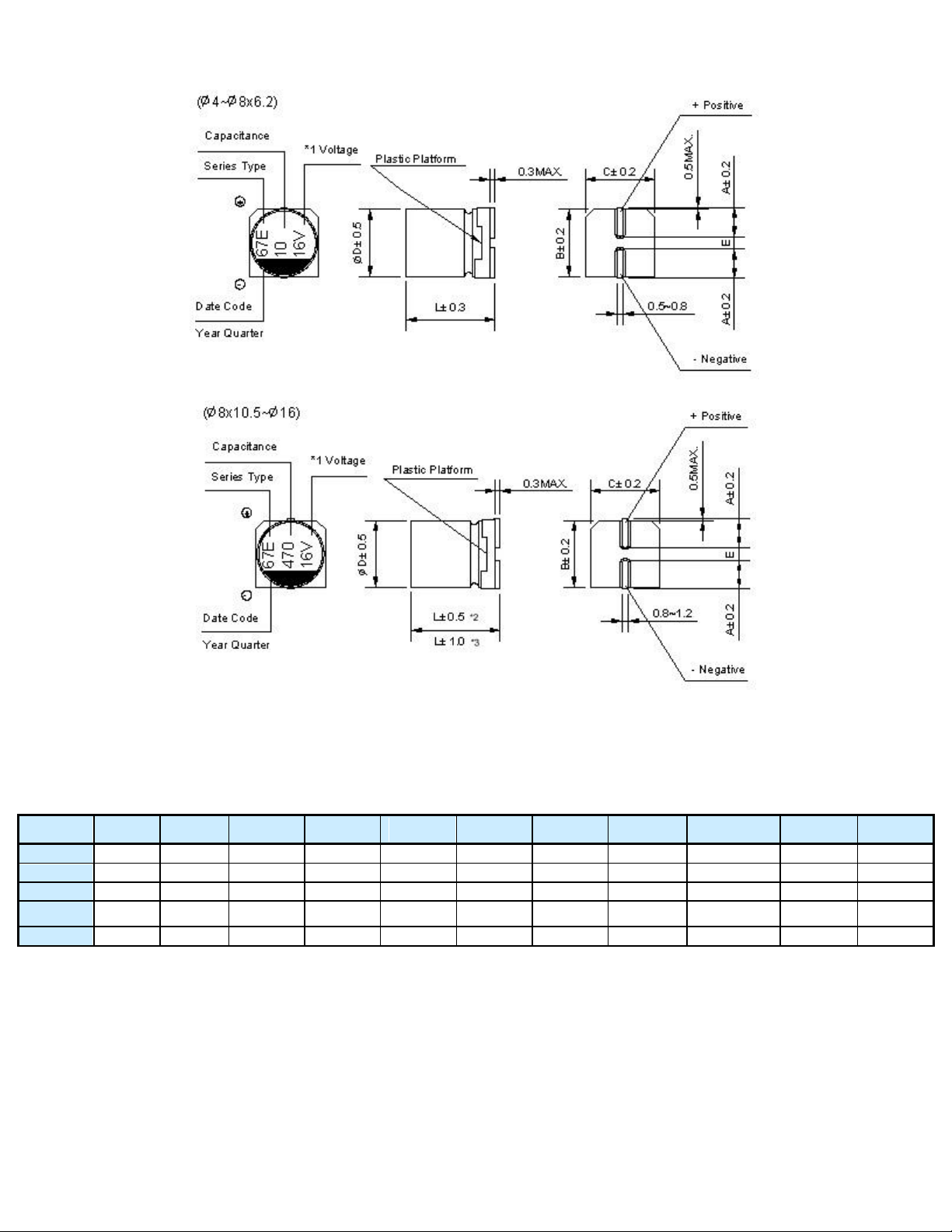

Dimensions & Marking
*1 Voltage mark [6V] represents 6.3V for Ф4～Ф10; *2 [L±0.5] is applicable to Φ8×10.5～Ф10; *3 [L±1.0] is applicable to Φ12.5～Ф16.
Re: Date code and series type — 1st digit for Year; 2nd digit for Quarter, 4 quarter codes in one year are 1, 4, 7, O; 3
rd
character for Series; EL Series = E.
Page 3
Standard size & Maximum permissible ripple current
WV
Cap. (μF)
6.3
10
16
25
35
50
0J
1A
1C
1E
1V
1H
0.1
0R1
4×5.8
1
0.22
R22
4×5.8
2
0.33
R33
4×5.8
3
0.47
R47
4×5.8
5 1 010
4×5.8
10
2.2
2R2
4×5.8
16
3.3
3R3
4×5.8
16
4.7
4R7
4×5.8
13
4×5.8
14
5×5.8
23
10
100
4×5.8
18
5×5.8
20
5×5.8
21
6.3×5.8
35
22
220
4×5.8
22
5×5.8
25
5×5.8
27
6.3×5.8
36
6.3×5.8
38
6.3×7.7
(8×6.2)
70
(70)
33
330
5×5.8
27
5×5.8
30
6.3×5.8
40
6.3×5.8
60
6.3×7.7
(8×6.2)
84
(84)
8×10.5
90
47
470
5×5.8
33
6.3×5.8
41
6.3×5.8
48
6.3×7.7
(8×6.2)
90
(91)
8×10.5
98
8×10.5
90
100
101
6.3×5.8
50
6.3×5.8
(8×6.2)
53
(110)
6.3×5.8
60
8×10.5
130
8×10.5
130
10×10.5
100
150
151
6.3×5.8
55
6.3×7.7
105
6.3×7.7
95
8×10.5
140
10×10.5
315
10×10.5
100
220
221
6.3×7.7
100
8×10.5
210
8×10.5
210
10×10.5
190
10×10.5
315
10×13.5
(10×10.5)
250
(100)
330
331
8×10.5
210
8×10.5
210
8×10.5
210
10×10.5
315
10×10.5
315
12.5×13.5
400
470
471
8×10.5
210
10×10.5
315
10×10.5
315
10×10.5
315
12.5×13.5
(10×13.5)
500
(360)
16×16.5
(12.5×16)
650
(500)
680
681
8×10.5
210
10×10.5
315
10×10.5
315
10×13.5
380
12.5×13.5
500
1000
102
10×10.5
315
10×13.5
(10×10.5)
360
(315)
12.5×13.5
(10×13.5)
(10×10.5)
450
(350)
(315)
12.5×13.5
550
16×16.5
(12.5×16)
700
(550)
1500
152
10×13.5
(10×10.5)
450
(315)
12.5×13.5
500
12.5×13.5
500
12.5×16
800
2200
222
12.5×13.5
620
12.5×16
650
16×16.5
900
16×16.5
1000
Case Size
Ripple
Current
3300
332
12.5×16
750
16×16.5
950
Frequency
Capacitance (μF)
50Hz
120Hz
300Hz
1kHz
10kHz~
Φ4～Φ10
0.1～100
0.70
1.00
1.17
1.36
1.50
150～1500
0.85
1.00
1.08
1.20
1.30
Φ12.5～Φ16
～470
0.75
1.00
1.35
1.57
2.00
680～3300
0.85
1.00
1.23
1.34
1.50
Ripple Current (mA rms) at 105℃ 120Hz
Frequency Correction Factor of Rated Ripple Current
