Radial Lead Aluminum Electrolytic Capacitors
Safety vent (Ф8up)
ESK Wide Temperature Range, Height 7mm Series
Super mi ni at ure series wit h 7 mm hei ght.
High performance and excellent temperature Characteristics.
Wide oper at i ng t em p er atu re range of -40 ~+ 10 5°C
Specification
Item Characteristics
Operating temperature range
Voltage range
Nominal cap. range
Capacitance tolerance
Leakage current
Dissipation Factor (tg δ)
(at 120Hz, /+20°C)
Low temp. impedance
Stability at 120Hz
High temp. Load test
High temp. Non-Load test
-40~+105°C
6.3~50 V.DC
0.1~330uF
-10%~+10% (at 120Hz, 20 °C)
I=0.01C V or 3 (uA) w hic h ev er is gr eat er (after 2 minutes).
W V 6.3 10
tanδ 0.25 0.21
W.V .
Z(-25°C)/Z(+20°C)
Z(-40°C)/Z(+20°C)
After 1 00 0hrs . Application of D C rated w ork ing volt ag e at +10 5°C , The capacit or s h all meet t h e
following limits.
Capacitance change …. ≤±15% of the ini tial measur ed value.
tanδ …. ≤200% of the initial specified value.
DC leakage current …. ≤The initial specified v alue.
After storage for 500hours at +105°C with no voltage applied, voltage treatment of JIS-C-5102
article 4- 4 is to be given and then meas urement shall be made, a t which time requir ements
specified in the table “High temperature loading” can be met.
6.3 10 16 25 35 50
4 3 2 2 2 2
8 6 4 4 3 3
16 25 35 50
0.17 0.15 0.12 0.10

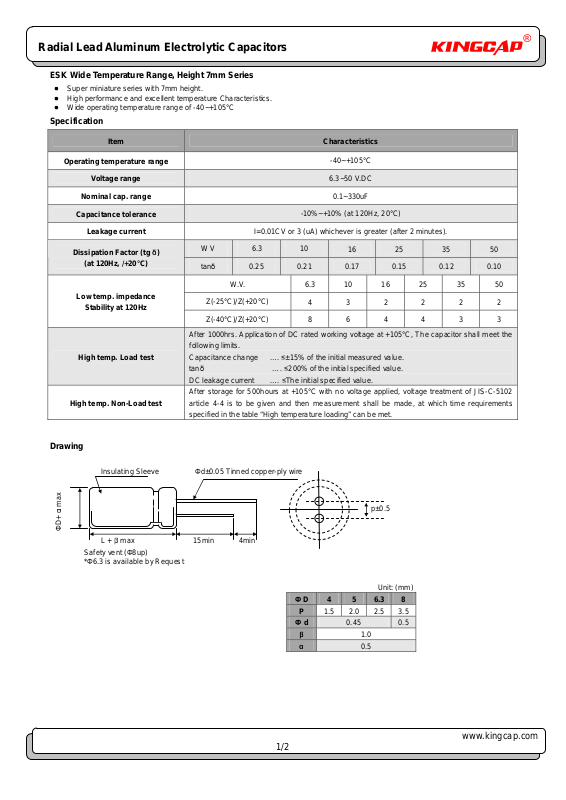

Drawing
max
α
D+
Ф
Insulating Sleeve
*Ф6.3 is avai l abl e b y R equ es t
Ф
d±0.05 Tinned copper-ply wire
15min L + β max
4min
p±0.5
Unit: (mm)
Φ
D 4 5 6.3 8
P 1.5 2.0 2.5 3.5
Φ
d
β
1.0
α
0.5
0.45 0.5
www.kingcap.com
1/2
Page 2
Radial Lead Aluminum Electrolytic Capacitors
Dimension & Maximum Permissible Ripple Current mA (rms) at 105°C, 120Hz
6.3 10 16 25 35 50 WV(V)
Φ
uF
0.1 4×7 1
0.22 4×7 2
0.33 4×7 3
0.47 4×7 5
1.0 4×7 10
2.2 4×7 15
3.3 4×7 20
4.7 4×7 18 4×7 22 5×7 23
D×L
(mm)
Ripple
current
(mArms)
Φ
D×L
(mm)
Ripple
current
(mArms)
Φ
D×L
(mm)
Ripple
current
(mArms)
Φ
(mm)
D×L
Ripple
current
(mArms)
Φ
D×L
(mm)
Ripple
current
(mArms)
Φ
D×L
(mm)
Ripple
current
(mArms)
10 4×7 26 5×7 28 5×7 30 6.3×7
22 4×7 30 5×7 36 5×7 39 6.3×7
33 5×7 40 5×7 43 6.3×7
47 5×7 48 5×7 65 6.3×7
100 6.3×7
220 6.3×7
330 8×7 103
72 6.3×7
87 6.3×7
82 6.3×7
141
57 6.3×7
70 6.3×7
85
51 6.3×7
65 6.3×7
71 6.3×7
57 6.3×7
73 6.3×7
80
35
65
81
www.kingcap.com
2/2
