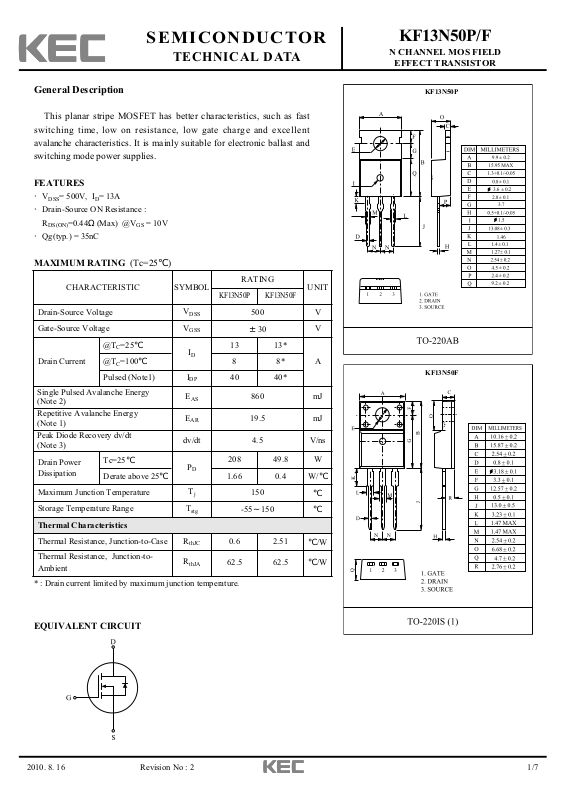

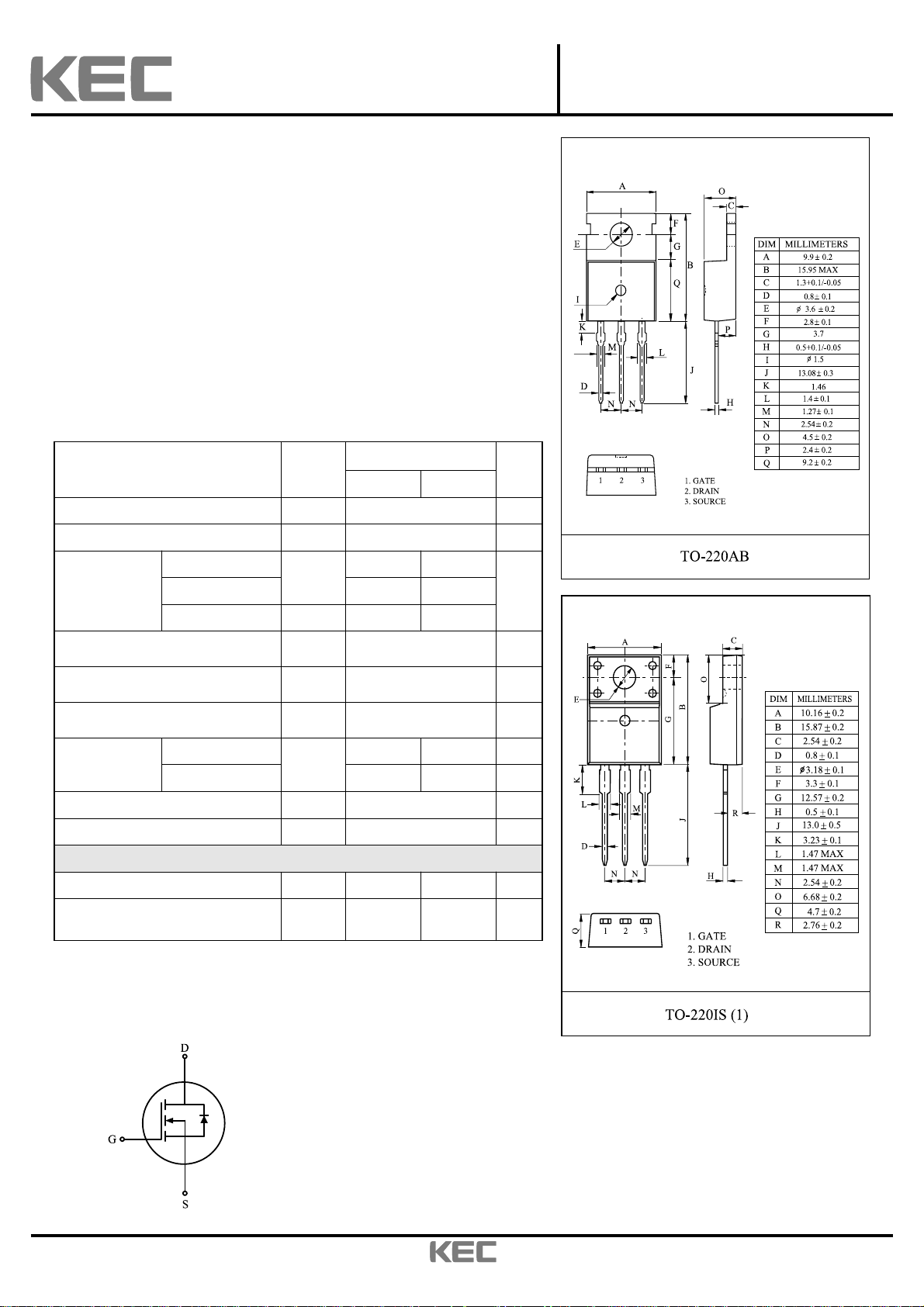

Page 1
2010. 8. 16 1/7
SEMICONDUCTOR
TECHNICAL DATA
KF13N50P/F
N CHANNEL MOS FIELD
EFFECT TRANSISTOR
Revision No : 2
This planar stripe MOSFET has better characteristics, such as fast
switching time, low on resistance, low gate charge and excellent
avalanche characteristics. It is mainly suitable for electronic ballast and
switching mode power supplies.
FEATURES
·V
DSS
= 500V, ID= 13A
·
Drain-Source ON Resistance :
R
DS(ON)
=0.44Ω(Max) @V
GS
= 10V
·
Qg(typ.) = 35nC
MAXIMUM RATING (Tc=25℃)
* : Drain current limited by maximum junction temperature.
CHARACTERISTIC SYMBOL
RATING
UNIT
KF13N50P KF13N50F
Drain-Source Voltage
V
DSS
500 V
Gate-Source Voltage
V
GSS
±30
V
Drain Current
@T
C
=25℃
I
D
13 13*
A
@T
C
=100℃
8 8*
Pulsed (Note1)
I
DP
40 40*
Single Pulsed Avalanche Energy (Note 2)
E
AS
860
mJ
Repetitive Avalanche Energy (Note 1)
E
AR
19.5
mJ
Peak Diode Recovery dv/dt (Note 3)
dv/dt 4.5
V/ns
Drain Power Dissipation
Tc=25℃
P
D
208 49.8 W
Derate above 25℃
1.66 0.4
W/℃
Maximum Junction Temperature
T
j
150
℃
Storage Temperature Range
T
stg
-55~150
℃
Thermal Characteristics
Thermal Resistance, Junction-to-Case
R
thJC
0.6 2.51
℃/W
Thermal Resistance, Junction-to­Ambient
R
thJA
62.5 62.5
℃/W
KF13N50F
KF13N50P
EQUIVALENT CIRCUIT

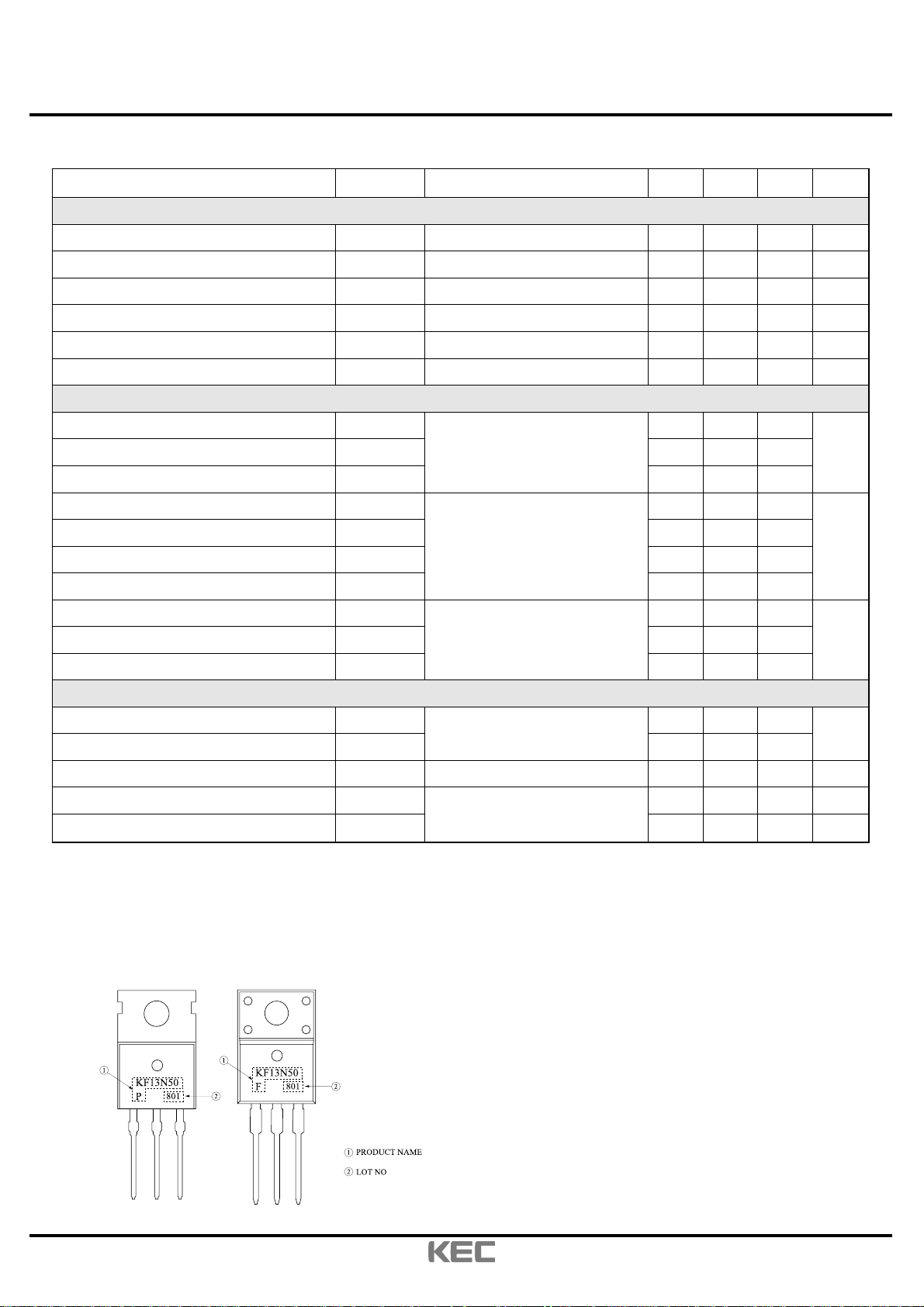

Page 2
2010. 8. 16 2/7
KF13N50P/F
Revision No : 2
ELECTRICAL CHARACTERISTICS (Tc=25℃)
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Static
Drain-Source Breakdown Voltage
BV
DSS
I
D
=250μA, V
GS
=0V
500 - - V
Breakdown Voltage Temperature Coefficient
ΔBV
DSS
/ΔT
jID
=250μA, Referenced to 25℃
- 0.63 -
V/℃
Drain Cut-off Current
I
DSS
VDS=500V, VGS=0V,
- - 10
μA
Gate Threshold Voltage
V
th
VDS=VGS, I
D
=250μA
2.5 - 4.5 V
Gate Leakage Current
I
GSS
V
GS
=±30V, V
DS
=0V
- -
±100
nA
Drain-Source ON Resistance
R
DS(ON)
VGS=10V, ID=6.5A
- 0.35 0.44
Ω
Dynamic
Total Gate Charge
Q
g
VDS=400V, ID=13A
V
GS
=10V (Note4,5)
- 35 -
nCGate-Source Charge
Q
gs
- 9 -
Gate-Drain Charge
Q
gd
- 13 -
Turn-on Delay time
t
d(on)
VDD=250V
I
D
=13A
R
G
=25Ω (Note4,5)
- 28 -
ns
Turn-on Rise time
t
r
- 45 -
Turn-off Delay time
t
d(off)
- 105 -
Turn-off Fall time
t
f
- 55 -
Input Capacitance
C
iss
VDS=25V, VGS=0V, f=1.0MHz
- 1700 -
pF
Output Capacitance
C
oss
- 210 -
Reverse Transfer Capacitance
C
rss
- 15 -
Source-Drain Diode Ratings
Continuous Source Current
I
S
VGS<V
th
- - 13 A
Pulsed Source Current
I
SP
- - 52
Diode Forward Voltage
V
SD
IS=13A, VGS=0V
- - 1.4 V
Reverse Recovery Time
t
rr
IS=13A, VGS=0V,
dIs/dt=100A/μ
s
- 360 - ns
Reverse Recovery Charge
Q
rr
- 4.4 -
μC
Note 1) Repetivity rating : Pulse width limited by junction temperature.
Note 2) L=6.0mH, I
S
=13A, VDD=50V, R
G
=25Ω, Starting Tj=25℃.
Note 3) I
S
≤13A, dI/dt≤200A/μs, VDD≤BV
DSS
, Starting T
j
=25℃.
Note 4) Pulse Test : Pulse width ≤
300μs, Duty Cycle≤2%.
Note 5) Essentially independent of operating temperature.
Marking

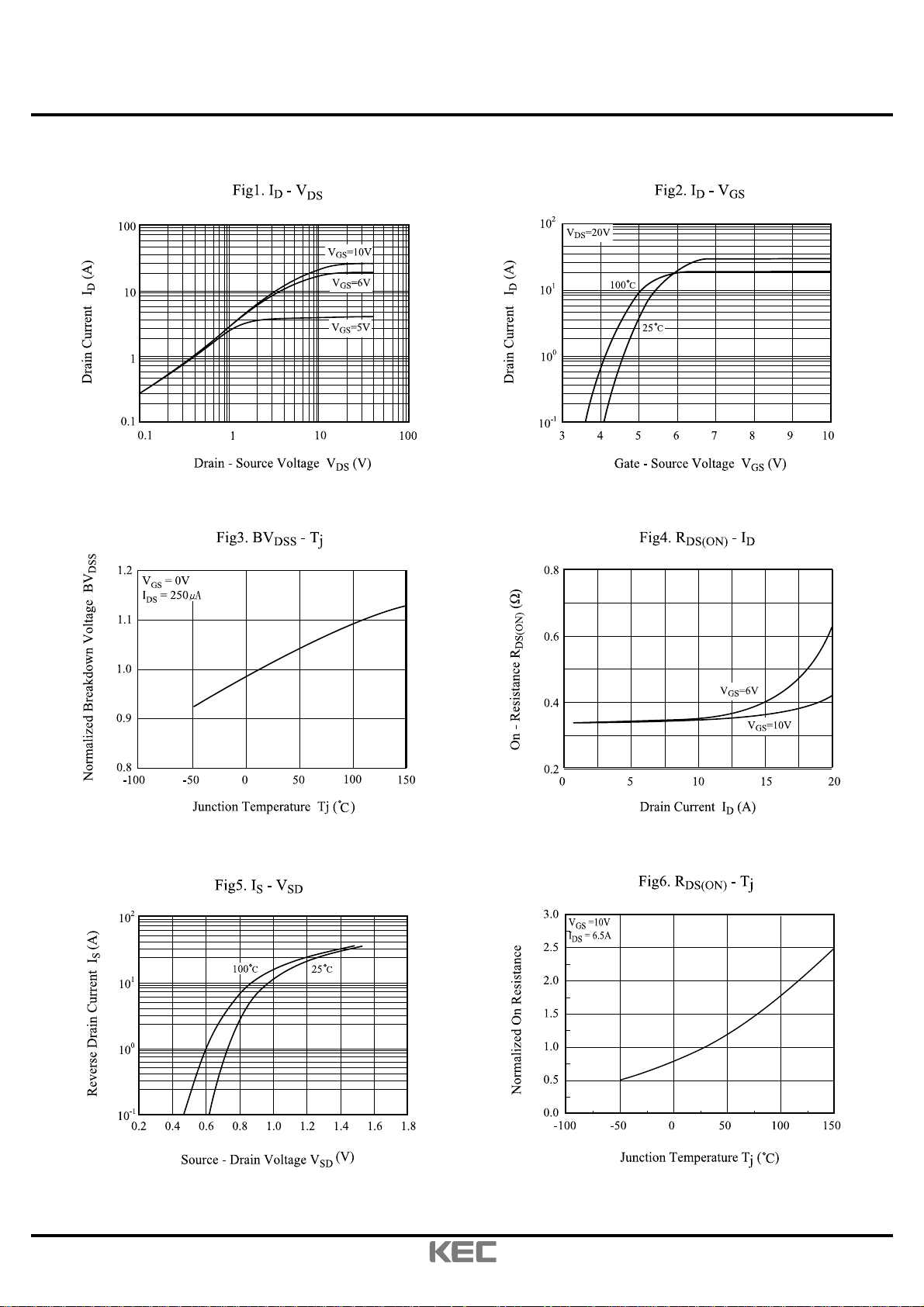

Page 3
2010. 8. 16 3/7
KF13N50P/F
Revision No : 2

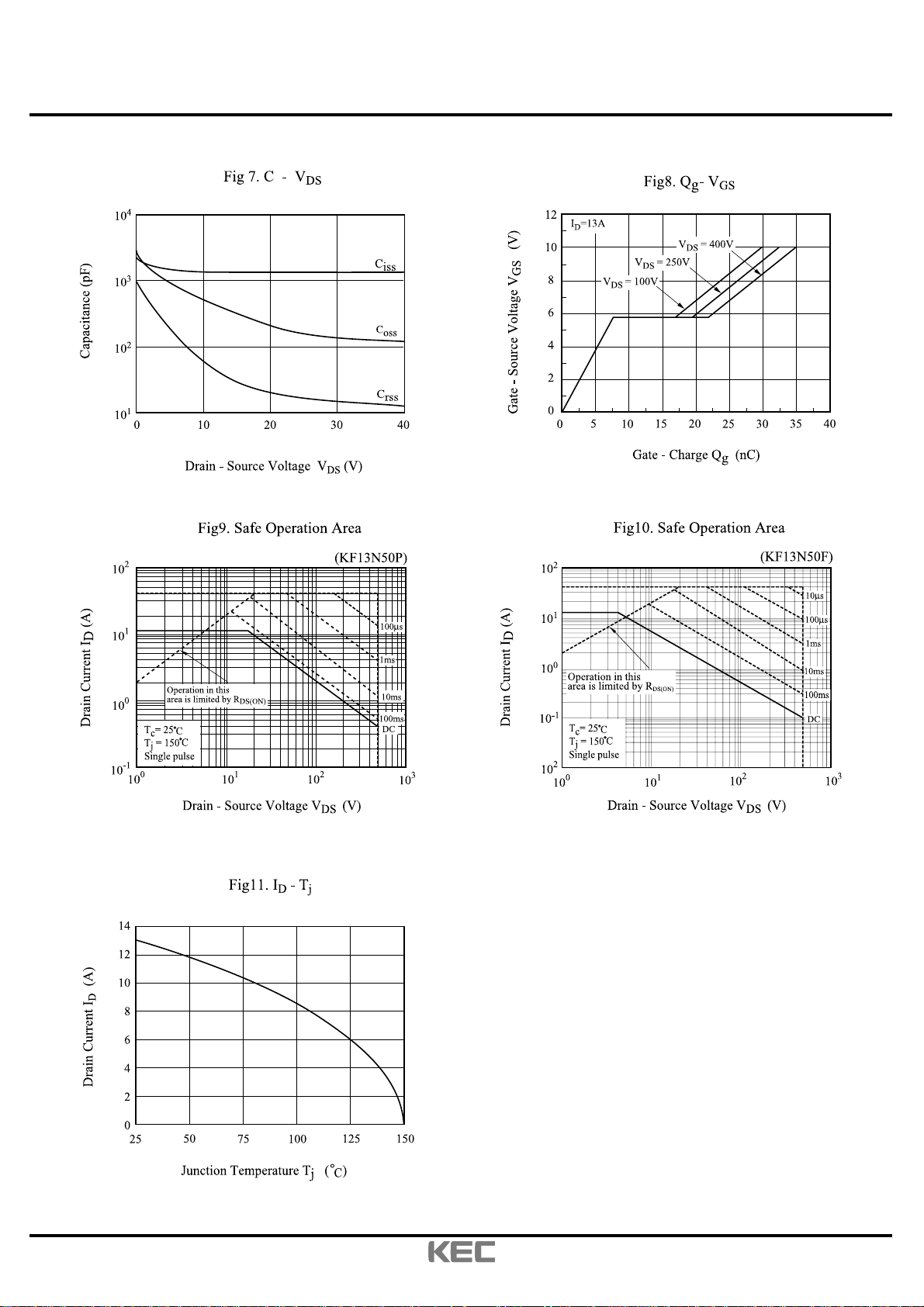

Page 4
2010. 8. 16 4/7
KF13N50P/F
Revision No : 2

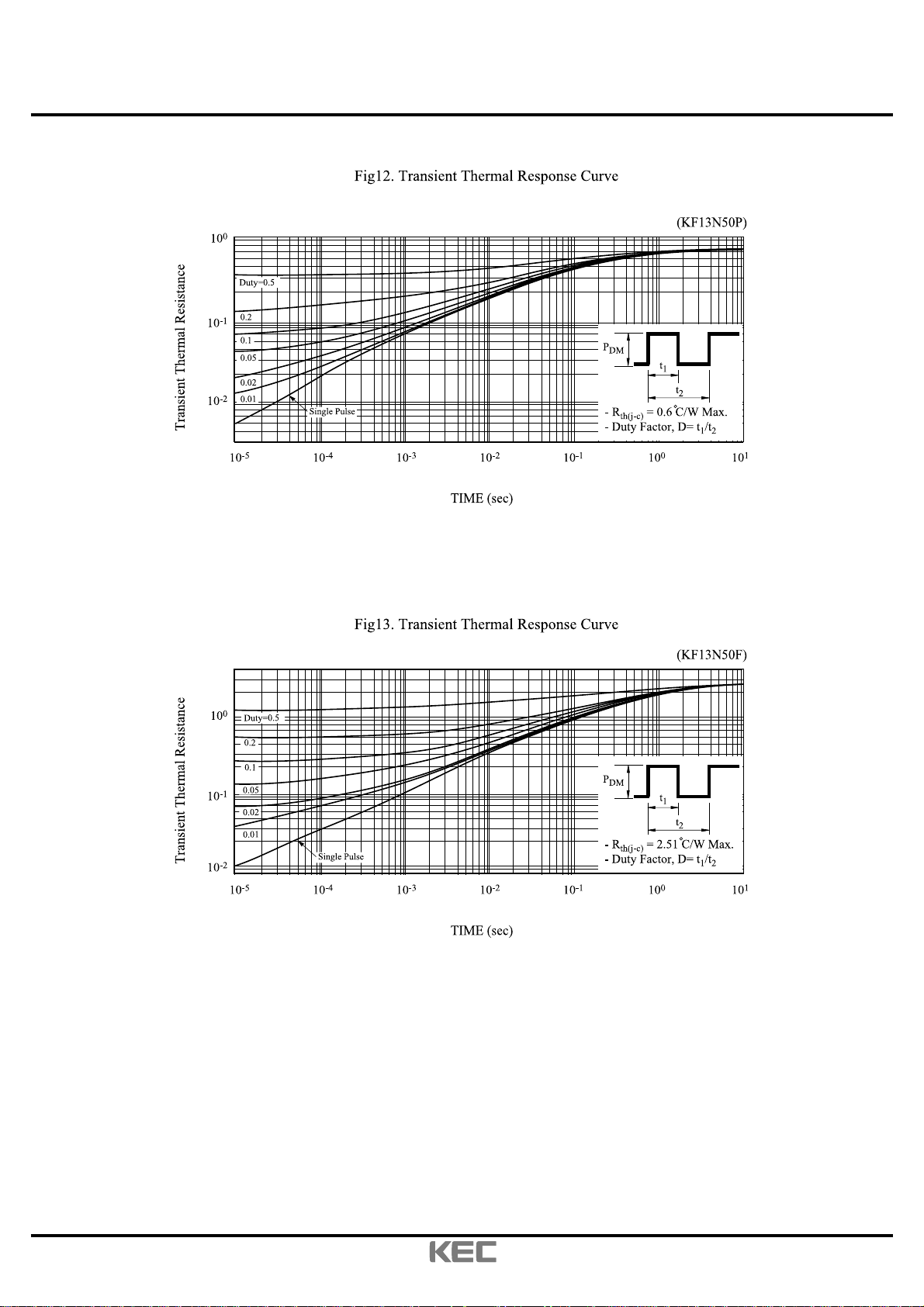

Page 5
2010. 8. 16 5/7
KF13N50P/F
Revision No : 2

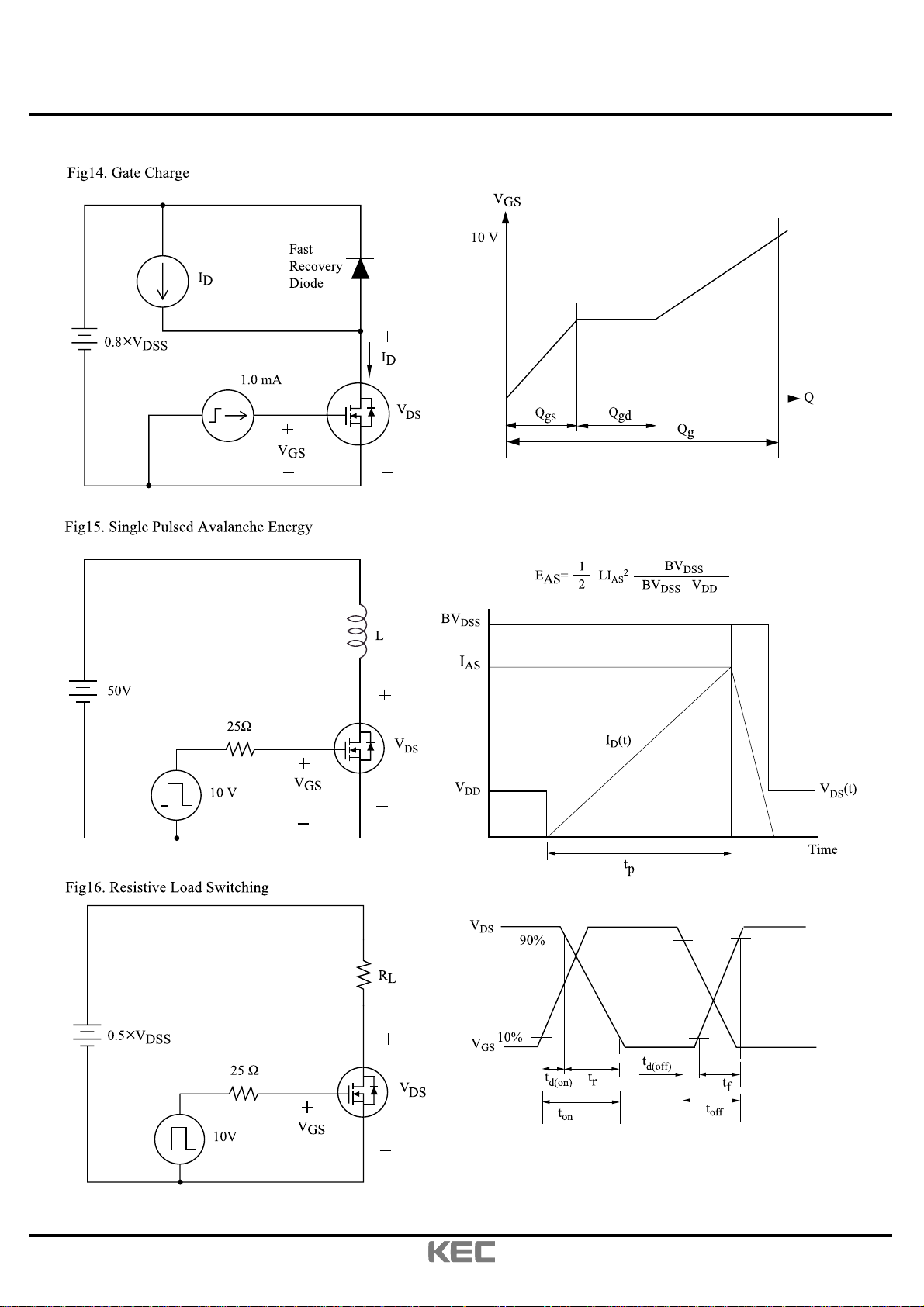

Page 6
2010. 8. 16 6/7
KF13N50P/F
Revision No : 2

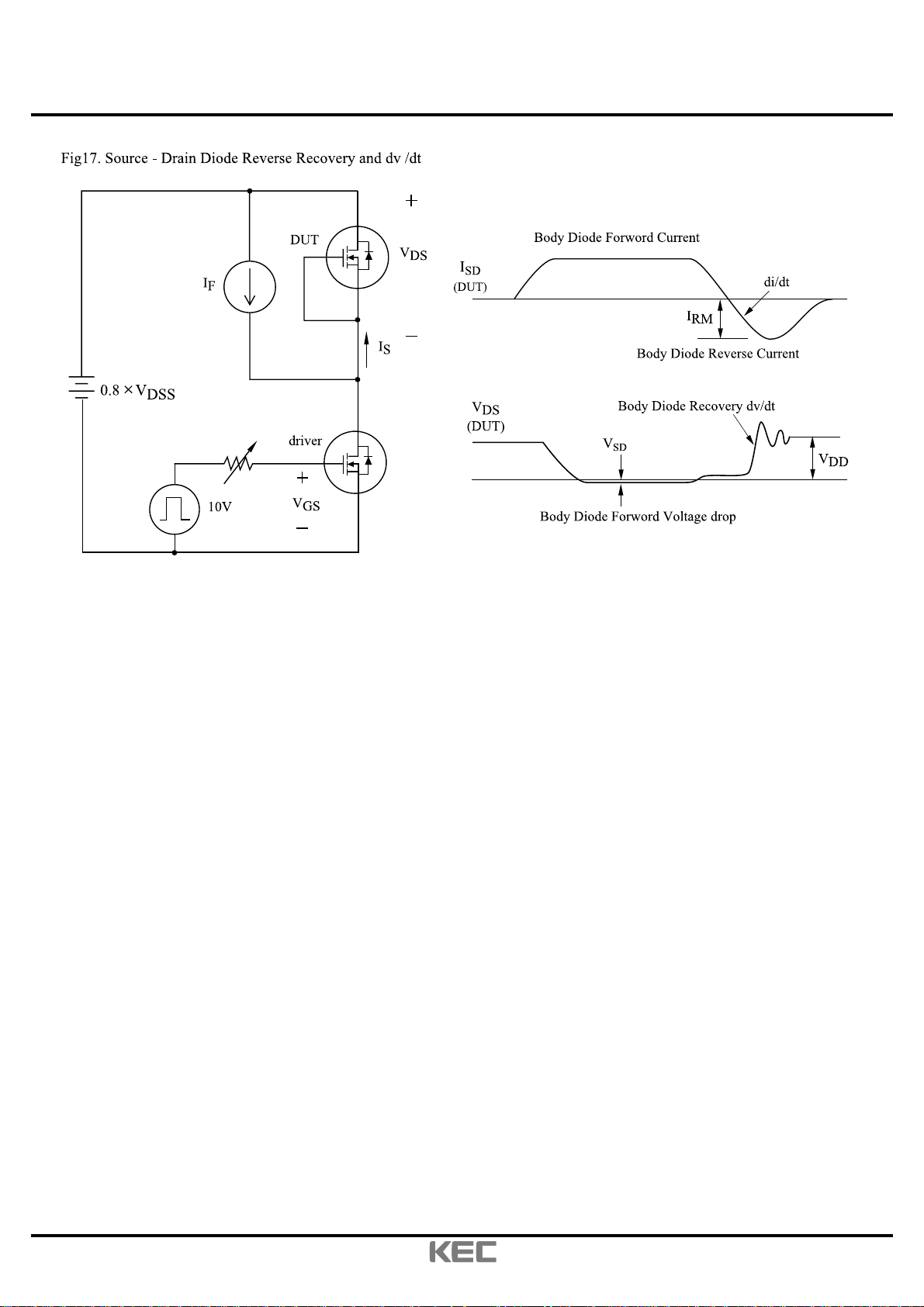

Page 7
2010. 8. 16 7/7
KF13N50P/F
Revision No : 2
