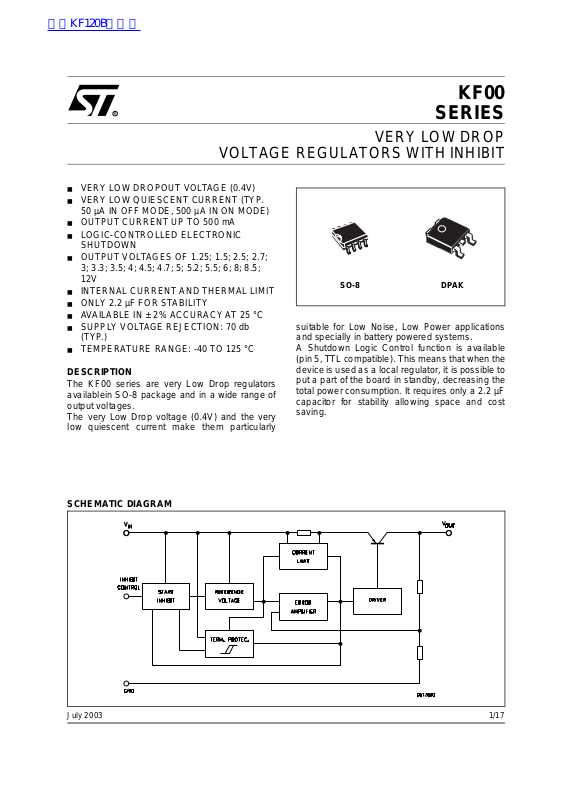

VOLTAGE REGULATORS W ITH INHIBIT

■ VERY LOW DROPOUT V OLTAGE (0.4V)

■ VERY LOW QUIESCENT CURRENT (TYP.

50 µA IN OFF MODE,500 µA IN ON MODE)

■ OUTPUT CURRENT UP TO 5 00 mA

■ LOGIC-CONTROLLED ELECTRONIC

SHUTDOWN

■ OUTPUT VOLTAGES OF 1.25; 1.5; 2.5; 2.7;

3; 3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8; 8.5;
12V

■ INTERNAL CURRENT AND THERMAL LIM IT

■ ONLY 2.2 µF FOR STABILITY

■ AVAILABLE IN ± 2% ACCURA CY AT 25 °C

■ SUPPLY VOLTAGE REJECTION: 70 db

(TYP.)

■ TEMPERATURE RANGE: -40 TO 12 5 °C

DESCRIPTION

The KF00 series are very Low Drop regulators
availablein SO-8 p ac kag e and in a wide ra nge of
output voltages.
The very Low D rop v oltage (0.4V) and the very
low quiescent current make them particularly

KF00

SERIES

VERY LOW DROP

SO-8 DPAK

suitable for Low Noise, Low Power applications
and specially in battery powered system s .
A Shutdown Logic Control function is available
(pin 5, TTL compatible). This means that when the
device is used as a local regulator, it is possible to
put a part of the board in standby, dec reas ing the
total power c ons umption. It requi res only a 2.2 µF
capacitor for stability allowing space and cost
saving.

SCHEMATIC DIAGRAM

1/17July 2003

KF00

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit

V

I
P
T
T

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is
not implied.

THERMAL DATA

Symbol Parameter DPAK SO-8 Unit

R

thj-case

CONNECTION DIAGRAM (top view)

DC Input Voltage

I

Output Current

O

Power Dissipation

tot

Storage Temperature Range

stg

Operating Junction Temperature Range

op

Thermal Resistance Junction-case

-0.5 to 20 V
Internally Limited
Internally Limited

-40 to 150 °C

-40 to 125 °C

8 20 °C/W

SO-8

ORDERING CODES

TYPE SO-8(#) DPAK(#) OUTPUT VOLTAGE

KF12(*) KF12BD KF12BDT 1.25 V

KF15 KF15BD KF15BDT 1.5 V
KF25 KF25BD KF25BDT 2.5 V
KF27 KF27BD KF27BDT 2.7 V
KF30 KF30BD KF30BDT 3 V
KF33 KF33BD KF33BDT 3.3 V
KF35 KF35BD KF35BDT 3.5 V
KF40 KF40BD KF40BDT 4 V

KF45(*) KF45BD KF45BDT 4.5 V

KF47 KF47BD KF47BDT 4.75 V
KF50 KF50BD KF50BDT 5 V
KF52 KF52BD KF52BDT 5.2 V

KF55(*) KF55BD KF55BDT 5.5 V

KF60 KF60BD KF60BDT 6 V
KF80 KF80BD KF80BDT 8 V
KF85 KF85BD KF85BDT 8.5 V

KF120 KF120BD KF120BDT 12 V

(*) Available on request.
(#) Available in Tape & Reel with the suffix "-TR".

DPAK

2/17

TEST CIRCUITS

KF00

ELECTRICAL CHARACTERISTICS FOR KF12 (refer to the test circuits, T

C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 3.3 V 1.225 1.25 1.275 V

O

= 50 mA, VI =3.3V,Ta= -25 to 85°C 1.2 1.3

I

O

Operating Input Voltage IO= 500 mA 2.5 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 2.5 to 20 V, IO= 5 mA 2 12 mV

∆V

O

Load Regulation VI = 2.8 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 2.5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 2.6 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

= 3.5 ± 1 V

I

f = 120 Hz 82 dB
f=1KHz 77

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 1.25 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

3/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF15 (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 3.5 V 1.47 1.5 1.53 V

O

= 50 mA, VI =3.5V,Ta= -25 to 85°C 1.44 1.56

I

O

Operating Input Voltage IO= 500 mA 2.5 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 2.5 to 20 V, IO= 5 mA 2 12 mV

∆V

O

∆V

Load Regulation VI = 2.8 V, IO= 5 to 500 mA 2 50 mV

O

Quiescent Current VI = 2.5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 2.8 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 1 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

= 3.5 ± 1 V

I

f = 120 Hz 82 dB

f=1KHz 77

f = 10 KHz 60

ELECTRICAL CHARACTERISTICS FOR KF25 (refer to the test circuits, T

=2.2µF unless otherwise specified.)

C

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 4.5 V 2.45 2.5 2.55 V

V

O

= 50 mA, VI =4.5V,Ta= -25 to 85°C 2.4 2.6

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 3.5 to 20 V, IO= 5 mA 2 12 mV

∆V

O

Load Regulation VI = 3.8 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 3.5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 3.8 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

= 4.5 ± 1 V

I

f = 120 Hz 82 dB

f=1KHz 77

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

4/17

ELECTRICAL CHARACTERISTICS FOR KF27 (refer to the test circuits, Tj= 25°C, CI=0.1µF,
C

=2.2µF unless otherwise s pec ified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 4.7 V 2.646 2.7 2.754 V

O

= 50 mA, VI = 4.7 V, Ta= -25 to 85°C 2.592 2.808

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

∆V
∆V

SVR Supply Voltage Rejection I

Line Regulation VI = 3.7 to 20 V, IO= 5 mA 2 12 mV

O

Load Regulation VI =4V, IO= 5 to 500 mA 2 50 mV

O

Quiescent Current VI = 3.7 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 4 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

=5mA

O

V

=4.7±1V

I

f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV

V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO= 0 to 500 mA 2 10 µF

C

O

KF00

ELECTRICAL CHARACTERISTICS FOR KF30 (refer to the test circuits, T

C

=2.2µF unless otherwise s pec ified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 5 V 2.94 3 3.06 V

V

O

= 50 mA, VI =5V,Ta= -25 to 85°C 2.88 3.12

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

∆V
∆V

SVR Supply Voltage Rejection I

Line Regulation VI = 4 to 20 V, IO= 5 mA 2 12 mV

O

Load Regulation VI = 4.3 V, IO= 5 to 500 mA 2 50 mV

O

Quiescent Current VI = 4 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 4.3 to 20V, IO= 500mA 12

V

I

V

= 6 V (OFF MODE) 50 100 µA

I

=5mA

O

V

=5±1V

I

f = 120 Hz 81 dB
f = 1 KHz 76
f = 10 KHz 60

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV

V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO= 0 to 500 mA 2 10 µF

C

O

5/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF33 (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 5.3 V 3.234 3.3 3.366 V

O

= 50 mA, VI =5.3V,Ta= -25 to 85°C 3.168 3.432

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 4.3 to 20 V, IO= 5 mA 2 12 mV

∆V

O

Load Regulation VI = 4.6 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 4.3 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 4.6 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

= 5.3 ± 1 V

I

f = 120 Hz 80 dB

f=1KHz 75

f = 10 KHz 60

= 500 mA 0.4 0.7

I

O

ELECTRICAL CHARACTERISTICS FOR KF35 (refer to the test circuits, T
C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 5.5 V 3.43 3.5 3.57 V

V

O

= 50 mA, VI =5.5V,Ta= -25 to 85°C 3.36 3.64

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 4.5 to 20 V, IO= 5 mA 2 12 mV

∆V

O

Load Regulation VI = 4.8 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 4.5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 4.8 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

= 5.5 ± 1 V

I

f = 120 Hz 79 dB

f=1KHz 74

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

V

Control Input Logic High Ta= -40 to 125°C 2 V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

6/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF40 (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 6 V 3.92 4 4.08 V

O

= 50 mA, VI =6V,Ta= -25 to 85°C 3.84 4.16

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 5 to 20 V, IO= 5 mA 3 18 mV

∆V

O

Load Regulation VI = 5.3 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 5.3 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

=6±1V

I

f = 120 Hz 78 dB

f=1KHz 73

f = 10 KHz 60

= 500 mA 0.4 0.7

I

O

ELECTRICAL CHARACTERISTICS FOR KF45 (refer to the test circuits, T
C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 6.5 V 4.41 4.5 4.59 V

V

O

= 50 mA, VI =6.5V,Ta= -25 to 85°C 4.32 4.68

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 5.5 to 20 V, IO= 5 mA 3 18 mV

∆V

O

Load Regulation VI = 5.8 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 5.5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 5.8 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

= 6.5 ± 1 V

I

f = 120 Hz 77 dB

f=1KHz 72

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

V

Control Input Logic High Ta= -40 to 125°C 2 V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

7/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF47 (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 6.7 V 4.606 4.7 4.794 V

O

= 50 mA, VI =6.7V,Ta= -25 to 85°C 4.512 4.888

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 5.7 to 20 V, IO= 5 mA 3 18 mV

∆V

O

Load Regulation VI =6V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 5.7 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 6 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

= 6.7 ± 1 V

I

f = 120 Hz 77 dB

f=1KHz 72

f = 10 KHz 60

= 500 mA 0.4 0.7

I

O

ELECTRICAL CHARACTERISTICS FOR KF50 (refer to the test circuits, T
C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 7 V 4.9 5 5.1 V

V

O

= 50 mA, VI =7V,Ta= -25 to 85°C 4.8 5.2

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 6 to 20 V, IO= 5 mA 3 18 mV

∆V

O

Load Regulation VI = 6.3 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 6 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 6.3 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

=7±1V

I

f = 120 Hz 76 dB

f=1KHz 71

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

V

Control Input Logic High Ta= -40 to 125°C 2 V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

8/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF52 (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 7.2 V 5.096 5.2 5.304 V

O

= 50 mA, VI =7.2V,Ta= -25 to 85°C 4.992 5.408

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 6.2 to 20 V, IO= 5 mA 3 18 mV

∆V

O

Load Regulation VI = 6.5 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 6.2 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 6.5 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

= 7.2 ± 1 V

I

f = 120 Hz 76 dB

f=1KHz 71

f = 10 KHz 60

= 500 mA 0.4 0.7

I

O

ELECTRICAL CHARACTERISTICS FOR KF55 (refer to the test circuits, T
C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 7.5 V 5.39 5.5 5.61 V

V

O

= 50 mA, VI =7.5V,Ta= -25 to 85°C 5.28 5.72

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 6.5 to 20 V, IO= 5 mA 3 18 mV

∆V

O

Load Regulation VI = 6.8 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 6.5 to 20V, IO= 0mA (ON MODE) 0.5 1 mA

I

d

= 6.8 to 20V, IO= 500mA 12

V

I

= 6 V (OFF MODE) 50 100 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

= 7.5 ± 1 V

I

f = 120 Hz 76 dB

f=1KHz 71

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

V

Control Input Logic High Ta= -40 to 125°C 2 V

IH

Control Input Current VI =6V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

9/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF60 (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 8 V 5.88 6 6.12 V

O

= 50 mA, VI =8V,Ta= -25 to 85°C 5.76 6.24

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 7 to 20 V, IO= 5 mA 4 24 mV

∆V

O

∆V

Load Regulation VI = 7.3 V, IO= 5 to 500 mA 2 50 mV

O

Quiescent Current VI = 7 to 20V, IO= 0mA (ON MODE) 0.7 1.5 mA

I

d

= 7.3 to 20V, IO= 500mA 12

V

I

= 9 V (OFF MODE) 70 140 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =9V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

=8±1V

I

f = 120 Hz 75 dB

f=1KHz 70

f = 10 KHz 60

= 500 mA 0.4 0.7

I

O

ELECTRICAL CHARACTERISTICS FOR KF80B (refer to the test circuits, T
C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 10 V 7.84 8 8.16 V

V

O

= 50 mA, VI =10V,Ta= -25 to 85°C 7.68 8.32

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 9 to 20 V, IO= 5 mA 4 24 mV

∆V

O

Load Regulation VI = 9.3 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 9 to 20V, IO= 0mA (ON MODE) 0.7 1.5 mA

I

d

= 9.3 to 20V, IO= 500mA 12

V

I

V

= 9 V (OFF MODE) 70 140 µA

I

SVR Supply Voltage Rejection I

=5mA

O

V

=10±1V

I

f = 120 Hz 72 dB

f=1KHz 67

f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =9V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

10/17

KF00

ELECTRICAL CHARACTERISTICS FOR KF85B (refer to the test circuits, Tj= 25°C, CI=0.1µF,

C

=2.2µF unless otherwise specified.)

O

Symbol Parameter Test Conditions Min. Typ. Max. Unit

V

Output Voltage IO= 50 mA, VI= 10.5 V 8.33 8.5 8.67 V

O

= 50 mA, VI =10.5V,Ta= -25 to 85°C 8.16 8.84

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI = 9.5 to 20 V, IO= 5 mA 4 24 mV

∆V

O

Load Regulation VI = 9.8 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI = 9.5 to 20V, IO= 0mA (ON MODE) 0.7 1.5 mA

I

d

= 9.8 to 20V, IO= 500mA 12

V

I

= 10 V (OFF MODE) 70 140 µA

V

I

SVR Supply Voltage Rejection I

eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

Control Input Logic High Ta= -40 to 125°C 2 V

V

IH

Control Input Current VI =10V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

=5mA

O

V

= 10.5 ± 1 V

I

f = 120 Hz 67 dB

f=1KHz 63

f = 10 KHz 53

= 500 mA 0.4 0.7

I

O

ELECTRICAL CHARACTERISTICS FOR KF120B (refer to the test circuits, T
C

=2.2µF unless otherwise specified.)

O

= 25°C, CI=0.1µF,

j

Symbol Parameter Test Conditions Min. Typ. Max. Unit

Output Voltage IO= 50 mA, VI= 14 V 11.76 12 12.24 V

V

O

= 50 mA, VI =14V,Ta= -25 to 85°C 11.52 12.48

I

O

Operating Input Voltage IO= 500 mA 20 V

V

I

Output Current Limit 1 A

I

O

Line Regulation VI =13to20V, IO= 5 mA 8 48 mV

∆V

O

Load Regulation VI = 13.3 V, IO= 5 to 500 mA 2 50 mV

∆V

O

Quiescent Current VI =13to20V, IO= 0mA (ON MODE) 0.7 1.5 mA

I

d

= 13.3 to 20V,IO= 500mA 12

V

I

= 13 V (OFF MODE) 70 140 µA

V

I

SVR Supply Voltage Rejection I

=5mA

O

V

=14±1V

I

f = 120 Hz 69 dB

f=1KHz 64

f = 10 KHz 54
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V

Dropout Voltage IO= 200 mA 0.2 0.35 V

d

= 500 mA 0.4 0.7

I

O

Control Input Logic Low Ta= -40 to 125°C 0.8 V

V

IL

V

Control Input Logic High Ta= -40 to 125°C 2 V

IH

Control Input Current VI =13V, VC =6V 10 µA

I

I

Output Bypass Capacitance ESR = 0.1 to 10 Ω IO=0to500mA 2 10 µF

C

O

11/17

KF00

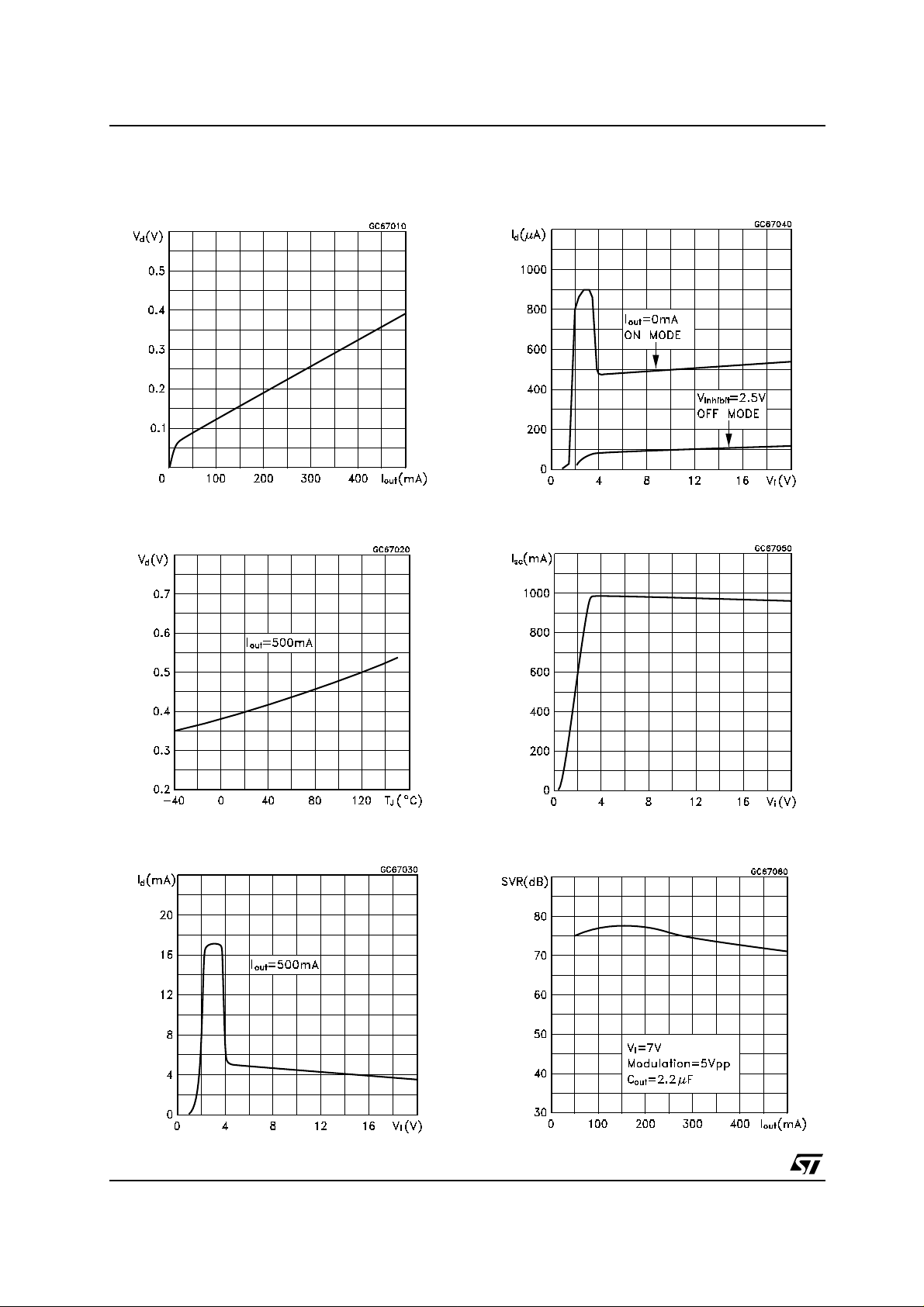

TYPICAL PERFORMANCE CHARACTERISTICS
Figure1 : Dropout Voltage vs Output Current

Figure2 : Dropout Voltage vs T emperature

(unless otherwise specified V

O(NOM)

=3.3V)

Figure4 : S upply Current vs Input V oltage

Figure5 : Short Circuit Current vs Input Voltage

Figure3 : S upply Current vs Input V oltage

12/17

Figure6 : S upply Voltage Rejection vs Input
Voltage

SO-8 MECHANICAL DATA

KF00

DIM.

A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.04 0.010
A2 1.10 1.65 0.043 0.065

B 0.33 0.51 0.013 0.020

C 0.19 0.25 0.007 0.010

D 4.80 5.00 0.189 0.197

E 3.80 4.00 0.150 0.157

e 1.27 0.050

H 5.80 6.20 0.228 0.244

h 0.25 0.50 0.010 0.020

L 0.40 1.27 0.016 0.050

k ˚ (max.)

ddd 0.1 0.04

MIN. TYP MAX. MIN. TYP. MAX.

mm. inch

8

0016023/C

13/17

KF00

DPAK MECHANI

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A2 0.03 0.23 0.001 0.009

B 0.64 0.9 0.025 0.035
B2 5.2 5.4 0.204 0.212

C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023

D 6 6.2 0.236 0.244

E 6.4 6.6 0.252 0.260

G 4.4 4.6 0.173 0.181

H 9.35 10.1 0.368 0.397
L2 0.8 0.031

CAL DATA

L4 0.6 1 0.023 0.039

14/17

0068772-B

Tape & Reel SO-8 MECHANICAL DATA

mm. inch

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 330 12.992

C 12.8 13.2 0.504 0.519

D 20.2 0.795

N 60 2.362

T 22.4 0.882
Ao 8.1 8.5 0.319 0.335
Bo 5.5 5.9 0.216 0.232
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161

P 7.9 8.1 0.311 0.319

KF00

15/17

KF00

Tape & Reel DPAK -PPAK MECHANIC AL DATA

DIM.

MIN. TYP MAX. MIN. TYP. MAX.

A 180 7.086

C 12.8 13.0 13.2 0.504 0.512 0.519

D 20.2 0.795

N 60 2.362

T 14.4 0.567
Ao 6.80 6.90 7.00 0.268 0.272 0.2.76
Bo 10.40 10.50 10.60 0.409 0.413 0.417
Ko 2.55 2.65 2.75 0.100 0.104 0.105
Po 3.9 4.0 4.1 0.153 0.157 0.161

P 7.9 8.0 8.1 0.311 0.315 0.319

mm. inch

16/17

KF00

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use o f suc h inf ormat ion n or f or an y infr ingeme nt of paten ts or oth er ri gh ts of third part ies whic h may resul t f rom
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics.

Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco

© The ST logo is a registered trademark of STMicroelectronics

© 2003 STMicroelectronics - Printed in Italy - All Rights Reserved

STMicroelectronics GROUP OF COMPANIES

Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.

© http://www.st.com

17/17
