Page 1
Product
group
C16
C14
C16A
0ø

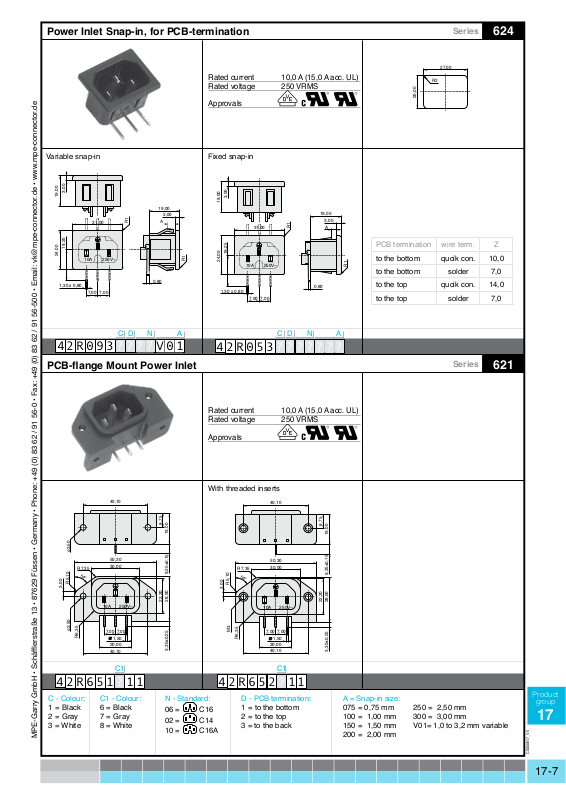

Power Inlet Snap-in, for PCB-termination
Rated current 10,0 A (15,0 A acc. UL)
Rated voltage 250 VRMS
Approvals
Fixed snap-inVariable snap-in
Series
27,00
R2
20,00
624
3,00
19,00
0,80
3,00
A
R1
A
19,25
24,00 19,00
1,30 x 0,80
31,00
10A 250V~
7,00 7,00
R1
C D N
42R093????V01
PCB-ange Mount Power Inlet
3,00
19,00
19,00
0,80
3,00
A
R1
A
19,25
24,00
1,30 x 0,80
31,00
10A 250V~
7,00 7,00
R1
C D N
42R053???????
Rated current 10,0 A (15,0 A acc. UL)
Rated voltage 250 VRMS
Approvals
PCB termination wire term. Z
to the bottom qucik con. 10,0
to the bottom solder 7,0
to the top qucik con. 14,0
to the top solder 7,0
Series
621
With threaded inserts
40,10
8,75
19,009,25±0,15
3,50
50,30
30,00
10A 250V~
7,00 7,00
1,50
20,00
40,10
22,20
28,00
3,30±0,25
3,00
R7,35
54°
R5,10
M3
R6,35
3,00
R5,10
ø3,5
R7,35
54°
R6,35
C1
42R651? 11 42R652? 11
C - Colour:
1 = Black
2 = Gray
3 = White
MPE-Garry GmbH • Schäferstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: [email protected] • www.mpe-connector.de
C1 - Colour:
6 = Black
7 = Gray
8 = White
N - Standard:
06 =
02 =
10 =
C16
C14
C16A
D - PCB termination:
1 = to the bottom
2 = to the top
3 = to the back
40,10
50,30
30,00
10A 250V~
7,00 7,00
1,50
20,00
40,10
C1
8,75
19,00
9,25±0,15
22,20
28,00
3,30±0,25
A = Snap-in size:
075 = 0,75 mm
100 = 1,00 mm
150 = 1,50 mm
200 = 2,00 mm
250 = 2,50 mm
300 = 3,00 mm
V01= 1,0 to 3,2 mm variable
17
CS300617_V5
