Page 1

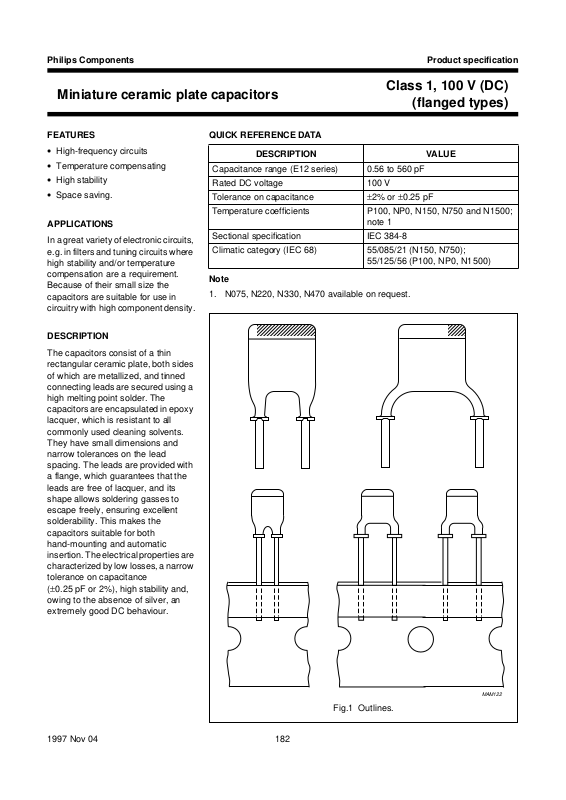

Philips Components Product specification
,
Miniature ceramic plate capacitors
FEATURES
• High-frequency circuits
• Temperature compensating
• Space saving.
APPLICATIONS
In a great variety of electronic circuits, e.g. in filters and tuning circuits where high stability and/or temperature compensation are a requirement. Because of their small size the capacitors are suitable for use in circuitry with high component density.
DESCRIPTION
The capacitors consist of a thin rectangular ceramic plate, both sides of which are metallized, and tinned connecting leads are secured using a high melting point solder. The capacitors are encapsulated in epoxy lacquer, which is resistant to all commonly used cleaning solvents. They have small dimensions and narrow tolerances on the lead spacing. The leads are provided with a flange, which guarantees that the leads are free of lacquer, and its shape allows soldering gasses to escape freely, ensuring excellent solderability. This makes the capacitors suitable for both hand-mounting and automatic insertion. The electrical properties are characterized by low losses, a narrow tolerance on capacitance (±0.25 pF or 2%), high stability and, owing to the absence of silver, an extremely good DC behaviour.
QUICK REFERENCE DATA
Capacitance range (E12 series) 0.56 to 560 pF
Rated DC voltage 100 V Tolerance on capacitance ±2% or ±0.25 pF
Temperature coefficients P100, NP0, N150, N750 and N1500;
Sectional specification IEC 384-8
Climatic category (IEC 68) 55/085/21 (N150, N750);
Note
1. N075, N220, N330, N470 available on request.
handbook, 4 columns
Class 1, 100 V (DC)
(flanged types)
DESCRIPTION VALUE
note 1
55/125/56 (P100, NP0, N1500)
1997 Nov 04 182
MAM122

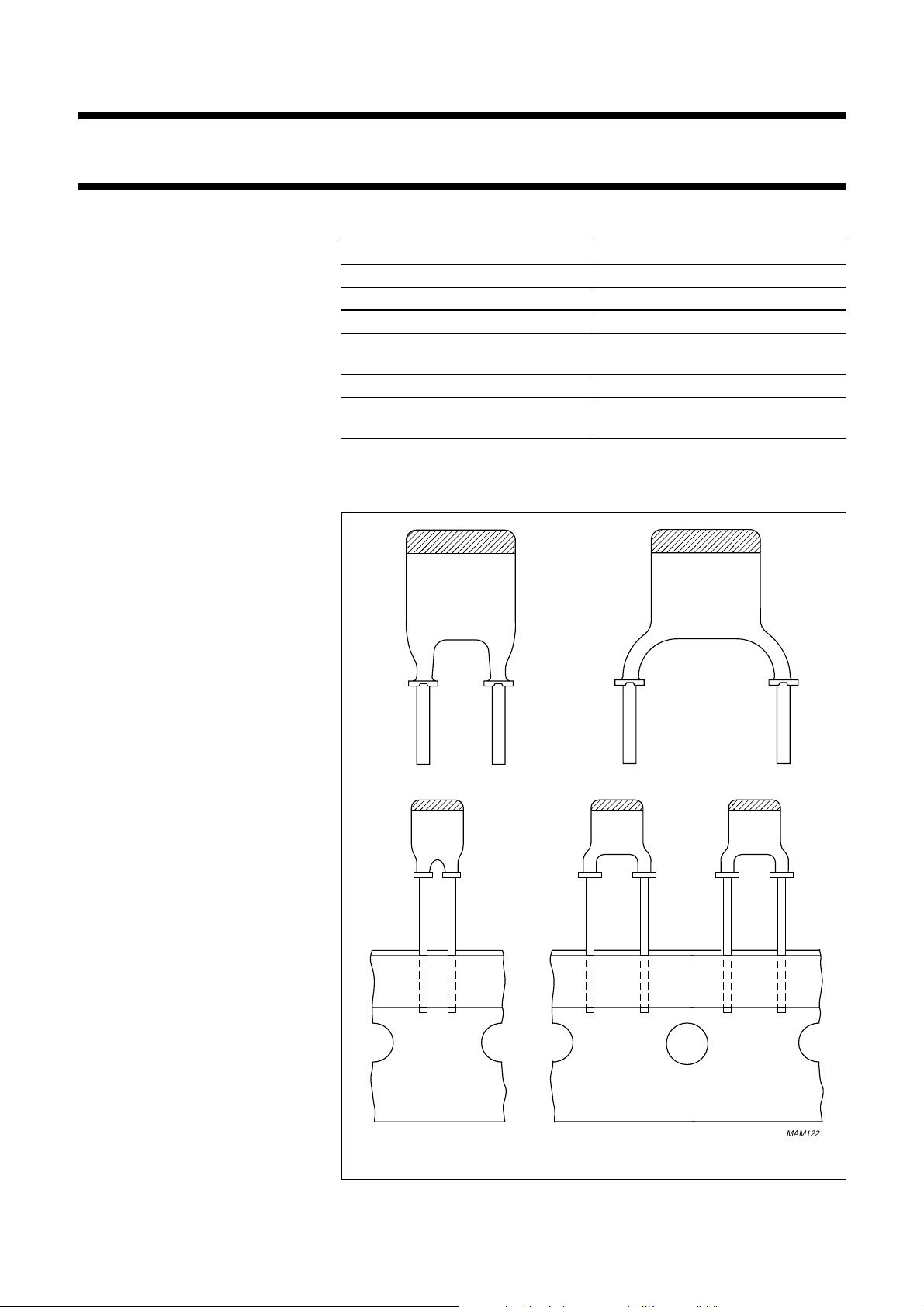

Fig.1 Outlines.
Page 2
Philips Components Product specification
Miniature ceramic plate capacitors
MECHANICAL DATA
2.54
0.3
W
O 0.6
0.6 2.54
H
L
MSA532
0.06
0.05
5.08
Class 1, 100 V (DC)
(flanged types)
0.6 5.08
0.5
0.1
W
H
L
O 0.6
MSA531
0.06
0.05
Dimensions in mm.
For dimensions H, L and W see Tables 1 and 2.

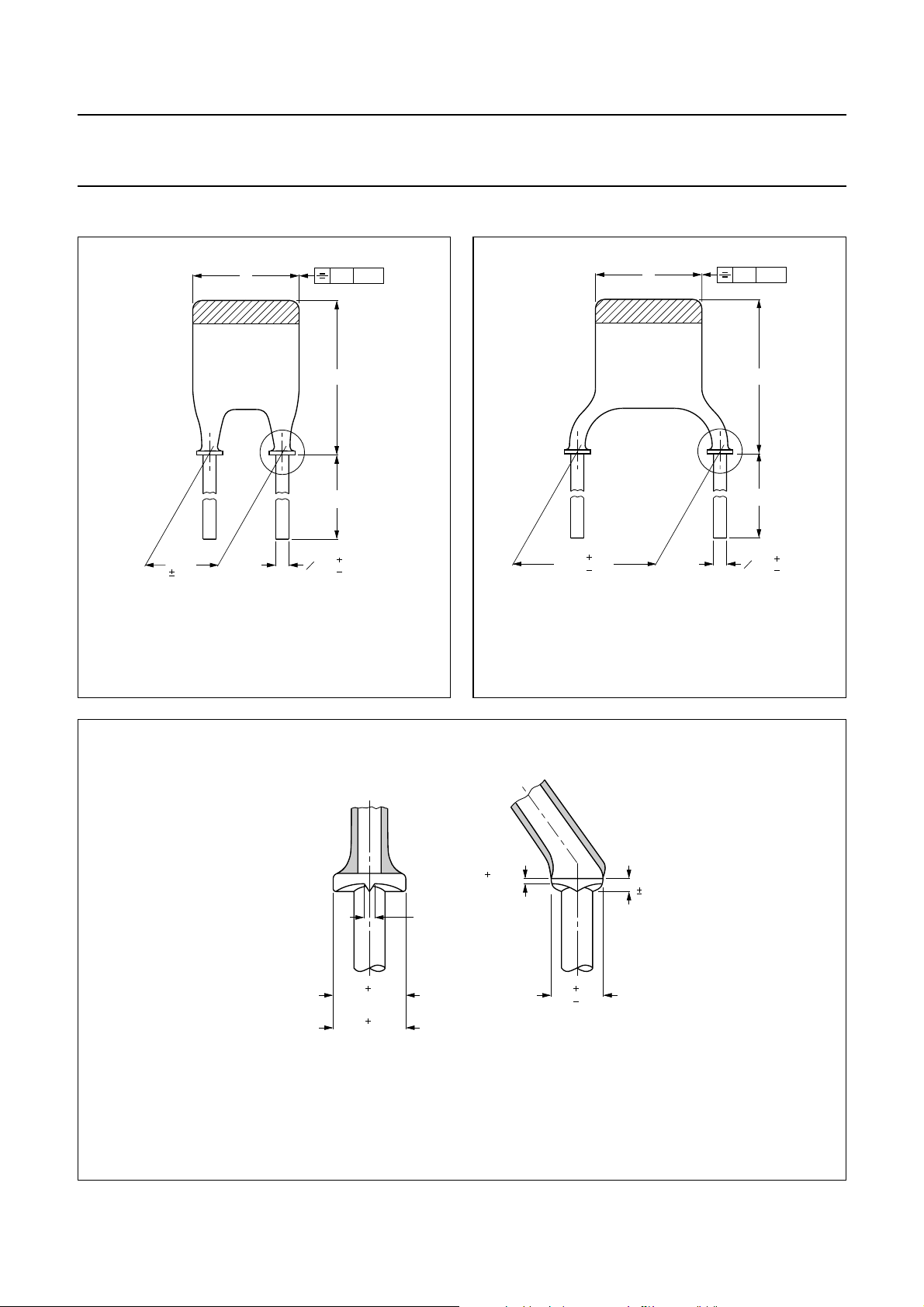

Fig.2 Component outline style 1.
(0.2 in pitch)
(0.1 in pitch)
1.4
1.3
0.2 0
0.3 0
0.2
Dimensions in mm.
For dimensions H, L and W see Tables 1 and 2.
Fig.3 Component outline style 2.
0.05
0.03 0
1.0
0.4
0.1
0.25
0.03
MSA535 - 1
Dimensions in mm.
Fig.4 Detail of flange.
1997 Nov 04 183
Page 3
Philips Components Product specification
Miniature ceramic plate capacitors
Marking
The temperature coefficient is indicated by a colour code in accordance with IEC and EIA recommendations. Capacitance value is indicated by a marking code in a contrasting colour on the body. Refer to Tables 3 to 12, for colour and marking codes.
Mounting
When bending, cutting or flattening, the leads should be relieved of the applied load by supporting them at the capacitor body.
Soldering conditions:
max. 265 °C, max. 10 s.
The capacitors are suitable for mounting on printed-circuit boards (hand-mounting or automatic insertion).
Physical dimensions
Table 1 Capacitor dimensions and mass
SIZE
Notes
1. Unless indicated in Tables 4 to 12, the thickness of the capacitors does not exceed 2.3 mm.
2. Tolerances are given between parentheses.
Class 1, 100 V (DC)
(flanged types)
(2)
(2)
(1)
W
(mm)
STYLE 1 STYLE 2
I 3.6 (−1.1) 5.0 (−1.5) 6.3 (−1.8) ≈0.14 IIA 3.9 (−1.4) 5.3 (−1.7) 6.7 (−2.0) ≈0.15 IIB 4.5 (−1.8) 6.0 (−2.1) 7.3 (−2.4) ≈0.15
III 5.3 (−1.8) 6.8 (−2.3) 8.1 (−2.6) ≈0.17 IV 6.2 (−2.0) 7.7 (−2.4) 9.0 (−2.7) ≈0.20
V 6.2 (−2.0) 10.3 (−2.8) 11.2 (−3.1) ≈0.23
H
(mm)
MASS
(g)
PACKAGING
For details refer to this handbook, Chapter
“Miniature ceramic plate capacitors”
, Section
“General data”
.
ORDERING INFORMATION
Table 2 Catalogue numbers
(REEL)
(1)
(2)
ON TAPE
(AMMOPACK)
PITCH
P
2.54 mm
(0.1 inch)
5.08 mm
(0.2 inch)
LEAD
DIAMETERdSTYLE
0.6 mm
(0.024 inch)
0.6 mm
(0.024 inch)
1 2222 680 ..... 2222 682 ..... 2222 678 ..... 2222 688 .....
2 2222 681 ..... 2222 683 ..... 2222 679 ..... 2222 689 .....
CATALOGUE NUMBERS
BULK PACKED
L ≥ 13 mm L = 4 ±0.5 mm
ON TAPE
Notes
1. Catalogue numbers to be completed by adding the last 5-digit suffix for required capacitance value, see Tables 4 to 12.
= 18.25 mm.
2. H
0
(2)
1997 Nov 04 184
Page 4
Philips Components Product specification
Miniature ceramic plate capacitors
Class 1, 100 V (DC)
(flanged types)
Table 3 Conditions for Table 4; capacitors with temperature coefficient P100 (M7G), rated voltage 100 V (DC)
DESCRIPTION VALUE
Capacitance range 0.56 to 47 pF (E12 series)
∆C
Temperature coefficient of the capacitance

------------

C∆T
100 × 10
Tolerance on the temperature coefficient ±30 × 10
Marking colour of the temperature coefficient red/violet
Climatic category (IEC 68) 55/125/56
Table 4 Preferred capacitance range, temperature coefficient P100 (M7G)
CAPACITANCE
VALUE
(1)
TOLERANCE
(pF)
0.56 ±0.25 pF I
0.68 ±0.25 pF I
0.82 ±0.25 pF I
1.0 ±0.25 pF I
SIZE
(see Table 1)
(2)
(2)
(2)
(3)
1.2 ±0.25 pF I 1p2 03128
1.5 ±0.25 pF I 1p5 03158
1.8 ±0.25 pF I 1p8 03188
2.2 ±0.25 pF I 2p2 03228
2.7 ±0.25 pF I 2p7 03278
3.3 ±0.25 pF I 3p3 03338
3.9 ±0.25 pF I 3p9 03398
4.7 ±0.25 pF I 4p7 03478
5.6 ±0.25 pF I 5p6 03568
6.8 ±0.25 pF I 6p8 03688
8.2 ±0.25 pF IIA 8p2 03828 10 ±2% IIA 10p 04109 12 ±2% IIB 12p 04129 15 ±2% IIB 15p 04159 18 ±2% III 18p 04189 22 ±2% III 22p 04229 27 ±2% IV 27p 04279 33 ±2% IV 33p 04339 39 ±2% V 39p 04399 47 ±2% V 47p 04479
−6
/K
−6
/K
SUFFIX OF
MARKING
CATALOGUE
(see Table 2)
p56 03567
p68 03687
p82 03827
1p0 03108
NUMBER
Notes
1. Other capacitance values and tolerances are available on request.
2. Maximum thickness 2.7 mm.
3. Maximum thickness 2.5 mm.
1997 Nov 04 185
Page 5
Philips Components Product specification
Miniature ceramic plate capacitors
Class 1, 100 V (DC)
(flanged types)
Table 5 Conditions for Table 6; capacitors with temperature coefficient NP0 (C0G), rated voltage 100 V (DC)
DESCRIPTION VALUE
Capacitance range 1.8 to 220 pF (E12 series)
∆C
Temperature coefficient of the capacitance
Tolerance on the temperature coefficient ±30 × 10
Marking colour of the temperature coefficient black
Climatic category (IEC 68) 55/125/56
Table 6 Preferred capacitance range, temperature coefficient NP0 (C0G)
CAPACITANCE
VALUE
(1)
(pF)
1.8 ±0.25 pF I
2.2 ±0.25 pF I 2p2 09228
2.7 ±0.25 pF I 2p7 09278
3.3 ±0.25 pF I 3p3 09338
3.9 ±0.25 pF I 3p9 09398
4.7 ±0.25 pF I 4p7 09478
5.6 ±0.25 pF I 5p6 09568
6.8 ±0.25 pF I 6p8 09688
8.2 ±0.25 pF I 8p2 09828 10 ±2% I 10p 10109 12 ±2% I 12p 10129 15 ±2% I 15p 10159 18 ±2% I 18p 10189 22 ±2% I 22p 10229 27 ±2% I 27p 10279 33 ±2% I 33p 10339 39 ±2% IIA 39p 10399 47 ±2% IIA 47p 10479 56 ±2% IIA 56p 10569 68 ±2% IIB 68p 10689 82 ±2% IIB 82p 10829
100 ±2% III n10 10101 120 ±2% III n12 10121 150 ±2% IV n15 10151 180 ±2% IV n18 10181 220 ±2% V n22 10221
TOLERANCE

------------

C∆T
(see Table 1)
SIZE
(2)
0 × 10
−6
/K
−6
/K
SUFFIX OF
MARKING
1p8 09188
CATALOGUE
(see Table 2)
NUMBER
Notes
1. Other capacitance values and tolerances are available on request.
2. Maximum thickness 2.5 mm.
1997 Nov 04 186
Page 6
Philips Components Product specification
Miniature ceramic plate capacitors
Class 1, 100 V (DC)
(flanged types)
Table 7 Conditions for Table 8; capacitors with temperature coefficient N150 (P2G), rated voltage 100 V (DC)
DESCRIPTION VALUE
Capacitance range 3.9 to 220 pF (E12 series)
∆C
Temperature coefficient of the capacitance
Tolerance on the temperature coefficient ±30 × 10
Marking colour of the temperature coefficient orange
Climatic category (IEC 68) 55/085/21
Table 8 Preferred capacitance range, temperature coefficient N150 (P2G)
CAPACITANCE
VALUE
(1)
(pF)
3.9 ±0.25 pF I
4.7 ±0.25 pF I 4p7 33478
5.6 ±0.25 pF I 5p6 33568
6.8 ±0.25 pF I 6p8 33688
8.2 ±0.25 pF I 8p2 33828 10 ±2% I 10p 34109 12 ±2% I 12p 34129 15 ±2% I 15p 34159 18 ±2% I 18p 34189 22 ±2% I 22p 34229 27 ±2% I 27p 34279 33 ±2% I 33p 34339 39 ±2% IIA 39p 34399 47 ±2% IIA 47p 34479 56 ±2% IIB 56p 34569 68 ±2% IIB 68p 34689 82 ±2% III 82p 34829
100 ±2% III n10 34101 120 ±2% IV n12 34121 150 ±2% IV n15 34151 180 ±2% IV n18 34181 220 ±2% V n22 34221
TOLERANCE

------------

C∆T
(see Table 1)
−150 × 10
SIZE
(2)
−6
/K
−6
/K
SUFFIX OF
MARKING
3p9 33398
CATALOGUE
(see Table 2)
NUMBER
Notes
1. Other capacitance values and tolerances are available on request.
2. Maximum thickness 2.5 mm.
1997 Nov 04 187
Page 7
Philips Components Product specification
Miniature ceramic plate capacitors
Class 1, 100 V (DC)
(flanged types)
Table 9 Conditions for Table 10; capacitors with temperature coefficient N750 (U2J), rated voltage 100 V (DC)
DESCRIPTION VALUE
Capacitance range 3.9 to 330 pF (E12 series)
∆C
Temperature coefficient of the capacitance
Tolerance on the temperature coefficient ±120 × 10
Marking colour of the temperature coefficient violet
Climatic category (IEC 68) 55/085/21
Table 10 Preferred capacitance range, temperature coefficient N750 (U2J)
CAPACITANCE
VALUE
(1)
(pF)
3.9 ±0.25 pF I
4.7 ±0.25 pF I 4p7 57478
5.6 ±0.25 pF I 5p6 57568
6.8 ±0.25 pF I 6p8 57688
8.2 ±0.25 pF I 8p2 57828 10 ±2% I 10p 58109 12 ±2% I 12p 58129 15 ±2% I 15p 58159 18 ±2% I 18p 58189 22 ±2% I 22p 58229 27 ±2% I 27p 58279 33 ±2% I 33p 58339 39 ±2% I 39p 58399 47 ±2% I 47p 58479 56 ±2% IIA 56p 58569 68 ±2% IIA 68p 58689 82 ±2% IIB 82p 58829
100 ±2% IIB n10 58101 120 ±2% III n12 58121 150 ±2% III n15 58151 180 ±2% IV n18 58181 220 ±2% IV n22 58221 270 ±2% V n27 58271 330 ±2% V n33 58331
TOLERANCE

------------

C∆T
(see Table 1)
−750 × 10
SIZE
(2)
−6
/K
−6
/K
SUFFIX OF
MARKING
3p9 57398
CATALOGUE
(see Table 2)
NUMBER
Notes
1. Other capacitance values and tolerances are available on request.
2. Maximum thickness 2.5 mm.
1997 Nov 04 188
Page 8
Philips Components Product specification
Miniature ceramic plate capacitors
Class 1, 100 V (DC)
(flanged types)
Table 11 Conditions for Table 12; capacitors with temperature coefficient N1500 (P3K), rated voltage 100 V (DC)
DESCRIPTION VALUE
Capacitance range 18 to 560 pF (E12 series)
∆C
Temperature coefficient of the capacitance
Tolerance on the temperature coefficient (0 to +500) × 10
Marking colour of the temperature coefficient orange/orange
Climatic category (IEC 68) 55/125/56
Table 12 Preferred capacitance range, temperature coefficient N1500 (P3K)
CAPACITANCE
VALUE
(1)
(pF)
18 ±2% I 22 ±2% I 22p 70229 27 ±2% I 27p 70279 33 ±2% I 33p 70339 39 ±2% I 39p 70399 47 ±2% I 47p 70479 56 ±2% I 56p 70569 68 ±2% I 68p 70689 82 ±2% I 82p 70829
100 ±2% IIA n10 70101 120 ±2% IIA n12 70121 150 ±2% IIB n15 70151 180 ±2% IIB n18 70181 220 ±2% III n22 70221 270 ±2% III n27 70271 330 ±2% IV n33 70331 390 ±2% IV n39 70391 470 ±2% V n47 70471 560 ±2% V n56 70561
TOLERANCE

------------

C∆T
(see Table 1)
−1500 × 10
SIZE
(2)
−6
/K
−6
/K
SUFFIX OF
MARKING
18p 70189
CATALOGUE
(see Table 2)
NUMBER
Notes
1. Other capacitance values and tolerances are available on request.
2. Maximum thickness 2.5 mm.
1997 Nov 04 189
Page 9
Philips Components Product specification
Miniature ceramic plate capacitors
Class 1, 100 V (DC)
(flanged types)
ELECTRICAL CHARACTERISTICS
The capacitors meet the essential requirements of ambient temperature of 20 ±1 °C, an atmospheric pressure of 86 to 106 kPa and a relative humidity of 63 to 67%.
DESCRIPTION VALUE
Capacitance values (note 1) measured at 1 MHz, ≤5 V see Tables 4 to 12
Rated DC voltage 100 V
DC test voltage; duration 1 minute 300 V
DC test voltage of coating; duration 1 minute 300 V Insulation resistance at 100 V (DC) after 1 minute ≥10000 MΩ Ta n δ (note 1) measured at 1 MHz, ≤5V:
C≤50 pF
C > 50 pF ≤15 × 10
Category temperature range −55 to +85 °C (N150, N750);
Storage temperature range −55 to +85 °C
Note
1. Including 2 mm per connecting lead.
“IEC 384-8”
−55 to +125 °C (P100, NP0, N1500)
. Unless stated otherwise all electrical values apply at an
15

15≤
0.7+
------

C
−4
× <55 104–×;
10
4–
IZI
(Ω)
4
10
3
10
2
10
10
1
1
10
2
10
10 pF
100 pF
220 pF
2
101
10
f (MHz)
MSA550
3
10

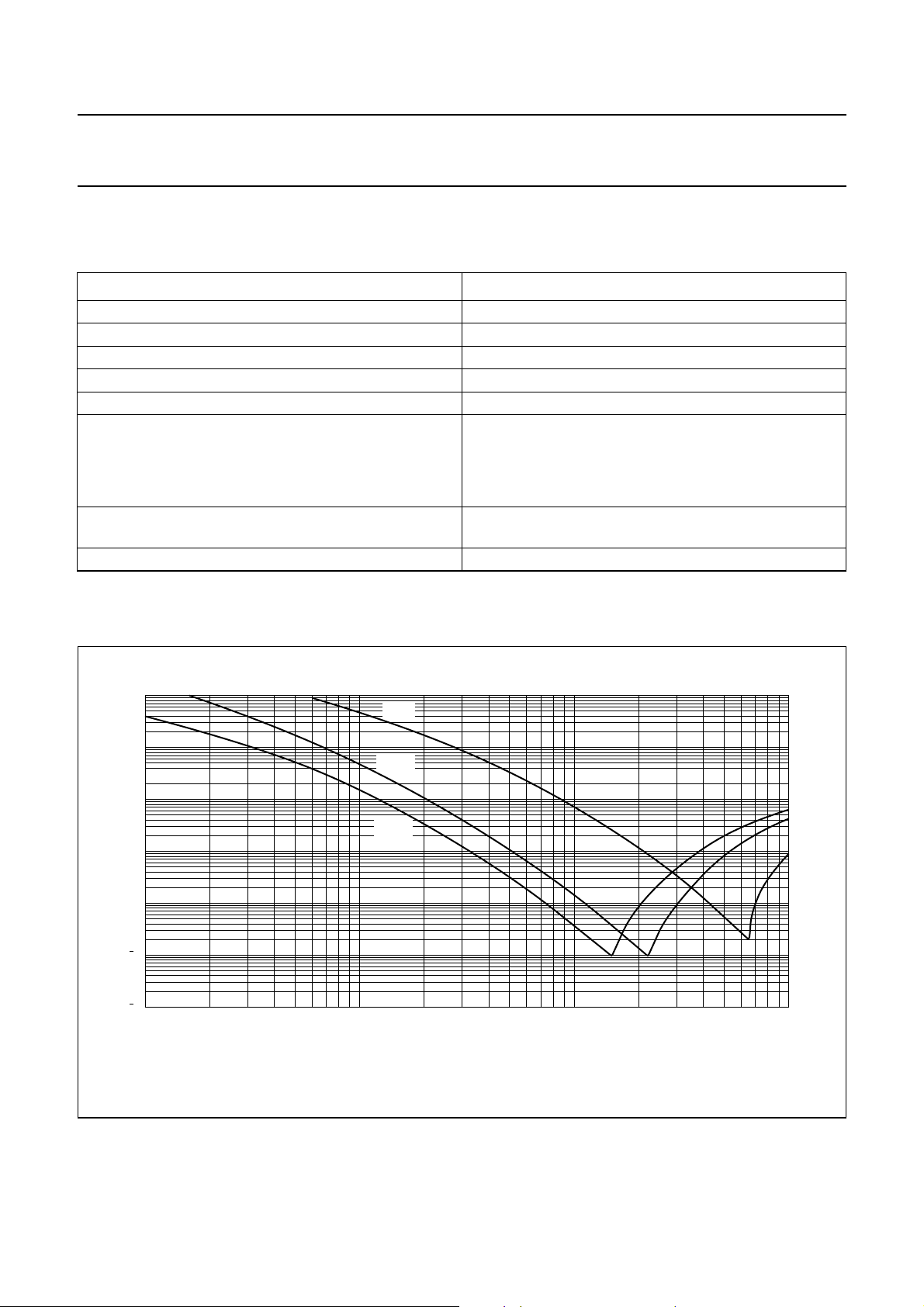

Fig.5 Typical impedance Z as a function of frequency.
1997 Nov 04 190
