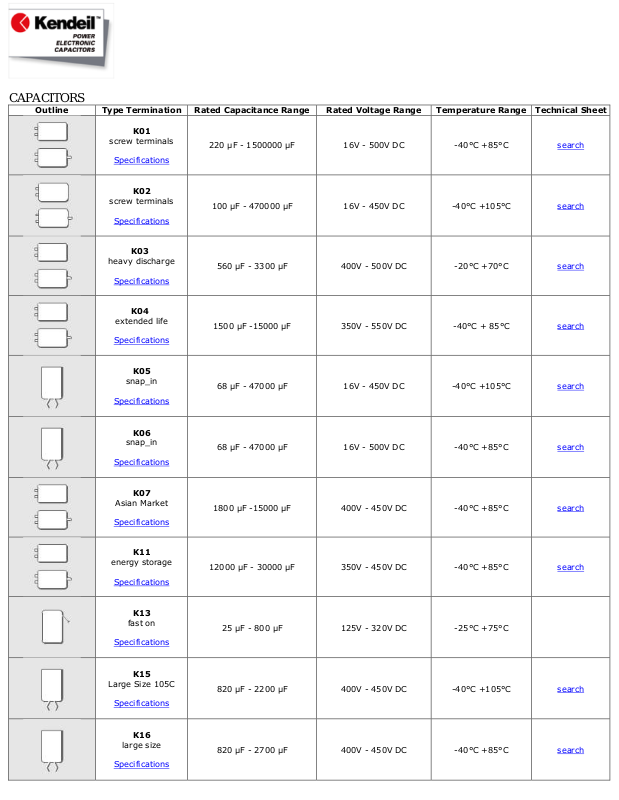

Page 1
CAPACITORS
Outline
Type Termination
Rated Capacitance Range
Rated Voltage Range
Temperature Range
Technical Sheet
K01
screw terminals
Specifications
220 µF - 1500000 µF
16V - 500V DC
-40°C +85°C
search
K02
screw terminals
Specifications
100 µF - 470000 µF
16V - 450V DC
-40°C +105°C
search
K03
heavy discharge
Specifications
560 µF - 3300 µF
400V - 500V DC
-20°C +70°C
search
K04
extended life
Specifications
1500 µF -15000 µF
350V - 550V DC
-40°C + 85°C
search
K05
snap_in
Specifications
68 µF - 47000 µF
16V - 450V DC
-40°C +105°C
search
K06
snap_in
Specifications
68 µF - 47000 µF
16V - 500V DC
-40°C +85°C
search
K07
Asian Market
Specifications
1800 µF -15000 µF
400V - 450V DC
-40°C +85°C
search
K11
energy storage
Specifications
12000 µF - 30000 µF
350V - 450V DC
-40°C +85°C
search
K13
fast on
Specifications
25 µF - 800 µF
125V - 320V DC
-25°C +75°C
K15
Large Size 105C
Specifications
820 µF - 2200 µF
400V - 450V DC
-40°C +105°C
search
K16
large size
Specifications
820 µF - 2700 µF
400V - 450V DC
-40°C +85°C
search
Page 2
Outline
Type Termination
Rated Capacitance Range
Rated Voltage Range
Temperature Range
Technical Sheet
K21
Low ESR
Specifications
1200µF - 15000µF
350V - 450V DC
-40°C +85°C
search
K22
Low ESR
Specifications
1000µF - 12000µF
350V - 450V DC
-40°C +105°C
search
K25
Low ESR
Specifications
820µF - 2200µF
400V - 450V DC
-40°C +105°C
search
K26
Low ESR
Specifications
1000µF - 2700µF
400V - 450V DC
-40°C +85°C
search
K41
Long Term Vibrations
Resistance
Specifications
220 µF - 1500000 µF
16V - 500V DC
-40°C +85°C
search
K42
Long Term Vibrations
Resistance
Specifications
100 µF - 470000 µF
16V - 450V DC
-40°C +105°C
search
K61
Professional Audio
application
Specifications
6800 µF - 47000 µF
63V - 100V DC
-40°C +85°C
search
