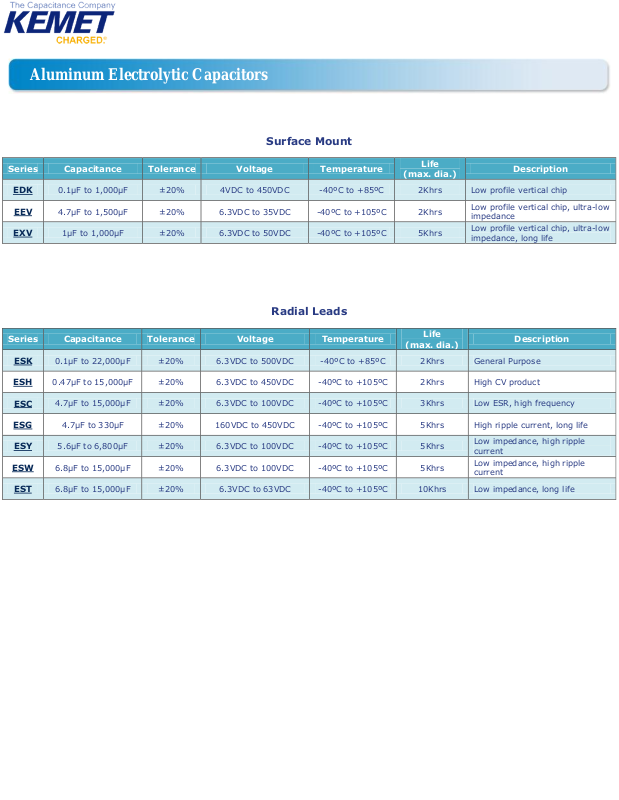

Aluminum Electrolytic Capacitors
Surface Mount
Series
Capacitance
Tolerance
Voltage
Temperature
Life
(max. dia.)
Description
EDK
0.1µF to 1,000µF
±20%
4VDC to 450VDC
-40ºC to +85ºC
2Khrs
Low profile vertical chip
EEV
4.7µF to 1,500µF
±20%
6.3VDC to 35VDC
-40ºC to +105ºC
2Khrs
Low profile vertical chip, ultra-low
impedance
EXV
1µF to 1,000µF
±20%
6.3VDC to 50VDC
-40ºC to +105ºC
5Khrs
Low profile vertical chip, ultra-low
impedance, long life
Radial Leads
Series
Capacitance
Tolerance
Voltage
Temperature
Life
(max. dia.)
Description
ESK
0.1µF to 22,000µF
±20%
6.3VDC to 500VDC
-40ºC to +85ºC
2Khrs
General Purpose
ESH
0.47µF to 15,000µF
±20%
6.3VDC to 450VDC
-40ºC to +105ºC
2Khrs
High CV product
ESC
4.7µF to 15,000µF
±20%
6.3VDC to 100VDC
-40ºC to +105ºC
3Khrs
Low ESR, high frequency
ESG
4.7µF to 330µF
±20%
160VDC to 450VDC
-40ºC to +105ºC
5Khrs
High ripple current, long life
ESY
5.6µF to 6,800µF
±20%
6.3VDC to 100VDC
-40ºC to +105ºC
5Khrs
Low impedance, high ripple
current
ESW
6.8µF to 15,000µF
±20%
6.3VDC to 100VDC
-40ºC to +105ºC
5Khrs
Low impedance, high ripple
current
EST
6.8µF to 15,000µF
±20%
6.3VDC to 63VDC
-40ºC to +105ºC
10Khrs
Low impedance, long life
Page 2
Series
Capacitance
Tolerance
Voltage
Temperature
Life
(max. dia.)
Description
ALC10
56µF to 82,000µF
±20%
40VDC
to
500VDC
-40ºC to +85ºC
14Khrs
Wide voltage ratings, high ripple currents and
long life performance.
ALC10S
(Audio)
10,000µF
±20%
50VDC
to
100VDC
-40ºC to +85ºC
18Khrs
Produced specifically for audio applications.
ALC40
47µF to 120,000µF
±20%
25VDC
to
450VDC
-40ºC to +105ºC
14Khrs
High ripple currents and long life at higher
temperatures.
PEH506
68µF to 27,000µF
±20%
35VDC
to
450VDC
-40ºC to +85ºC
6Khrs
Long life, high ripple-current.
PEH526
820µF to 6,800µF
±20%
25VDC
to
80VDC
-40ºC to +125ºC
4Khrs
High performance automotive applications, high
vibration and high ambient temperature.
PEH532
68µF to 27,000µF
±20%
35VDC
to
450VDC
-40ºC to +105ºC
2Khrs
Long life, high ripple-current.
PEH534
150µF to 22,000µF
±20%
35VDC
to
450VDC
-40ºC to +105ºC
4Khrs
Long life, high ripple-current.
PEH536
47µF to 18,000µF
±20%
35VDC
to
450VDC
-40ºC to +105ºC
6Khrs
Long life, high ripple-current.
ELH
47µF to 120,000µF
±20%
6.3VDC
to
450VDC
-40ºC (-25ºC)
to +85ºC
2Khrs
General purpose snap-in capacitor.
ELG
47µF to 82,000µF
±20%
6.3VDC
to
450VDC
-40ºC (-25ºC)
to +105ºC
2Khrs
General purpose snap-in capacitor.
Snap-in Terminations
