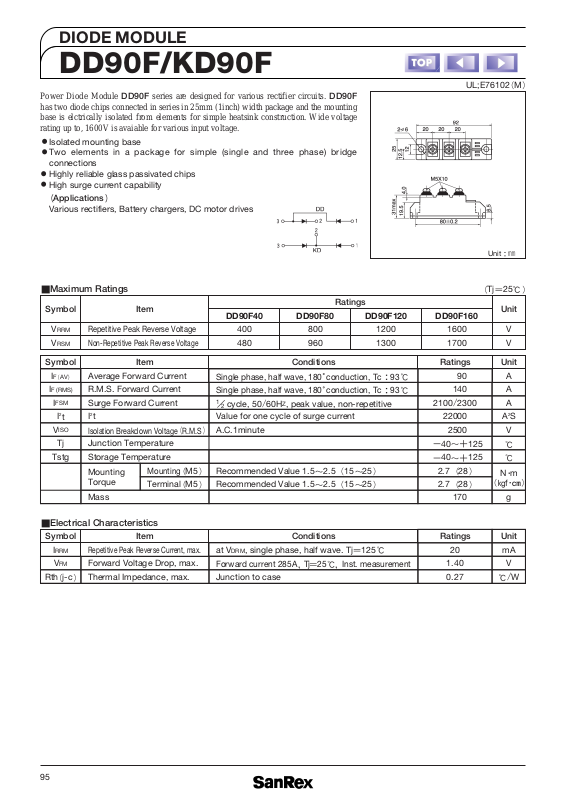

Page 1
95
DD90F/KD90F
DIODE MODULE
Unit a
Symbol Item
Ratings
DD90F40
400
480
DD90F80
800
960
DD90F120 DD90F160
1200
1300
1600
1700
Unit
VRRM
VRSM
Repetitive Peak Reverse Voltage
Non-Repetitive Peak Reverse Voltage
V
V
Symbol Item
Average Forward Current
Conditions Ratings Unit
AIF AV
Single phase, half wave, 180 conduction, Tc 93
90
I
F (RMS)
R.M.S. Forward Current
Single phase, half wave, 180 conduction, Tc 93
140 A
I
FSM
Surge Forward Current
1
2
cycle, 50/60HZ, peak value, non-repetitive
2100/2300
A
I
2
t
I2t Value for one cycle of surge current 22000 A2S
V
ISO
Isolation Breakdown Voltage R.M.S
A.C.1minute 2500 V
Tj Junction Temperature
40 125
Tstg Storage Temperature
Mounting
Torque
40 125
Mounting
M5
Terminal M5
Mass
Recommended Value 1.5 2.5 15 25
Recommended Value 1.5 2.5 15 25
2.7 28
2.7 28
N m
f B
g170
Electrical Characteristics
Symbol
IRRM
Item
Repetitive Peak Reverse Current, max.
Conditions
at V
DRM
, single phase, half wave. Tj 125
Ratings
20
1.40
0.27
Unit
mA
VFM Forward Voltage Drop, max.
Forward current 285A Tj 25 Inst. measurement
V
Rth j-c
Thermal Impedance, max. Junction to case
/W
Power Diode Module DD90F series are designed for various rectifier circuits. DD90F
has two diode chips connected in series in 25mm (1inch) width package and the mounting
base is elctrically isolated from elements for simple heatsink construction. Wide voltage
rating up to, 1600V is avaiable for various input voltage.
Isolated mounting base
Two elements in a package for simple (single and three phase) bridge
connections
Highly reliable glass passivated chips
High surge current capability
Applications
Various rectifiers, Battery chargers, DC motor drives
UL;E76102
M
Maximum Ratings
Tj 25
Page 2
96
DD90F/KD90F
