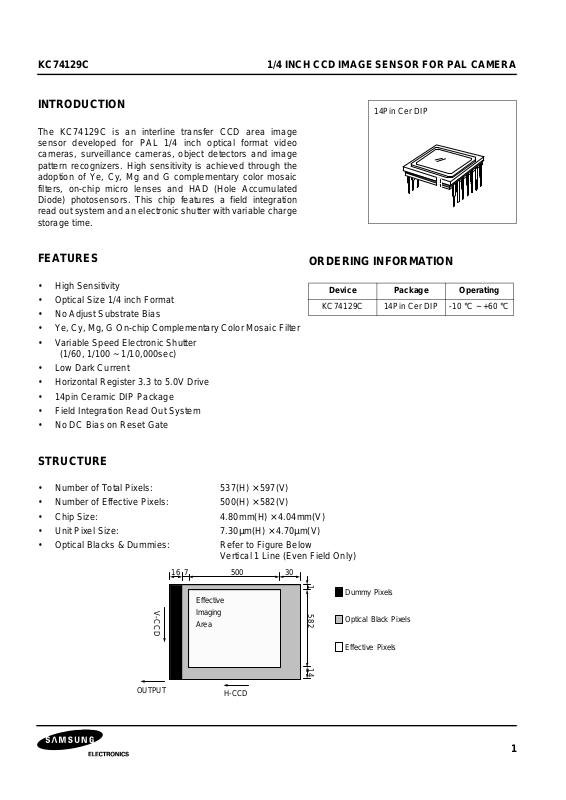

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

ORDERING INFORMATION

H-CCD

INTRODUCTION

The KC74129C is an interline transfer CCD area image
sensor developed for PAL 1/4 inch optical format video
cameras, surveillance cameras, object detectors and image
pattern recognizers. High sensitivity is achieved through the
adoption of Ye, Cy, Mg and G complementary color mosaic
filters, on-chip micro lenses and HAD (Hole Accumulated
Diode) photosensors. This chip features a field integration
read out system and an electronic shutter with variable charge
storage time.

FEATURES

• High Sensitivity

• Optical Size 1/4 inch Format

• No Adjust Substrate Bias

• Ye, Cy, Mg, G On-chip Complementary Color Mosaic Filter

• Variable Speed Electronic Shutter
(1/60, 1/100 ~ 1/10,000sec)

• Low Dark Current

• Horizontal Register 3.3 to 5.0V Drive

• 14pin Ceramic DIP Package

• Field Integration Read Out System

• No DC Bias on Reset Gate

14Pin Cer DIP

Device Package Operating

KC74129C 14Pin Cer DIP -10 °C ~ +60 °C

STRUCTURE

• Number of Total Pixels: 537(H) × 597(V)

• Number of Effective Pixels: 500(H) × 582(V)

• Chip Size: 4.80mm(H) × 4.04mm(V)

• Unit Pixel Size: 7.30µm(H) × 4.70µm(V)

• Optical Blacks & Dummies: Refer to Figure Below

Vertical 1 Line (Even Field Only)

16 7 500 30

1 582 14

V-CCD

OUTP UT

Effective
Imagi ng
Area

Du mmy P ixels

Optical Black Pixels

E ffective Pixel s

1

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

BLOCK DIAGRAM

(Top View)

7

V

OUT

8 9 10 11 12 13 14

V

DD

6 5 4 3 2 1

GND NC

Vertical Shift Register CCD

Cy Ye

Mg

Cy

Cy

G
Cy
Mg Mg

GND

Ye

Ye

Mg

Ye Ye

Φ

SUB

Φ

V1

Vertical Shift Register CCD

G

G

Horizontal Shift Register CCD

V

L

Φ

Φ

Cy

Mg

Cy

Cy

Cy

RG

V2

G

Φ

Vertical Shift Register CCD

Ye

G

Ye

Ye

Mg

G

Φ

H1

V3

Vertical Shift Register CCD

Figure 1. Block Diagram

Φ

Φ

V4

H2

PIN DESCRIPTION

Table 1. Pin Description

Pin Symbol Description Pin Symbol Description

1
2
3
4

Φ
Φ
Φ
Φ

V4

V3

V2

V1

Vertical register transfer clock 8
Vertical register transfer clock 9 GND GND
Vertical register transfer clock 10

Vertical register transfer clock 11
5 NC No connection 12
6 GND Ground 13
7

V

OUT

Signal output 14

2

Φ

V

Φ

Φ

Φ

DD

SUB

V

L

RG

H1

H2

Signal output

Substrate clock
Protection transistor bias
Reset gate clock
Horizontal register transfer clock
Horizontal register transfer clock

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

ABSOLUTE MAXIMUM RATINGS

(NOTE)

Table 2. Absolute Maximum Ratings

Characteristics Symbols Min. Max. Unit

Substrate voltage SUB - GND -0.3 40 V

VDD, V

Vertical clock input voltage ΦV1, ΦV3, - GND

ΦV2, Φ
ΦV1, ΦV3, - V
ΦV2, Φ
ΦV1, ΦV2, ΦV3, Φ

Horizontal clock input voltage ΦH1, ΦH2 - V

ΦH1, ΦH2 - SUB

Voltage difference between vertical and
horizontal clock input pins

ΦV1, ΦV2, ΦV3, Φ
ΦH1, Φ

OUT

V4

V4

H2

- SUB

- GND

L

- VL

L

V4

V4

- SUB

-40 10 V

-0.3 30 V

-0.3 17 V

-0.3 30 V

-0.3 17 V

-40 10 V

-0.3 7 V

-40 7 V
15 V
17 V

ΦH1, ΦH2 - Φ

V4

Output clock input voltage ΦRG - GND

ΦRG - SUB

Protection circuit bias voltage
Operating temperature
Storage temperature

NOTE: The device can be destroyed, if the applied voltage or temperature is higher than the absolute maximum rating voltage

or temperature.

VL - SUB
T

OP

T

STG

-17 17 V

-0.3 17 V

-40 17 V

-40 10 V

-10 60 °C

-30 80 °C

3

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

DC CHARACTERISTICS

Table 3. DC Characteristics

Item Symbol Min. Typ. Max. Unit

Output stage drain bias
Protection circuit bias voltage
Output stage drain current

CLOCK VOLTAGE CONDITIONS

Table 4. Clock Voltage Conditions

Item Symbol Min. Typ. Max. Unit Remark

Read-out clock voltage
Vertical transfer clock voltage V

Horizontal transfer clock voltage V

V

VM1

V

VH1

VL1

HH1

, V
~ V
~ V

, V

V

V

I

VH3

VM4

VL4

HH2

DD

DD

14.55 15.0 15.45 V

L

The lowest vertical clock level

5 mA

14.55 15.0 15.45 V High level

-0.2 0.0 0.2 V Middle

-8.0 -7.5 -7.0 V Low

3.0 5.0 5.25 V High

V

HL1

Charge reset clock voltage V

Substrate clock voltage

V

, V

RGH

V

RGL

ΦSUB

HL2

-0.05 0.0 0.05 V Low

4.75 5.0 5.25 V High

-0.2 0.0 0.2 V Low

21.5 22.5 23.5 V Shutter

4

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

V

=

V

-0.3V

DRIVE CLOCK WAVEFORM CONDITIONS

Read Out Clock Waveform

100%

90%

V

VH1,VVH3

10%

0%

Vertical Transfer Clock Waveform

tr twh tf

0V

¥Õ

V V H 1

¥Õ

V VH2

V 1

V 2

V V H H

V V L 1

V VL

V V HH V VHH

V

VHL

V

VL

V

VH

V V H H

V V H L

V

VL H

V

V

V

V VL H

V VL 2

V VL L

VVH= (V
VV L = (V V L 3 + VV L 4)/ 2
V¥ÕV= V

¥Õ

V 3

V

V H L

V V HL

V VHH

V V HL

V

VH3

V VL 3

VL L

¥Õ

V 4

V

VH

VHL

VH

V

V VL

V VH H

VHL

V V H4

V

VH H

V

VH

V VL H

V

VL L

V

VH H

V

VHL

V VL H

V

VL L

V

VH 1

+ V

VH 2

VL 4

)/2

V

VH H

= VVH+ 0.3V

V

VL

VVH L = VV H - 0. 3 V

VH n

- V

VL n (n = 1~4)

V

= V

V L

V L

+ 0.3V

VL H

VL L

5

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

V

Horizontal Transfer Clock Waveform Diagram

90%

10%

HL

Reset Gate Clock Waveform Diagram

RG waveform

V

RGLH

V

RGLL

tr twh

twl

Point A

V¥Õ

tf

H

twl

twh t ftr

V

RGH

V

¥Õ

RG

V

+ 0.5V

RGL

V

RGL

¥Õ

H1 waveform

10%

V

is the maximum value and V

RGLH

the diagram about to RG rise
V

RGL

= (V

RGLH

+ V

RGLL

)/2, V

Substrate Clock Waveform

V

SU B

FRG

100%

90%

10%

0%

the minimum value of the coupling waveform in the period from Point A in

RGLL

= V

RGH

- V

RGL

¥Õ

V

SU B

twhtr tf

6

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

CLOCK EQUIVALENT CIRCUIT CONSTANT

Table 5. Clock Equivalent Circuit Constant

Item Symbol

Read-out clock

Vertical clock

Horizontal clock

Reset clock
Substrate clock

Φ

VH

ΦV1, Φ
ΦV3, Φ

Φ

H1

Φ

H2

Φ

RG

Φ

SUB

twh twl tr tf

Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max.

2.3 2.5 0.1 0.1 µs

V2
V4

41 46 41 46 6.5 9.5 6.5 9.5 ns
41 46 41 46 6.5 9.5 6.5 9.5 ns
11 14 76 80 6.0 5.0 ns

1.5 2.0 0.5 0.5 µs

5 250 ns

Unit

7

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

V

3¥ÕV

4

EQUIVALENT CIRCUIT PARAMETERS

Table 6. Equivalent Circuit Parameters

Item Symbol Typ. Unit Remark

Capacitance between vertical transfer clock and GND C

Capacitance between vertical transfer clocks C

C

Capacitance between horizontal transfer clock and GND
Capacitance between horizontal transfer clocks
Capacitance between substrate clock and GND
Vertical transfer clock serial resistor

R
Vertical transfer clock ground resistor
Horizontal transfer clock serial resistor
Reset gate clock serial resistor

ΦV1

C

ΦV2

ΦV12

ΦV23

C

ΦH1

ΦV1

R

R

ΦH1

, C
, C
, C
, C

C

ΦV13

C

ΦV24

, C

C

ΦH12

C

ΦSUB

~ R

ΦVGND

, R

R

ΦRG

ΦV3

ΦV4

ΦV34

ΦV41

ΦH2

ΦV4

ΦH2

680 pF
820 pF
180 pF
180 pF

60 pF
60 pF
30 pF
30 pF

180 pF

40 Ω
15 Ω
10 Ω

100 Ω

¥Õ

¥Õ

V13

VGND

¥Õ

C

V2

V3

¥Õ

V2

¥Õ

R

V2

¥Õ

R

H1

¥Õ

H1

¥Õ

C

V23

¥Õ

R

V3

C¥Õ

C

H1

¥Õ

H12

R

C¥Õ

¥Õ

H2

¥Õ

H2

H2

¥Õ

V1

¥Õ

R

V1

C

¥Õ

C

V41

C¥Õ

¥Õ

C

V12

¥Õ

V1

V24

C

C

R¥Õ

¥Õ

C

V4

¥Õ

C

¥Õ

R

V4

V34

¥Õ

8

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

OPERATING CHARACTERISTICS

Device Temperature = 25 °C

Table 7. Operating Characteristics

Item Symbol Min. Typ. Max. Unit Remark

Sensitivity S 40 45 mV/lux 1
Saturation signal

Y

SAT

800 mV 2
Smear SM 0.007 0.01 % 3
Blooming margin BM 1,000 times 4
Uniformity U 20 % 5

Dark signal
Dark shading

(NOTE)

(NOTE)

Image lag
Flicker Y
Flicker red, blue
Color uniformity
Line stripe W, R, G, B

NOTE: Test Temperature = 60 °C

LCW, LCR, LCG, L

D 2 mV 6

∆D 2 mV 7

Y

LAG

F

Y

FCR, F

DSR, D

CB

SB

CB

0.5 % 8
2 % 9
5 % 10

10 % 11

3 % 12

TESTING SYSTEM

A

CCD Signal
Output

CCD AMP

C. D. S

(3dB down at 4MHz)

LPF1

S/H

S/H

(3dB down at 1MHz)

Figure 2. Testing System

LPF2

Illuminance

Y

Signal
Output

Chroma

C

Signal
Output

9

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

TEST CONDITION

1. Use a light source with color temperature of 3,200K hallogen lamp and CM-500S for IR cut filter.
The light source is adjusted in accordance with the average value of Y signals indicated in each item.

COLOR FILTER ARRAY

The color filter array of this image sensor is shown in the right figure. this complementary mosaic CFA is used with
the operation of field integration mode, where all of the photosensors are read out during each video field. The
signals from two vertically-adjacent photosensor lines, such as line couple A1 or A2 for field A are summed when
the signal charges are transferred into the vertical transfer CCD column. The read out line pairing is shifted down
by one line for field B.

The sensor output signals through the horizontal register (H-CCD) at line A1 are [G+Cy], [MG+Ye], [G+CY],
[Mg+Ye]. These signals are processed in order to compose Y and C signals. By adding the two adjacent signals at
line A1, Y signal is formed as follows

1

Y

---GCy+()MgYe+()+[]

2

1

---2B 3G 2R++()==

2

C signal is composed by substracting the two adjacent signals at line A1

Cy Ye

G Mg

B

Cy

Cy Ye

G Mg

Cy

YeYe

G G

MgMg

A1

A2

H - CCD

10

Figure 3. Color Filter Array

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

RY = – MgYe+()GCy+()–[] 2RG–()=

Next, the signals through H-CCD at line A2 are [Mg+Cy], [G+Ye], [Mg+Cy], [G+Ye]. Simmilary, Y and C signals are
composed at line A2 as follows

1

Y

---GYe+()MgCy+()+[]

2

BY–() GYe+()MgCy+()–[] 2BG–()–==–

1

---2B 3G 2R++()==

2

Accordingly, Y signal is balanced in relation to scanning lines, and C signal takes the form of R-Y and -(B-Y) on
alternate lines.
It is same for B field.

TEST METHODS

1. Measure the light intensities (L) when the averaged illuminance output value (Y) is the standard illuminance
output value, 150mV (YA) and when half of 150mV (1/2 YA).

1

---

Y

Y

–

A

A

2

-------------------------------=

S

LYAL

–

1

---

Y

A

2

2. Adjust the light intensity to 15 times of the value with which Y is YA, then measure the averaged illuminance
output value (Y = Y

SAT

).

3. Adjust the light intensity to 500 times of the value with which Y is YA, then remove the read-out clock and drain
the signal in photosensors by the electronic shutter operation in all the respective horizontal blanking times with
the other clocks unchanged. Measure the maximum illuminance output value (YSM).

SM

Y

------------

Y

1

-----------

500

1

-------

× 100% ()×=

10

SM

×

A

4. Adjust the light intensity to 1,000 times of the value with which Y is YA, then inspect whether there is blooming
phenomenon or not.

11

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

5. Measure the maximum and minimum illuminance output value (Y

MAX

, Y

) when the light intensity is adjusted

MIN

to make Y to be YA.

Y

–

MAXYMIN

U

-------------------------------------100% ()×=

Y

A

6. Measure YD with the horizontal idling time transfer level as reference, when the device ambient temperature is
60 °C and all of the light sources are shielded.

7. Follow test method 6, measure the maximum (D

∆DD

–=

MAXDMIN

) and minimum illuminance output (D

MAX

MIN

).

8. Adjust the light intensity of Y signal output value by strobe light to 150mV (YA), calculate by below formula with
measuring the image lag signal which is qenerated by below timing diagram.

Y

LAGYlag

150⁄()100% ()×=

FLD

SG1

Strobe
Timing

Output

Light

Y Signal

Output 150mV

Y

Lag

12

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

9. Adjust the light intensity of Y signal average value to 150mV (YA), calculate by below formula with measuring
the signal differences (∆Yf [mV]) between fields.

F

∆YfYA⁄()100% ()×=

Y

10. Adjust the light intensity to make Y = YA using red (R) and blue (B) optical filters respectively, measure the
differences (∆CR, ∆CB) between the chroma signal values in even and odd fields and the averaged chroma
signal values (CR, CB).

∆C

F

C

11. Adjust the light intensity to make Y = YA using red (R) and blue (B) optical filters respectively, measure the
minimum (C

R,MIN

and C

DS

i

B,MIN

C

iMAX,

--------------------------------------------100% ()×=

i

---------100% ()×=

i

C

i

) and maximum (C

C

–

iMIN,

Y

i

, where i = R, B

and C

R,MAX

, where i = R, B

) chroma signal values.

B,MAX

12. Adjust the light intensity to make Y = 150mV(YL) using white (no filter, W), red (R), green (G) and blue (B)
optical filters respectively, measure the illuminance signal difference values (∆YLW, ∆YLR, ∆YLG, ∆YLB)
between illuminance signal lines of the same field.

∆Y

L

L

c

i

i

------------100% ()×=

Y

L

, where i = W, R, G, B

13

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

NORMALIZED RESPONSE

SPECTRAL RESPONSE CHARACTERISTICS

Excluding Light Source Characteristics

1

0.9

0.8
Cyan

0.7

Green

0.6

0.5

0.4

Spectral Response (nsec)

0.3

Spectral Response

0.2

0.1

0

400 450 500 550 600 650 700

WAVE LENGTH(nm)

Wave Length (nm)

Wave Length (nm)

Wave Length (nm)

Yellow

Magenta

14

Figure 4. Spectral Response Characteristics

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

APPLICATION CIRCUITS

MA110

10µ/16V

+ -

100K

-7.5V

1µ/35V

CCD Out

1M

100

104

+-

3.9K
152

2SK1070

10µ/16V

7

VOUT

6

GND

5

NC

4

Φ

V1

3

Φ

V2

2

Φ

V3

1

Φ

V4

KC74129C

Φ

VDD

GND

SUB

Φ

Φ

Φ

RG

VL

H1

H2

8
9

10

11
12
13
14

+ -

103

10

15V

20

19

18 17

16

14

15

KS7221D

1 2

3 4

XSUB XV2 XV1 XSG1 XV3 XSG2 XV4

6

5

Figure 5. Application Circuits

7 8

12

13

11

9

10

10µ/16V

+ -

ΦH2Φ

H1

RG

15

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

READ-OUT CLOCK TIMING CHART

Unit: [µs]

HD

V1

Odd
Field

V2

V3

2.5

Even
Field

V4

V1

V2

V3

V4

38.5

1.2 1.5 2.5 2.0

0.3

16

Figure 6. Read-out Clock Timing Chart

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

CLOCK TIMING CHART (VERTICAL SYNC.)

FLD

VD

BLK

HD

SG1
SG2

V1

V2

V3

V4

CCD
OUT

CLP1

12345

620

625

582
581

10

1 3 5 531

15

2 4 6 2 4 6

20

25

310

582
581

315

325

320

1 3 587

330

335

340

2 4 6

82 4 6

1 3 5 7

Figure 7. Clock Timing Chart (Vertical Sync.)

17

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

CLOCK TIMING CHART (HORIZONTAL SYNC.)

5
3

2
1
7

5
3

2

1
16
15

10

5

3

2

1

30

25

20

15

10

5
3

2
1
500

495

490

V1

V2

V3

H1

HD

BLK

H2

RS

XSHP

XSHD

V4

SUB

CLP1

Figure 8. Clock Timing Chart (Horizontal Sync.)

18

KC74129C 1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA

PACKAGE DIMENSIONS

(Unit = mm)

Gla ss

7583

4-R 0.50

#14

(L/F CL)

Y

Ceramicfr ame

Al2O390%Min. (black)

4-R 0.30

#8

0.38
Ceramic Base

Al2O390%Min. (black)

0.25

Lead Frame

Alloy 42
( Inner AI

Outer Sn )

1.27¡¾0.25

R0.70

4.13

2.50

1.27 x 6 = 7.62¡¾0.10

#1 #7

9.60¡¾0.12

Y

6.00¡¾0.10

10.00¡¾0.12

0.46¡¾0.10

1.27¡¾0.05

0.30¡¾0.10

5.40¡¾0.10

Glass

(7583)

10.00¡¾0.12

7.40¡¾0.10

XX

(L/F CL)

10.00¡¾0.12

0.90¡¾0.08

4-R0.50

2.600

1.00¡¾0.08

0.35¡¾0.08

0.80¡¾0.15

NOTES:

1. Max. Leakage by Hellium Detector :10-8atm. cc/sec at 10-5mmHg

2. Resistance Between Leads :Above 10100HM at 25¡É, 60% R>H

3. Insulation Resistance :Electrical leakage shall not exceed 5
nano AMP at 100V D.C

4. Ceamic Material :Min. 90% al203(black)

5. Lead Frame

- Coplanarity :0.25 Max. (after L/F attach)

- Planarity :0.076/mm, -0.102/mm

- Al clad
. Thickness :5um to 10um (for stamp)
. Thickness :2.5um to 12.7um (for etch)
. Coverage :Min. 0.762mm from lead tip

- Sn thickness :4um to 20um

6. Flatness

- DIE attach pad :Max. 0 .051mm

- LID seal area :Max. 0.051mm

7. Other :In according to semi standards.

9.46¡¾0.12

10.16¡¾0.30

Figure 9. Package Dimensions

19

1/4 INCH CCD IMAGE SENSOR FOR PAL CAMERA KC74129C

HANDLING INSTRUCTIONS

• Static Charge Prevention
CCD image sensors can be easily damaged by static discharge. Before handling, be sure to take the following

protective measures.

— Use non chargeable gloves, clothes or material. Also use conductive shoes.
— When handling directly, use an earth band.
— Install a conductive mat on the floor or working table to prevent generation of static electricity.
— Ionized air is recommended for discharging when handling CCD image sensor.
— For the shipment of mounted substrates, use boxes treated for the prevention of static charges.

• Soldering
— Make sure the package temperature does not exceed 80 °C.
— Solder dipping in a mounting furnace causes damage to the glass and other defects. Use a grounded 30W

soldering iron and solder each pin in less than 2 seconds. For repairs and and remount, cool sufficiently.

— To dismount an imaging device, do not use a solder suction equipment. When using an electronic

disoldering tool, use a thermal controller of the zero cross on/off type and connect to ground.

• Dust and Dirt Protection
— Operate in the clean environments (around class 1000 will be appropriate).
— Do not either touch glass plates by hand or have object come in contact with glass surface. Should dirt

stick to a glass surface blow it off with an air blow (for dirt stuck through static electricity ionized air is
recommended).

— Clean with a cotton bud and ethyl alcohol if the glass surface is grease stained. Be caerful not to scratch

the glass.

— Keep in case to protect from dust and dirt. To prevent dew condensation, preheat or precool when moving

to a room with great temperature differences.

— When a protective tape is applied before shipping, just before use remove the tape applied electrostatic

protection. Do not reuse the tape.

• Do not expose to strong light (sun rays) for long period, color filter are discolored.

• Exposure to high temperature or humidity will affect the characteristics. accordingly avoid storage or
usage in such conditions.

• CCD image sensors are precise optical equipment that should not be subject to mechanical shocks.

20
