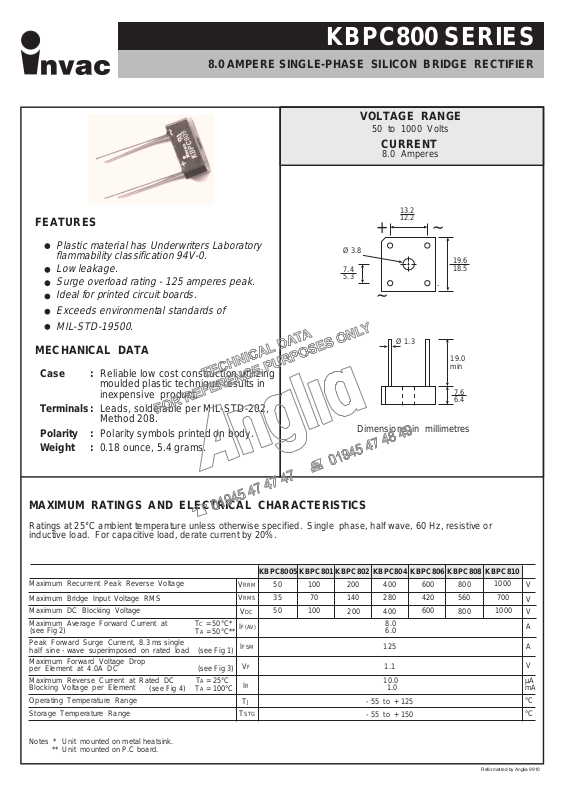

Page 1
8.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER
FEATURES
Plastic material has Underwriters Laboratory
flammability classification 94V-0.
Low leakage.
Surge overload rating - 125 amperes peak.
Ideal for printed circuit boards.
Exceeds environmental standards of
MIL-STD-19500.
MECHANICAL DATA
Case
Terminals
Polarity
Weight
: Reliable low cost construction utilizing
: moulded plastic technique results in
: inexpensive product.
: Leads, solderable per MIL-STD-202,
: Method 208.
: Polarity symbols printed on body.
: 0.18 ounce, 5.4 grams.
KBPC800 SERIES
VOLTAGE RANGE
50 to 1000 Volts
CURRENT
8.0 Amperes
13.2
12.2
+
Ø 3.8
7.4
5.3
~
Ø 1.3
Dimensions in millimetres
~
19.6
18.5
±
19.0
min
7.6
6.4
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or
inductive load. For capacitive load, derate current by 20%.
Maximum Recurrent Peak Reverse Voltage
Maximum Bridge Input Voltage RMS
Maximum DC Blocking Voltage
Maximum Average Forward Current at
(see Fig 2)
Peak Forward Surge Current, 8.3 ms single
half sine - wave superimposed on rated load
Maximum Forward Voltage Drop
per Element at 4.0A DC
Maximum Reverse Current at Rated DC
Blocking Voltage per Element
Operating Temperature Range
Storage Temperature Range
Notes * Unit mounted on metal heatsink.
** Unit mounted on P.C board.
(see Fig 4)
T
C = 50°C*
T
A = 50°C**
(see Fig 1)
(see Fig 3)
T
A = 25°C
T
A = 100°C
VRRM
VRMS
VDC
IF(AV)
IFSM
VF
IR
TJ
TSTG
50
35
50
100
70
100
200
140
200
- 55 to + 125
- 55 to + 150
400
280
400
8.0
6.0
125
1.1
10.0
1.0
600
420
600
800
560
800
Reformatted by Anglia 9910
KBPC810KBPC8005 KBPC801 KBPC802 KBPC804 KBPC806 KBPC808
1000
700
1000
V
V
V
A
A
V
µA
mA
°C
°C
Page 2
RATING AND CHARACTERISTIC CURVES
KBPC800 SERIES
FIG 1 : MAXIMUM NON-REPETITIVE
SURGE CURRENT PER ELEMENT
125
100
75
50
25
PEAK FORWARD SURGE
CURRENT, AMPERES
0
1 2 4 6 10 20 40 60 100
NUMBER OF CYCLES AT 60 Hz
8.3ms Single Half Sine Wave
TJ = 125°C
FIG 2 : DERATING CURVE FOR
RECTIFIED OUTPUT CURRENT
10
8
6
4
2
OUTPUT CURRENT AMPERES
0
0 50 100
TEMPERATURE °C
CASE
A
M
B
IE
N
T
150
FIG 3 : TYPICAL FORWARD
CHARACTERISTICS PER ELEMENT
100
TJ = 25°C
Pulse Width = 300µs
10
1
INSTANTANEOUS FORWARD
CURRENT, AMPERES
0.1
0.6 0.8
INSTANTANEOUS FORWARD
VOLTAGE, VOLTS
1.0 1.2 1.4
1.6
FIG 4 : TYPICAL REVERSE
CHARACTERISTICS PER ELEMENT
500
TJ = 125°C
100
10
1.0
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
0.1
.01
0
20
PERCENT OF RATED PEAK
REVERSE VOLTAGE
40
60
TJ = 25°C
80
100
120
140
Reformatted by Anglia 9910
