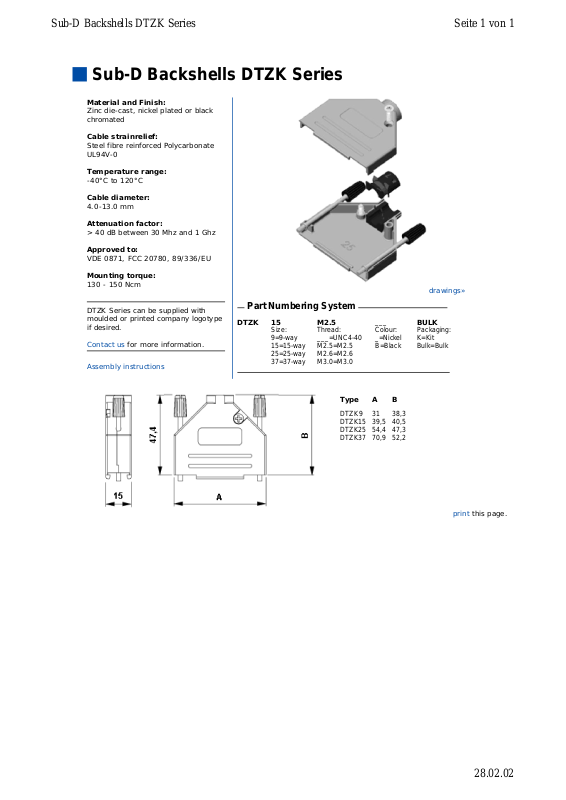

Sub-D Backshells DTZK Series
Material and Finish:
Zinc die-cast, nickel plated or black
chromated
Cable strainrelief:
Steel fibre reinforced Polycarbonate
UL94V-0
Temperature range:
-40°C to 120°C
Cable diameter:
4.0-13.0 mm
Attenuation factor:
> 40 dB between 30 Mhz and 1 Ghz
Approved to:
VDE 0871, FCC 20780, 89/336/EU
Mounting torque:
130 - 150 Ncm
DTZK Series can be supplied with
moulded or printed company logotype
if desired.
Contact us for more information.
Assembly instructions
Part Numbering System
DTZK 15
Size:
9=9-way
15=15-way
25=25-way
37=37-way
M2.5
Thread:
___=UNC4-40
M2.5=M2.5
M2.6=M2.6
M3.0=M3.0
___
Colour:
_=Nickel
B=Black
drawings»
BULK
Packaging:
K=Kit
Bulk=Bulk

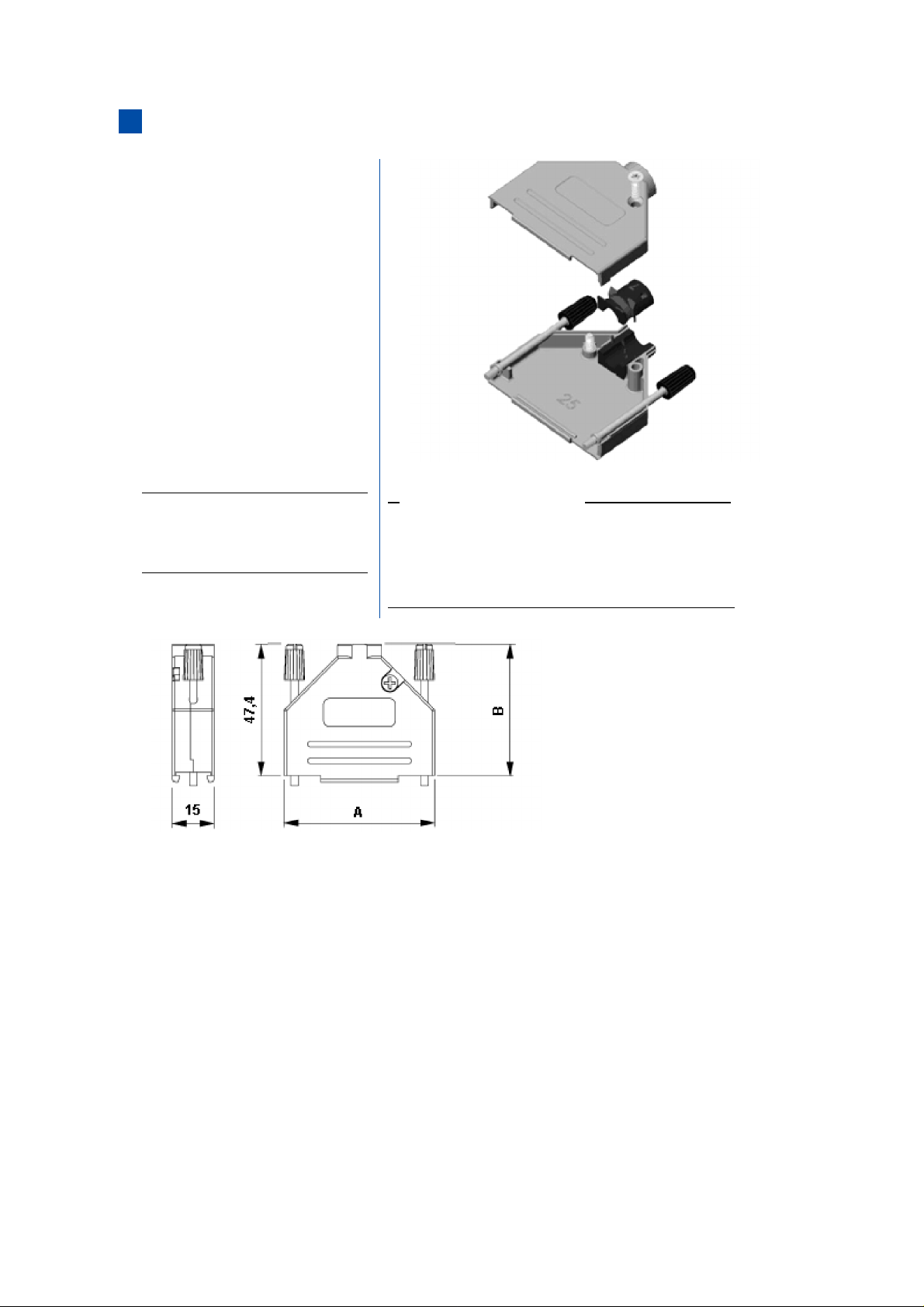

Type A B
38,3
DTZK9
DTZK15
DTZK25
DTZK37
31
39,5
54,4
70,9
40,5
47,3
52,2
