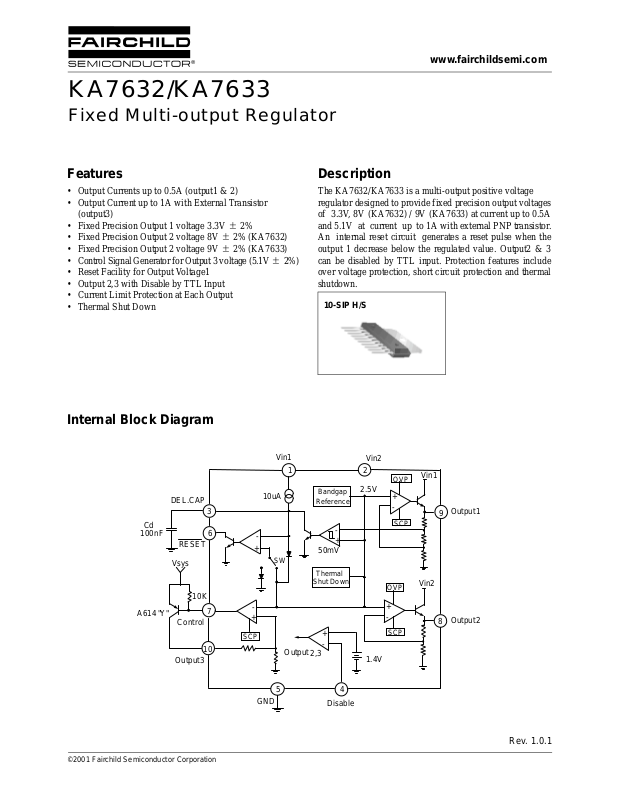

KA7632/KA7633

Fixed Multi-output Regulator

www.fairchildsemi.com

Features

• Output Currents up to 0.5A (output1 & 2)

• Output Current up to 1A with External Transistor (output3)

• Fixed Precision Output 1 voltage 3.3V ± 2%

• Fixed Precision Output 2 voltage 8V ± 2% (KA7632)

• Fixed Precision Output 2 voltage 9V ± 2% (KA7633)

• Control Signal Generator for Output 3 voltage (5.1V ± 2%)

• Reset Facility for Output Voltage1

• Output 2,3 wit h Disable by TTL Input

• Current Limit Protection at Each Output

• Thermal Shut Down

Internal Block Diagram

Vin1

10uA

SCP

Output

100nF

A614"Y"

DEL.CAP

RESET

Vsys

10K

Control

Output3

Description

The KA7632/KA7633 is a multi-output positive voltage regulator des igned to provide fix e d pr e ci si on output voltages of 3.3V, 8V (KA7632) / 9V (KA7633) at current up to 0.5A and 5.1V at current up to 1A with ex ternal PNP transistor. An internal reset circuit g enerates a reset pulse when the output 1 decrease below the regulated value. Output2 & 3 can be disabled by TTL input. Protection features include over voltage protection, short circuit protection and thermal shutdown.

10-SIP H/S

Vin2

Bandgap

Reference

50mV

Thermal

Shut Down

2,3

2.5V

OVP

SCP

1.4V

OVP

SCP

Vin1

Vin2

Output1

Output2

GND

Disable

Rev. 1.0.1

Page 2

KA7632/KA7633

Absolute Maximum Ratings

Parameter Symbol Value Unit Remark

DC Input Voltage Vin 20 V Disable Input Voltage Vc 20 V Output Current Io 0.5 A Power Dissipation Pd 1.5 W No Heatsink Junction Temperature Tj +150 °C- Operating Temperature Topr 0~+125 °C-

Electrical Characteristics(KA7632)

(Refer to test circuit Vin1=6V ,Vin2=10.5V ,Tj = +25 °C, unless otherwise specified)

Parameter Symbol Conditions Min. Typ. Max. Unit

Io1=10mA

Output Voltage 1 Vo1

Output Voltage 2 Vo2

Dropout Output Voltage 1,2 Vd1,2 Io1,2=500mA - - 2.5 V

Line Regulation 1,2 ∆Vo 1,2

Load Regulation 1,2 ∆Vo 1,2 Output Voltage 3 Vo3 Vsys=7V, Io3=100mA 4.97 5.1 5.23 V

Line Regulation 3 ∆Vo3 13V< Vin2 <18V, Io3 =100mA - - 50 mV Load Regulation 3 ∆Vo3 5mA < Io3 < 1A - - 110 mV Reset Pulse Delay Trd Cd=100nF, Note1 - 25 - ms Saturation Voltage in Reset

Condition Leakage Current at Pin 6 IrH V6=10V - - 10 µA Output Voltage Thermal Drift STt 0 °C <Tj < +125 °C , Note 2 - 100 - ppm/°C Short Circuit Output Current Isc1,2 Vin1=6V ,Vin2 =10.5V - - 1.6 A Disable Voltage High VdisH Output 2 Active 2 - V Disable Voltage Low VdisL Output 2 Disabled - - 0.8 V Disable Bias Current Idis 0V < Vdis < 7V -100 - 2 µA Junction Temperature for TSD Ttsd Note 2 - 145 - °C Quiescent Current Iq Io1=10mA, Output2 Disabled - - 2 mA Reset Threshold Voltage Vr K=Vo1 K-0.4 K-0.25 K-0.1 V Reset Threshold Hysteresis Vrth Note 1 20 50 100 mA

VrL I6=5mA - - 0.4 V

6V<Vin1<14V 5mA<Io1<500mA

Io2=10mA

10.5V<Vin2<18V 5mA<Io2<500mA

6V <Vin1<14V

10.5V <Vin2<18V Io1,2 = 200mA

5mA < Io1< 500mA 5mA <Io2< 500mA

3.22

3.14

7.84

7.7

3.3

8 8

3.38

3.46

8.16

8.3

40 80

160

Notes:

1. To check the reset circuit ,the re set output is low to discharge th e d ela y c ap acitor(=Cd). if it’ s less than Vo1- 0.2 5V . A nd the

reset output is high when the delay capacitor voltage linearly increased by the interal current source(10µA) if it’s more than Vo1- 0.2V. The equations of delay time is same as below. Trd = (Cd × 2.5) / 10µA

2. These parameters, although guaranteed, are not 100% tested in production.

Page 3

KA7632/KA7633

Electrical Characteristics(KA7633)

(Refer to test circuit Vin1=6V ,Vin2=11.5V ,Tj = +25 °C, unless otherwise specified)

Parameter Symbol Conditions Min. Typ. Max. Unit

Io1=10mA

Output Voltage 1 Vo1

6V<Vin1<14V 5mA<Io1<500mA

Io2=10mA

Output Voltage 2 Vo2

11.5V<Vin2<18V 5mA<Io2<500mA

Dropout Output Voltage 1,2 Vd1,2 Io1,2=500mA - - 2.5 V

6V <Vin1<14V

Line Regulation 1,2 ∆Vo 1,2

11.5V <Vin2<18V Io1,2 = 200mA

Load Regulation 1,2 ∆Vo 1,2

5mA < Io1< 500mA

5mA <Io2< 500mA Output Voltage 3 Vo3 Vsys=7V, Io3=100mA 4.97 5.1 5.23 V Line Regulation 3 ∆Vo3 13V< Vin2 <18V, Io3 =100mA - - 50 mV Load Regulation 3 ∆Vo3 5mA < Io3 < 1A - - 110 mV Reset Pulse Delay Trd Cd=100nF, Note1 - 25 - ms Saturation Voltage in Reset

Condition

VrL I6=5mA - - 0.4 V

Leakage Current at Pin 6 IrH V6=10V - - 10 µA Output Voltage Thermal Drift STt 0 °C <Tj < +125 °C , Note 2 - 100 - ppm/°C Short Circuit Output Current Isc1,2 Vin1=6V ,Vin2 =11.5V - - 1.6 A Disable Voltage High VdisH Output 2 Active 2 - V Disable Voltage Low VdisL Output 2 Disabled - - 0.8 V Disable Bias Current Idis 0V < Vdis < 7V -100 - 2 µA Junction Temperature for TSD Ttsd Note 2 - 145 - °C Quiescent Current Iq Io1=10mA, Output2 Disabled - - 2 mA Reset Threshold Voltage Vr K=Vo1 K-0.4 K-0.25 K-0.1 V Reset Threshold Hysteresis Vrth Note 1 20 50 100 mA

3.22

3.14

8.82

8.65

3.3

9 9

3.38

3.46

9.18

9.35

40 80

160

Notes:

1. To check the reset circuit ,th e re set output is l ow to discharge the delay capacitor(= Cd ). if it’s less than V o1 -0.2 5V . And the reset output is high when the delay capacitor voltage linearly increased by the interal current source(10µA) if it’s more than Vo1- 0.2V. The equations of delay time is same as below. Trd = (Cd × 2.5) / 10µA

2. These parameters, although guaranteed, are not 100% tested in production.

Page 4

KA7632/KA7633

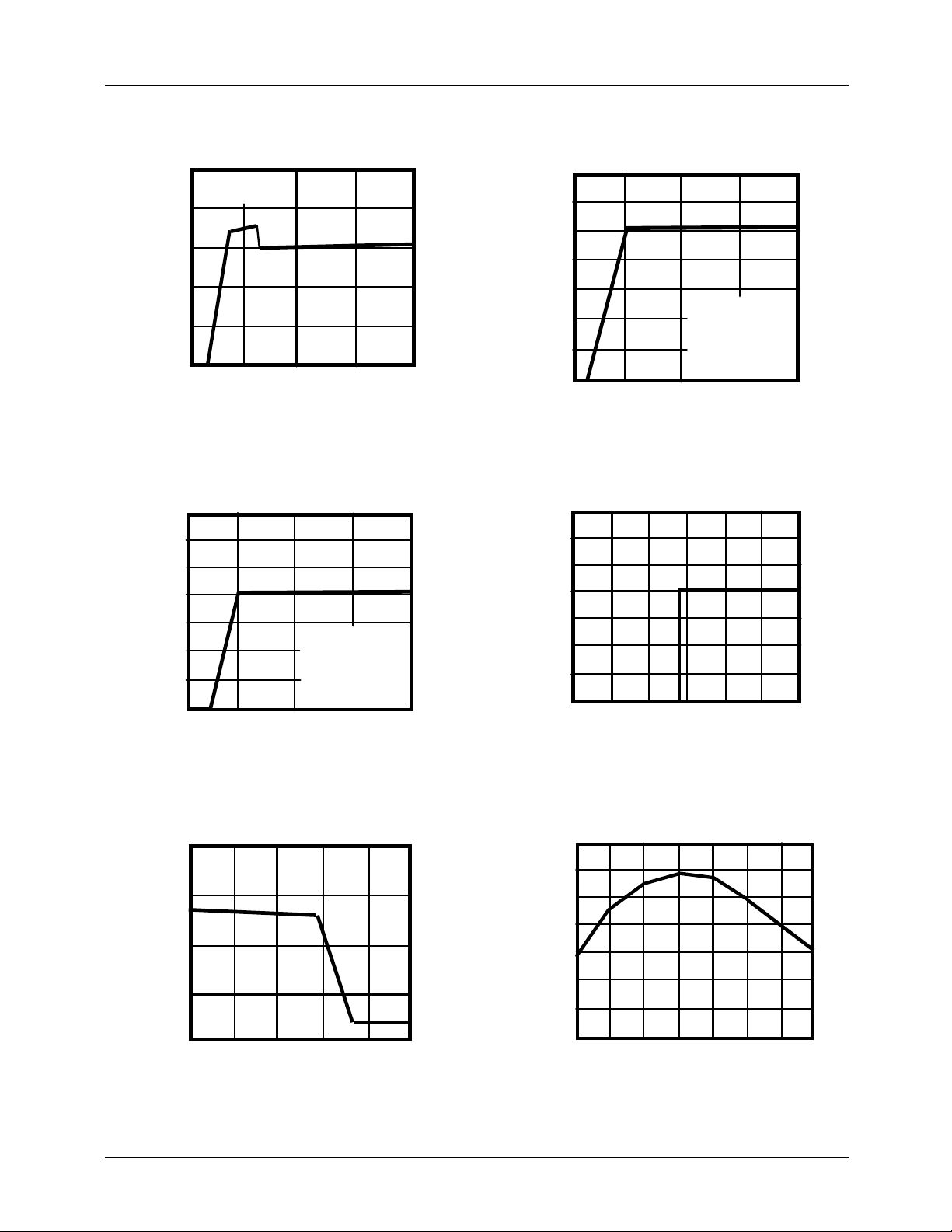

Typical Perfomance Characteristics

2.0

TJ = 25oC Io1 =10mA

1.6

1.2

0.8

0.4

Quiescent current Iq( mA)

0155

Input voltage Vin (V)

Input Voltage Vi n (V)

Figure 1. Quiescent Current vs. Input Vo ltage

14 12 10

8 6 4

Output voltage2 Vo(V)

2 0

TJ = 25oC

Io1 =10mA

10.5V<Vin1<18V 5mA<Io1<500mA

10 15

205

Input voltage Vin (V)

3 2

Output voltage1 Vo(V)

TJ = 25oC Io1 =10mA

7.5V<Vin1<14V 5mA<Io1<500mA

10 15

Input Voltage Vin (V)

205

Figure 2. Output Voltage1 vs. Input Voltage

14 12

Output volt age Vo(V )

030.5

1.5

122.5

Disable Voltage ( V)

Figure 3. Output Voltage2 vs. Input Voltage

Disable Bias Current( uA)

0 0.4 0.8 1.2 1.6 2.0

Disable Voltage(V)

Figure 5. Disable Bias Current vs. Disable Voltage

Figure 4. Output Voltage vs. Disable Voltage High(Low)

5.105

5.10

5.095

5.09

5.085

5.08

Output voltage1 Vo(V)

5.075

5.07 02550

-25

Temperature Tj(

℃

100

125

)

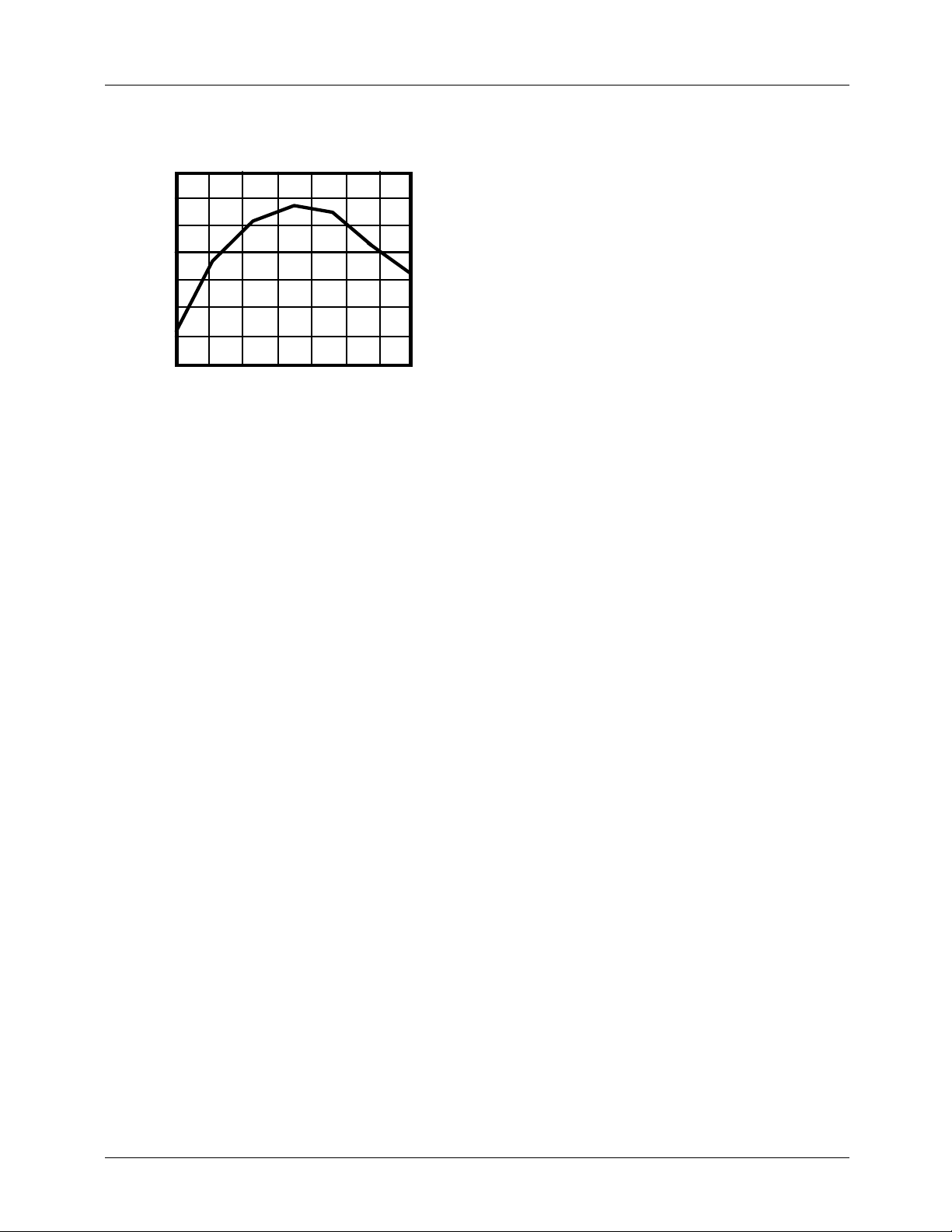

Figure 6. Output Voltage1 vs. Temperature(Tj)

Page 5

Typical Perfomance Characteristics (continued)

8.07

8.06

8.05

8.04

8.03

8.02

8.01

KA7632/KA7633

8.00 02550

-25

100

125

150

Temperature Tj(℃)

Figure 7. Output Voltage2 vs. Temperature(Tj)

Page 6

KA7632/KA7633

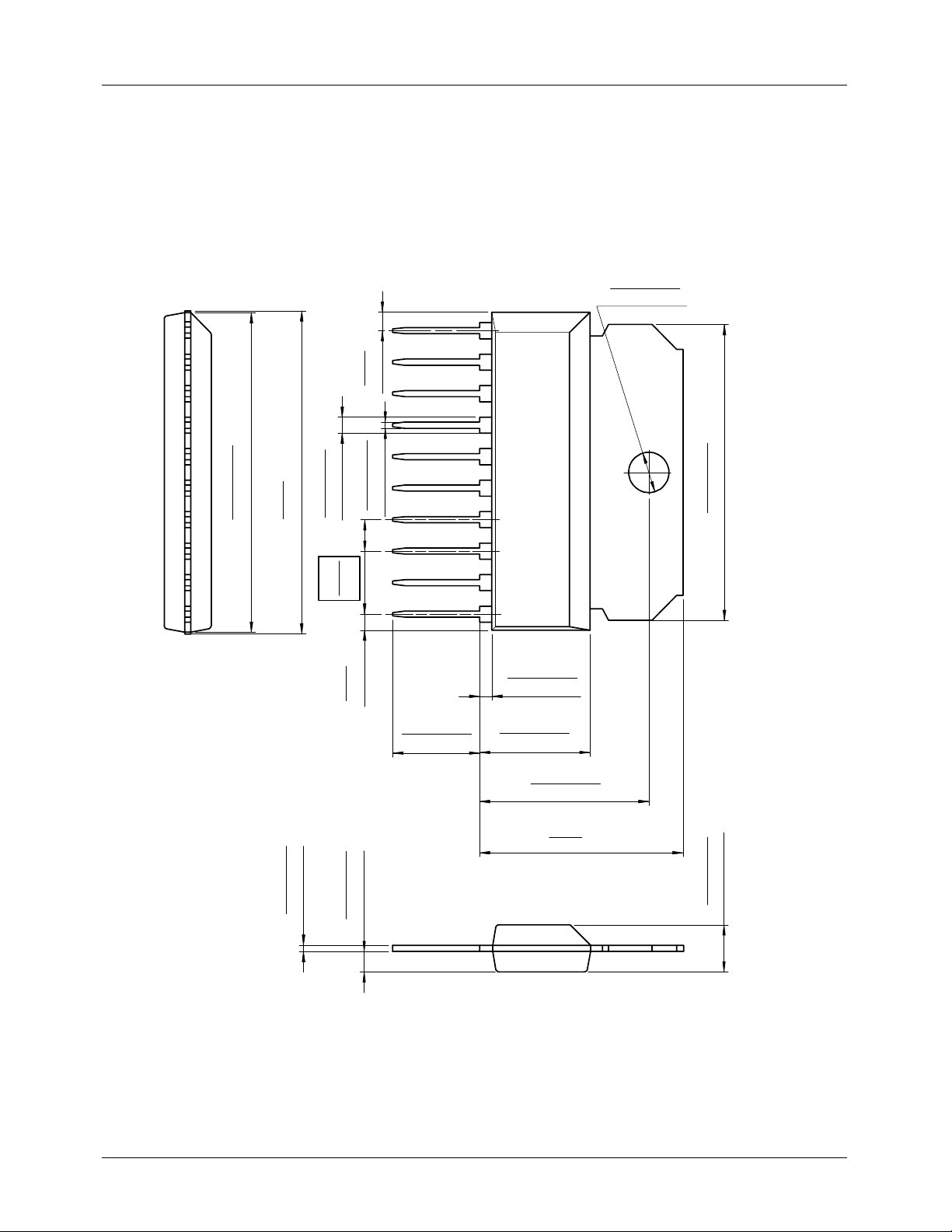

Mechanical Dimensions

Package

MAX

10-SIP H/S

1.50

0.059

()

Dimensions in millimeters

3.25 ±0.20

0.128 ±0.008

#10

25.75 ±0.10

1.013 ±0.004

26.05

1.026

0.50 ±0.10

0.020 ±0.004

0.50 ±0.10

1.30 ±0.10

0.051 ±0.004

2.54

0.100

1.30

0.051

()

1.65 ±0.10

0.065 ±0.004

0.020 ±0.004

7.00 ±0.30

0.276 ±0.012

1.00 ±0.20

0.039 ±0.008

8.90 ±0.20

0.350 ±0.008

13.65 ±0.30

0.537 ±0.012

16.80

0.661

MAX

23.86 ±0.20

3.80 ±0.20

0.939 ±0.008

0.150 ±0.008

Page 7

Ordering Information

Product Number Package Operating Temperature

KA7632 KA7633

10-SIP H/S 0°C to +125°C

KA7632/KA7633
