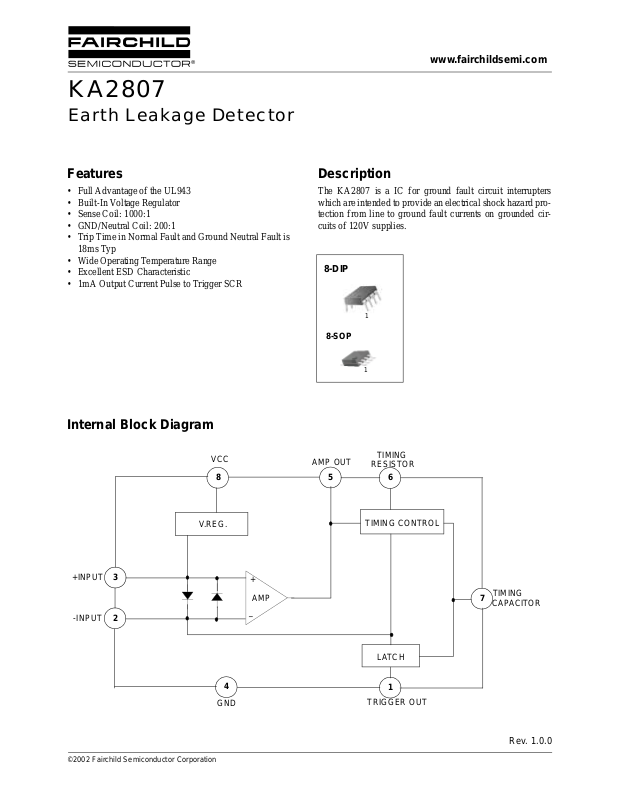

Page 1
KA2807
Earth Leakage Detector
www.fairchildsemi.com
Features
• Full Advanta ge of the UL943
• Built-In Voltage Regulator
• Sense Coil: 1000:1
• GND/Neutral Coil: 200:1
• Trip Time in Normal Fault and Ground Neutral Fault is
18ms Typ
• Wide Operating Temperature Range
• Excellent ESD Characteristic
• 1mA Output Current Pulse to Trigger SCR
Internal Block Diagram
VCC
8
Description
The KA2807 is a IC for ground fault circuit interrupters
which are intended to provide an electrical shock hazard protection from line to ground fault currents on grounded circuits of 120V supplies.
8-DIP
1
8-SOP
1
AMP OUT
56
TIMING
RESISTOR
V.REG.
+INPUT
-INPUT
©2002 Fairchild Semiconductor Corporation
3
2
4
GND
+
AMP
_
TIMING CONTROL
LATCH
1
TRIGGER OUT
TIMING
7
CAPACITOR
Rev. 1.0.0
Page 2
KA2807
Absolute Maximum Ratings
Parameter Symbol Value Unit
Supply Current I
Power Dissipation
8-DIP
8-SOP
Operating Temperature Range T
Storage Temperature Range T
CC
P
D
OPR
STG
19 mA
1.25
0.41
-40 ~ +70 °C
-55 ~ +150 °C
W
Electrical Characteristics
(TA = 25°C, ICC = 5mA)
Parameter Symbol Conditions Min. Typ. Max. Unit
Shunt Regulator Voltage V
Amp Reference Voltage V
Amp High Output Voltage V
REG
REF
OH
Pin8, S1:2, S2:OFF 23 26 29 V
Pin3, S1:2, S2:OFF 9.5 10.5 11.5 V
Pin5, S1:3, S2:ON
Sig: 800Hz, 3.0V
P-P
17 19 21 V
Sinewave
Amp Low Output Voltage V
OL
Pin5, S1:3, S2:ON
Sig: 800Hz, 3.0V
P-P
1.5 2.5 3.5 V
Sinewave
Pin2, S1:3, S2:ON
Amp Sensitivity Current I
SEN
Sig: 800Hz, 1.0V
P-P
~ 2.5V
P-P
3.5 5 6.5 µArms
Sinewave
Pin7, S1:3, S2:ON
Latch On Voltage V
ON(LATCH)
Sig: 800Hz, 3.0V
P-P
16.5 17.5 19.5 V
Sinewave
Pin1, S1:3, S2:ON
SCR Trigger Current I
TR
Sig:800Hz, 3.0V
P-P
0.5 1 2.0 mA
Sinewave
Output Low Voltage V
Output Impedance Z
Output Sink Current I
1 Pin1, S1:2, S2:OFF - 100 240 mV
S
O
SINK
Pin1, S1:2, S2:OFF - 100 250 Ω
Pin1, S1:2, S2:OFF 2.0 6.0 - mA
2
Page 3
Test Circuit
KA2807
VCC=31V
A1
0.3V
1K
ICC=5mA
0.002uF
8
7
1.45MΩ
6
5
KA2807
21
S1
1
3
2
A2
1K
A3
100K
S2
0.047uF
SIG
43
3
Page 4
KA2807
Mechanical Dimensions
Package
6.40 ±0.20
±0.008
0.252
8-DIP
Dimensions in millimeters
0.79
0.031
()
±0.10
#1
#4 #5
7.62
0.300
#8
MAX
9.20 ±0.20
9.60
0.378
5.08
MAX
0.200
3.40 ±0.20
0.134 ±0.008
0.362 ±0.008
0.33
0.013
3.30 ±0.30
0.130 ±0.012
MIN
0.46
2.54
0.018 ±0.004
0.100
1.524 ±0.10
0.060 ±0.004
+0.10
0.25
–0.05
+0.004
0.010
–0.002
0~15°
4
Page 5
KA2807

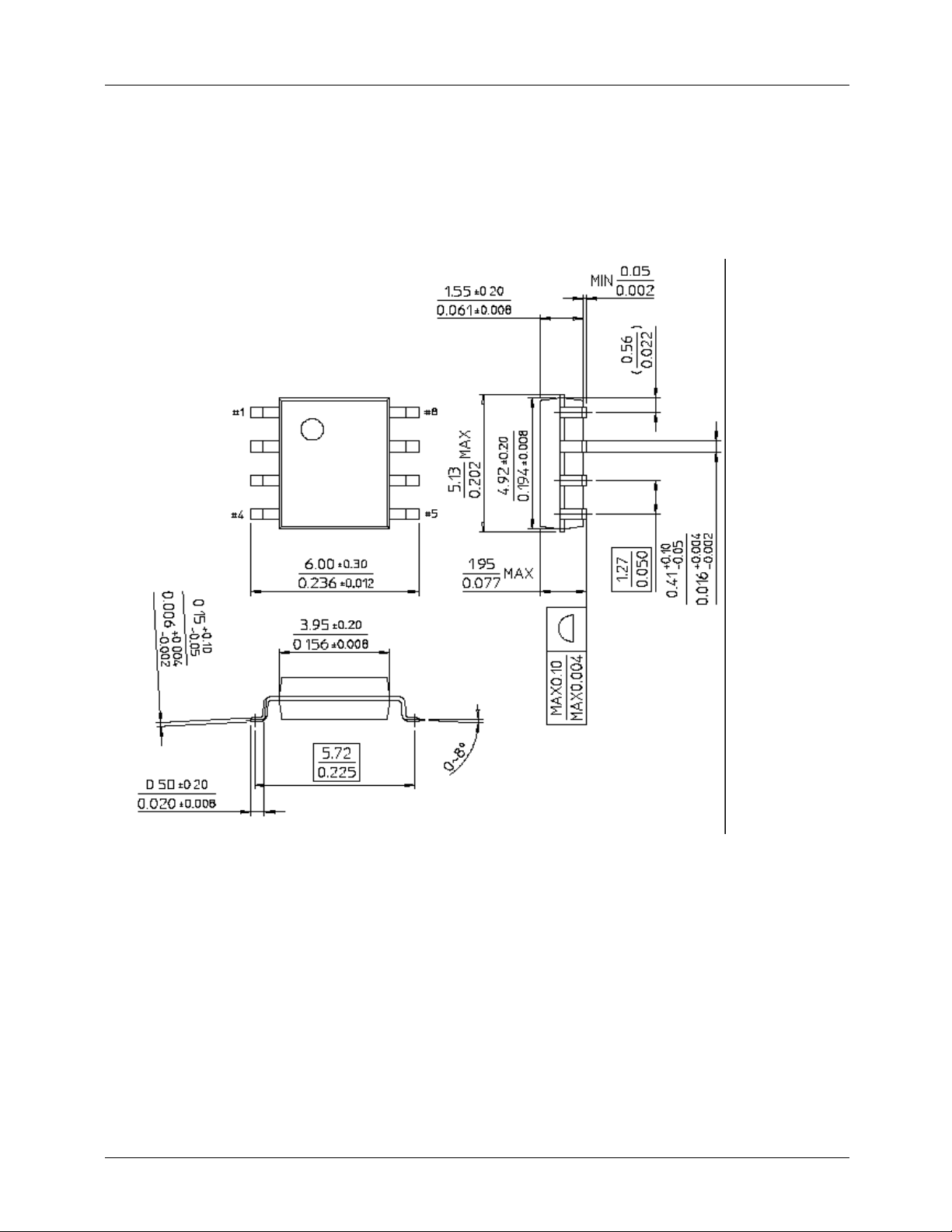

Mechanical Dimensions
Package
(Continued)
Dimensions in millimeters
8-SOP
5
Page 6
KA2807
Ordering Information
Product Number Package Operating Temperature
KA2807 8-DIP
KA2807D 8-SOP
-40 ~ +70°C
