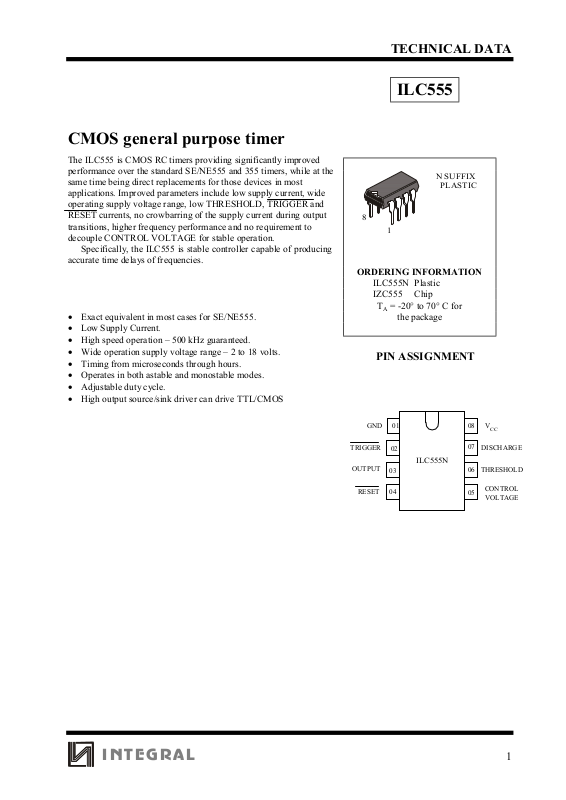

Page 1
TECHNICAL DATA
1
INTEGRAL
CMOS general purpose timer
The ILC555 is CMOS RC timers providing significantly improved
performance over the standard SE/NE555 and 355 timers, while at the
same time being direct replacements for those devices in most
applications. Improved parameters include low supply current, wide
operating supply voltage range, low THRESHOLD, TRIGGER and
RESET currents, no crowbarring of the supply current during output
transitions, higher frequency performance and no requirement to
decouple CONTROL VOLTAGE for stable operation.
Specifically, the ILC555 is stable controller capable of producing
accurate time delays of frequencies.
•
Exact equivalent in most cases for SE/NE555.
•
Low Supply Current.
•
High speed operation – 500 kHz guaranteed.
•
Wide operation supply voltage range – 2 to 18 volts.
•
Timing from microseconds through hours.
•
Operates in both astable and monostable modes.
•
Adjustable duty cycle.
•
High output source/sink driver can drive TTL/CMOS
ILC555
N SUFFIX
PLASTIC
1
8
ORDERING INFORMATION
ILC555N Plastic
IZC555 Chip
TA = -20° to 70° C for
the package
PIN ASSIGNMENT
OUTPUT
TRIGGER
RESET
ILC555N
DISCHARGE
V
CC
01
02
03
04
05
06
07
08
THRESHOLD
CONTROL
VOLTAGE
GND
Page 2
ILC555
2
INTEGRAL
TRUTH TABLE
THRESHOLD TRIGGER RESET OUTPUT DISCHARGE
XXLL ON
> 2/3⋅V
CC
> 1/3⋅V
CC
HL ON
< 2/3⋅V
CC
> 1/3⋅V
CC
H STABLE STABLE
X
< 1/3⋅V
CC
HH OFF
MAXIMUM RATINGS AND RECOMMENDED OPERATING CONDITIONS
Recommended operating
conditions
Maximum ratings
Value Value
Parameter, unit
Symbol
min max min max
Supply Voltage, V
V
CC
2.0 18.0 0 18.0
Output Current, mА I
O
- 20 - 100
Input Voltage, V
V
TH, VTRIG, VRST
---0.3V
CC
+0.3
Power Dissipation, mW P
D
- - - 200
Operating Temperature,°С
T
OPR
-20 70 -20 85
Storage Temperature, °С
T
STG
- - -65 150
Lead Temperature, 1 mm from
Case for 10 Seconds, °С
T
SOLDER
- - 260
Page 3
ILC555
3
INTEGRAL
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
Test Conditions Value
Parameter, units Symbol
I
OL
, I
OH
V
CC,
В min max
Tempe-
rature, °С
Threshold Voltage, V V
TH
5.0 0.65 V
CC
0.70 V
CC
25±10
0.60 V
CC
0.80 V
CC
-20, 70
Trigger voltage, V V
TRIG
5.0 0.31 V
CC
0.36 V
CC
25±10
0.28 V
CC
0.40 V
CC
-20, 70
2.0 0.4 1.0
25±10
Reset voltage, V V
RST
18.0
2.0 0.2 1.5 -20, 70
18.0
Control Voltage Lead, V V
CV
0.65 V
CC
0.69 V
CC
25±10
0.60 V
CC
0.80 V
CC
-20, 70
Output voltage Low, V V
OL
IOL = 3.2 mА 5.0 0.4
25±10
IOL = 20 mА 15.0 1.0
IOL = 3.2 mА 5.0 0.6 -20, 70
IOL = 20 mА 15.0 1.5
Output voltage High, V V
OH
5.0 4.0
25±10
IOH = -0.8 mА 15.0 14.3
5.0 3.5 -20, 70
15.0 14.0
2.0 200
25±10
Supply Current, µA
I
CC
18.0 300
2.0 400 -20, 70
18.0 600
Page 4
ILC555
4
INTEGRAL

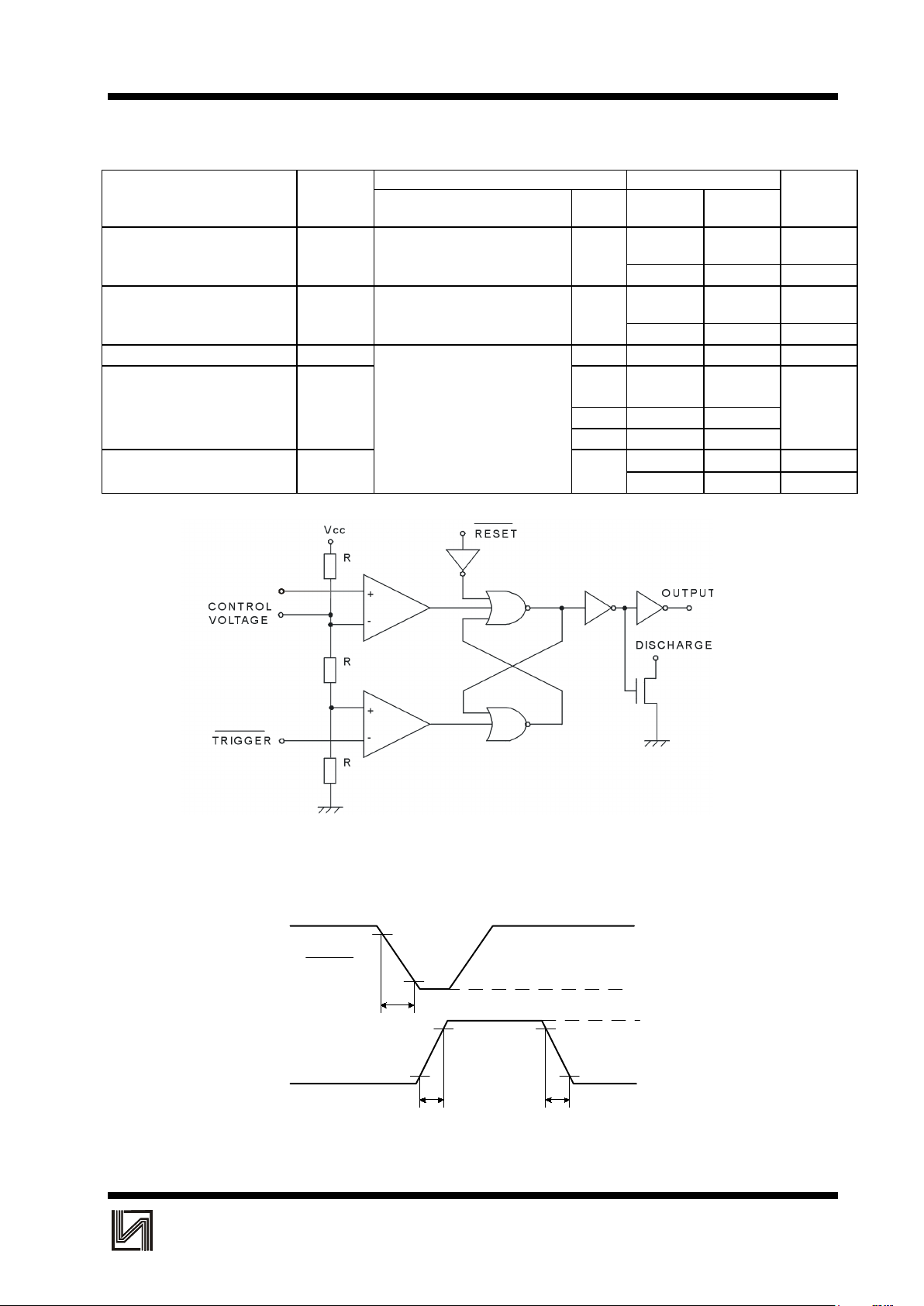

AC ELECTRICAL CHARACTERISTICS
Test Conditions Value
Parameter, unit Symbol
R
L
, C
L
V
CC,
V
Min Max
Tempe-
rature,
°С
Rise (Fall) Time of Output,
ns
t
THL
, t
TLH
RL = 10 МΩ, CL = 10 pF
5.0 35 75
25±10
70 150 -20, 70
Guaranteed Max Osc Freq,
kHz
f
MAX
Astable Operation
500
25±10
2.0-
18.0
200 -20, 70
Initial accuracy
, % 5
Drift with Temperature
,
%/°С
α
f
5.0 0.02 -20, 70
10.0 0.03
15.0 0.06
Drift with Supply Voltage,
∆
f
5.0 3
25±10
%/В
RL = 1 - 100 kΩ,
C
L
= 0.1 μF
6 -20, 70
Figura 1. Block Diagram
t
THL
t
TLH
t
HL
TRIGGER
GND
V
CC
GND
V
CC
OUTPUT
0.9
0.1 0.1
0.9
0.9
0.1
Figura 2. Switcing Waveforms
COMPARATOR A
THRESHOLD
TRIGGER
COMPARATOR B
Page 5
ILC555
5
INTEGRAL

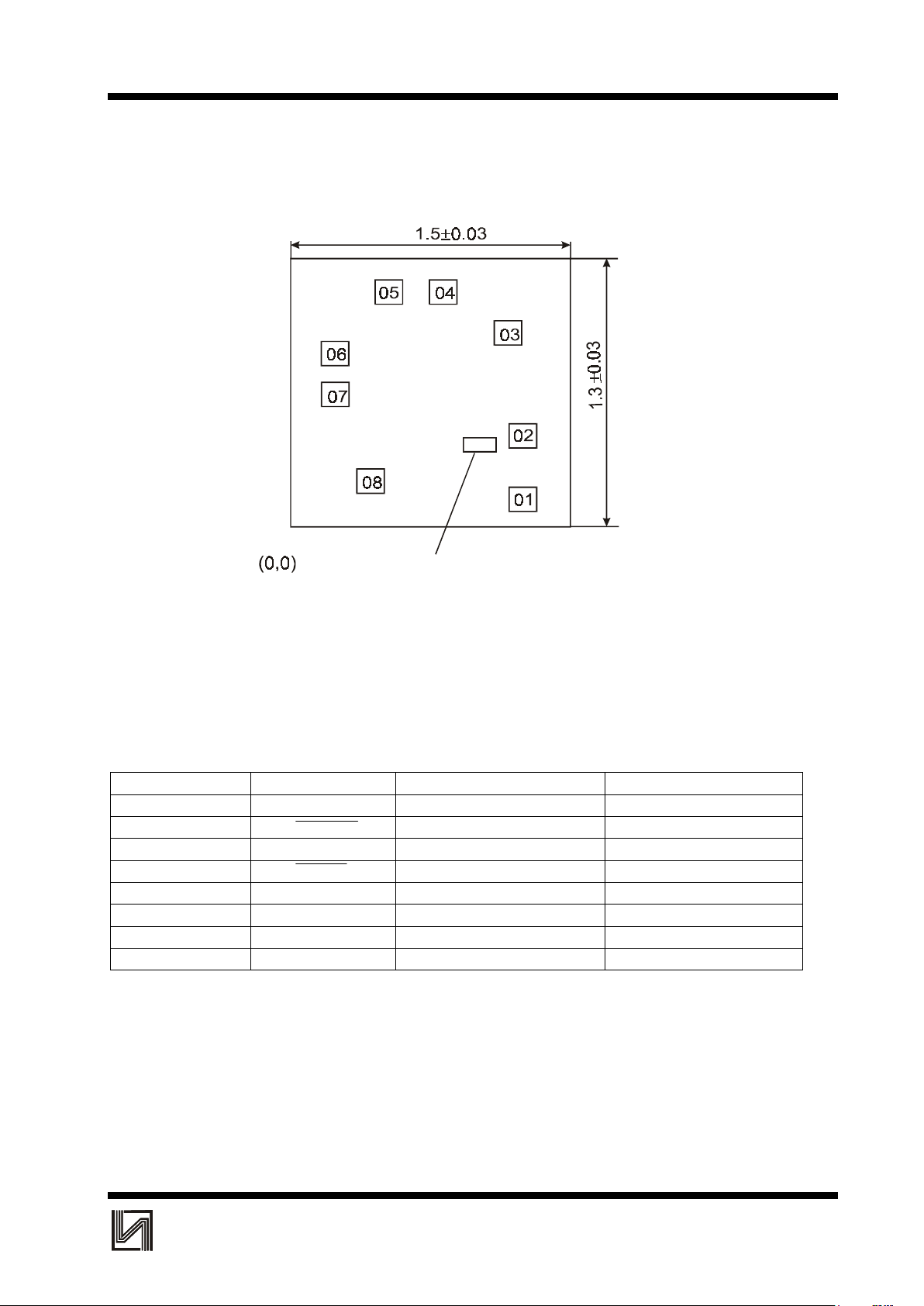

CHIP PAD DIAGRAM IZC555
Pad size 0.110 x 0.110 mm (Pad size is given as per passivation layer)
Thickness of chip 0,46±0,02 mm
PAD LOCATION
Pad No Symbol X Y
01 GND 1.2840 0.1160
02 Trigger 1.2840 0.4410
03 Output 1.2815 1.0545
04 Reset 0.8870 1.0840
05 Control Voltage 0.3335 1.0840
06 Threshold 0.1160 0.9995
07 Discharge 0.1160 0.7965
08 Vcc 0.1760 0.1270
Chip marking
555
(x=0.890, y=0.345)
