Preliminary Technical Information

TrenchMV

TM

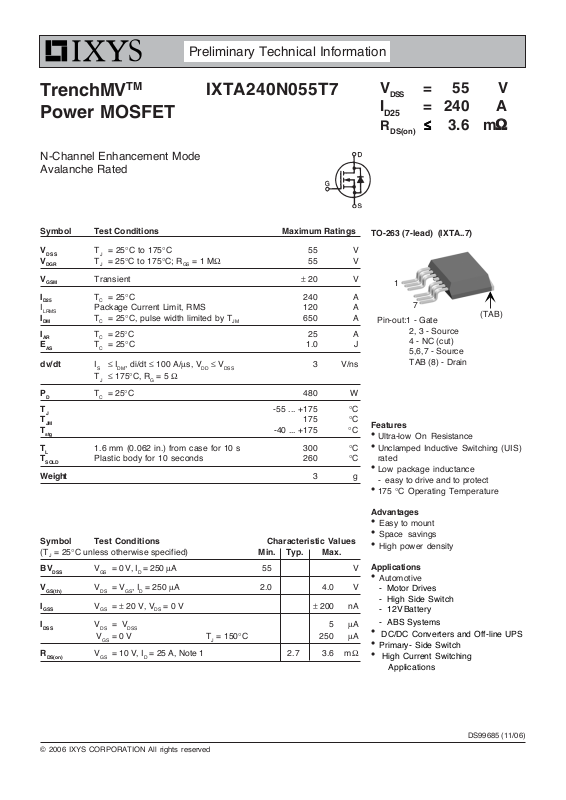

IXTA240N055T7

Power MOSFET

N-Channel Enhancement Mode
Avalanche Rated

Symbol Test Conditions Maximum Ratings

V

DSS

V

DGR

V

GSM

I

D25

I

LRMS

I

DM

I

AR

E

AS

dv/dt I

TJ= 25°C to 175°C55V
TJ= 25°C to 175°C; RGS = 1 MΩ 55 V

Transient ± 20 V

TC= 25°C 240 A
Package Current Limit, RMS 120 A
TC= 25°C, pulse width limited by T

JM

650 A

TC= 25°C25A
TC= 25°C 1.0 J

≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ V

S

DSS

3 V/ns

TJ≤ 175°C, RG = 5 Ω

V
I

D25

R

DSS

DS(on)

=55 V
= 240 A

≤≤

≤ 3.6 m

≤≤

TO-263 (7-lead) (IXTA..7)

1

7

Pin-out:1 - Gate

2, 3 - Source
4 - NC (cut)
5,6,7 - Source
TAB (8) - Drain

(TAB)

ΩΩ

Ω

ΩΩ

P

D

T

J

T

JM

T

stg

T

L

T

SOLD

Weight 3g

TC= 25°C 480 W

-55 ... +175 °C
175 °C

-40 ... +175 °C

1.6 mm (0.062 in.) from case for 10 s 300 °C
Plastic body for 10 seconds 260 °C

Features



Ultra-low On Resistance



Unclamped Inductive Switching (UIS)
rated



Low package inductance

- easy to drive and to protect



175 °C Operating Temperature

Advantages



Easy to mount



Symbol Test Conditions Characteristic Values
(TJ = 25°C unless otherwise specified) Min. Typ. Max.

BV

V

I

GSS

I

DSS

DSS

GS(th)

VGS= 0 V, ID = 250 μA55V

VDS= VGS, ID = 250 μA 2.0 4.0 V

VGS= ± 20 V, VDS = 0 V ± 200 nA

VDS= V

DSS

5 μA

VGS= 0 V TJ = 150°C 250 μA

R

DS(on)

VGS= 10 V, ID = 25 A, Note 1 2.7 3.6 mΩ

Space savings



High power density

Applications



Automotive

- Motor Drives

- High Side Switch

- 12V Battery

- ABS Systems



DC/DC Converters and Off-line UPS



Primary- Side Switch



High Current Switching

Applications

© 2006 IXYS CORPORATION All rights reserved

DS99685 (11/06)

IXTA240N055T7

Symbol Test Conditions Characteristic Values

(TJ = 25°C unless otherwise specified) Min. Typ. Max.

g

C

C

C

t

t

t

t

Q

Q

Q

R

fs

iss

oss

rss

d(on)

r

d(off)

f

g(on)

gs

gd

thJC

VDS= 10 V; ID = 60 A, Note 1 75 132 S

7600 pF

VGS = 0 V, VDS = 25 V, f = 1 MHz 1240 pF

260 pF

Resistive Switching Times 39 ns

VGS = 10 V, VDS = 0.5 V

, ID = 25 A 54 ns

DSS

RG = 5 Ω (External) 63 ns

75 ns

170 nC

VGS= 10 V, VDS = 0.5 V

, ID = 25 A 32 nC

DSS

48 nC

0.31°C/W

Source-Drain Diode

Symbol Test Conditions Characteristic Values
TJ = 25°C unless otherwise specified) Min. Typ. Max.

I

S

I

SM

V

SD

t

rr

VGS = 0 V 240 A

Pulse width limited by T

JM

650 A

IF = 50 A, VGS = 0 V, Note 1 1.2 V

IF = 25 A, -di/dt = 100 A/μs70ns

VR = 25 V, VGS = 0 V

TO-263 (7-lead) (IXTA...7) Outline

Pins: 1 - Gate

2, 3 - Source
4 - Drain
5,6,7 - Source
Tab (8) - Drain

Notes: 1. Pulse test, t ≤ 300 μs, duty cycle d ≤ 2 %;

PRELIMINARY TECHNICAL INFORMATION

The product presented herein is under development. The Technical Specifications
offered are derived from data gathered during objective characterizations of preliminary
engineering lots; but also may yet contain some information supplied during a pre­production design evaluation. IXYS reserves the right to change limits, test conditions,
and dimensions without notice.

IXYS reserves the right to change limits, test conditions, and dimensions.

IXYS MOSFETs and IGBTs are covered by 4,835,592 4,931,844 5,049,961 5,237,481 6,162,665 6,404,065 B1 6,683,344 6,727,585 7,005,734 B2
one or moreof the following U.S. patents: 4,850,072 5,017,508 5,063,307 5,381,025 6,259,123 B1 6,534,343 6,710,405B2 6,759,692 7,063,975 B2

4,881,106 5,034,796 5,187,117 5,486,715 6,306,728 B1 6,583,505 6,710,463 6771478 B2 7,071,537
