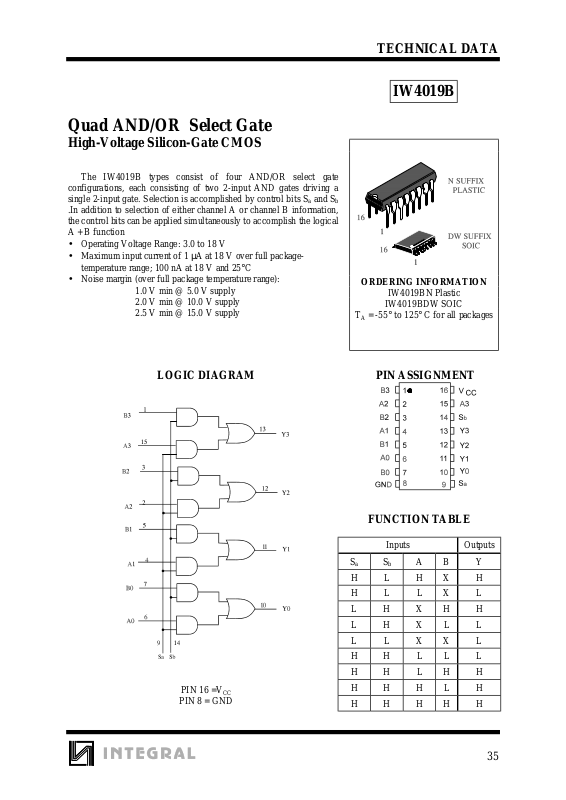

TECHNICAL DATA

35

Quad AND/OR Select Gate

High-Voltage Silicon-Gate CMOS

The IW4019B types consist of four AND/OR select gate configurations, each consisting of two 2-input AND gates driving a single 2-input gate. Selection is accomplished by control bits S

a

and S

b

.In addition to selection of either channel A or channel B information, the control bits can be applied simultaneously to accomplish the logical A + B function

•

Operating Voltage Range: 3.0 to 18 V

•

Maximum input current of 1 µA at 18 V over full package-

temperature range; 100 nA at 18 V and 25°C

•

Noise margin (over full package temperature range):

1.0 V min @ 5.0 V supply

2.0 V min @ 10.0 V supply

2.5 V min @ 15.0 V supply

IW4019B

ORDERING INFORMATION

IW4019BN Plastic

IW4019BDW SOIC

TA = -55° to 125° C for all packages

LOGIC DIAGRAM

PIN 16 =V

CC

PIN 8 = GND

PIN ASSIGNMENT

FUNCTION TABLE

Inputs Outputs

S

a

S

b

AB Y HLHXH HLLXL

LHXHH LHXLL

LLXXL HHLLL HHLHH HHHLH HHHHH

IW4019B

36

MAXIMUM RATINGS

*

Symbol Parameter Value Unit

V

CC

DC Supply Voltage (Referenced to GND) -0.5 to +20 V

V

IN

DC Input Voltage (Referenced to GND) -0.5 to VCC +0.5 V

V

OUT

DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V

I

IN

DC Input Current, per Pin

±

10

mA

P

D

Power Dissipation in Still Air, Plastic DIP+ SOIC Package+

750 500

mW

P

D

Power Dissipation per Output Transistor 100 mW

Tstg Storage Temperature -65 to +150

°

C

T

L

Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)

260

°

C

*

Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions. +Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C

SOIC Package: : - 7 mW/°C from 65° to 125°C

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Min Max Unit

V

CC

DC Supply Voltage (Referenced to GND) 3.0 18 V

VIN, V

OUT

DC Input Voltage, Output Voltage (Referenced to GND) 0 V

CC

V

T

A

Operating Temperature, All Package Types -55 +125

°

C

This device c ontains p rote ction ci rcuitr y to guard a gainst damage d ue to high st atic voltages or electr ic fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, V

IN

and V

OUT

should be constrained to the range

GND≤(V

IN

or V

OUT

)≤VCC.

Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V

CC

).

Unused outputs must be left open.

IW4019B

37

DC ELECTRICAL CHARACTERISTICS

(Voltages Referenced to GND)

V

CC

Guaranteed Limit

Symbol Parameter Test Conditions V

≥

-55°C25°C

≤

125

°

C

Unit

V

IH

Minimum High-Level Input Voltage

V

OUT

=0.5V or V

CC

- 0.5V

V

OUT

=1.0V or VCC - 1.0V

V

OUT

=1.5V or VCC - 1.5V

5.0 10 15

3.5 7

11

3.5 7

11

3.5 7

11

V

IL

Maximum Low -Level Input Voltage

V

OUT

=0.5V or V

CC

- 0.5V

V

OUT

=1.0V or VCC - 1.0V

V

OUT

=1.5V or VCC - 1.5V

5.0 10 15

1.5 3 4

V

OH

Minimum High-Level Output Voltage

VIN=GND or V

CC

5.0 10 15

4.95

9.95

14.95

4.95

9.95

14.95

4.95

9.95

14.95

V

OL

Maximum Low-Level Output Voltage

VIN=GND or V

CC

5.0 10 15

0.05

V

I

IN

Maximum Input Leakage Current

VIN= GND or V

CC

18

±

0.1

±

0.1

±

1.0

µ

A

I

CC

Maximum Quies cent Supply Current (per Package)

VIN= GND or V

CC

5.0 10 15 20

1 2 4

20

1 2 4

20

30

60 120 600

µ

A

I

OL

Minimum Outpu t Low (Sink) Current

VIN= GND or V

CC

UOL=0.4 V U

OL

=0.5 V

U

OL

=1.5 V

5.0 10 15

0.64

1.6

4.2

0.51

1.3

3.4

0.36

0.9

2.4

mA

I

OH

Minimum Outpu t High (Source) Current

VIN= GND or V

CC

UOH=2.5 V U

OH

=4.6 V

U

OH

=9.5 V

U

OH

=13.5 V

5.0

5.0 10 15

-2.0

-0.64

-1.6

-4.2

-1.6

-0.51

-1.3

-3.4

-1.15

-0.36

-0.9

-2.4

mA

IW4019B

38

AC ELECTRICAL CHARACTERISTICS

(CL=50pF, RL=200KΩ, Input tr=tf=20 ns)

V

CC

Guaranteed Limit

Symbol Parameter V

≥

-55°C25°C

≤

125°C

Unit

t

PLH

, t

PHL

Maximum Propagation Delay, Input A, B, SA or S

b

to Output Y (Figure 1)

5.0 10 15

300 120 100

600 240 200

ns

t

TLH

, t

THL

Maximum Output Transition Time, Any Output (Figure 1)

5.0 10 15

200 100

80

200 100

80

400 200 160

ns

C

IN

Maximum Input Capacitance All A and B

Inputs

-7.5pF

Sa and S

b

Inputs

- 15.0 pF

Figure 1. Switching Waveforms

EXPANDED LOGIC DIAGRAM

(1/4 of the Device)
