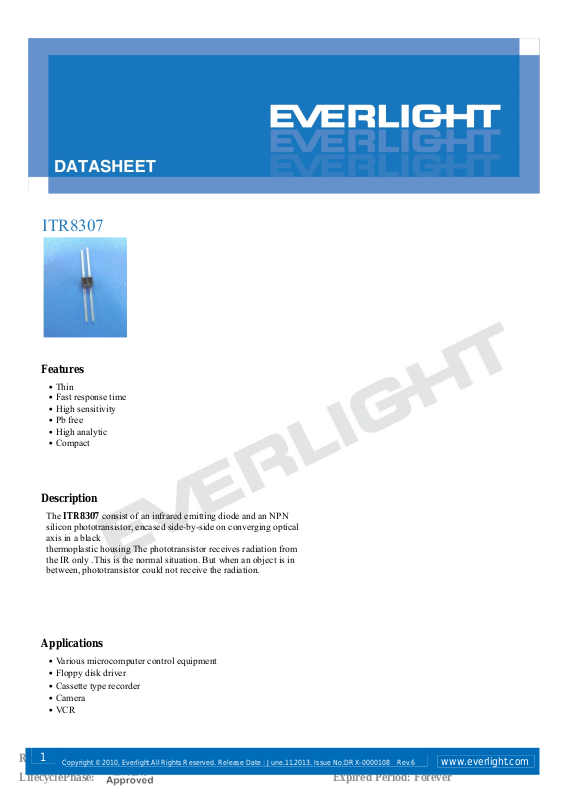

Datasheet ITR8307 Specification

ITR8307

Features

․Thin ․Fast response time ․High sensitivity ․Pb free ․High analytic ․Compact

Description

The ITR8307 consist of an infrared emitting diode and an NPN

silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing The phototransistor receives radiation from the IR only .This is the normal situation. But when an object is in between, phototransistor could not receive the radiation.

Applications

․Various microcomputer control equipment ․Floppy disk driver ․Cassette type recorder ․Camera ․VCR

1

Revision : 6 LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

Device Selection Guide

Device No. Chip Material LENS COLOR

IR GaAs Water Clear

PT Silicon Water Clear

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Ratings Unit

Input

Output

Power Dissipation at(or below) 25℃ Free

Air Temperature Reverse Voltage V Forward Current I Peak Forward Current (*1)

Pulse width ≦100μs, Duty cycle=1%

Collector Power Dissipation Collector Current I Collector-Emitter Voltage B V

Emitter-Collector Voltage

Pd 75 mW

5 V

50 mA

1 A

75 mW 50 mA

30 V

5 V

I

P

B V

R

F

FP

C

CEO

ECO

Operating Temperature Topr -25~+85 Storage Temperature Tstg -30~+90 Lead Soldering Temperature (*2)

(1/16 inch form body for 5 seconds)

Tsol 260

(＊1) tw=100 μsec. , T=10 msec. (＊2) t=5 Sec

℃ ℃

℃

2

Revision : 6

LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min.

Input

Output

Transfer

Characteristics

Forward Voltage V Reverse Current I Peak Wavelength View Angle Dark Current I

C-E Saturation Voltage

λ

21/2

CEO

VCE(sat) ---

F

R

P

--- 1.2 1.6 V IF=20mA

--- --- 10

--- 940 --- nm IF=20mA

---

--- --- 100 nA VCE=10V

Collect Current IC(ON) 0.1

Rise time t

Fall time t

r

f

--- 20 ---

Typ.

Max. Unit Conditions

μA

VR=5V

30 --- Deg IF=20mA

---

0.4 V

--- mA VCE=5V IF=20mA

μsec

IC=2mA

Ee=1mW/cm

VCE=2V

IC=100μA

μsec

RL=1K

2

3

Revision : 6

LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

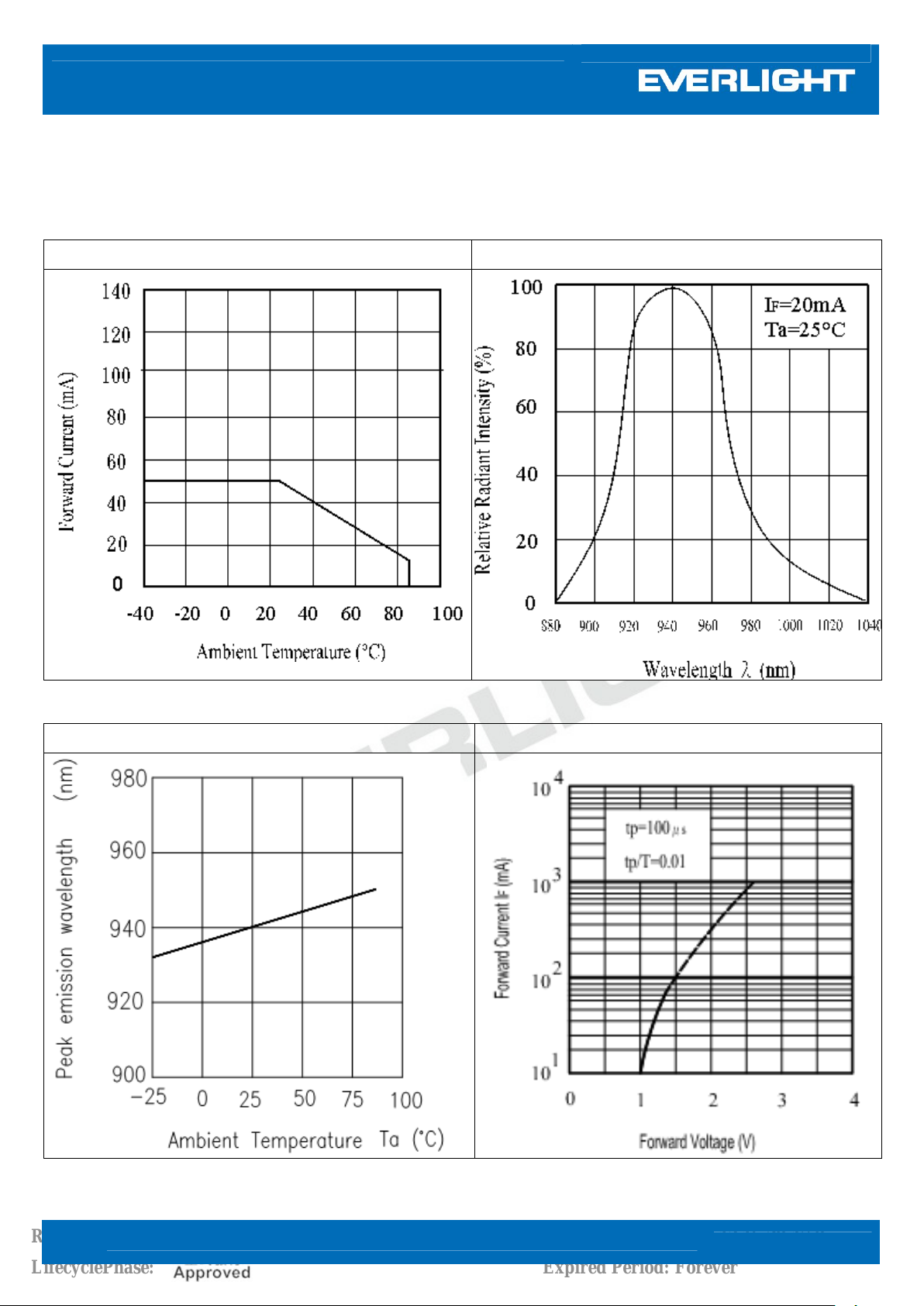

Typical Electrical/Optical/Characteristics Curves for IR

Forward Current vs. Ambient Temperature Spectral Distribution

Peak Emission Wavelenght vs. Ambient Temperature Forward Current vs. Forward Voltage

4

Revision : 6

LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

Forward Current vs. Ambient Temperature Relative Radiant Intensity vs. Angular Displacement

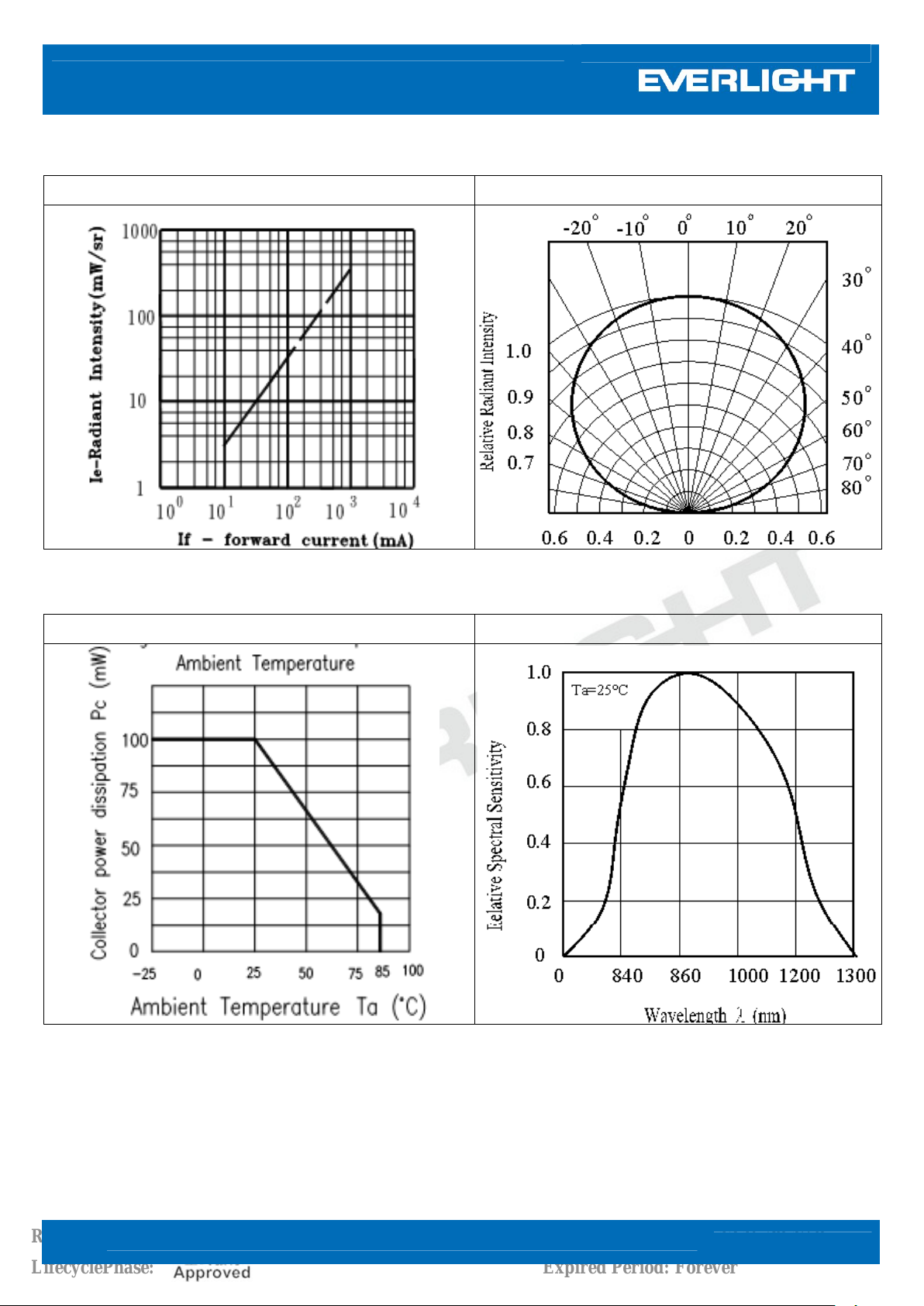

Typical Electro/Optical/Characteristics Curves for PT

Collector Power Dissipation vs. Ambient Temperature Spectral Sensitivity

5

Revision : 6

LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

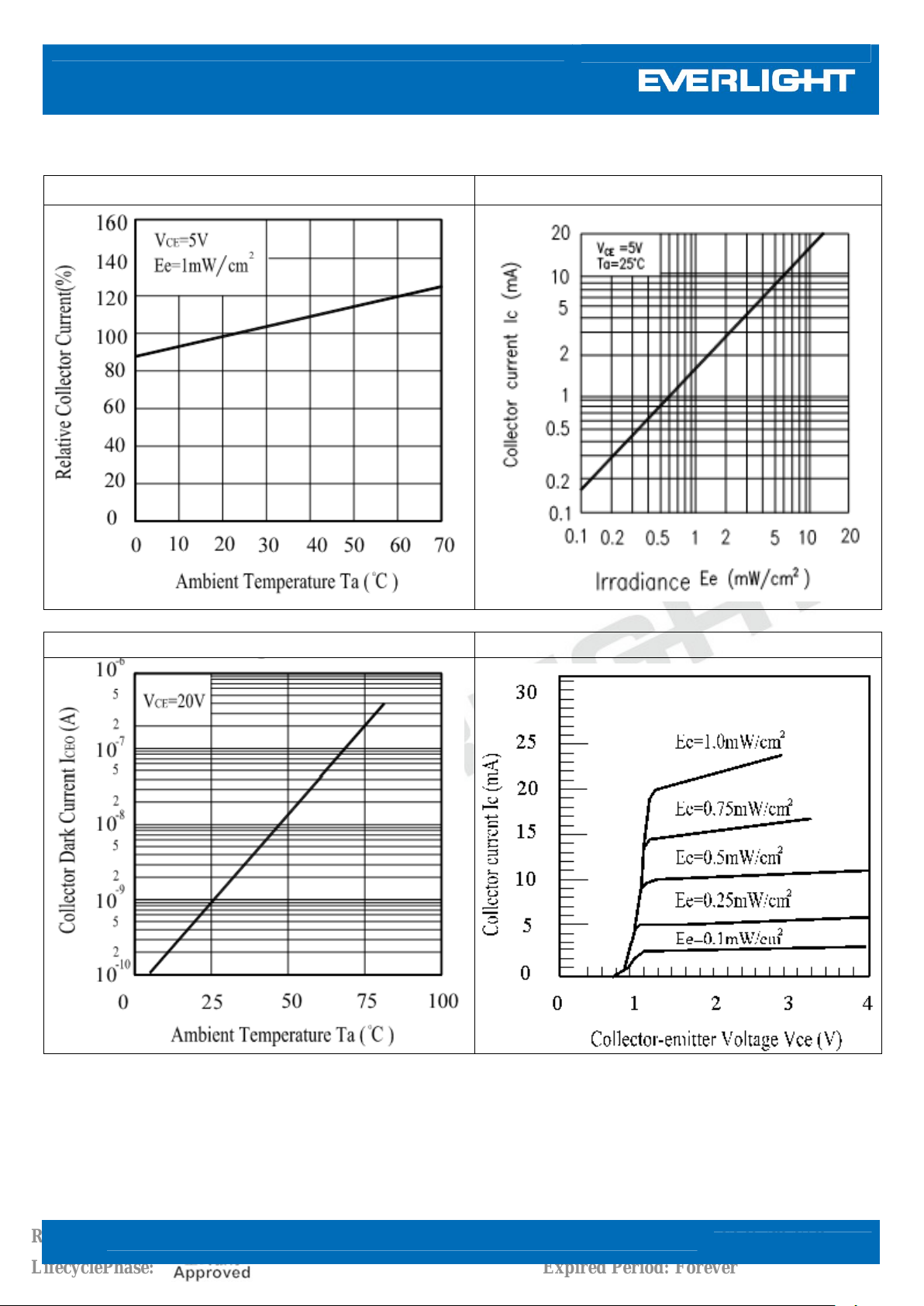

Relative Collector Current vs Ambient Temperature Collector Current vs. Irradiance

Collector Current vs. Ambient Temperatrue Collector Current vs. Collector-emitter Voltage

6

Revision : 6

LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

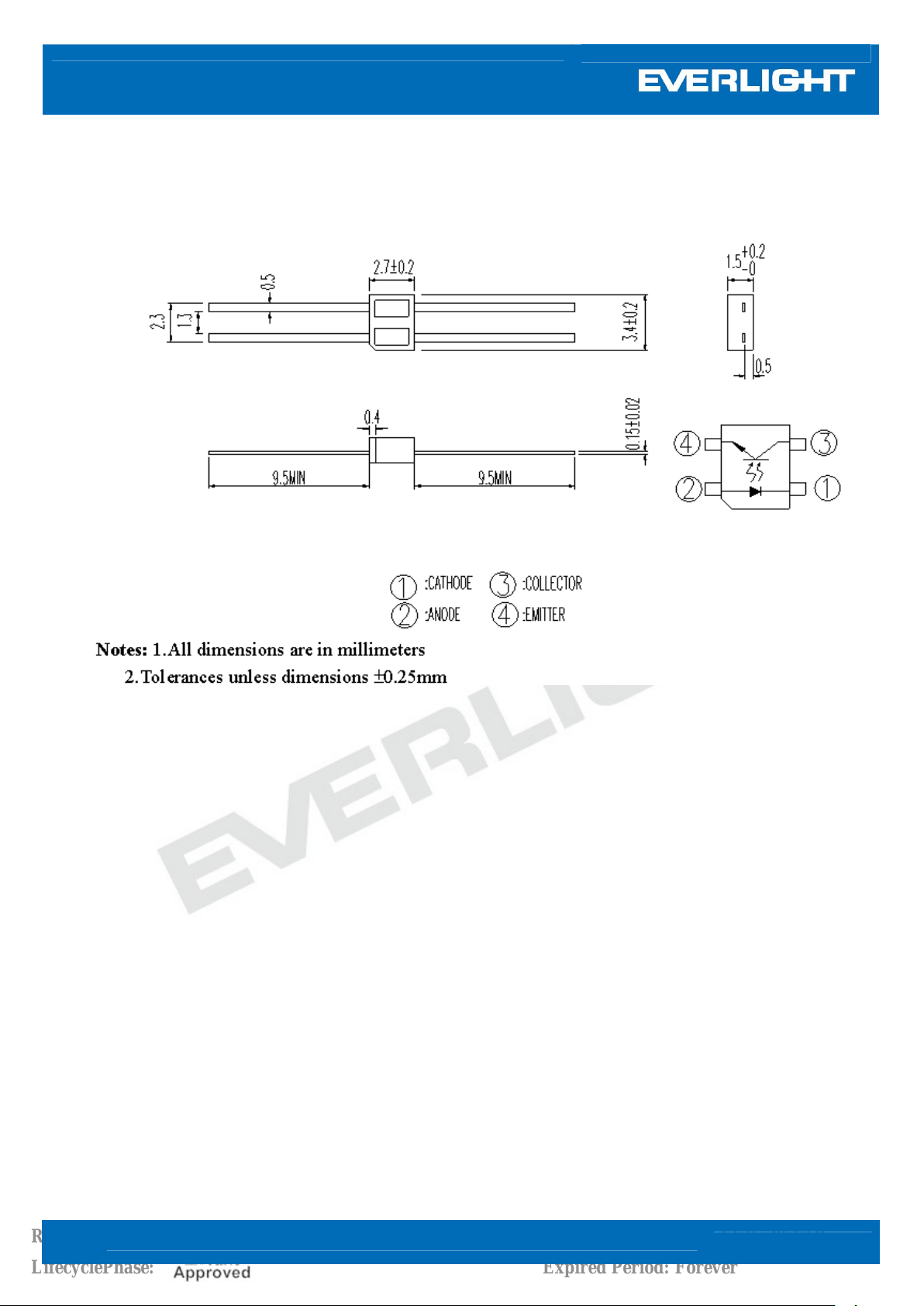

Package Dimension

7

Revision : 6

LifecyclePhase:

Release Date:2013-06-13 16:20:17.0

www.everlight.com

Expired Period: Forever

DATASHEET ITR8307

Packing Quantity Specification

1. 1000pcs/1Bag

2. 1Bag/1Carton

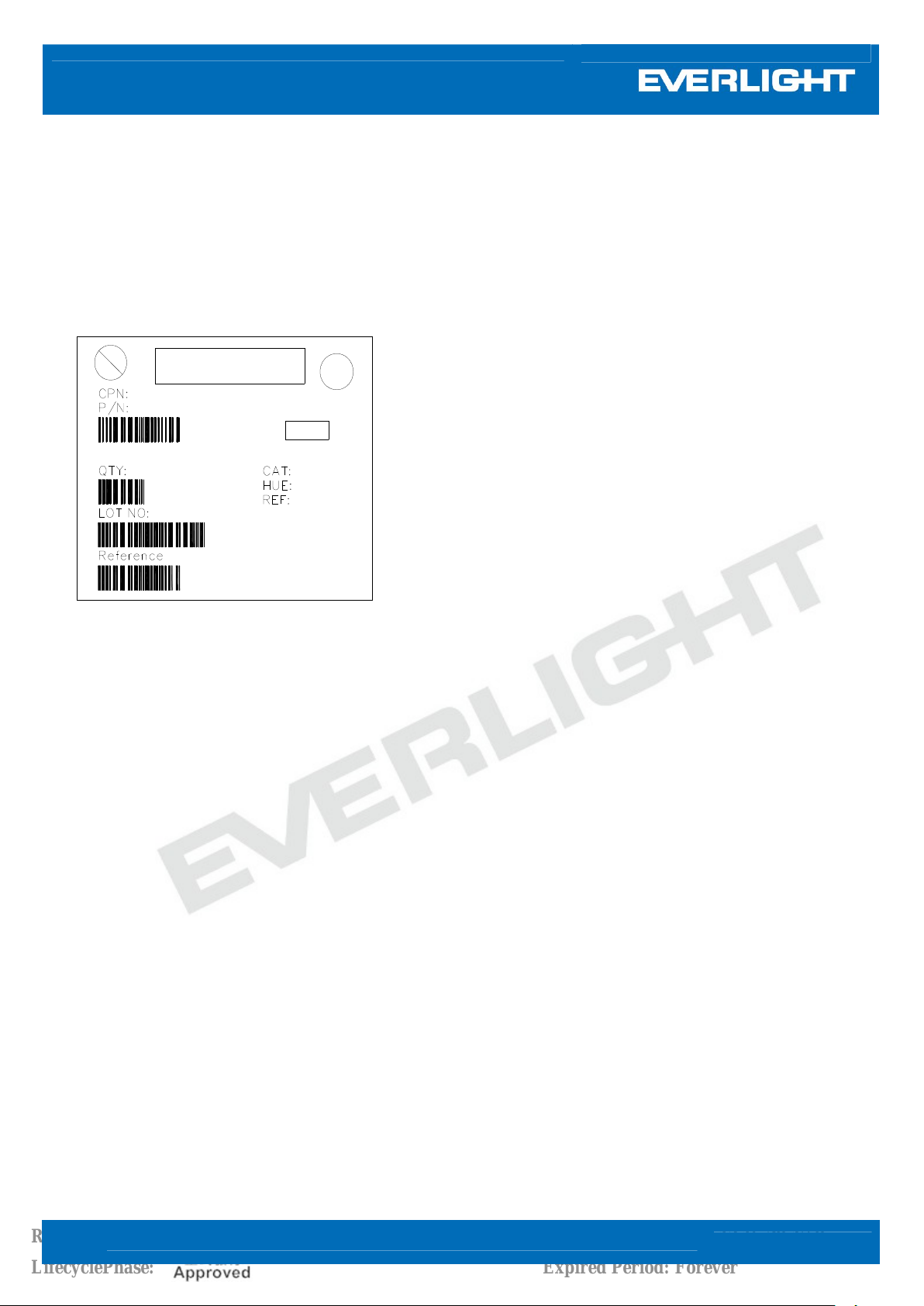

Label Form Specification

Pb

EVERLIGHT

ITR8307

RoHS

‧CPN: Customer’s Product Number ‧P/N: Product Number
