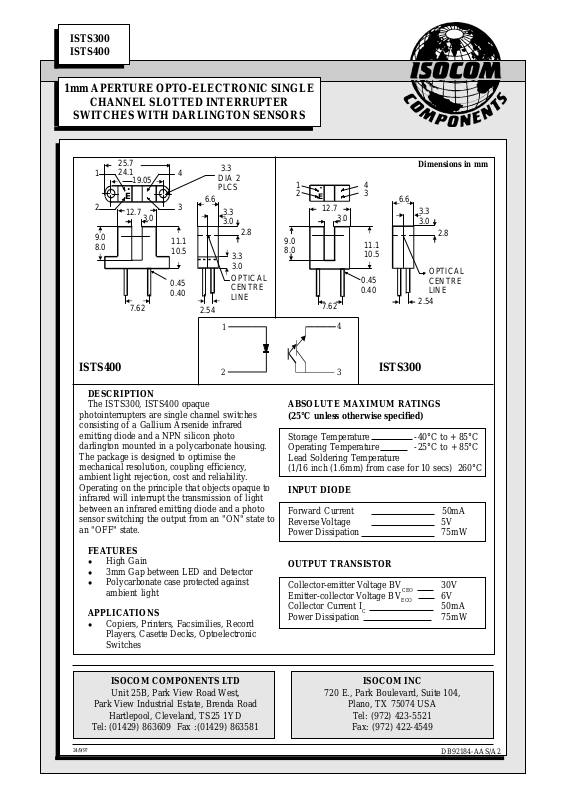

ISTS300
ISTS400
1mm APERTURE OPTO-ELECTRONIC SINGLE
CHANNEL SLOTTED INTERRUPTER
SWITCHES WITH DARLINGTON SENSORS
1
2
9.0
8.0
25.7
24.1
E
12.7
19.05
4
3
3.0
11.1
10.5
0.45
0.40
7.62
3.3
DIA 2
PLCS
6.6
3.3
3.0
2.8
3.3
3.0
OPTICAL
CENTRE
LINE
2.54
1
2
DESCRIPTION
The ISTS300, ISTS400 opaque
photointerrupters are single channel switches
consisting of a Gallium Arsenide infrared
emitting diode and a NPN silicon photo
darlington mounted in a polycarbonate housing.
The package is designed to optimise the
mechanical resolution, coupling efficiency,
ambient light rejection, cost and reliability.
Operating on the principle that objects opaque to
infrared will interrupt the transmission of light
between an infrared emitting diode and a photo
sensor switching the output from an "ON" state to
an "OFF" state.

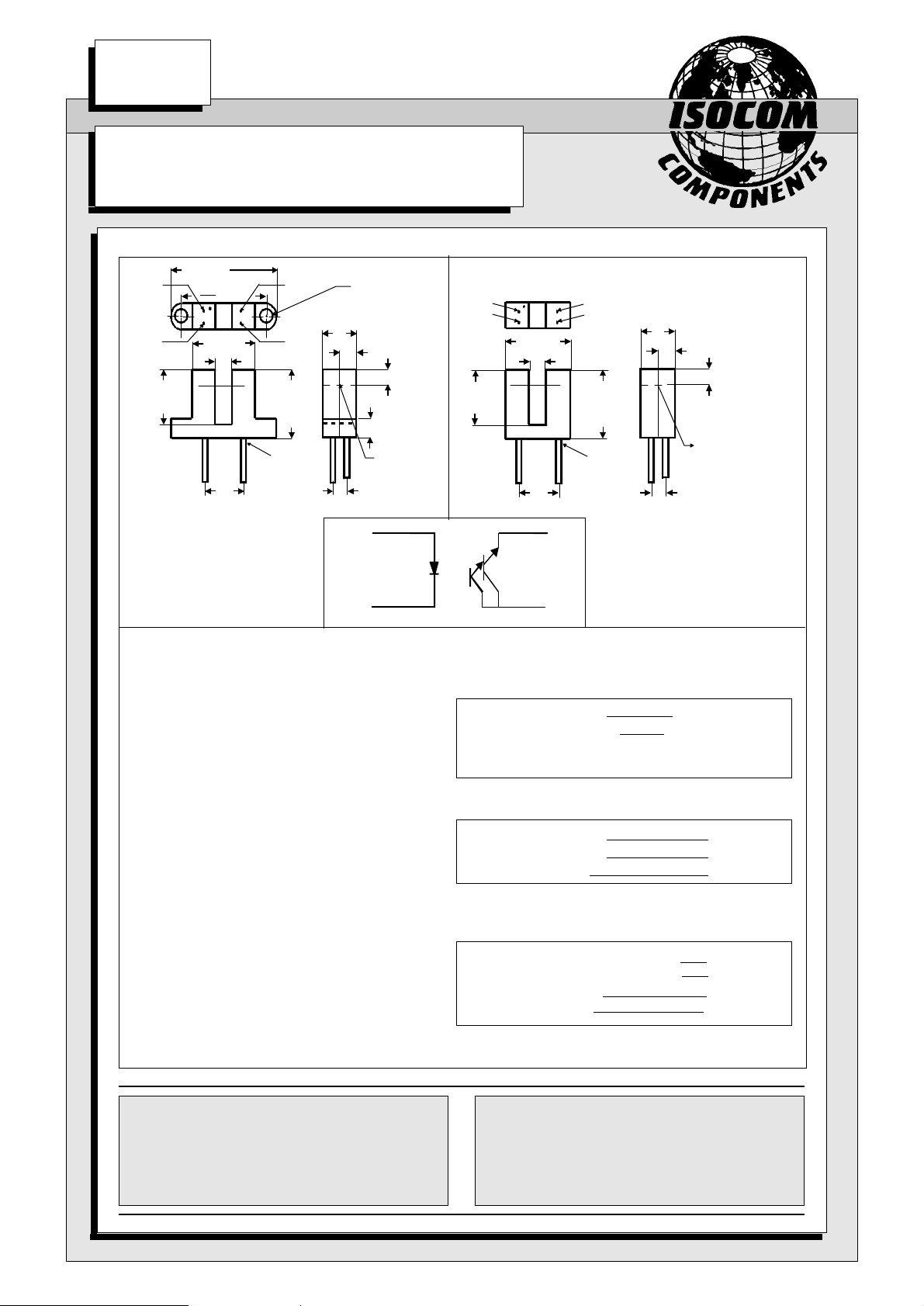

Dimensions in mm
9.0
8.0
1
2
E
12.7
7.62
3.0
4
3
4
3
11.1
10.5
0.45
0.40
6.6
3.3
3.0
2.8
OPTICAL
CENTRE
LINE
2.54
ISTS300ISTS400
ABSOLUTE MAXIMUM RATINGS
(25°C unless otherwise specified)
Storage Temperature -40°C to + 85°C
Operating Temperature -25°C to + 85°C
Lead Soldering Temperature
(1/16 inch (1.6mm) from case for 10 secs) 260°C
INPUT DIODE
Forward Current 50mA
Reverse Voltage 5V
Power Dissipation 75mW
FEATURES
l High Gain
l 3mm Gap between LED and Detector
l Polycarbonate case protected against
ambient light
APPLICAT IONS
l Copiers, Printers, Facsimilies, Record
Players, Casette Decks, Optoelectronic
Switches
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, Cleveland, TS25 1YD
Tel: (01429) 863609 Fax :(01429) 863581
24/9/97
OUTPUT TRANSISTOR
Collector-emitter Voltage BV
Emitter-collector Voltage BV
Collector Current I
Power Dissipation 75mW
C
CEO
ECO
30V
6V
50mA
ISOCOM INC
720 E., Park Boulevard, Suite 104,
Plano, TX 75074 USA
Tel: (972) 423-5521
Fax: (972) 422-4549
DB92184-AAS/A2
Page 2
ELECTRICAL CHARACTERISTICS ( TA= 25°C Unless otherwise noted )
PARAMETER MIN TYP MAX UNITS TEST CONDITION
Input Forward Voltage (VF) 1.2 1.7 V IF = 50mA
Reverse Voltage (VR)5VI
Reverse Current (IR) 100 µAV
= 1µA
R
R
= 6V
Output Collector-emitter Breakdown (BV
( Note 1 )
Emitter-collector Breakdown (BV
Collector-emitter Dark Current (I
Coupled On-State Collector Current IC (
)30 V IC = 1mA
CEO
) 6 V IE = 100µA
ECO
) 100 nA VCE = 25V
CEO
) 7.5 mA 10mA IF , 1.5V V
ON
( Note 1 )
Collector-emitter Saturation Voltage V
CE(SAT)
1.0 V 10mA I
Turn-on Time ton 45 µsV
Turn-off Time toff 250 µsR
Note 1 Special Selections are available on request. Please consult the factory.
, 1.8mA I
F
= 5V, IF = 10mA,
CC
= 750Ω
L
CE
C
24/9/97
DB92184-AAS/A2
Page 3

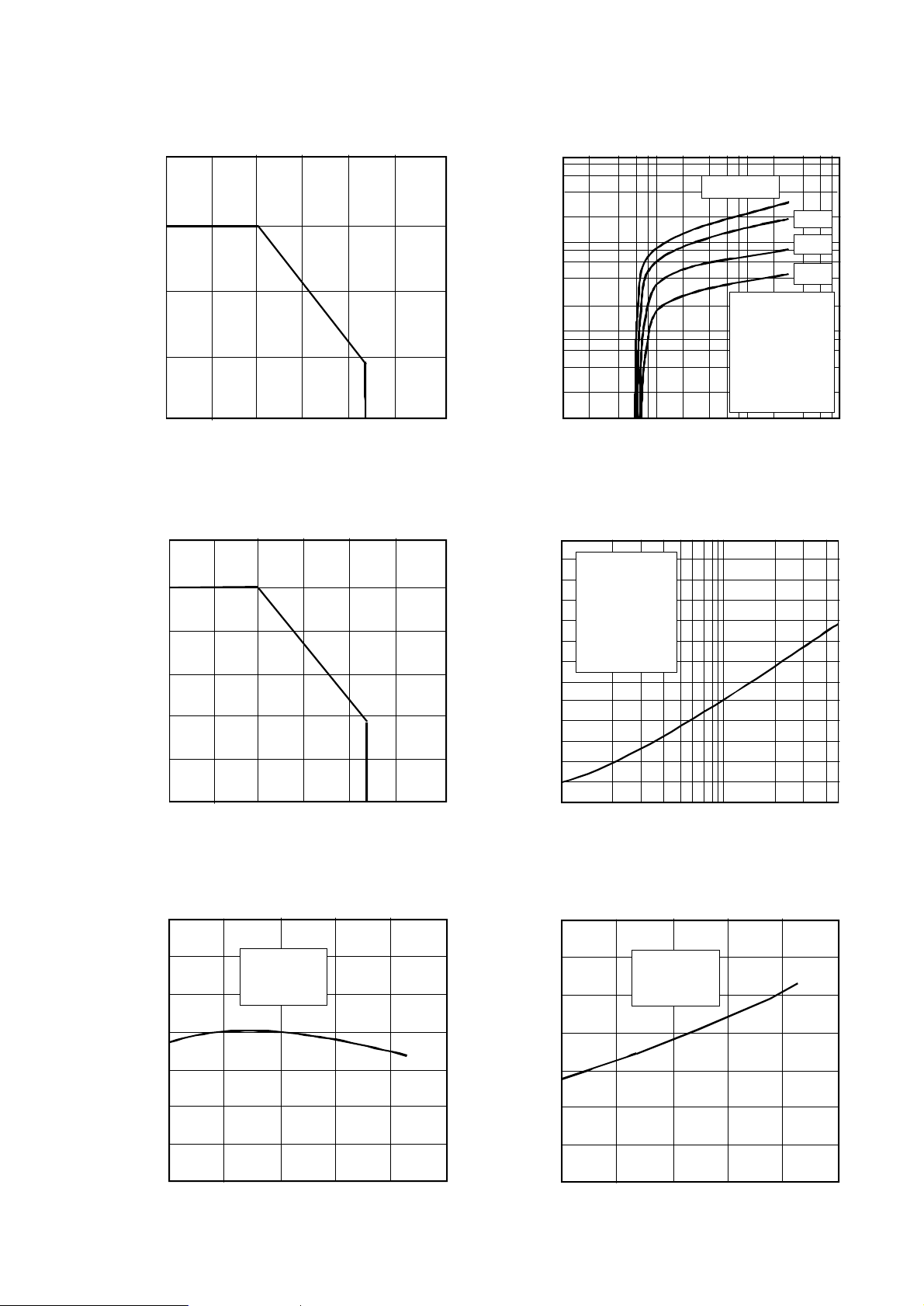

Collector Power Dissipation vs. Ambient Temperature
100
(mW)
C
75
50
25
Collector power dissipation P
0
-25 0 25 50 75 100 125
Ambient temperature TA ( °C )
Normalized Output Current vs.
Collector-emitter Voltage
10
4
IF = 10mA
2
1
0.4
0.2
0.1
0.04
Normalized output current
0.02
0.01
Normalized to :
IF = 10mA
V
CE
TA = 25°C
Pulsed
PW = 100µs
PRR = 100pps
0.1 1 10 100
Collector-emitter voltage V
= 1.5V
( V )
CE
5mA
2mA
1mA
Forward Current vs. Ambient Temperature
60
50
(mA)
40
F
30
20
Forward current I
10
0
-25 0 25 50 75 100 125
Ambient temperature TA ( °C )
Normalized Output Current
vs. Ambient Temperature
1.5
IF = 10mA
VCE = 1.5V
Normalized Output Current vs.
Forward Current
2.6
2.4
2.2
2.0
1.8
1.6
1.4
Normalized to
IF = 10mA
V
= 1.5V
CE
TA = 25°C
Pulsed
PW = 100µs
PRR = 100pps
1.2
1.0
0.8
0.6
Normalized output current
0.4
0.2
0
1 2 5 10 20 50
Forward current IF (mA)
Collector-emitter Saturation
(V)
0.95
CE(SAT)
0.90
0.85
Voltage vs. Ambient Temperature
IF = 10mA
IC = 1.8mA
24/9/97
1.0
0.5
Normalized output current
0
-25 0 25 50 75 100
Ambient temperature TA ( °C )
0.80
0.75
0.70
0.65
0.60
Collector-emitter saturation voltage V
-25 0 25 50 75 100
Ambient temperature TA ( °C )
DB92184-AAS/A2
