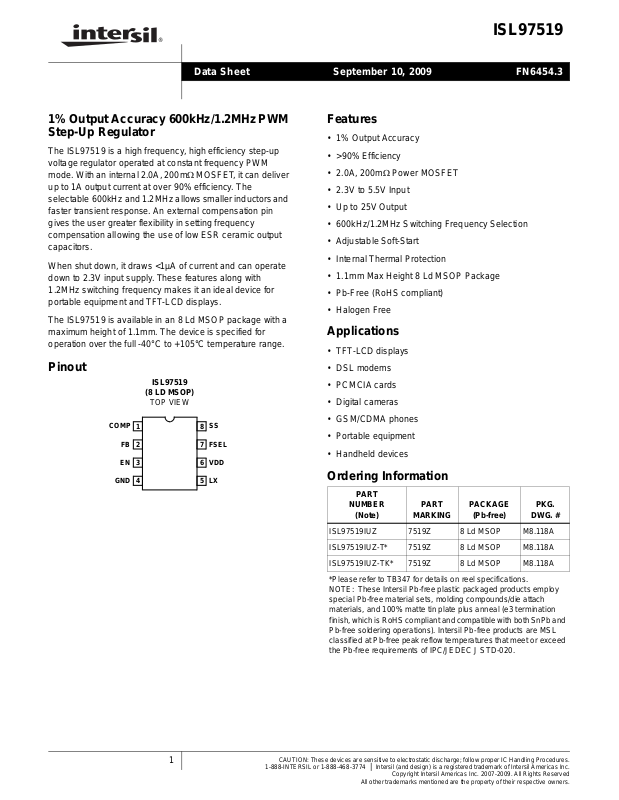

1% Output Accuracy 600kHz/1.2MHz PWM
Step-Up Regulator

The ISL97519 is a high frequency, high efficiency step-up
voltage regulator operated at constant frequency PWM
mode. With an internal 2.0A, 200mΩ MOSFET, it can deliver
up to 1A output current at over 90% efficiency. The
selectable 600kHz and 1.2MHz allows smaller inductors and
faster transient response. An external compensation pin
gives the user greater flexibility in setting frequency
compensation allowing the use of low ESR ceramic output
capacitors.

When shut down, it draws <1µA of current and can operate
down to 2.3V input supply. These features along with

1.2MHz switching frequency makes it an ideal device for
portable equipment and TFT-LCD displays.

The ISL97519 is available in an 8 Ld MSOP package with a
maximum height of 1.1mm. The device is specified for
operation over the full -40°C to +105°C temperature range.

FN6454.3

Features

• 1% Output Accuracy

• >90% Efficiency

• 2.0A, 200mΩ Power MOSFET

• 2.3V to 5.5V Input

• Up to 25V Output

• 600kHz/1.2MHz Switching Frequency Selection

• Adjustable Soft-Start

• Internal Thermal Protection

• 1.1mm Max Height 8 Ld MSOP Package

• Pb-Free (RoHS compliant)

• Halogen Free

Applications

• TFT-LCD displays

Pinout

ISL97519

(8 LD MSOP)

TOP VIEW

COMP SS

1

FB FSEL

2

EN VDD

3

GND LX

4

8

7

6

5

• DSL modems

• PCMCIA cards

• Digital cameras

• GSM/CDMA phones

• Portable equipment

• Handheld devices

Ordering Information

PART

NUMBER

(Note)

ISL97519IUZ 7519Z 8 Ld MSOP M8.118A
ISL97519IUZ-T* 7519Z 8 Ld MSOP M8.118A
ISL97519IUZ-TK* 7519Z 8 Ld MSOP M8.118A
*Please refer to TB347 for details on reel specifications.

NOTE: These Intersil Pb-free plastic packaged products employ
special Pb-free material sets, molding compounds/die attach
materials, and 100% matte tin plate plus anneal (e3 termination
finish, which is RoHS compliant and compatible with both SnPb and
Pb-free soldering operations). Intersil Pb-free products are MSL
classified at Pb-free peak reflow temperatures that meet or exceed
the Pb-free requirements of IPC/JEDEC J STD-020.

PART

MARKING

PACKAGE

(Pb-free)

PKG.

DWG. #

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Copyright Intersil Americas Inc. 2007-2009. All Rights Reserved

ISL97519

Absolute Maximum Ratings (T

LX to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27V

V

to GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5V

DD

COMP, FB, EN, SS, FSEL to GND . . . . . . . . .-0.3V to (V

= +25°C) Thermal Information

A

Thermal Resistance (Typical, Note 1) θ

DD

+ 0.3V)

8 Lead MSOP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

(°C/W)

JA

Operating Ambient Temperature . . . . . . . . . . . . . . .-40°C to +105°C

Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . +135°C

Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves

Pb-free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and
result in failures not covered by warranty.

NOTE:

is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.

1. θ

JA

IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typical values are for information purposes only. Unless otherwise noted, all tests
are at the specified temperature and are pulsed tests, therefore: T

Electrical Specifications V

= 3.3V, V

IN

OUT

= TC = T

J

= 12V, I

A

= 0mA, FSEL = GND, TA = -40°C to +105°C Unless Otherwise Specified.

OUT

Parameters with MIN and/or MAX limits are 100% tested at +25°C, unless otherwise specified. Temperature
limits established by characterization and are not production tested.

PARAMETER DESCRIPTION CONDITIONS MIN TYP MAX UNIT

I

Q1

I

Q2

I

Q3

V

FB

I

B-FB

V

DD

D

- 600kHz Maximum Duty Cycle FSEL = 0V 85 92 %

MAX

D

- 1.2MHz Maximum Duty Cycle FSEL = V

MAX

I

LIM

I

EN

r

DS(ON)

I

LX-LEAK

ΔV

/ΔVINLine Regulation 3V < VIN < 5.5V, V

OUT

ΔV

/ΔI

OUT

f

OSC1

f

OSC2

V

IL

V

IH

G

M

V

DD-ON

HYS V

I

SS

Quiescent Current - Shutdown EN = 0V 1 5 µA
Quiescent Current - Not Switching EN = VDD, FB = 1.3V 0.7 mA
Quiescent Current - Switching EN = VDD, FB = 1.0V 3 4 mA
Feedback Voltage TA = -40°C to +85°C 1.281 1.294 1.307 V

T

= -40°C to +105°C 1.276 1.294 1.307 V

A

Feedback Input Bias Current 0.01 0.5 µA
Input Voltage Range 2.3 5.5 V

DD

85 90 %
Current Limit - Max Peak Input Current 1.5 2.0 A
Shutdown Input Bias Current EN = 0V 0.01 0.5 µA
Switch ON-Resistance VDD = 2.7V, ILX = 1A 0.2 Ω
Switch Leakage Current VSW = 27V 0.01 3 µA

= 12V 0.2 %

OUT

Load Regulation VIN = 3.3V , V

OUT

= 12V , IO = 30mA to 200mA 0.3 %

OUT

Switching Frequency Accuracy FSEL = 0V 500 620 740 kHz
Switching Frequency Accuracy FSEL = V

DD

1000 1250 1500 kHz
EN, FSEL Input Low Level 0.5 V
EN, FSEL Input High Level 1.5 V
Error Amp Tranconductance ΔI = 5µA 70 130 150 1µ/Ω
VDD UVLO On Threshold 2.1 2.2 2.3 V

UVLO Hysteresis 100 mV

DD

Soft-Start Charge Current 4 6 8 µA

OTP Over-Temperature Protection 150 °C

2

FN6454.3

September 10, 2009

Block Diagram

ISL97519

EN SS

SHUTDOWN

AND START -UP

CONTROL

VDD

REFERENCE
GENERATOR

COMPARATOR

COMP

FSEL

OSCILLATOR

CURRENT

SENSE

GM

AMPLIFIER

PWM LOGIC

CONTROLLER

Pin Descriptions

PIN NUMBER PIN NAME DESCRIPTION

FET

DRIVER

LX

GND

FB

1 COMP Compensation pin. Output of the internal error amplifier. Capacitor and resistor from COMP pin to ground.
2 FB Voltage feedback pin. Internal reference is 1.294V nominal. Connect a resistor divider from V

V
3 EN Shut-down control pin. Pull EN low to turn off the device.
4 GND Analog and power ground.
5 LX Power switch pin. Connected to the drain of the internal power MOSFET.
6 VDD Analog power supply input pin.
7 FSEL Frequency select pin. When FSEL is set low, switching frequency is set to 620kHz. When connected to

high or V
8 SS Soft-start control pin. Connect a capacitor to control the converter start-up.

Typical Application Circuit

R

3

3.9kΩ
C

5

4.7nF

= 1.294V (1 + R1/R2). See “Typical Application Circuit” on page 3.

OUT

, switching frequency is set to 1.25MHz.

DD

1

85.2kΩR
R

10kΩ

1

COMP

FB

2

2

S1

EN

3

GND

4

SS

FSEL

VDD

LX

8

7

6

5

C

3

27nF

C

4

0.1µF

+

C

1

22µF

10µH

D

1

2.3V TO 5.5V

C

+

2

22µF

12V

OUT

.

3

FN6454.3

September 10, 2009

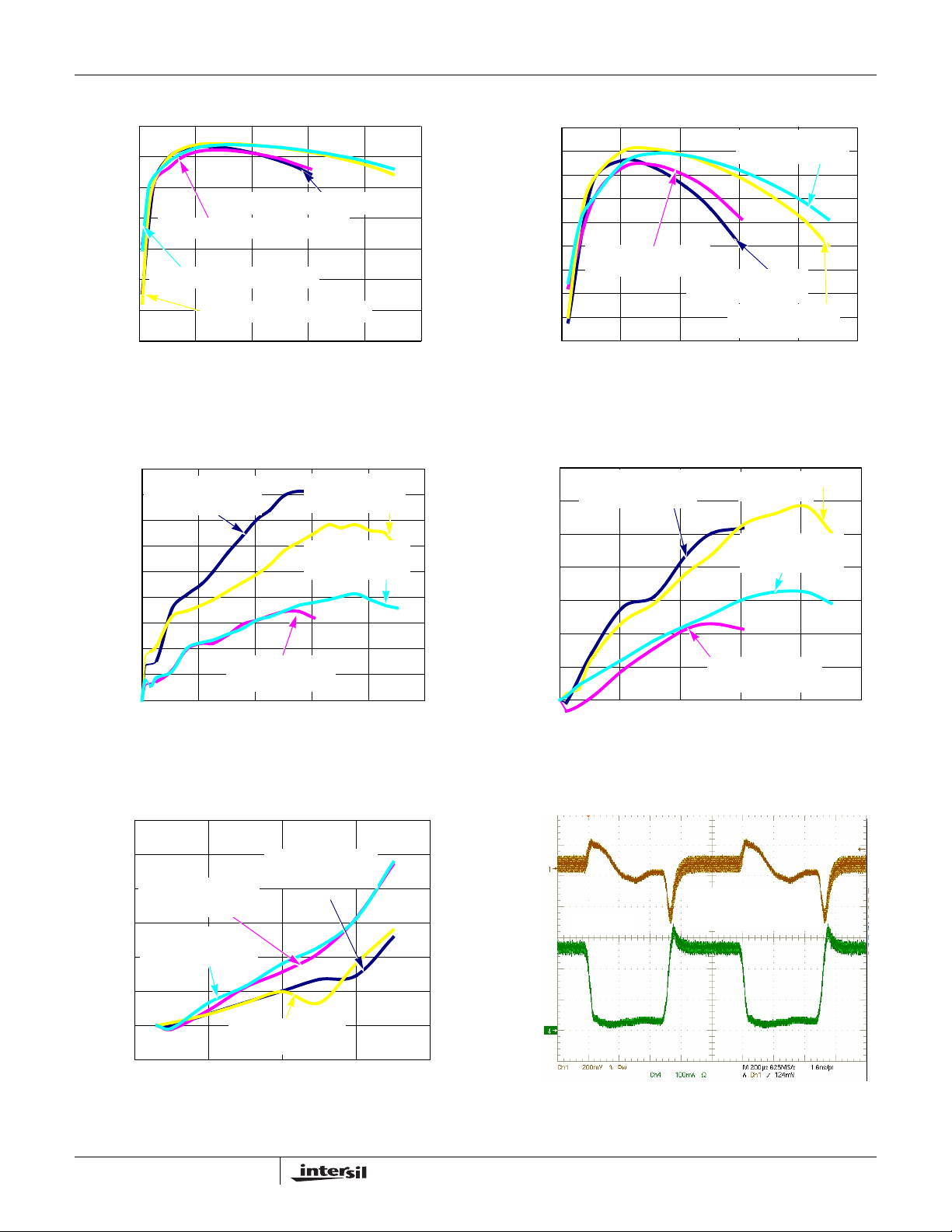

Typical Performance Curves

95

90

85

80

VIN = 5V, VO = 12V, fs = 620kHz

75

EFFICIENCY (%)

VIN = 5V, VO = 9V, fs = 620kHz

70

65

60

0 200 400 600 800 1000

FIGURE 1. BOOST EFFICIENCY vs I

VIN = 5V, VO = 12V, fs = 1.25MHz

VIN = 5V, VO = 9V, fs = 1.25MHz

(mA)

I

OUT

OUT

ISL97519

92
90
88
86
84
82

VIN = 3.3V, VO = 12V,

= 620kHz

f

80

EFFICIENCY (%)

78
76
74

s

0 100 200 300 400 500

VIN = 3.3V, VO = 12V,

fs = 1.25MHz

I

OUT

VIN = 3.3V, VO = 9V,
f

= 620kHz

s

VIN = 3.3V, VO = 9V,

= 1.25MHz

f

s

(mA)

FIGURE 2. BOOST EFFICIENCY vs I

OUT

0.9
VIN = 5V, VO = 12V,

0.8
f

= 1.25MHz

s

0.7

0.6

0.5

0.4

0.3

LOAD REGULATION (%)

0.2

0.1

0

0 200 400 600 800 1000

VIN = 5V, VO = 12V,

= 620kHz

f

s

I

OUT

VIN = 5V, VO = 9V,

= 1.25MHz

f

s

VIN = 5V, VO = 9V,

= 620kHz

f

s

(mA)

FIGURE 3. LOAD REGULATION vs I

0.6

0.5

0.4

VO = 9V, IO = 80mA

0.3
VO = 12V, IO = 80mA

f

= 1.25MHz

0.2

s

= 1.25MHz

f

s

VO = 9V, IO = 100mA

= 620kHz

f

s

OUT

0.7
VIN = 3.3V, VO = 12V,

= 1.25MHz

f

LOAD REGULATION (%)

0.6

0.5

0.4

0.3

0.2

0.1

s

0

0 100 200 300 400 500

I

OUT

FIGURE 4. LOAD REGULATION vs I

VO = 12V

VIN = 3.3V

f

VIN = 3.3V , VO = 9V ,

fs = 1.25MHz

VIN = 3.3, VO = 9V,

fs = 1.25MHz

VIN = 3.3, VO = 12V,

= 620kHz

f

s

(mA)

I

= 50mA TO 300mA

O

= 600kHz

s

OUT

0.1

LINE REGULATION (%)

0

-0.1
2

FIGURE 5. LINE REGULATION vs V

VO = 12V, IO = 80mA

= 620kHz

f

s

3 4 5 6

(V)

V

IN

IN

4

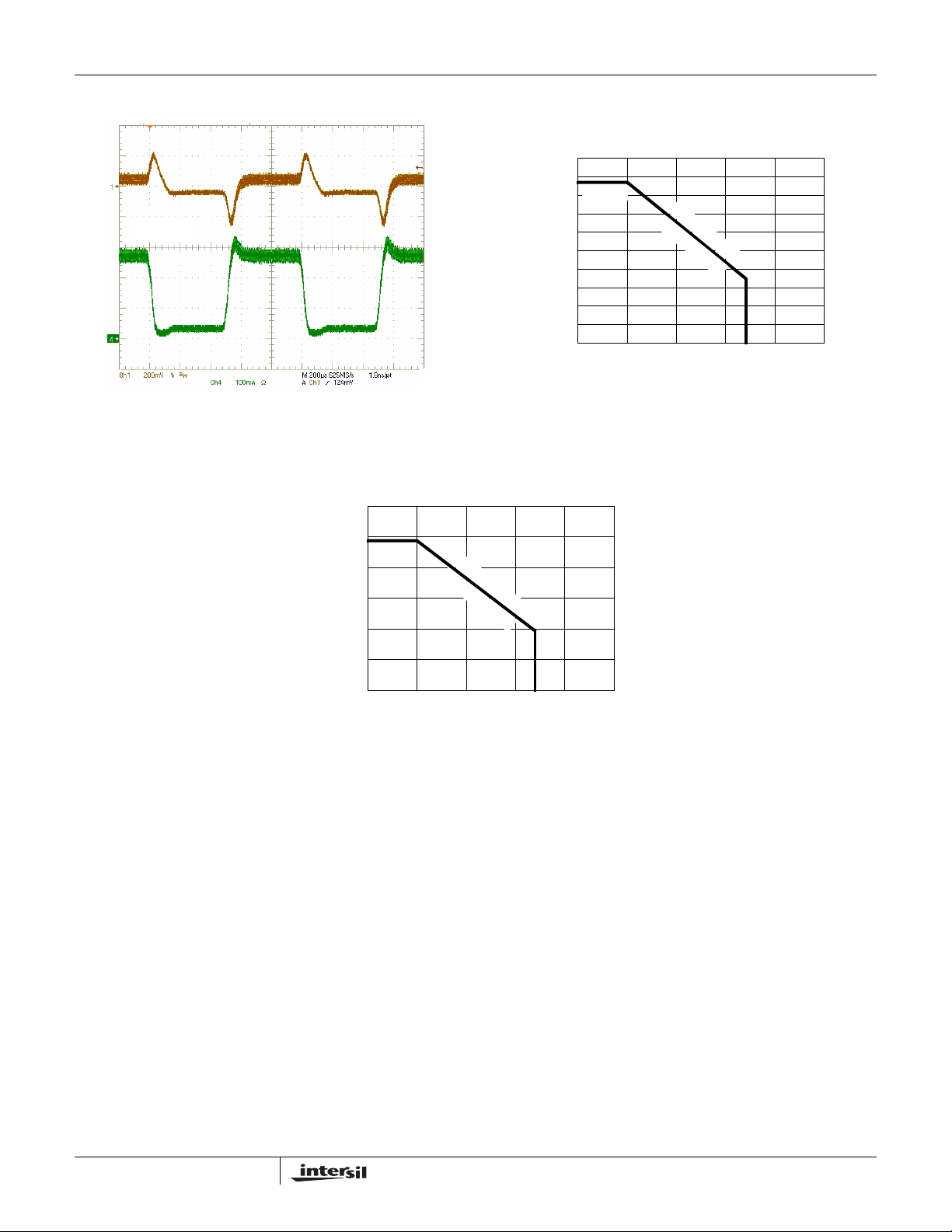

FIGURE 6. TRANSIENT RESPONSE

FN6454.3

September 10, 2009

Typical Performance Curves (Continued)

ISL97519

JEDEC JESD51-7 HIGH EFFECTIVE THERMAL
CONDUCTIVITY TEST BOARD

1.0

0.9
870mW

0.8

0.7

0.6

0.5

0.4

0.3

0.2

POWER DISSIPATION (W)

0.1

0

0 25 50 75 100 125

AMBIENT TEMPERATURE (°C)

M

θ

S

J

O

A

=

P

+

8

1

6

0

°

C

/

W

85

VIN = 3.3V

VO = 12V

f

s

= 1.2MHz

I

= 50mA TO 300mA

O

FIGURE 7. TRANSIENT RESPONSE FIGURE 8. PACKAGE POWER DISSIPA TION vs AMBIENT

TEMPERATURE

JEDEC JESD51-3 LOW EFFECTIVE THERMAL
CONDUCTIVITY TEST BOARD

0.6

0.5
486mW

0.4

0.3

0.2

M

θ

S

J

O

A

=

P

8

+

2

0

6

°

C

/

W

0.1

POWER DISSIPATION (W)

0.0

0 255075100125

AMBIENT TEMPERATURE (°C)

FIGURE 9. PACKAGE POWER DISSIPATION vs AMBIENT TEMPERATURE

Applications Information

The ISL97519 is a high frequency, high efficiency boost
regulator operated at constant frequency PWM mode. The
boost converter stores energy from an input voltage source
and deliver it to a higher output voltage. The input voltage
range is 2.3V to 5.5V and output voltage range is 5V to 25V.
The switching frequency is selectable between 600kHz and

1.2MHz allowing smaller inductors and faster transient
response. An external compensation pin gives the user
greater flexibility in setting output transient response and
tighter load regulation. The converter soft-start characteristic
can also be controlled by external C
allows the user to completely shut-down the device.

Boost Converter Operations

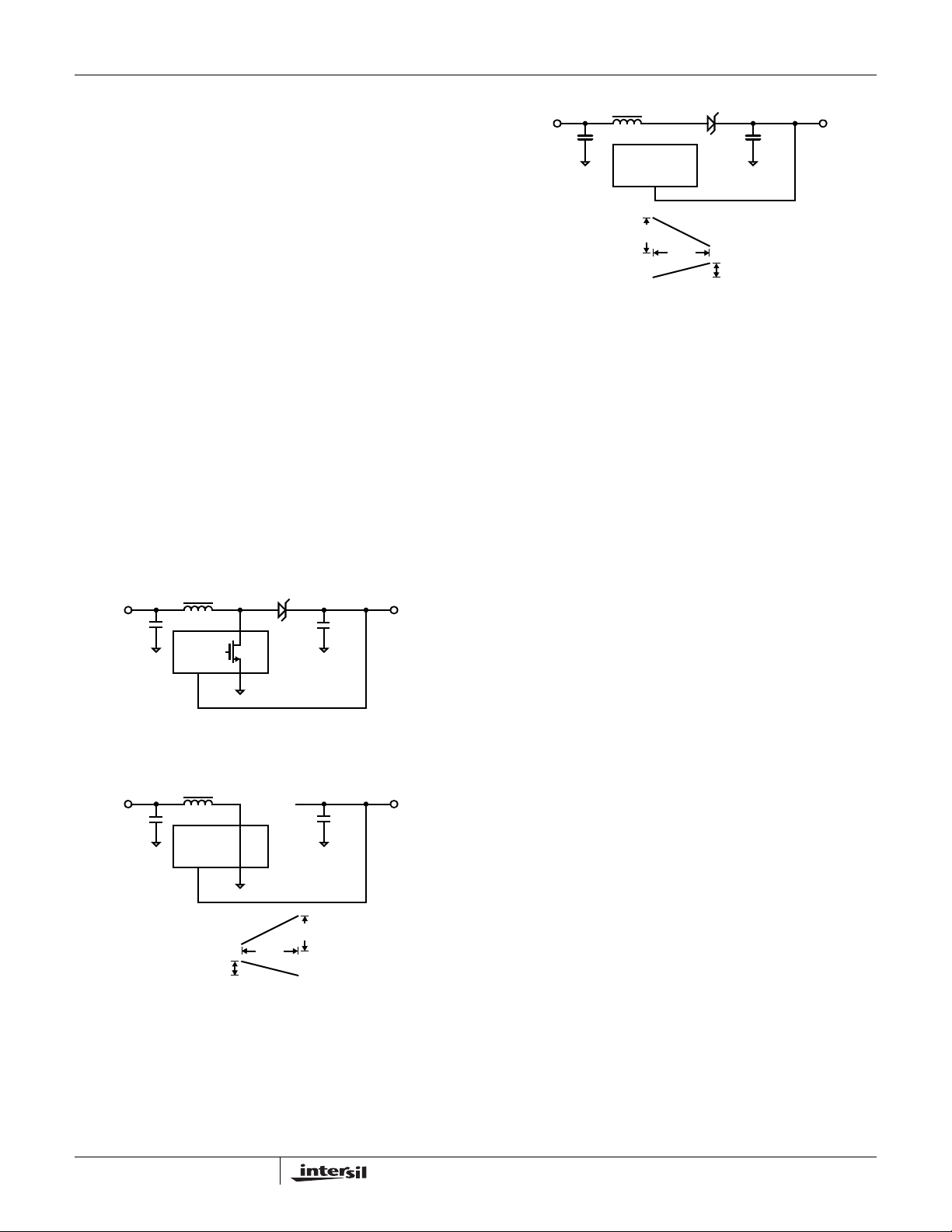

Figure 10 shows a boost converter with all the key
components. In steady-state operating and continuous
conduction mode where the inductor current is continuous,

capacitor. The EN pin

SS

85

the boost converter operates in two cycles. During the first
cycle, as shown in Figure 11, the internal power FET turns
on and the Schottky diode is reverse biased and cuts off the
current flow to the output. The output current is supplied
from the output capacitor. The voltage across the inductor is
V

and the inductor current ramps up in a rate of VIN/L, L is

IN

the inductance. The inductance is magnetized and energy is
stored in the inductor. The change in inductor current is
shown in Equation 1:

V

IN

Δt1

D

----------

f

SW

I

OUT

----------------

C

OUT

---------

×=

L

×=

Δt

1

(EQ. 1)

ΔI

Δt1

D Duty Cycle=

ΔV

L1

=

O

5

FN6454.3

September 10, 2009

ISL97519

During the second cycle, the power FET turns off and the
Schottky diode is forward biased, (see Figure 12). The
energy stored in the inductor is pumped to the output
supplying output current and charging the output capacitor.
The Schottky diode side of the inductor is clamp to a
Schottky diode above the output voltage. So the voltage
drop across the inductor is V

IN

- V

OUT

. The change in
inductor current during the second cycle is shown in
Equation 2:

–

V

INVOUT

=

1D–

-------------

f

SW

------------------------------- -

×=

L

(EQ. 2)

ΔILΔt2

Δt2

For stable operation, the same amount of energy stored in
the inductor must be taken out. The change in inductor
current during the two cycles must be the same.

ΔI1 ΔI2+ 0=

D

----------

f

SW

V

OUT

--------------- -

V

IN

V

IN

---------

L

1

-------------

=

1D–

V

IN

C

IN

V

IN

C

IN

V

1D–

-------------

f

SW

–

INVOUT

------------------------------- -

×+× 0=

L

LD

ISL97519

FIGURE 10. BOOST CONVERTER

L

ISL97519

C

C

OUT

OUT

(EQ. 3)

V

OUT

V

OUT

LD

V

IN

ΔV

C

OUT

O

C

IN

ISL97519

I

ΔI

L2

L

Δt

2

V

OUT

FIGURE 12. BOOST CONVERTER - CYCLE 2, POWER

SWITCH OPEN

Output Voltage

An external feedback resistor divider is required to divide the
output voltage down to the nominal 1.294V reference
voltage. The current drawn by the resistor network should be
limited to maintain the overall converter efficiency. The
maximum value of the resistor network is limited by the
feedback input bias current and the potential for noise being
coupled into the feedback pin. A resistor network less than
100k is recommended. The boost converter output voltage is
determined by the relationship in Equation 4:

V

OUTVFB

1

-------

1

+

×=

⎜⎟

R

⎝⎠

2

(EQ. 4)

R

⎛⎞

The nominal VFB voltage is 1.294V.

Inductor Selection

The inductor selection determines the output ripple voltage,
transient response, output current capability, and efficiency.
Its selection depends on the input voltage, output voltage,
switching frequency, and maximum output current. For most
applications, the inductance should be in the range of 2µH to
33µH. The inductor maximum DC current specification must
be greater than the peak inductor current required by the
regulator. The peak inductor current can be calculated using
Equation 5:

I

I

L PEAK()

×

OUTVOUT

------------------------------------

V

IN

V

INVOUTVIN

-----------------------------------------------------

12⁄

×+=

LV

OUT

–()×

FREQ××

(EQ. 5)

I

ΔV

L

O

ΔI

L1

Δt

1

FIGURE 11. BOOST CONVERTER - CYCLE 1, POWER

SWITCH CLOSED

6

Output Capacitor

Low ESR capacitors should be used to minimize the output
voltage ripple. Multilayer ceramic capacitors (X5R and X7R)
are preferred for the output capacitors because of their lower
ESR and small packages. Tantalum capacitors with higher
ESR can also be used. The output ripple can be calculated
in Equation 6:

I

D×

ΔV

O

-------------------------

×

f

SWCO

I

OUT

ESR×+=

OUT

For noise sensitive applications, a 0.1µF placed in parallel
with the larger output capacitor is recommended to reduce
the switching noise coupled from the LX switching node.

(EQ. 6)

FN6454.3

September 10, 2009

ISL97519

Schottky Diode

In selecting the Schottky diode, the reverse break down
voltage, forward current and forward voltage drop must be
considered for optimum converter performance. The diode
must be rated to handle 2.0A, the current limit of the
ISL97519. The breakdown voltage must exceed the
maximum output voltage. Low forward voltage drop, low
leakage current, and fast reverse recovery will help the
converter to achieve the maximum efficiency.

Input Capacitor

The value of the input capacitor depends upon the input and
output voltages, the maximum output current, the inductor
value and the noise allowed to put back on the input line. For
most applications, a minimum 10µF is required. For
applications that run close to the maximum output current
limit, an input capacitor in the range of 22µF to 47µF is
recommended.

The ISL97519 is powered from the VIN. A High frequency

0.1µF bypass cap is recommended to be close to the VIN
pin to reduce supply line noise and ensure stable operation.

Loop Compensation

The ISL97519 incorporates a transconductance amplifier in
its feedback path to allow the user some adjustment on the
transient response and better regulation. The ISL97519
uses current mode control architecture, which has a fast
current sense loop and a slow voltage feedback loop. The
fast current feedback loop does not require any
compensation. The slow voltage loop must be compensated
for stable operation. The compensation network is a series
RC network from COMP pin to ground. The resistor sets the
high frequency integrator gain for fast transient response
and the capacitor sets the integrator zero to ensure loop
stability. For most applications, the compensation resistor in
the range of 2k to 7.5k and the compensation capacitor in
the range of 3nF to 10nF.

Soft-Start

The soft-start is provided by an internal 6µA current source
which charges the external C

; the peak MOSFET current

SS

is limited by the voltage on the capacitor. This in turn controls
the rising rate of the output voltage. The regulator goes
through the start-up sequence as well, after the EN pin is
pulled to HI.

Frequency Selection

The ISL97519 switching frequency can be user selected to
operate at either constant 620kH z or 1.25MHz. Connecting
FSEL pin to ground sets the PWM switching frequency to
620kHz. When connecting FSEL high or VDD, the switching
frequency is set to 1.25MHz.

Maximum Output Current

The MOSFET current limit is nominally 2.0A and guaranteed

1.7A. This restricts the maximum output current, I

OMAX

,

based on Equation 7:

ILI

L-AVG

12⁄ΔIL×()+=

(EQ. 7)

where:

IL = MOSFET current limit
I

= average inductor current

L-AVG

ΔIL = inductor ripple current

V

INVOVDIODE

------------------------------------------------------------------------------

=

ΔI

L

LV

V

= Schottky diode forward voltage, typically, 0.6V

DIODE

+()VIN–[]×

( V

O

DIODE

) fS×+×

(EQ. 8)

fS = switching frequency, 600kHz or 1.2MHz

I

L-AVG

=

OUT

-------------

1D–

(EQ. 9)

I

D = MOSFET turn-on ratio:

V

D1

V

+

OUTVDIODE

IN

--------------------------------------------

–=

Table 1 gives typical maximum I

values for 1.2MHz

OUT

(EQ. 10)

switching frequency and 10µH inductor.

TABLE 1. MAXIMUM I

V

(V) V

IN

2.5 5 870

2.5 9 500

2.5 12 380

3.3 5 1150

3.3 9 655

3.3 12 500
5 9 990
5 12 750

OUT

VALUES

OUT

(V) I

OMAX

(mA)

Cascaded MOSFET Application

An 25V N-Channel MOSFET is integrated in the boost
regulator. For the applications where the output voltage is
greater than 25V, an external cascaded MOSFET is needed
as shown in Figure 13. The voltage rating of the external
MOSFET should be greater than A

VDD

.

Shut-down Control

When the EN pin is pulled down, the ISL97519 is shut down
reducing the supply current to <1µA.

7

FN6454.3

September 10, 2009

ISL97519

V

IN

LX

INTERSIL

ISL97519

FB

A

FIGURE 13. CASCADED MOSFET TOPOLOGY FOR HIGH

OUTPUT VOLTAGE APPLICATIONS

VDD

DC Path Block Application

Note that there is a DC path in the boost converter from the
input to the output through the inductor and diode, hence the
input voltage will be seen at output with a forward voltage
drop of diode before the part is enabled. If this voltage is not
desired, the following circuit can be inserted between input
and inductor to disconnect the DC path when the part is
disabled.

TO INDUCTOR

EN

FIGURE 14. CIRCUIT TO DISCONNECT THE DC PA TH OF

BOOST CONVERTER

INPUT

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

8

FN6454.3

September 10, 2009

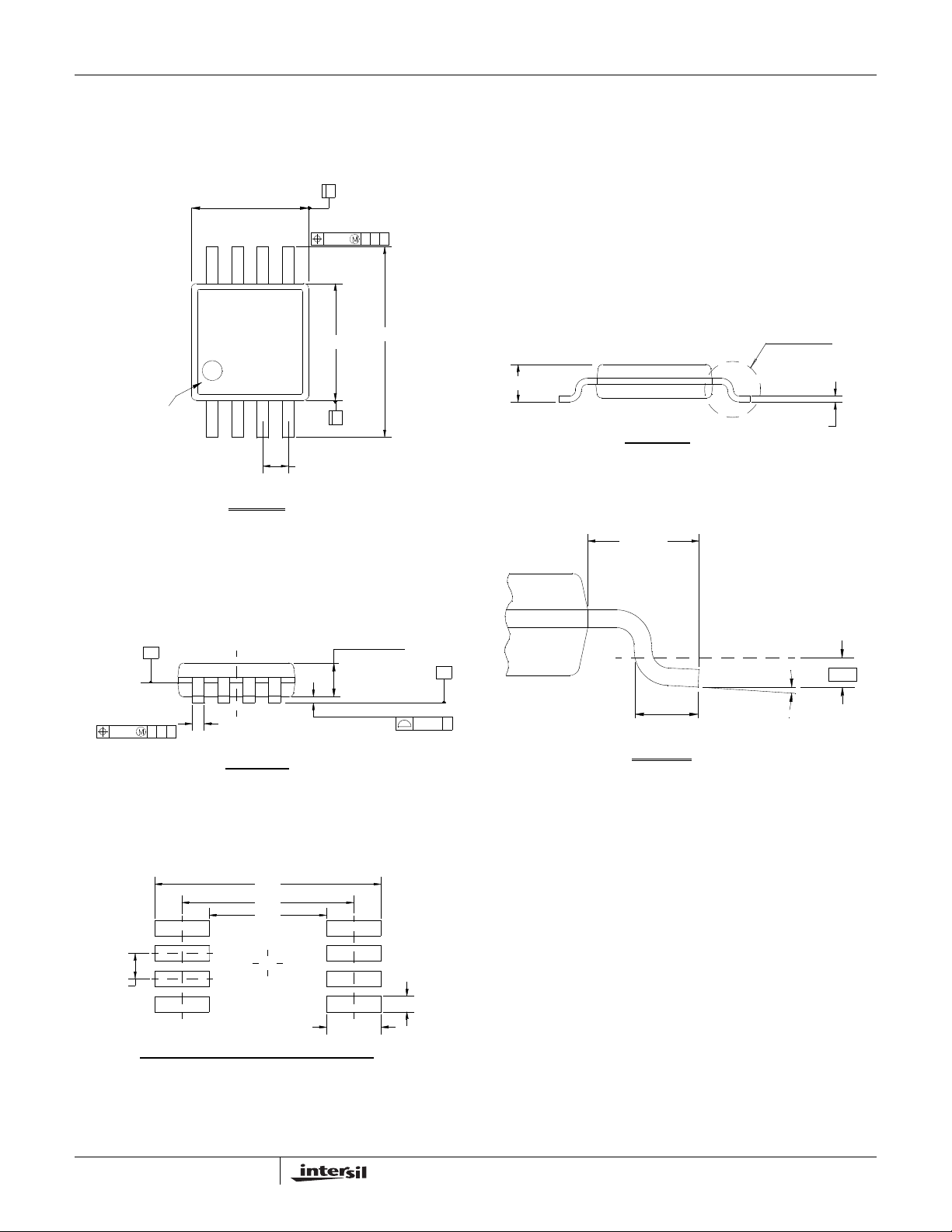

Package Outline Drawing

M8.118A

8 LEAD MINI SMALL OUTLINE PLASTIC PACKAGE (MSOP)
Rev 0, 9/09

3.0±0.1

A

ISL97519

PIN# 1 ID

H

0.33 +0.07/ -0.08

0.08 C A B

8

1

2

TOP VIEW

SIDE VIEW 1

0.25 CAB

3.0±0.1

0.65 BSC

0.10 ± 0.05

4.9±0.15

B

0.86±0.09

SEATING PLANE

0.10 C

DETAIL "X"

1.10 Max

GAUGE

PLANE

0.18 ± 0.05

0.25

3°±3°

SIDE VIEW 2

0.95 BSC

C

0.55 ± 0.15

DETAIL "X"

5.80

4.40

3.00

0.65

TYPICAL RECOMMENDED LAND PATTERN

9

1.40

0.40

NOTES:

Dimensions are in millimeters.1.

Dimensioning and tolerancing conform to JEDEC MO-187-AA

2.
and AMSE Y14.5m-1994.

3.

Plastic or metal protrusions of 0.15mm max per side are not
included.

Plastic interlead protrusions of 0.25mm max per side are not

4.
included.

Dimensions “D” and “E1” are measured at Datum Plane “H”.

5.

This replaces existing drawing # MDP0043 MSOP 8L.

6.

FN6454.3

September 10, 2009
