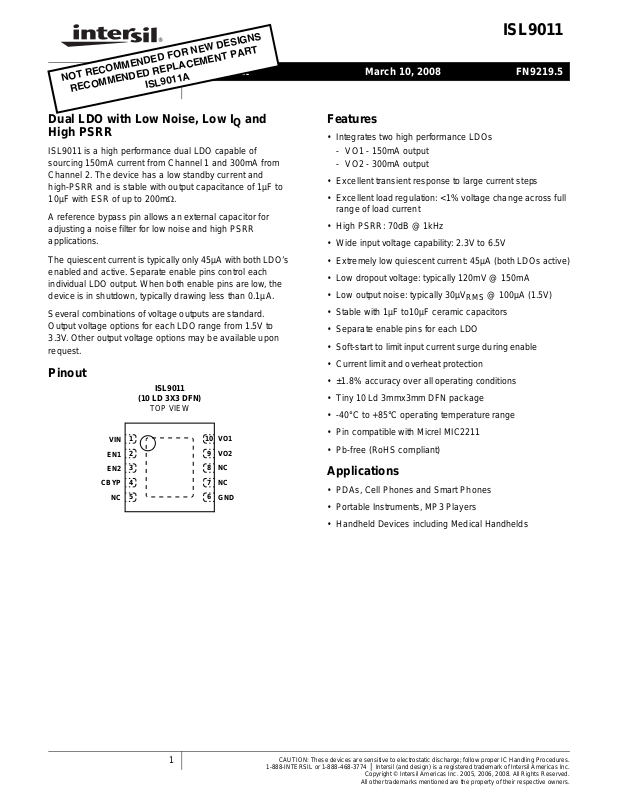

Data Sheet March 10, 2008

ISL9011

FN9219.5

Dual LDO with Low Noise, Low IQ and High PSRR

ISL9011 is a high performance dual LDO capable of sourcing 150mA current from Channel 1 and 300mA from Channel 2. The device has a low standby current and high-PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ.

A reference bypass pin allows an external capacitor for adjusting a noise filter for low noise and high PSRR applications.

The quiescent current is typically only 45µA with both LDO’s enabled and active. Separate enable pins control each individual LDO output. When both enable pins are low, the device is in shutdown, typically drawing less than 0.1µA.

Several combinations of voltage outputs are standard. Output voltage options for each LDO range from 1.5V to

3.3V. Other output voltage options may be available upon request.

Pinout

ISL9011

(10 LD 3X3 DFN)

TOP VIEW

VIN EN1 EN2

CBYP

1 2 3 4 5

VO1

VO2

NC NC

7 6

GND

Features

• Integrates two high performance LDOs

- VO1 - 150mA output

- VO2 - 300mA output

• Excellent transient response to large current steps

• Excellent load regulation: <1% voltage change across full range of load current

• High PSRR: 70dB @ 1kHz

• Wide input voltage capability: 2.3V to 6.5V

• Extremely low quiescent current: 45µA (both LDOs active)

• Low dropout voltage: typically 120mV @ 150mA

• Low output noise: typically 30µV

• Stable with 1µF to10µF ceramic capacitors

• Separate enable pins for each LDO

• Soft-start to limit input current surge during enable

• Current limit and overheat protection

• ±1.8% accuracy over all operating conditions

• Tiny 10 Ld 3mmx3mm DFN package

• -40°C to +85°C operating temperature range

• Pin compatible with Micrel MIC2211

• Pb-free (RoHS compliant)

@ 100µA (1.5V)

RMS

Applications

• PDAs, Cell Phones and Smart Phones

• Portable Instruments, MP3 Players

• Handheld Devices including Medical Handhelds

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Page 2

Ordering Information

ISL9011

PART NUMBER

(Notes 1, 2, 3) PART MARKING

ISL9011IRNNZ DAAM 3.3 3.3 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRNJZ DTAA 3.3 2.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRNFZ DVAA 3.3 2.5 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRNCZ DAAN 3.3 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRMNZ DAAP 3.0 3.3 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRMMZ DANA 3.0 3.0 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRMGZ DAAS 3.0 2.7 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRLLZ DAMA 2.9 2.9 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRKNZ DAAW 2.85 3.3 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRKKZ DWAA 2.85 2.85 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRKJZ DYAA 2.85 2.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRKFZ DABA 2.85 2.5 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRKPZ DDHA 2.85 1.85 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRKCZ DAEA 2.85 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRJNZ DAAY 2.8 3.3 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRJMZ DALA 2.8 3.0 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRJRZ DAKA 2.8 2.6 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRJCZ DAJA 2.8 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRJBZ DACA 2.8 1.5 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRGPZ DDGA 2.7 1.85 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRGCZ DAHA 2.7 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRFJZ DADA 2.5 2.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRFDZ DCRA 2.5 2.0 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRFCZ DBMA 2.5 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRPLZ DAGA 1.85 2.9 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRPPZ DDDA 1.85 1.85 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRCJZ DBVA 1.8 2.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRCCZ DCSA 1.8 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRBLZ DBBF 1.5 2.9 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRBJZ DAFA 1.5 2.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRBCZ DBBH 1.5 1.8 -40 to +85 10 Ld 3x3 DFN L10.3x3C ISL9011IRBBZ DDEA 1.5 1.5 -40 to +85 10 Ld 3x3 DFN L10.3x3C

NOTES:

1. Add “-T” suffix for tape and reel. Please refer to TB347 for details on reel specifications.

2. For availability and lead time of devices with voltage combinations not listed in the table, contact Intersil Marketing.

3. These Intersil Pb-free plastic packaged products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate PLUS ANNEAL - e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

VO1 VOLTAGE

(V)

VO2 VOLTAGE

(V) TEMP RANGE (°C)

PACKAGE

(Pb-free) PKG. DWG. #

FN9219.5

March 10, 2008

Page 3

ISL9011

Absolute Maximum Ratings Thermal Information

Supply Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7.1V

1, VO2 Pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +3.6V

All Other Pins . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to (V

+ 0.3)V

Recommended Operating Conditions

Ambient Temperature Range (TA) . . . . . . . . . . . . . . .-40°C to +85°C

Supply Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . . . . . . .2.3V to 6.5V

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and result in failures not covered by warranty.

NOTES:

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See

4. θ

Tech Brief TB379.

5. For θ

, the “case temp” location is the center of the exposed metal pad on the package underside.

Electrical Specifications Unless otherwise noted, all parameters are guaranteed over the operational supply voltage and temperature

range of the device as follows: T

= -40°C to +85°C; VIN = (VO + 1.0V) to 6.5V with a minimum VIN of 2.3V; CIN = 1µF; CO = 1µF;

=0.01µF:

BYP

PARAMETER SYMBOL TEST CONDITIONS

DC CHARACTERISTICS

Supply Voltage V Ground Current Quiescent condition: I

Shutdown Current I UVLO Threshold V

Regulation Voltage Accuracy Variation from nominal voltage output, V

Line Regulation V Load Regulation I

Maximum Output Current I

Internal Current Limit I Dropout Voltage (Note 6) V

Thermal Shutdown T emperature T

AC CHARACTERISTICS

Ripple Rejection I

Output Noise Voltage I

DD1

DD2

DDS

UV+

UV-

MAX

LIM

DO1IO

DO2IO

DO3IO

DO4IO SD+

SD-

One LDO active 25 40 µA Both LDO active 45 60 µA @ +25°C 0.1 1.0 µA

= -40°C to +125°C

OUT

= (V

+ 1.0V relative to highest output voltage) to 5.5V -0.2 0 0.2 %/V

OUT

= 100µA to 150mA (VO1 and VO2) 0.1 0.7 %

= 100µA to 300mA (VO2) 1.0 % VO1: Continuous 150 mA VO2: Continuous 300 mA

= 150mA; VO > 2.1V (VO1) 125 200 mV = 300mA; VO < 2.5V (VO2) 300 500 mV = 300mA; 2.5V ≤ VO ≤ 2.8V (VO2) 250 400 mV = 300mA; VO > 2.8V (VO2) 200 325 mV

= 10mA, VIN = 2.8V(min), VO = 1.8V, C

@ 1kHz 70 dB @ 10kHz 55 dB @ 100kHz 40 dB

= 100µA, VO = 1.5V, TA = +25°C, C

BW = 10Hz to 100kHz

Thermal Resistance (Notes 4, 5) θ

(°C/W) θJC (°C/W)

10 Ld 3x3 DFN Package . . . . . . . . . . . 50 10

Junction Temperature Range . . . . . . . . . . . . . . . . .-40°C to +125°C

Operating Temperature Range . . . . . . . . . . . . . . . . .-40°C to +85°C

Storage Temperature Range . . . . . . . . . . . . . . . . . .-65°C to +150°C

Pb-free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

MIN

(Note 7) TYP

MAX

(Note 7) UNITS

2.3 6.5 V

= 0µA; IO2 = 0µA

1.9 2.1 2.3 V

1.6 1.8 2.0 V

= VO + 0.5V to 5.5V ,

-1.8 +1.8 %

350 475 600 mA

145 °C 110 °C

= 0.1µF

BYP

= 0.1µF

30 µV

RMS

FN9219.5

March 10, 2008

Page 4

ISL9011

Electrical Specifications Unless otherwise noted, all parameters are guaranteed over the operational supply voltage and temperature

range of the device as follows: T

= -40°C to +85°C; VIN = (VO + 1.0V) to 6.5V with a minimum VIN of 2.3V; CIN = 1µF; CO = 1µF;

=0.01µF: (Continued)

BYP

MIN

PARAMETER SYMBOL TEST CONDITIONS

(Note 7) TYP

DEVICE START-UP CHARACTERISTICS

Device Enable Time t

Time from assertion of the ENx pin to when the output voltage

reaches 95% of the VO(nom)

LDO Soft-Start Ramp Rate t

SSR

Slope of linear portion of LDO output voltage ramp during start-up

EN1, EN2 PIN CHARACTERISTICS

Input Low Voltage V Input High Voltage V Input Leakage Current I

Pin Capacitance C

IL IH

, I

Informative 5 pF

-0.3 0.5 V

1.4 V

NOTE:

6. VOx = 0.98*VOx(NOM); Valid for VOx greater than 1.85V.

7. Parts are 100% tested at +25°C. Temperature limits established by characterization and are not production tested.

MAX

(Note 7) UNITS

250 500 µs

30 60 µs/V

+ 0.3 V

0.1 µA

FN9219.5

March 10, 2008

Page 5

Typical Performance Curves

0.8 VO = 3.3V

0.6

0.4

0.2

0.0

-0.2

-0.4

OUTPUT VOLTAGE, VO (%)

-0.6

-0.8

3.8 4.2 6.25.8 INPUT VOLTAGE (V)

-40°C

+25°C

+85°C

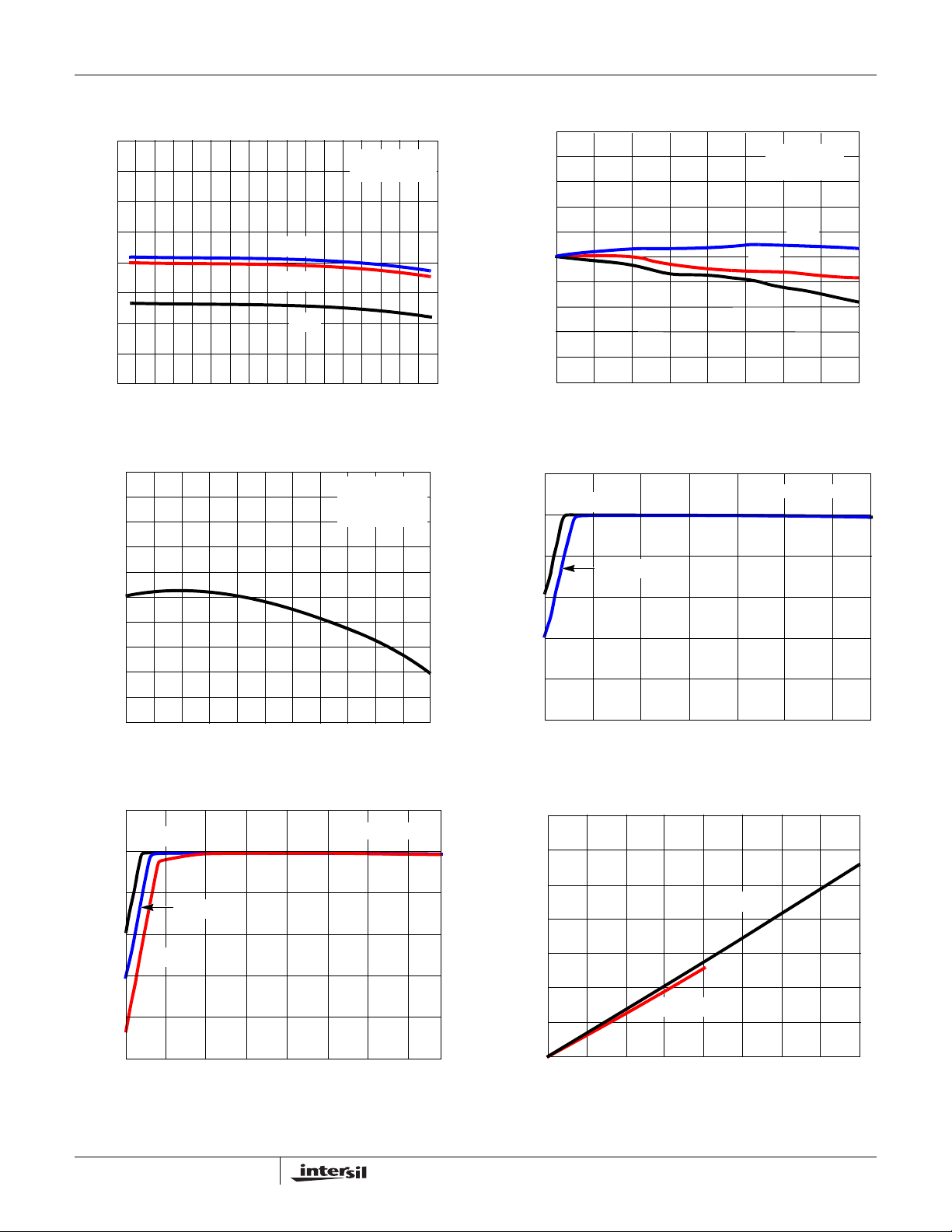

FIGURE 1. OUTPUT VOLTAGE vs INPUT VOLTAGE (3.3V

OUTPUT)

LOAD

= 0mA

ISL9011

6.63.4 4.6 5.0 5.4

0.10

+25°C

(mA)

VIN = 3.8V VO = 3.3V

-40°C

-0.02

-0.04

-0.06

OUTPUT VOLTAGE CHANGE (%)

-0.08

-0.10

0.08

0.06

0.04

0.02

0.00

+85°C

50 150 250 350

100 200 300 4000

LOAD CURRENT - I

FIGURE 2. OUTPUT VOLTAGE CHANGE vs LOAD CURRENT

0.10

0.08

0.06

0.04

0.02

0.00

-0.02

-0.04

-0.06

OUTPUT VOLTAGE CHANGE (%)

-0.08

-0.10

VIN = 3.8V VO = 3.3V I

= 0mA

LOAD

-10 20 50 110-40

-25 5 35 8065 95 125 TEMPERATURE (°C)

3.4

IO = 0mA

3.3

3.2

3.1

3.0

OUTPUT VOLTAGE, VO (V)

2.9

2.8

3.1 3.6 4.1 4.6 5.1 6.15.6

IO = 150mA

INPUT VOLTAGE (V)

VO1 = 3.3V

FIGURE 3. OUTPUT VOLTAGE CHANGE vs TEMPERATURE FIGURE 4. OUTPUT VOLT AGE vs INPUT VOLTAGE

(VO1 = 3.3V)

2.9

IO = 0mA

2.8

2.7 IO = 150mA

2.6

IO = 300mA

2.5

OUTPUT VOLTAGE, VO (V)

2.4

VO2 = 2.8V

350

300

(mV)

250

200

150

100

DROPOUT VOLTAGE, V

VO1 = 3.3V

VO2 = 2.8V

6.5

2.3

2.63.13.64.14.65.1 6.1 INPUT VOLTAGE (V)

5.6

FIGURE 5. OUTPUT VOLT AGE vs INPUT VOL T AGE

(VO2 = 2.8V)

6.5

50 100 150 200 250 300 350 4000

OUTPUT LOAD (mA)

FIGURE 6. DROPOUT VOLTAGE vs LOAD CURRENT

March 10, 2008

FN9219.5

Page 6

Typical Performance Curves (Continued)

ISL9011

175

VO1 = 3.3V

150

(mV)

125

100

DROPOUT VOLTAGE, V

25 50 75 100 125 150 175 2000

OUTPUT LOAD (mA)

+85°C

+25°C

-40°C

FIGURE 7. VO1 DROPOUT VOLTAGE vs LOAD CURRENT

200 180 160

GROUND CURRENT (µA)

140 120 100

+85°C

-40°C

80 60 40 20

50 100 150 200 250 4000

LOAD CURRENT (mA)

+25°C

VIN = 3.8V VO1 = 3.3V VO2 = 2.8V

350300

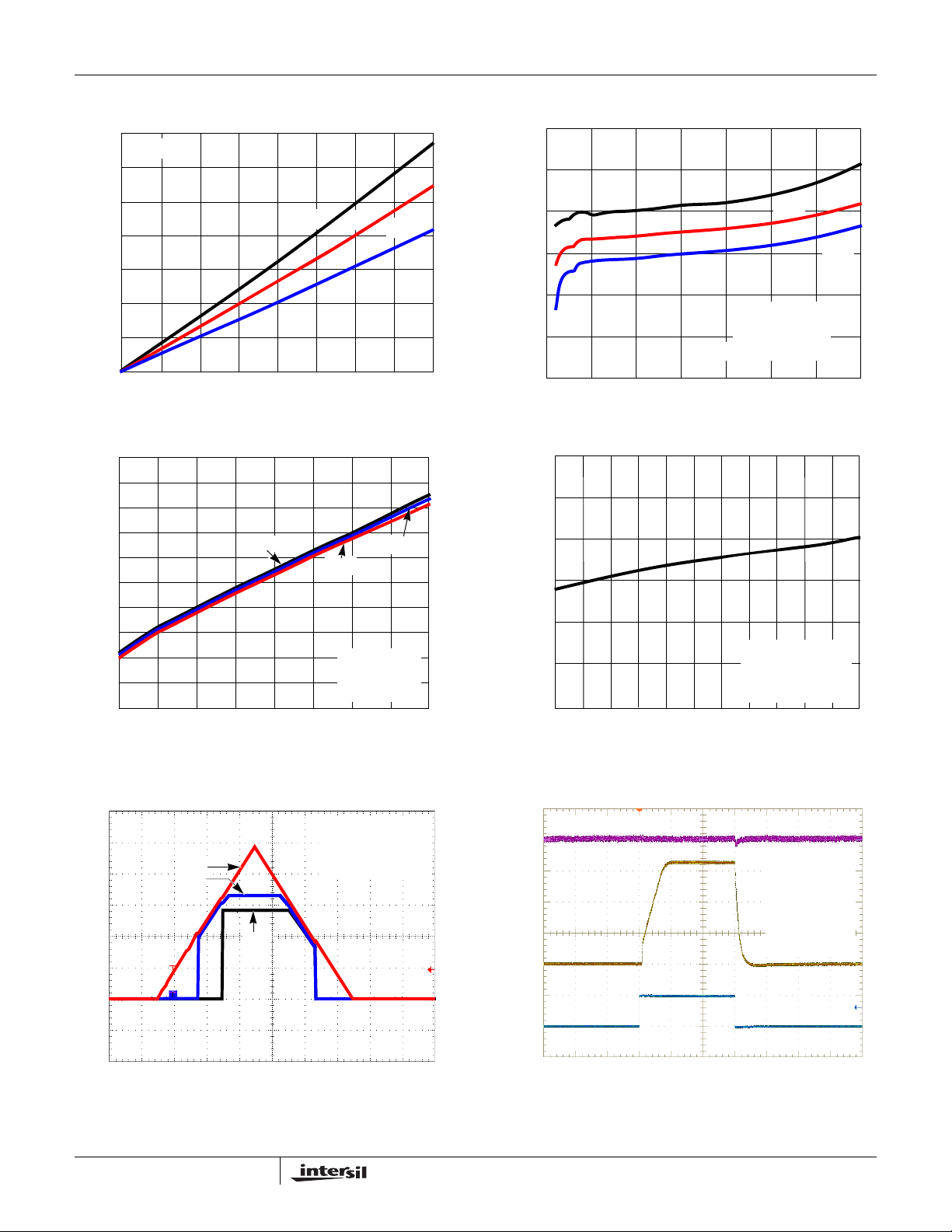

FIGURE 9. GROUND CURRENT vs LOAD

+125°C

GROUND CURRENT (µA)

3.0 3.5 4.58 5.5 6.0

4.0 5.0 6.5 INPUT VOLTAGE (V)

IO (BOTH CHANNELS) = 0µA

+25°C

VO1 = 3.3V VO2 = 2.8V

FIGURE 8. GROUND CURRENT vs INPUT VOLTAGE

GROUND CURRENT (µA)

-25 5 35 8065 95 125

-10 20 50 110-40 TEMPERATURE (°C)

VIN = 3.8V VO = 3.3V

= 0µA

LOAD

BOTH OUTPUTS ON

FIGURE 10. GROUND CURRENT vs TEMPERATURE

-40°C

VOLTAGE (V)

VO1 = 3.3V

1234567 10

VIN

VO1

VO2

TIME (s)

VO2 = 2.8V

1 = 150mA

2 = 300mA

FIGURE 11. POWER-UP/POWER-DOWN

VO2 (10mV/DIV)

VO1 (V)VEN (V)

100 200 300 400 500 600 700 8000

TIME (µs)

FIGURE 12. TURN-ON/TURN-OFF RESPONSE

VIN = 5.0V VO1 = 3.3V VO2 = 2.8V IL1 = 150mA IL2 = 300mA

-1, CL-2 = 1µF

= 0.01µF

BYP

March 10, 2008

900 1000

FN9219.5

Page 7

Typical Performance Curves (Continued)

ISL9011

4.3V

3.6V

10mV/DIV

400μs/DIV

VO1 = 3.3V

= 150mA

LOAD

= 1µF

LOAD

= 0.01µF

BYP

4.2V

3.5V

10mV/DIV

400µs/DIV

VO2 = 2.8V

= 300mA

LOAD

= 1µF

LOAD

= 0.01µF

BYP

FIGURE 13. LINE TRANSIENT RESPONSE, 3.3V OUTPUT FIGURE 14. LINE TRANSIENT RESPONSE, 2.8V OUTPUT

300mA

100µA

VO (25mV/DIV)

VO = 1.8V

VIN = 2.8V

LOAD

100µs/DIV

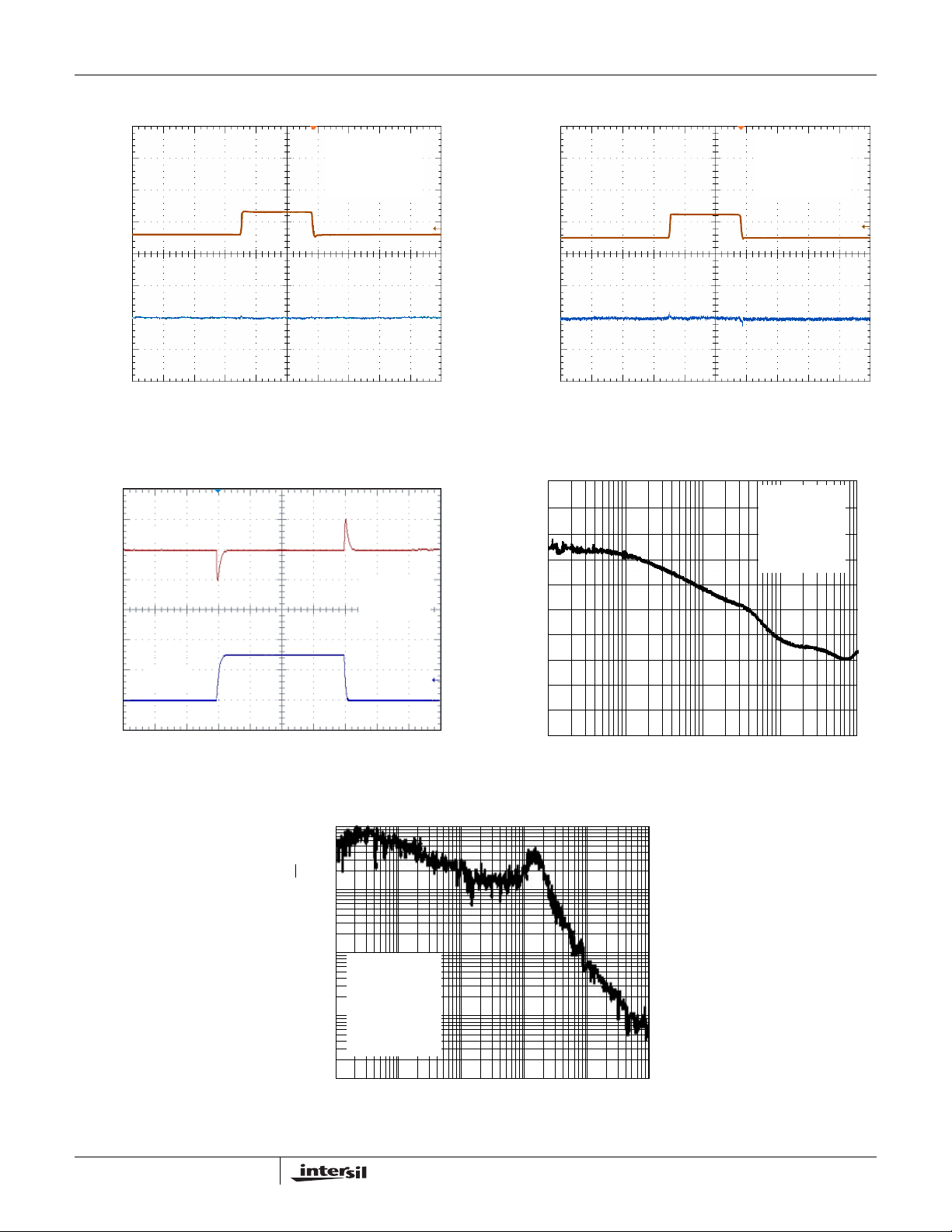

FIGURE 15. LOAD TRANSIENT RESPONSE

100

90 80 70 60 50

PSRR (dB)

40 30 20 10

0.1 1k 10k 100k 1M FREQUENCY (Hz)

FIGURE 16. PSRR vs FREQUENCY

VIN = 3.6V VO = 1.8V

= 10mA

= 0.1µF

BYP

= 1µF

LOAD

1000

100

VIN = 3.6V VO = 1.8V

= 10mA

LOAD

= 0.1µF

BYP

= 1µF

SPECTRAL NOISE DENSITY (nV/√Hz)

LOAD

0.1 10 100 1k 10k 100k 1M

FREQUENCY (Hz)

FIGURE 17. SPECTRAL NOISE DENSITY vs FREQUENCY

FN9219.5

March 10, 2008

Page 8

ISL9011

Pin Description

NUMBER

NAME TYPE DESCRIPTION

1 VIN Analog I/O Supply Voltage/LDO Input:

Connect a 1µF capacitor to GND.

2 EN1 Low Voltage Compatible

LDO-1 Enable.

CMOS Input

3 EN2 Low Voltage Compatible

LDO-2 Enable.

CMOS Input

4 CBYP Analog I/O Reference Bypass Capacitor Pin:

Optionally connect capacitor with a value of 0.01µF to 1µF between this pin and GND to tune in the desired noise and PSRR performance.

5, 7, 8 NC NC No Connection

6 GND Ground GND is the connection to system ground. Connect to PCB Ground plane. 9VO2

Analog I/O LDO-2 Output:

Connect capacitor with a value of 1µF to 10µF to GND (1µF recommended).

10 VO1 Analog I/O LDO-1 Output:

Connect capacitor with a value of 1µF to 10µF to GND (1µF recommended).

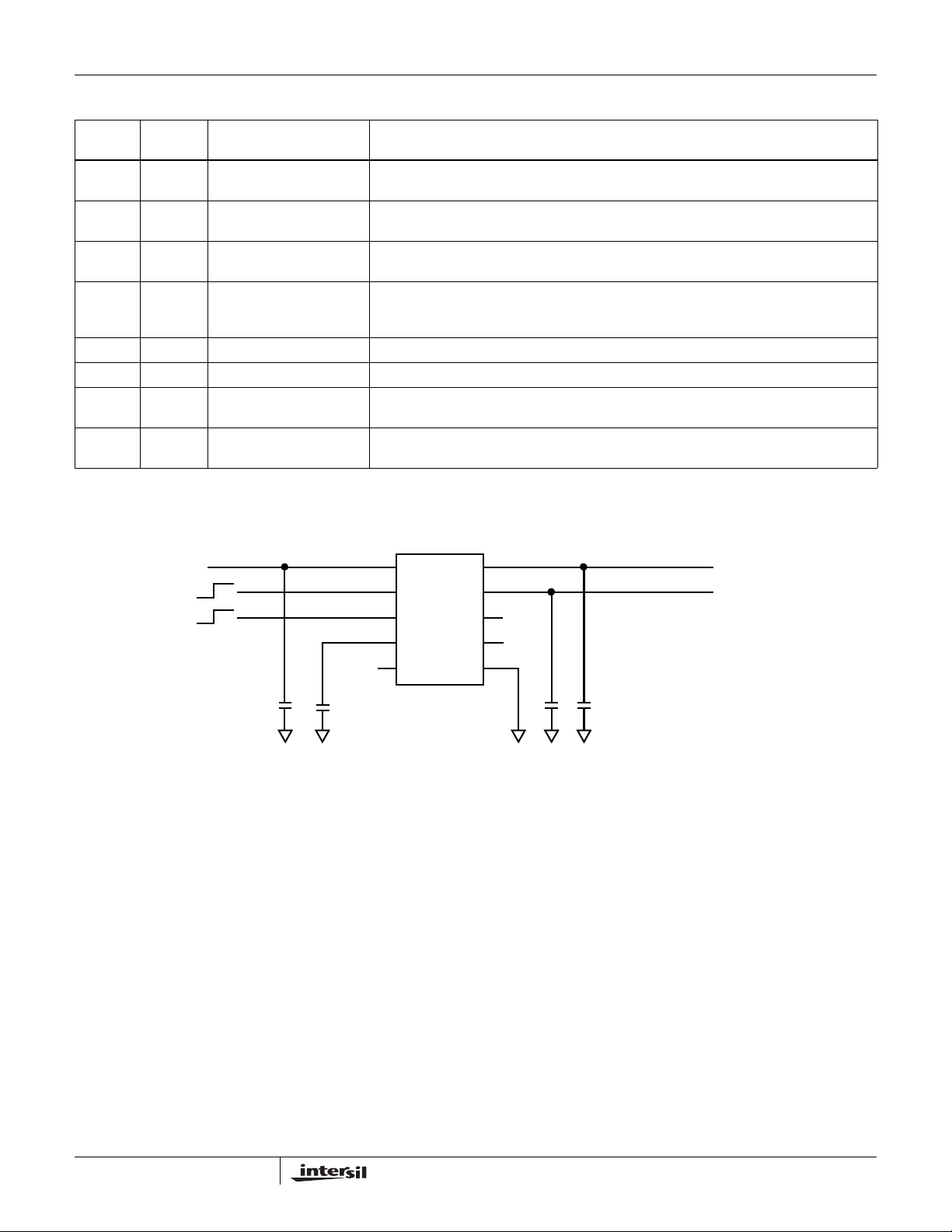

Typical Application

VIN (2.3 TO 6.5V)

ENABLE1

ENABLE2

OFF

ISL9011

VIN

EN1

EN2

CBYP

C1 C2 C3 C4

VO1 VO2

NC NC

GND

10 9

8 7

VOUT 1 VOUT 2

C1, C3, C4: 1µF X5R CERAMIC CAPACITOR

µF X5R CERAMIC CAPACITOR

C2: 0.1

FN9219.5

March 10, 2008

Page 9

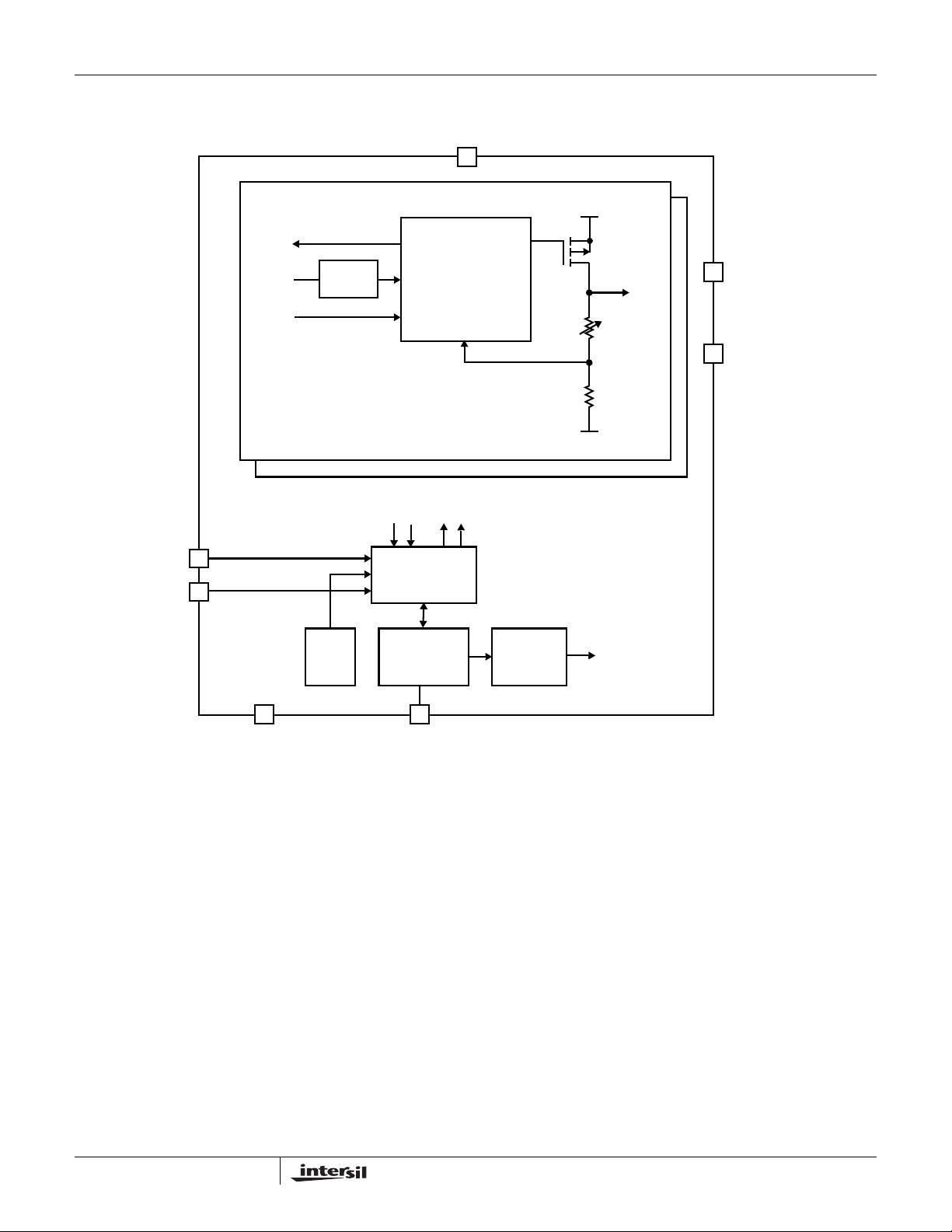

Block Diagram

IS1

QEN1

VREF TRIM

ISL9011

VIN

LDO

ERROR

AMPLIFIER

VO1

LDO-1

LDO-2

IS1

IS2

EN1

EN2

UVLO

CONTROL

LOGIC

BANDGAP AND TEMPERATURE

SENSOR

CBYPGND

Functional Description

The ISL9011 contains all circuitry required to impl ement two high performance LDO’s. High performance is achieved through a circuit that delivers fast transient response to varying load conditions. In a quiescent condition, the ISL9011 adjusts its biasing to achieve the lowest standby current consumption.

The device also integrates current limit protection, smart thermal shutdown protection, staged turn-on and soft-start. Smart Thermal shutdown protects the device against overheating. Staged turn-on and soft-start minimize start-up input current surges without causing excessive device turn-on time.

Power Control

The ISL9011 has two separate enable pins (EN1 and EN2) to individually control power to each of the LDO outputs. When both EN1 and EN2 are low, the device is in shutdown

QEN1

VO2

QEN2

VOLTAGE REFERENCE GENERATOR

~1.0V

1.00V

mode. During this condition, all on-chip circuits are off, and

the device draws minimum current, typically less than 0.1µA.

When one or both of the enable pins are asserted, the

device first polls the output of the UVLO detector to ensure

that VIN voltage is at least about 2.1V. Once verified, the

device initiates a start-up sequence. During the start-up

sequence, trim settings are first read and latched. Then,

sequentially, the bandgap, reference voltage and current

generation circuitry power-up. Once the references are

stable, a fast-start circuit quickly charges the external

reference bypass capacitor (connected to the CBYP pin) to

the proper operating voltage. After the bypass capacitor has

been charged, the LDO’s power-up.

If EN1 is brought high, and EN2 goes high before the VO1

output stabilizes, the ISL9011 delays the VO2 turn-on until

the VO1 output reaches its target level.

FN9219.5

March 10, 2008

Page 10

ISL9011

If EN2 is brought high, and EN1 goes high before VO2 starts its output ramp, then VO1 turns on first and the ISL9011 delays the VO2 turn-on until the VO1 output reaches its target level.

If EN2 is brought high, and EN1 goes high after VO2 starts its output ramp, then the ISL9011 immediately st arts to ramp up the VO1 output.

If both EN1 and EN2 are brought high at the same time, the VO1 output has priority, and is always powered up first.

During operation, whenever the VIN voltage drops below about 1.8V, the ISL9011 immediately disables both LDO outputs. When VIN rises back above 2.1V, the device re-initiates its start-up sequence and LDO operation will resume automatically.

Reference Generation

The reference generation circuitry includes a trimmed bandgap, a trimmed voltage reference divider, a trimmed current reference generator, and an RC noise filter. The filter includes the external capacitor connected to the CBYP pin. A 0.01µF capacitor connected CBYP implements a 100Hz lowpass filter, and is recommended for most high performance applications. For the lowest noise application, a

0.1µF or greater CBYP capacitor should be used. This filters the reference noise to below the 10Hz to 1kHz frequency band, which is crucial in many noise-sensitive applications.

The bandgap generates a zero temperature coefficient (TC) voltage for the reference divider. The reference divider provides the regulation reference and other voltage references required for current generation and over-temperature detection.

The current generator outputs references required for adaptive biasing as well as references for LDO output current limit and thermal shutdown determination.

LDO Regulation and Programmable Output Divider

The LDO Regulator is implemented with a high-gain

operational amplifier driving a PMOS pass transistor. The

design of the ISL9011 provides a regulator that has low

quiescent current, fast transient response, and overall

stability across all operating and load current conditions.

LDO stability is guaranteed for a 1µF to 10µF output

capacitor that has a toleranc e better than 20% and ESR le ss

than 200mΩ. The design is performance-optimized for a 1µF

capacitor. Unless limited by the application, use of an output

capacitor value above 4.7µF is not recommended as LDO

performance improvement is minimal.

Soft-start circuitry integrated into each LDO limits the initial

ramp-up rate to about 30µs/V to minimize current surge. The

ISL9011 provides short-circuit protection by limiting the

output current to about 475mA.

Each LDO uses an independently trimmed 1V reference. An

internal resistor divider drops the LDO output voltage down

to 1V. This is compared to the 1V reference for regulation.

The resistor division ratio is programmed in the factory.

Overheat Detection

The bandgap outputs a proportional-to-temperature current

that is indicative of the temperature of the silicon. This

current is compared with references to determine if the

device is in danger of damage due to overheating. When the

die temperature reaches about +145°C, one or both of the

LDO’s momentarily shut down until the die cools sufficiently.

In the overheat condition, only the LDO sourcing more than

50mA will be shut off. This does not affect the operation of

the other LDO. If both LDOs source more than 50mA and an

overheat condition occurs, both LDO outputs are disabled.

Once the die temperature falls back below about +110°C,

the disabled LDO(s) are re-enabled and soft-start

automatically takes place.

FN9219.5

March 10, 2008

Page 11

Dual Flat No-Lead Plastic Package (DFN)

ISL9011

(DAT UM B )

INDEX AREA

(DATUM A)

NX (b)

SECTION "C-C"

INDEX AREA

SEATING

PLANE

NX L

TOP

VIEW

SIDE VIEW

D2/2

N-1

e (Nd-1)Xe

REF .

BOTTOM VIEW

(A1)

E2/2

NX b

FOR ODD TERMINAL/SIDE

0.10

ABC0.10

0.10

NX k

TERMINAL TIP

0.10

0.08

BAC

L10.3x3C

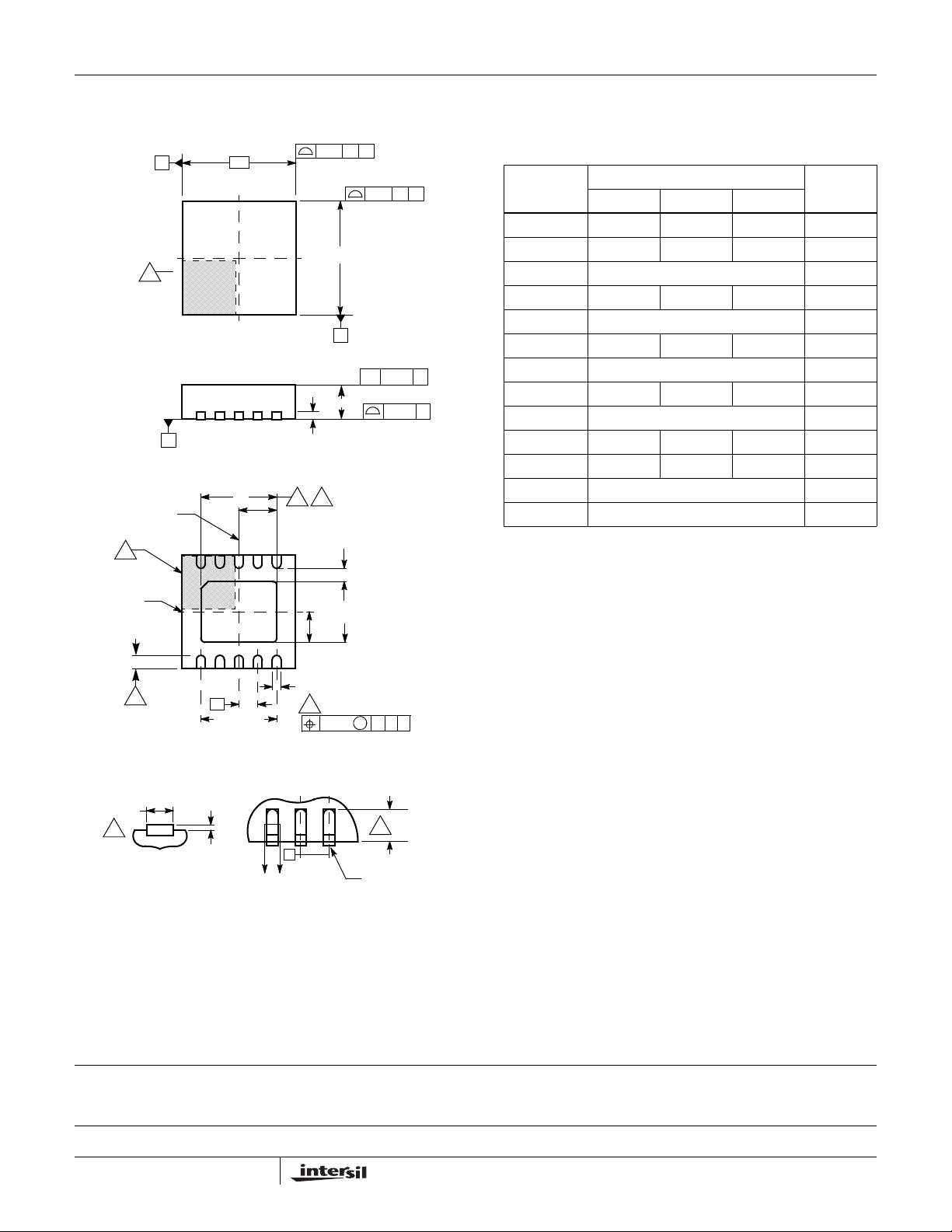

10 LEAD DUAL FLAT NO-LEAD PLASTIC PACKAGE

MILLIMETERS

SYMBOL

A 0.85 0.90 0.95 A1 - - 0.05 A3 0.20 REF -

b 0.20 0.25 0.30 5, 8

D 3.00 BSC D2 2.33 2.38 2.43 7, 8

E 3.00 BSC E2 1.59 1.64 1.69 7, 8

e 0.50 BSC k0.20- - L 0.35 0.40 0.45 8

N102 Nd 5 3

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd refers to the number of terminals on D.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be located within the zone indicated. The pin #1 identi fier may be either a mold or mark feature.

7. Dimensions D2 and E2 are for the exposed pads which provide improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land Pattern Design efforts, see Intersil Technical Brief TB389.

9. COMPLIANT TO JEDEC MO-229-WEED-3 except for dimensions E2 & D2.

NOTESMIN NOMINAL MAX

Rev. 1 4/06

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN9219.5

March 10, 2008
