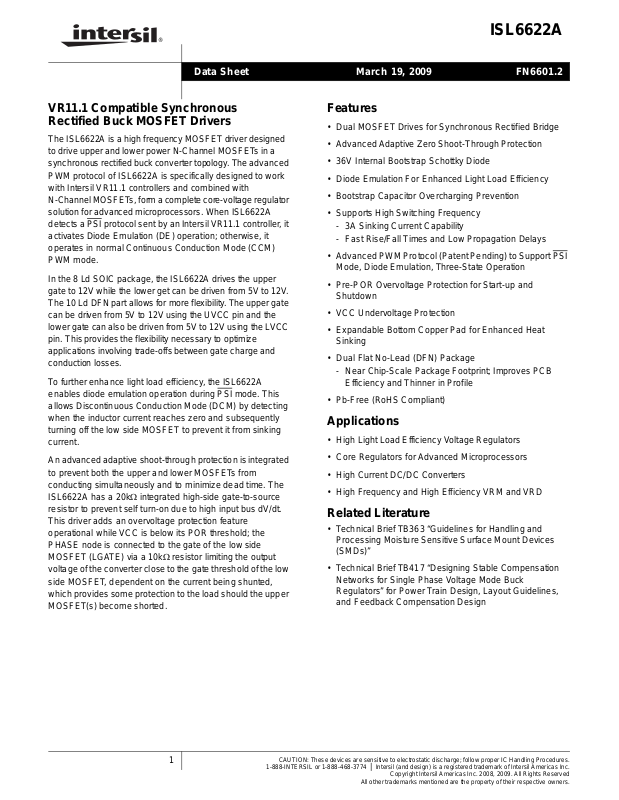

Datasheet ISL6622A Datasheet (intersil)

®

ISL6622A

Data Sheet March 19, 2009

VR11.1 Compatible Synchronous
Rectified Buck MOSFET Drivers

The ISL6622A is a high frequency MOSFET driver designed
to drive upper and lower power N-Channel MOSFETs in a
synchronous rectified buck converter topology . The advanced
PWM protocol of ISL6622A is specifically designed to work
with Intersil VR11.1 controllers and combined with
N-Channel MOSFETs, form a complete core-volt age regulator
solution for ad va nc e d mi cr o pr oc e s sor s . When ISL6622A
detects a PSI
activates Diode Emulation (DE) operation; otherwise, it
operates in normal Continuous Conduction Mode (CCM)
PWM mode.

In the 8 Ld SOIC package, the ISL6622A drives the upper
gate to 12V while the lower get can be driven from 5V to 12 V.
The 10 Ld DFN part allows for more flexibility . The uppe r gate
can be driven from 5V to 12V using the UVCC pin and the
lower gate can also be driven from 5V to 12V using the LVCC
pin. This provides the flexibility necessary to optimize
applications involving trade-offs between gate charge and
conduction losses.

To further enhance light load efficiency, the ISL6622A
enables diode emulation operation during PSI
allows Discontinuous Conduction Mode (DCM) by detecting
when the inductor current reaches zero and subsequently
turning off the low side MOSFET to prevent it from sinking
current.

An advanced adaptive shoot-through protection is integrated
to prevent both the upper and lower MOSFETs from
conducting simultaneously and to minimize dead time. The
ISL6622A has a 20kΩ integrated high-side gate-to-source
resistor to prevent self turn-on due to high input bus dV/dt.
This driver adds an overvoltage protection feature
operational while VCC is below its POR threshold; the
PHASE node is connected to the gate of the low side
MOSFET (LGATE) via a 10kΩ resistor limiting the output
voltage of the converter close to the gate threshold of the low
side MOSFET, dependent on the current being shunted,
which provides some protection to the load should the upper
MOSFET(s) become shorted.

protocol sent by an Intersil VR11.1 controller , it

mode. This

FN6601.2

Features

• Dual MOSFET Drives for Synchronous Rectified Bridge

• Advanced Adaptive Zero Shoot-Through Protection

• 36V Internal Bootstrap Schottky Diode

• Diode Emulation For Enhanced Light Load Efficiency

• Bootstrap Capacitor Overcharging Prevention

• Supports High Switching Frequency

- 3A Sinking Current Capability

- Fast Rise/Fall Times and Low Propagation Delays

• Advanced PWM Protocol (Patent Pending) to Support PSI
Mode, Diode Emulation, Three-State Operation

• Pre-POR Overvoltage Protection for Start-up and
Shutdown

• VCC Undervoltage Protection

• Expandable Bottom Copper Pad for Enhanced Heat
Sinking

• Dual Flat No-Lead (DFN) Package

- Near Chip-Scale Package Footprint; Improves PCB

Efficiency and Thinner in Profile

• Pb-Free (RoHS Compliant)

Applications

• High Light Load Efficiency Voltage Regulators

• Core Regulators for Advanced Microprocessors

• High Current DC/DC Converters

• High Frequency and High Efficiency VRM and VRD

Related Literature

• Technical Brief TB363 “Guidelines for Handling and
Processing Moisture Sensitive Surface Mount Devices
(SMDs)”

• Technical Brief TB417 “Designing Stable Compensation
Networks for Single Phase Voltage Mode Buck
Regulators” for Power Train Design, Layout Guidelines,
and Feedback Compensation Design

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

Copyright Intersil Americas Inc. 2008, 2009. All Rights Reserved

All other trademarks mentioned are the property of their respective owners.

ISL6622A

Ordering Information

PART NUMBER

(Note)

ISL6622ACBZ* 6622A CBZ 0 to +70 8 Ld SOIC M8.15
ISL6622ACRZ* 622A 0 to +70 10 Ld 3x3 DF N L10.3x3
ISL6622AIBZ* 6622A IBZ -40
ISL6622AIRZ* 22AI -40
*Add “-T” suffix for tape and reel. Please refer to TB347 for details on reel specifications.

NOTE: These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100%
matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil
Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

PART

MARKING

TEMP. RANGE

(°C)

to +85 8 Ld SOIC M8.15
to +85 10 Ld 3x 3 D FN L10.3x3

PACKAGE

(Pb-Free)

PKG.

DWG. #

Pinouts

UGATE

BOOT

PWM

GND

Block Diagrams

ISL6622A

(8 LD SOIC)

TOP VIEW

1
2
3
4

UVCC

VCC

PWM

ISL6622A

(10 LD 3x3 DFN)

TOP VIEW

8

PHASE
7
6
5

VCC

LVCC

LGATE

UGATE

BOOT

NC

PWM

GND

1
2
3
4
5

PAD

10

9
8
7
6

PHASE
VCC
UVCC
LVCC
LGATE

ISL6622A

BOOT

UGATE

20k

PHASE

+5V

11.2k

9.6k

PRE-POR OVP

FEATURES

POR/

CONTROL

LOGIC

SHOOT-

THROUGH

PROTECTION

LVCC

10k

LVCC

LGATE

GND

UVCC = VCC FOR SOIC

2

FN6601.2

March 19, 2009

Typical Application Circuit

ISL6622A

VTT

VR_RDY

VID7
VID6
VID5
VID4
VID3
VID2
VID1
VID0

PSI

VR_FAN
VR_HOT

VIN

+5V

FB

VDIFF
VSEN

RGND

EN_VTT

EN_PWR

GND

IMON

TCOMP

TM

+5V

VCC

COMP

ISL6334

ISL6334

OFS FS SS

+5V

DAC
REF

PWM1

ISEN1-

ISEN1+

PWM2

ISEN2-

ISEN2+

PWM3

ISEN3-

ISEN3+

PWM4

ISEN4-

ISEN4+

+12V

+5V

+12V

+12V

+12V

LVCC

VCC

PWM

+5V

VCC

PWM

+5V

VCC

PWM

+5V

ISL6622A

DRIVER

PVCC

ISL6612
DRIVER

PVCC

ISL6612
DRIVER

PVCC

BOOT

UGATE
PHASE

LGATE

GND

BOOT

UGATE
PHASE

LGATE

GND

BOOT

UGATE
PHASE

LGATE

GND

BOOT

VIN

VIN

VIN

µP

LOAD

VIN

NTC

UGATE

VCC

ISL6612
DRIVER

PWM

3

PHASE

LGATE

GND

FN6601.2

March 19, 2009

ISL6622A

Absolute Maximum Ratings Thermal Information

Supply Voltage (VCC, UVCC, LVCC) . . . . . . . . . . . . . . . . . . . . .15V

BOOT Voltage (V
Input Voltage (V

BOOT-GND

PWM

UGATE. . . . . . . . . . . . . . . . . . . V

V

- 3.5V (<100ns Pulse Width, 2µJ) to V

LGATE. . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V

PHASE

GND - 5V (<100ns Pulse Width, 2µJ) to V

PHASE. . . . . . . . . . . . . . . . . . . . . . . . . . . . GND - 0.3V

GND - 8V (<400ns, 20µJ) to 30V (<200ns, V

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and
result in failures not covered by warranty.

). . . . . . . . . . . . . . . . . . . . . . . . . . . .36V

) . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to 7V

PHASE

- 0.3VDC to V

to V

DC

BOOT-GND

BOOT
BOOT

LVCC
LVCC

to 15V

DC

+ 0.3V
+ 0.3V
+ 0.3V
+ 0.3V

DC

< 36V)

NOTES:

is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.

1. θ

JA

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See

2. θ

JA

Tech Brief TB379.

3. For θ

, the “case temp” location is the center of the exposed metal pad on the package underside.

JC

4. Limits should be considered typical and are not production tested.

Thermal Resistance θ

(°C/W) θJC (°C/W)

JA

SOIC Package (Note 1) . . . . . . . . . . . . 100 N/A

DFN Package (Notes 2, 3). . . . . . . . . . 48 7

Maximum Storage Temperature Range. . . . . . . . . .-65°C to +150°C

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

Recommended Operating Conditions

Ambient Temperature Range

ISL6622AIBZ, ISL6622AIRZ . . . . . . . . . . . . . . . . .-40°C to +85°C

ISL6622ACBZ, ISL6622ACRZ. . . . . . . . . . . . . . . . . 0°C to +70°C

Maximum Operating Junction Temperature. . . . . . . . . . . . . +125°C

Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . 6.8V to 13.2V

Supply Voltage Range, UVCC . . . . . . . . . . . . . . . . . 4.75V to 13.2V

Supply Voltage Range, LVCC . . . . . . . . . . . . . . . . . . 4.75V to 13.2V

Electrical Specifications Recommended Operating Conditions. Parameters with MIN and/or MAX limits are 100% tested at +25°C,

unless otherwise specified. Temperature limits established by characterization and are not
production tested.

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

VCC SUPPLY CURRENT (Note 4)

No Load Switching Supply Current I

Standby Supply Current I

VCC

I

LVCC

I

VCC

I

LVCC

I

UVCC

VCC

I

LVCC

I

VCC

I

LVCC

I

UVCC

POWER-ON RESET

VCC Rising Threshold 6.25 6.45 6.70 V
VCC Falling Threshold 4.8 5.0 5.25 V
LVCC Rising Threshold 4.25 4.4 4.55 V
LVCC Falling Threshold 3.3 3.4 3.55 V

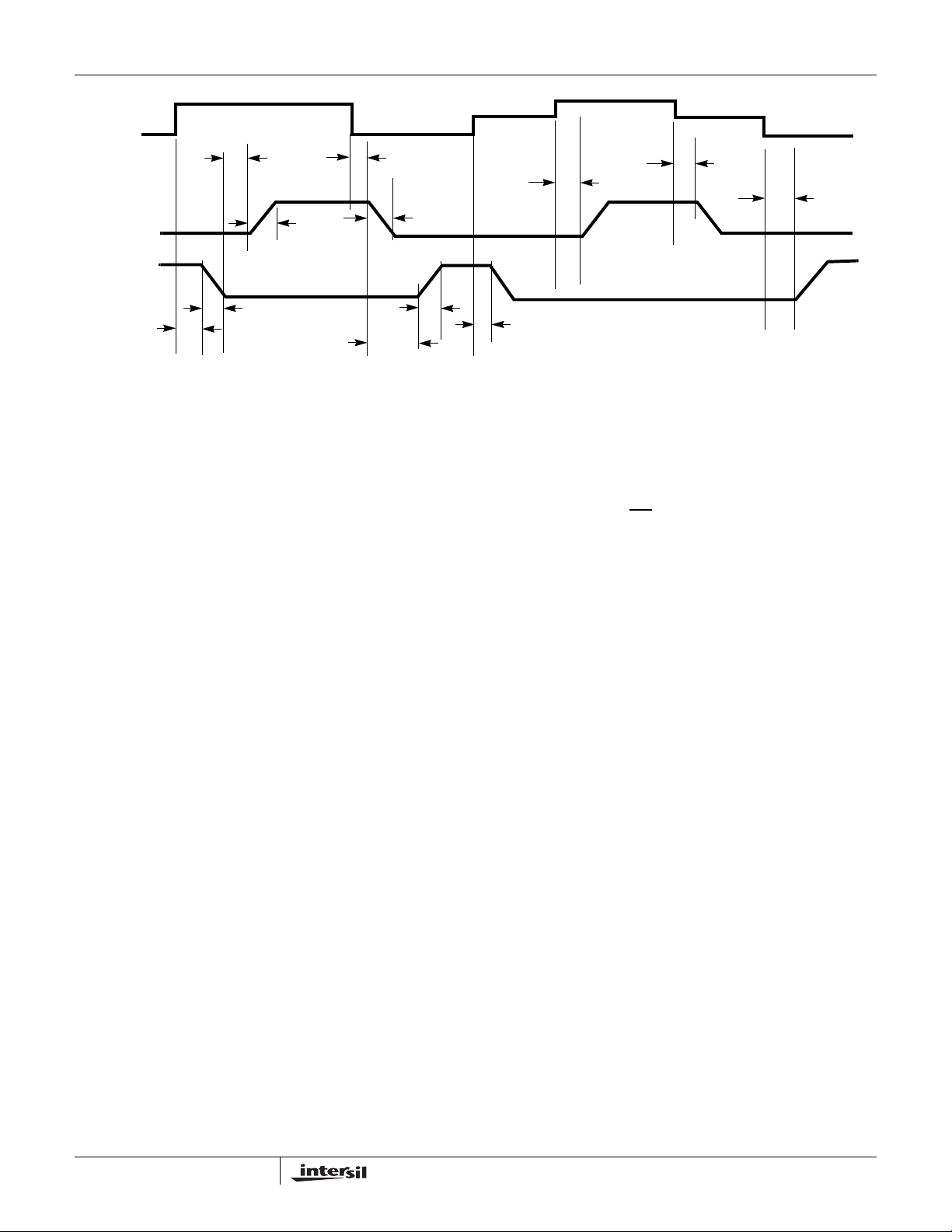

PWM INPUT (See “TIMING DIAGRAM” on page 6)

Input Current (Note 4) I

PWM

PWM Rising Threshold (Note 4) VCC = 12V - 3.4 - V
PWM Falling Threshold (Note 4) VCC = 12V - 1.6 - V
Three-State Lower Gate Falling Threshold (Note 4) VCC = 12V - 1.6 - V
Three-State Lower Gate Rising Threshold (Note 4) VCC = 12V - 1.1 - V

ISL6622ACBZ and ISL6622AIBZ,
f

PWM

= 300kHz, V

VCC

= 12V

ISL6622ACRZ and ISL6622AIRZ,
f

PWM

= 300kHz, V

VCC

= 12V

-7-mA

-3.5-mA

-4-mA

-3.5-mA

-3-mA

ISL6622ACBZ and ISL6622AIBZ,
PWM Transition from 0V to 2.5V

ISL6622ACRZ and ISL6622AIRZ,
PWM Transition from 0V to 2.5V

-5.5-mA

-0.15- mA

-5-mA

-0.15- mA

-0.5-mA

V

= 5V - 500 - µA

PWM

V

= 0V - -430 - µA

PWM

4

FN6601.2

March 19, 2009

ISL6622A

Electrical Specifications Recommended Operating Conditions. Parameters with MIN and/or MAX limits are 100% tested at +25°C,

unless otherwise specified. Temperature limits established by characterization and are not
production tested. (Continued)

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

Three-State Upper Gate Rising Threshold (Note 4) VCC = 12V - 3.2 - V
Three-State Upper Gate Falling Threshold (Note 4) VCC = 12V - 2.8 - V
UGATE Rise Time (Note 4) t
LGATE Rise Time (Note 4) t
UGATE Fall Time (Note 4) t
LGATE Fall Time (Note 4) t
UGATE Turn-On Propagation Delay (Note 4) t
LGATE Turn-On Propagation Delay (Note 4) t
UGATE Turn-Off Propagation Delay (Note 4) t
LGATE Turn-Off Propagation Delay (Note 4) t
LG/UG Three-State Propagation Delay (Note 4) t
Diode Braking Holdoff Time (Note 4) t
Minimum LGATE On-Time at Diode Emulation t

UG_OFF_DBVVCC

LG_ON_DMVVCC

OUTPUT (Note 4)

Upper Drive Source Current I
Upper Drive Source Impedance R
Upper Drive Sink Current I

U_SOURCEVVCC

U_SOURCE

U_SINK

Upper Drive Sink Impedance R
Lower Drive Source Current I
Lower Drive Source Impedance R
Lower Drive Sink Current I

L_SOURCEVVCC

L_SOURCE

L_SINK

Lower Drive Sink Impedance R

RU

RL
FU

FL
PDHU
PDHL
PDLU

PDLL

PDTS

U_SINK

L_SINK

V

= 12V, 3nF Load, 10% to 90% - 26 - ns

VCC

V

= 12V, 3nF Load, 10% to 90% - 18 - ns

VCC

V

= 12V, 3nF Load, 90% to 10% - 18 - ns

VCC

V

= 12V, 3nF Load, 90% to 10% - 12 - ns

VCC

V

= 12V, 3nF Load, Adaptive - 20 - ns

VCC

V

= 12V, 3nF Load, Adaptive - 10 - ns

VCC

V

= 12V, 3nF Load - 10 - ns

VCC

V

= 12V, 3nF Load - 10 - ns

VCC

V

= 12V, 3nF Load - 10 - ns

VCC

= 12V - 60 - ns
= 12V 230 330 450 ns

= 12V, 3nF Load - 1.25 - A
20mA Source Current - 2 - Ω
V

= 12V, 3nF Load - 2 - A

VCC

20mA Sink Current - 1.35 - Ω

= 12V, 3nF Load - 2 - A
20mA Source Current - 1.35 - Ω
V

= 12V, 3nF Load - 3 - A

VCC

20mA Sink Current - 0.9 - Ω

Functional Pin Descriptions

PACKAGE PIN #

1 1 UGATE Upper gate drive output. Connect to gate of high-side power N-Channel MOSFET.
2 2 BOOT Floating bootstrap supply pin for the upper gate drive. Connect the bootstrap capacitor between this pin and the

- 3 NC No Connect

3 4 PWM The PWM signal is the control in put for the d river. The PWM signal can enter three distinct states during op eration;

4 5 GND Bias and reference ground. All signals are referenced to this node. It is also the power-ground return of the driver.
5 6 LGATE Lower gate drive output. Connect to gate of the low-side power N-Channel MOSFET.
6 7 LVCC This pin supplies power to the lower gate drive. Its operating range is +5V to +12V. Place a high quality low ESR

- 8 UVCC This pin supplies power to the upper gate drive. Its operating range is +5V to +12V. Place a high quality low ESR

7 9 VCC Connect this pin to 12V bias supply. This pin supplies power to the upper gate in the SOIC. Place a high quality

8 10 PHASE Connect this pin to the SOURCE of the upper MOSFET and the DRAIN of the lower MOSFET. This pin provides

- 11 PAD Connect this pad to the power ground plane (GND) via thermally enhanced connection.

PIN

SYMBOL FUNCTIONSOIC DFN

PHASE pin. The bootstrap capacitor provides the charge to turn on the upper MOSFET. See “Internal Bootstrap
Device” on page 7 for guidance in choosing the capacitor value.

see “Description” on page 6 for further details. Connect this pin to the PWM output of the controller.

ceramic capacitor from this pin to GND.

ceramic capacitor from this pin to GND.

low ESR ceramic capacitor from this pin to GND.

a return path for the upper gate drive.

5

FN6601.2

March 19, 2009

ISL6622A

PWM

t

PDLU

t

FU

t

RL

FIGURE 1. TIMING DIAGRAM

UGATE

LGATE

t

PDLL

t

PDHU

t

RU

t

FL

t

PDHL

Description

Operation and Adaptive Shoot-through Protection

Designed for high speed switching, the ISL6622A MOSFET
driver controls both high-side and low-side N-Channel FETs
from one externally provided PWM signal.

A rising transition on PWM initiates the turn-off of the lower
MOSFET (see Figure 1). After a short propagation delay
[t

], the lower gate begins to fall. Typica l fall time [tFL] is

PDLL

provided in the “Electrical Specifications” on p age 5. Following
a 25ns blanking period, adaptive shoot-through circuitry
monitors the LGATE voltage and turns on the upper gate
following a short delay time [t
drops below ~1.75V. The upper gate drive then begins to rise
[t

] and the upper MOSFET turns on.

RU

A falling transition on PWM indicates the turn-off of the upper
MOSFET and the turn-on of the lower MOSFET. A short
propagation delay [t
gate begins to fall [t

] is encountered before the upper

PDLU

]. The adaptive shoot-through circuitry

FU

monitors the UGATE-PHASE voltage and turns on the lower
MOSFET a short delay time [t
MOSFET’s PHASE voltage drops below +0.8V or 40ns after
the upper MOSFET’s gate voltage [UGATE-PHASE] drops
below ~1.75V. The lower gate then rises [t
lower MOSFET. These methods prevent both the lower and
upper MOSFETs from conducting simultaneously
(shoot-through), while adapting the dead-time to the gate
charge characteristics of the MOSFETs being used.

This driver is optimized for voltage regulators with large step
down ratio. The lower MOSFET is usually sized larger
compared to the upper MOSFET because the lower MOSFET
conducts for a longer time during a switching period. The
lower gate driver is therefore sized much larger to meet this
application requirement. The 0.8Ω ON-resistance and 3A sink
current capability enable the lower gate driver to absorb the
current injected into the lower gate through the drain-to-gate
capacitor of the lower MOSFET and help prevent

] after the LGATE voltage

PDHU

] after the upper

PDHL

], turning on the

RL

1.5V < PWM < 3.2V

t

TSSHD

shoot-through caused by the self turn-on of the lower
MOSFET due to high dV/dt of the switching node.

Advanced PWM Protocol (Patent Pending)

The advanced PWM protocol of ISL6622A is specifically
designed to work with Intersil VR11.1 controllers. When
ISL6622A detects a PSI
controller, it turns on diode emulation operation; otherwise, it
remains in normal CCM PWM mode.

Another unique feature of ISL6622A and other Intersil
drivers is the addition of a three-state shutdown window to
the PWM input. If the PWM signal enters and remains within
the shutdown window for a set holdoff time, the driver
outputs are disabled and both MOSFET gates are pulled and
held low. The shutdown state is removed when the PWM
signal moves outside the shutdown window. Otherwise, the
PWM rising and falling thresholds outlined in the “Electrical
Specifications” on page 4 determine when the lower and
upper gates are enabled. This feature helps prevent a
negative transient on the output voltage when the output is
shut down, eliminating the Schottky diode that is used in
some systems for protecting the load from reversed output
voltage events.

Note that the LGATE will not turn off until the diode
emulation minimum LGATE ON-time of 350ns is expired for
a PWM low to tri-level (2.5V) transition.

Power-On Reset (POR) Function

During initial start-up, the VCC voltage rise is monitored.
Once the rising VCC voltage exceeds rising POR threshold,
operation of the driver is enabled and the PWM input signal
takes control of the gate drives. If VCC drops below the
falling threshold, operation of the driver is disabled.

Pre-POR Overvoltage Protection

While VCC is below its POR level, the upper gate is held low
and LGATE is connected to the PHASE pin via an internal
10kΩ (typically) resistor. By connecting the PHASE node to the
gate of the low side MOSFET, the driver offers some passive

1.0V< PWM < 2.6V

t

t

PDTS

UG_OFF_DB

protocol sent by an Intersil VR11.1

t

PDTS

6

FN6601.2

March 19, 2009

ISL6622A

protection to the load if the upper MOSFET(s) is or becomes
shorted. If the PHASE node goes higher than the gate
threshold of the lower MOSFET , it results in the progressive
turn-on of the device and the effective clamping of the PHASE
node’s rise. The actual PHASE node clamping level depends
on the lower MOSFET’s electrical characteristics, as well as the
characteristics of the input supply and the path connecting it to
the respective PHASE node.

Internal Bootstrap Device

The ISL6622A features an internal bootstrap Schottky diode.
Simply adding an external capacitor across the BOOT and
PHASE pins completes the bootstrap circuit. The bootstrap
function is also designed to prevent the bootstrap capacitor
from overcharging due to the large negative swing at the
trailing-edge of the PHASE node. This reduces voltage
stress on the BOOT to PHASE pins.

1.6

1.4

1.2

1.0

(µF)

0.8

BOOT_CAP

0.6

C

0.4

0.2
20nC

0.0

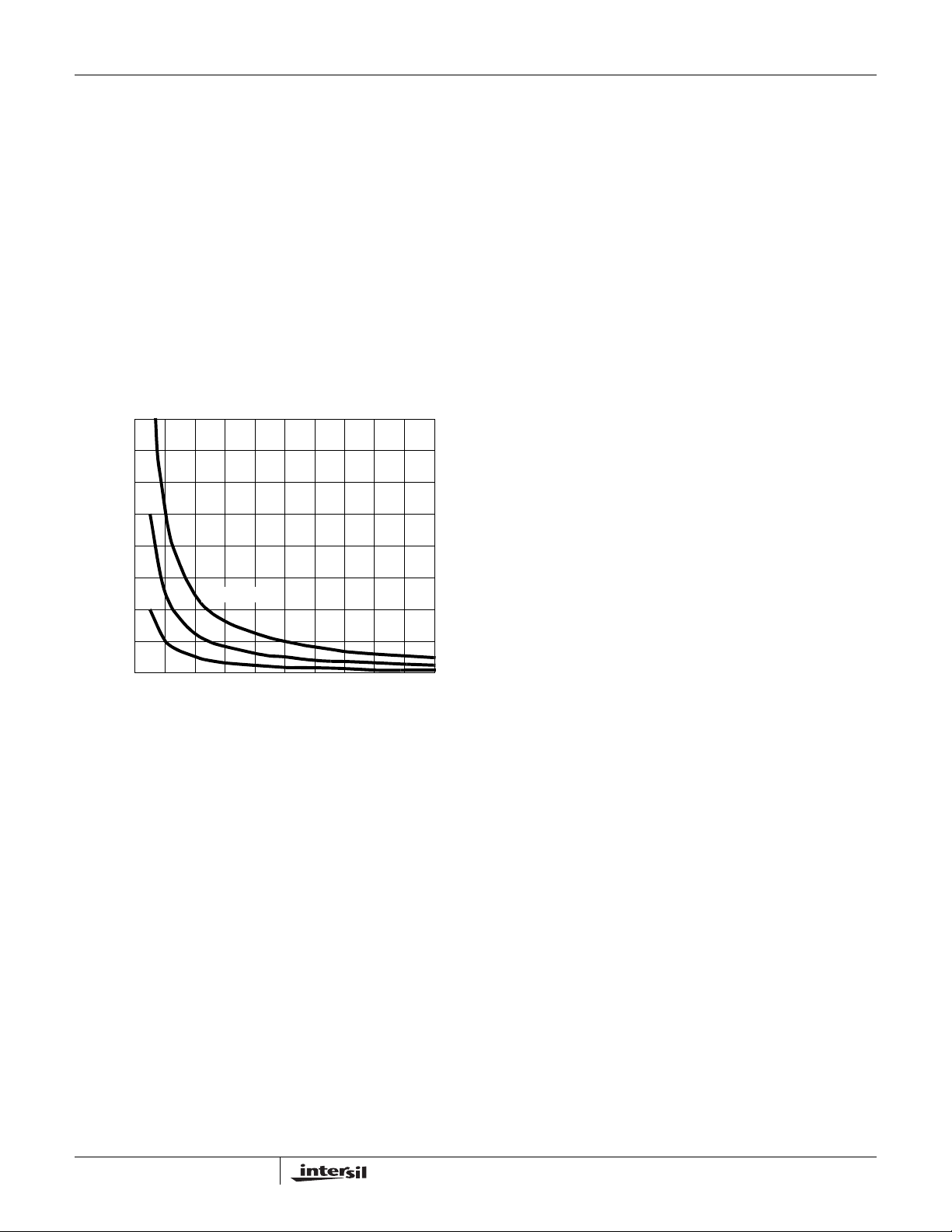

FIGURE 2. BOOTSTRAP CAPACITANCE vs BOOT RIPPLE

Q

50nC

VOLTAGE

= 100nC

GATE

0.30.0 0.1 0.2 0.4 0.5 0.6 0.90.7 0.8 1.0
ΔV

BOOT_CAP

(V)

The bootstrap capacitor must have a maximum voltage
rating well above the maximum voltage intended for UVCC.
Its minimum capacitance value can be chosen from
Equation 1.

Q

GATE

C

BOOT_CAP

Q

GATE

where Q
at V

GS1

control MOSFETs. The ΔV

--------------------------------------

≥

ΔV

BOOT_CAP

QG1UVCC•

------------------------------------

V

GS1

is the amount of gate charge per upper MOSFET

G1

•=

N

Q1

gate-source voltage and NQ1 is the number of

BOOT_CAP

term is defined as the

(EQ. 1)

allowable droop in the rail of the upper gate drive. Select
results are exemplified in Figure 2.

Gate Drive Voltage Versatility

The ISL6622A provides the user flexibility in choosing the
gate drive voltage for efficiency optimization. The ISL6622A

upper gate drive is fixed to VCC [+12V] in the SOIC, but the
lower drive rail can be driven from 5V to 12V using the LVCC
pin. In the DFN package, a separate UVCC pin is available
for the upper gate drive voltage to be driven from 5V to 12V
for efficiency optimization, while the lower gate can be driven
independently using the LVCC pin from 5V to 12V.

Diode Emulation

Diode emulation allows for higher converter efficiency under
light-load situations. With diode emulation active, the
ISL6622A detects the zero current crossing of the output
inductor and turns off LGATE. This prevents the low side
MOSFET from sinking current and ensures that
discontinuous conduction mode (DCM) is achieved. The
LGATE has a minimum on-time of 350ns in DCM mode.

Power Dissipation

Package power dissipation is mainly a function of the
switching frequency (F
external gate resistance, and the selected MOSFET’s inte rnal
gate resistance and total gate charge. Calculating the power
dissipation in the driver for a desired application is critical to
ensure safe operation. Exceeding the maximum allowable
power dissipation level may push the IC beyond the maximum
recommended operating junction temperature. The DFN
package is more suitable for high frequency applications. See
“Layout Considerations” on page 8 for thermal transfer
improvement suggestions. When designing the driver into an
application, it is recommended that the following calculation is
used to ensure safe operation at the desired frequency for the
selected MOSFETs. The total gate drive power losses due to
the gate charge of MOSFET s and the driver’s internal circuitry
and their corresponding average driver current can be
estimated with Equations 2 and 3, respectively:

P

Qg_TOTPQg_Q1PQg_Q2IQ

QG1UVCC

P

Qg_Q1

P

Qg_Q2

⎛⎞

I

⎜⎟

DR

⎝⎠

---------------------------------------

QG2LVCC

--------------------------------------

QG1UVCC NQ1••

------------------------------------------------------

V

GS1

where the gate charge (Q
particular gate to source voltage (V
corresponding MOSFET data sheet; I
quiescent current with no load at both drive outputs; N
and N

are number of upper and lower MOSFETs,

Q2

respectively; UVCC and LVCC are the drive voltages for
both upper and lower FETs, respectively. The I
product is the quiescent power of the driver without
capacitive load.

), the output drive impedance, the

SW

VCC•++=

2

V

V

•

GS1

•

GS2

• NQ1•=

F

SW

2

• NQ2•=

F

SW

Q

LVCC NQ2••

G2

-----------------------------------------------------

+

G1

V

GS2

and QG2) is defined at a

and V

GS1

is the driver’s total

Q

GS2

Q*

(EQ. 2)

+•=

F

SWIQ

(EQ. 3)

) in the

Q1

VCC

7

FN6601.2

March 19, 2009

ISL6622A

The total gate drive power losses are dissipated among the
resistive components along the transition path, as outlined in
Equation 4. The drive resistance dissipates a portion of the
total gate drive power losses, the rest will be dissipated by the
external gate resistors (R
resistors (R

GI1

and R

and RG2) and the internal gate

G1

) of MOSFET s. Figu res 3 and 4 show

GI2

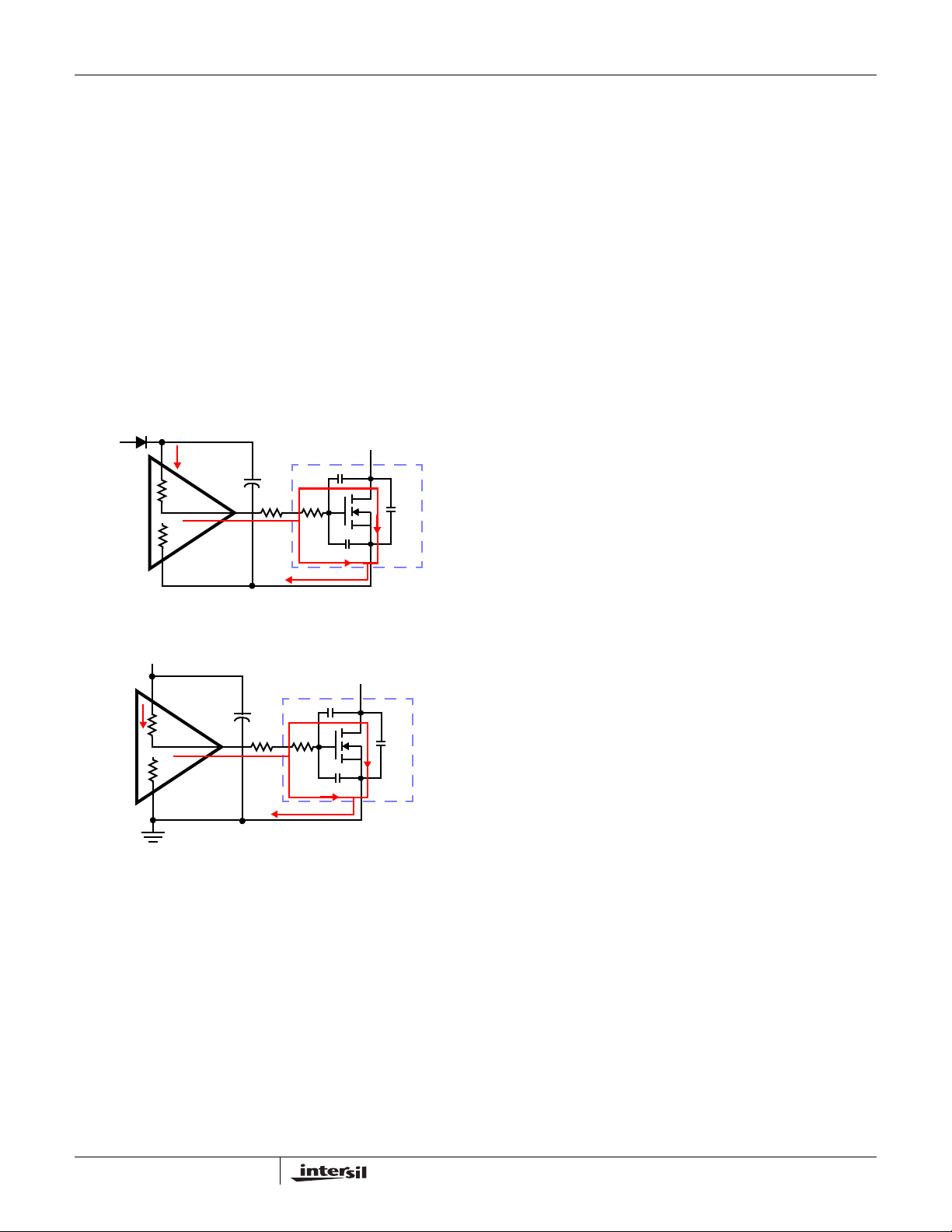

the typical upper and lower gate drives turn-on current path.

P

DRPDR_UPPDR_LOWIQ

R

⎛⎞

HI1

P

DR_UP

P

DR_LOW

R

EXT1RG1

UVCC

--------------------------------------

⎜⎟

R

+

⎝⎠

HI1REXT1

R

⎛⎞

HI2

--------------------------------------

⎜⎟

R

+

⎝⎠

HI2REXT2

R

GI1

-------------

+=

N

Q1

BOOT

R

HI1

R

LO1

PHASE

FIGURE 3. TYPICAL UPPER-GATE DRIVE TURN-ON PATH

LVCC

R

HI2

R

LO2

VCC•++=

R

LO1

----------------------------------------

+

R

+

LO1REXT1

R

LO2

----------------------------------------

+

R

+

LO2REXT2

R

EXT2RG2

G

R

G1

G

R

G2

(EQ. 4)

P

Qg_Q1

---------------------

•=

2

P

Qg_Q2

---------------------

•=

2

R

GI2

-------------

+=

N

Q2

D

C

GD

C

DS

R

GI1

C

GS

C

GD

R

GI2

C

GS

S

Q1

S

D

C

DS

Q2

• Minimize trace inductance, especially low-impedance
lines: all power traces (UGATE, PHASE, LGATE, GND,
LVCC) should be short and wide, as much as possible.

• Minimize the inductance of the PHASE node: ideally, the
source of the upper and the drain of the lower MOSFET
should be as close as thermally allowable.

• Minimize the input current loop: connect the source of the
lower MOSFET to ground as close to the transistor pin as
feasible; input capacitors (especially ceramic decoupling)
should be placed as close to the drain of upper and source
of lower MOSFETs as possible.

In addition, for improved heat dissipation, place copper
underneath the IC whether it has an exposed pad or not. The
copper area can be extended beyond the bottom area of the
IC and/or connected to buried power ground plane(s) with
thermal vias. This combination of vias for vertical heat
escape, extended surface copper islands, and buried planes
combine to allow the IC and the power switches to achieve
their full thermal potential.

Upper MOSFET Self Turn-On Effects At Startup

Should the driver have insufficient bias voltage appl ied, it s
outputs are floating. If the input bus is energized at a high
dV/dt rate while the driver outputs are floati ng, due to
self-coupling via the internal C
the upper MOSFET could momentarily rise up to a level
greater than the threshold voltage of the device, potentially
turning on the upper switch. Therefore, if such a situation
could conceivably be encountered, it is a common practice to
place a resistor (R

) across the gate and source of the

UGPH

upper MOSFET to suppress the Miller coupling effect. The
value of the resistor depends mainly on the input voltage’s
rate of rise, the C

GD/CGS

threshold of the upper MOSFET. A higher dV/dt, a lower
C

DS/CGS

ratio, and a lower gate-source threshold upper FET
will require a smaller resistor to diminish the effect of the
internal capacitive coupling. For most applications, the
integrated 20kΩ resistor is sufficient, not affecting normal
performance and efficiency.

of the MOSFET, the gate of

GD

ratio, as well as the gate-source

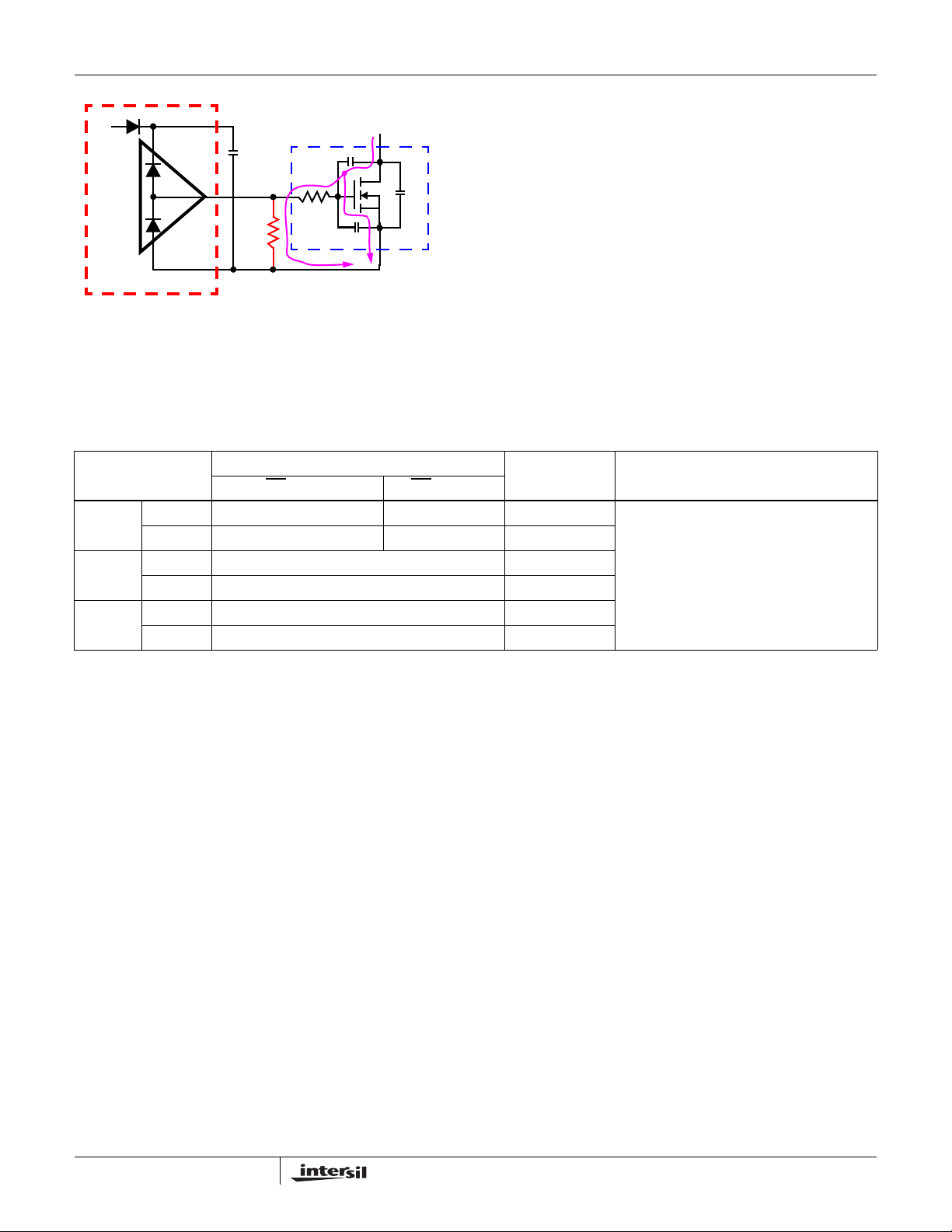

FIGURE 4. TYPICAL LOWER-GATE DRIVE TURN-ON PATH

Application Information

Layout Considerations

During switching of the devices, the parasitic inductances of
the PCB and the power devices’ packaging (both upper and
lower MOSFETs) leads to ringing, possibly in excess of the
absolute maximum rating of the devices. Careful layout can
help minimize such unwanted stress. The following advice is
meant to lead to an optimized layout:

• Keep decoupling loops (LVCC-GND and BOOT-PHASE)
as short as possible.

8

The coupling effect can be roughly estimated with
Equation 5, which assumes a fixed linear input ramp and
neglects the clamping effect of the body diode of the upper
drive and the bootstrap capacitor. Other parasitic
components such as lead inductances and PCB
capacitances, are also not taken into account. Figure 5
provides a visual reference for this phenomenon and its
potential solution.

V–

DS

--------------------------------- -

dV

-------

RC⋅

⋅

iss

dt

(EQ. 5)

C

issCGDCGS

+=

FN6601.2

March 19, 2009

V

GS_MILLER

RR

UGPHRGI

⎛⎞

dV

-------

⋅⋅=

dt

+=

⎜⎟
⎜⎟

1e

RC

–

rss

⎜⎟
⎜⎟
⎝⎠

C

=

rssCGD

ISL6622A

Gate Drive Voltage Options

UVCC

DU

DL

ISL6622A

UGATE

BOOT

C

BOOT

PHASE

C

GD

G

R

GI

UGPH

R

FIGURE 5. GATE-TO-SOURCE RESISTOR TO REDUCE

UPPER MOSFET MILLER COUPLING

POWER RAILS

= LOW PSI = HIGH

ISL6622 SOIC 5.75V 11.2V VCC Operating Voltage Ranges from 6.8V to 13.2V

DFN Programmable 11.2V Own Rail

ISL6622A SOIC Own Rail VCC

DFN Own Rail Own Rail

ISL6622B SOIC 5.75V VCC

DFN Programmable Own Rail

VIN

D

Intersil provides various gate drive voltage options in
ISL6622 product family, as shown in Table 2.

The ISL6622 can drop the low-side MOSFET’s gate drive

C

DS

voltage when operating in DEM, while the high-side FET’s
gate drive voltage of the DFN package can be connected to
VCC or LVCC.

C

GS

Q

UPPER

S

The ISL6622A allows the low-side MOSFET(s) to operate
from an externally-provided rail as low as 5V, eliminating the
LDO losses, while the high-side MOSFET’s gate drive
voltage of the DFN package can be connected to VCC or
LVCC.

The ISL6622B sets the low-side MOSFET’s gate drive
voltage at a fixed, programmable LDO level, while the high­side FETs’ gate drive voltage of the DFN package can be
connected to VCC or LVCC.

TABLE 1. ISL6622 FAMILY OPTIONS

LVCC

UVCC VCCPSI

9

FN6601.2

March 19, 2009

Dual Flat No-Lead Plastic Package (DFN)

ISL6622A

INDEX

SEATING

(DATUM B)

6

INDEX

AREA

(DATUM A)

NX (b)

5

SECTION "C-C"

6

AREA

C

PLANE

NX L

8

A

12

D

TOP VIEW

SIDE VIEW

8

7

D2

D2/2

N-1N

e

(Nd-1)Xe

REF.

BOTTOM VIEW

(A1)

2X

A3

NX b
5

0.415

0.15

C

E

B

A

NX

E2

E2/2

0.10 MC

0.200

NX b

C

A

0.152XB

0.10 C

C

0.08

k

AB

NX L

L10.3x3

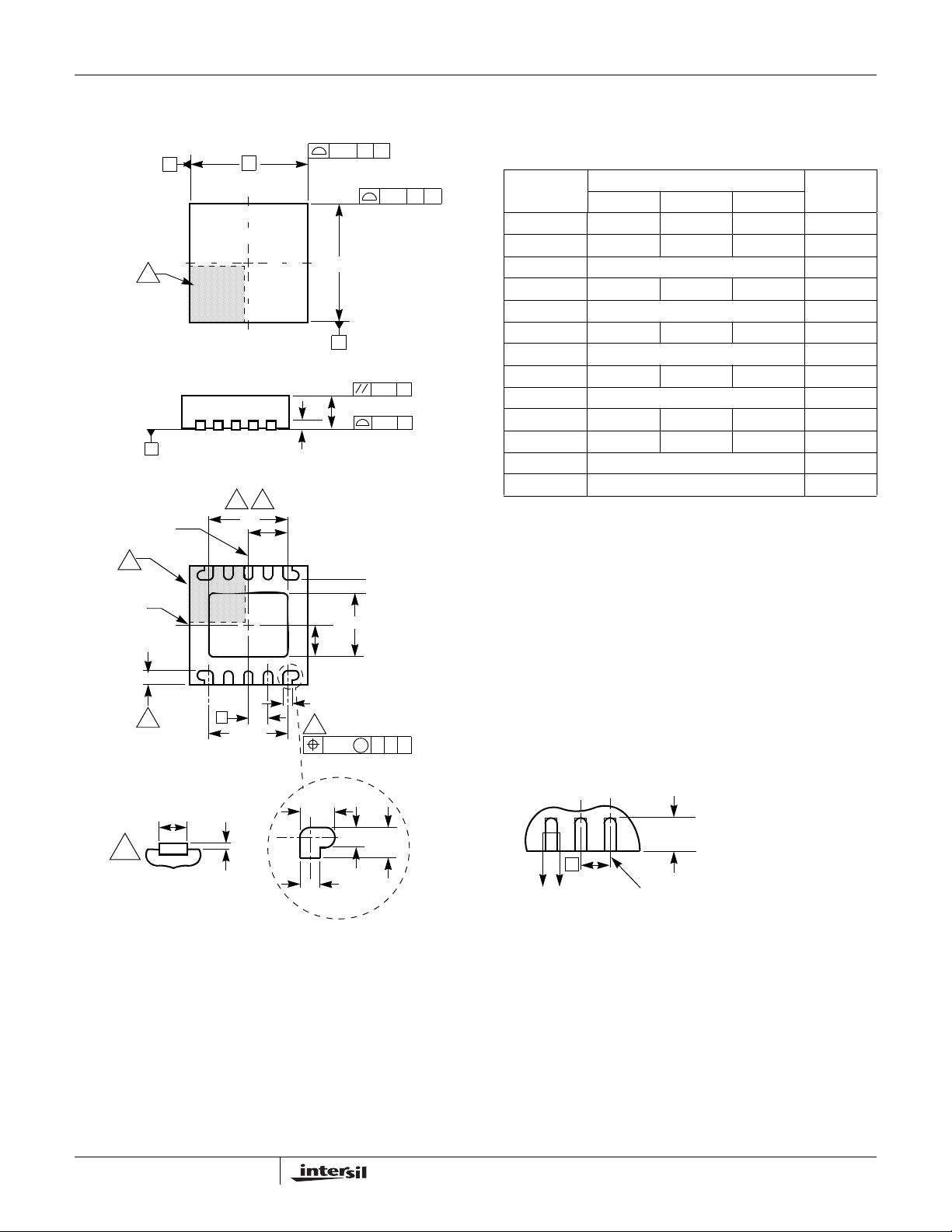

10 LEAD DUAL FLAT NO-LEAD PLASTIC PACKAGE

MILLIMETERS

C

SYMBOL

NOTESMIN NOMINAL MAX

A 0.80 0.90 1.00 -

A1 - - 0.05 -

A3 0.20 REF -

b 0.18 0.23 0.28 5,8

D 3.00 BSC -

D2 1.95 2.00 2.05 7,8

E 3.00 BSC -

E2 1.55 1.60 1.65 7,8

e 0.50 BSC -

k0.25 - - ­L0.300.35 0.40 8

N102

Nd 5 3

Rev. 3 6/04

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd refers to the number of terminals on D.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured
between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be
located within the zone indicated. The pin #1 identifier may be
either a mold or mark feature.

7. Dimensions D2 and E2 are for the exposed pads which provide
improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land
Pattern Design efforts, see Intersil Technical Brief TB389.

C

L

L

e

CC

FOR ODD TERMINAL/SIDE

TERMINAL TIP

10

FN6601.2

March 19, 2009

Small Outline Plastic Packages (SOIC)

ISL6622A

N

INDEX
AREA

123

-A-

E

-B-

SEATING PLANE

D

A

-C-

0.25(0.010) BM M

H

L

h x 45°

α

e

B

0.25(0.010) C AM BS

M

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of
Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs.
Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006
inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Inter­lead flash and protrusions shall not exceed 0.25mm (0.010 inch) per
side.

5. The chamfer on the body is optional. If it is not present, a visual index
feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater
above the seating plane, shall not exceed a maximum value of

0.61mm (0.024 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions
are not necessarily exact.

A1

C

0.10(0.004)

M8.15 (JEDEC MS-012-AA ISSUE C)

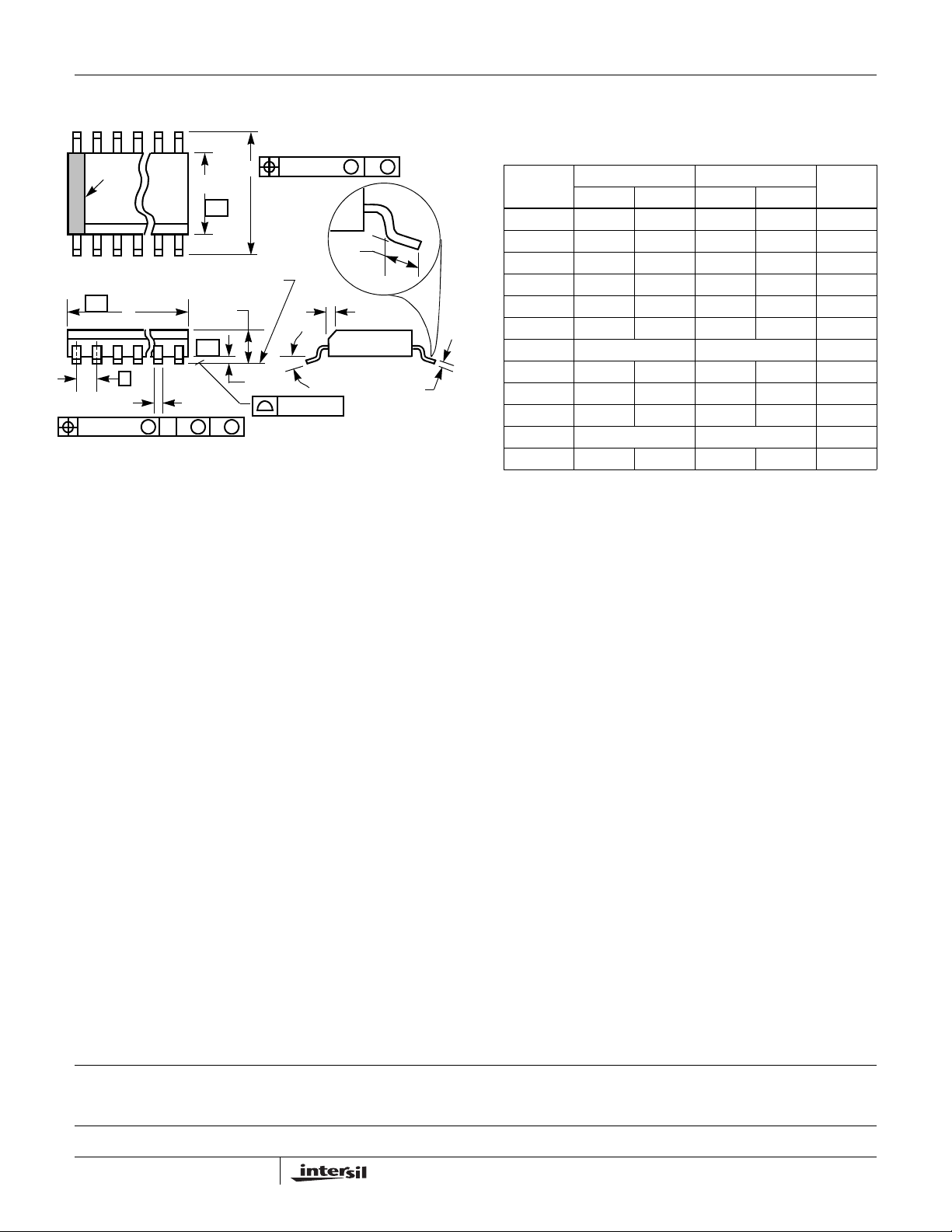

8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0532 0.0688 1.35 1.75 -

A1 0.0040 0.0098 0.10 0.25 -

B 0.013 0.020 0.33 0.51 9

C 0.0075 0.0098 0.19 0.25 -

D 0.1890 0.1968 4.80 5.00 3

E 0.1497 0.1574 3.80 4.00 4

e 0.050 BSC 1.27 BSC -

H 0.2284 0.2440 5.80 6.20 -

h 0.0099 0.0196 0.25 0.50 5

L 0.016 0.050 0.40 1.27 6

N8 87

α

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 1 6/05

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

11

FN6601.2

March 19, 2009
