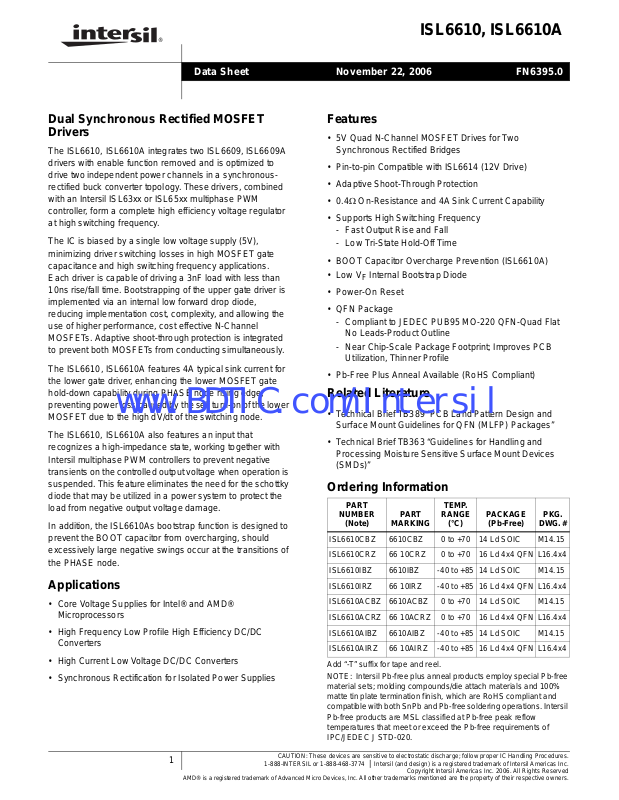

ISL6610, ISL6610A

Data Sheet November 22, 2006

Dual Synchronous Rectified MOSFET Drivers

The ISL6610, ISL6610A integrates two ISL6609, ISL6609A drivers with enable function removed and is optimized to drive two independent power channels in a synchronousrectified buck converter topology. These drivers, combined with an Intersil ISL63xx or ISL65xx multiphase PWM controller, form a complete high efficiency voltage regulator at high switching frequency.

The IC is biased by a single low voltage supply (5V), minimizing driver switching losses in high MOSFET gate capacitance and high switching frequency applications. Each driver is capable of driving a 3nF load with less than 10ns rise/fall time. Bootstrapping of the upper gate driver is implemented via an internal low forward drop diode, reducing implementation cost, complexity, and allowing the use of higher performance, cost effective N-Channel MOSFETs. Adaptive shoot-through protection is integrated to prevent both MOSFETs from conducting simultaneously.

The ISL6610, ISL6610A features 4A typical sink current for the lower gate driver, enhancing the lower MOSFET gate hold-down capability during PHASE node rising edge, preventing power loss caused by the self turn-on of the lower MOSFET due to the high dV/dt of the switching node.

The ISL6610, ISL6610A also features an input that recognizes a high-impedance state, working together with Intersil multiphase PWM controllers to prevent negative transients on the controlled output voltage when operation is suspended. This feature eliminates the need for the schottky diode that may be utilized in a power system to protect the load from negative output voltage damage.

In addition, the ISL6610As bootstrap function is designed to prevent the BOOT capacitor from overcharging, should excessively large negative swings occur at the transitions of the PHASE node.

Applications

• Core Voltage Supplies for Intel® and AMD® Microprocessors

• High Frequency Low Profile High Efficiency DC/DC Converters

• High Current Low Voltage DC/DC Converters

• Synchronous Rectification for Isolated Power Supplies

FN6395.0

Features

• 5V Quad N-Channel MOSFET Drives for Two Synchronous Rectified Bridges

• Pin-to-pin Compatible with ISL6614 (12V Drive)

• Adaptive Shoot-Through Protection

•0.4Ω On-Resistance and 4A Sink Current Capability

• Supports High Switching Frequency

- Fast Output Rise and Fall

- Low Tri-State Hold-Off Time

• BOOT Capacitor Overcharge Prevention (ISL6610A)

•Low V

• Power-On Reset

• QFN Package

• Pb-Free Plus Anneal Available (RoHS Compliant)

Internal Bootstrap Diode

- Compliant to JEDEC PUB95 MO-220 QFN-Quad Flat

No Leads-Product Outline

- Near Chip-Scale Package Footprint; Improves PCB

Utilization, Thinner Profile

Related Literature

• Technical Brief TB389 “PCB Land Pattern Design and Surface Mount Guidelines for QFN (MLFP) Packages”

• Technical Brief TB363 “Guidelines for Handling and Processing Moisture Sensitive Surface Mount Devices (SMDs)”

Ordering Information

PART

NUMBER

(Note)

ISL6610CBZ 6610CBZ 0 to +70 14 Ld SOIC M14.15 ISL6610CRZ 66 10CRZ 0 to +70 16 Ld 4x4 QFN L16.4x4 ISL6610IBZ 6610IBZ -40 to +85 14 Ld SOIC M14.15 ISL6610IRZ 66 10IRZ -40 to +85 16 Ld 4x4 QFN L16.4x4 ISL6610ACBZ 6610ACBZ 0 to +70 14 Ld SOIC M14.15 ISL6610ACRZ 66 10ACRZ 0 to +70 16 Ld 4x4 QFN L16.4x4 ISL6610AIBZ 6610AIBZ -40 to +85 14 Ld SOIC M14.15 ISL6610AIRZ 66 10AIRZ -40 to +85 16 Ld 4x4 QFN L16.4x4

Add “-T” suffix for tape and reel. NOTE: Intersil Pb-free plus anneal products employ special Pb-free

material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

PART

MARKING

TEMP.

RANGE

(°C)

PACKAGE

(Pb-Free)

PKG.

DWG. #

AMD® is a registered trademark of Advanced Micro Devices, Inc. All other trademarks mentioned are the property of their respective owners.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

Page 2

Pinouts

www.BDTIC.com/Intersil

ISL6610, ISL6610A

(14 LD SOIC)

TOP VIEW

ISL6610, ISL6610A

(16 LD QFN)

TOP VIEW

PWM1

PWM2

GND

LGATE1

PVCC

PGND

LGATE2

Block Diagram

VCC

PWM1

VCC

PHASE1

UGATE1

BOOT1

BOOT2

UGATE2

PHASE2

GND

LGATE1

PVCC

PGND

PWM2

PWM1

16 14 13

GND

6578

NC1

LGATE2

VCC

PHASE1

NC2

PHASE2

UGATE1

BOOT1

BOOT2

UGATE2

ISL6610, ISL6610A

SHOOT-

BOOT

PVCC

BOOT1

UGATE1

PHASE1

CHANNEL 1

PVCC

4.9K THROUGH

PROTECTION

PWM2

GND

VCC

4.6K

4.9K

4.6K

CONTROL

LOGIC

INTEGRATED 3Ω RESISTOR (R

PVCC

PAD

LGATE1

PGND

SHOOT-

THROUGH

PROTECTION

PGND

BOOT

PGND

BOOT2

UGATE2

PHASE2

PVCC

LGATE2

CHANNEL 2

FOR ISL6610CR/10ACR, THE PAD ON THE BOTTOM SIDE OF THE QFN PACKAGE MUST BE SOLDERED TO THE CIRCUIT’S GROUND.

) AVAILABLE ONLY IN ISL6610A

BOOT

FN6395.0

November 22, 2006

Page 3

ISL6610, ISL6610A

www.BDTIC.com/Intersil

Typical Application - Multiphase Converter Using ISL6610 Gate Drivers

PGOOD

VID

VSEN

FS/DIS

COMP

MAIN

CONTROL

ISL65xx

GND

ISEN1

PWM1

PWM2

ISEN2

ISEN3

PWM3

PWM4

ISEN4

+5V

VCC

PWM1

PWM2

+5V

VCC

DUAL DRIVER ISL6610

BOOT1

UGATE1

PHASE1

LGATE1

PVCC

BOOT2

UGATE2

PHASE2 NC2

LGATE2 NC1

PGNDGND

BOOT1

UGATE1

PHASE1

+5V

+12V

CORE

LGATE1

DUAL DRIVER ISL6610

PWM1

PWM2

PVCC

+5V

BOOT2

UGATE2

PHASE2

LGATE2

PGNDGND

+12V

FN6395.0

November 22, 2006

Page 4

ISL6610, ISL6610A

www.BDTIC.com/Intersil

Absolute Maximum Ratings Thermal Information

Supply Voltage (PVCC, VCC) . . . . . . . . . . . . . . . . . . . . -0.3V to 7V

Input Voltage (V BOOT Voltage (V BOOT To PHASE Voltage (V

PHASE Voltage . . . . . . . . . . . . . . . . . . . . . GND - 0.3V to 15V (DC)

UGATE Voltage . . . . . . . . . . . . . . . . V

LGATE Voltage . . . . . . . . . . . . . . . GND - 0.3V (DC) to VCC + 0.3V

Ambient Temperature Range. . . . . . . . . . . . . . . . . .-40°C to +125°C

HBM ESD Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2kV

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

+150°C max junction temperature is intended for short periods of time to prevent shortening the lifetime. Constantly operated at 150°C may shorten the life of the part.

NOTES:

is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.

1. θ

2. θ

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features.

, “case temperature” location is at the center of the package underside exposed pad. See Tech Brief TB379 for details.

3. θ

, V

BOOT-GND

GND -8V (<20ns Pulse Width, 10μJ) to 30V (<100ns)

GND - 2.5V (<20ns Pulse Width, 5μJ) to VCC + 0.3V

) . . . . . . . . . . . . . . . -0.3V to VCC + 0.3V

PWM

). . . -0.3V to 25V (DC) or 36V (<200ns)

BOOT-PHASE

- 5V (<20ns Pulse Width, 10μJ) to V

PHASE

). . . . . . -0.3V to 7V (DC)

-0.3V to 9V (<10ns)

- 0.3V (DC) to V

PHASE

BOOT BOOT

Thermal Resistance (Typical) θ

SOIC Package (Note 1) . . . . . . . . . . . . 90 N/A

QFN Package (Notes 2 and 3). . . . . . . 46 8.5

Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . +150°C

Maximum Storage Temperature Range. . . . . . . . . .-65°C to +150°C

Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . +300°C

(SOIC - Lead Tips Only)

Recommended Operating Conditions

Ambient Temperature Range. . . . . . . . . . . . . . . . . . .-40°C to +85°C

Maximum Operating Junction Temperature. . . . . . . . . . . . . +125°C

Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V ±10%

(°C/W) θJC(°C/W)

Electrical Specifications These specifications apply for T

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

SUPPLY CURRENT

Bias Supply Current I

BOOTSTRAP DIODE

Forward Voltage V

POWER-ON RESET

POR Rising -3.44.2V POR Falling 2.6 3.0 - V Hysteresis - 400 - mV

PWM INPUT

Sinking Impedance R Source Impedance R Tri-State Rising Threshold V Tri-State Falling Threshold V Tri-State Shutdown Holdoff Time t

SWITCHING TIME (Note 4, See Figure 1)

UGATE Rise Time t LGATE Rise Time t UGATE Fall Time t LGATE Fall Time t UGATE Turn-Off Propagation Delay t LGATE Turn-Off Propagation Delay t

VCC+PVCC

PWM_SNK PWM_SRC

TSSHD

RU RL FU

FL PDLU PDLL

= -40°C to +85°C, unless otherwise noted

PWM pin floating, V

= 300kHz, V

PWM

Forward bias current = 2mA

= 0°C to +70°C

Forward bias current = 2mA T

= -40°C to +85°C

= V

VCC

= V

VCC

3nF Load - 8.0 - ns 3nF Load - 8.0 - ns 3nF Load - 8.0 - ns 3nF Load - 4.0 - ns Outputs Unloaded - 18 - ns Outputs Unloaded - 25 - ns

= 5V (250mV Hysteresis) 1.00 1.20 1.40 V

PVCC

= 5V(300mV Hysteresis) 3.10 3.41 3.70 V

PVCC

VCC

= V

= 5V - 240 - μA

PVCC

= 5V - 1.6 - mA

PVCC

0.30 0.60 0.70 V

0.30 0.60 0.75 V

-4.6-kΩ

-4.9-kΩ

-80-ns

FN6395.0

November 22, 2006

Page 5

ISL6610, ISL6610A

www.BDTIC.com/Intersil

Electrical Specifications These specifications apply for T

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

UGATE Turn-On Propagation Delay t LGATE Turn-On Propagation Delay t Tri-state to UG/LG Rising Propagation Delay t

OUTPUT (Note 4)

Upper Drive Source Resistance R Upper Drive Sink Resistance R Lower Drive Source Resistance R Lower Drive Sink Resistance R

NOTE:

4. Guaranteed by Characterization. Not 100% tested in production.

PDHU PDHL

PTS

UG_SRC UG_SNK LG_SRC

LG_SNK

= -40°C to +85°C, unless otherwise noted (Continued)

Outputs Unloaded - 18 - ns Outputs Unloaded - 23 - ns Outputs Unloaded - 20 - ns

250mA Source Current - 1.0 2.5 Ω 250mA Sink Current - 1.0 2.5 Ω 250mA Source Current - 1.0 2.5 Ω 250mA Sink Current - 0.4 1.0 Ω

Functional Pin Description

PACKAGE PIN #

1 15 PWM1 The PWM signal is the control input for the Channel 1 driver. The PWM signal can enter three distinct states during

2 16 PWM2 The PWM signal is the control input for the Channel 2 driver. The PWM signal can enter three distinct states during

3 1 GND Bias and reference ground. All signals are referenced to this node. 4 2 LGATE1 Lower gate drive output of Channel 1. Connect to gate of the low-side power N-Channel MOSFET. 5 3 PVCC This pin supplies power to both the lower and higher gate drives. Place a high quality low ESR ceramic capacitor

6 4 PGND Power ground return of both low gate drivers.

- 5,8 NC1,2 No connection. 7 6 LGATE2 Lower gate drive output of Channel 2. Connect to gate of the low-side power N-Channel MOSFET. 8 7 PHASE2 Connect this pin to the SOURCE of the upper MOSFET and the DRAIN of the lower MOSFET in Channel 2. This

9 9 UGATE2 Upper gate drive output of Channel 2. Connect to gate of high-side power N-Channel MOSFET.

10 10 BOOT2 Floating bootstrap supply pin for the upper gate drive of Channel 2. Connect the bootstrap capacitor between this

11 11 BOOT1 Floating bootstrap supply pin for the upper gate drive of Channel 1. Connect the bootstrap capacitor between this

12 12 UGATE1 Upper gate drive output of Channel 1. Connect to gate of high-side power N-Channel MOSFET. 13 13 PHASE1 Connect this pin to the SOURCE of the upper MOSFET and the DRAIN of the lower MOSFET in Channel 1. This

14 14 VCC Connect this pin to a +5V bias supply. It supplies power to internal analog circuits. Place a high quality low ESR

- 17 PAD Connect this pad to the power ground plane (GND) via thermally enhanced connection.

SYMBOL FUNCTIONSOIC DFN

operation, see the Tri-state PWM Input section under DESCRIPTION for further details. Connect this pin to the PWM output of the controller.

from this pin to PGND.

pin provides a return path for the upper gate drive.

pin and the PHASE2 pin. The bootstrap capacitor provides the charge to turn on the upper MOSFET. See the Internal Bootstrap Device section under DESCRIPTION for guidance in choosing the capacitor value.

pin and the PHASE1 pin. The bootstrap capacitor provides the charge to turn on the upper MOSFET. See the Internal Bootstrap Device section under DESCRIPTION for guidance in choosing the capacitor value.

pin provides a return path for the upper gate drive.

ceramic capacitor from this pin to GND.

FN6395.0

November 22, 2006

Page 6

Timing Diagram

www.BDTIC.com/Intersil

PWM

PDHU

PDLU

ISL6610, ISL6610A

2.5V

TSSHD

UGATE

LGATE

PDLL

PDHL

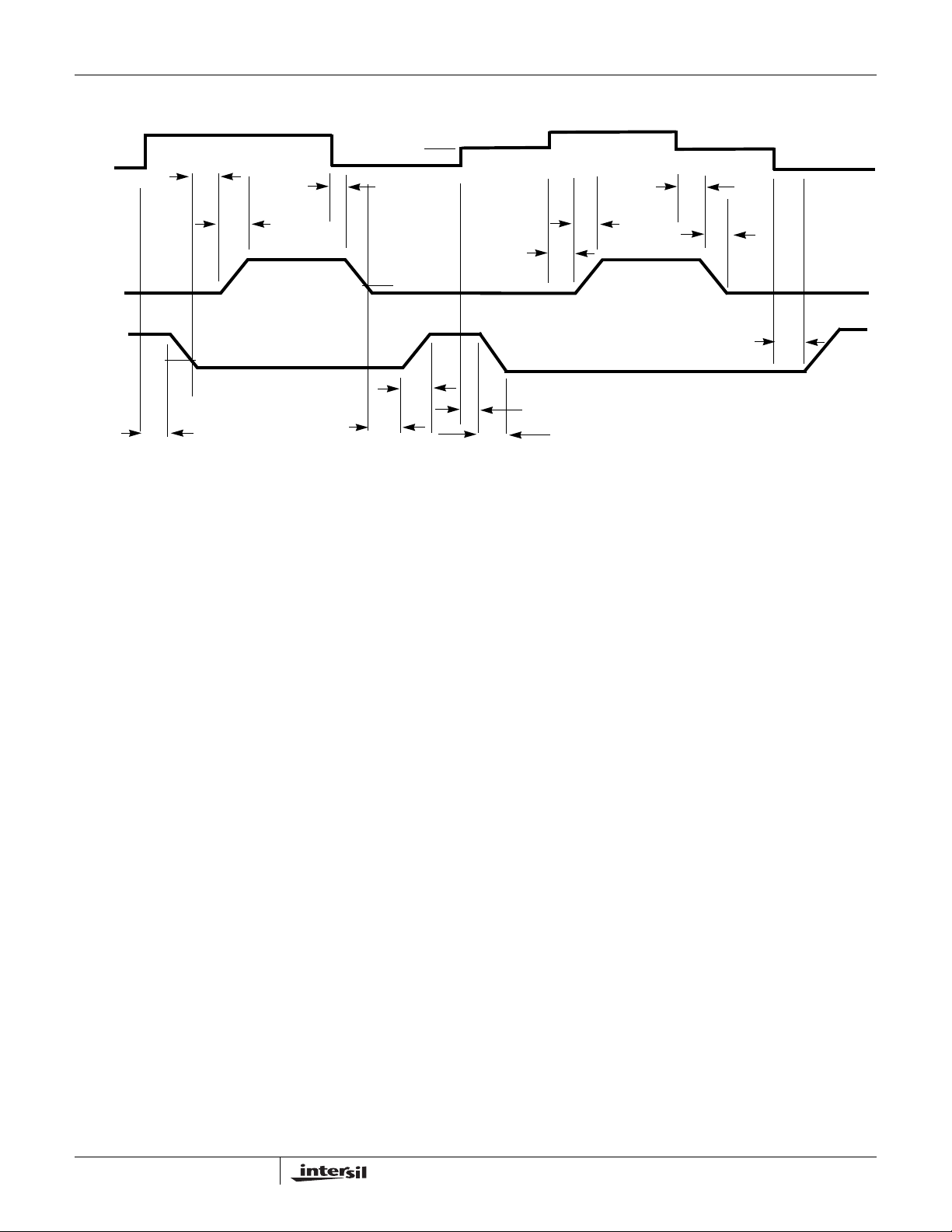

FIGURE 1. TIMING DIAGRAM

Operation and Adaptive Shoot-Through Protection

Designed for high speed switching, the ISL6610, ISL6610A MOSFET driver controls both high-side and low-side NChannel FET s from one externally provided PWM signal.

A rising transition on PWM initiates the turn-off of the lower MOSFET (see Figure 1). After a short propagation delay [t

], the lower gate begins to fall. Typical fall times [tFL]

PDLL

are provided in the Electrical Specifications. Adaptive shootthrough circuitry monitors the LGATE voltage and turns on the upper gate following a short delay time [t LGATE voltage drops below ~1V. The upper gate drive then begins to rise [t

] and the upper MOSFET turns on.

A falling transition on PWM indicates the turn-off of the upper MOSFET and the turn-on of the lower MOSFET. A short propagation delay [t gate begins to fall [t

] is encountered before the upper

PDLU

]. The adaptive shoot-through circuitry

monitors the UGATE-PHASE voltage and turns on the lower MOSFET a short delay time, t

, after the upper

PDHL

MOSFET’s gate voltage drops below 1V . The lower gate then rises [t

], turning on the lower MOSFET. These methods

prevent both the lower and upper MOSFETs from conducting simultaneously (shoot-through), while adapting the dead time to the gate charge characteristics of the MOSFETs being used.

This driver is optimized for voltage regulators with large step down ratio. The lower MOSFET is usually sized larger compared to the upper MOSFET because the lower MOSFET conducts for a longer time during a switching period. The lower gate driver is therefore sized much larger to meet this application requirement. The 0.4Ω on-resistance and 4A sink current capability enable the lower gate driver to

PDHU

] after the

PTS

TSSHD

PTS

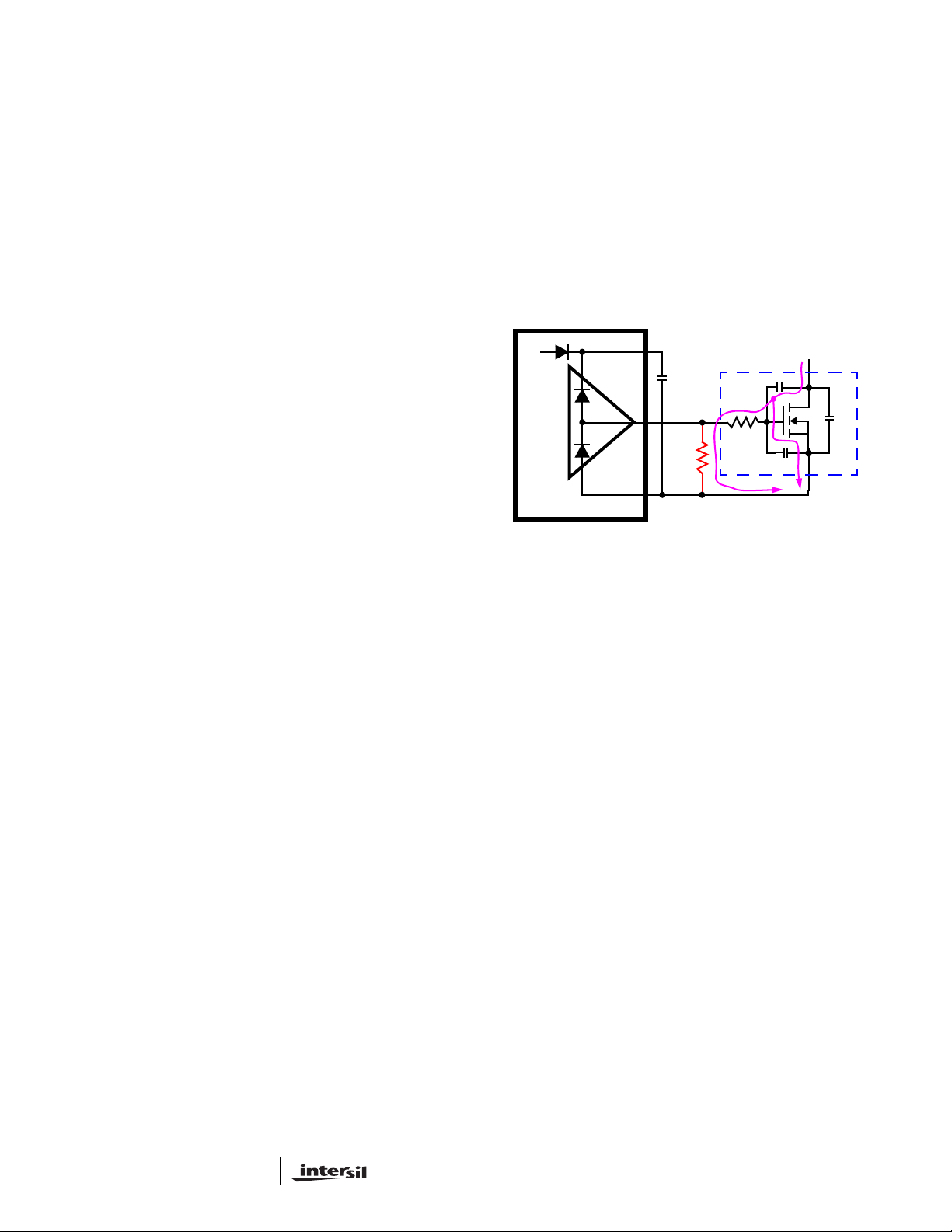

absorb the current injected into the lower gate through the drain-to-gate capacitor (C

) of the lower MOSFET and

help prevent shoot through caused by the self turn-on of the lower MOSFET due to high dV/dt of the switching node.

Tri-State PWM Input

A unique feature of the ISL6610, ISL6610A is the adaptable tri-state PWM input. Once the PWM signal enters the shutdown window, either MOSFET previously conducting is turned off. If the PWM signal remains within the shutdown window for longer than 80ns of the previously conducting MOSFET , the output drivers are disabled and both MOSFET gates are pulled and held low. The shutdown state is removed when the PWM signal moves outside the shutdown window. The PWM rising and falling thresholds outlined in the Electrical Specifications determine when the lower and upper gates are enabled. During normal operation in a typical application, the PWM rise and fall times through the shutdown window should not exceed either output’s turn-off propagation delay plus the MOSFET gate discharge time to ~1V. Abnormally long PWM signal transition times through the shutdown window will simply introduce additional dead time between turn off and turn on of the synchronous bridge’s MOSFETs. For optimal performance, no more than 100pF parasitic capacitive load should be present on the PWM line of ISL6610, ISL6610A (assuming an Intersil PWM controller is used).

Bootstrap Considerations

This driver features an internal bootstrap diode. Simply adding an external capacitor across the BOOT and PHASE pins completes the bootstrap circuit. The ISL6610A’s internal bootstrap resistor is designed to reduce the overcharging of

FN6395.0

November 22, 2006

Page 7

ISL6610, ISL6610A

www.BDTIC.com/Intersil

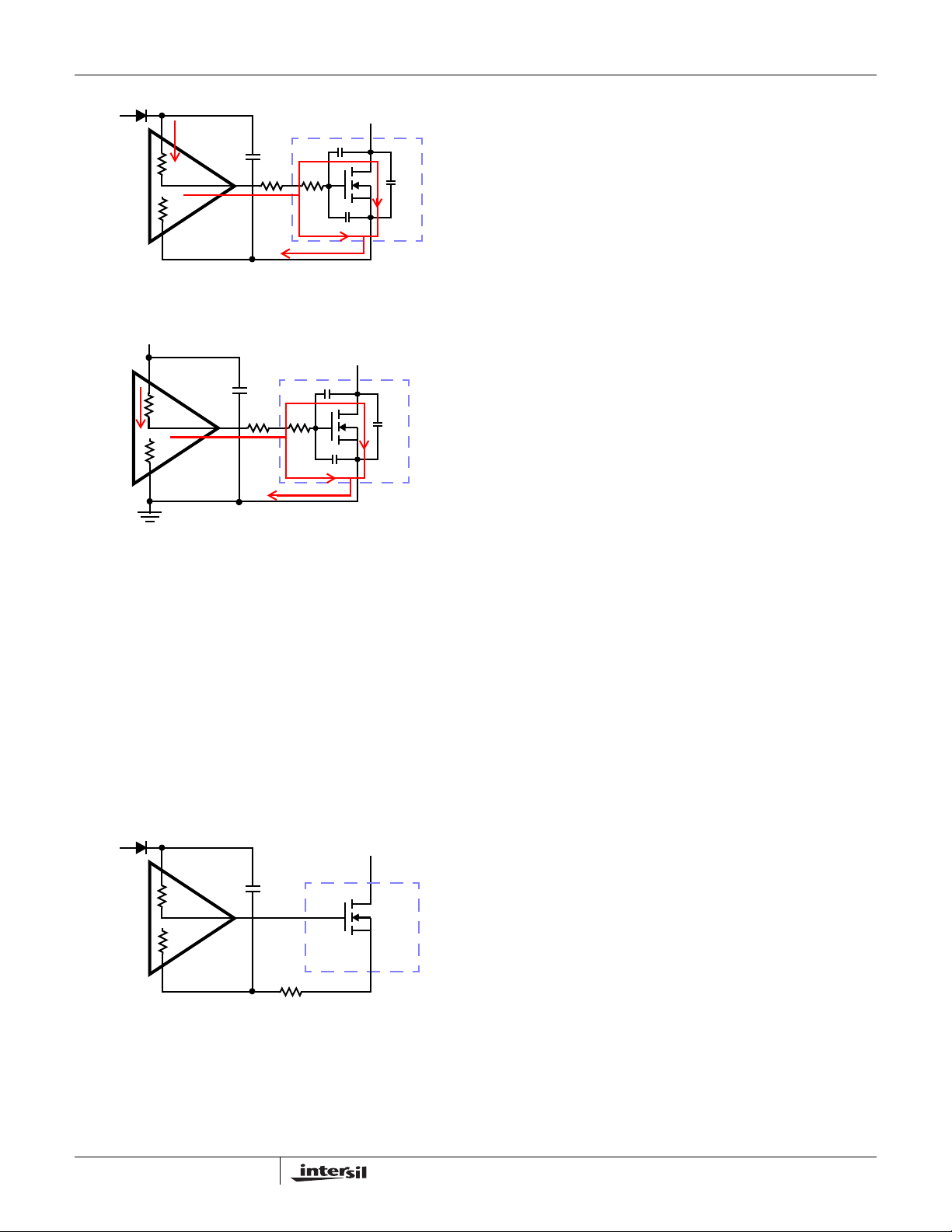

the bootstrap capacitor when exposed to excessively large negative voltage swing at the PHASE node. Typically, such large negative excursions occur in high current applications that use D

-PAK and D-PAK MOSFETs or excessive layout parasitic inductance. The following equation helps select a proper bootstrap capacitor size:

GATE

BOOT_CAP

GATE

where Q at V

GS1

control MOSFETs. The ΔV

--------------------------------------

≥

ΔV

BOOT_CAP

QG1PVCC•

----------------------------------- -

GS1

is the amount of gate charge per upper MOSFET

•=

gate-source voltage and NQ1 is the number of

BOOT_CAP

term is defined as the

(EQ. 1)

allowable droop in the rail of the upper gate drive. As an example, suppose two HAT2168 FETs are chosen as

the upper MOSFETs. The gate charge, Q sheet is 12nC at 5V (V Q

is calculated to be 26.4nC at 5.5V PVCC level. We

GATE

) gate-source voltage. Then the

, from the data

will assume a 100mV droop in drive voltage over the PWM cycle. We find that a bootstrap capacitance of at least

0.264μF is required. The next larger standard value capacitance is 0.33µF. A good quality ceramic capacitor is recommended.

2.0

1.8

1.6

1.4

1.2

(µF)

1.0

0.8

BOOT_CAP

0.6

0.4

0.2 20nC

0.0

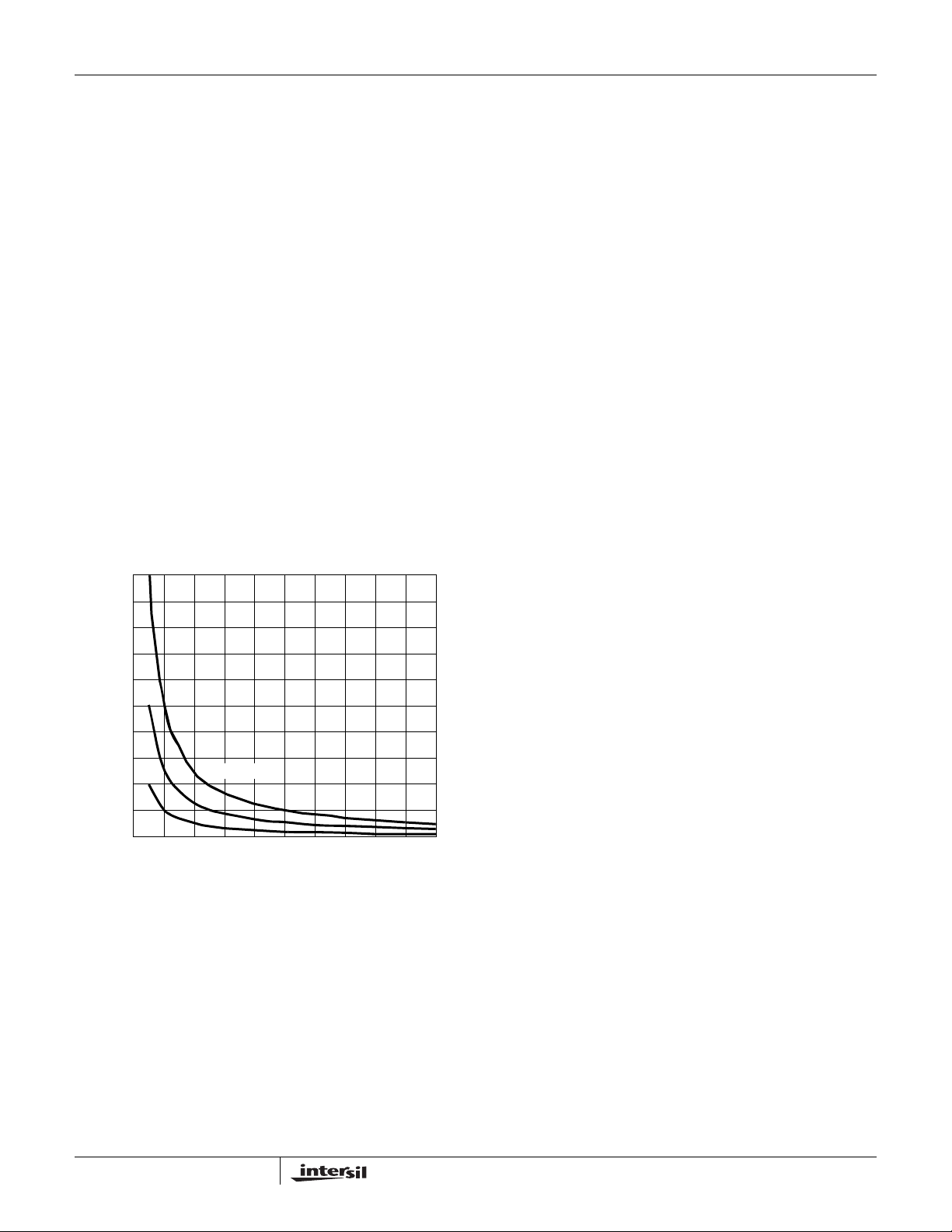

FIGURE 2. BOOTSTRAP CAPACIT ANCE vs BOOT RIPPLE

50nC

VOLTAGE

= 100nC

GATE

0.30.0 0.1 0.2 0.4 0.5 0.6 0.90.7 0.8 1.0 ΔV

(V)

BOOT

Power Dissipation

Package power dissipation is mainly a function of the switching frequency (F external gate resistance, and the selected MOSFET’s internal gate resistance and total gate charge. Calculating the power dissipation in the driver for a desired application is critical to ensure safe operation. Exceeding the maximum allowable power dissipation level will push the IC beyond the maximum recommended operating junction temperature of +125°C. The maximum allowable IC power dissipation for

), the output drive impedance, the

the SO14 package is approximately 1W at room temperature, while the power dissipation capacity in the QFN packages, with an exposed heat escape pad, is around 2W. See Layout Considerations paragraph for thermal transfer improvement suggestions. When designing the driver into an application, it is recommended that the following calculation is used to ensure safe operation at the desired frequency for the selected MOSFETs. The total gate drive power losses due to the gate charge of MOSFETs and the driver’s internal circuitry and their corresponding average driver current can be estimated with Equations 2 and 3, respectively,

Qg_TOT

where the gate charge (Q particular gate to source voltage (V corresponding MOSFET datasheet; I

QG1PVCC

Qg_Q1

Qg_Q2

---------------------------------------

QG2PVCC

---------------------------------------

•

⎛⎞

G1NQ1

----------------------------- -

• F

⎜⎟

⎝⎠

GS1

+()• IQVCC•+=

Qg_Q1PQg_Q2

GS1

GS2

----------------------------- -

• NQ1•=

• NQ2•=

•

G2NQ2

GS2

and QG2) is defined at a

•

+•=

SWIQ

and V

GS1

GS2

is the driver’s total

(EQ. 2)

(EQ. 3)

) in the

quiescent current with no load at both drive outputs and can be negligible; N

and N

are number of upper and lower

MOSFETs, respectively. The factor 2 is the number of active channels. The I

product is the quiescent power of the

Q VCC

driver without capacitive load and is typically negligible. The total gate drive power losses are dissipated among the

resistive components along the transition path. The drive resistance dissipates a portion of the total gate drive power losses, the rest will be dissipated by the external gate resistors (R

and RG2, should be a short to avoid

interfering with the operation shoot-through protection circuitry) and the internal gate resistors (R

GI1

and R

GI2

) of MOSFET s. Figures 3 and 4 show the typical upper and lower gate drives turn-on transition path. The power dissipation on the driver can be roughly estimated as:

DR_UP

DR_LOW

EXT2RG1

⎛⎞

--------------------------------------

⎜⎟

⎝⎠

+()• IQVCC•+=

DR_UPPDR_LOW

HI1

HI1REXT1

⎛⎞

HI2

--------------------------------------

⎜⎟

⎝⎠

HI2REXT2

GI1

-------------

LO1

----------------------------------------

LO1REXT1

LO2

----------------------------------------

LO2REXT2

EXT2RG2

Qg_Q1

---------------------

•=

---------------------

•=

-------------

(EQ. 4)

Qg_Q2

GI2

FN6395.0

November 22, 2006

Page 8

ISL6610, ISL6610A

www.BDTIC.com/Intersil

PVCC

FIGURE 3. TYPICAL UPPER-GATE DRIVE TURN-ON PATH

PVCC

LO2

FIGURE 4. TYPICAL LOWER-GATE DRIVE TURN-ON PATH

HI2

BOOT

HI1

LO1

UGATE

PHASE

LGATE

GND

GI1

GI2

Application Information

profile MOSFETs, such as Direct FETs and multi-SOURCE leads devices (SO-8, LFPAK, PowerPAK), have low parasitic lead inductances and can be driven by either ISL6610 or ISL6610A (assuming proper layout design). The ISL6610,

missing the 3Ω integrated BOOT resistor, typically yields slightly higher efficiency than the ISL6610A.

Layout Considerations

A good layout helps reduce the ringing on the switching node (PHASE) and significantly lower the stress applied to the output drives. The following advice is meant to lead to an optimized layout and performance:

• Keep decoupling loops (VCC-GND, PVCC-PGND and

BOOT-PHASE) short and wide, at least 25 mils. Avoid using vias on decoupling components other than their ground terminals, which should be on a copper plane with at least two vias.

• Minimize trace inductance, especially on low-impedance

lines. All power traces (UGATE, PHASE, LGATE, PGND, PVCC, VCC, GND) should be short and wide, at least 25 mils. Try to place power traces on a single layer, otherwise, two vias on interconnection are preferred where possible. For no connection (NC) pins on the QFN part, connect it to the adjacent net (LGA TE2/PHASE2) can reduce trace inductance.

• Shorten all gate drive loops (UGATE-PHASE and LGATE-

PGND) and route them closely spaced.

MOSFET and Driver Selection

The parasitic inductances of the PCB and of the power devices’ packaging (both upper and lower MOSFETs) can cause serious ringing, exceeding absolute maximum rating of the devices. The negative ringing at the edges of the PHASE node could increase the bootstrap capacitor voltage through the internal bootstrap diode, and in some cases, it may overstress the upper MOSFET driver. Careful layout, proper selection of MOSFET s and p ackaging, as well as the proper driver can go a long way toward minimizing such unwanted stress.

PVCC

FIGURE 5. PHASE RESISTOR TO MINIMIZE SERIOUS

NEGATIVE PHASE SPIKE

The selection of D a much better match (for the reasons discussed) for the ISL6610A with a phase resistor, as shown in Figure 5. Low-

BOOT

HI1

LO1

UGATE

PHASE

-PAK, or D-PAK packaged MOSFETs, is

=1-2Ω

• Minimize the inductance of the PHASE node. Ideally, the

source of the upper and the drain of the lower MOSFET should be as close as thermally allowable.

• Minimize the current loop of the output and input power

trains. Short the source connection of the lower MOSFET to ground as close to the transistor pin as feasible. Input capacitors (especially ceramic decoupling) should be placed as close to the drain of upper and source of lower MOSFETs as possible.

• Avoid routing relatively high impedance nodes (such as

PWM and ENABLE lines) close to high dV/dt UGATE and PHASE nodes.

In addition, connecting the thermal pad of the QFN package to the power ground through multiple vias, or placing a low noise copper plane (such as power ground) underneath the SOIC part is recommended. This is to improve heat dissipation and allow the part to achieve its full thermal potential.

Upper MOSFET Self Turn-On Effects At Startup

Should the driver have insufficient bias voltage applied, its outputs are floating. If the input bus is energized at a high dV/dt rate while the driver outputs are floating, due to the self-coupling via the internal C UGA TE could momentarily rise up to a level greater than the threshold voltage of the MOSFET . This could potentially turn on the upper switch and result in damaging inrush energy.

of the MOSFET, the

FN6395.0

November 22, 2006

Page 9

)

ISL6610, ISL6610A

www.BDTIC.com/Intersil

Therefore, if such a situation (when input bus powered up before the bias of the controller and driver is ready) could conceivably be encountered, it is a common practice to place a resistor (R upper MOSFET to suppress the Miller coupling effect. The value of the resistor depends mainly on the input voltage’s rate of rise, the C threshold of the upper MOSFET. A higher dV/dt, a lower C

DS/CGS

ratio, and a lower gate-source threshold upper FET will require a smaller resistor to diminish the effect of the internal capacitive coupling. For most applications, the integrated 20kΩ typically sufficient, not affecting normal performance and efficiency.

The coupling effect can be roughly estimated with the following equations, which assume a fixed linear input ramp and neglect the clamping effect of the body diode of the upper drive and the bootstrap capacitor. Other parasitic components such as lead inductances and PCB capacitances are also not taken into account. These equations are provided for guidance purpose only. Therefore, the actual coupling effect should be examined using a very high impedance (10MΩ or greater) probe to ensure a safe design margin.

) across the gate and source of the

UGPH

GD/CGS

ratio, as well as the gate-source

GS_MILLER

UGPHRGI

VCC

ISL6610, ISL6610A

DU DL

-------

⋅⋅=

V–

--------------------------------- -

-------

–

UGPH

RC⋅

⋅

iss

issCGDCG

VIN

⎛⎞ ⎜⎟ ⎜⎟

rss

⎜⎟ ⎜⎟ ⎝⎠

rssCGD

BOOT

UGATE

PHASE

UPPER

(EQ. 5

FIGURE 6. GATE TO SOURCE RESISTOR T O REDUCE

UPPER MOSFET MILLER COUPLING

FN6395.0

November 22, 2006

Page 10

ISL6610, ISL6610A

www.BDTIC.com/Intersil

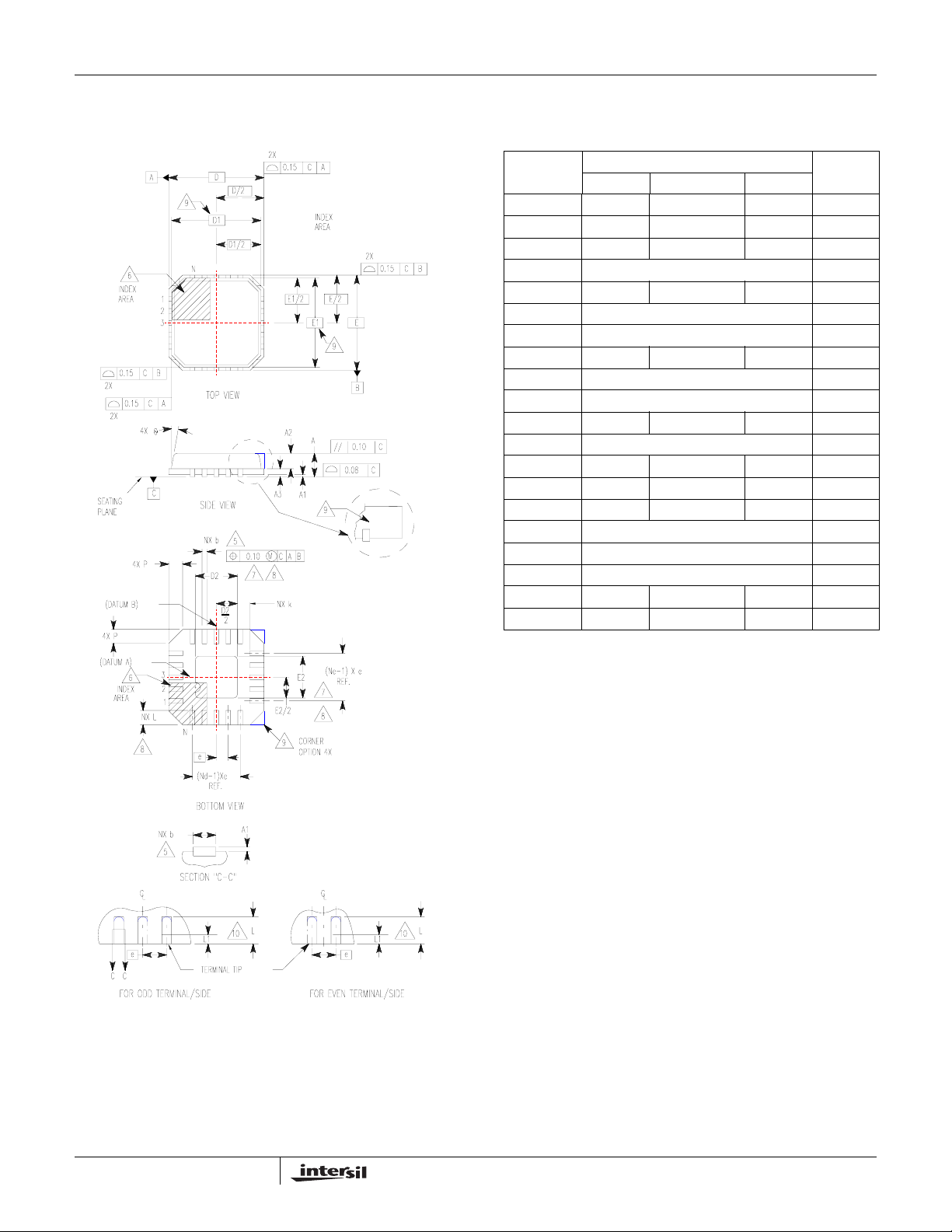

Quad Flat No-Lead Plastic Package (QFN) Micro Lead Frame Plastic Package (MLFP)

L16.4x4

16 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE (COMPLIANT TO JEDEC MO-220-VGGC ISSUE C)

MILLIMETERS

SYMBOL

A 0.80 0.90 1.00 -

A1 - - 0.05 -

A2 - - 1.00 9

A3 0.20 REF 9

b 0.23 0.28 0.35 5, 8

D 4.00 BSC -

D1 3.75 BSC 9

D2 1.95 2.10 2.25 7, 8

E 4.00 BSC -

E1 3.75 BSC 9

E2 1.95 2.10 2.25 7, 8

e 0.65 BSC -

k0.25 - - -

L 0.50 0.60 0.75 8

L1 - - 0.15 10

N162

Nd 4 3

Ne 4 3

P- -0.609 θ --129

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd and Ne refer to the number of terminals on each D and E.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be located within the zone indicated. The pin #1 identifier may be either a mold or mark feature.

7. Dimensions D2 and E2 are for the exposed pads which provide improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land Pattern Design efforts, see Intersil Technical Brief TB389.

9. Features and dimensions A2, A3, D1, E1, P & θ are present when Anvil singulation method is used and not present for saw singulation.

10. Depending on the method of lead termination at the edge of the package, a maximum 0.15mm pull back (L1) maybe present. L minus L1 to be equal to or greater than 0.3mm.

NOTESMIN NOMINAL MAX

Rev. 5 5/04

FN6395.0

November 22, 2006

Page 11

ISL6610, ISL6610A

www.BDTIC.com/Intersil

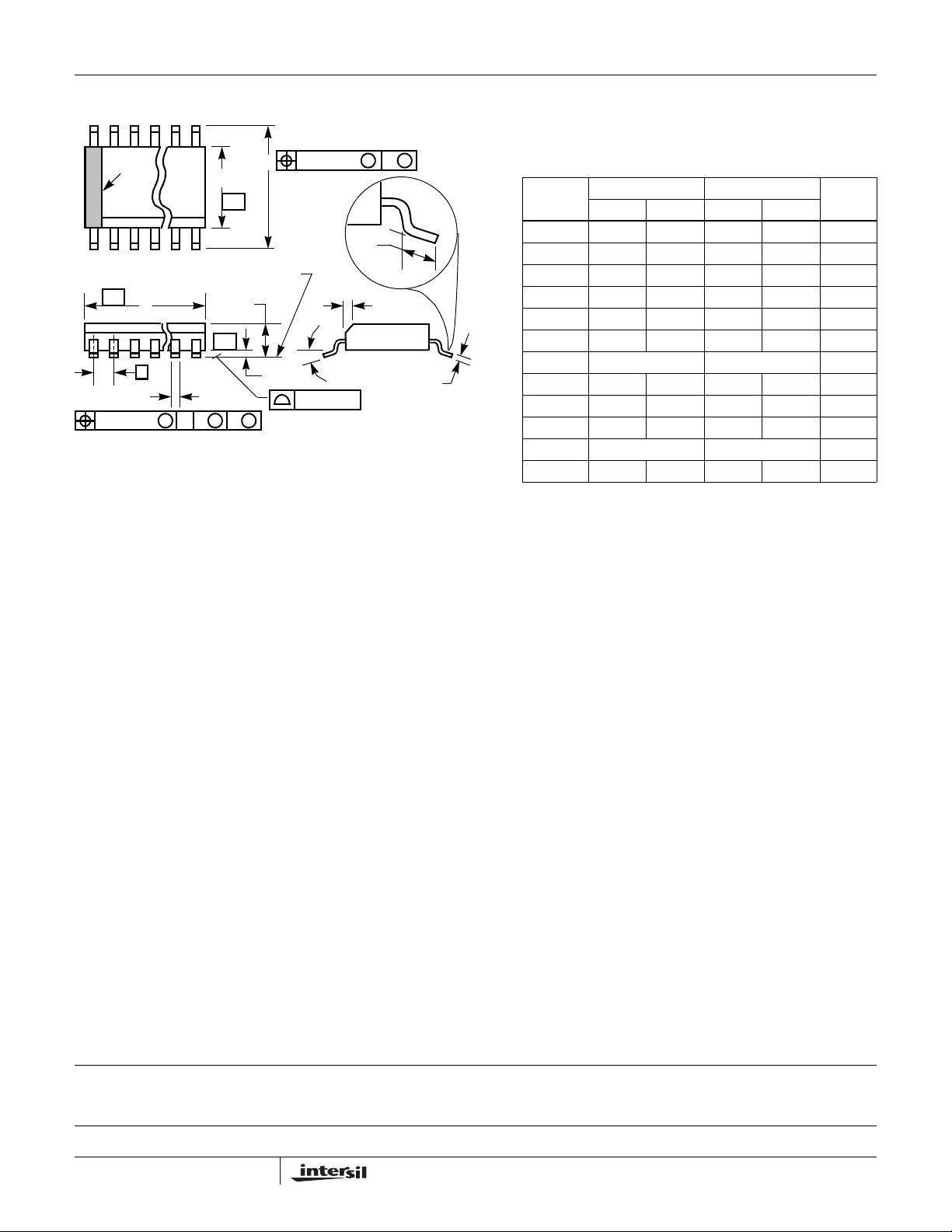

Small Outline Plastic Packages (SOIC)

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

h x 45

0.25(0.010) C AM BS

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of

0.61mm (0.024 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

0.10(0.004)

M14.15 (JEDEC MS-012-AB ISSUE C)

14 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0532 0.0688 1.35 1.75 -

A1 0.0040 0.0098 0.10 0.25 -

B 0.013 0.020 0.33 0.51 9

C 0.0075 0.0098 0.19 0.25 -

D 0.3367 0.3444 8.55 8.75 3

E 0.1497 0.1574 3.80 4.00 4

e 0.050 BSC 1.27 BSC -

H 0.2284 0.2440 5.80 6.20 -

h 0.0099 0.0196 0.25 0.50 5

L 0.016 0.050 0.40 1.27 6

N14 147

Rev. 0 12/93

NOTESMIN MAX MIN MAX

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implic atio n or other wise u nde r any p a tent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN6395.0

November 22, 2006
