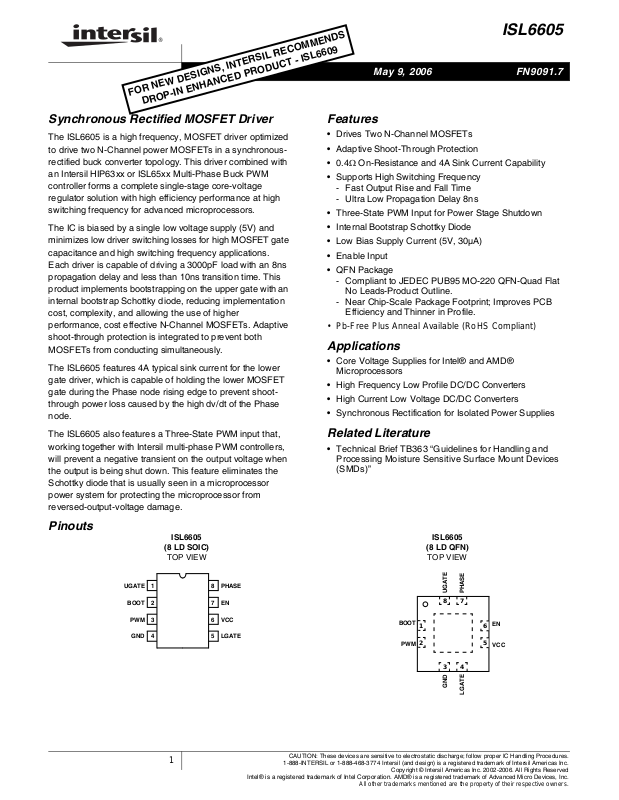

Data Sheet May 9, 2006

L D

ISL6605

FN9091.7

Synchronous Rectified MOSFET Driver

The ISL6605 is a high frequency, MOSFET driver optimized to drive two N-Channel power MOSFETs in a synchronousrectified buck converter topology. This driver combined with an Intersil HIP63xx or ISL65xx Multi-Phase Buck PWM controller forms a complete single-stage core-voltage regulator solution with high efficiency performance at high switching frequency for advanced microprocessors.

The IC is biased by a single low voltage supply (5V) and minimizes low driver switching losses for high MOSFET gate capacitance and high switching frequency applications. Each driver is capable of driving a 3000pF load with an 8ns propagation delay and less than 10ns transition time. This product implements bootstrapping on the upper gate with an internal bootstrap Schottky diode, reducing implementation cost, complexity, and allowing the use of higher performance, cost effective N-Channel MOSFETs. Adaptive shoot-through protection is integrated to prevent both MOSFETs from conducting simultaneously.

The ISL6605 features 4A typical sink current for the lower gate driver, which is capable of holding the lower MOSFET gate during the Phase node rising edge to prevent shootthrough power loss caused by the high dv/dt of the Phase node.

Features

• Drives Two N-Channel MOSFETs

• Adaptive Shoot-Through Protection

•0.4Ω On-Resistance and 4A Sink Current Capability

• Supports High Switching Frequency

- Fast Output Rise and Fall Time

- Ultra Low Propagation Delay 8ns

• Three-State PWM Input for Power Stage Shutdown

• Internal Bootstrap Schottky Diode

• Low Bias Supply Current (5V, 30µA)

• Enable Input

• QFN Package

- Compliant to JEDEC PUB95 MO-220 QFN-Quad Flat No Leads-Product Outline.

- Near Chip-Scale Package Footprint; Improves PCB Efficiency and Thinner in Profile.

• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

• Core Voltage Supplies for Intel® and AMD® Microprocessors

• High Frequency Low Profile DC/DC Converters

• High Current Low Voltage DC/DC Converters

• Synchronous Rectification for Isolated Power Supplies

The ISL6605 also features a Three-State PWM input that, working together with Intersil multi-phase PWM controllers, will prevent a negative transient on the output voltage when the output is being shut down. This feature eliminates the Schottky diode that is usually seen in a microprocessor power system for protecting the microprocessor from reversed-output-voltage damage.

Pinouts

ISL6605

(8 LD SOIC)

TOP VIEW

UGATE

BOOT

PWM

GND

PHASE

VCC

LGATE

Related Literature

• Technical Brief TB363 “Guidelines for Handling and Processing Moisture Sensitive Surface Mount Devices (SMDs)”

ISL6605

(8 LD QFN)

TOP VIEW

UGATE

PHASE

BOOT

PWM

GND

LGATE

VCC

Intel® is a registered trademark of Intel Corporation. AMD® is a registered trademark of Advanced Micro Devices, Inc.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774 Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Page 2

ISL6605

Ordering Information

PART

NUMBER*

ISL6605CB ISL6605CB 0 to 70 8 Ld SOIC M8.15

ISL6605CBZ (Note)

ISL6605CBZA (Note)

ISL6605CR 605C 0 to 70 8 Ld 3x3 QFN L8.3x3

ISL6605CRZ (Note)

ISL6605CRZA (Note)

ISL6605IB ISL6605IB -40 to 85 8 Ld SOIC M8.15

ISL6605IBZ (Note)

PART

MARKING

TEMP.

RANGE (°C) PACKAGE

ISL6605CBZ 0 to 70 8 Ld SOIC

(Pb-free)

ISL6605CBZ 0 to 70 8 Ld SOIC

(Pb-free)

05CZ 0 to 70 8 Ld 3x3 QFN

(Pb-free)

05CZ 0 to 70 8 Ld 3x3 QFN

(Pb-free)

6605IBZ -40 to 85 8 Ld SOIC

(Pb-free)

PKG.

DWG. #

M8.15

L8.3x3

M8.15

Block Diagram

ISL6605

Ordering Information

PART

NUMBER*

ISL6605IBZA (Note)

ISL6605IR 605I -40 to 85 8 Ld 3x3 QFN L8.3x3

ISL6605IRZ (Note)

ISL6605IRZA (Note)

ISL6558EVAL2 Evaluation Platform (ISL6558IR+ISL6605IR)

*Add “-T” suffix for tape and reel. NOTE: Intersil Pb-free plus anneal products employ special Pb-free

material sets; molding compounds/die attach materials and 100% matt e tin plate termination finish, which are RoHS compliant and comp atible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temper ature s that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

PART

MARKING

TEMP.

RANGE (°C) PACKAGE

6605IBZ -40 to 85 8 Ld SOIC

(Pb-free)

05IZ -40 to 85 8 Ld 3x3 QFN

(Pb-free)

05IZ -40 to 85 8 Ld 3x3 QFN

(Pb-free)

PKG.

DWG. #

M8.15

L8.3x3

VCC

PWM

VCC

20K

CONTROL

LOGIC

SHOOT-

THROUGH

PROTECTION

BOOT

UGATE

PHASE

VCC

LGATE

GND

FN9091.7

May 9, 2006

Page 3

ISL6605

Typical Application - Multi-Phase Converter Using ISL6605 Gate Drivers

+5V

PGOOD

VID

(OPTIONAL)

+5V

VCC

VSEN

PWM

CONTROL

(HIP63XX

or ISL65XX)

COMP

PWM1

PWM2

ISEN1

ISEN2

VCC

PWM

499K*

+5V

ISL6605

BOOT

UGATE

PHASE

LGATE

CORE

VCC

FS/EN

GND

* 499K IS USED TO PULL DOWN THE PWM INPUT TO PREVENT THE PWM FROM FALSE TRIGGERING UGATE DURING STARTUP.

PWM

499K*

BOOT

UGATE

PHASE

ISL6605

LGATE

FN9091.7

May 9, 2006

Page 4

ISL6605

Absolute Maximum Ratings Recommended Operating Conditions

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 7V

Input Voltage (V BOOT Voltage (V BOOT To PHASE Voltage (V

PHASE Voltage . . . . . . . . . . . . . . GND - 0.3V (DC) to 28V (<200ns)

, V

BOOT

) . . . . . . . . . . . . . . . -0.3V to VCC + 0.3V

PWM

). . . . . . . -0.3V to 22V (DC) or 33V (<200ns)

BOOT-PHASE

) . . . . . . . . . . -0.3V to 7V

. . . . . . . . . . GND - 5V (<100ns Pulse Width, 10μJ) to 28V (<200ns)

UGATE Voltage . . . . . . . . . . . V

. . . . . . . V

LGATE Voltage . . . . . . . . . . . . . . GND - 0.3V (DC) to V

- 4V (<200ns Pulse Width, 20μJ) to V

PHASE

. . . . . . . . . . . GND - 2V (<100ns Pulse Width, 4μJ) to V

Ambient Temperature Range. . . . . . . . . . . . . . . . . . . -40°C to 125°C

- 0.3V (DC) to V

PHASE

BOOT BOOT

VCC VCC

+0.3V

+0.3V + 0.3V + 0.3V

ESD Rating

HBM Class 1 JEDEC STD

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the

device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

NOTE:

1. θ

is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.

2. θ

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features.

, "case temperature" location is at the center of the package underside exposed pad. See Tech Brief TB379 for details.

3. θ

Ambient Temperature Range . . . . . . . . . . . . . . . . . . .-40°C to 85°C

Maximum Operating Junction Temperature . . . . . . . . . . . . . 125°C

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V ±10%

Thermal Information

Thermal Resistance (Notes 1, 2, & 3) θJA(°C/W) θJC(°C/W)

SOIC Package (Note 1) . . . . . . . . . . . . 110 N/A

QFN Package (Notes 2, 3). . . . . . . . . . 95 36

Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 150°C

Maximum Storage Temperature Range . . . . . . . . . . -65°C to 150°C

Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . . 300°C

(SOIC - Lead Tips Only)

Electrical Specifications These specifications apply for T

= -40°C to 85°C, unless otherwise noted

PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS

VCC SUPPLY CURRENT

Bias Supply Current I

VCC

EN = LOW, TA = 0°C to 70°C - - 1.5 μA

EN = LOW, T

PWM pin floating, V

= -40°C to 85°C - - 2 μA

= 5V - 30 - μA

VCC

PWM INPUT

Input Current I

PWM

PWM Three-State Rising Threshold V

PWM Three-State Falling Threshold V

Three-State Shutdown Holdoff Time V

= 5V - 250 - μA

PWM

= 0V - -250 - μA

PWM

= 5V, TA = 0°C to 70°C - - 1.70 V

VCC

= 5V, TA = -40°C to 85°C - - 1.75 V

VCC

= 5V 3.3 - - V

VCC

= 5V, temperature = 25°C - 420 - ns

VCC

EN INPUT

EN LOW Threshold 1.0 - - V

EN HIGH Threshold --2.0V

SWITCHING TIME

UGATE Rise Time t

LGATE Rise Time t

UGATE Fall Time t

LGATE Fall Time t

UGATE Turn-Off Propagation Delay t

LGATE Turn-Off Propagation Delay t

RUGATEVVCC

RLGATEVVCC

FUGATE

FLGATE

PDLUGATEVVCC

PDLLGATEVVCC

= 5V, 3nF Load - 8 - ns

VCC

= 5V, 3nF Load - 4 - ns

VCC

= 5V, 3nF Load - 8 - ns

OUTPUT

Upper Drive Source Resistance R

Upper Driver Source Current (Note 4) I

Upper Drive Sink Resistance R

Upper Driver Sink Current (Note 4) I

Lower Drive Source Resistance R

Lower Driver Source Current (Note 4) I

Lower Drive Sink Resistance R

Lower Driver Sink Current (Note 4) I

UGATE

LGATE

500mA Source Current - 1.0 2.5 Ω

UGATE-PHASE

= 2.5V - 2.0 - A

500mA Sink Current - 1.0 2.5 Ω

UGATE-PHASE

= 2.5V - 2.0 - A

500mA Source Current - 1.0 2.5 Ω

= 2.5V - 2.0 - A

LGATE

500mA Sink Current - 0.4 1.0 Ω

= 2.5V - 4.0 - A

LGATE

NOTE:

4. Guaranteed by design. Not 100% tested in production.

FN9091.7

May 9, 2006

Page 5

ISL6605

Functional Pin Description

Note: Pin numbers refer to the SOIC package. Check PINOUT diagrams for QFN pin numbers.

UGATE (Pin 1)

Upper gate drive output. Connect to gate of high-side power N-Channel MOSFET.

BOOT (Pin 2)

Floating bootstrap supply pin for the upper gate drive. Connect the bootstrap capacitor between this pin and the PHASE pin. The bootstrap capacitor provides the charge to turn on the upper MOSFET. See the Bootstrap Diode and Capacitor section under DESCRIPTION for guidance in choosing the appropriate capacitor value.

PWM (Pin 3)

The PWM signal is the control input for the driver. The PWM signal can enter three distinct states during operation (see the three-state PWM Input section under DESCRIPTION for further details). Connect this pin to the PWM output of the controller.

GND (Pin 4)

Ground pin. All signals are referenced to this node.

LGATE (Pin 5)

Lower gate drive output. Connect to gate of the low-side power N-Channel MOSFET.

VCC (Pin 6)

Connect this pin to a +5V bias supply. Place a high quality bypass capacitor from this pin to GND.

EN (Pin 7)

Enable input pin. Connect this pin to HIGH to enable and LOW to disable the IC. When disabled, the IC draws less than 1μA bias current.

PHASE (Pin 8)

Connect this pin to the source of the upper MOSFET and the drain of the lower MOSFET. This pin provides a return path for the upper gate driver.

Thermal Pad (in QFN only)

In the QFN package, the pad underneath the center of the IC is a thermal substrate. The PCB “thermal land” design for this exposed die pad should include thermal vias that drop down and connect to one or more buried copper plane(s). This combination of vias for vertical heat escape and buried planes for heat spreading allows the QFN to achieve its full thermal potential. This pad should be either grounded or floating, and it should not be connected to other nodes. Refer to TB389 for design guidelines.

Description

Operation

Designed for speed, the ISL6605 MOSFET driver controls both high-side and low-side N-Channel FETs from one externally provided PWM signal.

A rising edge on PWM initiates the turn-off of the lower MOSFET (see Timing Diagram). After a short propagation delay [t

PDLLGATE

times [t

FLGATE

section. Adaptive shoot-through circuitry monitors the LGATE voltage and determines the upper gate delay time [t

PDHUGATE

drops below 1V. This prevents both the lower and upper MOSFETs from conducting simultaneously or shootthrough. Once this delay period is completed the upper gate drive begins to rise [t on.

A falling transition on PWM indicates the turn-off of the upper MOSFET and the turn-on of the lower MOSFET. A short propagation delay [t upper gate begins to fall [t shoot-through circuitry determines the lower gate delay time, t

PDHLGATE

and the lower gate is allowed to rise after the upper MOSFET gate-to-source voltage drops below 1V. The lower gate then rises [t

RLGATE

], the lower gate begins to fall. Typical fall

] are provided in the Electrical Specifications

] based on how quickly the LGATE voltage

RUGATE

PDLUGATE

] and the upper MOSFET turns

] is encountered before the

FUGATE

]. Again, the adaptive

. The upper MOSFET gate voltage is monitored

], turning on the lower MOSFET.

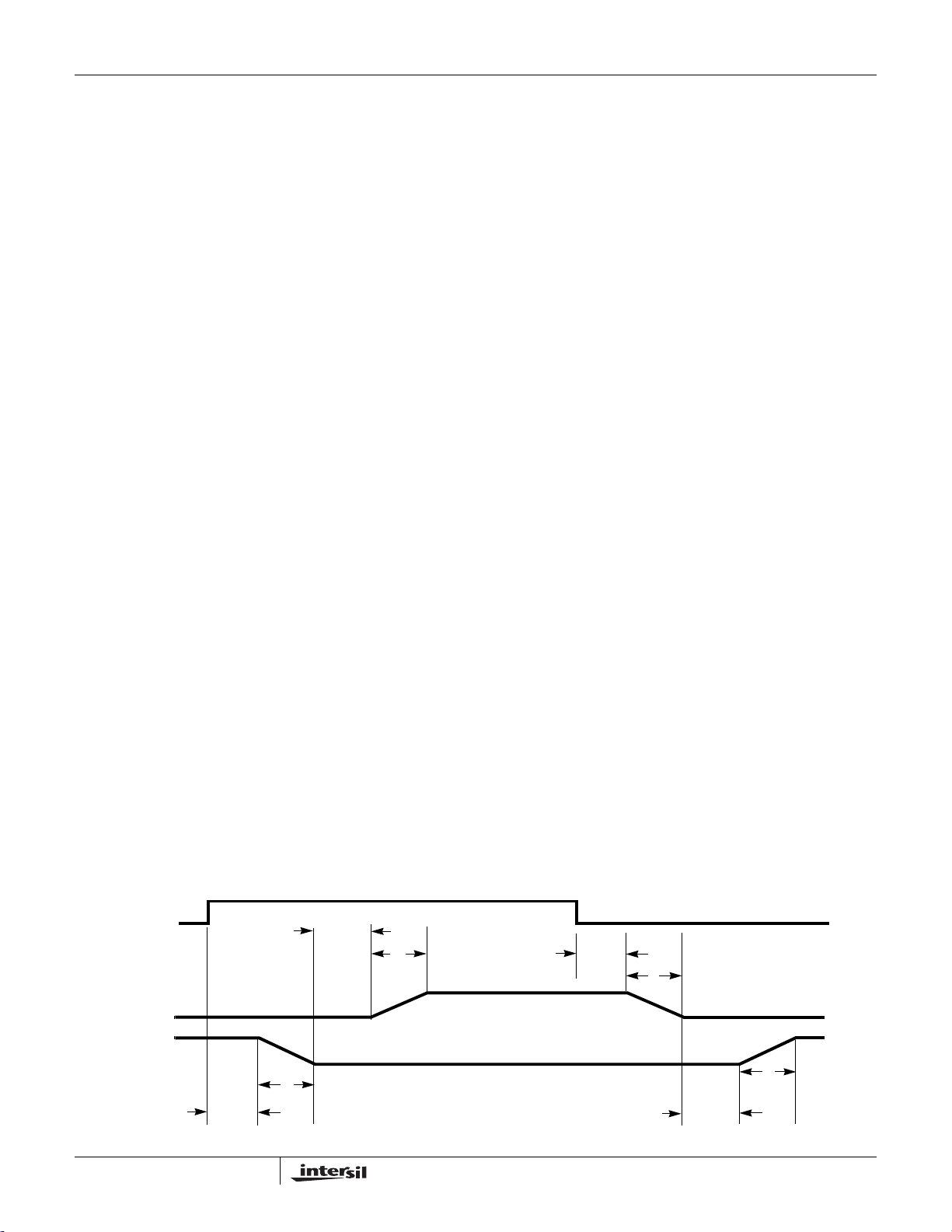

Timing Diagram

PWM

UGATE

LGATE

PDLLGATE

PDHUGATE

FLGATE

RUGATE

PDLUGATE

PDHLGATE

FUGATE

RLGATE

FN9091.7

May 9, 2006

Page 6

ISL6605

This driver is optimized for voltage regulators with large step down ratio. The lower MOSFET is usually sized much larger compared to the upper MOSFET because the lower MOSFET conducts for a much longer time in a switching period. The lower gate driver is therefore sized much larger to meet this application requirement. The 0.4Ω on-resistance and 4A sink current capability enable the lower gate driver to absorb the current injected to the lower gate through the drain-to-gate capacitor of the lower MOSFET and prevent a shoot through caused by the high dv/dt of the phase node.

Three-State PWM Input

A unique feature of the ISL6605 and other Intersil drivers is the addition of a shutdown window to the PWM input. If the PWM signal enters and remains within the shutdown window for a set holdoff time, the output drivers are disabled and both MOSFET gates are pulled and held low. The shutdown state is removed when the PWM signal moves outside the shutdown window. Otherwise, the PWM rising and falling thresholds outlined in the ELECTRICAL SPECIFICATIONS determine when the lower and upper gates are enabled.

Adaptive Shoot-Through Protection

Both drivers incorporate adaptive shoot-through protection to prevent upper and lower MOSFETs from conducting simultaneously and shorting the input supply. This is accomplished by ensuring the falling gate has turned off one MOSFET before the other is allowed to rise.

During turn-off of the lower MOSFET, the LGATE voltage is monitored until it reaches a 1V threshold, at which time the UGATE is released to rise. Adaptive shoot-through circuitry monitors the upper MOSFET gate voltage during UGATE turn-off. Once the upper MOSFET gate-to-source voltage has dropped below a threshold of 1V, the LGATE is allowed to rise.

Internal Bootstrap Diode

This driver features an internal bootstrap Schottky diode. Simply adding an external capacitor across the BOOT and PHASE pins completes the bootstrap circuit.The bootstrap capacitor can be chosen from the following equation:

GATE

BOOT

------------------------

≥

ΔV

BOOT

is the amount of gate charge required to fully

GATE

, of 65nC at 5V and also assume the droop in

GATE

BOOT

term is

where Q charge the gate of the upper MOSFET. The ΔV defined as the allowable droop in the rail of the upper drive. The above relationship is illustrated in Figure 1. As an example, suppose an upper MOSFET has a gate charge, Q the drive voltage over a PWM cycle is 200mV. One will find that a bootstrap capacitance of at least 0.125μF is required.

The next larger standard value capacitance is 0.15μF. A good quality ceramic capacitor is recommended.

2.0

1.8

1.6

1.4

1.2

(uF)

1.0

0.8

BOOT

0.8

0.6

0.4

0.2

20nC

0.2

0.0

20nC

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.

0.0

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

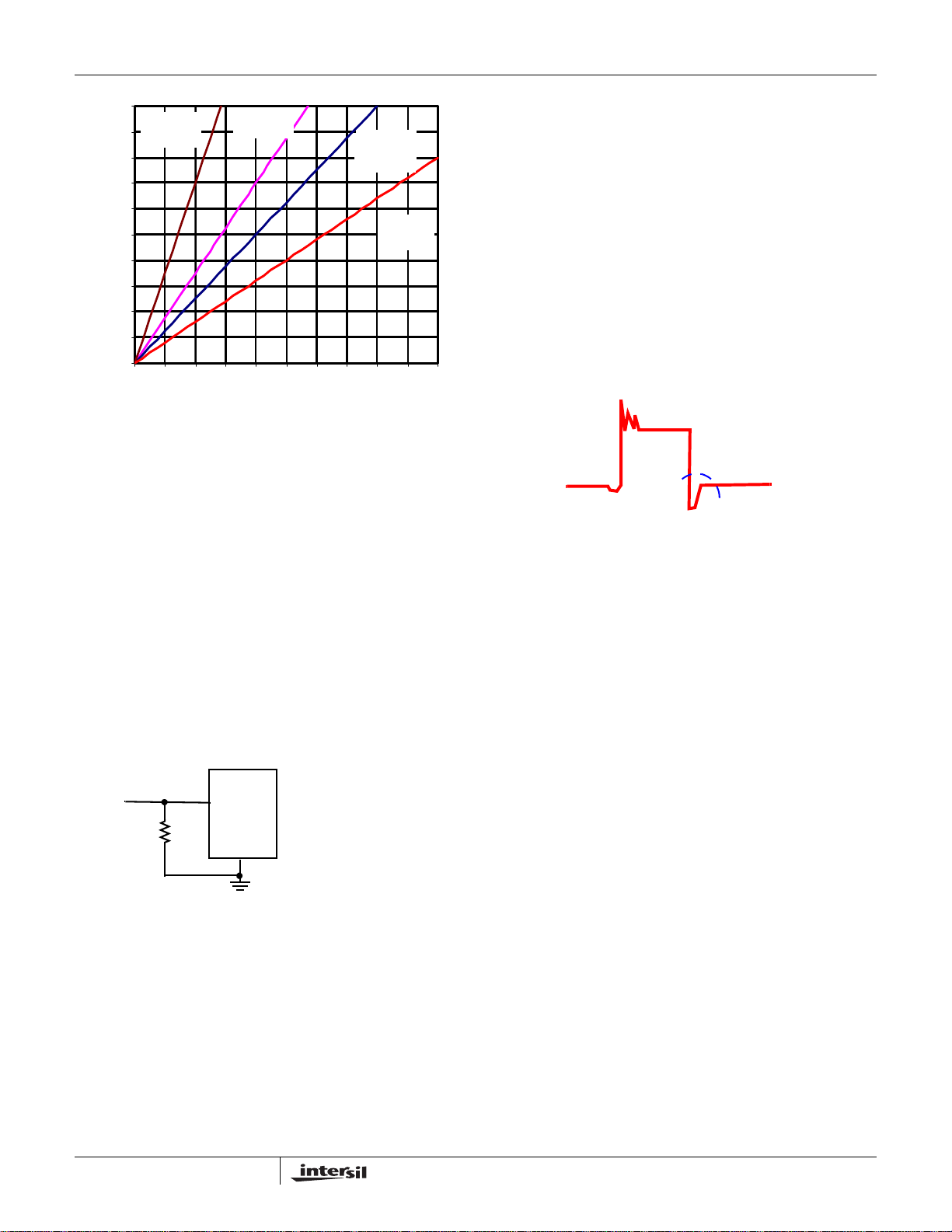

FIGURE 1. BOOTSTRAP CAPACITANCE vs. BOOT RIPPLE

50nC

VOLTAGE

GATE

= 100 nC

=100nC

ΔV

BOOT

(V)

Power Dissipation

Package power dissipation is mainly a function of the switching frequency and total gate charge of the selected MOSFETs. Calculating the power dissipation in the driver for a desired application is critical to ensuring safe operation. Exceeding the maximum allowable power dissipation level will push the IC beyond the maximum recommended operating junction temperature of 125°C. The maximum allowable IC power dissipation for the SO-8 package is approximately 800mW. When designing the driver into an application, it is recommended that the following calculation be performed to ensure safe operation at the desired frequency for the selected MOSFETs. The power dissipated by the driver is approximated as below and plotted as in Figure 2.

where f and V and Q MOSFET selection and any external capacitance added to the gate pins. The I of the driver and is typically negligible.

1.5VUQUVLQ

represent the upper and lower gate rail voltage. QU

are the upper and lower gate charge determined by

+()I

DDQ

is the switching frequency of the PWM signal. VU

DDQ VCC

product is the quiescent power

FN9091.7

May 9, 2006

Page 7

1000

QU=100nC

900

900 800

800 700

700 600

600 500

500 400

400

POWER (mΩ)

300

300 200

200 100

100

=200nC

0 200 400 600 800 1000 1200 1400 1600 1800 2000

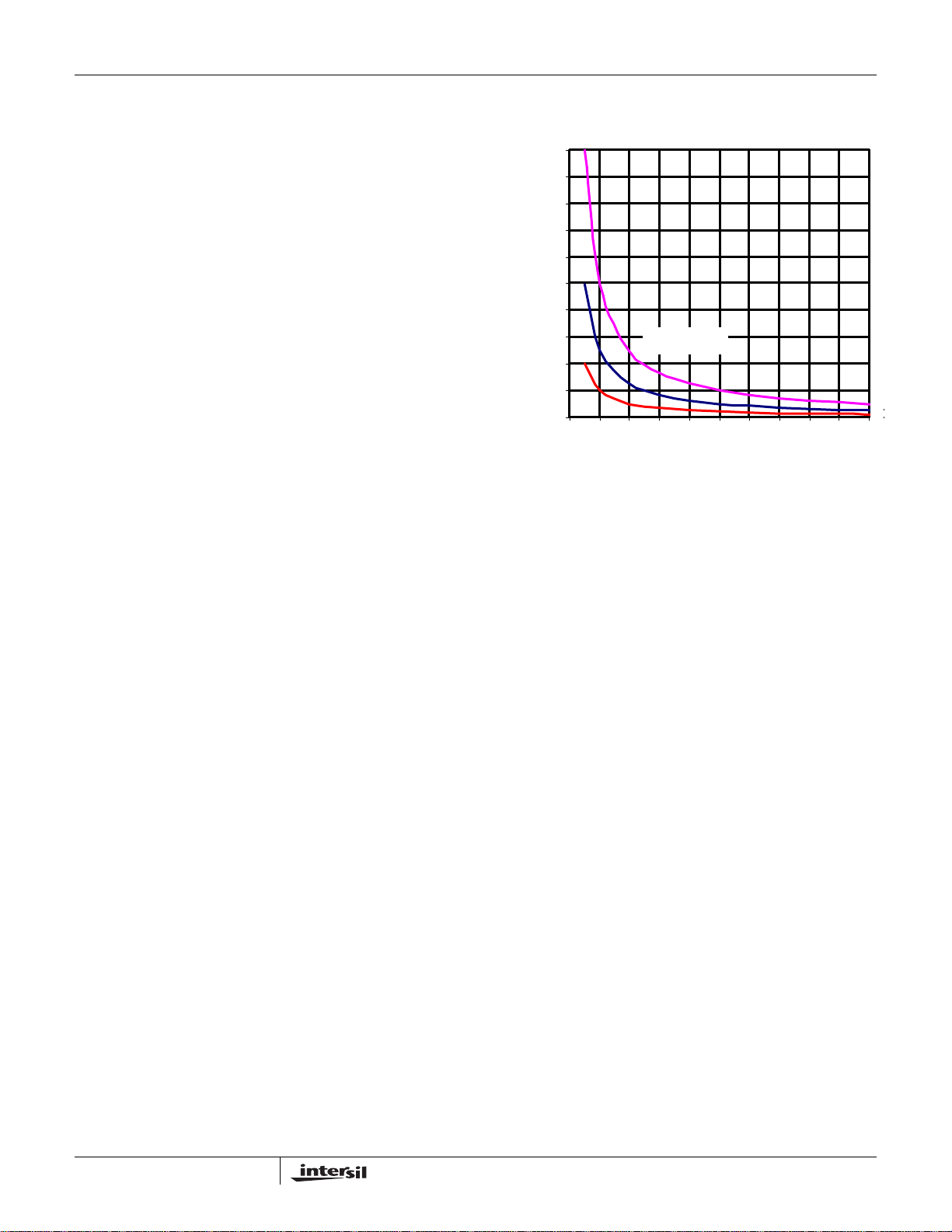

FIGURE 2. POWER DISSIPATION VS. FREQUENCY

QU=50nC Q

=100nC

FREQUENCY (KHZ)

QU=50nC

QL=50nC

QU=20nC

=50nC

Application Information

Fault Mode at Repetitive Startups

At a low VCC (<2V), the Thevenin equivalent of the 20k divider at the PWM pin, as shown in the Block Diagram on page 2, is no longer true; very high impedance will be seen from the PWM pin to GND. Junction leakage currents from the VCC to the resistor tub will tend to pull up the PWM input and falsely trigger the UGATE. If the energy stored in the bootstrap capacitor is not completely discharged during the previous power-down period, then the upper MOSFET could be turned on and generate a spike at the output when VCC ramps up. A 499kΩ resistor at the PWM to GND, as shown in Figure 3, helps bleed the leakage currents, thus eliminating the startup spike.

voltage should be checked at the worst case (maximum VCC and prior to overcurrent trip point), especially for applications with higher than 20A per D

PAK FET. MOSFETs with low parasitic lead inductances, such as multi-SOURCE leads devices (SO-8 and LFPAK), are recommended.

Careful layout would help reduce the negative ringing peak significantly:

- Tie the SOURCE of the upper FET and the DRAIN of the lower FET as close as possible;

- Use the shortest low-impedance trace between the SOURCE of the lower FET and the power ground;

- Tie the GND of the ISL6605 closely to the SOURCE of the lower FET.

PHASE

A resistor placement of R

, as shown in Figure 5, in the

BOOT

earlier design is recommended; it helps eliminate the overcharge of the BOOT capacitor, in terms of voltage stress across the BOOT to PHASE. When needed, 1 to 2 Ohm R

is sufficient and has little impact on the overall

BOOT

efficiency. However, a design with good layout and using MOSFETs with low parasitic lead inductances, such as multi-SOURCE leads devices (SO-8 and LFPAK), is generally not required such a resistor.

PWM

ISL6605

499K

FIGURE 3. 499kΩ RESISTOR

GND

Layout Considerations and MOSFET Selection

The parasitic inductances of the PCB and the power devices (both upper and lower FETs) generate a negative ringing at the trailing edge of the PHASE node. This negative ringing plus the VCC adds charges to the bootstrap capacitor through the internal bootstrap schottky diode when the PHASE node is low. If the negative spikes are too large, especially at high current applications with a poor layout, the voltage on the bootstrap capacitor could exceed the VCC and the device’s maximum rating. The V

BOOT-PHASE

When placing the QFN part on the board, no vias or trace should be running in between pin numbers 1 and 8 since a small piece of copper is underneath the corner for the orientation. In addition, connecting the thermal pad of the QFN part to the power ground with a via, or placing a low noise copper plane underneath the SOIC part is strongly recommended for high switching frequency, high current applications. This is for heat spreading and allows the part to achieve its full thermal potential.

FN9091.7

May 9, 2006

Page 8

ISL6605

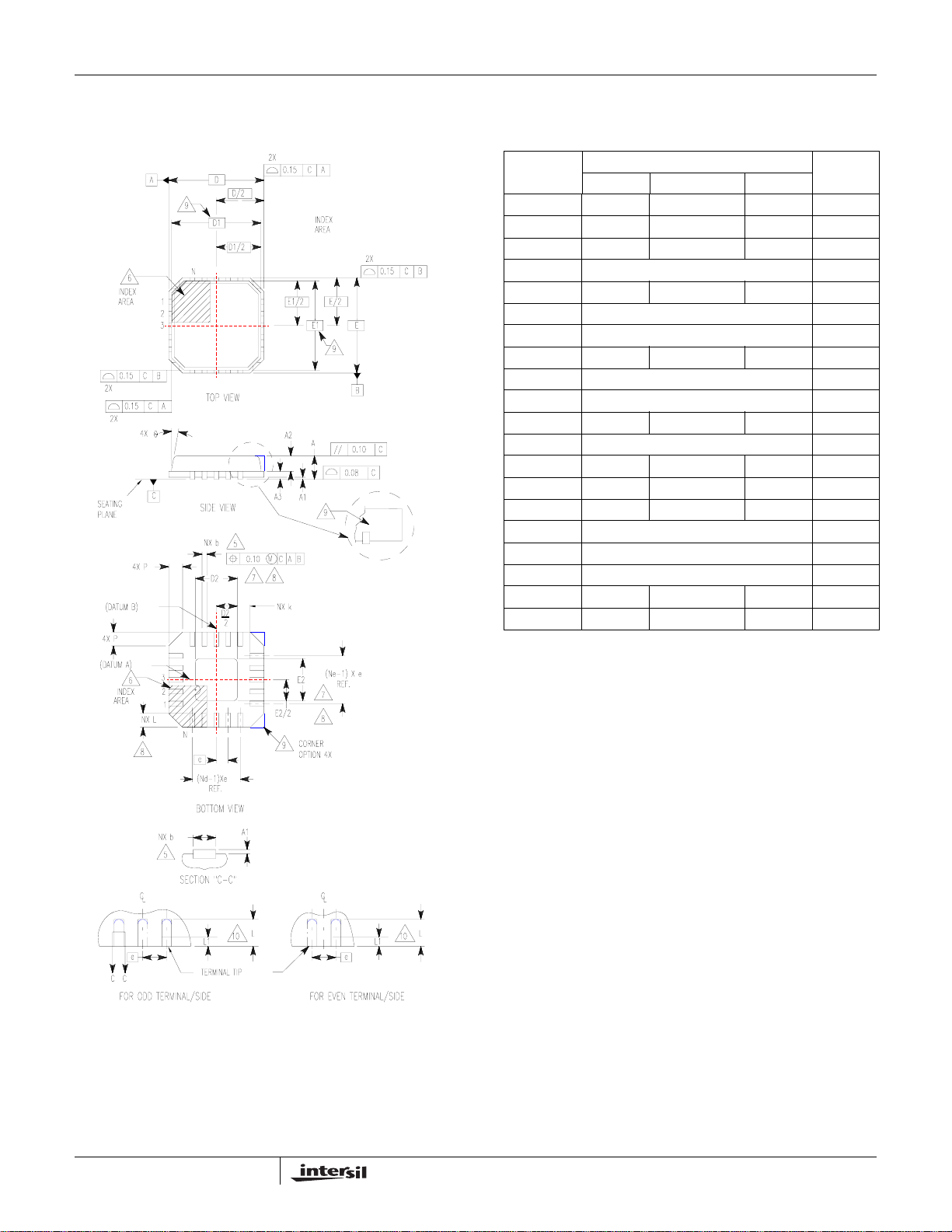

Quad Flat No-Lead Plastic Package (QFN) Micro Lead Frame Plastic Package (MLFP)

L8.3x3

8 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE (COMPLIANT TO JEDEC MO-220VEEC ISSUE C)

MILLIMETERS

SYMBOL

A 0.80 0.90 1.00 -

A1 - - 0.05 -

A2 - - 1.00 9

A3 0.20 REF 9

b 0.23 0.28 0.38 5, 8

D 3.00 BSC -

D1 2.75 BSC 9

D2 0.25 1.10 1.25 7, 8

E 3.00 BSC -

E1 2.75 BSC 9

E2 0.25 1.10 1.25 7, 8

e 0.65 BSC -

k0.25 - -

L 0.35 0.60 0.75 8

L1 - - 0.15 10

N82

Nd 2 3

Ne 2 3

P- -0.609

θ --129

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd and Ne refer to the number of terminals on each D and E.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be located within the zone indicated. The pin #1 identifier may be either a mold or mark feature.

7. Dimensions D2 and E2 are for the exposed pads which provide improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land Pattern Design efforts, see Intersil Technical Brief TB389.

9. Features and dimensions A2, A3, D1, E1, P & θ are present when Anvil singulation method is used and not present for saw singulation.

10. Depending on the method of lead termination at the edge of the package, a maximum 0.15mm pull back (L1) maybe present. L minus L1 to be equal to or greater than 0.3mm.

NOTESMIN NOMINAL MAX

Rev. 1 10/02

FN9091.7

May 9, 2006

Page 9

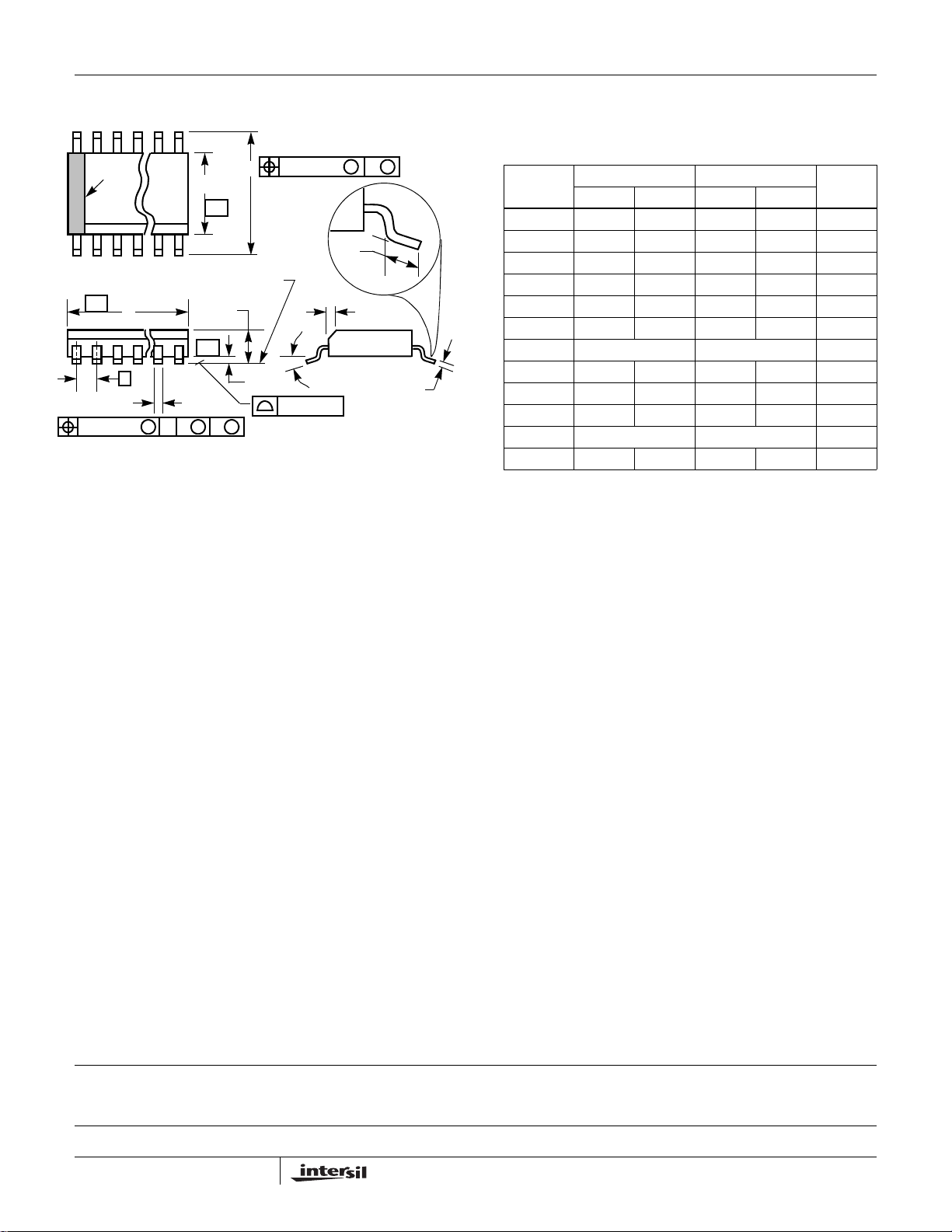

Small Outline Plastic Packages (SOIC)

ISL6605

INDEX AREA

123

-A-

-B-

SEATING PLANE

-C-

0.25(0.010) BM M

h x 45°

0.25(0.010) C AM BS

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of

0.61mm (0.024 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

0.10(0.004)

M8.15 (JEDEC MS-012-AA ISSUE C)

8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0532 0.0688 1.35 1.75 -

A1 0.0040 0.0098 0.10 0.25 -

B 0.013 0.020 0.33 0.51 9

C 0.0075 0.0098 0.19 0.25 -

D 0.1890 0.1968 4.80 5.00 3

E 0.1497 0.1574 3.80 4.00 4

e 0.050 BSC 1.27 BSC -

H 0.2284 0.2440 5.80 6.20 -

h 0.0099 0.0196 0.25 0.50 5

L 0.016 0.050 0.40 1.27 6

N8 87

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 1 6/05

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiari es.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN9091.7

May 9, 2006
