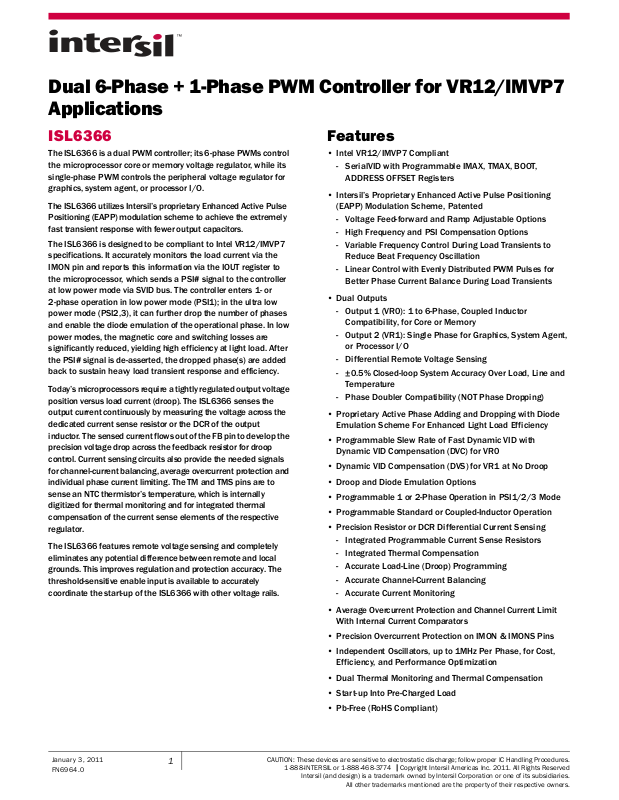

Datasheet isl6366 Datasheets

Dual 6-Phase + 1-Phase PWM Controller for VR12/IMVP7
Applications

ISL6366

The ISL6366 is a dual PWM controller; its 6-phase PWMs control
the microprocessor core or memory voltage regulator, while its
single-phase PWM controls the peripheral voltage regulator for
graphics, system agent, or processor I/O.

The ISL6366 utilizes Intersil’s proprietary Enhanced Active Pulse
Positioning (EAPP) modulation scheme to achieve the extremely
fast transient response with fewer output capacitors.

The ISL6366 is designed to be compliant to Intel VR12/IMVP7
specifications. It accurately monitors the load current via the
IMON pin and reports this information via the IOUT register to
the microprocessor, which sends a PSI# signal to the controller
at low power mode via SVID bus. The controller enters 1- or
2-phase operation in low power mode (PSI1); in the ultra low
power mode (PSI2,3), it can further drop the number of phases
and enable the diode emulation of the operational phase. In low
power modes, the magnetic core and switching losses are
significantly reduced, yielding high efficiency at light load. After
the PSI# signal is de-asserted, the dropped phase(s) are added
back to sustain heavy load transient response and efficiency.

Today’s microprocessors require a tightly regulated output voltage
position versus load current (droop). The ISL6366 senses the
output current continuously by measuring the voltage across the
dedicated current sense resistor or the DCR of the output
inductor. The sensed current flows out of the FB pin to develop the
precision voltage drop across the feedback resistor for droop
control. Current sensing circuits also provide the needed signals
for channel-current balancing, average overcurrent protection and
individual phase current limiting. The TM and TMS pins are to
sense an NTC thermistor’s temperature, which is internally
digitized for thermal monitoring and for integrated thermal
compensation of the current sense elements of the respective
regulator.

The ISL6366 features remote voltage sensing and completely
eliminates any potential difference between remote and local
grounds. This improves regulation and protection accuracy. The
threshold-sensitive enable input is available to accurately
coordinate the start-up of the ISL6366 with other voltage rails.

Features

• Intel VR12/IMVP7 Compliant

- SerialVID with Programmable IMAX, TMAX, BOOT,
ADDRESS OFFSET Registers

• Intersil’s Proprietary Enhanced Active Pulse Positioning
(EAPP) Modulation Scheme, Patented

- Voltage Feed-forward and Ramp Adjustable Options

- High Frequency and PSI Compensation Options

- Variable Frequency Control During Load Transients to

Reduce Beat Frequency Oscillation

- Linear Control with Evenly Distributed PWM Pulses for

Better Phase Current Balance During Load Transients

•Dual Outputs

- Output 1 (VR0): 1 to 6-Phase, Coupled Inductor

Compatibility, for Core or Memory

- Output 2 (VR1): Single Phase for Graphics, System Agent,

or Processor I/O

- Differential Remote Voltage Sensing

- ±0.5% Closed-loop System Accuracy Over Load, Line and

Temper ature

- Phase Doubler Compatibility (NOT Phase Dropping)

• Proprietary Active Phase Adding and Dropping with Diode
Emulation Scheme For Enhanced Light Load Efficiency

• Programmable Slew Rate of Fast Dynamic VID with
Dynamic VID Compensation (DVC) for VR0

• Dynamic VID Compensation (DVS) for VR1 at No Droop

• Droop and Diode Emulation Options

• Programmable 1 or 2-Phase Operation in PSI1/2/3 Mode

• Programmable Standard or Coupled-Inductor Operation

• Precision Resistor

- Integrated Programmable Current Sense Resistors

- Integrated Thermal Compensation

- Accurate Load-Line (Droop) Programming

- Accurate Channel-Current Balancing

- Accurate Current Monitoring

or DCR Differential Current Sensing

January 3, 2011
FN6964.0

• Average Overcurrent Protection and Channel Current Limit
With Internal Current Comparators

• Precision Overcurrent Protection on IMON & IMONS Pins

• Independent Oscillators, up to 1MHz Per Phase, for Cost,
Efficiency, and Performance Optimization

• Dual Thermal Monitoring and Thermal Compensation

• Start-up Into Pre-Charged Load

• Pb-Free (RoHS Compliant)

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.

All other trademarks mentioned are the property of their respective owners.

|Copyright Intersil Americas Inc. 2011. All Rights Reserved

Ordering Information

ISL6366

PART NUMBER

(Note 1, 2, 3)

PART

MARKING

TEMP. RANGE

(°C)

PACKAGE

(Pb-Free)

PKG.

DWG. #

ISL6366CRZ ISL6366 CRZ 0 to +70 60 Ld 7x7 QFN L60.7x7

ISL6366IRZ ISL6366 IRZ -40 to +85 60 Ld 7x7 QFN L60.7x7

NOTES:

1. Add “-T*” suffix for tape and reel. Please refer to TB347 for details on reel specifications.

2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte
tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb­free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

3. For Moisture Sensitivity Level (MSL), please see device information page for ISL6366

. For more information on MSL please see techbrief TB363.

Pin Configuration

ISL6366

(60 LD 7X7 QFN)

TOP VIEW

ISEN6+

ISEN6-

ISEN3-

ISEN1+

ISEN1-

ISEN4+

ISEN4-

ISEN2+

ISEN2-

NC4

NC5

EN_PWR

RAMP_ADJ

RGND

VSEN

HFCOMP

PSICOMP

FB

COMP

DVC

IMON

SVDATA

SVALERT#

SVCLK

ISEN3+

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16 17 18 19 20 21 22 23 24

54 5358 57 56 5560 59

52 51 50 49 48 47

GND

ISEN5+

ISEN5-

26

25

28

27

EN_VTT

PWM3

PWM6

46

45

PWM1

44

PWM4

43

PWM2

42

PWM5

41

VCC

40

FS_DRP

RSET

39

38

SICI

37

TM

BTS_DES_TCOMPS

36

BT_FDVID_TCOMP

35

NPSI_DE_IMAX

34

ADDR_IMAXS_TMAX

33

PWMS

32

31

ISENS-

29

30

NC2

NC1

NC3

VR_RDY

IMONS

VR_HOT#

HFCOMPS/DVCS

2

VR_RDYS

FBS

VSENS

COMPS

RGNDS

FSS_DRPS

TMS

ISENS+

FN6964.0

January 3, 2011

Driver Recommendation

ISL6366

GATE

QUIESCENT

DRIVER

ISL6627 1.0 5V Single Yes No For PSI# channel and its coupled channel in

ISL6620
ISL6620A

ISL6596 0.19 5V Single No No For dropped phases or all channels without DE

ISL6610
ISL6610A

ISL6611A 1.25 5V Dual No No Phase Doubler with Integrated Drivers, up to 12-

ISL6617 5.0 N/A N/A No No PWM Doubler for DrMOS, up to 12 or 24-Phase.

ISL6625 1.2 12V Single Yes Yes For PSI# channel and its coupled channel in

ISL6622 5.5 12V Single Yes Yes For PSI# channel and its coupled channel in

ISL6622A
ISL6622B

ISL6625A 1.0 12V Single No No For dropped phases or all channels without DE

NOTE: Intersil 5V and 12V drivers are mostly pin-to-pin compatible and allow for dual footprint layout implementation to optimize MOSFET selection and
efficiency. 5V Drivers are more suitable for high frequency and high efficiency applications.

CURRENT (mA)

1.2 5V Single Yes No For PSI# channel and its coupled channel in

0.24 5V Dual No No For dropped phases or all channels without DE

5.5 12V Single Yes No For PSI# channel and its coupled channel in

DRIVE

VOLTAGE

# OF

DRIVERS

DIODE EMULATION

(DE)

GATE DRIVE

DROP

(GVOT) COMMENTS

coupled inductor applications or all channels

coupled inductor applications or all channels.
Shorter body diode conduction time when enters
PSI2 mode at a fixed voltage.

Phase. For all channels with DE Disabled

For all channels with DE Disabled

coupled inductor applications or all channels

coupled inductor applications or all channels.
Shorter body diode conduction time when enters
PSI2 mode at a fixed voltage.

coupled inductor applications or all channels.
Shorter body diode conduction time when enters
PSI2 mode at a fixed voltage.

3

FN6964.0

January 3, 2011

ISL6366

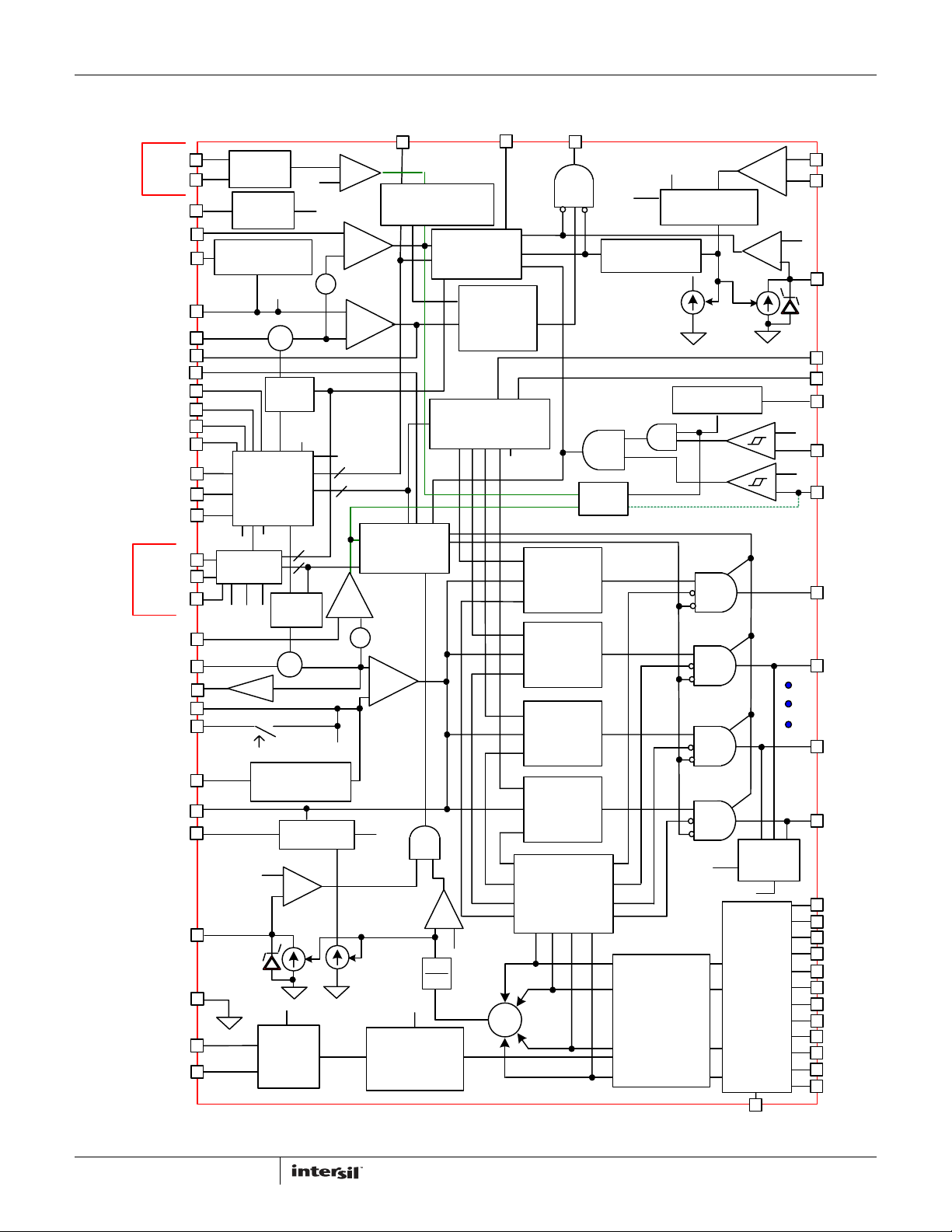

ISL6366 Internal Block Diagram

FSS_DRPS

ISL6366A

& ISL6367

ONLY;
ISL6366
= NC4-5

BTS_DES_TCOMPS

BT_FDVID_TCOMP

ADDR_IMAXS_TMAX

ISL6367

ONLY;

ISL6366 &

ISL6366A

= NC1-3

“SICI” FOR

“IAUTO” FOR

ISL6366A &

ISENIN+

ISENIN-

VSENS

HFCOMPS/DVCS

RGNDS

COMPS

VR_RDY

NPSI_DE_IMAX

SVCLK

SVALERT#

SVDATA

PMALERT#

I2DATA

PSICOMP

HFCOMP

ISL6366:

ISL6367

VR_HOT#

TMS

FBS

I2CLK

VSEN

RGND

DVC

FB

COMP

SICI

IMON

GND

TM

INPUT
CURRENT
MONITOR

THERMAL
MONITOR

HIGH FREQUENCY

COMPENSATION

SVID BUS

INTERFA CE

TCOMP

I2C /PMBUS
INTERFA CE

THGS

IIN

THG

X4/3

PSI#

HIGH FREQUENCY

1.11V

1.15V

IIN

I_TRIP

IDROOPS

+

+

DAC &

OFFSET

TCOMPS

PSI#

DAC &

OFFSET

+

REF

+

IDROOP

COMPENSATION

AUTO PHASE

SHEDDING

+

OCP

-

TMAX

THERMAL

MONITOR

THGS

+

-

THG

-

OCP

+

+

OVP

-

175mV

+

E/A

-

TMAX

VR1 REGs

VR0 REGs

OVP

-

+

+

-

SHED

IDROOP

VR1: CLOCK AND

RAMP GENERATOR

SOFT-START

AND

FAULT LOGIC

175mV

+

E/A

-

-

TCOMP

TEMPERATURE

COMPENSATION

GAIN ADJUST

1
N

VR_RDYS

SOFT-START

AND

FAULT LOGIC

EAPP

MODULATOR

VR0: CLOCK AND

RAMP GENERATOR

N

OCP

+

I_TRIP

Σ

PWMS

EAPP

MODULATOR

EAPP

MODULATOR

EAPP

MODULATOR

EAPP

MODULATOR

CHANNEL
CURRENT
BALANCE

AND PEAK

CURRENT LIMIT

THGS

AVERAGE & PEAK

CURRENT LIMIT

LATCH

TEMPERATURE

COMPENSATION

TCOMPS

COMPENSATION

IDROOPS

RESET

TEMPERATURE

POWER-ON

RESET (POR)

SHED

E/A

OCP

CHANNEL

DETECT

N

CHANNEL
CURRENT

SENSE

-

ISENS+

+

ISENS-

1.11V

-

+

IMONS

1.15V

FS_DRP

RAMP_ADJ

VCC

0.85V

-

+

-

+

0.85V

EN_VTT

EN_PWR_CFP

CFP FOR
ISL6367 &
ISL6366A

PWM1

PWM2

PWM5

PWM6

ISEN1+

ISEN1-

ISEN2+

ISEN2-

ISEN3+

ISEN3-

ISEN4+

ISEN4-

ISEN5+

ISEN5-

ISEN6+

ISEN6-

RSET

4

FN6964.0

January 3, 2011

ISL6366

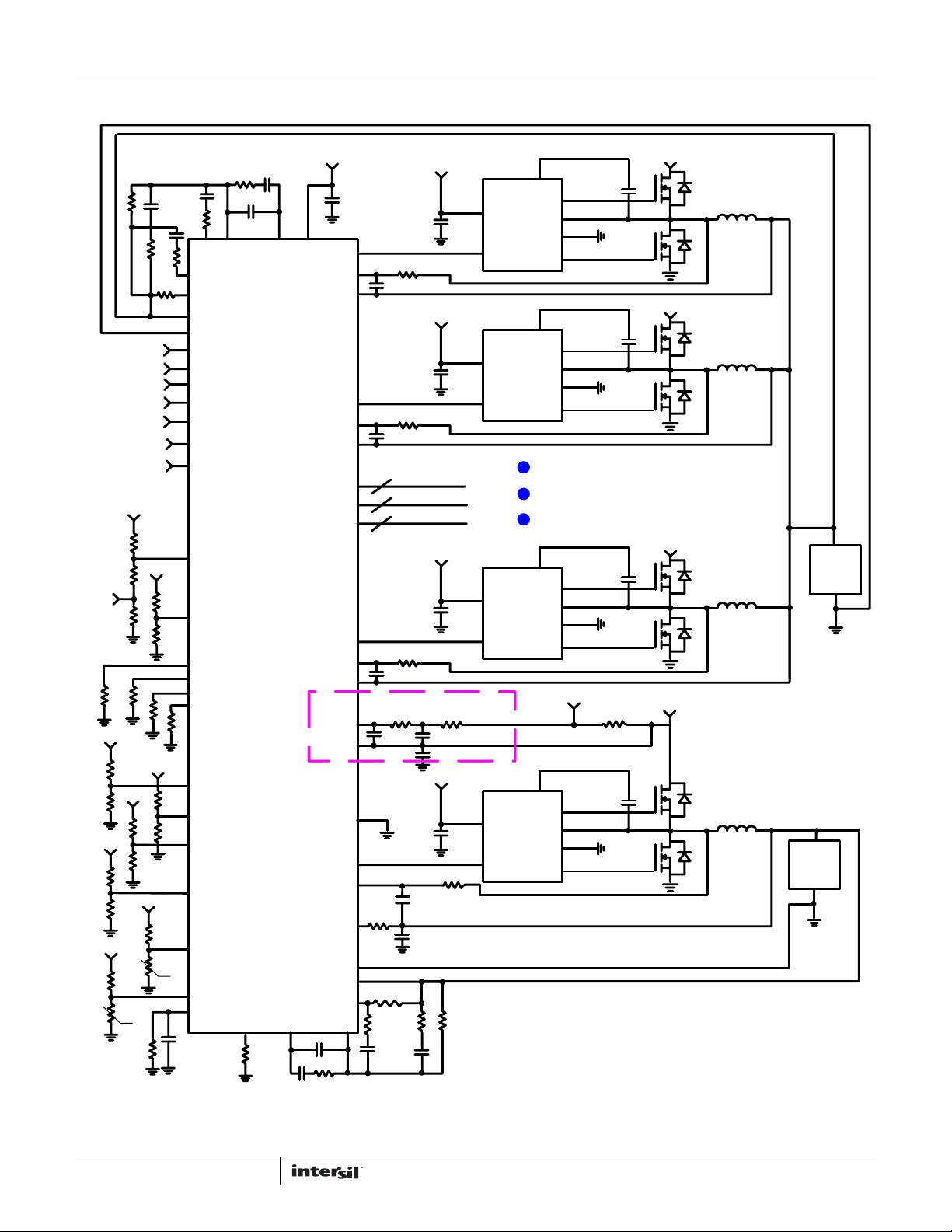

Typical Application: 6-Phase Standard-Inductor VR and 1-Phase VR

SVDATA

SVALERT#

SVCLK

VR_RDY

VR_RDYS

VR_HOT#

CFP

+5V

+5V

+5V

+5V

NTC

VINF

VTT

VINF

+5V

PSICOMP

HFCOMP

VSEN

RGND
EN_VTT

EN_PWR

RAMP_ADJ

IMON
IMONS
FS_DRP
FSS_DRPS

+5V

BTS_DES_TCOMPS

BT_FDVID_TCOMP

ADDR_IMAXS_TMAX

NPSI_DE_IMAX

TMS

NTC

TM
SICI

FBDVC COMP

ISL6366

HFCOMPS/DVCS

RSET

VCC

COMPS

+5V

PWM1

ISEN1-

ISEN1+

PWM2

ISEN2-

ISEN2+

PWM6

ISEN6-

ISEN6+

ISENIN-

ISENIN+

GND

PWMS

ISENS-

ISENS+

RGNDS

VSENS

FBS

+5V

VCC

PWM

+5V

VCC

PWM

PWM3-5

ISEN3-5-

ISEN2-5+

+5V

VCC

PWM

USED WITH ISL6366A/67

R

ISENIN1

R

+5V

ISENIN2

VCC

PWM

ISL6627
DRIVER

ISL6627
DRIVER

ISL6596
DRIVER

ISL6627
DRIVER

BOOT

BOOT

BOOT

BOOT

UGATE

PHASE

GND

LGATE

UGATE

PHASE

GND

LGATE

UGATE

PHASE

GND

LGATE

VIN

UGATE

PHASE

GND

LGATE

R

SENIN

VINF

VINF

VINF

VINF

GPU

LOAD

CPU

LOAD

NTC: BETA = 3477

5

FN6964.0

January 3, 2011

ISL6366

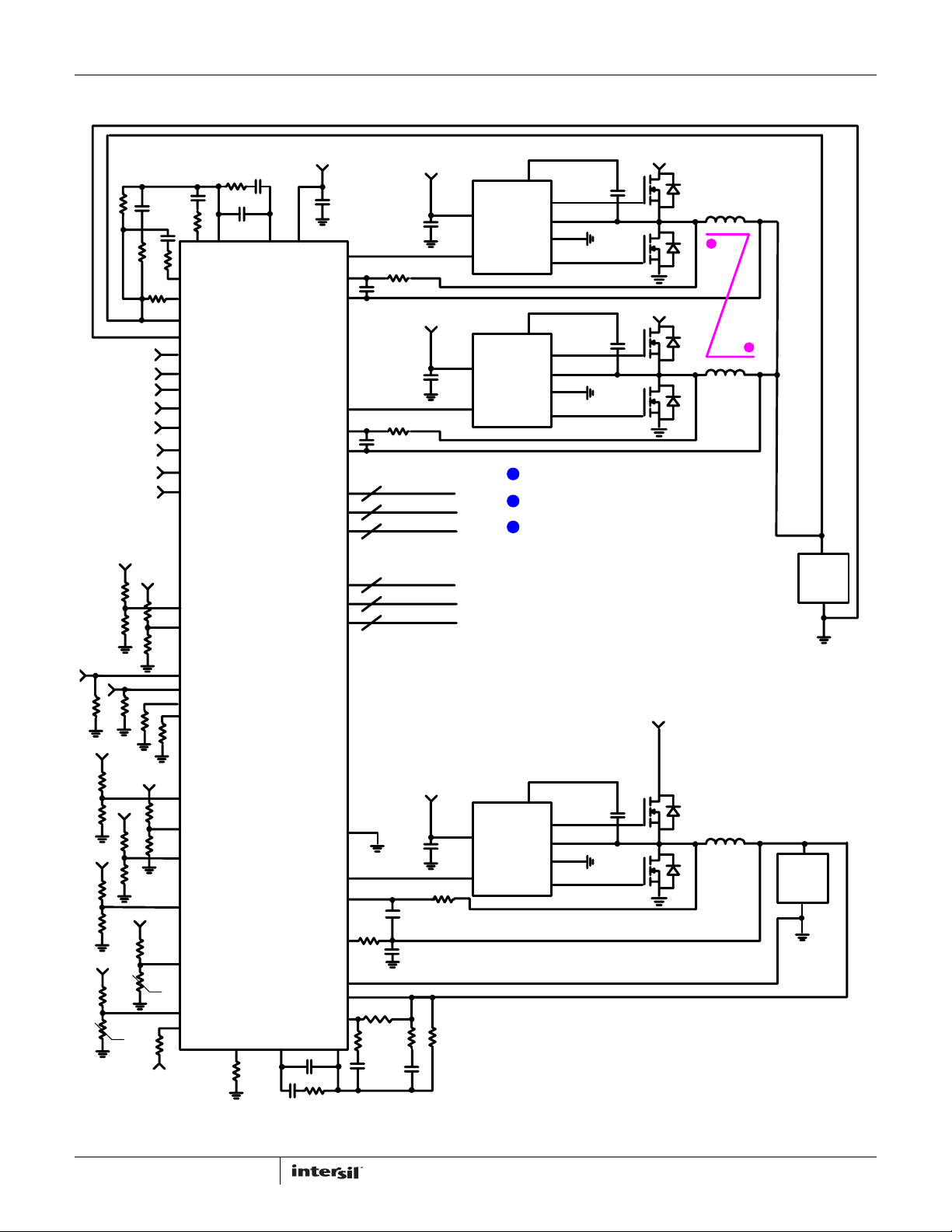

Typical Application: 6-Phase Coupled-Inductor VR and 1-Phase VR

VTT

SVDATA

SVALERT#

SVCLK

VR_RDY

VR_RDYS

VR_HOT#

OVP

VIN

VIN

FBDVC COMP

PSICOMP

HFCOMP

VSEN

RGND
EN_VTT

EN_PWR

RAMP_ADJ

ISL6366

VCC

+5V

PWM1

ISEN1-

ISEN1+

PWM4

ISEN4-

ISEN4+

+5V

+5V

PWM2/5

ISEN2/5-

ISEN2/5+

PWM3/6

ISEN3/6-

ISEN3/6+

VCC

PWM

VCC

PWM

ISL6627
DRIVER

ISL6627
DRIVER

BOOT

VIN

UGATE

PHASE

GND

LGATE

VIN

BOOT

UGATE

PHASE

GND

LGATE

CPU

LOAD

+5V

+5V

+5V

+5V

+5V

+5V

NTC

NTC

+5V

NTC: BETA = 3477

IMON
IMONS
FS_DRP
FSS_DRPS

BTS_DES_TCOMPS

BT_FDVID_TCOMP

ADDR_IMAXS_TMAX

NPSI_DE_IMAX

TMS

TM

SICI

RSET

HFCOMPS/DVCS

COMPS

GND

PWMS

ISENS-

ISENS+

RGNDS

VSENS

FBS

+5V

VCC

PWM

VIN

BOOT

UGATE

ISL6627
DRIVER

PHASE

GND

LGATE

NTC1 NETWORK IS NOT NEEDED
IF TMS IS USED FOR VR1, GPU

GPU

LOAD

6

FN6964.0

January 3, 2011

ISL6366

Table of Contents

Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Thermal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Recommended Operating Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Typical Performance Curves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Functional Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Multiphase Power Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Interleaving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PWM Modulation Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

PWM and PSI# Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Diode Emulation Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Switching Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Current Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Channel-Current Balance for VR0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Voltage Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Load-Line Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Output-Voltage Offset Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Dynamic VID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Operation Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Enable and Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Soft-Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Current Sense Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Fault Monitoring and Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

VR_Ready Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Overcurrent Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Thermal Monitoring (VR_HOT#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Temperature Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Integrated Temperature Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Design Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

External Temperature Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Hard-wired Registers (Patent Pending). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Dynamic VID Compensation (DVC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Disabling Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

SVID Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

General Design Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Power Stages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Current Sensing Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Load-Line Regulation Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Output Filter Design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Switching Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Input Capacitor Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Layout and Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Pin Noise Sensitivity, Design and Layout Consideration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Component Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Powering Up And Open-Loop Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Voltage-Regulator (VR) Design Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

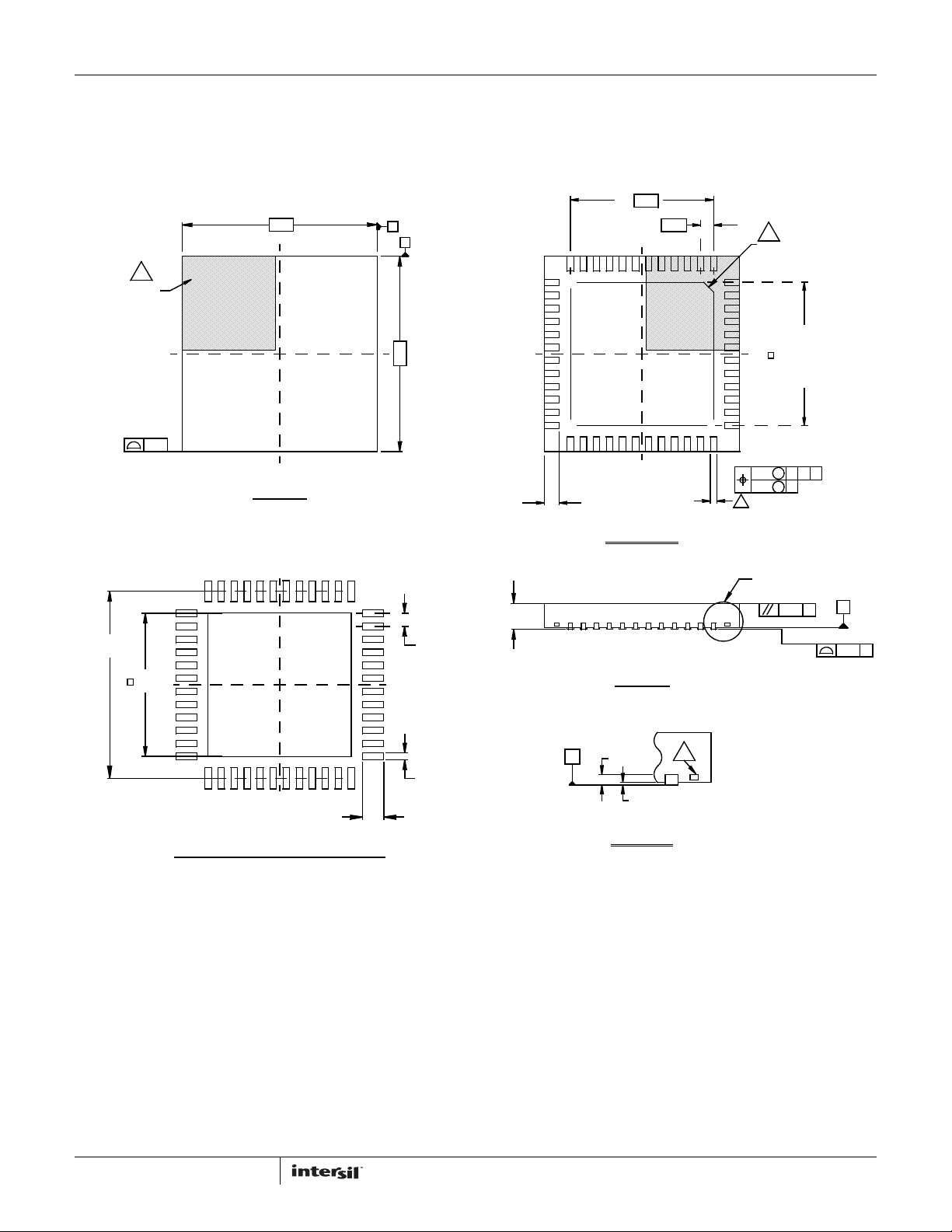

Package Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7

FN6964.0

January 3, 2011

ISL6366

Absolute Maximum Ratings Thermal Information

VCC, VR_RDY, VR_RDYS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6V

NC4, NC5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND -0.3V to 27V

All Other Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND -0.3V to V

CC

+ 0.3V

Recommended Operating Conditions

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5V ±5%

Ambient Temperature

ISL6366CRZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C

ISL6366IRZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product
reliability and result in failures not covered by warranty.

NOTES:

4. θ

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See Tech

JA

Brief TB379.

5. For θ

, the “case temp” location is the center of the exposed metal pad on the package underside.

JC

Thermal Resistance (Notes 4, 5) θ

60 Ld 7x7 QFN Package . . . . . . . . . . . . . . . 24 1.5

Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150°C

Maximum Storage Temperature Range . . . . . . . . . . . . . .-65°C to +150°C

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

(°C/W) θ

JA

JC

(°C/W)

Electrical Specifications Recommended Operating Conditions, V

operating temperature range.

PARAMETER TEST CONDITIONS

= 5V, Unless Otherwise specified. Boldface limits apply over the

CC

MIN

(Note 7) TYP

MAX

(Note 7) UNITS

VOLTAGE REGULATOR (VR) ADDRESS

Multiple-Phase Voltage Regulator (VR0) ADDRESS Hexadecimal Format 0 EVN C -

Single-Phase Voltage Regulator (VR1) ADDRESS Hexadecimal Format 1 ODD 7 -

VCC SUPPLY CURRENT

Nominal Supply VCC = 5VDC; EN_PWR = 5VDC; RT = 125kΩ, ISEN1-6 = 0µA 23 28 34.5 mA

Shutdown Supply VCC = 5VDC; EN_PWR = 0VDC; RT = 125kΩ 16.5 22 28.5 mA

POWER-ON RESET AND ENABLE

VCC Rising POR Threshold 4.30 4.40 4.50 V

VCC Falling POR Threshold 3.75 3.90 4.0 V

EN_PWR_FT Rising Threshold 0.830 0.850 0.870 V

EN_PWR_FT Falling Threshold 0.730 0.750 0.770 V

EN_VTT Rising Threshold 0.830 0.850 0.870 V

EN_VTT Falling Threshold 0.730 0.750 0.770 V

DAC (VID+OFFSET)

System Accuracy of ISL6366CRZ
(DAC = 1V to 2.155 V, T

System Accuracy of ISL6366CRZ
(DAC = 0.8V to 1V, T

System Accuracy of ISL6366CRZ
(DAC = 0.25V to 0.8V, T

System Accuracy of ISL6366IRZ
(DAC = 1V to 2.155V, T

System Accuracy of ISL6366IRZ
(DAC = 0.8V to 1V, T

System Accuracy of ISL6366IRZ
(DAC = 0.25V to 0.8V, T

= 0°C to +70°C)

J

= 0°C to +70°C)

J

= 0°C to +70°C)

J

= -40°C to +85°C)

J

= -40°C to +85°C)

J

= -40°C to +85°C)

J

(Note 6, Closed-Loop) -0.5 - 0.5 %VID

(Note 6, Closed-Loop) -5 - 5 mV

(Note 6, Closed-Loop) -8 - 8 mV

(Note 6, Closed-Loop) -0.6 - 0.6 %VID

(Note 6, Closed-Loop) -6 - 6 mV

(Note 6, Closed-Loop) -9 - 9 mV

8

FN6964.0

January 3, 2011

ISL6366

Electrical Specifications Recommended Operating Conditions, V

operating temperature range.

PARAMETER TEST CONDITIONS

(Continued)

= 5V, Unless Otherwise specified. Boldface limits apply over the

CC

MIN

(Note 7) TYP

MAX

(Note 7) UNITS

OSCILLATORS

Accuracy of VR0 Switching Frequency Setting RFS = 125kΩ 360 400 440 kHz

Accuracy of VR1 Switching Frequency Setting R

Maximum Switching Frequency

Minimum Switching Frequency

Soft-start Ramp Rate for VR0

Soft-start Ramp Rate for VR1 2.5 2.8 3.2 mV/µs

Maximum Duty Cycle Per PWM for VR0 400kHz, V

Maximum Duty Cycle for VR1 400kHz 69 83 96 %

= 125kΩ 360 400 440 kHz

FSS

1.0 --MHz

--0.08 MHz

FDVID = 10mV/µs 2.5 2.8 3.2 mV/µs

FDVID = 20mV/µs 5.0 5.55 6.2 mV/µs

< 1.8V 95 97 99 %

RAMP

PWM GENERATOR (Note 7)

Sawtooth Amplitude for VR0 R

Sawtooth Amplitude for VR0 R

Sawtooth Amplitude for VR0 R

Maximum Adjustable Ramp for VR0 Applicable to VR0 Only - 3 - V

Minimum Adjustable Ramp for VR0 Applicable to VR0 Only - 0.3 - V

Sawtooth Amplitude for VR1 Applicable to VR1 Only - 2.0 - V

RAMP_ADJ

RAMP_ADJ

RAMP_ADJ

= Open, all Switching Frequency - 1 - V

= 2.4MΩ to 12V, 500kHz - 0.5 - V

= 1.2MΩ to 12V, 500kHz - 1 - V

ERROR AMPLIFIER

Open-Loop Gain RL = 10kΩ to ground - 96 - dB

Open-Loop Bandwidth

Slew Rate

Maximum Output Voltage No Load 4.1 4.4 4.6 V

Output High Voltage 2mA Load 3.8 4.1 4.6 V

Output Low Voltage 2mA Load 0.85 0.96 1.2 V

-80-MHz

-25-V/µs

PWM OUTPUT (PWM[6:1] and PWMS)

Sink Impedance PWM = Low with 1mA Load - 170 - Ω

Source Impedance PWM = High, Forced to 3.7V - 150 - Ω

PWM PSI2/3/Decay Mid-Level 0.4mA Load 38 40 44 %VCC

CURRENT SENSE AND OVERCURRENT PROTECTION

Sensed Current Tolerance of VR0 ISEN1-6 = 40µA;

CS Offset and Mirror Error Included, R

ISEN1-6 = 80µA;
CS Offset and Mirror Error Included, R

Sensed Current Tolerance of VR1 ISENS = 40µA; R

ISENS = 80µA; R

VR0 Average Overcurrent Trip Level at Normal
CCM PWM Mode

VR0 Average Overcurrent Trip Level at PSI1/2/3
Mode

VR0 Average Overcurrent Trip Level at PSI1 Mode N = 6 Drop to 2-Phase - 100 - µA

CS Offset and Mirror Error Included, R

N = 6 Drop to 1-Phase - 99 - µA

= 100Ω 33 37 41 µA

ISENS

= 100Ω 69.5 75 81 µA

ISENS

= 12.8kΩ

SET

= 12.8kΩ

SET

= 12.8kΩ - 100 - µA

SET

36.5 40.6 44 µA

75.5 80.3 85.5 µA

9

FN6964.0

January 3, 2011

ISL6366

Electrical Specifications Recommended Operating Conditions, V

operating temperature range.

PARAMETER TEST CONDITIONS

VR0 Peak Current Limit for Individual Channel - 139 - µA

VR1 Average Overcurrent Trip Level CS Offset and Mirror Error Included, R

IMON, IMOS Clamped and OCP Trip Level 1.085 1.12 1.14 V

IMON, IMONS VOLTAGE IMAX (FF) TRIP POINT Higher than this will be “FF” 875 880 887 mV

(Continued)

= 5V, Unless Otherwise specified. Boldface limits apply over the

CC

MIN

(Note 7) TYP

= 100Ω - 100 - µA

ISENS

MAX

(Note 7) UNITS

THERMAL MONITORING

VR_HOT# Pull-down Impedance 8.4 9.2 13 Ω

TM Voltage at Thermal Trip (Programmable via
TMAX)

VR_HOT# and Thermal Alert# Hysteresis -3-°C

Leakage Current of VR_HOT# With external pull-up resistor connected to VCC - - 1 µA

TMAX = +100°C, see Table 7 - 39.12 - %VCC

VR READY AND PROTECTION MONITORS

Leakage Current of VR_RDY, VR_RDYS With pull-up resistor externally connected to VCC - - 1 µA

VR READY Low Voltage 4mA Load - - 0.3 V

Overvoltage Protection Threshold Prior to the End of Soft-start - 2.30 - V

After the End of Soft-start, the voltage above VID 160 179 200 mV

Overvoltage Protection Reset Hysteresis 98 107 117 mV

SVID BUS

ALERT# Pull-down Impedance -1113 Ω

SVDATA -1113 Ω

SVCLK Maximum Speed - 26.5 - MHz

SVCLK Minimum Speed - 13.0 - MHz

NOTES:

6. These parts are designed and adjusted for accuracy with all errors in the voltage loop included.

7. Compliance to datasheet limits is assured by one or more methods: production test, characterization and/or design.

10

FN6964.0

January 3, 2011

ISL6366

Functional Pin Descriptions

Note: VR0 is the multi-phase voltage regulator. VR1 is the
single-phase voltage regulator. Refer to Table 13 on page 35 and
Table 14 on page 39 for Design and Layout Consideration.

VCC - Supplies the power necessary to operate the chip. The
controller starts to operate when the voltage on this pin exceeds
the rising POR threshold and shuts down when the voltage on
this pin drops below the falling POR threshold. Connect this pin
directly to a +5V supply with a high quality ceramic capacitor.

GND - The bottom metal base of ISL6366 is the GND. Bias and
reference ground for the IC. It is also the return for all PWM
output drivers.

EN_PWR - This pin is a threshold-sensitive enable input.
Connecting the power train input supply to this through an
appropriate resistor divider provides a means to synchronize the
power sequencing of the controller and the MOSFET driver ICs.
When EN_PWR is driven above 0.85V, the ISL6366 is actively
depending on status of the EN_VTT, the internal POR, and
pending fault states. Driving EN_PWR below 0.75V will clear all
fault states and prepare the ISL6366 to soft-start when re­enabled.

EN_VTT - This pin is a threshold-sensitive enable input. It’s
typically connected to the output of the VTT voltage regulator in
the computer mother board. When this pin is driven above 0.85V,
the ISL6366 is actively depending on status of the EN_PWR, the
internal POR, and pending fault states. Driving this below 0.75V
will clear all fault states and prepare the ISL6366 to soft-start
when re-enabled.

VSEN - This pin monitors the regulator VR0 output for over­voltage protection. Connect this pin to the positive rail remote
sensing point of the microprocessor or load. This pin tracks with
the FB pin. If a resistive divider is placed on the FB pin, a resistive
divider with the same ratio should be on the VSEN pin. Tie it to
GND if not used.

RGND - This pin compensates the offset between the remote
ground of the VR0 load and the local ground of this device.
Connect this pin to the negative rail remote sensing point of the
microprocessor or load. Tie it to GND if not used.

COMP and FB - COMP and FB are the output and inverting input
of the precision error amplifier, respectively. A type III loop
compensation network should be connected to these pins, while
the FB’s R-C network should connect to the positive rail remote
sensing point of the microprocessor or load. Combined with
RGND, the potential difference between remote and local rails is
completely compensated and it improves regulation accuracy. A
properly chosen resistor between FB and remote sensing point
can set the load line (droop, if enabled), because the sensed
current will flow out of FB pin. The droop scale factor is set by the
ratio of the effective ISEN resistors (set by RSET) and the inductor
DCR or the dedicated current sense resistor. COMP is tied back to
FB through an external R-C network to compensate the regulator.
An RC from the FB pin to ground will be needed if the output is
lagging from the DAC, typically for applications with too many
output capacitors and droop enabled.

VR_RDY - VR_RDY indicates that soft-start has completed and
this VR0 output remains in normal operation. It is an open-drain

logic output. When OCP or OVP occurs in VR0, VR_RDY will be
pulled to low.

TM - TM is an input pin for the VR0 temperature measurement.
Connect this pin through an NTC thermistor to GND and a resistor
to VCC of the controller. The voltage at this pin is inversely
proportional to the VR temperature. The device monitors the VR
temperature based on the voltage at the TM pin. Combining with
“TCOMP” setting, VR0’s sensed current is thermally compensated.
The VR_HOT# asserts low if the sensed temperature at this pin is
higher than the maximum desired temperature, “TMAX”. The NTC
should be placed close to the current sensing element, the output
inductor or dedicated sense resistor on Phase 1 of VR0. A
decoupling capacitor (0.1µF) is typically needed to be in close
proximity to the controller. If not used, connect this pin to TMS or
1MΩ/2MΩ resistor divider, but DON’T tie it to VCC or GND.

VR_HOT# - VR_HOT# is used as an indication of high VR
temperature. It is an open-drain logic output. It will be open if the
measured VR temperature is less than a certain level, and pulled
low when the measured VR temperature reaches a certain level.

PWM[6:1] - Pulse width modulation outputs of VR0. Connect
these pins to the PWM input pins of the Intersil driver IC. The
number of active channels is determined by the state of
PWM[6:2]. Tie PWM(N+1) to VCC to configure for N-phase
operation. PWM firing order is sequential from 1 to N with N
being the number of active phases. If PWM1 is tied high, the
respective address is released for use, i.e, the VR0 is disabled
and does not respond to the SVID commands. IMON, VSEN, FB,
ISEN[6:1]-, and RGND must be grounded to remove OCP and OVP
faults of VR0, while TM can be tied to TMS, or 1/2 ratio resistor
divider. In addition, must connect FS_DRP to 1MΩ from GND or
VCC. See Table 1 on page 15 and Table 13 on page 35 for details.

PWMS - Pulse width modulation output of VR1. Connect this pin
to the PWM input pin of the Intersil driver IC. Tie this pin to VCC to
disable this PWM channel, while the respective address is
released for use, i.e., the VR1 is disabled and does not respond to
the SVID commands. IMONS, VSENS, FBS, ISENS-, and RGNDS
must be grounded to remove OCP and OVP faults of VR1, while
TMS can be tied to TM, or 1/2 ratio resistor divider. In addition,
must connect FSS_DRPS to 1MΩ from GND or VCC for proper
SVID address. See Table 13 on page 35 for details.

ISEN[6:1]+, ISEN[6:1] - The ISEN+ and ISEN- pins are current
sense inputs to individual differential amplifiers of VR0. The
sensed current is used for channel current balancing, overcurrent
protection, and droop regulation. Inactive channels should have
their respective current sense inputs, ISEN[6:#]- grounded, and
ISEN[6:#]+ open. For example, ground ISEN[6:5]- and open
ISEN[6:5]+ for 4-phase operation. DON’T ground ISEN[6:1]+. For
DCR sensing, connect each ISEN- pin to the node between the RC
sense elements. Tie the ISEN+ pin to the other end of the sense
capacitor (typically output rail). The voltage across the sense
capacitor is proportional to the inductor current. Therefore, the
sensed current is proportional to the inductor current and scaled
by the DCR of the inductor and R
ISEN[6:1]- grounded and ISEN[6:1]+ open.

RSET - A resistor connected from this pin to ground sets the
current gain of the current sensing amplifier for VR0. The RSET
resistor value can be from 3.84kΩ
required R

resistor value. Therefore, the current sense gain

ISEN

. When VR0 is disabled, have

SET

to 115.2kΩ and is 64x of the

11

FN6964.0

January 3, 2011

ISL6366

resistor value can be effectively set at 60Ω to 1.8kΩ. When VR0
is disabled (PWM1 = VCC), connect 1MΩ from this pin to GND.

ISENS+, ISENS - The ISENS+ and ISENS- pins are current sense
inputs to the differential amplifier of VR1. The sensed current is
used for overcurrent protection and droop regulation. For DCR
sensing, connect each ISENS- pin to the node between the RC
sense elements. Tie the ISENS+ pin to the other end of the sense
capacitor through a resistor, R

. The voltage across the

ISENS

sense capacitor is proportional to the inductor current. Therefore,
the sense current is proportional to the inductor current and
scaled by the DCR of the inductor and R

. When VR1 is

ISENS

disabled, have ISENS- grounded and ISENS+ open.

IMON - IMON is the output pin of sensed, thermally compensated (if
internal thermal compensation is used) average current of VR0. The
voltage at the IMON pin is proportional to the load current and the
resistor value, and internally clamped to 1.12V. If the clamped
voltage is triggered, it will initiate an overcurrent shutdown. By
choosing the proper value for the resistor at IMON pin, the
overcurrent trip level can be set to be lower than the fixed internal
overcurrent threshold. During the dynamic VID, the OCP function of
this pin is disabled to avoid false triggering. Tie it to GND if not used.
Does not need to refer to the remote ground for VR12/IMPV7
applications.

FS_DRP - A resistor placed from this pin to GND/VCC will set the
switching frequency of VR0. The relationship between the value
of the resistor and the switching frequency will be approximated
by Equation 4 on page 16. This pin is also used to set the droop
option. The droop is disabled when the resistor is pulled to VCC
and enabled when the resistor is pulled to ground. When VR0 is
disabled (PWM1 = VCC), connect 1MΩ from this pin to GND.

HFCOMP - Connect a resistor with a similar value of the feedback
impedance to the VR0 output to compensate the level-shifted
output voltage during high-frequency load transient events.
Connecting more than 2x of feedback impedance to this pin or
keeping it open virtually disables this feature.

PSICOMP - Connect an RC to the type III compensation capacitor
of the VR0 output voltage. This improves loop gain and load
transient response in PSI1/2/3/Decay mode. An open pin will
disable this feature.

SICI - When this pin is pulled to ground, it sets for standard inductor
(SI) operation; when this pin is pulled to VCC, it sets coupled-inductor
(CI) operation. The phase dropping operation options for PSI1/2/3
mode are summarized in Table 3 on page 16.

DVC - A series resistor and capacitor can be connected from this
pin to the FB pin to compensate and smooth dynamic VID
transitions.

VSENS, RGNDS, FBS, COMPS, VR_RDYS, IMONS, FSS_DRPS,
HFCOMPS - These pins are for VR1 regulator and have the same
function as VSEN, RGND, FB, COMP, VR_RDY, IMON, FS_DRP, and
HFCOMP, respectively. However, HFCOMPS has multiplexed the
DVCS function, while the FSS_DRPS does have additional
programming feature as described in the following.

HFCOMPS/DVCS - Connect a resistor with a similar value of the
feedback impedance to the VR1 output to compensate the level­shifted output voltage during high-frequency load transient
events. Connecting more than 2x of feedback impedance to this

pin or keeping it open virtually disables this feature. If the droop
option of VR1 is disabled, then this pin becomes DVCS. A series
resistor and capacitor can be connected from this pin to the FBS
pin to compensate and smooth dynamic VID transitions for VR1
output.

FSS_DRPS - A resistor placed from this pin to ground/VCC will set
the switching frequency of VR1. The relationship between the
value of the resistor and the switching frequency will be
approximated by Equation 4 on page 16. This pin is also used to
set the droop option. The droop is disabled when the resistor is
pulled to VCC and enabled when the resistor is pulled to ground.
When VR1 is disabled (PWMS = VCC), connect 1MΩ from this pin
to GND for ADDR: 0, 2, 4, and 6; to VCC for ADDR: 8, A, and C.

TMS - This is an input pin for the temperature monitoring. Connect
this pin through an NTC thermistor to GND and a resistor to VCC of
the controller. The voltage at this pin is inversely proportional to
the VR temperature. The thermal information can be used for VR1
thermal compensation. If TCOMPS is set at “OFF” bit, the
integrated thermal compensation is disabled; otherwise, the
thermal information is used for VR1 thermal compensation with
“TCOMPS” data. Combined with TM pin, the thermal information at
TMS pin will also be used to trigger VR_HOT#. The NTC should be
placed close to the current sensing element, the output inductor or
dedicated sense resistor of VR1. If not used, connect this pin to TM

Ω/2MΩ resistor divider, but DON’T tie it to VCC or GND.

or 1M

SVCLK - An input pin for a synchronous clock signal of SerialVID
bus from CPU.

SVDATA - An input pin for transferring open-drain data signals
between CPU and VR controller.

SVALERT# - An output pin for transferring the active low signal
driven asynchronously from the VR controller to CPU.

RAMP_ADJ - An input pin to set the slope of Sawtooth for VR0.
The slope of the Sawtooth is proportional to the current, sampled
by the an active pull-down device, into this pin. When the resistor
is connected to the input voltage of the VR0, the slope will be
proportional to the input voltage, achieving voltage feed-forward
compensation. For a 12V supply (V

) and 2.4MΩ pull up (~ 5µA),

IN

it sets a nominal 0.25V/µs up-ramp slope at 500kHz switching
frequency, corresponding to 0.5V peak-to-peak up ramp. The
maximum peak-to-peak up ramp should be limited to 3V,
corresponding a pull-down current of 30µA at 500kHz, i.e., the
pull-up impedance should be higher than V

/30µA at 500kHz.

IN

See Equation 3 for the up ramp amplitude calculation. When this
pin is floating, the up ramp amplitude sets to 1V regardless of
the switching frequency and the feedforward function is
disabled.

ADDR_IMAXS_TMAX, BTS_DES_TCOMPS, BT_FDVID_TCOMP,
NSPI_DE_IMAX - These are four register pins to program system
parameters. The meaning of each is described as below. See
Table 9 for the summary.

ADDR_IMAXS_TMAX (0C):

ADDR - An input pin to set the address offset register of VR0 (0,
2, 4, 6, 8, A, C) and VR1 (1, 3, 5, 7). E/F is an ALL call address
and is not used.

12

FN6964.0

January 3, 2011

ISL6366

IMAXS - An input pin to set the maximum current, I

CCMAX

,
register of the VR1. It can be programed to 20A, 25A, 30A, and
35A when the droop is enabled (R

FSS_DRPS

= GND). This register
represents the maximum allowed load current for VR1 and
corresponds to a 900mV (typically set) at IMONS. When VR1
droop is disabled (R

FSS_DRPS

= VCC), the I

CCMAX

can be

programed to15A, 20A, 25A, and 30A.

TMAX - An input pin to set the maximum temperature register
(TMAX) of the VR0 and VR1 and the thermal trip point of
VR_HOT#. It covers +90°C to +120°C with 5°C/step. The
register represents the maximum allowed temperature of VR0
and VR1, and programs the over-temperature trip point at
VR_HOT#. The typical application should use +100°C or lower
since the NTC thermistor temperature represents the PCB, not
the hottest component on the board. In addition, the NTC
thermistor typically picks up a temperature lower than the PCB
due to the thermal impedance between PCB and NTC.

BTS_DES_TCOMPS (0D):

BTS - An input pin to set the start-up boot voltage register of VR1.
It has four levels: 0, 0.9V, 1.0, and 1.1V for graphic rails with
droop enabled (R
(R

FSS_DRPS

= VCC), the boot levels will be changed to 0, 0.85V,

FSS_DRPS

= GND). When the droop is disabled

0.925V, 1.05V for VCCIO and System Agent rails.

DES - An input pin to set the diode emulation (DE) operation
register of VR1 at PSI2, PSI3, and Decay modes. At PSI1 mode,
the VR1 always operates in CCM mode. When the diode
emulation is disabled, the output will decay at the rate of setVID
Slow; however, the SVID bus is still be acknowledged of execution
of the command.

TCOMPS - An input pin to set the mis-matching temperature
(+13°C to +43°C) between the actual sensed inductor and the NTC
thermistor at TMS pin. The voltage sensed on the TMS pin is utilized
as the temperature input to adjust the droop current and the
overcurrent protection limit to effectively compensate for the
temperature coefficient of the current sense element of VR1. To
implement the integrated temperature compensation, select a
proper temperature offset “TCOMP,” other than the “OFF” value,
which is to disable the integrated temperature compensation
function. When the VR1 channel’s droop is disabled by pulling
FSS_DRPS pin high with a frequency set resistor, TCOMPS register
will be used to set the address of PMBus, 80-8Eh for VR0 and E0­EEh for VR1 in ISL6367.

BT_FDVID_TCOMP (0E):

BT - An input pin to set the start-up boot voltage register of VR0.
It has four levels: 0V, 0.9V, 1.0V, and 1.1V for core applications.
When the droop is disabled, the boot levels will be changed to 0V,

1.2V, 1.35V, and 1.5V for memory applications.

FDVID - An input pin to set the slew rate of fast Dynamic VID. It
has choices of 10mV/µs and 20mV/µs. This will only apply to
VR0, not VR1.

TCOMP - An input to set the mis-matching temperature (+13°C to
+43°C) between the actual sensed inductor of VR0 regulator and
the NTC thermistor at the TM pin. The voltage sensed on the TM pin
is utilized as the temperature input to adjust the droop current and
the overcurrent protection limit to effectively compensate for the
temperature coefficient of the current sense element of VR0. To
implement the integrated temperature compensation, select a
proper temperature offset “TCOMP,” other than the “OFF” value,
which is to disable the integrated temperature compensation
function.

NSPI_DE_IMAX (0F):

NPSI - An input pin to set the number of phases dropping at low
power mode. See Table 3 on page 16 for more details.

DE - An input pin to set the diode emulation (DE) operation
register of VR0 at PSI2, PSI3, and Decay modes. At PSI1 mode,
the VR0 always operates in CCM mode. When the diode
emulation is disabled, the output will decay at the rate of setVID
Slow; however, the SVID bus is still be acknowledged of execution
of the command.

IMAX - An input pin to set the maximum current, I

CCMAX

, register
of the VR0 voltage regulator. It has a range of 15A to 165A with
5A/step. In 5- and 6-Phase operation, it will add 90A offset over
the previous range and cover the range of 105A to 255A with
5A/step. This register represents the maximum allowed load
current for VR0 and corresponds to a 900mV (typically set) at
IMON.

NC[1:3] - No connection pins for ISL6366 and ISL6366A.
Reserved for PMBus [I2DATA, PMALERT#, I2CLK] in ISL6367.

NC[4:5] - No connection pins for ISL6366. Reserved for input
current sensing [ISENIN-, ISENIN+] in ISL6366A and ISL6367.

13

FN6964.0

January 3, 2011

ISL6366

Operation

The ISL6366 is a dual PWM controller; its 6-phase PWMs control
microprocessor core or memory voltage regulator, while its single­phase PWM controls the peripheral voltage regulator such
graphics rail, system agent, or processor I/O. The ISL6366 is
designed to be compliant to Intel VR12/IMVP7 specifications with
SerialVID Features. The system parameters and SVID required
registers are programmable with four dedicated pins. It greatly
simplifies the system design for various platforms and lowers
inventory complexity and cost by using a single device.

In addition, this controller is compatible, except for forced dropping
via PWM lines, with phase doublers (ISL6611A and ISL6617),
which can double or quadruple the phase count. For instance, the
multi-phase PWM can realize a beyond 6-phase and up to
24-phase count system, and the single-phase PWM can be scaled
up to 2 or 4 phases. The higher phase count system can improve
thermal distribution and power conversion efficiency at heavy
load.

Multiphase Power Conversion

Microprocessor load current profiles have changed to the point
that the advantages of multiphase power conversion are
impossible to ignore. The technical challenges associated with
producing a single-phase converter (which are both cost-effective
and thermally viable), have forced a change to the cost-saving
approach of multiphase. The ISL6366 controller helps reduce the
complexity of implementation by integrating vital functions and
requiring minimal output components. The typical application
circuits diagrams on page 5 and page 6 provide the top level
views of multiphase power conversion using the ISL6366
controller.

Interleaving

The switching of each channel in a multiphase converter is timed
to be symmetrically out-of-phase with each of the other channels.
In a 3-phase converter, each channel switches 1/3 cycle after the
previous channel and 1/3 cycle before the following channel. As
a result, the 3-phase converter has a combined ripple frequency
three times greater than the ripple frequency of any one phase,
as illustrated in Figure 1. The three channel currents (IL1, IL2,
and IL3) combine to form the AC ripple current and the DC load
current. The ripple component has three times the ripple
frequency of each individual channel current. Each PWM pulse is
terminated 1/3 of a cycle after the PWM pulse of the previous
phase. The DC components of the inductor currents combine to
feed the load.

To understand the reduction of ripple current amplitude in the
multiphase circuit, examine Equation 1, which represents an
individual channel’s peak-to-peak inductor current.

VINV

----------------------------------------------------------=

–()V

L F

I

PP

In Equation 1, V
respectively, L is the single-channel inductor value, and F
the switching frequency.

⋅

OUT

SW

IN

⋅

V⋅

IN

and V

OUT

are the input and output voltages

OUT

(EQ. 1)

SW

is

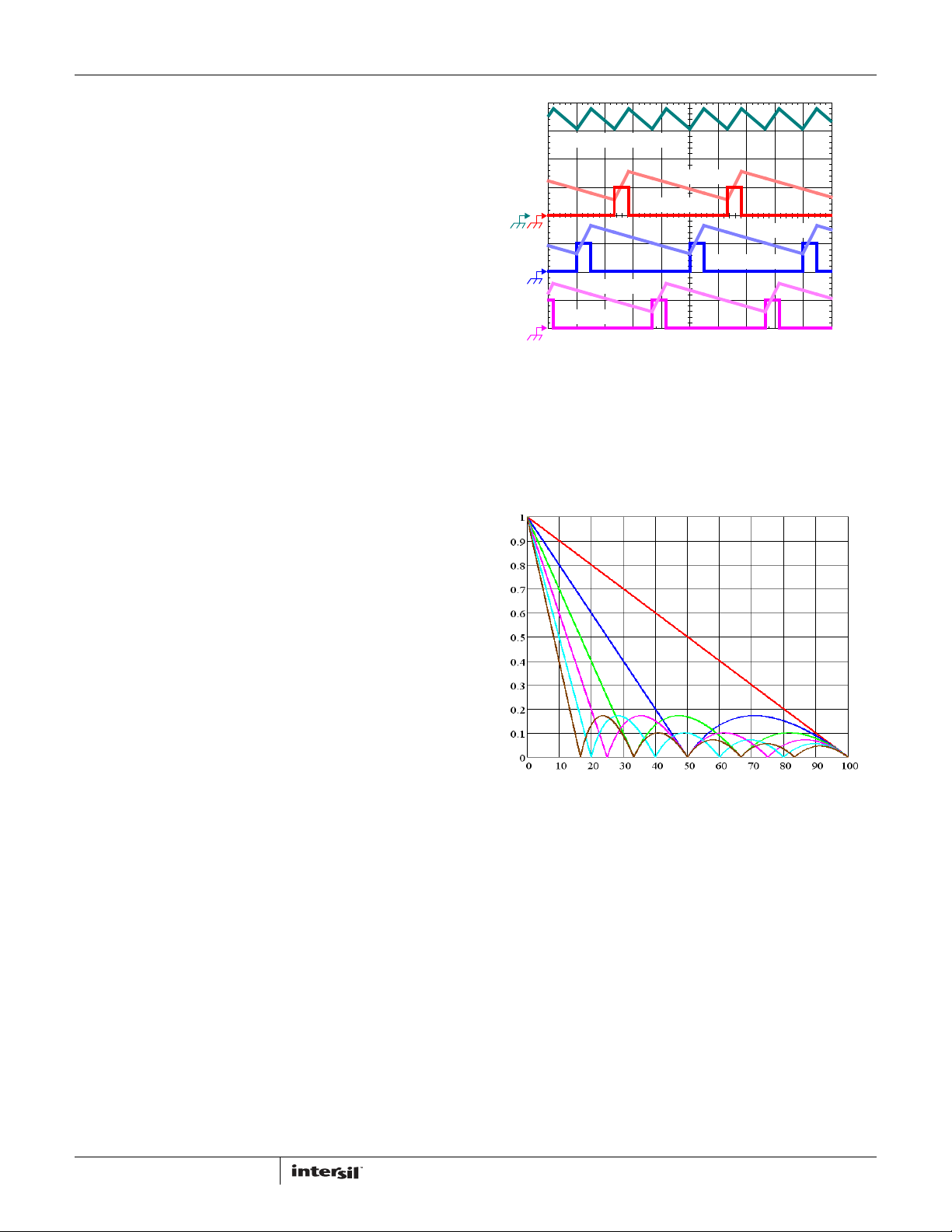

IL1 + IL2 + IL3, 7A/DIV

IL1, 7A/DIV

PWM1, 5V/DIV

IL2, 7A/DIV

PWM2, 5V/DIV

IL3, 7A/DIV

PWM3, 5V/DIV

1µs/DIV

FIGURE 1. PWM AND INDUCTOR-CURRENT WAVEFORMS FOR

3-PHASE CONVERTER

In the case of multiphase converters, the capacitor current is the
sum of the ripple currents from each of the individual channels.
Compare Equation 1 to the expression for the peak-to-peak
current after the summation of N symmetrically phase-shifted
inductor currents in Equation 2, the peak-to-peak overall ripple
current (I

) decreases with the increase in the number of

C,PP

channels, as shown in Figure 2.

RCM

N=1

2

3

4

RIPPLE CURRENT MULTIPLIER, K

FIGURE 2. RIPPLE CURRENT MULTIPLIER VS. DUTY CYCLE

5

6

DUTY CYCLE (V

OUT/VIN

)

Output voltage ripple is a function of capacitance, capacitor
equivalent series resistance (ESR), and the summed inductor
ripple current. Increased ripple frequency and lower ripple
amplitude mean that the designer can use less per-channel
inductance and few or less costly output capacitors for any
performance specification.

V

OUT

I

------------------

=

CPP,

for

LFSW⋅

K

K

RCM

ND⋅ m– 1+()mND⋅()–()⋅

--------------------------------------------------------------------------- -

=

RCM

m1– ND⋅ m≤≤

mROUNDUPND⋅ 0,()=

ND⋅

(EQ. 2)

Another benefit of interleaving is to reduce input ripple current.
Input capacitance is determined in part by the maximum input
ripple current. Multiphase topologies can improve overall system
cost and size by lowering input ripple current and allowing the

14

FN6964.0

January 3, 2011

ISL6366

designer to reduce the cost of input capacitors. The example in
Figure 3 illustrates input currents from a three-phase converter
combining to reduce the total input ripple current.

INPUT-CAPACITOR CURRENT, 10A/DIV

CHANNEL 1
INPUT CURRENT
10A/DIV

CHANNEL 2
INPUT CURRENT
10A/DIV

CHANNEL 3
INPUT CURRENT
10A/DIV

1µs/DIV

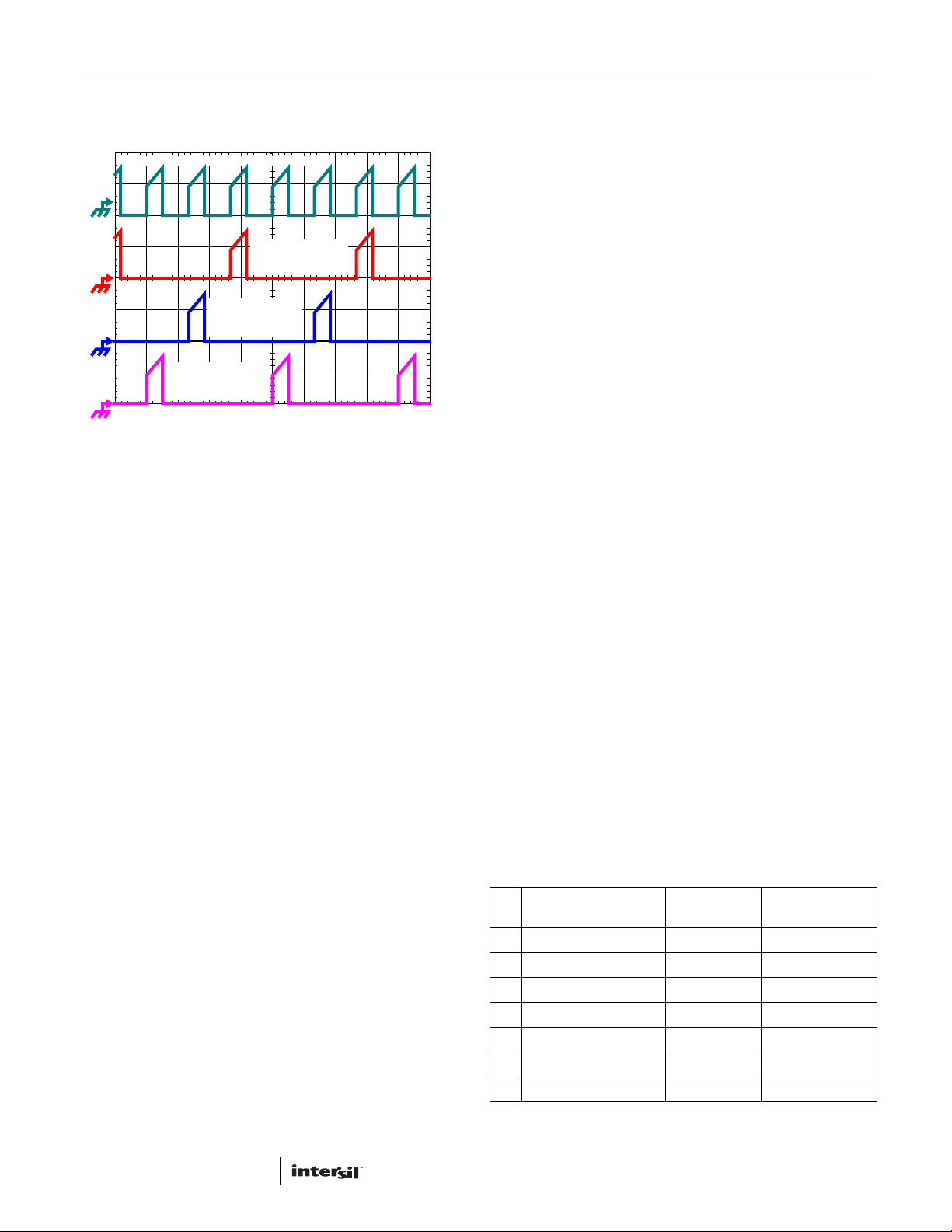

FIGURE 3. CHANNEL INPUT CURRENTS AND INPUT-CAPACITOR

RMS CURRENT FOR 3-PHASE CONVERTER

The converter depicted in Figure 3 delivers 36A to a 1.5V load from
a 12V input. The RMS input capacitor current is 5.9A. Compare this
to a single-phase converter also stepping down 12V to 1.5V at 36A.
The single-phase converter has 11.9A

input capacitor current.

RMS

The single-phase converter must use an input capacitor bank with
twice the RMS current capacity as the equivalent three-phase
converter.

Figures 29, 30 and 31, as described in “Input Capacitor
Selection” on page 38, can be used to determine the input
capacitor RMS current based on load current, duty cycle, and the
number of channels. They are provided as aids in determining
the optimal input capacitor solution. Figure 32 shows the single
phase input-capacitor RMS current for comparison.

PWM Modulation Scheme

The ISL6366 adopts Intersil's proprietary Enhanced Active Pulse
Positioning (EAPP) modulation scheme to improve transient
performance. The EAPP is a unique dual-edge PWM modulation
scheme with both PWM leading and trailing edges being
independently moved to give the best response to transient
loads. The EAPP has an inherited function, similar to Intersil's
proprietary Adaptive Phase Alignment (APA) technique, to turn
on all phases together to further improve the transient response,
when there are sufficiently large load step currents. The EAPP is
a variable frequency but there is linear control over the transient
events such that it can evenly distribute the pulses among all
phases to achieve very good current balance and eliminate the
beat frequency oscillation over wide frequency range of load
transients.

To further improve the line and load transient responses, the
multi-phase PWM features feedforward function to change the
up ramp with the input line to maintain a constant overall loop
gain over a wide range input voltage. The up ramp of the internal
Sawtooth is defined in Equation 3.

V

RAMP

51010V⋅⋅

----------------------------------------------

=

FSWR⋅

IN

RAMP_ADJ

(EQ. 3)

With EAPP control and feedforward function, the ISL6366 can
achieve excellent transient performance over wide frequency
range of load step, resulting in lower demand on the output
capacitors.

At DC load conditions, the PWM frequency is constant and set by
the external resistor between the FS pin and GND during normal
mode (PSI0) and low power mode (PSI1). However, when PSI2 or
PSI3 is asserted in ultra low power conditions and if the VR is
configured into diode emulation operation, the EAPP reduces the
switching frequency as the load decreases. Thus, the VR can
enter burst mode at extreme light load conditions and improve
power conversion efficiency significantly.

Under steady state conditions, the operation of the ISL6366
PWM modulator appears to be that of a conventional trailing
edge modulator. Conventional analysis and design methods can
therefore be used for steady state and small signal operation.

The single-phase PWM has a fix ramp of 2V peak to peak. Its
overall modulation gain is proportional to the input line.

PWM and PSI# Operation

The timing of each channel is set by the number of active
channels. The default channel setting for the ISL6366 is six. The
switching cycle is defined as the time between PWM pulse
termination signals of each channel. The cycle time of the pulse
signal is the inverse of the switching frequency set by the resistor
between the FS pin and ground. The PWM signals command the
MOSFET driver to turn on/off the channel MOSFETs.

The ISL6366 can work in a 0 to 6-Phase configuration. Tie
PWM(N+1) to VCC to configure for N-phase operation. PWM firing
order is sequential from 1 to N with N being the number of active
phases, as summarized in Table 1. For 6-phase operation, the
channel firing sequence is 1-2-3-4-5-6, and they are evenly
spaced 1/6 of a cycle. Connecting PWM6 to VCC configures
5-phase operation, the channel firing order is 1-2-3-4-5 and the
phase spacing is 1/5 of a cycle. If PWM2 is connected to VCC,
only Channel 1 operation is selected. If PWM1 is connected to
VCC, the multi-phase (VR0) operation is turned off; to ensure
proper operation of VR1, the VR0’s respective pins should be
configured as described in “Disabling Output” on page 35.

TABLE 1. PHASE NUMBER AND PWM FIRING SEQUENCE

PHASE SEQUENCE

N

6 1-2-3-4-5-6 - PWM1/4

5 1-2-3-4-5 PWM6 PWM1/3

4 1-2-3-4 PWM5 PWM1/3

3 1-2-3 PWM4 PWM1/2

2 1-2 PWM3 PWM1/2

1 1 PWM2 PWM1

0OFF PWM1 OFF

PSI# = PSI0

PWM# TIED

TO VCC

ACTIVE PHASE

PSI# = PSI1

15

FN6964.0

January 3, 2011

ISL6366

The CPU can enter four distinct power states as shown in Table 2.
The ISL6366 supports all states, but it treats PSI2 and PSI3 the
same. In addition, the setDecay mode will automatically enter PSI2
State while decaying the output voltage. However, prior to the end of
soft-start (i.e: VR_RDY goes high), the lower power mode
(PSI1/2/3/Decay) is NOT enabled.

TABLE 2. POWER STATE COMMAND FROM CPU

STATE DESCRIPTION

PSI0 High Power Mode, All Phases are running

PSI1 Low Power Mode

PSI2 Very Low Power Mode

PSI3 Ultra Low Power Mode, treated as PSI2

Decay Automatically entering PSI2 and Ramping down the output

voltage to a target voltage in Decay Mode

When the SVID bus sends PSI1/2/3 or Set VID Decay command, it
indicates the low power mode operation of the processor. The
controller will start phase shedding the next switching pulse. The
controller allows to drop the number of active phases according to
the logic on Table 3 for high light load efficiency performance. The
“NPSI” register and SICI pin are to program the controller in
operation of non-coupled (SI), 2-phase coupled, or (N-x)-Phase
coupled inductors. Different cases yield different PWM output
behaviors on both dropped phase(s) and operational phase(s) as
PSI# is asserted and de-asserted. When CPU sends PSI0 command,
it will pull the controller back to normal CCM PWM operation to
sustain an immediate heavy transient load and high efficiency. Note
that “N-x” means N-x phase coupled and x phase(s) are uncoupled.

For 2-Phase coupled inductor (CI) operation, both coupled phases
should be 180° out of phase. In low power states
(PSI1/2/3/Decay), the opposite phase of the operational phase
will turn on its Low-side MOSFET to circulate inductor current to
minimize conduction loss when Phase 1 is high.

When PSI1 is asserted, the VR0 is in single-phase CCM operation
with PWM1, or 2-phase CCM operation with PWM1 and 2, 3 or 4,
as shown in Table 1. The number of operational phases is
configured by “NPSI” register, shown in Table 3. In PSI2/3/Decay
State, only single phase is in DCM/CCM operation, which is
programmed by the “DE” register; the opposite PWM 2, 3, or 4
(depending upon configured maximum phase number as in
Table 1) of the PWM1 however will pull low at PWM1 high in CI
applications.

The VR1 output can be disabled by pulling PWMS to VCC while the
respective address is released for use with a different VR controller.
For proper operation of VR0, the VR1’s respective pins should be
configured as described in “Disabling Output” on page 35.

While the controller is operational (VCC above POR, EN_VTT and
EN_PWR are both high, valid VID inputs), it can pull the PWM pins
to ~40% of VCC (~2V for 5V VCC bias) during various stages, such
as soft-start delay, phase shedding operation, or fault conditions
(OC or OV events). The matching driver's internal PWM resistor
divider can further raise the PWM potential, but not lower it
below the level set by the controller IC. Therefore, the controller's
PWM outputs are directly compatible with Intersil drivers that
require 5V PWM signal amplitudes. Drivers requiring 3.3V PWM
signal amplitudes are generally incompatible.

Diode Emulation Operation

To improve light efficiency, the ISL6366 can enter diode emulation
operation in PSI2/3 or Decay mode. Users however should select
Intersil VR12/IMVP7 compatible drivers: ISL6627 or ISL6625 for
PSI# channel(s). The diode emulation should be disabled if
non-compatible power stages or drivers are used.

Switching Frequency

Both VR0 and VR1 can independently set switching frequency,
which is determined by the selection of the frequency-setting
resistor, RT, which is connected from FS or FSS pin to GND or
VCC. Equation 4 and Figure 4 are provided to assist in selecting
the correct resistor value.

10

5 10⋅

---------------------=

R

T

F

SW

where F

is the switching frequency of each phase.

SW

Independent frequency for VR0 and VR1 allows for cost,
efficiency, and performance optimization. Proximity between the
power trains of the two regulators imposed by the
space-constrained layouts can lead to cross-coupling. To
minimize the effect of cross-coupling between regulators, select
operating frequencies at least 50kHz apart.

, kΩ)

T

(EQ. 4)

TABLE 3. PHASE DROPPING CONFIGURATION AT PSI1 AND

SICI NPSI CODE PSI1 Mode

0 0 SI1 SI, (N-1)-CI 1-Phase 1-Phase

0 1 SI2 SI, (N-2)-CI 2-Phase 1-Phase

1 0 CI1 2-Phase CI 1-Phase 1-Phase

1 1 CI2 2-Phase CI 2-Phase 1-Phase

NOTE: For 2-Phase CI option, the dropped coupled phase turns on LGATE
to circulate current when PWM1 is high.

PSI2/3/DECAY

PSI2/3

& DECAY

16

FREQUENCY-SETTING RESISTOR VALUE (R

SWITCHING FREQUENCY (Hz)

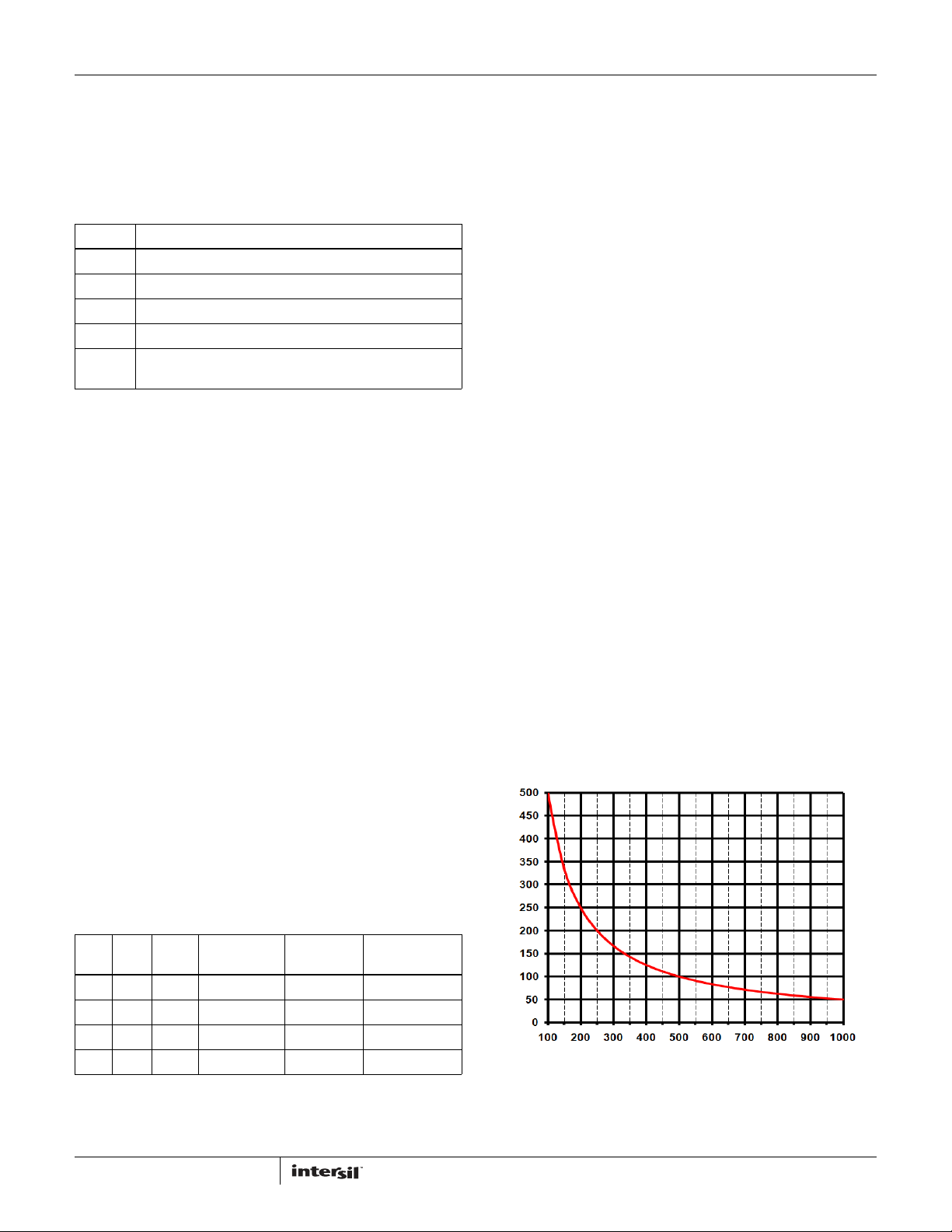

FIGURE 4. SWITCHING FREQUENCY vs RT

FN6964.0

January 3, 2011

ISL6366

Current Sensing

The ISL6366 senses current continuously for fast response. The
ISL6366 supports inductor DCR sensing, or resistive sensing
techniques. The associated channel current sense amplifier uses
the ISEN inputs to reproduce a signal proportional to the inductor
current, I

. The sense current, I

L

current. The sensed current is used for current balance, load-line
regulation, and overcurrent protection.

The internal circuitry, shown in Figures 5-6 and 9-10, represents
VR1’s channel or one channel of the VR0 output, respectively. For
VR0 output, the ISEN± circuitry is repeated for each channel, but
may not be active depending on the status of the PWM[6:2] pins,
as described in “PWM and PSI# Operation” on page 15. The input
bias current of the current sensing amplifier is typically 60nA;
less than 8.34k

Ω input impedance (0.5mV offset) is preferred to

minimized the offset error, i.e., a larger C value as needed.

INDUCTOR DCR SENSING

An inductor’s winding is characteristic of a distributed resistance,
as measured by the DCR (Direct Current Resistance) parameter.
Consider the inductor DCR as a separate lumped quantity, as
shown in Figure 5. The channel current I
inductor, will also pass through the DCR. Equation 5 shows the
s-domain equivalent voltage across the inductor VL.

VLs() ILsL DCR+⋅()⋅=

A simple R-C network across the inductor extracts the DCR
voltage, as shown in Figure 5.

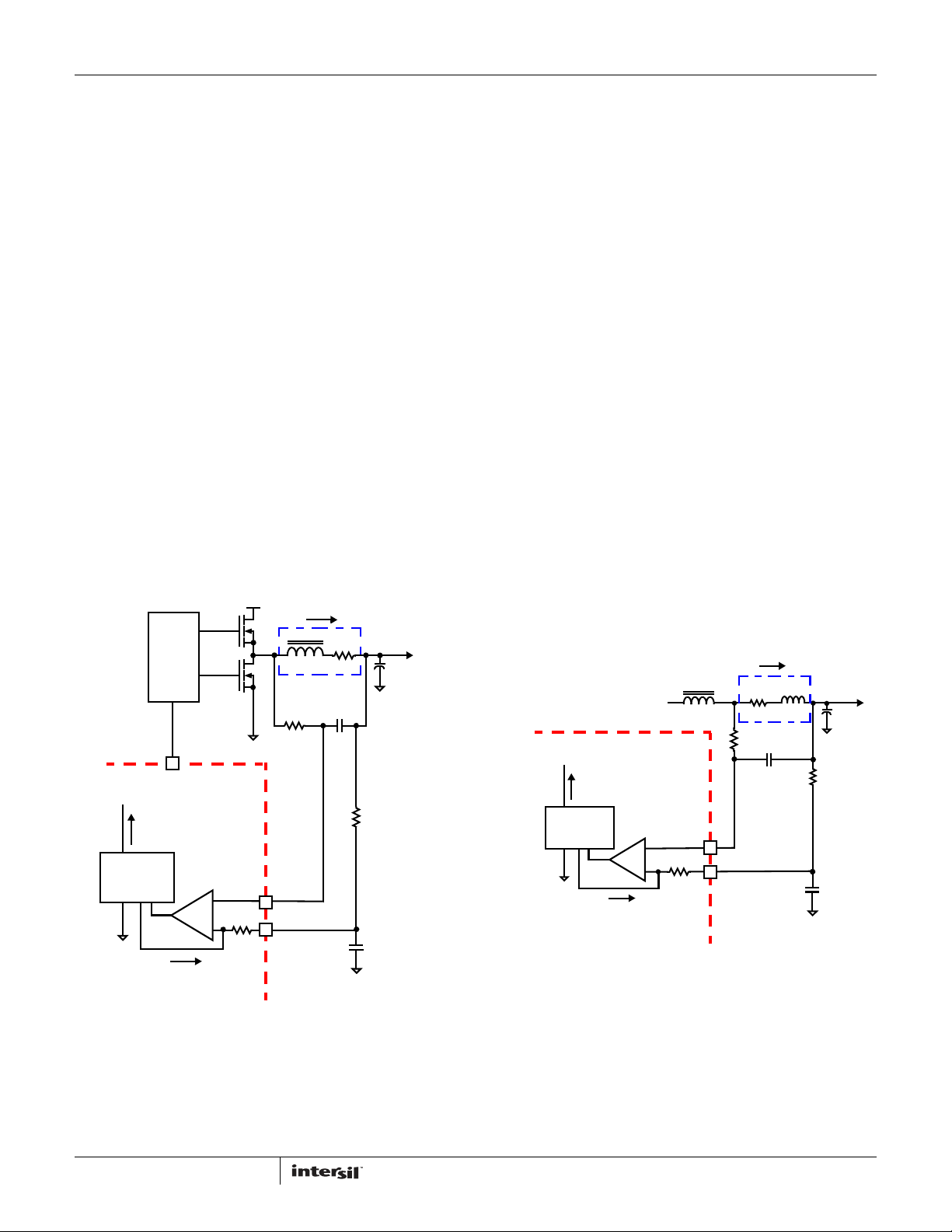

ISL6596

PWMS

ISL6366

In

CURRENT

SENSE

+

-

I

=

SEN

FIGURE 5. DCR SENSING CONFIGURATION FOR VR1

DCR

----------------------------------

I

L

10.5 R+

ISEN

, is proportional to the inductor

SEN

, flowing through the

L

V

IN

10.5

L

INDUCTOR

R

ISENS-

ISENS+

ILs()

V

+

L

+

DCR

-

VC(s)

C

-

R

ISEN(n)

C

T

(EQ. 5)

V

OUT

C

OUT

The voltage on the capacitor V

, can be shown to be proportional

C

to the channel current IL. See Equation 6.

L

⎛⎞

----------- -

VCs()

s

⋅ 1+

⎝⎠

DCR

-----------------------------------------------------------------

=

sRC 1+⋅()

DCR I

⋅()⋅

L

(EQ. 6)

If the R-C network components are selected such that the RC time
constant matches the inductor time constant (R*C = L/DCR), the
voltage across the capacitor V

is equal to the voltage drop across

C

the DCR, i.e., proportional to the channel current.

With the internal low-offset current amplifier, the capacitor
voltage V
Therefore, the current out of the ISENS+ pin, I

is replicated across the sense resistor R

C

SEN

.

ISEN

, is proportional

to the inductor current.

Because of the internal filter at the ISENS- pin, one capacitor, C
is needed to match the time delay between the ISENS- and
ISENS+ signals. Select the proper C
R

ISEN

and CT (R

x CT) close to 27ns.

ISEN

to keep the time constant of

T

Equation 7 shows that the ratio of the channel current to the
sensed current, I

, is driven by the value of the sense resistor

SEN

and the DCR of the inductor.

DCR

I

SENIL

---------------

⋅=

R

ISEN

(EQ. 7)

RESISTIVE SENSING

For more accurate current sensing, a dedicated current-sense
resistor R
current sense element (see Figure 7). This technique however
reduces overall converter efficiency due to the additional power loss
on the current sense element R

ISL6366

I

SEN

FIGURE 6. SENSE RESISTOR IN SERIES WITH INDUCTOR FOR

A current sensing resistor has a distributed parasitic inductance,
known as ESL (equivalent series inductance, typically less than
1nH) parameter. Consider the ESL as a separate lumped
quantity, as shown in Figure 7. The channel current I
through the inductor, will also pass through the ESL. Equation 8
shows the s-domain equivalent voltage across the resistor V

VRs() ILsESL R

in series with each output inductor can serve as the

SENSE

.

SENSE

I

L

L

R

SEN

R

SENSE

V

+

VC(s)

+

R

CURRENT

SENSE

----------------------------------

I

=

L

10.5 R+

R

In

ISENS-

+

10.5

-

ISENS+

R

SEN

ISEN

VR1

+⋅()⋅=

SEN

C

ESL

-

-

, flowing

L

C

R

ISEN(n)

C

T

(EQ. 8)

V

OUT

OUT

.

R

,

T

17

FN6964.0

January 3, 2011

ISL6366

A simple R-C network across the current sense resistor extracts
the R

The voltage on the capacitor V
to the channel current I

voltage, as shown in Figure 7.

SEN

L

ESL

⎛⎞

------------- -

s

⋅ 1+

⎝⎠

R

SEN

-------------------------------------------------------------------- -

=

VCs()

sRC 1+⋅()

, can be shown to be proportional

C

. See Equation 9.

⋅()⋅

R

SENIL

(EQ. 9)

If the R-C network components are selected such that the RC time
constant matches the ESL-R
the voltage across the capacitor V
across the R

, i.e., proportional to the channel current. As an

SEN

time constant (R*C = ESL/R

SEN

is equal to the voltage drop

C

SEN

example, a typical 1mΩ sense resistor can use R = 348 and
C = 820pF for the matching. Figures 7 and 8 show the sensed
waveforms without and with matching RC when using resistive
sense.

Because of the internal filter at the ISENS- pin, one capacitor, C
is needed to match the time delay between the ISENS- and
ISENS+ signals. Select the proper C
R

ISEN

and CT (R

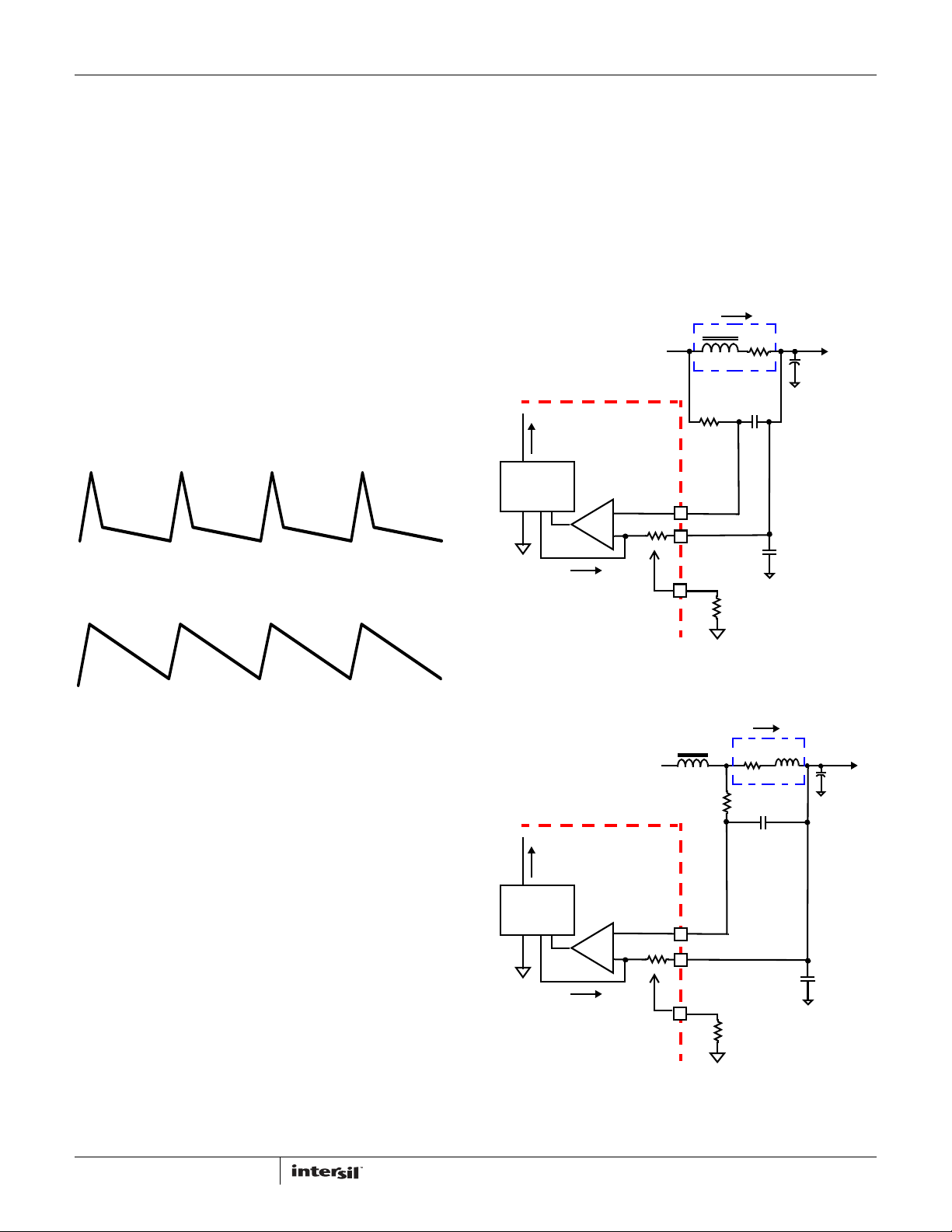

FIGURE 7. VOLTAGE ACROSS R WITHOUT RC

x CT) close to 27ns.

ISEN

to keep the time constant of

T

The inductor DCR value will increase as the temperature increases.
Therefore, the sensed current will increase as the temperature of
the current sense element increases. In order to compensate the
temperature effect on the sensed current signal, a Negative
Temperature Coefficient (NTC) resistor can be used for thermal
compensation, or the integrated temperature compensation
function of ISL6366 should be utilized. The integrated temperature
compensation function is described in “Temperature
Compensation” on page 30.

Decoupling capacitor (C

),

might be required for long sense traces and a poor layout.

,

T

ISL6366

In

CURRENT

SENSE

=

DCR 64⋅

-----------------------

I

L

R

SET

I

SEN

) on ISEN[6:1]- pins are optional and

T

ILs()

L

DCR

INDUCTOR

+

R

ISEN(n)

-

ISEN-(n)

ISEN+(n)

RSET

-

V

+

L

VC(s)

+

R

C

V

C

OUT

-

CT, Optional

OUT

FIGURE 8. VOLTAGE ACROSS C WITH MATCHING RC

Equation 10 shows that the ratio of the channel current to the
sensed current, I
and the R

I

SENIL

ISEN

⋅=

---------------

R

, is driven by the value of the sense resistor

SEN

.

R

SEN

ISEN

(EQ. 10)

Figures 5 and 6 configurations apply for VR1 output, while the
R

should include the internal metal impedance of 10.5Ω for

ISEN

accurate current sense.

For VR0 output, the R
while its value is determined by the R

resistor of each channel is integrated,

ISEN

resistor. The RSET resistor

SET

value can be from 3.84kΩ to 115.2kΩ and is 64x of the required

resistor value. Therefore, the current sense gain resistor

I

SEN

(Integrated R

) value can be effectively set at 60Ω to 1.8kΩ.

ISEN

Figures 9 and 10 show the configurations for inductor DCR sensing
and resistive sensing of VR0, respectively; their sensing current is
represented by Equations 11 and 12, respectively.

I

SENIL

I

SENIL

DCR 64⋅

-----------------------

⋅=

R

SET

R

SEN

-------------------------

⋅=

R

SET

64⋅

(EQ. 11)

(EQ. 12)

FIGURE 9. DCR SENSING CONFIGURATION FOR VR0

I

L

L

R

CURRENT

SENSE

I

=

SEN

ISL6366

In

I

L

R

SEN

-------------------------

R

SET

ESL

SEN

R

SENSE

-

V

+

R

R

+

R

ISEN(n)

-

ISEN-(n)

ISEN+(n)

RSET

64⋅

VC(s)

+

-

C

CT, Optional

C

V

OUT

OUT

FIGURE 10. SENSE RESISTOR IN SERIES WITH INDUCTORS FOR

VR0

18

FN6964.0

January 3, 2011

ISL6366

L/DCR OR ESL/R

MATCHING

SEN

Assuming the compensator design is correct, Figure 11 shows the
expected load transient response waveforms if L/DCR or
ESL/R
current I

is matching the R-C time constant. When the load

SEN

has a square change, the output voltage V

OUT

OUT

also
has a square response, except for the overshoot at load release.
However, there is always some PCB contact impedance of current
sensing components between the two current sensing points; it
hardly accounts into the L/DCR or ESL/R

matching calculation.

SEN

Fine tuning the matching is necessarily done in the board level to
improve overall transient performance and system reliability.

If the R-C timing constant is too large or too small, V
accurately represent real-time I

(s) and will worsen the

OUT

(s) will not

C

transient response. Figure 12 shows the load transient response
when the R-C timing constant is too small. V

OUT

will sag
excessively upon load insertion and may create a system failure
or early overcurrent trip. Figure 13 shows the transient response
when the R-C timing constant is too large. V

is sluggish in

OUT

drooping to its final value. There will be excessive overshoot if
load insertion occurs during this time, which may potentially hurt
the CPU reliability.

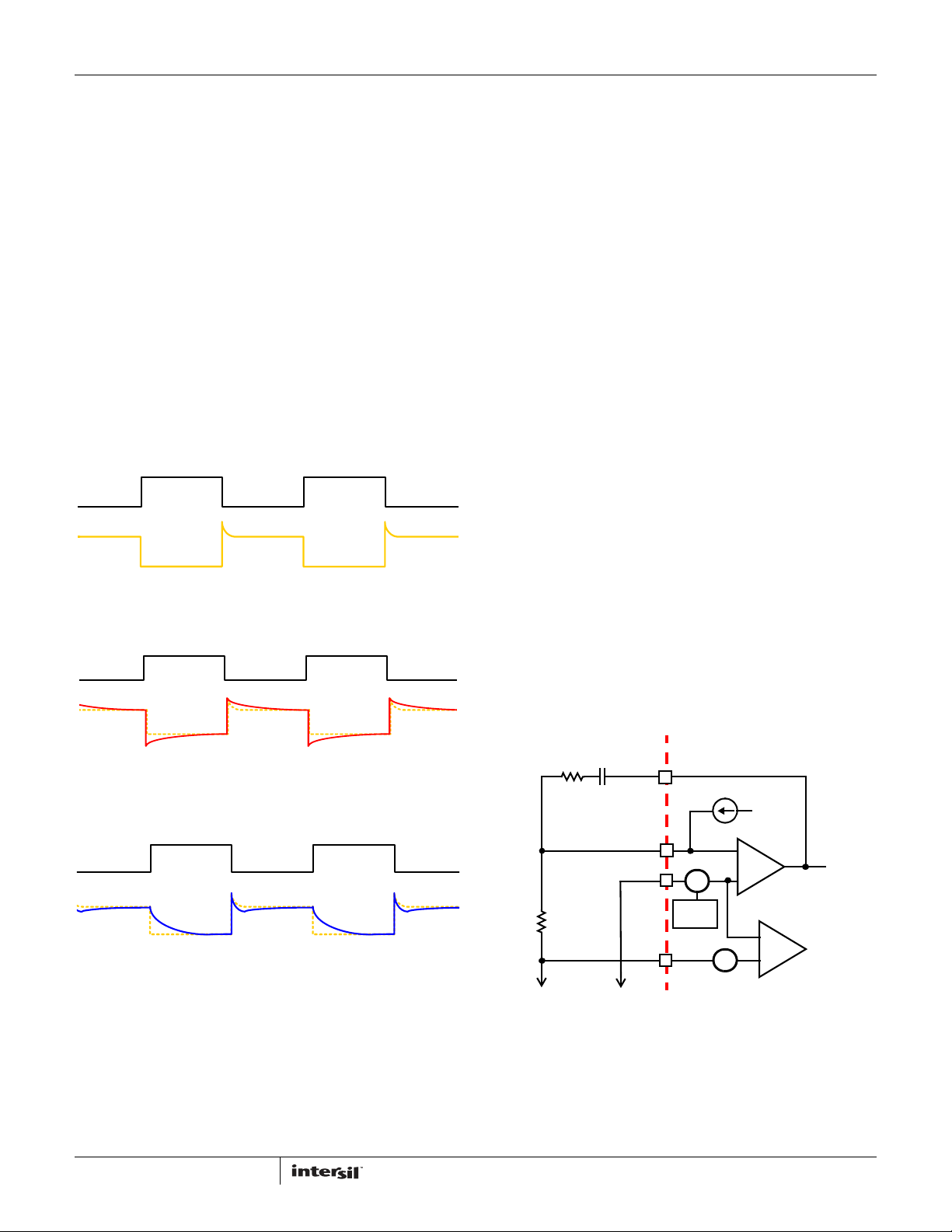

I

OUT

V

OUT

FIGURE 11. DESIRED LOAD TRANSIENT RESPONSE

WAVEFORMS

I

OUT

V

OUT

FIGURE 12. LOAD TRANSIENT RESPONSE WHEN R-C TIME

CONSTANT IS TOO SMALL

I

OUT

V

OUT

FIGURE 13. LOAD TRANSIENT RESPONSE WHEN R-C TIME

CONSTANT IS TOO LARGE

Channel-Current Balance for VR0

The sensed current In from each active channel is summed
together and divided by the number of active channels. The
resulting average current I

provides a measure of the total

AVG

load current. Channel current balance is achieved by comparing
the sensed current of each channel to the average current to
make an appropriate adjustment to the PWM duty cycle of each
channel with Intersil’s patented current-balance method.

Channel current balance is essential in achieving the thermal
advantage of multiphase operation. With good current balance,
the power loss is equally dissipated over multiple devices and a
greater area.

Voltage Regulation

The compensation network shown in Figure 14 assures that the
steady-state error in the output voltage is limited only to the error
in the reference voltage (DAC & OFFSET) and droop current
source, remote sense, and error amplifier.

The sensed average current I
will develop voltage drop across the resistor between FB and

for droop control. This current can be disconnected from the

V

OUT

FB node by tying R

high to VCC for non-droop applications.

FS_DRP

The output of the error amplifier, V
sawtooth waveforms to generate the PWM signals. The PWM
signals control the timing of the Intersil MOSFET drivers and regulate
the converter output to the specified reference voltage.

The ISL6366 does not have a unity gain amplifier in between the
feedback path and error amplifier. For remote sensing, connect the
microprocessor sensing pins to the non-inverting input, FB, via the
feedback resistor (R

), and inverting input, RGND, of the error

FB

amplifier. This configuration effectively removes the voltage error
encountered when measuring the output voltage relative to the local
controller ground reference point. VSEN should connect to remote
sensing’s positive rail as well for over voltage protection.

EXTERNAL CIRCUIT

C

R

C

C

COMP

FB

RGND

+

R

V

FB

DROOP

-

VSEN

V

OUT

FIGURE 14. OUTPUT VOLTAGE AND LOAD-LINE REGULATION

is tied to FB internally and

DROOP

, is compared to the internal

COMP

ISL6366

I

DROOP

ERROR
AMPLIFIER

-

+

+

VID &

OFFSET

+

DAC

-

+

+

­OVP

V

COMP

19

A digital-to-analog converter (DAC) generates a reference voltage,
which is programmable via SVID bus. The DAC decodes the SVID
set command into one of the discrete voltages shown in Table 4.
In addition, the output voltage can be margined in ±5mV step
between -640mV and 635mV, as shown in Table 5, via SVID set

FN6964.0

January 3, 2011

ISL6366

OFFSET command (33h). For a finer than 5mV offset, a large
ratio resistor divider can be placed on the FB pin between the
output and GND for positive offset or VCC for negative offset.

VR1’s VSENS, RGNDS, FBS, and COMPS pins function in the
similar manner as VR0’s VSEN, RGND, FB, and COMP pins.

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

0000000000OFF

0 0 0 0 0 0 0 1 0 1 0.2500

0 0 0 0 0 0 1 0 0 2 0.2550

0 0 0 0 0 0 1 1 0 3 0.2600

0 0 0 0 0 1 0 0 0 4 0.2650

00000101050.2700

00000110060.2750

0 0 0 0 0 1 1 1 0 7 0.2800

0 0 0 0 1 0 0 0 0 8 0.2850

0 0 0 0 1 0 0 1 0 9 0.2900

0 0 0 0 1 0 1 0 0 A 0.2950

0 0 0 0 1 0 1 1 0 B 0.3000

0 0 0 0 1 1 0 0 0 C 0.3050

000011010D0.3100

000011100E0.3150

0 0 0 0 1 1 1 1 0 F 0.3200

0 0 0 1 0 0 0 0 1 0 0.3250

0 0 0 1 0 0 0 1 1 1 0.3300

0 0 0 1 0 0 1 0 1 2 0.3350

0 0 0 1 0 0 1 1 1 3 0.3400

0 0 0 1 0 1 0 0 1 4 0.3450

0 0 0 1 0 1 0 1 1 5 0.3500

0 0 0 1 0 1 1 0 1 6 0.3550

0 0 0 1 0 1 1 1 1 7 0.3600

0 0 0 1 1 0 0 0 1 8 0.3650

00011001190.3700

000110101A0.3750

0 0 0 1 1 0 1 1 1 B 0.3800

0 0 0 1 1 1 0 0 1 C 0.3850

0 0 0 1 1 1 0 1 1 D 0.3900

0 0 0 1 1 1 1 0 1 E 0.3950

0 0 0 1 1 1 1 1 1 F 0.4000

0 0 1 0 0 0 0 0 2 0 0.4050

00100001210.4100

00100010220.4150

0 0 1 0 0 0 1 1 2 3 0.4200

0 0 1 0 0 1 0 0 2 4 0.4250

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

0 0 1 0 0 1 0 1 2 5 0.4300

0 0 1 0 0 1 1 0 2 6 0.4350

0 0 1 0 0 1 1 1 2 7 0.4400

0 0 1 0 1 0 0 0 2 8 0.4450

0 0 1 0 1 0 0 1 2 9 0.4500

0 0 1 0 1 0 1 0 2 A 0.4550

0 0 1 0 1 0 1 1 2 B 0.4600

0 0 1 0 1 1 0 0 2 C 0.4650

001011012D0.4700

001011102E0.4750

0 0 1 0 1 1 1 1 2 F 0.4800

0 0 1 1 0 0 0 0 3 0 0.4850

0 0 1 1 0 0 0 1 3 1 0.4900

0 0 1 1 0 0 1 0 3 2 0.4950

0 0 1 1 0 0 1 1 3 3 0.5000

0 0 1 1 0 1 0 0 3 4 0.5050

00110101350.5100

00110110360.5150

0 0 1 1 0 1 1 1 3 7 0.5200

0 0 1 1 1 0 0 0 3 8 0.5250

0 0 1 1 1 0 0 1 3 9 0.5300

0 0 1 1 1 0 1 0 3 A 0.5350

001110113B0.5400

001111003C0.5450

0 0 1 1 1 1 0 1 3 D 0.5500

0 0 1 1 1 1 1 0 3 E 0.5550

0 0 1 1 1 1 1 1 3 F 0.5600

0 1 0 0 0 0 0 0 4 0 0.5650

01000001410.5700

01000010420.5750

0 1 0 0 0 0 1 1 4 3 0.5800

0 1 0 0 0 1 0 0 4 4 0.5850

0 1 0 0 0 1 0 1 4 5 0.5900

0 1 0 0 0 1 1 0 4 6 0.5950

0 1 0 0 0 1 1 1 4 7 0.6000

0 1 0 0 1 0 0 0 4 8 0.6050

01001001490.6100

010010104A0.6150

0 1 0 0 1 0 1 1 4 B 0.6200

0 1 0 0 1 1 0 0 4 C 0.6250

0 1 0 0 1 1 0 1 4 D 0.6300

(Continued)

20

FN6964.0

January 3, 2011

ISL6366

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

0 1 0 0 1 1 1 0 4 E 0.6350

0 1 0 0 1 1 1 1 4 F 0.6400

0 1 0 1 0 0 0 0 5 0 0.6450

0 1 0 1 0 0 0 1 5 1 0.6500

0 1 0 1 0 0 1 0 5 2 0.6550

0 1 0 1 0 0 1 1 5 3 0.6600

0 1 0 1 0 1 0 0 5 4 0.6650

0 1 0 1 0 1 0 1 5 5 0.6700

0 1 0 1 0 1 1 0 5 6 0.6750

0 1 0 1 0 1 1 1 5 7 0.6800

0 1 0 1 1 0 0 0 5 8 0.6850

0 1 0 1 1 0 0 1 5 9 0.6900

0 1 0 1 1 0 1 0 5 A 0.6950

0 1 0 1 1 0 1 1 5 B 0.7000

0 1 0 1 1 1 0 0 5 C 0.7050

010111015D0.7100

010111105E0.7150

0 1 0 1 1 1 1 1 5 F 0.7200

0 1 1 0 0 0 0 0 6 0 0.7250

0 1 1 0 0 0 0 1 6 1 0.7300

0 1 1 0 0 0 1 0 6 2 0.7350

01100011630.7400

01100100640.7450

0 1 1 0 0 1 0 1 6 5 0.7500

0 1 1 0 0 1 1 0 6 6 0.7550

01100111670.7600

01101000680.7650

01101001690.7700

011010106A0.7750

0 1 1 0 1 0 1 1 6 B 0.7800

0 1 1 0 1 1 0 0 6 C 0.7850

0 1 1 0 1 1 0 1 6 D 0.7900

0 1 1 0 1 1 1 0 6 E 0.7950

0 1 1 0 1 1 1 1 6 F 0.8000

0 1 1 1 0 0 0 0 7 0 0.8050

01110001710.8100

01110010720.8150

0 1 1 1 0 0 1 1 7 3 0.8200

0 1 1 1 0 1 0 0 7 4 0.8250

0 1 1 1 0 1 0 1 7 5 0.8300

0 1 1 1 0 1 1 0 7 6 0.8350

(Continued)

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

01110111770.8400

01111000780.8450

0 1 1 1 1 0 0 1 7 9 0.8500

0 1 1 1 1 0 1 0 7 A 0.8550

0 1 1 1 1 0 1 1 7 B 0.8600

0 1 1 1 1 1 0 0 7 C 0.8650

011111017D0.8700

011111107E0.8750

0 1 1 1 1 1 1 1 7 F 0.8800

1 0 0 0 0 0 0 0 8 0 0.8850

1 0 0 0 0 0 0 1 8 1 0.8900

1 0 0 0 0 0 1 0 8 2 0.8950

1 0 0 0 0 0 1 1 8 3 0.9000

1 0 0 0 0 1 0 0 8 4 0.9050

10000101850.9100

10000110860.9150

1 0 0 0 0 1 1 1 8 7 0.9200

1 0 0 0 1 0 0 0 3 8 0.9250

1 0 0 0 1 0 0 1 8 9 0.9300

1 0 0 0 1 0 1 0 8 A 0.9350

1 0 0 0 1 0 1 1 8 B 0.9400

1 0 0 0 1 1 0 0 8 C 0.9450

1 0 0 0 1 1 0 1 8 D 0.9500

1 0 0 0 1 1 1 0 8 E 0.9550

1 0 0 0 1 1 1 1 8 F 0.9600

1 0 0 1 0 0 0 0 9 0 0.9650

10010001910.9700

10010010920.9750

1 0 0 1 0 0 1 1 9 3 0.9800

1 0 0 1 0 1 0 0 9 4 0.9850

1 0 0 1 0 1 0 1 9 5 0.9900

1 0 0 1 0 1 1 0 9 6 0.9950

10010111971.0000

10011000981.0050

10011001991.0100

100110109A1.0150

100110119B1.0200

100111009C1.0250

100111019D1.0300

100111109E1.0350

100111119F1.0400

(Continued)

21

FN6964.0

January 3, 2011

ISL6366

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

1 0 1 0 0 0 0 0 A 0 1.0450

1 0 1 0 0 0 0 1 A 1 1.0500

1 0 1 0 0 0 1 0 A 2 1.0550

1 0 1 0 0 0 1 1 A 3 1.0600

1 0 1 0 0 1 0 0 A 4 1.0650

10100101A51.0700

10100110A61.0750

1 0 1 0 0 1 1 1 A 7 1.0800

1 0 1 0 1 0 0 0 A 8 1.0850

1 0 1 0 1 0 0 1 A 9 1.0900

1 0 1 0 1 0 1 0 A A 1.0950

10101011AB1.1000

10101100AC1.1050

10101101AD1.1100

1 0 1 0 1 1 1 0 A E 1.1150

10101111AF1.1200

10110000B01.1250

10110001B11.1300

10110010B21.1350

10110011B31.1400

10110100B41.1450

1 0 1 1 0 1 0 1 B 5 1.1500

1 0 1 1 0 1 1 0 B 6 1.1550

10110111B71.1600

10111000B81.1650

10111001B91.1700

10111010BA1.1750

10111011BB1.1800

10111100BC1.1850

1 0 1 1 1 1 0 1 B D 1.1900

1 0 1 1 1 1 1 0 B E 1.1950

1 0 1 1 1 1 1 1 B F 1.2000

1 1 0 0 0 0 0 0 C 0 1.2050

11000001C11.2100

11000010C21.2150

1 1 0 0 0 0 1 1 C 3 1.2200

1 1 0 0 0 1 0 0 C 4 1.2250

1 1 0 0 0 1 0 1 C 5 1.2300

1 1 0 0 0 1 1 0 C 6 1.2350

11000111C71.2400

11001000C81.2450

(Continued)

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

11001001C91.2500

11001010CA1.2550

11001011CB1.2600

11001100CC1.2650

11001101CD1.2700

11001110CE1.2750

11001111CF1.2800

11010000D01.2850

11010001D11.2900

11010010D21.2950

11010011D31.3000

11010100D41.3050

11010101D51.3100

11010110D61.3150

11010111D71.3200

11011000D81.3250

11011001D91.3300

11011010DA1.3350

11011011DB1.3400

11011100DC1.3450

11011101DD1.3500

11011110DE1.3550

11011111DF1.3600

11100000E01.3650

11100001E11.3700

11100010E21.3750

11100011E31.3800

11100100E41.3850

11100101E51.3900

11100110E61.3950

11100111E71.4000

11101000E81.4050

11101001E91.4100

11101010EA1.4150

11101011EB1.4200

11101100EC1.4250

11101101ED1.4300

11101110EE1.4350

11101111EF1.4400

11110000F01.4450

11110001F11.4500

(Continued)

22

FN6964.0

January 3, 2011

ISL6366

TABLE 4. VR12/IMVP7 VID 8-BIT

VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0 HEX VOLTAGE

1 1 1 1 0 0 1 0 F 2 1.4550

1 1 1 1 0 0 1 1 F 3 1.4600

1 1 1 1 0 1 0 0 F 4 1.4650

11110101F51.4700

11110110F61.4750

1 1 1 1 0 1 1 1 F 7 1.4800

1 1 1 1 1 0 0 0 F 8 1.4850

1 1 1 1 1 0 0 1 F 9 1.4900

1 1 1 1 1 0 1 0 F A 1.4950

1 1 1 1 1 0 1 1 F B 1.5000

1 1 1 1 1 1 0 0 F C 1.5050

11111101FD1.5100

11111110FE1.5150

1 1 1 1 1 1 1 1 F F 1.5200

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

0000000000

0000000101 5

000000100210

000000110315

000001000420

000001010525

000001100630

000001110735

000010000840

000010010945

000010100A50

000010110B55

000011000C60

000011010D65

000011100E70

000011110F75

000100001080

000100011185

000100101290

000100111395

0001010014100

0001010115105

0001011016110

(Continued)

VOLTAGE

(mV)

0

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

0001011117115

0001100018120

0001100119125

000110101A130

000110111B135

000111001C140

000111011D145

000111101E150

000111111F155

0010000020160

0010000121165

0010001022170

0010001123175

0010010024180

0010010125185

0010011026190

0010011127195

0010100028200

0010100129205

001010102A210

001010112B215

001011002C220

001011012D225

001011102E230

001011112F235

0011000030240

0011000131245

0011001032250

0011001133255

0011010034260

0011010135265

0011011036270

0011011137275

0011100038280

0011100139285

001110103A290

001110113B295

001111003C300

001111013D305

(Continued)

VOLTAGE

(mV)

23

FN6964.0

January 3, 2011

ISL6366

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

001111103E310

001111113F315

0100000040320

0100000141325

0100001042330

0100001143335

0100010044340

0100010145345

0100011046350

0100011147355

0100100048360

0100100149365

010010104A370

010010114B375

010011004C380

010011014D385

010011104E390

010011114F395

0101000050400

0101000151405

0101001052410

0101001153415

0101010054420

0101010155425

0101011056430

0101011157435

0101100058440

0101100159445

010110105A450

010110115B455

010111005C460

010111015D465

010111105E470

010111115F47 5

0110000060480

0110000161485

0110001062490

0110001163495

0110010064500

(Continued)

VOLTAGE

(mV)

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

0110010165505

0110011066510

0110011167515

0110100068520

0110100169525

011010106A530

011010116B535

011011006C540

011011016D545

011011106E550

011011116F555

0111000070560

0111000171565

0111001072570

0111001173575

0111010074580

0111010175585

0111011076590

0111011177595

0111100078600

0111100179605

011110107A610

011110117B615

011111007C620

011111017D625

011111107E630

011111117F635

1000000080-640

1000000181-635

1000001082-630

1000001183-625

1000010084-620

1000010185-615

1000011086-610

1000011187-605

1000100038-600

1000100189-595

100010108A-590

100010118B-585

(Continued)

VOLTAGE

(mV)

24

FN6964.0

January 3, 2011

ISL6366

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

100011008C-580

100011018D-575

100011108E-570

100011118F-565

1001000090-560

1001000191-555

1001001092-550

1001001193-545

1001010094-540

1001010195-535

1001011096-530

1001011197-525

1001100098-520

1001100199-515

100110109A-510

100110119B-505

100111009C-500

100111019D-495

100111109E-490

100111119F-485

10100000A0-480

10100001A1-475

10100010A2-470

10100011A3-465

10100100A4-460

10100101A5-455

10100110A6-450

10100111A7-445

10101000A8-440

10101001A9-435

10101010AA-430

10101011AB-425

10101100AC-420

10101101AD-415

10101110AE-410

10101111AF-405

10110000B0-400

10110001B1-395

10110010B2-390

(Continued)

VOLTAGE

(mV)

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

10110011B3-385

10110100B4-380

10110101B5-375

10110110B6-370

10110111B7-365

10111000B8-360

10111001B9-355

10111010BA-350

10111011BB-345

10111100BC-340

10111101BD-335

10111110BE-330

10111111BF-325

11000000C0-320

11000001C1-315

11000010C2-310

11000011C3-305

11000100C4-300

11000101C5-295

11000110C6-290

11000111C7-285

11001000C8-280

11001001C9-275

11001010CA-270

11001011CB-265

11001100CC-260

11001101CD-255

11001110CE-250

11001111CF-245

11010000D0-240

11010001D1-235

11010010D2-230

11010011D3-225

11010100D4-220

11010101D5-215

11010110D6-210

11010111D7-205

11011000D8-200

11011001D9-195

(Continued)

VOLTAGE

(mV)

25

FN6964.0

January 3, 2011

ISL6366

TABLE 5. VR12/IMVP7 635mV OFFSET 8-BIT

OFS7 OFS6 OFS5 OFS4 OFS3 OFS2 OFS1 OFS0 HEX

11011010DA-190

11011011DB-185

11011100DC-180

11011101DD-175

11011110DE-170

11011111DF-165

11100000E0-160

11100001E1-155

11100010E2-150

11100011E3-145

11100100E4-140

11100101E5-135

11100110E6-130

11100111E7-125

11101000E8-120

11101001E9-115

11101010EA-110

11101011EB-105

11101100EC-100

11101101ED-95

11101110EE-90

11101111EF-85

11110000F0-80

11110001F1-75

11110010F2-70

11110011F3-65

11110100F4-60

11110101F5-55

11110110F6-50

11110111F7-45

11111000F8-40

11111001F9-35

11111010FA-30

11111011FB-25

11111100FC-20

11111101FD-15

11111110FE-10

11111111FF -5

(Continued)

VOLTAGE

(mV)

Load-Line Regulation

Some microprocessor manufacturers require a precisely
controlled output resistance. This dependence of output voltage
on load current is often termed “droop” or “load line” regulation.
By adding a well controlled output impedance, the output voltage
can effectively be level shifted in a direction, which works to
achieve the load-line regulation required by these
manufacturers.

In other cases, the designer may determine that a more cost­effective solution can be achieved by adding droop. Droop can
help to reduce the output-voltage spike that results from fast
load-current demand changes.

The magnitude of the spike is dictated by the ESR and ESL of the
output capacitors selected. By positioning the no-load voltage
level near the upper specification limit, a larger negative spike
can be sustained without crossing the lower limit. By adding a
well controlled output impedance, the output voltage under load
can effectively be level shifted down so that a larger positive
spike can be sustained without crossing the upper specification
limit.

As shown in Figure 14, a current proportional to the average
current of all active channels, I

, flows from FB through a load-

AVG

line regulation resistor RFB. The resulting voltage drop across

is proportional to the output current, effectively creating an

R

FB

output voltage droop with a steady-state value defined, as shown
in Equation 13:

V

DROOPIAVG

=

R⋅

FB

(EQ. 13)

The regulated output voltage is reduced by the droop voltage

. The output voltage as a function of load current is

V

DROOP

derived by combining Equation 13 with the appropriate sample
current expression defined by the current sense method
employed, as shown in Equation 14:

I

⎛⎞

---------------

V

OUTVREF

where V

–=

⎜⎟
⎝⎠

is the reference voltage (DAC), I

REF

output current of the converter, R
connected to the ISEN+ pin, and R
the active channel number, and R

LOAD

N

R

X

------------------R
R

ISEN

FB

is the total

LOAD

is the sense resistor

ISEN

is the feedback resistor, N is

FB

is the DCR, or R

X

SENSE

(EQ. 14)

depending on the sensing method.

Therefore, the equivalent loadline impedance, i.e. Droop
impedance, is equal to Equation 15:

R

R

FB

------------

R

LL

X

------------------=

N

R

ISEN

(EQ. 15)

The major regulation error comes from the current sensing
elements. To improve load-line regulation accuracy, a tight DCR
tolerance of inductor or a precision sensing resistor should be
considered.

Output-Voltage Offset Programming

The output voltage can be margined in ±5mV steps between

-640mV and 635mV, as shown in Table 5, via SVID set OFFSET
command (33h). The minimum offset step is ±5mV. For a finer
than 5mV offset, a large ratio resistor divider can be placed on

26

FN6964.0

January 3, 2011

ISL6366

the FB pin between the output and GND for positive offset or VCC
for negative offset.

Dynamic VID

Modern microprocessors need to make changes to their voltage
as part of normal operation. They direct the core-voltage
regulator to do this by making changes to the VID during
regulator operation. The power management solution is required
to monitor the DAC and respond to on-the-fly VID changes in a
controlled manner. Supervising the safe output voltage transition
within the DAC range of the processor without discontinuity or
disruption is a necessary function of the core-voltage regulator.

Three different slew rates can be selected during Dynamic VID
(DVID) transition for VR0, but during VR0 soft-start, the setVID
SLOW rate is defaulted. FDVID has no impact on VR1 rail, which
can be 10mV/µs minimum rate for setVID Fast, 2.5mV/µs
minimum rate for setVID Slow.

TABLE 6. SLEW RATE OPTIONS

FDVID

VR0 0 10mV/µs 2.5mV/µs

VR1 DON’T CARE 10mV/µs 2.5mV/µs

SetVID FAST (Minimum

Rate)

1 20mV/µs 5.0mV/µs

SetVID SLOW

(Minimum Rate)

During dynamic VID transition and VID step up, the overcurrent
trip point increases by 140% to avoid falsely triggering OCP
circuits, while the overvoltage trip point will follow the
DAC+179mV level. If the dynamic VID occurs at PSI1/2/3/Decay
(lower power state) asserted, the system should exit to PSI0 (full
power state) and complete the transition, and will not resume the
lowe power state operation unless the low power mode
command is asserted again.

In addition to ramping down the output voltage with a controlled
rate as previously described, both VR0 and VR1 can be
programmed into decay mode via SVID’s setDecay command.
Whenever the Decay command is received, the VR will enter PSI2
mode. The VR will be in single-phase operation. If the DE register
is selected to be “Enable”, the VR will operate in diode emulation
mode and drop to the target voltage at a decay rate determined
by the load impedance and output capacitive bank. The decay
rate will be limited to 2.5mV/µs rate setting. If the “DE” register
is selected to be “Disable”, then VR will drop at 2.5mV/µs rate
setting.

Operation Initialization

Prior to converter initialization, proper conditions must exist on
the enable inputs and VCC. When the conditions are met, the
controller begins soft-start. Once the output voltage is within the
proper window of operation, VR_RDY asserts logic high.

Enable and Disable

While in shutdown mode, the PWM outputs are held in a high­impedance state (or pulled to 40% of VCC) to assure the drivers
remain off. The following input conditions must be met before
the ISL6366 is released from shutdown mode.

1. The bias voltage applied at VCC must reach the internal
power-on reset (POR) rising threshold. Once this threshold is
reached, proper operation of all aspects of the ISL6366 is
guaranteed. Hysteresis between the rising and falling
thresholds assure that once enabled, ISL6366 will not
inadvertently turn off unless the bias voltage drops
substantially (see “Electrical Specifications” table beginning
on page 8).

2. The ISL6366 features an enable input (EN_PWR) for power
sequencing between the controller bias voltage and another
voltage rail. The enable comparator holds the ISL6366 in
shutdown until the voltage at EN_PWR rises above 0.85V. The
enable comparator has about 100mV of hysteresis to prevent
bounce. It is important that the drivers reach their POR level
before the ISL6366 becomes enabled. The schematic in
Figure 15 demonstrates sequencing the ISL6366 with the
ISL66xx family of Intersil MOSFET drivers.

3. The voltage on EN_VTT must be higher than 0.85V to enable
the controller. This pin is typically connected to the output of
VTT VR.

ISL6366

POR

CIRCUIT

SOFT-START

AND

FAULT LOGIC

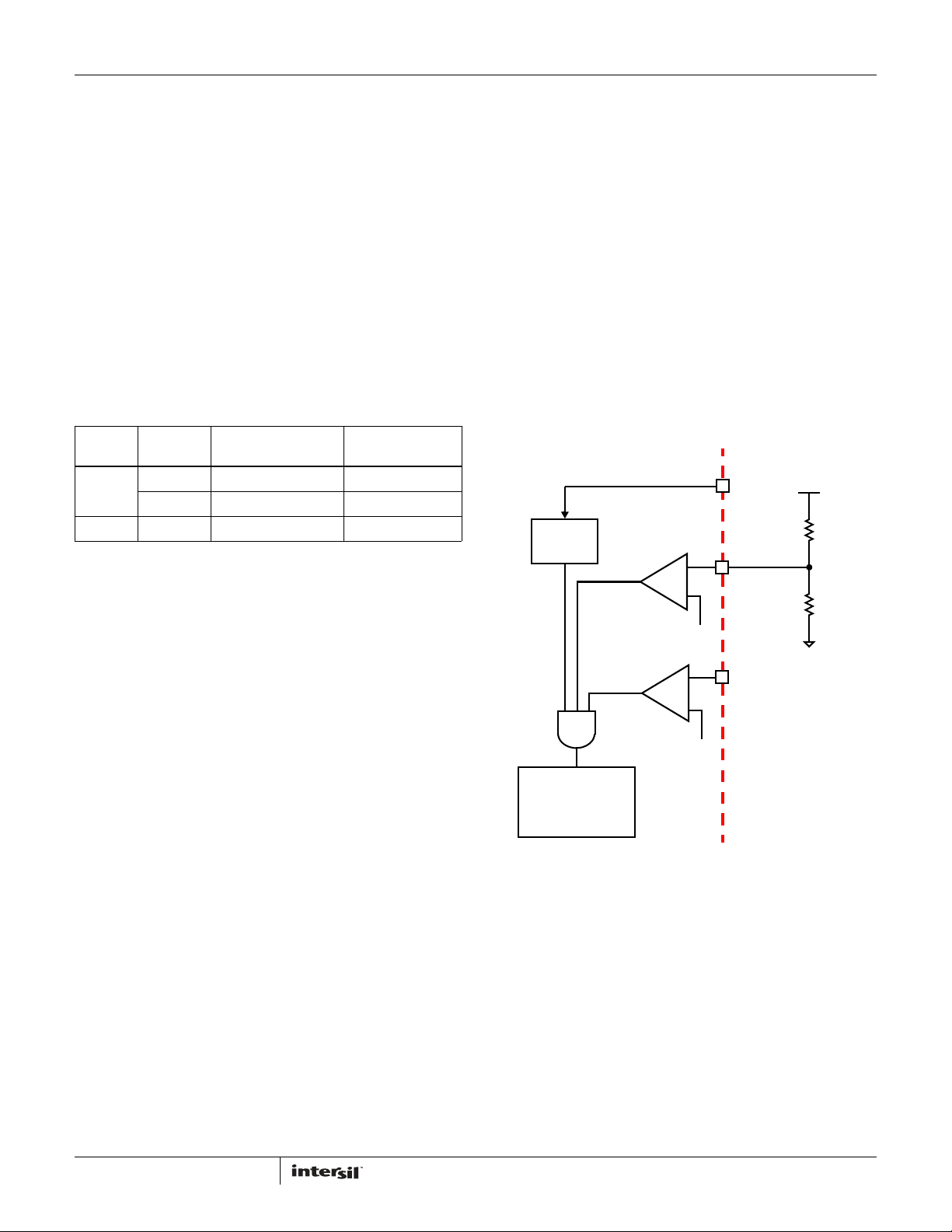

FIGURE 15. POWER SEQUENCING USING THRESHOLD-

SENSITIVE ENABLE (EN) FUNCTION

ENABLE

COMPARATOR

+

-

0.85V

+

-

0.85V

EXTERNAL CIRCUIT

VCC

EN_PWR_CFP

EN_VTT

+12V

100kΩ

9.09kΩ

When all conditions previously mentioned are satisfied, ISL6366
begins the soft-start and ramps the output voltage to the Boot
Voltage set by hard-wired “BT” and “BTS” registers or first setVID
command if boot voltage set to zero volts. After remaining at
boot voltage for some time, ISL6366 reads the VID code via SVID
bus. If the VID code is valid, ISL6366 will regulate the output to
the final VID setting. If the VID code is “OFF” code, ISL6366 will
remain shut down.

Soft-Start

ISL6366 based VR has 4 periods during soft-start, as shown in
Figure 16. After VCC, EN_VTT and EN_PWR reach their POR/enable
thresholds, the controller will have a fixed delay period t
delay period, the VR will begin first soft-start ramp until the output

. After this

D1

27

FN6964.0

January 3, 2011

ISL6366

)

voltage reaches V

voltage at a fixed slew rate, quarter of setVID

BOOT

FAST rate as in Table 6. Then, the controller will regulate the VR
voltage at V

for another period tD3 until SVID sends a new VID

BOOT

command. If the VID code is valid, ISL6366 will initiate the second
soft-start ramp at a slew rate, set by SetDVID FAST or SLOW
command in Table 6, until the voltage reaches the new VID voltage.

The soft-start time is the sum of the 4 periods, as shown in
Equation 16.

t

SStD1tD2tD3tD4

is a fixed delay with the typical value as 4.6ms. tD3 is

t

D1

+++=

(EQ. 16)

determined by the time to obtain a valid new VID voltage from SVID
bus. If the VID is valid before the output reaches the boot voltage,
the output will turn around to respond to the new VID code.

During t

and tD4, ISL6366 digitally controls the DAC voltage

D2

change at 5mV per step. The soft-start ramp time tD2 and tD4
can be calculated based on Equations 17 and 18:

t

D2

SetVID SLOW RATE

V

–

VIDVBOOT

-----------------------------------

t

D4

SetVID RATE

For example, when the V
at 10mV/µs, the first soft-start ramp time t

μs()=

μs()=

is set at 1.1V and setVID rate is set

BOOT

will be around

D2

(EQ. 17

(EQ. 18)

V

BOOT

----------------------------------------------------

440µs and the second soft-start ramp time tD4 will be at
maximum of 40µs if an setVID command for 1.5V is received
after t

. However, if V

D3

is set at 0V, the first setVID

BOOT

command is for 1.5V, then tD2 will be around 150µs. Note that
the initial 0 to 250mV DAC is typically at a slower rate to
minimize the inrush current, the response time could be dictated
by the compensation network and the output filter.

where V
between the IMON pin and GND, I
of the converter, R

is the voltage at the IMON pin, R

IMON

is the sense resistor connected to the

ISEN

LOAD

is the total output current

ISEN+ pin, N is the active channel number, and R

is the resistor

IMON

is the DC

X

resistance of the current sense element, either the DCR of the
inductor or R

depending on the sensing method.

SENSE

The resistor from the IMON pin to GND should be chosen to
ensure that the voltage at the IMON pin is typically 900mV at the
maximum load current, typically corresponding to I

CCMAX

register. The IMON voltage is linearly digitized every 132µs and
stored in the IOUT register (15h). When the IMON voltage reaches
900mV or beyond, the digitized IOUT will be FFh and the Alert pin
is pulled low to alarm the CPU. If the desired maximum load
current alert is not the exact I

value, the IMON resistor can

CCMAX

be scaled accordingly to make sure that it reaches 900mV at the
desired maximum output load.I

R

IMON

0.9V R

ISEN

------------------------------

R

X

N

---------------------------------------=

I

DESIRED_MAX

(EQ. 20)

A small capacitor can be placed between the IMON pin and GND
to reduce the noise impact and do the average. The typical time
constant is 1ms for VR12 applications. If this pin is not used, tie
it to GND.

In addition, if the IMON pin voltage is higher than 1.12V,
overcurrent shutdown will be triggered, as described in
“Overcurrent Protection” on page 29.

Fault Monitoring and Protection

The ISL6366 actively monitors output voltage and current to detect
fault conditions. Fault monitors trigger protective measures to
prevent damage to a microprocessor load. One common power­good indicator is provided for linking to external system monitors.
The schematic in Figure 17 outlines the interaction between the
fault monitors and the VR_RDY signal.

t

t

D1

EN_VTT

VR_Ready

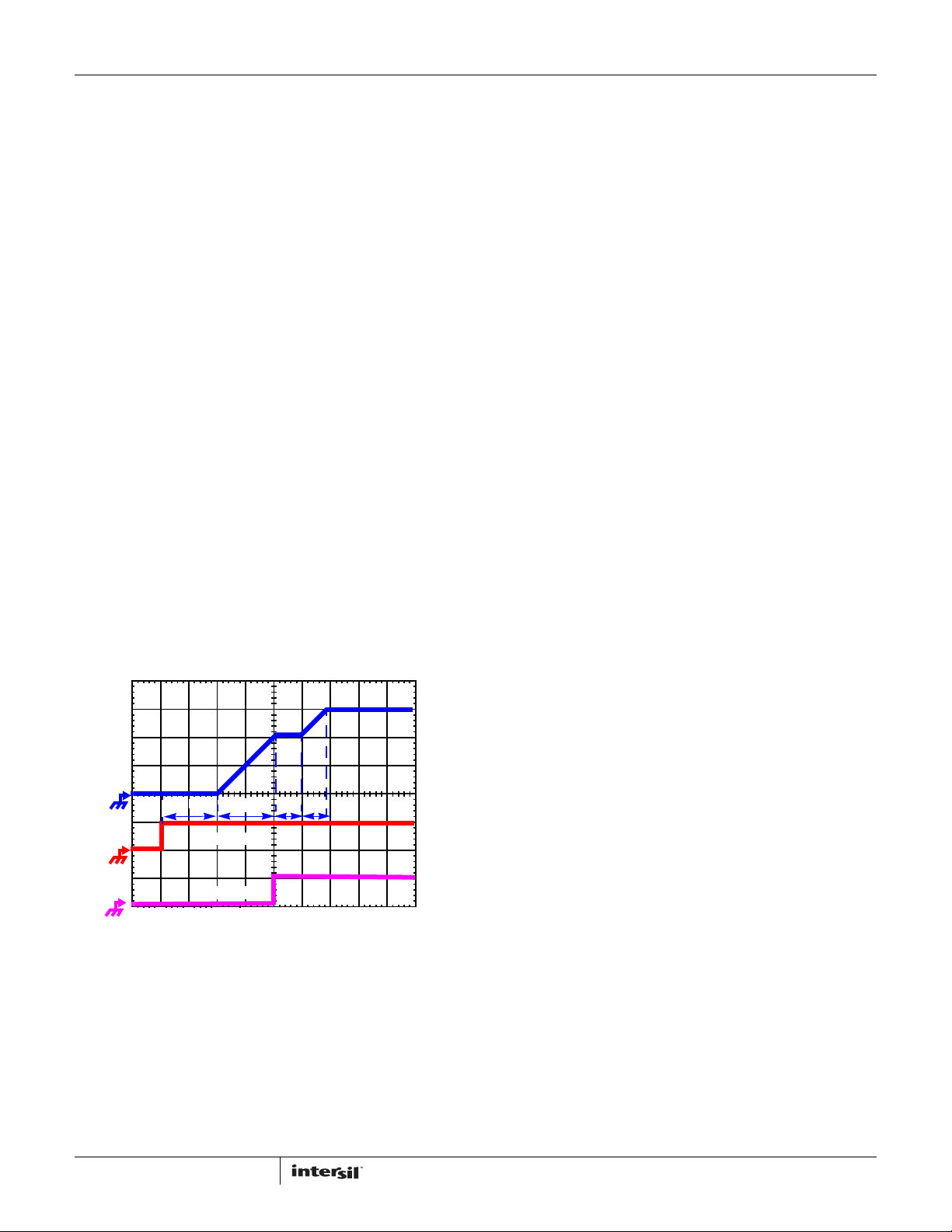

FIGURE 16. SOFT-START WAVEFORMS

t

D2

t

D3

D4

Current Sense Output

The current flowing out of the IMON pin is equal to the sensed
average current inside ISL6366. In typical applications, a resistor
is placed from the IMON pin to GND to generate a voltage, which
is proportional to the load current and the resistor value, as
shown in Equation 19:

V

IMON

-------------------

=

R

IMON

N

R

X

------------------I
R

ISEN

LOAD

(EQ. 19)

28

VR_Ready Signal

The VR_RDY pin is an open-drain logic output which indicates
that the soft-start period is complete and the output voltage is
within the regulated range. VR_RDY is pulled low during
shutdown and releases high after a successful soft-start. VR_RDY
will be pulled low when an fault (OCP or OVP) condition is
detected, or the controller is disabled by a reset from EN_PWR,
EN_VTT, POR, or VID OFF-code. If the Multi_VR_config register is
set to 01h, then the VR_Ready line will stay high when receiving a
00h VID code after the first soft-start. The VR_RDYS behaves the
same as VR_RDY, and both are independent from each other.
However, the defaulted Multi_VR_config is 00h for VR0 and 01h
for VR1.

Overvoltage Protection

Regardless of the VR being enabled or not, the ISL6366
overvoltage protection (OVP) circuit will be active after its POR. The
OVP thresholds are different under different operation conditions.
When VR is not enabled and during the soft-start intervals t
OVP threshold is 2.3V. Once the VR output voltage reaches above
the DAC, fires the first PWM and completes the soft-start, the OVP
trip point will change to a tacking level of DAC+179mV.

, the

D1

FN6964.0

January 3, 2011

ISL6366

Two actions are taken by ISL6366 to protect the microprocessor
load when an overvoltage condition occurs.

At the inception of an overvoltage event, all PWM outputs are
commanded low instantly. This causes the Intersil drivers to turn on
the lower MOSFETs and pull the output voltage below a level to avoid
damaging the load. When the output voltage falls below the DAC
plus 107mV, PWM signals enter a high-impedance state. The Intersil
drivers respond to the high-impedance input by turning off both
upper and lower MOSFETs. If the overvoltage condition reoccurs,
ISL6366 will again command the lower MOSFETs to turn on.
ISL6366 will continue to protect the load in this fashion as long as
the overvoltage condition occurs.

Once an overvoltage condition is detected, the respective VR#
ceases the normal PWM operation and pulls its VR_Ready low
until ISL6366 is reset. Cycling the voltage VCC below the
POR-falling threshold will reset the controller. Cycling the EN_VTT,
or EN_PWR will also reset the controller.

VR_RDY

100µA

+

OC

-

I

AVG

average current is measured. The average current is continually
compared with a constant 100µA reference current, as shown in
Figure 17. Once the average current exceeds the reference
current, a comparator triggers the converter to shutdown. In
addition, the current out of the IMON pin is equal to the sensed
average current I

. With a resistor from IMON to GND, the

AVG

voltage at IMON will be proportional to the sensed average current
and the resistor value. The ISL6366 continuously monitors the
voltage at the IMON pin. If the voltage at the IMON pin is higher
than 1.12V, a precision comparator triggers the overcurrent
shutdown. Since the internal current comparator has wider
tolerance than the voltage comparator, the IMON voltage
comparator is the preferred one for OCP trip. Hence, the resistor
between IMON and GND can be scaled such that the overcurrent
protection threshold is tripping lower than 100µA. For example,
the overcurrent threshold for the sensed average current I

AVG

can

be set to 95µA by using a 11.8kΩ resistor from IMON to GND.
Thus, the internal 100µA comparator might only be triggered at its
lower corner. However, IMON OCP trip should NOT be too far away
from 140µA, which is used for cycle-by-cycle protection and
inductor saturation.

OUTPUT CURRENT

SOFT-START, FAULT

AND CONTROL LOGIC

VSEN

+

OV

-

ISL6366

VID + 0.179V

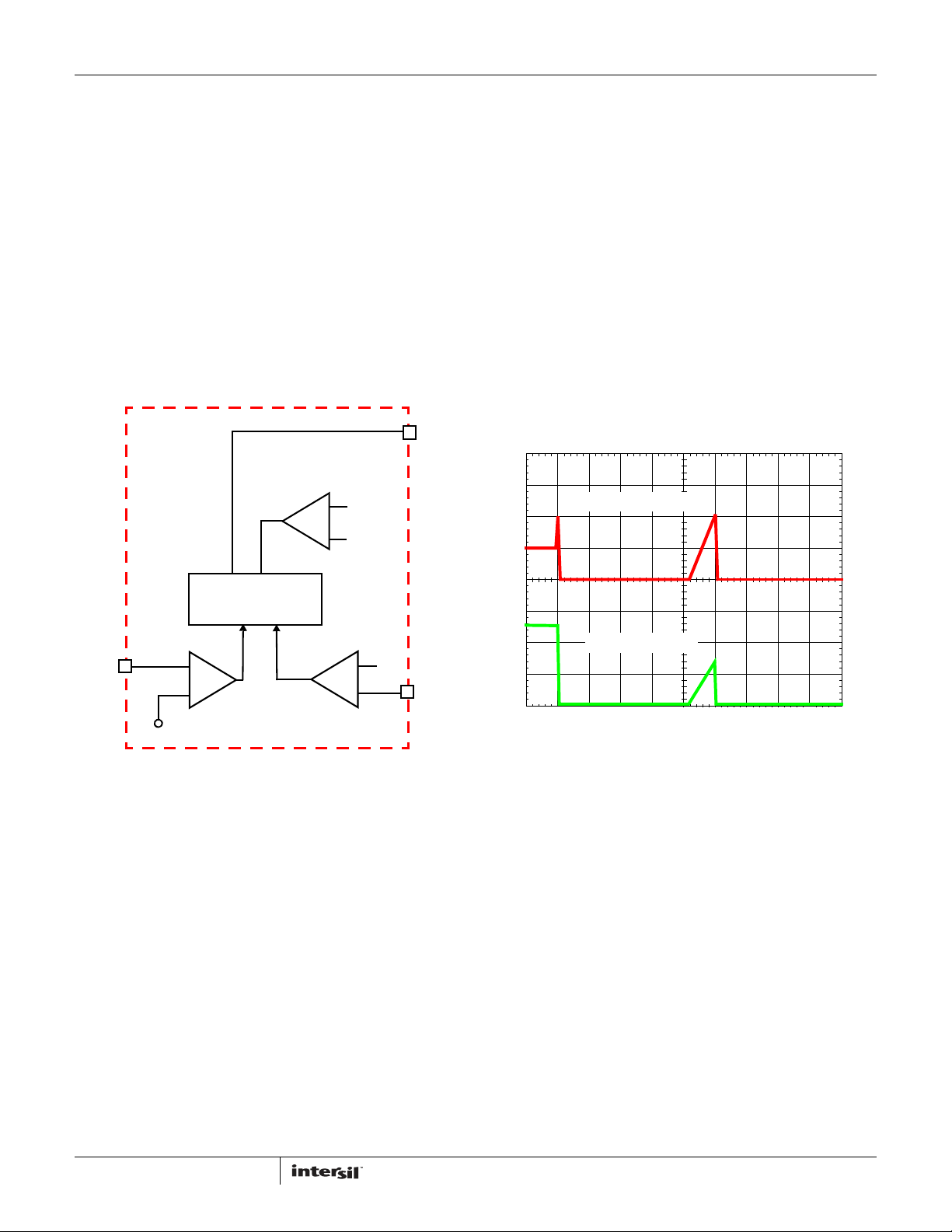

FIGURE 17. VR_RDY AND PROTECTION CIRCUITRY

OC

1.12V

+

-

IMON

Overcurrent Protection

ISL6366 has two levels of overcurrent protection. Each phase is
protected from a sustained overcurrent condition by limiting its
peak current, while the combined phase currents are protected on
an instantaneous basis.

For the individual channel overcurrent protection, ISL6366
continuously compares the sensed peak current (~50ns filter)
signal of each channel with the 140µA reference current. If one
channel current exceeds the reference current, ISL6366 will pull
PWM signal of this channel to low for the rest of the switching
cycle. This PWM signal can be turned on next cycle if the sensed
channel current is less than the 140µA reference current. The
peak current limit of individual channel will only use for cycle-by­cycle current limiting and will not trigger the converter to
shutdown.

In instantaneous protection mode, ISL6366 utilizes the sensed
average current I
“Current Sensing” on page 17 for more details on how the

to detect an overcurrent condition. See

AVG

0A

OUTPUT VOLTAGE

0V

FIGURE 18. OVERCURRENT BEHAVIOR IN HICCUP MODE. FSW =

500kHz

2ms/DIV

At the beginning of overcurrent shutdown, the controller places all
PWM signals in a high-impedance state, commanding the Intersil
MOSFET driver ICs to turn off both upper and lower MOSFETs. The
system remains in this state a period of 8ms. If the controller is still
enabled at the end of this wait period, it will attempt a soft-start. If
the fault remains, the trip-retry cycles will continue indefinitely (as
shown in Figure 18) until either controller is disabled or the fault is
cleared. Note that the energy delivered during trip-retry cycling is
much less than during full-load operation, so there is no thermal
hazard during this kind of operation.

Thermal Monitoring (VR_HOT#)

VR_HOT# indicates the temperature status of the voltage
regulator. VR_HOT# is an open-drain output, and an external pull­up resistor is required. This signal is valid only after the controller
is enabled.

The VR_HOT# signal can be used to inform the system that the
temperature of the voltage regulator is too high and the CPU
should reduce its power consumption. The VR_HOT# signal may
be tied to the CPU’s PROC_HOT signal.

29

FN6964.0

January 3, 2011

ISL6366

VCC

R

TM

TM

R

NTC1

o

c

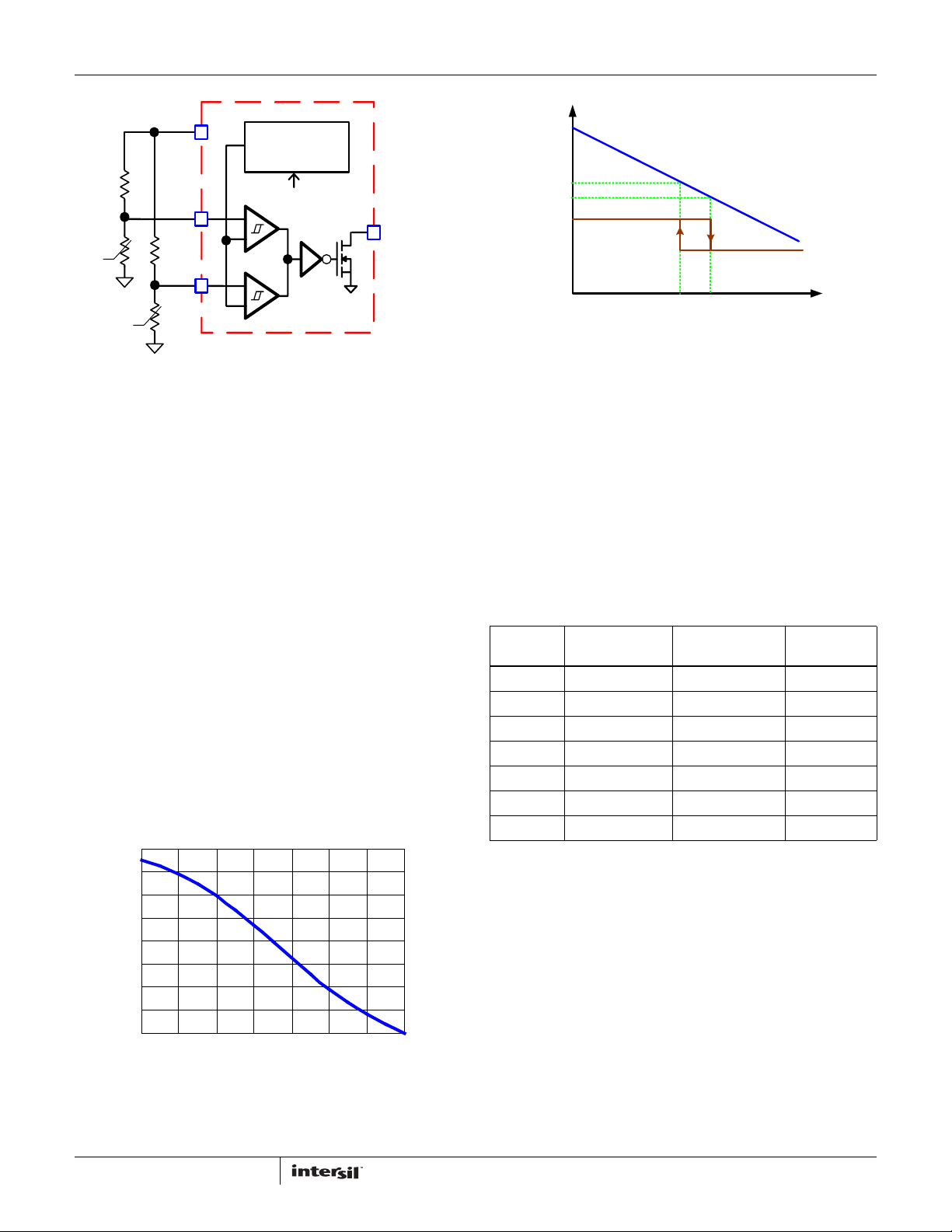

FIGURE 19. BLOCK DIAGRAM OF THERMAL MONITORING

o

c

R

TMS

TMS

R

NTC2

FUNCTION

Thermal Trip

Point Lookup

Table (90-120

+

-

+

-

ISL6366

NTC BETA ~ 3477

0

TMAX

C)

VR_HOT#

The diagram of thermal monitoring function block is shown in Figure

19. One NTC resistor should be placed close to the respective power
stage of the voltage regulator VR0 and VR1 to sense the operational
temperature, and one pull-up resistor is needed to form the voltage
divider for the TM pin. As the temperature of the power stage
increases, the resistance of the NTC will reduce, resulting in the
reduced voltage at the TM pin. Figure 20 shows the TM voltage over
the temperature for a typical design with a recommended 6.8kΩ
NTC (P/N: NTHS0805N02N6801 from Vishay, β = 3477) and 1kΩ
resistor R

. It is recommended to use those resistors for the

TM

accurate temperature compensation since the internal thermal
digital code is developed based upon these two components. If a
different value is used, the temperature coefficient must be close to
3477 and R

must be scaled accordingly. For instance, say

TM

NTC = 10kΩ (β = 3477), then RTM should be 10kΩ/6.8kΩ*1kΩ =

1.47kΩ.

There is a comparator with hysteresis to compare the TM pin
voltage to the threshold set by the TMAX register for VR_HOT#
signal. With TMAX set at +100°C, the VR_HOT# signal is pulled
to GND when either TM or TMS voltage is lower than 39.12% of
VCC voltage, and is open when both TM and TMS voltages
increase to above 40.98% of VCC voltage. The comparator trip
point will be programmable by TMAX values. Figure 20 shows the
operation of those signals.

100

90

80

70

(%)

CC

60

/V

TM

50

V

40

30

20

0 20 40 60 80 100 120 140

TEMPERATURE (

FIGURE 20. THE RATIO OF TM VOLTAGE TO NTC TEMPERATURE

WITH RECOMMENDED PARTS

o

C)

TM

40.98%*VCC

39.12%*VCC

VR_HOT#

TEMPERATURE

T1 T2

FIGURE 21. VR_HOT# SIGNAL (TMAX = 100°C) vs TM VOLTAGE

Based on the NTC temperature characteristics and the desired
threshold of the VR_HOT# signal, the pull-up resistor R

TM

of TM

pin is given by Equation 21:

R

1.557x R

TM

R

NTC(T2)

=

NTC T2()

is the NTC resistance at the VR_HOT# threshold

(EQ. 21)

temperature T2. The VR_HOT# is de-asserted at temperature T1,
as shown in Table 7. Since the NTC directly senses the
temperature of the PCB and not the exact temperature of the
hottest component on the board due to airflow and varied
thermal impedance, therefore, the user should select a lower
TMAX number, depending upon the mismatching between NTC
and the hottest components, than such component to guarantee
a safe operation.

TAB LE 7. VR_HOT # TYPICAL T RIP POINT AND HYSTERESIS

TMAX

(°C)

90 88.6; 45.52% 85.9; 47.56% 2.7

95 94.3; 42.26% 91.4; 44.20% 2.9

100 100.0; 39.12% 97.1; 40.98% 2.9

105 106.1; 36.14% 103.0; 37.92% 3.1

110 109.1; 33.32% 106.1; 35.00% 3.0

115 115.5; 30.68% 112.3; 32.24% 3.2

120 118.7; 28.24% 115.5; 29.7% 3.2

VR_HOT# LOW (°C;

T2, %VCC)

VR_HOT# OPEN

(°C; T1, %VCC)

HYSTERESIS

(°C)

Temperature Compensation

The ISL6366 supports inductor DCR sensing, or resistive sensing
techniques. The inductor DCR has a positive temperature
coefficient, which is about +0.385%/°C. Since the voltage across
the inductor is sensed for the output current information, the
sensed current has the same positive temperature coefficient as
the inductor DCR.

In order to obtain the correct current information, there should be
a way to correct the temperature impact on the current sense
component. ISL6366 provides two methods: integrated
temperature compensation and external temperature
compensation.

30

FN6964.0

January 3, 2011

ISL6366

R

R

C

R

4

A

V

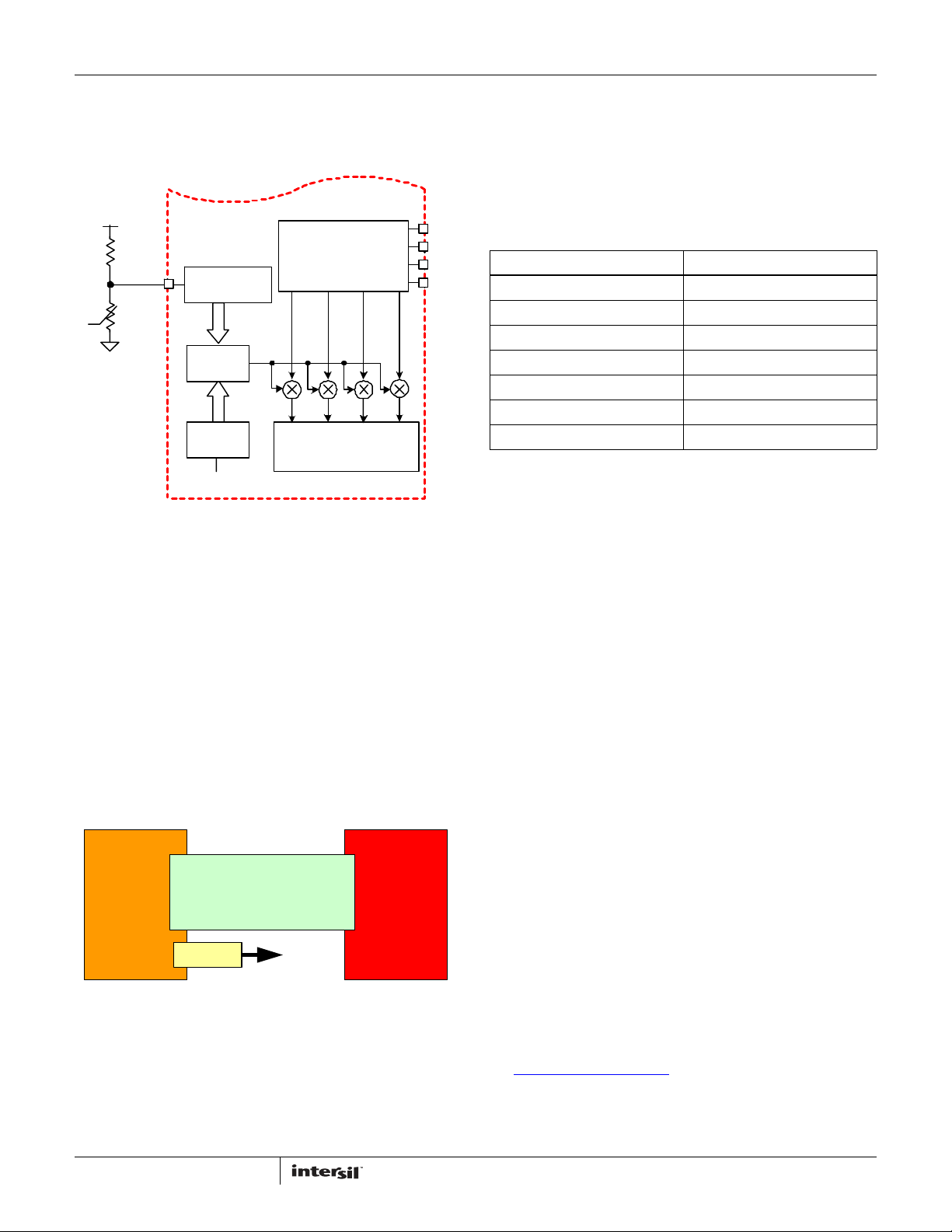

Integrated Temperature Compensation

The ISL6366 utilizes the voltage at the TM pin and “TCOMP”
register to compensate the temperature impact on the sensed
current. The block diagram of this function is shown in Figure 22.

CC

TM

o

c

NT

PLACE NTC
CLOSE TO
CHANNLE 1

FIGURE 22. BLOCK DIAGRAM OF INTEGRATED TEMPERATURE

ISL6366

TM

NON-LINEA

4-BIT

TCOMP

COMPENSATION

D/

A/D

CHANNEL
CURRENT

SENSE

/D

I

k

i

DROOP AND

OVERCURRENT

PRO TECTI ON

I

I

2

3

When the NTC is placed close to the current sense component
(inductor), the temperature of the NTC will track the temperature
of the current sense component. Therefore, the TM voltage can
be utilized to obtain the temperature of the current sense
component. Since the NTC could pick up noise from phase node,
a 0.1µF ceramic decoupling capacitor is recommended on the
TM pin in close proximity to the controller.

Based on the VCC voltage, the ISL6366 converts the TM pin
voltage to a 6-bit TM digital signal for temperature
compensation. With the non-linear A/D converter of ISL6366, the
TM digital signal is linearly proportional to the NTC temperature.
For accurate temperature compensation, the ratio of the TM
voltage to the NTC temperature of the practical design should be
similar to that in Figure 20.

VOUT

OUTPUT

INDUCTOR

PHASE1

POWER

STAGE

NTC

I

sen4

I

sen3

I

sen2

I

sen1

I

1

channel and the output rail; DON’T place it close to the MOSFET
side, which generates much more heat.

ISL6366 multiplexes the “TCOMP” value with the TM digital
signal to obtain the adjustment gain to compensate the
temperature impact on the sensed channel current. The
compensated channel current signal is used for droop and
overcurrent protection functions.

TABLE 8. “TCOMP” AND “TCOMPS” VALUES

TCOMP/TCOMPS (°C) TCOMP/TCOMPS (°C)

13 29.7

16 32.4

18.9 35.1

21.6 37.8

24.3 40.5

27 43.2

OFF

When a different NTC type or different voltage divider is used for
the TM function, the TCOMP voltage can also be used to
compensate for the difference between the recommended TM
voltage curve in Figure 20 and that of the actual design. If the
same type NTC (β = 3477) but different value is used, the pull-up
resistor needs to be scaled, as shown in Equation 22:

1kΩ R

⋅

TM

6.8k Ω

NTC_NEW

--------------------------------------------=

R

(EQ. 22)

Design Procedure

1. Properly choose the voltage divider for the TM pin to match
the TM voltage vs temperature curve with the recommended
curve in Figure 20.

2. Run the actual board under the full load and the desired
cooling condition.

3. After the board reaches the thermal steady state, record the
temperature (T
or MOSFET) and the voltage at TM and VCC pins.

4. Use Equation 23 to calculate the resistance of the NTC, and
find out the corresponding NTC temperature T
NTC datasheet or using Equation 24, where β is equal to 3477
for recommended NTC.

()

R

NTCTNTC

T

-------------------------------------------------------------------- -

NTC

) of the current sense component (inductor

CSC

NTC

V

xR

TM

TM

--------------------------=

VCCV–

TM

β

RTM

⎛⎞

------------------------------- -

⎝⎠

()

R

NTCTNTC

------------------ -

+ln

298.15

273.15–=

β

from the

(EQ. 23)

(EQ. 24)

FIGURE 23. RECOMMENDED PLACEMENT OF NTC

Since the NTC attaches to the PCB, but not directly to the current
sensing component, it inherits high thermal impedance between
the NTC and the current sensing element. The “TCOMP” register
values can be utilized to correct the temperature difference
between NTC and the current sense component. As shown in

5. In Intersil designed worksheet, choose a number close to the
result as in Equation 25 in the “TCOMP” cell to calculate the
needed resistor network for the register “TCOMP” pin. (Note:
for worksheet, please contact Intersil Application support at

www.intersil.com/design/

T

COMPTCSCTNTC

–=

).

(EQ. 25)

Figure 23, the NTC should be placed in proximity to the PSI

31

FN6964.0

January 3, 2011

ISL6366

6. Run the actual board under full load again with the proper
resistors connected to the “TCOMP” pin.

7. Record the output voltage as V1 immediately after the output
voltage is stable with the full load. Record the output voltage
as V2 after the VR reaches the thermal steady state.

8. If the output voltage increases over 2mV as the temperature
increases, i.e. V2 - V1 > 2mV, reduce “TCOMP” value; if the
output voltage decreases over 2mV as the temperature
increases, i.e. V1 - V2 > 2mV, increase “TCOMP” values.

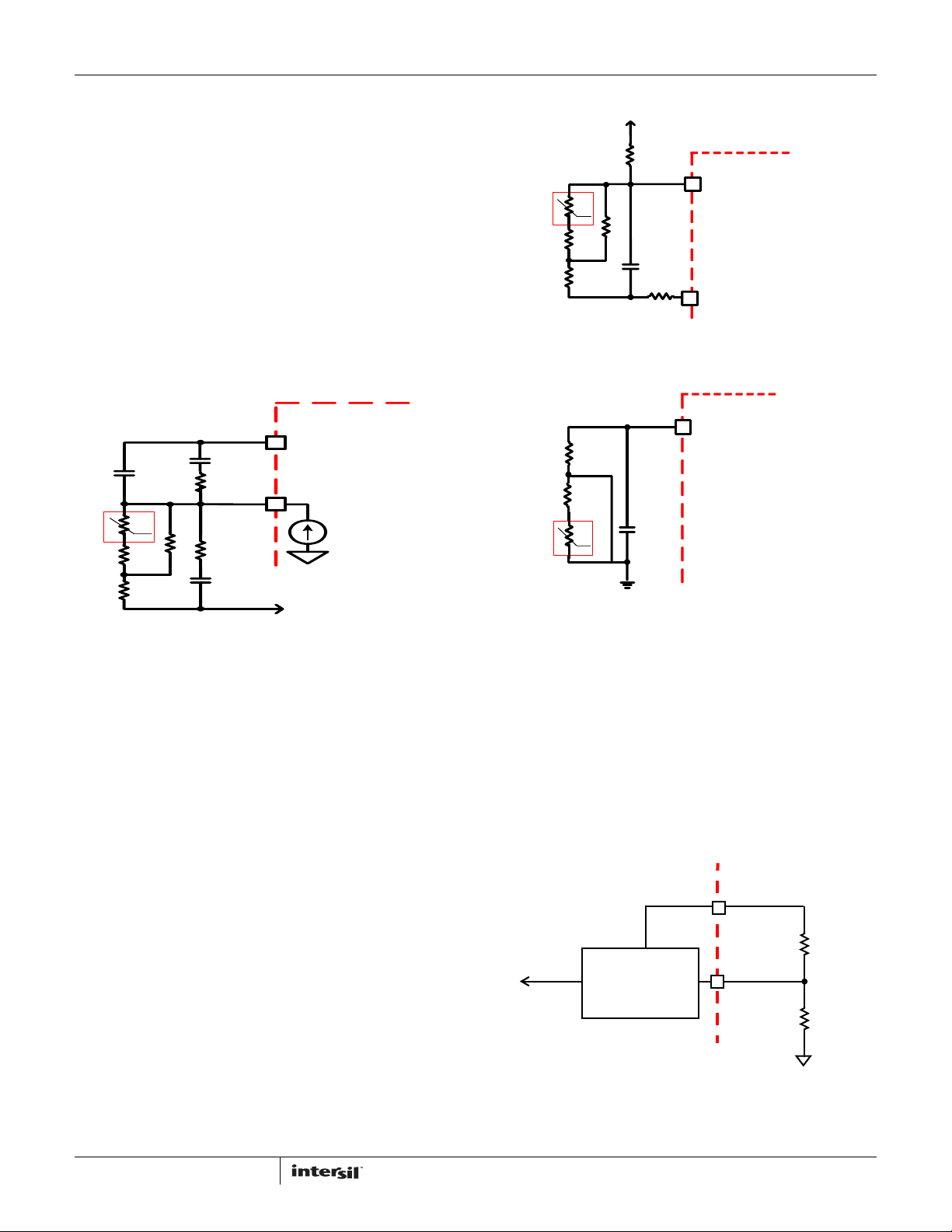

External Temperature Compensation

When the “OFF” code of TCOMP is selected, then the internal
current source is not thermally compensated, i.e, the integrated
temperature compensation function is disabled. However, one
external temperature compensation network, shown in
Figure 24, can be used to cancel the temperature impact on the
droop (i.e., load line).

COMP

ISL6366

FB

o

C

ID R O O P

PHASE

ISENS-

o

C

ISL6366

ISENS+

FIGURE 25. NTC WITH L/DCR MATCHING NETWORK FOR

THERMAL COMPESNATION

IMON

ISL6366

o

C

VOUT

FIGURE 24. EXTERNAL TEMPERATURE COMPENSATION FOR

LOAD LINE

The sensed current will flow out of the FB pin and develop a droop
voltage across the resistor equivalent (RFB) between the FB pin
and VOUT sensing node. If RFB resistance reduces as the
temperature increases, the temperature impact on the droop can
be compensated. An NTC resistor can be placed close to the power
stage and used to form R

. Due to the nonlinear temperature

FB

characteristics of the NTC, a resistor network is needed to make
the equivalent resistance between the FB pin and VOUT sensing
node inversely proportional to the temperature.

This external temperature compensation network can only
compensate the temperature impact on the droop, while it has no
impact to the sensed current inside ISL6366. Therefore, this
network cannot compensate for the temperature impact on the
overcurrent protection function. In addition, NTC could pick up
phase switching noise and easily inject into the loop. This method
is typically not recommended.

Furthermore, the NTC can be placed with L/DCR matching
network to thermally compensate the sensed current, or with
IMON network to thermally compensate the IMON voltage
(typically need to set internal overcurrent trip higher than IMON
OCP trip), as shown in Figures 25 and 26, respectively. These
methods are typically applicable to both VR0 and VR1 for
non-droop applications.

FIGURE 26. NTC WITH IMON NETWORK FOR THERMAL

COMPESNATION

Hard-wired Registers (Patent
Pending)

To set registers for VR12/IMVP7 applications using lowest pin­count package and with lowest overall cost, Intersil has
developed a high resolution ADC using a patented technique with
simple 1%, 100ppm/k or better temperature coefficient resistor
divider, as shown in Figure 27. The same type of resistors are
preferred so that it has similar change over temperature. In
addition, the divider is comparing to the internal divider off VCC
and GND nodes and therefore must refer to VCC and GND pins,
not through any RC decoupling network.

EXTERNAL CIRCUIT

ADC

VCC

R

UP

RDW

ISL6366

REGISTER

TABLE

FIGURE 27. SIMPLIFIED RESISTOR DIVIDER ADC

32

FN6964.0

January 3, 2011

ISL6366

There are total of four register pins to program the system
parameters: Address OFFSET, setVID fast slew rate, boot voltage,
I

, diode emulation option, number of phase operation at

CCMAX

low power mode, and temperature compensation, as
summarized in Table 9. Prior to the soft-start, the system
parameters are stored in the SVID data registers of 0C, 0D, 0E,
and 0F, respectively, as shown in Table 10. They are reset by
Enable or VCC POR. In addition, data is available to verify the
system setting over a high volume production. A design
worksheet to select these pairs of resistors is available for use.
Please contact Intersil Application support at

www.intersil.com/design/

As an example, Table 11 shows the R

.

and RDW values of each

UP

pin for a specific system design; DATA for corresponding registers
can be read out via SVID’s Get(reg) command. In addition, as
shown in Table 12, some tie-high and tie-low options are for easy
programming and can also be used to validate the VR operation
during In-Circuit Test (ICT). For instance, when the system boot
voltage is required at zero Volts, the BT_XX or BTS_XX pin can be
tied to GND or VCC, prior to Enable, to get a known boot voltage
to check VR operation with ICT.

TABLE 9. SYSTEM PARAMETER DESCRIPTION

CODE

NAME DESCRIPTION RANGE

ADDR VR0/1 Address offset

BT VR0 Boot Voltages

BTS VR1 Boot Voltages

FDVID setVID Fast Slew Rate for VR0 10mV/µs, 20mV/µs

DE Diode Emulation Option of VR0 Enable, or Disable

DES Diode Emulation Option of VR1 Enable, or Disable

TMAX Maximum Operating Temperature +90°C to +120°C

IMAX I

IMAXS I

NPSI Number of Operational Phases in

(VR0 and VR1 Are In Operation)

VR0 Address offset (PWMS = VCC,

FSS_DRPS = 1 MΩ to GND)

VR0 Address offset (PWMS=VCC,

FSS_DRPS = 1 MΩ to VCC)

VR1 Address offset (PWM1 = VCC) 1, 3, 5, 7

(R

(R

(R

(R

(R

(R

PSI1/2/3/Decay States

TIED GND)

FS_DRP

VR0 Boot Voltages

FSS_DRPS

VR1 Boot Voltages

FSS_DRPS

FS_DRP

FSS_DRPS

CCMAX

(5A/step)

CCMAX

I

CCMAX

FSS_DRPS

TIED VCC)

TIED GND)

TIED VCC)

of VR0

of VR1

TIED GND)

of VR1

TIED VCC)

0/1, 2/3 to 6/7

0, 2, 4, 6

8,A,C

0, 0.9, 1.0, 1.1V

0,1.2, 1.35, 1.5V

0, 0.9, 1.0, 1.1V

0, 0.85, 0.925, 1.05V

(5°C/Step)

15-165A (1:4-Phase);

105-255A (5:6-Phase)

20A, 25A, 30A, 35A

15A, 20A, 25A, 30A

1 or 2-Phase

TABLE 9. SYSTEM PARAMETER DESCRIPTION

CODE

NAME DESCRIPTION RANGE

TCOMP Mismatching Temperature

TCOMPS Mismatching Temperature

REG R

0C ADDR IMAXS TMAX

0D BTS DES TCOMPS

0E BT FDVID TCOMP

0F NPSI DE IMAX

REG R

0C ADDR

0D

Compensation between sensing

element and NTC for VR0

Compensation between sensing

element and NTC for VR1

TAB LE 10. SYSTE M DATA REG IS TER LOCATI ON

REGISTER PIN NAME DATA REGISTER CODE

ADDR_IMAXS_TMAX 0C

BTS_DES_TCOMPS 0D

BT_FDVID_TCOMP 0E

NPSI_DE_IMAX 0F

TABLE 11. DESIGN EXAMPLE

0/1 25A +100°C 29.4

0.85V ENABLED +29.7°C 255

1.1V 20mV/µs +29.7°C 10

SI1 ENABLED 190A OPEN 10

TABLE 12. TIE-HIGH AND TIE-LOW OPTIONS

IMAXS

(R

GND/VCC)

0/1 35A/30A +100°C 10kΩ OPEN 0h

0/1 20A/15A +95°C OPEN 10

6/7 35A/30A +100°C 499

6/7 20A/15A +95°C OPEN 499

BTS

(R

GND/VCC)

1.1V/1.5V DISABLED +29.7°C OPEN 10

1.1V/1.5V ENABLED +29.7°C 10

:

FSS_DRPS

0 DISABLED +29.7°C OPEN 499

0 ENABLED +29.7°C 499

:

FSS_DRPS

DES TCOMPS

TMAX

(Continued)

OFF, +13°C to +43.2°C

OFF, +13°C to +43.2°C

R

UP

kΩ 15kΩ 08h

kΩ 140kΩ C0h

kΩ OPEN DFh

UPRDW

kΩ OPEN C0h

kΩ OPEN 1Fh

kΩ OPEN DFh

DATA

DW

kΩ 00h

DATA

kΩ 1Fh

kΩ DFh

kΩ 00h

kΩ C0h

33

FN6964.0

January 3, 2011

ISL6366

TABLE 12. TIE-HIGH AND TIE-LOW OPTIONS

REG R

IMAXS

(R

0C ADDR

(R

BT

0E

0F NPSI DE IMAX

NOTE: Whenever 10kΩ is tie-high or tie-low, 0Ω can be used.

FS_DRP

GND/VCC)

1.1V/1.05V 10mV/µs 29.7°C OPEN 10kΩ 00h

1.1V/1.05V 20mV/µs 29.7°C 10

0 10mV/µs 29.7°C OPEN 499

0 20mV/µs 29.7°C 499kΩ OPEN DFh

SI1/CI1 ENABLED 190A OPEN 10

SI1/CI1 ENABLED 255A 10kΩ OPEN 1Fh

SI2/CI2 DISABLED 190A OPEN 499

SI2/CI2 DISABLED 255A 499

GND/VCC)

:

:

FSS_DRPS

FDVID TCOMP

TMAX

(Continued)

UPRDW

DATA

kΩ OPEN 1Fh

kΩ C0h

kΩ 00h

kΩ C0h

kΩ OPEN DFh

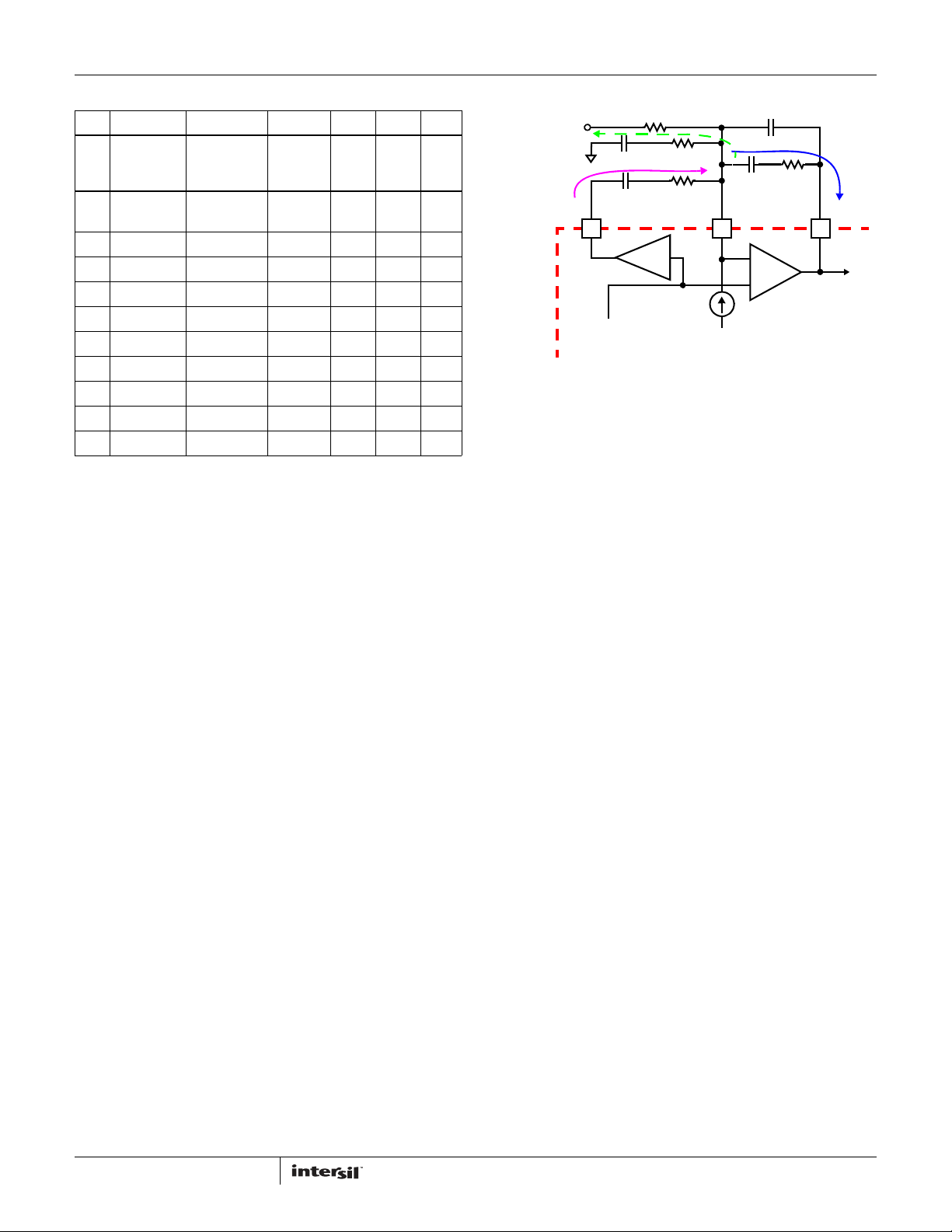

Dynamic VID Compensation (DVC)

During a VID transition, the resulting change in voltage on the FB pin
and the COMP pin causes an AC current to flow through the error
amplifier compensation components from the FB to the COMP pin.
This current then flows through the feedback resistor, R
cause the output voltage to overshoot or undershoot at the end of
the VID transition. In order to ensure the smooth transition of the
output voltage during a VID change, a VID-on-the-fly compensation
network is required. This network is composed of a resistor and
capacitor in series, R

DVC

and C

, between the DVC and the FB pin.

DVC

This VID-on-the-fly compensation network works by sourcing AC
current into the FB node to offset the effects of the AC current
flowing from the FB to the COMP pin during a VID transition. To
create this compensation current, the controllers set the voltage
on the DVC pin to be 4/3 of the voltage on the DAC. Since the
error amplifier forces the voltage on the FB pin and the DAC to be
equal, the resulting voltage across the series RC between DVC
and FB is equal to the DAC voltage. The RC compensation
components, R

DVC

and C

, can then be selected to create the

DVC

desired amount of compensation current.

, and can

FB

.

I

= I

DVC

R

VOUT

DVC

V

DAC

FIGURE 28. DYNAMIC VID COMPENSATION NETWORK

FBS

I

RC

C

C

DVC

x1.333

R

I

DVC

R

DVC

IRC+I

ISL6366 INTERNAL CIRCUIT

C

C

C

FB

-

+

DROOP_ACTUAL

I

C

R

C

ERROR

AMPLIFIER

COMP

The amount of compensation current required is dependant on
the modulator gain of the system, K1, and the error amplifier R-C
components, R

and CC, that are in series between the FB and

C

COMP pins. Use Equations 26, 27, and 28 to calculate the RC
component values, R

DVC

and C

, for the VID-on-the-fly

DVC

compensation network. For these equations: VIN is the input
voltage for the power train; V
amplitude as in Equation 3; and R

is the oscillator ramp

RAMP

and CC are the error amplifier

C

R-C components between the FB and COMP pins.

K1

R

C

DVC

DVC

=

V

IN

------------------

V

RAMP

ARC⋅=

C

C

------

=

A

A

=

K1

----------------------------- -

3K11–()⋅

(EQ. 26)

(EQ. 27)

(EQ. 28)

During DVID transitions, extra current builds up in the output
capacitors due to the C*dv/dt. The current is sensed by the
controller and fed across the feedback resistor creating extra
droop (if enabled) and causing the output voltage not properly
tracking the DAC voltage. Placing a series R-C to ground from the
FB pin can sink this extra DVID induced current.

⋅

C

OUTRLL

---------------------------

=

C

R

FB

⋅

C

OUTRLL

---------------------------

==

R

C

R

FB

(EQ. 29)

(EQ. 30)

34

When the output voltage overshoots during DVID, the RDVC-CDVC
network can be used to compensate the movement of the
error-amplifier compensation network. When the output voltage
is lagging from DAC (or SVALERT#) or having a rough-off prior to
the final settling of DVID, the R-C network can be used to
compensate for the extra droop current generated by the
C*dv/dt. Sometimes, both networks can work together to
achieve the best result. In such case, both networks need to be
fine tuned in the board level for optimized performance.

FN6964.0

January 3, 2011

ISL6366

Disabling Output

When disabling any output, its respective pins should be tied
accordingly as in Table 13. However, when both outputs are fully
populated, pulling the respective PWM line to VCC should be
sufficient.

TABLE 13. DISABLE OUTPUT CONFIGURATION

DISABLE VR1 OUTPUT

PIN NAME PIN CONFIGURATION

PWMS VCC

RNGDS; VSENS;

FBS; IMONS;

ISENS-; VR_RDYS

HFCOMPS/DVCS;

ISENS+

FSS_DRPS 1MΩto GND (for 0, 2, 4, 6 ADDR)

or 1MΩ to VCC for 8, A, C ADDR)

TMS Connect To TM pin or a 1/2 ratio Resistor Divider

(1MΩ/2MΩ) to avoid tripping VR_HOT#; or Use it

as a second thermal sensing for VR_HOT#. DON’T

DISABLE VR0 OUTPUT

PIN NAME PIN CONFIGURATION

PWM1 VCC

RNGD; VSEN;

FB; IMON;

ISEN[1:4]-; VR_RDY

HFCOMP; DVC;

ISEN[1:6]+

FS_DRP, RSET 1MΩ to GND

TM Connect To TMS pin or a 1/2 ratio Resistor Divider

(1MΩ/2MΩ) to avoid tripping VR_HOT#; or Use it

as a second thermal sensing for VR_HOT#. DON’T

GND

OPEN

tie it to VCC or GND.

GND

OPEN

tie it to VCC or GND.

SVID Operation

The device is fully compliant with Intel VR12/IMVP7 SVID
protocol Rev 1.5, document# of 456098. To ensure proper CPU
operation, refer to this document for SVID bus design and layout
guidelines; each platform requires different pull-up impedance
on the SVID bus, while impedance matching and spacing among
DATA, CLK, and ALERT# signals must be followed. Common
mistakes are insufficient spacing among signals and improper
pull-up impedance. A simple operational instruction of SVID bus
with Intel VTT Tool is documented in “VR12 Design and
Validation” in Table 15.

General Design Guide

This design guide is intended to provide a high-level explanation of
the steps necessary to create a multiphase power converter. It is
assumed that the reader is familiar with many of the basic skills
and techniques referenced in the following. In addition to this
guide, Intersil provides complete reference designs, which include

schematics, bills of materials, and example board layouts for
common microprocessor applications.

Power Stages

The first step in designing a multiphase converter is to determine
the number of phases. This determination depends heavily upon
the cost analysis, which in turn depends on system constraints
that differ from one design to the next. Principally, the designer
will be concerned with whether components can be mounted on
both sides of the circuit board; whether through-hole components
are permitted; and the total board space available for power
supply circuitry. Generally speaking, the most economical
solutions are those in which each phase handles between 15A
and 25A. All surface-mount designs will tend toward the lower
end of this current range. If through-hole MOSFETs and inductors
can be used, higher per-phase currents are possible. In cases
where board space is the limiting constraint, current can be
pushed as high as 40A per phase, but these designs require heat
sinks and forced air to cool the MOSFETs, inductors and heat­dissipating surfaces.

MOSFETs

The choice of MOSFETs depends on the current each MOSFET will
be required to conduct; the switching frequency; the capability of
the MOSFETs to dissipate heat; and the availability and nature of
heat sinking and air flow.

Lower MOSFET Power Calculation

The calculation for heat dissipated in the lower MOSFET is
simple, since virtually all of the heat loss in the lower MOSFET is
due to current conducted through the channel resistance
(r
current; I
on page 14); d is the duty cycle (V
channel inductance.

An additional term can be added to the lower-MOSFET loss
equation to account for additional loss accrued during the dead
time when inductor current is flowing through the lower-MOSFET
body diode. This term is dependent on the diode forward voltage
at I
dead times, t
lower-MOSFET conduction interval respectively.

Finally, the power loss of output capacitance of the lower
MOSFET is approximated in Equation 33:

where C
the test voltage of V
ringing, the actual power dissipation will be slightly higher than
this.

). In Equation 31, IM is the maximum continuous output

DS(ON)

P

M

P

LOW 2,

P

LOW 3,

is the peak-to-peak inductor current (see Equation 1

LOW 1,

, V

PP

OUT/VIN

2

2

I

⎛⎞

I

PP

M

r

DS ON()

; the switching frequency, Fsw; and the length of

D(ON)

and td2, at the beginning and the end of the

d1

V

=

DON()FSW

2

1.5

---

3

OSS_LOW

C

⋅⋅ ⋅ ⋅≈

V

IN

OSS_LOWVDS_LOW FSW

is the output capacitance of lower MOSFET at

DS_LOW

----------+1d–()⋅=

⎜⎟

-----­12

N

⎝⎠

I

I

⎛⎞

M

PP

------

---------+

⎝⎠

N

2

. Depending on the amount of

); and L is the per-

⎛⎞

I

M

t

⎜⎟

+

------

d1

N

⎝⎠

I

PP

---------

–

2

(EQ. 31)

(EQ. 32)

t

d2

(EQ. 33)

35

FN6964.0

January 3, 2011

ISL6366

Thus the total maximum power dissipated in each lower MOSFET
is approximated by the summation of P
P

.

LOW,3

LOW,1

, P

LOW,2

and

Upper MOSFET Power Calculation

In addition to r

losses, a large portion of the upper-MOSFET

DS(ON)

losses are due to currents conducted across the input voltage (VIN)
during switching. Since a substantially higher portion of the
upper-MOSFET losses are dependent on switching frequency, the
power calculation is more complex. Upper MOSFET losses can be
divided into separate components involving the upper-MOSFET
switching times; the lower-MOSFET body-diode reverse-recovery
charge, Q

; and the upper MOSFET r

rr

conduction loss.

DS(ON)

When the upper MOSFET turns off, the lower MOSFET does not
conduct any portion of the inductor current until the voltage at
the phase node falls below ground. Once the lower MOSFET
begins conducting, the current in the upper MOSFET falls to zero
as the current in the lower MOSFET ramps up to assume the full
inductor current. In Equation 34, the required time for this
commutation is t
is P

.

UP,1

P

≈

UP 1,VIN

and the approximated associated power loss

1

t

I

I

M

⎛⎞

------

⎝⎠

N

---------+

PP

2

⎛⎞

1

----

⎜⎟

2

⎝⎠

F

SW

(EQ. 34)

At turn on, the upper MOSFET begins to conduct and this
transition occurs over a time t
power loss is P

≈

P

UP 2,VIN

.

UP,2

I

⎛⎞

I

M

⎜⎟

-----­N

⎝⎠

⎛⎞

PP

---------

⎜⎟

–

2

⎝⎠

. In Equation 35, the approximate

2

t

2

F

----

SW

2

(EQ. 35)

The total power dissipated by the upper MOSFET at full load can
now be approximated as the summation of the results from
Equations 34 to 39. Since the power equations depend on
MOSFET parameters, choosing the correct MOSFETs can be an
iterative process involving repetitive solutions to the loss
equations for different MOSFETs and different switching
frequencies.

Current Sensing Resistor

The resistors connected to the ISEN+ pins determine the gains in
the load-line regulation loop and the channel-current balance
loop as well as setting the overcurrent trip point. Select values for
these resistors by using Equation 40:

R

I

X

OCP

R

ISEN

where R

---------------------------

100 10

is the sense resistor connected to the ISEN+ pin, N

ISEN

is the active channel number, R

------------=

–

6

×

N

is the resistance of the current

X

sense element, either the DCR of the inductor or R
depending on the sensing method, and I
overcurrent trip point. Typically, I

OCP

is the desired

OCP

can be chosen to be 1.2

times the maximum load current of the specific application.

With integrated temperature compensation, the sensed current
signal is independent of the operational temperature of the
power stage, i.e. the temperature effect on the current sense
element R
compensation function. R

is cancelled by the integrated temperature

X

in Equation 40 should be the

X

resistance of the current sense element at the room
temperature.

(EQ. 40)

SENSE

A third component involves the lower MOSFET’s reverse-recovery
charge, Q

. Since the inductor current has fully commutated to the

rr

upper MOSFET before the lower-MOSFET’s body diode can draw all

, it is conducted through the upper MOSFET across VIN. The

of Q

rr

power dissipated as a result is P

and is approximated in

UP,3

Equation 36:

VINQrrF

=

P

UP 3,

SW

(EQ. 36)

The resistive part of the upper MOSFET’s is given in Equation 37
as P

.

UP,4

P

UP 4,rDS ON()

2

⎛⎞

I

M

⎜⎟

-----­N

⎝⎠

2

I

PP

+ d⋅≈

---------­12

(EQ. 37)

Equation 38 accounts for some power loss due to the drain­source parasitic inductance (L

, including PCB parasitic

DS

inductance) of the upper MOSFETs, although it is not the exact:

2

I

PP

+

---------

2

(EQ. 38)

P

≈

UP 5,LDS

⎛⎞

I

M

⎜⎟

-----­N

⎝⎠

Finally, the power loss of output capacitance of the upper
MOSFET is approximated in Equation 39:

2

P

UP 6,

where C

⋅⋅ ⋅ ⋅≈

V

3

OSS_UP

IN

1.5

---

test voltage of V

C

OSS_UPVDS_UP FSW

is the output capacitance of lower MOSFET at

. Depending on the amount of ringing, the

DS_UP

(EQ. 39)

actual power dissipation will be slightly higher than this.

When the integrated temperature compensation function is
disabled by selecting “OFF” TCOMP code, the sensed current will
be dependent on the operational temperature of the power
stage, since the DC resistance of the current sense element may
be changed according to the operational temperature. RX in
Equation 40 should be the maximum DC resistance of the
current sense element at the all operational temperature.

In certain circumstances, especially for a design with an
unsymmetrical layout, it may be necessary to adjust the value of
one or more ISEN resistors for VR0. When the components of one
or more channels are inhibited from effectively dissipating their
heat so that the affected channels run cooler than the average,
choose new, larger values of R

for the affected phases (see

ISEN

the section entitled “Current Sensing” on page 17). Choose
R

in proportion to the desired increase in temperature rise

ISEN,2

in order to cause proportionally more current to flow in the cooler
phase, as shown in Equation 41:

ΔT

R

ISEN,2RISEN

ΔR

ISENRISEN,2RISEN

In Equation 41, make sure that ΔT

----------=
ΔT

2

1

–=

is the desired temperature rise

2

(EQ. 41)

above the ambient temperature, and ΔT1 is the measured
temperature rise above the ambient temperature. Since all
channels’ R
(ΔR

) should be in series with the cooler channel’s ISEN+ pin

ISEN

are integrated and set by one RSET, a resistor

ISEN

to raise this phase current. While a single adjustment according to
Equation 41 is usually sufficient, it may occasionally be necessary

36

FN6964.0

January 3, 2011

ISL6366

)

to adjust R

two or more times to achieve optimal thermal

ISEN

balance between all channels.

Load-Line Regulation Resistor

The load-line regulation resistor is labelled RFB in Figure 14. Its
value depends on the desired loadline requirement of the
application.

The desired loadline can be calculated using Equation 42:

V

R

where I
VR

DROOP

-------------------------=

LL

DROOP

I

FL

is the full load current of the specific application, and

FL

is the desired voltage droop under the full load

(EQ. 42)

condition.

Based on the desired loadline R

, the loadline regulation

LL

resistor can be calculated using Equation 43:

ISEN

R

R⋅

LL

X

is the sense resistor

ISEN

is the resistance of the

X

(EQ. 43)

SEN

N R⋅

R

---------------------------------------=

FB

where N is the active channel number, R
connected to the ISEN+ pin, and R
current sense element, either the DCR of the inductor or R
depending on the sensing method.

If one or more of the current sense resistors are adjusted for
thermal balance (as in Equation 41), the load-line regulation
resistor should be selected based on the average value of the
current sensing resistors, as given in Equation 44:

R

LL

--------- R

=

R

FB

where R

th

ISEN+ pin.

n

∑

R

ISEN(n)

ISEN n()

X

n

is the current sensing resistor connected to the

(EQ. 44

Output Filter Design

The output inductors and the output capacitor bank together to
form a low-pass filter responsible for smoothing the pulsating
voltage at the phase nodes. The output filter also must provide
the transient energy until the regulator can respond. Because it
has a low bandwidth compared to the switching frequency, the
output filter necessarily limits the system transient response. The
output capacitor must supply or sink load current while the
current in the output inductors increases or decreases to meet
the demand.

In high-speed converters, the output capacitor bank is usually the
most costly (and often the largest) part of the circuit. Output filter
design begins with minimizing the cost of this part of the circuit.
The critical load parameters in choosing the output capacitors are
the maximum size of the load step, ΔI; the load-current slew rate,
di/dt; and the maximum allowable output-voltage deviation under
transient loading, ΔV
to their capacitance, ESR, and ESL (equivalent series inductance).

At the beginning of the load transient, the output capacitors supply
all of the transient current. The output voltage will initially deviate by
an amount approximated by the voltage drop across the ESL. As the
load current increases, the voltage drop across the ESR increases
linearly until the load current reaches its final value. The capacitors
selected must have sufficiently low ESL and ESR so that the total

. Capacitors are characterized according

MAX

output-voltage deviation is less than the allowable maximum.
Neglecting the contribution of inductor current and regulator
response, the output voltage initially deviates by an amount, as
shown in Equation 45:

ΔVESL()

di

----- ESR()ΔI+≈
dt

(EQ. 45)

The filter capacitor must have sufficiently low ESL and ESR so
that ΔV < ΔV

MAX

.

Most capacitor solutions rely on a mixture of high-frequency
capacitors with relatively low capacitance in combination with
bulk capacitors having high capacitance but limited high­frequency performance. Minimizing the ESL of the high­frequency capacitors allows them to support the output voltage
as the current increases. Minimizing the ESR of the bulk
capacitors allows them to supply the increased current with less
output voltage deviation.

The ESR of the bulk capacitors also creates the majority of the
output-voltage ripple. As the bulk capacitors sink and source the
inductor AC ripple current (see “Interleaving” on page 14 and
Equation 2), a voltage develops across the bulk-capacitor ESR
equal to I
selected, the maximum allowable ripple voltage, V

(ESR). Thus, once the output capacitors are

C,PP

PP(MAX)

,
determines the lower limit on the inductance, as shown in
Equation 46.

V

K

⋅

OUT

L

----------------------------------------------------------

⋅≥

ESR

F

⋅

SWVIN

RCM

V⋅

PP MAX()

(EQ. 46)

Since the capacitors are supplying a decreasing portion of the
load current while the regulator recovers from the transient, the
capacitor voltage becomes slightly depleted. The output
inductors must be capable of assuming the entire load current
before the output voltage decreases more than ΔV

MAX

. This

places an upper limit on inductance.

Equation 47 gives the upper limit on L for the cases when the
trailing edge of the current transient causes a greater output­voltage deviation than the leading edge. Equation 48 addresses
the leading edge. Normally, the trailing edge dictates the
selection of L because duty cycles are usually less than 50%.
Nevertheless, both inequalities should be evaluated, and L
should be selected based on the lower of the two results. In each
equation, L is the per-channel inductance, C is the total output
capacitance, and N is the number of active channels.

⋅⋅

2NCV⋅

L

--------------------------------------- ΔV

1.25

≤

L

----------------------------- ΔV

()

ΔI

NC⋅⋅

2

()

ΔI

OUT

2

MAX

ΔI ESR⋅–≤

MAX

ΔI ESR⋅– V

⎛⎞

–

INVOUT

⎝⎠

(EQ. 47)

(EQ. 48)

Switching Frequency Selection

There are a number of variables to consider when choosing the
switching frequency, as there are considerable effects on the upper­MOSFET loss calculation. These effects are outlined in “MOSFETs”
on page 35, and they establish the upper limit for the switching
frequency. The lower limit is established by the requirement for fast
transient response and small output-voltage ripple as outlined in
“Output Filter Design” on page 37. Choose the lowest switching

37

FN6964.0

January 3, 2011

ISL6366

frequency that allows the regulator to meet the transient-response
and output-voltage ripple requirements. To minimize the effect of
cross coupling between regulators, select operating frequencies of
VR0 and VR1 at least 50kHz apart.

Input Capacitor Selection

The input capacitors are responsible for sourcing the AC
component of the input current flowing into the upper MOSFETs.
Their RMS current capacity must be sufficient to handle the AC
component of the current drawn by the upper MOSFETs which is
related to duty cycle and the number of active phases. The input
RMS current can be calculated with Equation 49.

I

IN RMS,

K

IN CM,

K

RAMP CM,

2

K

IN CM,

ND• m– 1+()mND•–()•

-------------------------------------------------------------------------- -=

m2ND• m– 1+()

------------------------------------------------------------------------------------------------------------------=

0.3

)

O

/I

RMS

0.2

Io2• K

2

N

2

RAMP CM,

3

12N

2

I

•+=

Lo PP,

m1–()2mND•–()

+

2D2

(EQ. 49)

(EQ. 50)

3

(EQ. 51)

0.3
I

= 0

L,PP

)

O

I

RMS/

0.2

0.1

INPUT-CAPACITOR CURRENT (I

= 0.25 I

I

L,PP

0

00.4 1.00.2 0.6 0.8

O

DUTY CYCLE (V

I

L,PP

I

L,PP

= 0.5 I

= 0.75 I

OUT/VIN

O

O

)

FIGURE 30. NORMALIZED INPUT-CAPACITOR RMS CURRENT vs

DUTY CYCLE FOR 3-PHASE CONVERTER

0.3
I

= 0

L,PP

)

O

I

L,PP

= 0.25 I

O

I

RMS/

0.2

0.1

I

L,PP

I

L,PP

= 0.5 I
= 0.75 I

O

O

0.1

I

= 0

L,PP

= 0.5 I

I

L,PP

I

L,PP

INPUT-CAPACITOR CURRENT (I

0

00.4 1.00.2 0.6 0.8

= 0.75 I

O

O

DUTY CYCLE (V

OUT/VIN

)

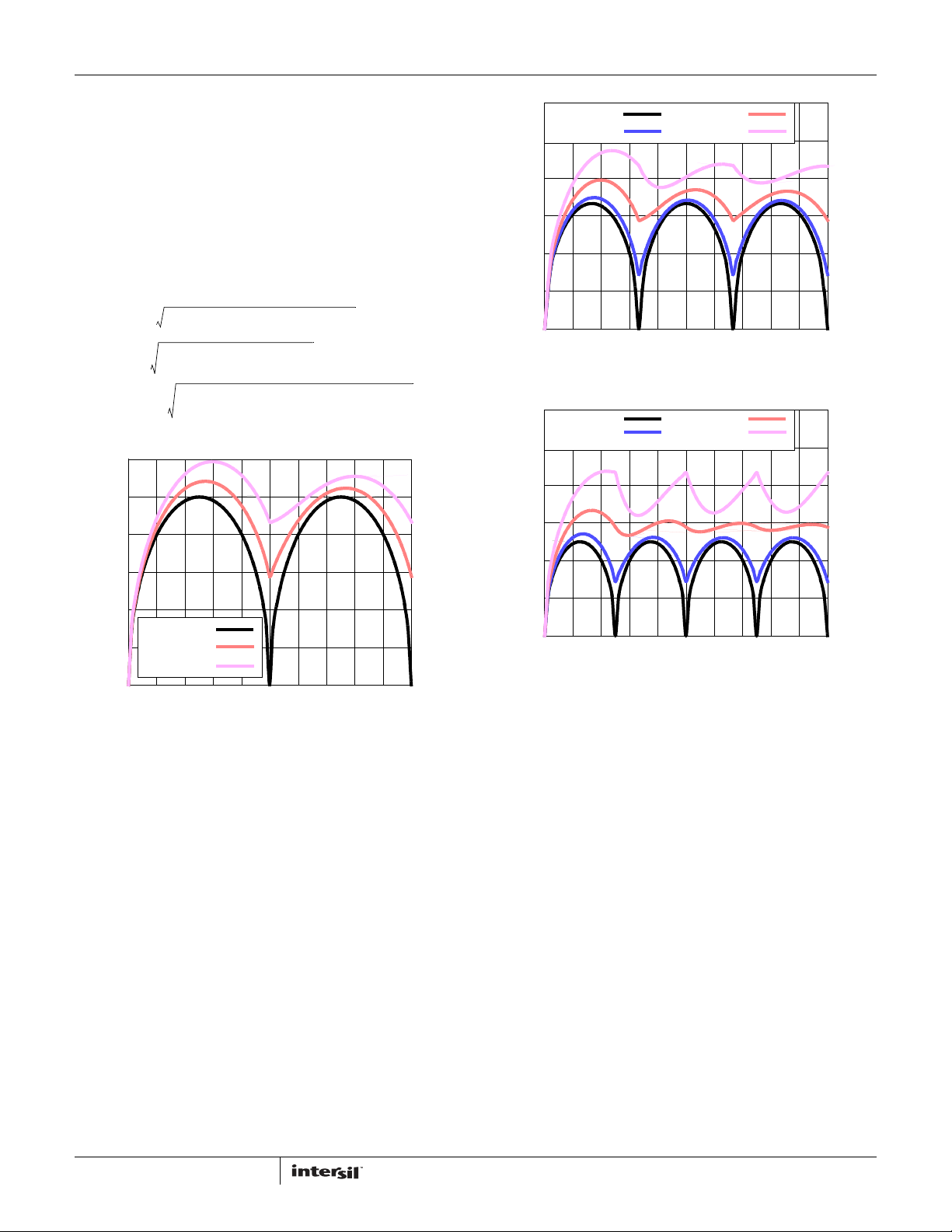

FIGURE 29. NORMALIZED INPUT-CAPACITOR RMS CURRENT vs

DUTY CYCLE FOR 2-PHASE CONVERTER

For a 2-phase design, use Figure 29 to determine the input capacitor
RMS current requirement given the duty cycle, maximum sustained
output current (I
inductor current (I

), and the ratio of the per-phase peak-to-peak

O

) to IO. Select a bulk capacitor with a ripple

L,PP

current rating which will minimize the total number of input
capacitors required to support the RMS current calculated. The
voltage rating of the capacitors should also be at least 1.25 times
greater than the maximum input voltage.

INPUT-CAPACITOR CURRENT (I

0

00.4 1.00.2 0.6 0.8
DUTY CYCLE (V

OUT/VIN

)

FIGURE 31. NORMALIZED INPUT-CAPACITOR RMS CURRENT vs

DUTY CYCLE FOR 4-PHASE CONVERTER

Figures 27 and 28 provide the same input RMS current
information for 3 and 4-phase designs respectively. Use the
same approach to selecting the bulk capacitor type and number
as previously described.

Low capacitance, high-frequency ceramic capacitors are needed
in addition to the bulk capacitors to suppress leading and falling
edge voltage spikes. The result from the high current slew rates
produced by the upper MOSFETs turn on and off. Select low ESL
ceramic capacitors and place one as close as possible to each
upper MOSFET drain to minimize board parasitic impedances
and maximize noise suppression.

38

FN6964.0

January 3, 2011

ISL6366

0.6

)

O

I

RMS/

0.4

0.2

INPUT-CAPACITOR CURRENT (I

0

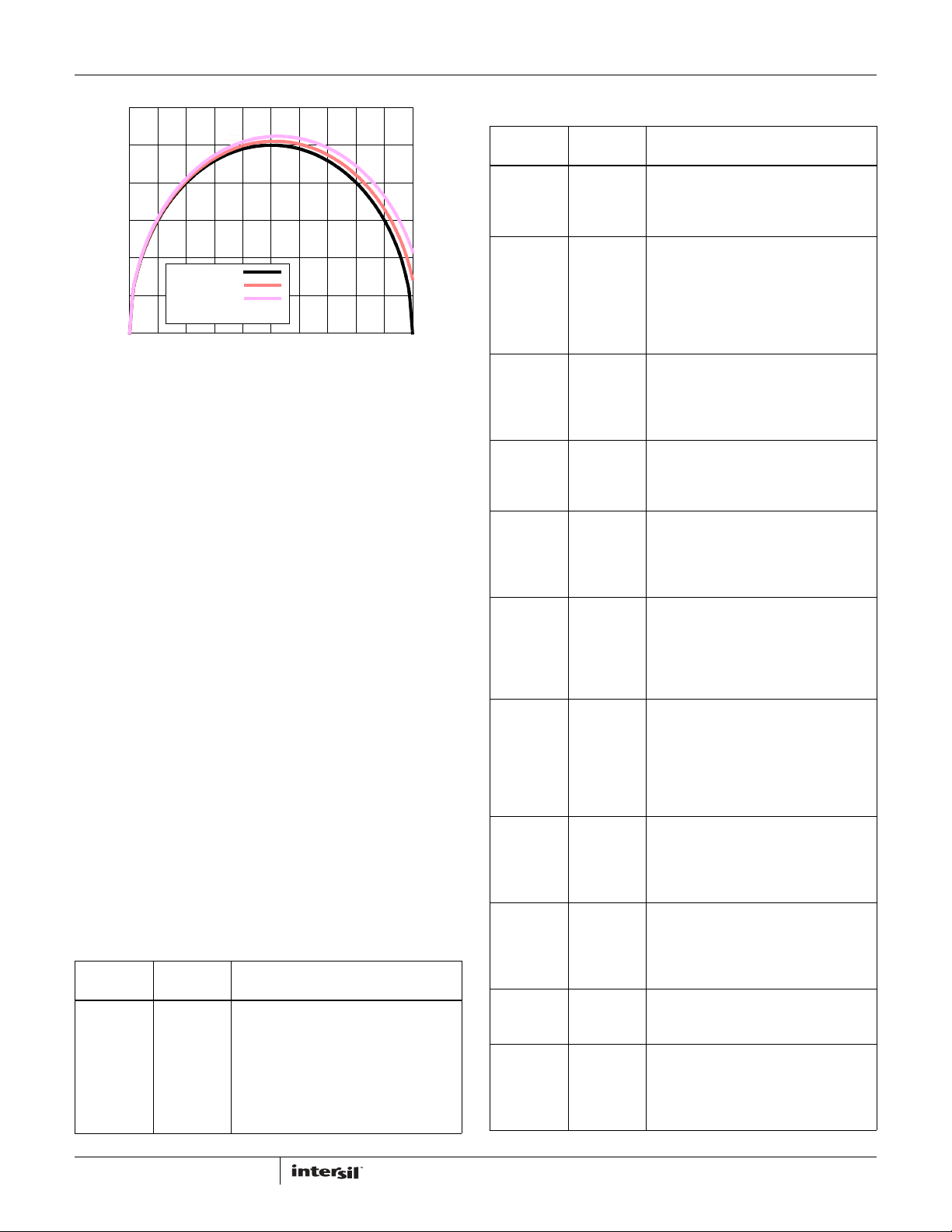

FIGURE 32. NORMALIZED INPUT-CAPACITOR RMS CURRENT vs

I

= 0

L,PP

I

= 0.5 I

L,PP

I

L,PP

00.4 1.00.2 0.6 0.8

DUTY CYCLE FOR SINGLE-PHASE CONVERTER

O

= 0.75 I

O

DUTY CYCLE (V

OUT/VIN

)

MULTIPHASE RMS IMPROVEMENT

Figure 32 is provided as a reference to demonstrate the dramatic
reductions in input-capacitor RMS current upon the
implementation of the multiphase topology. For example,
compare the input RMS current requirements of a 2-phase
converter versus that of a single phase. Assume both converters
have a duty cycle of 0.25, maximum sustained output current of
40A, and a ratio of I
would require 17.3A
converter would only require 10.9A

to IO of 0.5. The single phase converter

L,PP

current capacity while the 2-phase

RMS

. The advantages become

RMS

even more pronounced when output current is increased and
additional phases are added to keep the component cost down
relative to the single phase approach.

Layout and Design Considerations

The following layout and design strategies are intended to minimize
the noise coupling, the impact of board parasitic impedances on
converter performance and to optimize the heat-dissipating
capabilities of the printed-circuit board. These sections highlight
some important practices which should follow during the layout
process. A layout check list in excel format is available for use.

Pin Noise Sensitivity, Design and Layout
Consideration

Table 14 shows the noise sensitivity of each pin and their design
and layout consideration. All pins and external components
should not be across switching nodes and placed in general
proximity to the controller.

TABLE 14. PIN DESIGN AND/OR LAYOUT CONSIDERATION

NOISE

PIN NAME

NC4 No Open Pin. Reserved for “ISENIN-” in

SENSITIVITY DESCRIPTION

ISL6366A/67: It will be noise sensitive and
connect to input supply side of the input
inductor or resistor pin with L/DCR or
ESL/R matching network in close
proximity to the controller. Place NTC in the
close proximity to input inductor for
thermal compensation.

TABLE 14. PIN DESIGN AND/OR LAYOUT CONSIDERATION

(Continued)

NOISE

PIN NAME

NC5 No Open Pin. Reserved for “ISENIN+” in

EN_PWR No There is an internal 1µs filter. Decoupling

RAMP_ADJ Yes NO decoupling capacitor allowed on this

RGND Yes Pairing up with the positive rail remote

VSEN No Used for Overvoltage protection sensing

FB Yes Pairing up with the negative rail of remote

HFCOMP Yes Connect an R to the VR0 output. The R

PSICOMP Yes The series impedance typically should be

COMP Yes Placing the compensation network in close

DVC Yes 4/3 of DAC voltage. Placing the

IMON Yes Referring to GND, not RGND. Place R and C

SENSITIVITY DESCRIPTION

ISL6366A/67: It will be noise sensitive and
connects to the Drain of High-side MOSFET
side of the input inductor or resistor pin.

capacitor is NOT needed, but if needed,
use a low time constant one to avoid too
mu ch o f sh ut- dow n de lay. It w ill als o be the
output of CFP function in ISL6366A and
ISL6367: 34Ω strong pull-up. 25 mils
spacing from other traces.

pin, but decoupling its resistor pull-up RAIL
with a high quality ceramic capacitor
(0.1µF or higher) or with very small RC
filter (<2.2µs).

sensing line that connected to FB resistor,
and routing them to the load sensing
points.

only, and it has 1µs internal filter.
Decoupling is NOT needed. Add a 0Ω series
impedance to be compatible with
ISL6366A/67.

sensing line that connected to RGND, and
routing them to the load sensing points.
Reserve an RC from FB to GND to
compensate the output lagging from DAC
during DVID transitions.

value is typically equal or slightly higher
than the feedback resistor (droop resistor),
fine tuned according to the high frequency
transient performance. Placing the
compensation network in close proximity
to the controller.

2x-3x the impedance in type III
compensation to reduce noise coupling.
Placing the compensation network in close
proximity to the controller.

proximity to the controller. Typically use a
68pF or higher across FB to COMP
depending upon the noise coupling of the
layout.

compensation network in close proximity
to the controller.

in general proximity to the controller. The
time constant of RC should be sufficient,
typically 1ms, as an average function for
the digital IOUT of VR0.

39

FN6964.0

January 3, 2011

ISL6366

TABLE 14. PIN DESIGN AND/OR LAYOUT CONSIDERATION

(Continued)

NOISE

PIN NAME

SVDATA;

SVCLK

SVALERT# No Open drain and high dv/dt pin during

VR_RDY No Open drain and high dv/dt pin. Avoid its

NC3 No Floating Pins. Reserved pull-up resistors

NC1 No Floating Pins. Reserved pull-up resistors

NC2 No Floating Pins. Reserved pull-up resistors

IMONS Yes Referring to GND, not RGNDS. Place R and

VR_HOT# No Open drain and high dv/dt pin during

HFCOMPS/D

VCS

VR_RDYS No Open drain and high dv/dt pin. Avoid its

SENSITIVITY DESCRIPTION

Yes 13 to 26MHz signals when the SVID bus is

sending commands, pairing up with
SVALERT# and routing carefully back to
CPU socket. 20 mils spacing within
SVDATA, SVALERT#, and SVCLK; and more
than 30 mils to all other signals. Refer to
the Intel individual platform design
guidelines and place proper terminated
(pull-up) resistance for impedance
matching. Local decoupling capacitor is
needed for the pull-up rail.

transitions. Routing it in the middle of
SVDATA and SVCLK. Also see above.

pull-up higher than VCC. Tie it to ground
when not used.

2

for I

C/PMBus in ISL6367A: I2CLK pin, it
will be noise sensitive. 100kHz to 2MHz
signal when the I
commands, pairing up with PMALERT#
and routing carefully back to PMBus. 20
mils spacing within I2DATA, PMALERT#,
and I2CLK; and more than 30 mils to all
other signals. Refer to the PMBus design
guidelines and place proper terminated
(pull-up) resistance for impedance
matching.

2

for I

C/PMBus in ISL6367: I2DATA pin, it
will be noise sensitive. Also see above.

for PMBus in ISL6367: PMALERT# pin.
Also see above.

C in general proximity to the controller. The
time constant of RC should be sufficient,
typically 1ms, as an average function for
the digital IOUT of VR1.

transitions. Avoid its pull-up rail higher
than VCC. 30 mils spacing from other
traces.

Yes Connect an R in similar value (equal or

slight higher) of the feedback resistor. If
programmed to be used as DVCS, Connect
an RC to FBS from this pin. Placing the
compensation network in close proximity
to the controller.

pu ll- up h igh er t han VCC . Ti e it to GND whe n
not used.

2

C or PMBus is sending

TABLE 14. PIN DESIGN AND/OR LAYOUT CONSIDERATION

(Continued)

NOISE

PIN NAME

COMPS Yes Placing the compensation network in close

FBS Yes Pairing up with the negative rail of remote

VSENS No Used for Overvoltage protection sensing

RGNDS Pairing up with the positive rail remote

FSS_DDRS Yes Placing the R in close proximity to the

TMS Placing NTC in close proximity to the

ISENS+ Yes Connect to the output rail side of the

ISENS- Yes Connect to the phase node side of the

SENSITIVITY DESCRIPTION

proximity to the controller. Typically use a
68pF or higher across FBS to COMPS
depending upon the noise coupling of the
layout.

sensing line that connected to RGNDS, and
routing them to the load sensing points.
Reserve an RC from FBS to GND to
compensate the output lagging from DAC
during DVID transitions.

only, and it has 1µs internal filter.
Decoupling is NOT needed. Add a series
impedance to be compatible with
ISL6366A/67.

sensing line that connected to FB resistor,
and routing them to the load sensing
points.

controller. Avoid using decoupling
capacitor on this pin. Must tie GND or VCC
via 1MΩ depending upon the desired
ADDRESS offset when VR1 is not in use.
Don’t use decoupling capacitor on this pin.
To minimize the effect of cross coupling
between regulators, select operating
frequencies of VR0 and VR1 at least 50kHz
apart.

output inductor of VR1 and to the output
rail, not close to MOSFET side (see
Figure 23); the return trace should be 25
mils away from other traces. Place 1k pull­up and decoupling capacitor (typically

0.1µF) in close proximity to the controller.
The pull-up resistor should be exactly tied
to the same point as VCC pin, not through
an RC filter. If not used, connect this pin to
TM or 1MΩ/2MΩ resistor divider, but
DON’T tie it to VCC or GND. Place the NTC
in proximity to the output rail, not close to
MOSFET side.

output inductor or current sensing resistor
pin with I
capacitor (27ns) placed in close proximity
to the controller.

output inductor or resistor pin with L/DCR
or ESL/R
proximity to the ISENS± pins of the
controller. Differential pair with ISENS+
routing back to the controller.

resistor and decoupling

SEN

matching network in close

SEN

40

FN6964.0

January 3, 2011

ISL6366

TABLE 14. PIN DESIGN AND/OR LAYOUT CONSIDERATION

(Continued)

NOISE

PIN NAME

PWMS No Avoid the routing across or under other

ADDR_XX;

NPSI_XX;

BT_XX;

BTS_XX

TM Placing NTC in close proximity to the

SICI No Program SI (standard-inductor, tied to

RSET Yes Placing the R in close proximity to the

FS_DRP Yes Placing the R in close proximity to the

VCC Yes Place the decoupling capacitor in close

PWM1-6 NO Avoid the respective PWM routing across

EN_VTT No There is an internal 1µs filter. Decoupling

ISEN[6:1]+ Yes Connect to the output rail side of the

SENSITIVITY DESCRIPTION

phase’s power trains and DCR sensing
network. Don’t make them across or under
external components of the controller. At
least 30mils away from any other traces.

No Register setting is locked prior to soft-start.

Since the external resistor-divider ratio
compares with the internal resistor ratio of
the VCC, their rail should be exactly tied to
the same point as VCC pin, not through an
RC filter. DON’T use decoupling capacitors
on these pins.

output inductor of VR0’s Channel 1 and to
the output rail, not close to MOSFET side
(see Figure 23); the return trace should be
25 mils away from other traces. Place 1k
pull-up and decoupling capacitor (typically

0.1µF) in close proximity to the controller.
The pull-up resistor should be exactly tied
to the same point as VCC pin, not through
an RC filter. If not used, connect this pin to
TMS or 1M Ω/2M Ω resistor divider, but
DON’T tie it to VCC or GND.

GND) and CI (coupled inductor, tied to
VCC). It is reserved for IAUTO in
ISL6366A/67 and will be noise sensitive;
SI and CI are still programmable with this
pin.

controller. DON’T use decoupling capacitor
on this pin.

controller. Must tie GND or VCC via 1MΩ
when VR0 is not in use. Don’t use
decoupling capacitor on this pin.

proximity to the controller.

or under other phase’s power
trains/planes and current sensing
network. Don’t make them across or under
external components of the controller. At
least 20mils away from any other traces.

capacitor is not needed, but if needed, use
a low timing constant one to avoid too
much shut-down delay.

respective channel’s output inductor or
resistor pin. Decoupling is optional and
might be required for long sense traces
and a poor layout.

TABLE 14. PIN DESIGN AND/OR LAYOUT CONSIDERATION

(Continued)

NOISE

PIN NAME

ISEN[6:1]- Yes Connect to the phase node side of the

GND Yes This EPAD is the return of PWM output

General

Comments

SENSITIVITY DESCRIPTION

respective channel’s output inductor or
resistor pin with L/DCR or ESL/R
matching network in close proximity to the
ISEN± pins of VR0. Differentially routing
back to the controller by paring with
respective ISEN+; at least 20 mils spacing
between pairs and away from other traces.
Each pair should not across the other
channel’s switching nodes [Phase, UGATE,
LGATE] and power planes even though they
are not in the same layer

drivers and SVID bus. Use 4 or more vias to
directly connect the EPAD to the power
ground plane. Avoid using only single via or
0Ω resistor connection to the power
ground plane.

The layer next to the Top or Bottom layer is
preferred to be ground players, while the
signal layers can be sandwiched in the
ground layers if possible.

SEN

Component Placement

Within the allotted implementation area, orient the switching
components first. The switching components are the most critical
because they carry large amounts of energy and tend to generate
high levels of noise. Switching component placement should take
into account power dissipation. Align the output inductors and
MOSFETs such that space between the components is minimized
while creating the PHASE plane. Place the Intersil MOSFET driver
IC as close as possible to the MOSFETs they control to reduce the
parasitic impedances due to trace length between critical driver
input and output signals. If possible, duplicate the same
placement of these components for each phase.

Next, place the input and output capacitors. Position the high­frequency ceramic input capacitors next to each upper MOSFET
drain. Place the bulk input capacitors as close to the upper
MOSFET drains as dictated by the component size and
dimensions. Long distances between input capacitors and
MOSFET drains result in too much trace inductance and a
reduction in capacitor performance. Locate the output capacitors
between the inductors and the load, while keeping them in close
proximity to the microprocessor socket.

To improve the chance of first pass success, it is very important
to take time to follow the above outlined design guidelines and
Intersil generated layout check list, see more details in “Voltage­Reg ulator (VR) Design Materials” on pa ge 42. Proper planning for
the layout is as important as designing the circuits. Running
things in a hurry, you could end up spending weeks and months
to debug a poorly-designed and improperly laid out board.

41

FN6964.0

January 3, 2011

ISL6366

Powering Up And Open-Loop Test

The ISL6366 features very easy debugging and powering up. For
the first-time powering up, an open-loop test can be done by
applying sufficient voltage (current limiting to 0.25A) to VCC,
proper pull-up to SVID bus, and signal high to EN_VTT and
EN_PWR pins with the input voltage (VIN) disconnected.

1. Each PWM output should operate at maximum duty cycle
(typically VR0 at 98% and VR1 at 83%) and correct switching
frequency.

2. The 0C, 0D, 0E, and 0F registers can be read via SVID bus to
check its proper setting if an VTT tool is installed and
operating.

3. If 5V drivers are used and share the same rail as VCC, the
proper switching on UGATEs and LGATEs should be seen.

4. If 12V drivers are used and can be disconnected from VIN and
sourced by an external 12V supply, the proper switching on
UG ATEs and LGAT Es shoul d be observed.

5. If the above is not properly operating, you should check
soldering joint, resistor register setting, Power Train
connection or damage, i.e, shorted gates, drain and source.
Sometimes the gate might be measured short due to residual
gate charge. Therefore, a measured short gate with
ohmmeter cannot validate if the MOSFET is damaged unless
the Drain to Source is also measured short.

6. When the re-work is needed for the L/DCR matching network,
use an ohmmeter across the C to see if the correct R value is
measured before powering the VR up; otherwise, the current
imbalance due to improper re-work could damage the power
trains.

7. After everything is checked, apply low input voltage (1-5V)
with appropriate current limiting (~0.5A). All phases should
be switching evenly.

8. Remove the pull-up from EN_PWR pin, using bench power
supplies, power up VCC with current limiting (typically ~ 0.25A
if 5V drivers included) and slowly increase Input Voltage with
current limiting. For typical application, VCC limited to 0.25A,
VIN limited to 0.5A should be safe for powering up without no
load. High core-loss inductors likely need to increase the input
current limiting. All phases should be switching evenly.

Voltage-Regulator (VR) Design
Materials

The tolerance band calculation (TOB) worksheets for VR output
regulation and IMON have been developed using the Root-Sum­Squared (RSS) method with 3 sigma distribution point of the
related components and parameters. Note that the “Electrical
Specifications” table beginning on page 8 specifies no less than
6 sigma distribution point, not suitable for RSS TOB calculation.
To support VR design and layout, Intersil also developed a set of
worksheets and evaluation boards, as listed in Tables 15 and 16,
respectively. Contact Intersil’s local office or field support for the
latest available information.

TABLE 15 . AVAILABL E D ESIGN ASSISTANCE MATERIALS

ITEM DESCRIPTION

0 VR12 Design and Validation

1 VR12 Design Worksheet for Compensation and Component

Selection

2 Transient Response Optimization Guidelines

3 VOUT and IMON TOB Calculator

4 SVID and PMBus Communication Tool

5 Resistor Register Calculator

6 Dynamic VID Compensation Calculator

7 VR12 Layout Design Guidelines

8TCOMP and TM Selection Worksheet

9 Fine Tune OCP and Droop Worksheet

10 Evaluation Board Schematics in OrCAD Format and Layout in

Allegro Format

NOTE:

For worksheets, please contact Intersil Application support

at www.intersil.com/design/.

TABLE 16. AVAILABLE VR12 EVALUATION BOARDS

# OF

# OF INTEGRATED

EVALUATION BOARDS

ISL6366/67EVAL1 6+1 - 7x7 60Ld High-End Desktop and Server with

ISL6366/67EVAL2 6+1 - 7x7 60Ld High-End Desktop and Server with

ISL6364EVAL1 4+1 - 6x6 48Ld Desktop/Memory 88%, 1.2V@50A 120A

ISL6363EVAL1 4+1 2+1 7x7 60Ld Desktop/Memory 88%, 1.2V@50A 120A

ISL6353EVAL1 3+0 2 5x5 40Ld Memory 94%, 1.5V@25A 100A

PHASES

DRIVERS PACKAGE TARGETED APPLICATIONS I

Discrete Drivers and MOSFETs

DrMOS

2

C/PMBUS

Yes 93%, 1.2V@50A 190A

Yes 93.5%,

42

PEAK

EFFICIENCY

1.2V@50A

January 3, 2011

PEAK

CURRENT

+25A

190A
+25A

+35A

+35A

FN6964.0

ISL6366

Revision History

The revision history provided is for informational purposes only and is believed to be accurate, but not warranted. Please go to web to make
sure you have the latest revision.

DATE REVISION CHANGE

1/3/11 FN6964.0 Initial Release.

Products

Intersil Corporation is a leader in the design and manufacture of high-performance analog semiconductors. The Company's products
address some of the industry's fastest growing markets, such as, flat panel displays, cell phones, handheld products, and notebooks.
Intersil's product families address power management and analog signal processing functions. Go to www.intersil.com/products
complete list of Intersil product families.

*For a complete listing of Applications, Related Documentation and Related Parts, please see the respective device information page
on intersil.com: ISL6366

To report errors or suggestions for this datasheet, please go to: www.intersil.com/askourstaff

FITs are available from our website at: http://rel.intersil.com/reports/sear

for a

For additional products, see www.intersil.com/product_tree

Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems as noted

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time
without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be
accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third
parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

43

in the quality certifications found at www.intersil.com/design/quality

For information regarding Intersil Corporation and its products, see www.intersil.com

FN6964.0

January 3, 2011

Package Outline Drawing

L48.6x6B

48 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
Rev 0, 9/09

6.00

6

PIN 1

INDEX AREA

ISL6366

A

B

4X

4.4

0.40

44X

37

36

48

6

PIN #1 INDEX AREA

1

(4X)

( 5. 75 TYP )

0.15

( 4. 40 )

TOP VIEW

TYPICAL RECOMMENDED LAND PATTERN

6.00

( 44 X 0 . 40 )

( 48X 0 . 20 )

( 48X 0 . 65 )

MAX 1.00

4 .40 ± 0.15

25

24

48X 0.45 ± 0.10

BOTTOM VIEW

SIDE VIEW

0 . 2 REF

C

0 . 00 MIN.
0 . 05 MAX.

5

12

13

4

0.10 CM

0.05 M

48X 0.20

SEE DETAIL "X"

BASE PLANE

AB

C

C

0.10

SEATING PLANE

C

0.08 C

DETAIL "X"

44

NOTES:

Dimensions are in millimeters.1.
Dimensions in ( ) for Reference Only.

2.

Dimensioning and tolerancing conform to AMSE Y14.5m-1994.

3.

Unless otherwise specified, tolerance : Decimal ± 0.05

4.

Dimension applies to the metallized terminal and is measured

between 0.15mm and 0.30mm from the terminal tip.

Tiebar shown (if present) is a non-functional feature.

5.

The configuration of the pin #1 identifier is optional, but must be

6.
located within the zone indicated. The pin #1 indentifier may be

either a mold or mark feature.

FN6964.0

January 3, 2011
