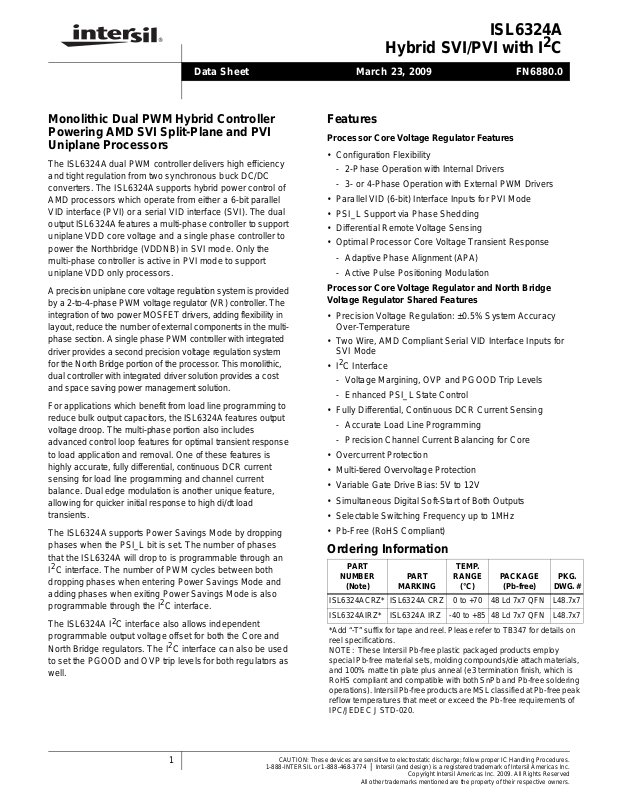

Hybrid SVI/PVI with I

ISL6324A

Data Sheet

Monolithic Dual PWM Hybrid Controller Powering AMD SVI Split-Plane and PVI Uniplane Processors

The ISL6324A dual PWM controller delivers high efficiency and tight regulation from two synchronous buck DC/DC converters. The ISL6324A supports hybrid power control of AMD processors which operate from either a 6-bit parallel VID interface (PVI) or a serial VID interface (SVI). The dual output ISL6324A features a multi-phase controller to support uniplane VDD core voltage and a single phase controller to power the Northbridge (VDDNB) in SVI mode. Only the multi-phase controller is active in PVI mode to support uniplane VDD only processors.

A precision uniplane core voltage regulation system is provided by a 2-to-4-phase PWM voltage regulator (VR) controller. The integration of two power MOSFET drivers, adding flexibility in layout, reduce the number of external components in the multiphase section. A single phase PWM controller with integrated driver provides a second precision voltage regulation system for the North Bridge portion of the processor. This monolithic, dual controller with integrated driver solution provides a cost and space saving power management solution.

For applications which benefit from load line programming to reduce bulk output capacitors, the ISL6324A features output voltage droop. The multi-phase portion also includes advanced control loop features for optimal transient response to load application and removal. One of these features is highly accurate, fully differential, continuous DCR current sensing for load line programming and channel current balance. Dual edge modulation is another unique feature, allowing for quicker initial response to high di/dt load transients.

The ISL6324A supports Power Savings Mode by dropping phases when the PSI_L bit is set. The number of phases that the ISL6324A will drop to is programmable through an

C interface. The number of PWM cycles between both dropping phases when entering Power Savings Mode and adding phases when exiting Power Savings Mode is also programmable through the I

The ISL6324A I2C interface also allows independent programmable output voltage offset for both the Core and North Bridge regulators. The I to set the PGOOD and OVP trip levels for both regulators as well.

C interface.

C interface can also be used

March 23, 2009

FN6880.0

Features

Processor Core Voltage Regulator Features

• Configuration Flexibility

- 2-Phase Operation with Internal Drivers

- 3- or 4-Phase Operation with External PWM Drivers

• Parallel VID (6-bit) Interface Inputs for PVI Mode

• PSI_L Support via Phase Shedding

• Differential Remote Voltage Sensing

• Optimal Processor Core Voltage Transient Response

- Adaptive Phase Alignment (APA)

- Active Pulse Positioning Modulation

Processor Core Voltage Regulator and North Bridge Voltage Regulator Shared Features

• Precision Voltage Regulation: ±0.5% System Accuracy Over-Temperature

• Two Wire, AMD Compliant Serial VID Interface Inputs for SVI Mode

C Interface

•I

- Voltage Margining, OVP and PGOOD Trip Levels

- Enhanced PSI_L State Control

• Fully Differential, Continuous DCR Current Sensing

- Accurate Load Line Programming

- Precision Channel Current Balancing for Core

• Overcurrent Protection

• Multi-tiered Overvoltage Protection

• Variable Gate Drive Bias: 5V to 12V

• Simultaneous Digital Soft-Start of Both Outputs

• Selectable Switching Frequency up to 1MHz

• Pb-Free (RoHS Compliant)

Ordering Information

PART

NUMBER

(Note)

ISL6324ACRZ* ISL6324A CRZ 0 to +70 48 Ld 7x7 QFN L48.7x7 ISL6324AIRZ* ISL6324A IRZ -40 to +85 48 Ld 7x7 QFN L48.7x7 *Add “-T” suffix for tape and reel. Please refer to TB347 for details on

reel specifications. NOTE: These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

PART

MARKING

TEMP.

RANGE

(°C)

PACKAGE

(Pb-free)

PKG.

DWG . #

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Page 2

Pinout

ISL6324AISL6324A

ISL6324A HYBRID SVI AND PVI

(48 LD QFN)

TOP VIEW

COMP_NB

ISEN_NB-

ISEN4+

ISEN4-

ISEN3+

ISEN3-

PVCC_NB

LGATE_NB

BOOT_NB

UGATE_NB

PHASE_NB

48 47 46 45 44 43 42 41 40 39 38 37

VDDPWRGD

SDA

VID4

VID5

VCC

RGND

13 14 15 16 17 18 19 20 21 22 23 24

VSEN

FB_NB

ISEN_NB+

VID0/VFIXEN

VID1/SEL

VID2/SVD

VID3/SVC

Integrated Driver Block Diagram

SCL

RSET

RCOMP

GND

COMP

PWM4

PWM3

PWROK

PHASE1

UGATE1

BOOT1

LGATE1

PVCCI_2

LGATE2

BOOT2

UGATE2

PHASE2

APA

ISEN1+

ISEN1-

ISEN2+

ISEN2-

PWM

SOFT-START

AND

FAULT LOGIC

GATE

CONTROL

LOGIC

SHOOT-

THROUGH

PROTECTION

10kΩ

20kΩ

PVCC

BOOT

UGATE

PHASE

LGATE

March 23, 2009

FN6880.0

Page 3

Controller Block Diagram

ISL6324AISL6324A

SCL

SDA

ISEN_NB+

ISEN_NB-

VDDPWRGD

APA

COMP

DVC

RGND

PWROK

VID0/VFIXEN

VID1/SEL VID2/SVD VID3/SVC

VID4

VID5

VSEN

RSET

ISEN1+ ISEN1-

ISEN2+ ISEN2-

ISEN3+ ISEN3-

ISEN4+

ISEN4-

I2C

VDDPWRGD_MOD

∑

SVI

SLAVE

BUS AND

PVI

DAC

NB_REF

LOGIC

RESISTOR

MATCHING

CH1

CURRENT

SENSE

CH2

CURRENT

SENSE

CH3

CURRENT

SENSE

CH4

CURRENT

SENSE

CORE_OVP DAC_OFS

CURRENT

ISEN3-

ISEN4-

SENSE

APA

DAC_OFS

CORE_OVP

E/A

LOGIC

I_TRIP

I_AVG

NB_OVP

LOGIC

TRIANGLE WAVE

∑

CHANNEL CURRENT BALANCE

NB_REF

NB FAULT LOGIC

SOFT-START

AND

FAULT LOGIC

LOAD APPL Y

TRANSIENT

ENHANCEMENT

CLOCK AND GENERATOR

∑

I_AVG

∑

FB_NB

1 N

E/A

DROOP

CONTROL

PWM1

PWM2

GND

COMP_NB

RAMP

EN_12V

ENABLE

LOGIC

PWM3

PWM4

POWER-ON

RESET

CHANNEL

DETECT

PWM3

SIGNAL

LOGIC

PWM4

SIGNAL

LOGIC

MOSFET

DRIVER

MOSFET

DRIVER

MOSFET

DRIVER

PH3/PH4

POR

EN_12V

ISEN3ISEN4-

LGATE_NB

BOOT_NB

UGATE_NB

PHASE_NB

PVCC_NB

VCC

PVCC1_2

BOOT1

UGATE1

PHASE1

LGATE1

BOOT2

UGATE2

PHASE2

LGATE2

PWM3

PWM4

FN6880.0
