ISL6236

Data Sheet April 29, 2010

High-Efficiency, Quad-Output, Main Power Supply Controllers for Notebook Computers

The ISL6236 dual step-down, switch-mode power-supply (SMPS) controller generates logic-supply voltages in battery-powered systems. The ISL6236 include two pulse-width modulation (PWM) controllers, 5V/3.3V and

1.5V/1.05V. The output of SMPS1 can also be adjusted from

0.7V to 5.5V. The SMPS2 output can be adjusted from 0V to

2.5V by setting REFIN2 voltage. An optional external charge pump can be monitored through SECFB. This device features a linear regulator providing 3.3V/5V, or adjustable from 0.7V to

4.5V output via LDOREFIN. The linear regulator provides up to 100mA output current with automatic linear-regulator bootstrapping to the BYP input. When in switchover, the LDO output can source up to 200mA. The ISL6236 includes on-board power-up sequencing, the power-good (POK) outputs, digital soft-start, and internal soft-stop output discharge that prevents negative voltages on shutdown.

A constant ON-time PWM control scheme operates without sense resistors and provides 100ns response to load transients while maintaining a relatively constant switching frequency. The unique ultrasonic pulse-skipping mode maintains the switching frequency above 25kHz, which eliminates noise in audio applications. Other features include pulse skipping, which maximizes efficiency in light-load applications, and fixed-frequency PWM mode, which reduces RF interference in sensitive applications.

Ordering Information

PART

NUMBER

(Note)

ISL6236IRZA ISL6236 IRZ -40 to +100 32 Ld 5x5 QFN L32.5x5B

ISL6236IRZA-T* ISL6236 IRZ -40 to +100 32 Ld 5x5 QFN

*Please refer to TB347 for details on reel specifications.

NOTES:

1. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pbfree requirements of IPC/JEDEC J STD-020.

2. For Moisture Sensitivity Level (MSL), please see device

information page for ISL6236 MSL please see techbrief TB363

PART

MARKING

TEMP.

RANGE

(°C)

PACKAGE

(Pb-Free)

(Tape and Reel)

. For more information on

PKG.

DWG. #

L32.5x5B

FN6373.6

Features

• Wide Input Voltage Range 5.5V to 25V

• Dual Fixed 1.05V/3.3V and 1.5V/5.0V Outputs or Adjustable 0.7V to 5.5V (SMPS1) and 0V to 2.5V (SMPS2), ±1.5% Accuracy

• Secondary Feedback Input (Maintains Charge Pump Voltage)

• 1.7ms Digital Soft-Start and Independent Shutdown

• Fixed 3.3V/5.0V, or Adjustable Output 0.7V to 4.5V, ±1.5% (LDO): 200mA

• 3.3V Reference Voltage ±2.0%: 5mA

• 2.0V Reference Voltage ±1.0%: 50µA

• Constant ON-time Control with 100ns Load-Step Response

• Frequency Selectable

•r

Current Sensing

DS(ON)

• Programmable Current Limit with Foldback Capability

• Selectable PWM, Skip or Ultrasonic Mode

• BOOT Voltage Monitor with Automatic Refresh

• Independent POK1 and POK2 Comparators

• Soft-Start with Pre-Biased Output and Soft-Stop

• Independent ENABLE

• High Efficiency - up to 97%

• Very High Light Load Efficiency (Skip Mode)

• 5mW Quiescent Power Dissipation

• Thermal Shutdown

• Extremely Low Component Count

• Pb-Free (RoHS Compliant)

Applications

• Notebook and Sub-Notebook Computers

• PDAs and Mobile Communication Devices

• 3-Cell and 4-Cell Li+ Battery-Powered Devices

• DDR1, DDR2 and DDR3 Power Supplies

• Graphic Cards

• Game Consoles

• Telecommunications

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Page 2

Pinout

REF

ISL6236

(32 LD 5x5 QFN)

TOP VIEW

REFIN2

ILIM2

OUT2

SKIP

POK2

32 31 30 29 28 27 26 25

EN2

UGATE2

PHASE2

BOOT2

TON

VCC

EN LDO

VREF3

VIN

LDO

LDOREFIN

9 10111213141516

BYP

FB1

OUT1

ILIM1

POK1

EN1

LGATE2

PGND

GND

SECFB

PVCC

LGATE1

BOOT1

UGATE1

PHASE1

FN6373.6

April 29, 2010

Page 3

ISL6236

Absolute Voltage Ratings

VIN, EN LDO to GND. . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +27V

BOOT to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +33V

BOOT to PHASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6V

VCC, EN, SKIP LDO, FB1, REFIN2, LDOREFIN to GND . . . -0.3V to (VCC + 0.3V)

OUT, SECFB, VREF3, REF to GND . . . . . . . . -0.3V to (VCC + 0.3V

UGATE to PHASE . . . . . . . . . . . . . . . . . . . . -0.3V to (PVCC + 0.3V)

, TON, PVCC, POK to GND . . . . . . . . .-0.3V to +6V

Thermal Information

Thermal Resistance (Typical) θJA (°C/W) θJC (°CW)

32 Ld QFN (Notes 3, 4) . . . . . . . . . . . . 32 3.0

Operating Temperature Range . . . . . . . . . . . . . . . .-40°C to +100°C

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C

Storage Temperature Range . . . . . . . . . . . . . . . . . .-65°C to +150°C

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

ILIM to GND . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to (VCC + 0.3V)

LGATE, BYP to GND. . . . . . . . . . . . . . . . . . -0.3V to (PVCC + 0.3V)

PGND to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V

LDO, REF, VREF3 Short Circuit to GND . . . . . . . . . . . .Continuous

VCC Short Circuit to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1s

LDO Current (Internal Regulator) Continuous . . . . . . . . . . . . 100mA

LDO Current (Switched Over to OUT1) Continuous . . . . . . +200mA

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and result in failures not covered by warranty.

NOTES:

is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See

3. θ

Tech Brief TB379.

4. For θ

Electrical Specifications No load on LDO, OUT1, OUT2, V

, the “case temp” location is the center of the exposed metal pad on the package underside.

, and REF, VIN = 12V, EN2 = EN1 = VCC, VBYP = 5V, PVCC = 5V,

VEN_LDO = 5V, T

= -40°C to +100°C, unless otherwise noted. Typical values are at TA = +25°C. Boldface

REF3

limits apply over the operating temperature range, -40°C to +85°C.

PARAMETER CONDITIONS

MIN

(Note 6) TYP

MAX

(Note 6) UNITS

MAIN SMPS CONTROLLERS

Input Voltage Range LDO in regulation 5.5 25 V

= LDO, VOUT1 <4.43V 4.5 5.5 V

3.3V Output Voltage in Fixed Mode V

1.05V Output Voltage in Fixed Mode V

1.5V Output Voltage in Fixed Mode V

5V Output Voltage in Fixed Mode V

FB1 in Output Adjustable Mode (Note 7) V

REFIN2 in Output Adjustable Mode V

SECFB Voltage V

= 5.5V to 25V, REFIN2 > (VCC - 1V), SKIP = 5V 3.285 3.330 3.375 V

= 5.5V to 25V, 3.0 < REFIN2 < (VCC - 1.1V),

SKIP

= 5V

= 5.5V to 25V, FB1 = VCC, SKIP = 5V 1.482 1.500 1.518 V

= 5.5V to 25V, FB1 = GND, SKIP = 5V 4.975 5.050 5.125 V

= 5.5V to 25V 0.693 0.700 0.707 V

= 5.5V to 25V 0.7 2.50 V

= 5.5V to 25V 1.920 2.00 2.080 V

1.038 1.05 1.062 V

SMPS1 Output Voltage Adjust Range SMPS1 0.70 5.50 V

SMPS2 Output Voltage Adjust Range SMPS2 0.50 2.50 V

SMPS2 Output Voltage Accuracy

REFIN2 = 0.7V to 2.5V, SKIP

= VCC -1.0 1.0 %

(Referred for REFIN2)

DC Load Regulation Either SMPS, SKIP

Either SMPS, SKIP

Line Regulation Either SMPS, 6V < V

= VCC, 0A to 5A -0.1 %

= REF, 0A to 5A -1.7 %

= GND, 0A to 5A -1.5 %

< 24V 0.005 %/V

Current-Limit Current Source Temperature = +25°C 4.75 5 5.25 µA

ILIM Adjustment Range 0.2 2 V

Current-Limit Threshold (Positive, Default) ILIM = VCC, GND - PHASE

93 100 107 mV

(No temperature compensation)

FN6373.6

April 29, 2010

Page 4

ISL6236

Electrical Specifications No load on LDO, OUT1, OUT2, V

VEN_LDO = 5V, T

limits apply over the operating temperature range, -40°C to +85°C. (Continued)

PARAMETER CONDITIONS

Current-Limit Threshold

GND - PHASE V

(Positive, Adjustable)

Zero-Current Threshold SKIP

Current-Limit Threshold (Negative, Default) SKIP

= -40°C to +100°C, unless otherwise noted. Typical values are at TA = +25°C. Boldface

= GND, REF, or OPEN, GND - PHASE 3 mV

= VCC, GND - PHASE -120 mV

, and REF, VIN = 12V, EN2 = EN1 = VCC, VBYP = 5V, PVCC = 5V,

REF3

MIN

(Note 6) TYP

= 0.5V 40 50 60 mV

ILIM

= 1V 93 100 107 mV

ILIM

= 2V 185 200 215 mV

ILIM

MAX

(Note 6) UNITS

Soft-Start Ramp Time Zero to full limit 1.7 ms

Operating Frequency (V

= GND), SKIP = VCC SMPS 1 400 kHz

tON

SMPS 2 500 kHz

= REF or OPEN),

tON

= VCC

SKIP

= VCC), SKIP = VCC SMPS 1 200 kHz

tON

SMPS 1 400 kHz

SMPS 2 300 kHz

ON-Time Pulse Width V

Minimum OFF-Time T

Maximum Duty Cycle V

tON

(400kHz/300kHz)

tON

= -40°C to +100°C 200 300 425 ns

= -40°C to +85°C 200 300 410 ns

tON

Ultrasonic SKIP Operating Frequency SKIP

= GND (400kHz/500kHz) V

= REF or OPEN

= VCC (200kHz/300kHz) V

= GND V

= REF or OPEN V

= VCC V

= REF or OPEN 25 37 kHz

= 5.00V 0.895 1.052 1.209 µs

OUT1

= 3.33V 0.475 0.555 0.635 µs

OUT2

= 5.05V 0.895 1.052 1.209 µs

OUT1

= 3.33V 0.833 0.925 1.017 µs

OUT2

= 5.05V 1.895 2.105 2.315 µs

OUT1

= 3.33V 0.833 0.925 1.017 µs

OUT2

= 5.05V 88 %

OUT1

= 3.33V 85 %

OUT2

= 5.05V 88 %

OUT1

= 3.33V 91 %

OUT2

= 5.05V 94 %

OUT1

= 3.33V 91 %

OUT2

INTERNAL REGULATOR AND REFERENCE

LDO Output Voltage BYP = GND, 5.5V < V

0 < ILDO < 100mA

LDO Output Voltage BYP = GND, 5.5V < V

0 < ILDO < 100mA

LDO Output in Adjustable Mode V

LDO Output Accuracy in Adjustable Mode V

LDOREFIN Input Range V

LDO Output Current BYP = GND, V

LDO Output Current During Switchover BYP = 5V, V

LDO Output Current During Switchover to 3.3V

= 5.5V to 25V, V

= 2 x V

LDO

BYP = 3.3V, V

LDOREFIN

= 5.5V to 25V (Note 5) 100 mA

= 5.5V to 25V, LDOREFIN < 0.3V 200 mA

= 5.5V to 25V, LDOREFIN > (VCC - 1V) 100 mA

< 25V, LDOREFIN < 0.3V,

< 25V, LDOREFIN > (VCC -1V),

= 2 x V

LDO

LDOREFIN

= 0.35V to 0.5V ±2.5 %

= 0.5V to 2.25V ±1.5 %

4.925 5.000 5.075 V

3.250 3.300 3.350 V

0.7 4.5 V

0.35 2.25 V

LDO Short-Circuit Current LDO = GND, BYP = GND 200 400 mA

FN6373.6

April 29, 2010

Page 5

ISL6236

Electrical Specifications No load on LDO, OUT1, OUT2, V

VEN_LDO = 5V, T

limits apply over the operating temperature range, -40°C to +85°C. (Continued)

PARAMETER CONDITIONS

= -40°C to +100°C, unless otherwise noted. Typical values are at TA = +25°C. Boldface

, and REF, VIN = 12V, EN2 = EN1 = VCC, VBYP = 5V, PVCC = 5V,

REF3

MIN

(Note 6) TYP

MAX

(Note 6) UNITS

Undervoltage-Lockout Fault Threshold Rising edge of PVCC 4.35 4.5 V

Falling edge of PVCC 3.9 4.05

LDO 5V Bootstrap Switch Threshold to BYP Rising edge at BYP regulation point

4.53 4.68 4.83 V

LDOREFIN = GND

LDO 3.3V Bootstrap Switch Threshold to BYP

LDO 5V Bootstrap Switch Equivalent

Rising edge at BYP regulation point

3.0 3.1 3.2 V

LDOREFIN = VCC

LDO to BYP, BYP = 5V, LDOREFIN > (VCC -1V) (Note 5) 0.7 1.5 Ω

Resistance

LDO 3.3V Bootstrap Switch Equivalent

LDO to BYP, BYP = 3.3V, LDOREFIN < 0.3V (Note 5) 1.5 3.0 Ω

Resistance

VREF3 Output Voltage No external load, VCC > 4.5V 3.235 3.300 3.365 V

No external load, VCC < 4.0V 3.220 3.300 3.380 V

VREF3 Load Regulation 0 < I

< 5mA 10 mV

LOAD

VREF3 Current Limit VREF3 = GND 10 17 mA

REF Output Voltage No external load 1.980 2.000 2.020 V

REF Load Regulation 0 < I

< 50µA 10 mV

LOAD

REF Sink Current REF in regulation 10 µA

VIN Operating Supply Current Both SMPSs on, FB1 = SKIP

= BYP = 5.3V, V

VIN Standby Supply Current V

VIN Shutdown Supply Current V

OUT1

= 5.5V to 25V, both SMPSs off, EN LDO = VCC 180 250 µA

= 4.5V to 25V, EN1 = EN2 = EN LDO = 0V 20 30 µA

OUT2

Quiescent Power Consumption Both SMPSs on, FB1 = SKIP

= BYP = 5.3V, V

OUT1

OUT2

= GND, REFIN2 = VCC

= 3.5V

= GND, REFIN2 = VCC, = 3.5V

25 50 µA

57mW

FAULT DETECTION

Overvoltage Trip Threshold FB1 with respect to nominal regulation point +8 +11 +14 %

REFIN2 with respect to nominal regulation point +12 +16 +20 %

Overvoltage Fault Propagation Delay FB1 or REFIN2 delay with 50mV overdrive 10 µs

POK Threshold FB1 or REFIN2 with respect to nominal output, falling

-12-9-6%

edge, typical hysteresis = 1%

POK Propagation Delay Falling edge, 50mV overdrive 10 µs

POK Output Low Voltage I

= 4mA 0.2 V

SINK

POK Leakage Current High state, forced to 5.5V 1 µA

Thermal-Shutdown Threshold +150 °C

Out-Of-Bound Threshold FB1 or REFIN2 with respect to nominal output voltage 5 %

Output Undervoltage Shutdown Threshold FB1 or REFIN2 with respect to nominal output voltage 65 70 75 %

Output Undervoltage Shutdown Blanking

From EN signal 10 20 30 ms

Time

INPUTS AND OUTPUTS

FB1 Input Voltage Low level 0.3 V

High level VCC - 1.0 V

REFIN2 Input Voltage OUT2 Dynamic Range, V

OUT2

= V

REFIN2

0.5 2.50 V

Fixed OUT2 = 1.05V 3.0 VCC - 1.1 V

Fixed OUT2 = 3.3V VCC - 1.0 V

FN6373.6

April 29, 2010

Page 6

ISL6236

Electrical Specifications No load on LDO, OUT1, OUT2, V

VEN_LDO = 5V, T

limits apply over the operating temperature range, -40°C to +85°C. (Continued)

PARAMETER CONDITIONS

= -40°C to +100°C, unless otherwise noted. Typical values are at TA = +25°C. Boldface

, and REF, VIN = 12V, EN2 = EN1 = VCC, VBYP = 5V, PVCC = 5V,

REF3

MIN

(Note 6) TYP

MAX

(Note 6) UNITS

LDOREFIN Input Voltage Fixed LDO = 5V 0.30 V

LDO Dynamic Range, V

LDO

= 2 x V

LDOREFIN

0.35 2.25 V

Fixed LDO = 3.3V VCC - 1.0 V

Input Voltage Low level (SKIP) 0.8 V

SKIP

Float level (ULTRASONIC SKIP) 1.7 2.3 V

High level (PWM) 2.4 V

TON Input Voltage Low level 0.8 V

Float level 1.7 2.3 V

High level 2.4 V

EN1, EN2 Input Voltage Clear fault level/SMPS off level 0.8 V

Delay start level 1.7 2.3 V

SMPS on level 2.4 V

EN LDO Input Voltage Rising edge 1.2 1.6 2.0 V

Falling edge 0.94 1.00 1.06 V

Input Leakage Current V

= 0V or 5V -1 +1 µA

tON

= VEN LDO = 0V or 5V -0.1 +0.1 µA

= 0V or 5V -1 +1 µA

VSKIP

= VSECFB = 0V or 5V -0.2 +0.2 µA

FB1

= 0V or 2.5V -0.2 +0.2 µA

REFIN

LDOREFIN

= 0V or 2.75V -0.2 +0.2 µA

INTERNAL BOOT DIODE

Forward Voltage PVCC - V

BOOT LEAKAGE

Leakage Current V

BOOT

, IF = 10mA 0.65 0.8 V

BOOT

= 30V, PHASE = 25V, PVCC = 5V 500 nA

MOSFET DRIVERS

UGATE Gate-Driver Sink/Source Current UGATE1, UGATE2 forced to 2V 2 A

LGATE Gate-Driver Source Current LGATE1 (source), LGATE2 (source), forced to 2V 1.7 A

LGATE Gate-Driver Sink Current LGATE1 (sink), LGATE2 (sink), forced to 2V 3.3 A

UGATE Gate-Driver ON-Resistance BST - PHASE forced to 5V (Note 5) 1.5 4.0 Ω

LGATE Gate-Driver ON-Resistance LGATE, high state (pull-up) (Note 5) 2.2 5.0 Ω

LGATE, low state (pull-down) (Note 5) 0.6 1.5 Ω

Dead Time LGATE Rising 15 20 35 ns

UGATE Rising 20 30 50 ns

OUT1, OUT2 Discharge ON-Resistance 25 40 Ω

NOTES:

5. Limits established by characterization and are not production tested.

6. Parameters with MIN and/or MAX limits are 100% tested at +25°C, unless otherwise specified. Temperature limits established by characterization and are not production tested.

7. Does not apply in PFM mode (see further details on page 26).

FN6373.6

April 29, 2010

Page 7

ISL6236

Pin Descriptions

NUMBER NAME FUNCTION

REF 2V Reference Output. Bypass to GND with a 0.1µF (min) capacitor. REF can source up to 50µA for external loads.

Loading REF degrades FB and output accuracy according to the REF load-regulation error.

TON Frequency Select Input. Connect to GND for 400kHz/500kHz operation. Connect to REF (or leave OPEN) for

400kHz/300kHz operation. Connect to VCC for 200kHz/300kHz operation (5V/3.3V SMPS switching frequencies, respectively.)

VCC Analog Supply Voltage Input for PWM Core. Bypass to GND with a 1µF ceramic capacitor.

EN LDO LDO Enable Input. The LDO is enabled if EN LDO is within logic high level and disabled if EN LDO is less than the logic

low level.

VREF3 3.3V Reference Output. VREF3 can source up to 5mA for external loads. Bypass to GND with a 0.01µF capacitor if

loaded. Leave open if there is no load.

VIN Power-Supply Input. VIN is used for the constant-on-time PWM on-time one-shot circuits. VIN is also used to power the

linear regulators. The linear regulators are powered by SMPS1 if OUT1 is set greater than 4.78V and BYP is tied to OUT1. Connect VIN to the battery input and bypass with a 1µF capacitor.

LDO Linear-Regulator Output. LDO can provide a total of 100mA external loads. The LDO regulate at 5V If LDOREFIN is

connected to GND. When the LDO is set at 5V and BYP is within 5V switchover threshold, the internal regulator shuts down and the LDO output pin connects to BYP through a 0.7Ω switch. The LDO regulate at 3.3V if LDOREFIN is connected to VCC. When the LDO is set at 3.3V and BYP is within 3.3V switchover threshold, the internal regulator shuts down and the LDO output pin connects to BYP through a 1.5Ω switch. Bypass LDO output with a minimum of

4.7µF ceramic.

LDOREFIN LDO Reference Input. Connect LDOREFIN to GND for fixed 5V operation. Connect LDOREFIN to VCC for fixed 3.3V

operation. LDOREFIN can be used to program LDO output voltage from 0.7V to 4.5V. LDO output is two times the voltage of LDOREFIN. There is no switchover in adjustable mode.

BYP BYP is the switchover source voltage for the LDO when LDOREFIN connected to GND or VCC. Connect BYP to 5V if

LDOREFIN is tied to GND. Connect BYP to 3.3V if LDOREFIN is tied to VCC.

OUT1 SMPS1 Output Voltage-Sense Input. Connect to the SMPS1 output. OUT1 is an input to the Constant on-time-PWM

on-time one-shot circuit. It also serves as the SMPS1 feedback input in fixed-voltage mode.

FB1 SMPS1 Feedback Input. Connect FB1 to GND for fixed 5V operation. Connect FB1 to VCC for fixed 1.5V operation

Connect FB1 to a resistive voltage-divider from OUT1 to GND to adjust the output from 0.7V to 5.5V.

ILIM1 SMPS1 Current-Limit Adjustment. The GND-PHASE1 current-limit threshold is 1/10th the voltage seen at ILIM1 over a

0.2V to 2V range. There is an internal 5µA current source from VCC to ILIM1. Connect ILIM1 to REF for a fixed 200mV threshold. The logic current limit threshold is default to 100mV value if ILIM1 is higher than VCC - 1V.

POK1 SMPS1 Power-Good Open-Drain Output. POK1 is low when the SMPS1 output voltage is more than 10% below the

normal regulation point or during soft-start. POK1 is high impedance when the output is in regulation and the soft-start circuit has terminated. POK1 is low in shutdown.

EN1 SMPS1 Enable Input. The SMPS1 is enabled if EN1 is greater than the logic high level and disabled if EN1 is less than

the logic low level. If EN1 is connected to REF, the SMPS1 starts after the SMPS2 reaches regulation (delay start). Drive EN1 below 0.8V to clear fault level and reset the fault latches.

UGATE1 High-Side MOSFET Floating Gate-Driver Output for SMPS1. UGATE1 swings between PHASE1 and BOOT1.

PHASE1 Inductor Connection for SMPS1. PHASE1 is the internal lower supply rail for the UGATE1 high-side gate driver.

PHASE1 is the current-sense input for the SMPS1.

BOOT1 Boost Flying Capacitor Connection for SMPS1. Connect to an external capacitor according to the typical application

circuits (Figures 66, 67 and 68). See “MOSFET Gate Drivers (UGATE, LGATE)” on page 27.

LGATE1 SMPS1 Synchronous-Rectifier Gate-Drive Output. LGATE1 swings between GND and PVCC.

PVCC PVCC is the supply voltage for the low-side MOSFET driver LGATE. Connect a 5V power source to the PVCC pin and

bypass with a 1µF MLCC ceramic capacitor. Refer to Figure 69 - A switch connects PVCC to VCC with 10Ω when in normal operation and is disconnected when in shutdown mode. An external 10Ω resistor from PVCC to VCC is prohibited as it will create a leakage path from VIN to GND in shutdown mode.

SECFB The SECFB is used to monitor the optional external 14V charge pump. Connect a resistive voltage-divider from 14V

charge pump output to GND to detect the output. If SECFB drops below the threshold voltage, LGATE1 turns on for 300ns. This will refresh the external charge pump driven by LGATE1 without over-discharging the output voltage.

FN6373.6

April 29, 2010

Page 8

ISL6236

Pin Descriptions (Continued)

NUMBER NAME FUNCTION

GND Analog Ground for both SMPS and LDO. Connect externally to the underside of the exposed pad.

PGND Power Ground for SMPS controller. Connect PGND externally to the underside of the exposed pad.

LGATE2 SMPS2 Synchronous-Rectifier Gate-Drive Output. LGATE2 swings between GND and PVCC.

BOOT2 Boost Flying Capacitor Connection for SMPS2. Connect to an external capacitor according to the typical application

circuits (Figures 66, 67 and 68). See “MOSFET Gate Drivers (UGATE, LGATE)” on page 27.

PHASE2 Inductor Connection for SMPS2. PHASE2 is the internal lower supply rail for the UGATE2 high-side gate driver.

PHASE2 is the current-sense input for the SMPS2.

UGATE2 High-Side MOSFET Floating Gate-Driver Output for SMPS2. UGATE1 swings between PHASE2 and BOOT2.

EN2 SMPS2 Enable Input. The SMPS2 is enabled if EN2 is greater than the logic high level and disabled if EN2 is less than

the logic low level. If EN2 is connected to REF, the SMPS2 starts after the SMPS1 reaches regulation (delay start). Drive EN2 below 0.8V to clear fault level and reset the fault latches.

POK2 SMP2 Power-Good Open-Drain Output. POK2 is low when the SMPS2 output voltage is more than 10% below the

normal regulation point or during soft-start. POK2 is high impedance when the output is in regulation and the soft-start circuit has terminated. POK2 is low in shutdown.

SKIP

Low-Noise Mode Control. Connect SKIP to GND for normal Idle-Mode (pulse-skipping) operation or to VCC for PWM mode (fixed frequency). Connect to REF or leave floating for ultrasonic skip mode operation.

OUT2 SMPS2 Output Voltage-Sense Input. Connect to the SMPS2 output. OUT2 is an input to the Constant on-time-PWM

on-time one-shot circuit. It also serves as the SMPS2 feedback input in fixed-voltage mode.

ILIM2 SMPS2 Current-Limit Adjustment. The GND-PHASE1 current-limit threshold is 1/10th the voltage seen at ILIM2 over a

0.2V to 2V range. There is an internal 5µA current source from VCC to ILIM2. Connect ILIM2 to REF for a fixed 200mV. The logic current limit threshold is default to 100mV value if ILIM2 is higher than VCC - 1V.

REFIN2 Output voltage control for SMPS2. Connect REFIN2 to VCC for fixed 3.3V. Connect REFIN2 to VREF3 for fixed 1.05V.

REFIN2 can be used to program SMPS2 output voltage from 0.5V to 2.50V. SMPS2 output voltage is 0V if REFIN2 <0.5V.

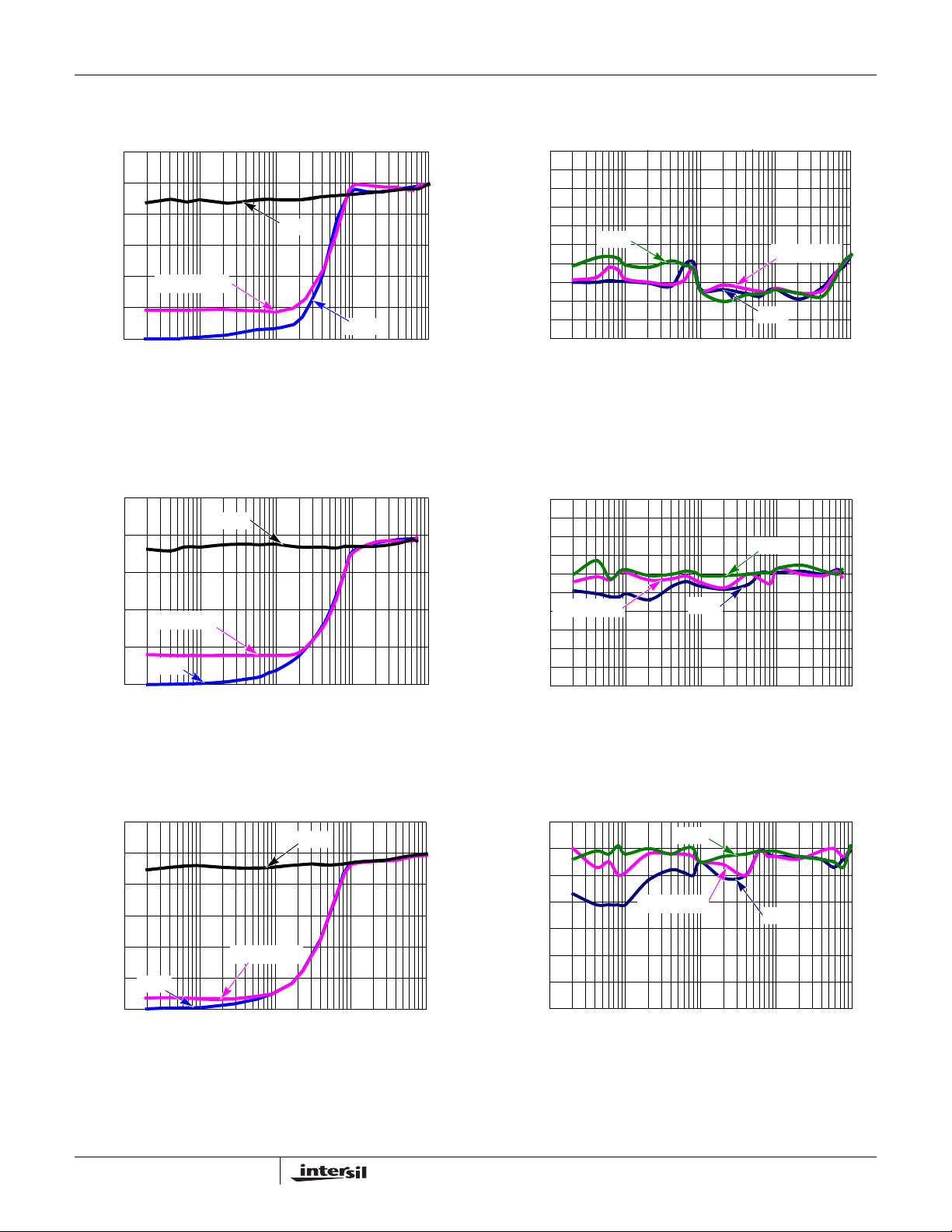

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

100

90 80 70 60 50 40

EFFICIENCY (%)

30 20 10

0.001 0.010 0.100

FIGURE 1. V

OUTPUT LOAD (A)

= 1.05V EFFICIENCY vs LOAD (300kHz) FIGURE 2. V

OUT2

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

1.000

10.000

= 5V, PVCC = 5V, V

BYP

100

90 80 70 60 50 40 30

EFFICIENCY (%)

20 10

EN LDO

= +25°C.

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

0.001

0.010 0.100 1.000 10.00

OUT1

=5V, TA= -40°C to +100°C, unless

OUTPUT LOAD (A)

= 1.5V EFFICIENCY vs LOAD (200kHz)

, and REF, VIN= 12V,

REF3

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE 25V

ULTRA SKIP MODE

FN6373.6

April 29, 2010

Page 9

ISL6236

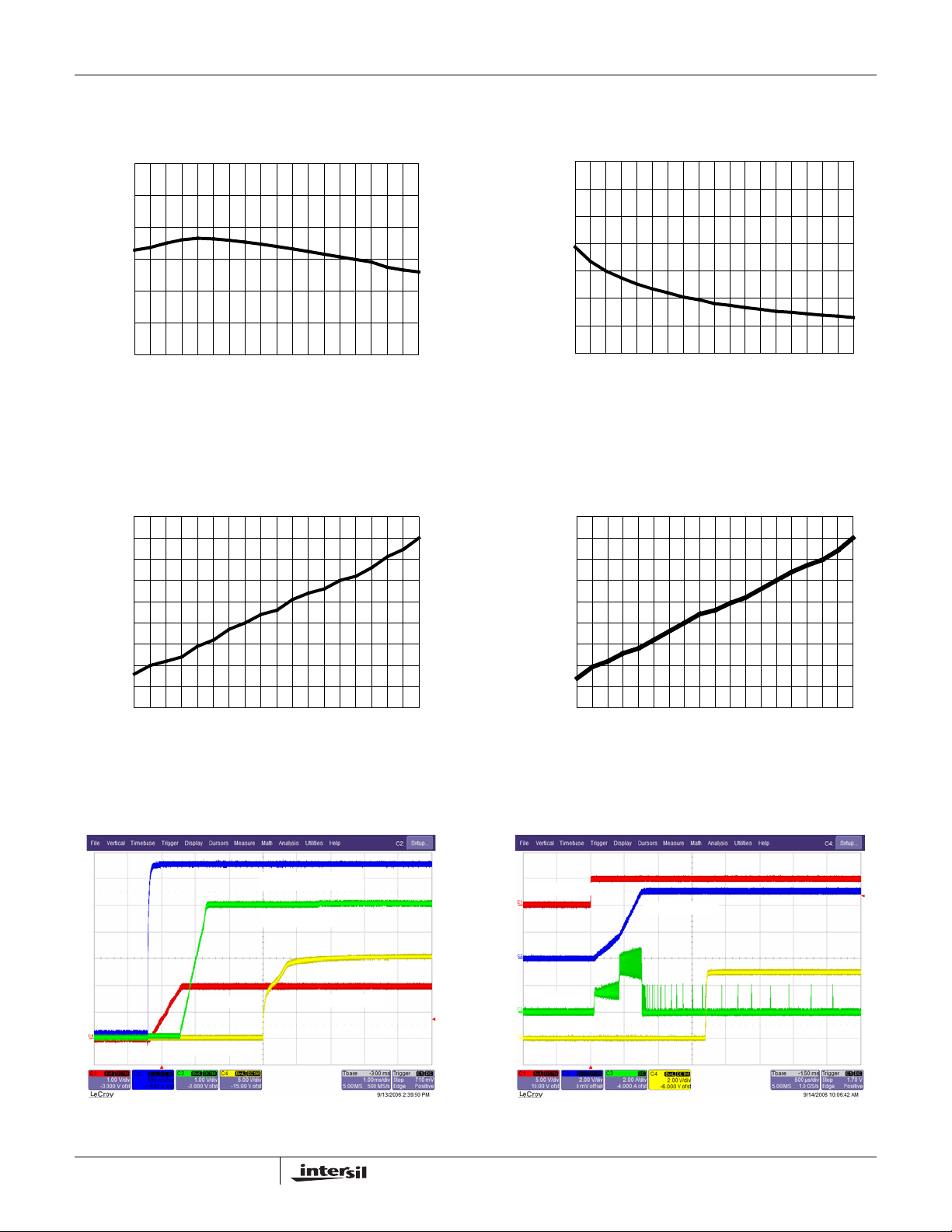

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE 12V

PWM MODE

100

90 80 70 60 50 40 30

EFFICIENCY (%)

20 10

0.001 0.010 0.100 1.000 10.000

FIGURE 3. V

1.070

1.068

1.066

1.064

1.062

1.060

1.058

1.056

OUTPUT VOLTAGE (V)

1.054

1.052

1.050

FIGURE 5. V

OUTPUT LOAD (A)

= 3.3V EFFICIENCY vs LOAD (500kHz) FIGURE 4. V

OUT2

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

0.001 0.010 0.100 1.000 10.000 OUTPUT LOAD (A)

= 1.05V REGULATION vs LOAD (300kHz) FIGURE 6. V

OUT2

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

= 5V, PVCC = 5V, V

BYP

100

90 80 70 60 50 40 30

EFFICIENCY (%)

20 10

1.540

1.535

1.530

1.525

1.520

1.515

1.510

OUTPUT VOLTAGE (V)

1.505

1.500

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

0.001 0.010 0.100 1.000 10.000 OUTPUT LOAD (A)

= 5V EFFICIENCY vs LOAD (400kHz)

OUT1

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

0.001 0.010 0.100 1.000 OUTPUT LOAD (A)

= 1.5V REGULATION vs LOAD (200kHz)

OUT1

, and REF, VIN= 12V,

REF3

ULTRA SKIP MODE

12V

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

10.000

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE 12V

PWM MODE

3.38

3.37

3.36

3.35

3.34

3.33

OUTPUT VOLTAGE (V)

3.32

3.31

FIGURE 7. V

0.001 0.010 0.100 1.000 10.000

OUT2

OUTPUT LOAD (A)

= 3.3V REGULATION vs LOAD (500kHz) FIGURE 8. V

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE 12V

PWM MODE

5.16

5.14

5.12

5.10

5.08

5.06

5.04

OUTPUT VOLTAGE (V)

5.02

5.00

0.001 0.010 0.100 1.000 10.000

OUT1

OUTPUT LOAD (A)

= 5V REGULATION vs LOAD (400kHz)

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

FN6373.6

April 29, 2010

Page 10

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE 12V

PWM MODE

2.5

2.0

1.5

1.0

0.5

POWER DISSIPATION (W)

0.0

FIGURE 9. V

0.001 0.010 0.100 1.000 10.000 OUTPUT LOAD (A)

= 1.05V POWER DISSIPATION vs LOAD

OUT2

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE 25V

ULTRA SKIP MODE

(300kHz)

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

3.5

3.0

2.5

2.0

1.5

1.0

POWER DISSIPATION (W)

0.5

0.0

FIGURE 11. V

0.001 0.010 0.100 1.000 10.000

OUT2

(500kHz)

OUTPUT LOAD (A)

= 3.3V POWER DISSIPATION vs LOAD

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE 25V

ULTRA SKIP MODE

= 5V, PVCC = 5V, V

BYP

2.5

2.0

1.5

1.0

0.5

POWER DISSIPATION (W)

0.0

FIGURE 10. V

3.5

3.0

2.5

2.0

1.5

1.0

POWER DISSIPATION (W)

0.5

0.0

FIGURE 12. V

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE 12V

PWM MODE

0.001 0.010 0.100 1.000 10.000

OUT1

OUTPUT LOAD (A)

= 1.5V POWER DISSIPATION vs LOAD

(200kHz)

7VIN SKIP MODE 7VIN PWM MODE 7VIN ULTRA SKIP MODE 12VIN SKIP MODE

PWM MODE

12V

0.001 0.010 0.100 1.000 10.000

OUT1

(400kHz)

OUTPUT LOAD (A)

= 5V POWER DISSIPATION vs LOAD

, and REF, VIN= 12V,

REF3

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE 25V

ULTRA SKIP MODE

12V

ULTRA SKIP MODE

25VIN SKIP MODE 25VIN PWM MODE

ULTRA SKIP MODE

25V

1.064

1.062

1.060

1.058

1.056

1.054

1.052

OUTPUT VOLTAGE (V)

1.050

1.048 5 7 9 1113151719212325

FIGURE 13. V

NO LOAD PWM

MID LOAD PWM

MAX LOAD PWM

INPUT VOLTAGE (V)

= 1.05V OUTPUT VOLTAGE REGULATION

OUT2

vs V

(PWM MODE)

1.068

1.066

1.064

1.062

1.060

1.058

1.056

1.054

OUTPUT VOLTAGE (V)

1.052

1.050

1.048 5 7 9 1113151719212325

FIGURE 14. V

MAX LOAD PWM

= 1.05V OUTPUT VOLTAGE REGULATION

OUT2

vs V

(SKIP MODE)

NO LOAD PWM

MID LOAD PWM

INPUT VOLTAGE (V)

FN6373.6

April 29, 2010

Page 11

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

1.518

1.516

1.514

1.512

1.510

1.508

OUTPUT VOLTAGE (V)

1.506

1.504 5 7 9 1113151719212325

FIGURE 15. V

3.340

3.335

3.330

3.325

3.320

OUTPUT VOLTAGE (V)

3.315

3.310 7 9 11 13 15 17 19 21 23 25

FIGURE 17. V

NO LOAD PWM

MID LOAD PWM

MAX LOAD PWM

INPUT VOLTAGE (V)

= 1.5V OUTPUT VOLTAGE REGULATION

OUT1

vs V

(PWM MODE)

NO LOAD PWM

MID LOAD PWM

MAX LOAD PWM

INPUT VOLTAGE (V)

= 3.3V OUTPUT VOLTAGE REGULATION

OUT2

vs V

(PWM MODE)

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

= 5V, PVCC = 5V, V

BYP

1.530

1.525

1.520

1.515

1.510

OUTPUT VOLTAGE (V)

1.505

1.500

FIGURE 16. V

OUTPUT VOLTAGE (V)

FIGURE 18. V

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

MID LOAD PWM

5 7 9 11 13 15 17 19 21 23 25

OUT1

vs V

3.38

3.37

3.36

3.35

3.34

3.33

3.32

3.31

3.30 7 9 11 13 15 17 19 21 23 25

OUT2

vs V

INPUT VOLTAGE (V)

= 1.5V OUTPUT VOLTAGE REGULATION

(SKIP MODE)

MAX LOAD PWM

INPUT VOLTAGE (V)

= 3.3V OUTPUT VOLTAGE REGULATION (SKIP MODE)

, and REF, VIN= 12V,

REF3

NO LOAD PWM

MAX LOAD PWM

NO LOAD PWM

MID LOAD PWM

5.065

5.060

5.055

5.050

OUTPUT VOLTAGE (V)

5.045

5.040 7 9 11 13 15 17 19 21 23 25

FIGURE 19. V

NO LOAD PWM

MAX LOAD PWM

MID LOAD PWM

INPUT VOLTAGE (V)

= 5V OUTPUT VOLTAGE REGULATION vs

OUT1

(PWM MODE)

5.14

5.12

5.10

5.08

5.06

OUTPUT VOLTAGE (V)

5.04

5.02 7 9 11 13 15 17 19 21 23 25

FIGURE 20. V

NO LOAD PWM

MID LOAD PWM

MAX LOAD PWM

INPUT VOLTAGE (V)

= 5V OUTPUT VOLTAGE REGULATION vs

OUT1

(SKIP MODE)

FN6373.6

April 29, 2010

Page 12

300

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

250

200

150

100

FREQUENCY (kHz)

250

200

150

100

FREQUENCY (kHz)

ULTRA-SKIP

0.001 0.010 0.100 1.000 10.00 OUTPUT LOAD (A)

FIGURE 21. V

ULTRA-SKIP

SKIP

0.001 0.010 0.100 1.000 10.000

FIGURE 23. V

= 1.05V FREQUENCY vs LOAD FIGURE 22. V

OUT2

PWM

OUTPUT LOAD (A)

= 1.5V FREQUENCY vs LOAD FIGURE 24. V

OUT1

PWM

SKIP

= 5V, PVCC = 5V, V

BYP

45 40 35 30 25 20

RIPPLE (mV)

15 10

50 45 40 35 30 25 20

RIPPLE (mV)

15 10

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

PWM

5 0

0.001 0.010 0.100 1.000 10.000

ULTRA-SKIP

5 0

0.001 0.010 0.100 1.000 10.000

OUTPUT LOAD (A)

= 1.05V RIPPLE vs LOAD

OUT2

SKIP

OUTPUT LOAD (A)

= 1.5V RIPPLE vs LOAD

OUT1

, and REF, VIN= 12V,

REF3

ULTRA-SKIP

SKIP

PWM

600

500

400

300

200

FREQUENCY (kHz)

100

SKIP

0.001 0.010 0.100 1.000 10.000

FIGURE 25. V

ULTRA-SKIP

OUTPUT LOAD (A)

= 3.3V FREQUENCY vs LOAD FIGURE 26. V

OUT2

PWM

RIPPLE (mV)

0.001 0.010 0.100 1.000 10.000

PWM

ULTRA-SKIP

OUTPUT LOAD (A)

= 3.3V RIPPLE vs LOAD

OUT2

SKIP

April 29, 2010

FN6373.6

Page 13

ISL6236

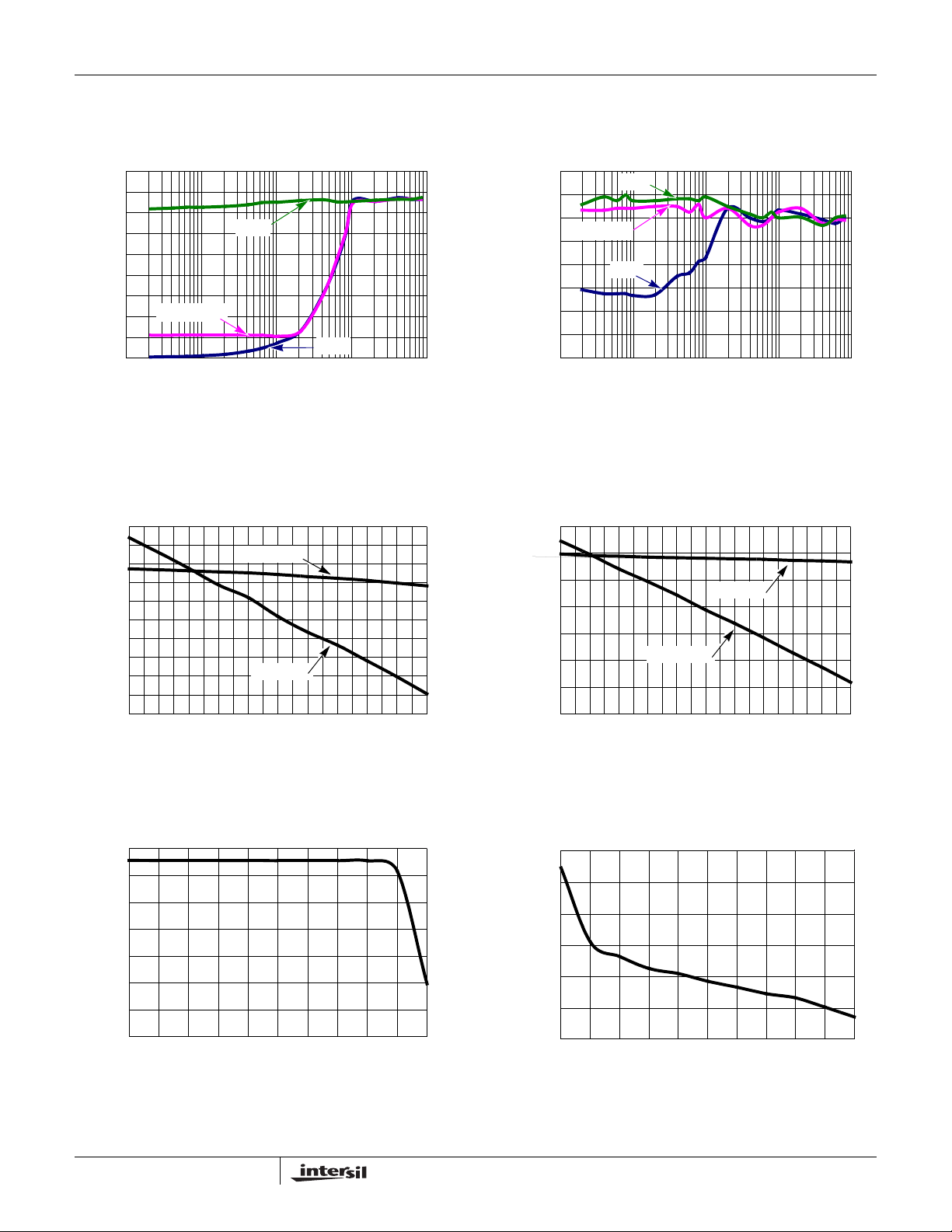

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

450

400

350

300

250

200

150

FREQUENCY (kHz)

100

ULTRA-SKIP

0.001 1.000

FIGURE 27. V

5.04

5.02

5.00

4.98

4.96

4.94

4.92

4.90

4.88

OUTPUT VOLTAGE (V)

4.86

4.84 0 50 100 150 200

PWM

SKIP

OUTPUT LOAD (A)

= 5V FREQUENCY vs LOAD FIGURE 28. V

OUT1

BYP = 0V

BYP = 5V

OUTPUT LOAD (mA)

FIGURE 29. LDO OUTPUT 5V vs LOAD FIGURE 30. LDO OUTPUT 3.3V vs LOAD

10.000

= 5V, PVCC = 5V, V

BYP

RIPPLE (mV)

3.35

3.30

3.25

3.20

3.15

3.10

OUTPUT VOLTAGE (V)

3.05

3.00

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

ULTRA-SKIP

0.001 0.010 0.100 1.000 10.000

0 50 100 150 200

PWM

SKIP

OUTPUT LOAD (A)

OUT1

BYP = 3.3V

OUTPUT LOAD (mA)

= 5V RIPPLE vs LOAD

, and REF, VIN= 12V,

REF3

BYP = 0V

3.5

3.0

2.5

2.0

1.5

1.0

OUTPUT VOLTAGE (V)

0.5

0610

24 8

OUTPUT LOAD (mA)

FIGURE 31. V

vs LOAD FIGURE 32. CHARGE PUMP vs LOAD (PWM)

REF3

OUTPUT VOLTAGE (V)

15.5

15.0

14.5

14.0

13.5

13.0

12.5 010

2458

OUTPUT LOAD (mA)

FN6373.6

April 29, 2010

Page 14

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

INPUT CURRENT (mA)

7 9 11 13 15 17 19 21 23 25

IN PUT VOLTA GE ( V)

FIGURE 33. PWM NO LOAD INPUT CURRENT vs VIN

(EN = EN2 = EN LDO = VCC)

177.5

177.0

176.5

176.0

175.5

175.0

174.5

174.0

INPUT CURRENT (µA)

173.5

173.0 7 9 11 13 15 17 19 21 23 25

FIGURE 35. STANDBY INPUT CURRENT vs V

INPUT VOLTAGE (V)

(EN = EN2 = 0, EN LDO = VCC)

= 5V, PVCC = 5V, V

BYP

INPUT CURRENT (µA)

FIGURE 34. SKIP NO LOAD INPUT CURRENT vs VIN

FIGURE 36. SHUTDOWN INPUT CURRENT vs V

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

1400

1200

1000

800

600

400

200

0.0 7 9 11 13 15 17 19 21 23 25

IN PUT VOLTA GE ( V)

(EN1 = EN2 = EN LDO = VCC)

26.5

26.0

25.5

25.0

24.5

24.0

23.5

23.0

INPUT CURRENT (µA)

22.5

22.0

7 9 11 13 15 17 19 21 23 25

INPUT VOLTAGE (V)

(EN = EN2 = EN LDO = 0)

, and REF, VIN= 12V,

REF3

500mV/DIV

REF3

LDO 1V/DIV

CP 5V/DIV

REF 1V/DIV

EN1 5V/DIV

IL1 2A/DIV

POK1 2V/DIV

FIGURE 37. REF, VREF3, LDO = 5V, CP, NO LOAD FIGURE 38. START-UP V

2V/DIV

OUT1

= 5V (NO LOAD, SKIP MODE)

OUT1

FN6373.6

April 29, 2010

Page 15

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN1 5V/DIV

IL1 2A/DIV

POK1 2V/DIV

FIGURE 39. START-UP V

EN2 5V/DIV

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

2V/DIV

OUT1

= 5V (NO LOAD, PWM MODE) FIGURE 40. START-UP V

OUT1

= 5V, PVCC = 5V, V

BYP

IL1 5A/DIV

POK1 2V/DIV

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

EN1 5V/DIV

OUT1

EN2 5V/DIV

= 5V (FULL LOAD, PWM MODE)

, and REF, VIN= 12V,

REF3

2V/DIV

OUT1

OUT2

IL2 2A/DIV

FIGURE 41. START-UP V

EN2 5V/DIV

2V/DIV

OUT2

IL2 5A/DIV

POK2 2V/DIV

2V/DIV

POK2 2V/DIV

= 3.3V (NO LOAD, SKIP MODE) FIGURE 42. START-UP V

OUT2

EN2 5V/DIV

2V/DIV

OUT2

2V/DIV

OUT1

POK2 5V/DIV

POK1 5V/DIV

2V/DIV

OUT2

IL2 2A/DIV

OUT1

POK2 2V/DIV

= 3.3V (NO LOAD, PWM MODE)

FIGURE 43. START-UP V

PWM MODE)

= 3.3V (FULL LOAD,

OUT1

FIGURE 44. DELAYED START-UP (V

EN1 = REF)

OUT1

=5V, V

OUT2

April 29, 2010

=3.3V,

FN6373.6

Page 16

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN1 5V/DIV

POK1 5V/DIV

POK2 5V/DIV

OUT2

2V/DIV

FIGURE 45. DELAYED START-UP (V

EN2 = REF)

LGATE1 5V/DIV

VOUT1 2V/DIV

=5V, V

OUT1

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

=3.3V,

OUT2

= 5V, PVCC = 5V, V

BYP

OUT2

POK1 OR POK2 5V/DIV

FIGURE 46. SHUTDOWN (V

EN LDO

= +25°C. (Continued)

EN1 5V/DIV

2V/DIV

OUT1

EN2 = REF)

LGATE1 5V/DIV

=5V, TA= -40°C to +100°C, unless

OUT1

, and REF, VIN= 12V,

REF3

=5V, V

OUT2

=3.3V,

RIPPLE 50mV/DIV

OUT1

IL1 5A/DIV

RIPPLE 50mV/DIV

OUT2

FIGURE 47. LOAD TRANSIENT V

LGATE1 5V/DIV

RIPPLE 20mV/DIV

OUT1

IL2 5A/DIV

RIPPLE 100mV/DIV

OUT1

IL1 5A/DIV

RIPPLE 50mV/DIV

OUT2

= 5V FIGURE 48. LOAD TRANSIENT V

OUT1

LGATE2 5V/DIV

IL2 5A/DIV

RIPPLE 50mV/DIV

OUT2

OUT1

RIPPLE 20mV/DIV

OUT1

= 5V (SKIP)

RIPPLE 50mV/DIV

OUT2

FIGURE 49. LOAD TRANSIENT V

= 3.3V (PWM) FIGURE 50. LOAD TRANSIENT V

OUT1

= 3.3V (SKIP)

OUT1

FN6373.6

April 29, 2010

Page 17

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

0.5V/DIV

OUT2

REFIN2 0.5V/DIV

LDO RIPPLE 50mV/DIV

FIGURE 51. V

EN1 5V/DIV

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

RIPPLE 20mV/DIV

OUT

TRACKING TO REFIN2 FIGURE 52. LDO TRACKING TO LDOREFIN

OUT2

= 5V, PVCC = 5V, V

BYP

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

RIPPLE 20mV/DIV

OUT

LDO 1V/DIV

LDOREFIN 0.5V/DIV

RIPPLE 50mV/DIV

OUT2

EN1 5V/DIV

, and REF, VIN= 12V,

REF3

0.5V/DIV

OUT1

POK1 2V/DIV

FIGURE 53. START-UP V

EN1 5V/DIV

IL1 5A/DIV

IL1 2A/DIV

POK1 2V/DIV

= 1.5V (NO LOAD, SKIP MODE) FIGURE 54. START-UP V

OUT1

0.5V/DIV

OUT1

IL1 2A/DIV

EN2 5V/DIV

OUT2

IL2 2A/DIV

0.5V/DIV

OUT1

0.5V/DIV

= 1.5V (NO LOAD, PWM MODE)

POK1 2V/DIV

FIGURE 55. START-UP V

PWM MODE)

= 1.5V (FULL LOAD,

OUT1

POK2 2V/DIV

FIGURE 56. START-UP V

SKIP MODE)

= 1.05V (NO LOAD,

OUT2

FN6373.6

April 29, 2010

Page 18

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

EN2 5V/DIV

0.5V/DIV

OUT2

IL2 2A/DIV

POK2 2V/DIV

FIGURE 57. START-UP V

PWM MODE)

EN2 5V/DIV

0.5V/DIV

OUT2

= 1.05V (NO LOAD,

OUT1

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

= 5V, PVCC = 5V, V

BYP

POK2 2V/DIV

FIGURE 58. START-UP V

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

EN2 5V/DIV

IL2 2A/DIV

OUT1

PWM MODE)

2V/DIV

OUT1

EN1 500mV/DIV

= 1.05V (FULL LOAD,

, and REF, VIN= 12V,

REF3

0.5V/DIV

OUT2

2V/DIV

OUT1

POK2 5V/DIV

POK1 5V/DIV

FIGURE 59. DELAYED START-UP (V

= 1.05V, EN1 = REF)

OUT2

EN1 5V/DIV

2V/DIV

OUT2

2V/DIV

OUT1

POK1 OR POK2 5V/DIV

OUT1

=1.5V,

500mV/DIV

OUT2

POK1 5V/DIV

POK2 5V/DIV

FIGURE 60. DELAYED START-UP (V

= 1.05V, EN2 = REF)

OUT2

LGATE1 5V/DIV

RIPPLE 50mV/DIV

OUT1

IL1 5A/DIV

RIPPLE 20mV/DIV

OUT2

OUT1

=1.5V,

FIGURE 61. SHUTDOWN (V

EN2 = REF)

OUT1

=1.5V, V

OUT2

= 1.05V,

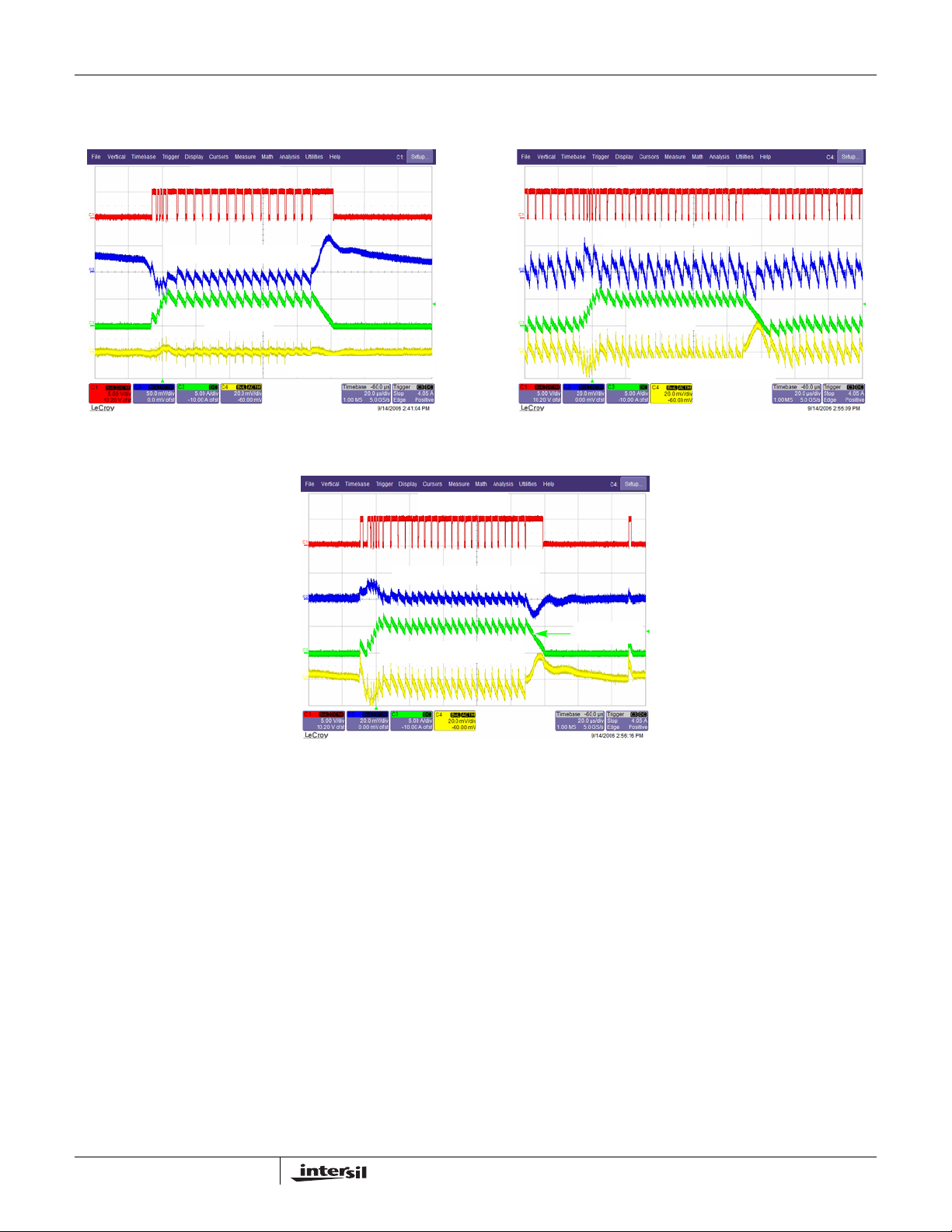

FIGURE 62. LOAD TRANSIENT V

=1.5V (PWM)

OUT1

FN6373.6

April 29, 2010

Page 19

ISL6236

Typical Performance Curves Circuit of Figures 66, 67 and 68, no load on LDO, OUT1, OUT2, V

LGATE1 5V/DIV

RIPPLE 50mV/DIV

OUT1

IL1 5A/DIV

FIGURE 63. LOAD TRANSIENT V

EN2 = EN1 = VCC, V otherwise noted. Typical values are at T

RIPPLE 20mV/DIV

OUT2

= 1.5V (SKIP) FIGURE 64. LOAD TRANSIENT V

OUT1

LGATE2 5V/DIV

= 5V, PVCC = 5V, V

BYP

=5V, TA= -40°C to +100°C, unless

EN LDO

= +25°C. (Continued)

LGATE2 5V/DIV

RIPPLE 20mV/DIV

OUT1

IL1 5A/DIV

OUT2

RIPPLE 20mV/DIV

, and REF, VIN= 12V,

REF3

= 1.05V (PWM)

OUT1

RIPPLE 20mV/DIV

OUT1

RIPPLE 20mV/DIV

OUT2

FIGURE 65. LOAD TRANSIENT V

Typical Application Circuits

The typical application circuits (Figures 66, 67 and 68) generate the 5V/7A, 3.3V/11A, 1.25V/5A, dynamic voltage/10A,

1.5V/5A, 1.05V/5A and external 14V charge pump main supplies in a notebook computer. The ISL6236 is also equipped with a secondary feedback, SECFB, used to monitor the output of the 14V charge pump. In an event when the 14V drops below its threshold voltage, SECFB comparator will turn on LGATE1 for 300ns. This will refresh an external 14V charge pump without overcharging the output voltage. The input supply range is 5.5V to 25V.

Detailed Description

The ISL6236 dual-buck, BiCMOS, switch-mode power-supply controller generates logic supply voltages for notebook computers. The ISL6236 is designed primarily for battery-powered applications where high efficiency and low-quiescent supply current are critical. The ISL6236

IL2 5A/DIV

= 1.05V (SKIP)

OUT1

provides a pin-selectable switching frequency, allowing operation for 200kHz/300kHz, 400kHz/300kHz, or 400kHz/500kHz on the SMPSs.

Light-load efficiency is enhanced by automatic Idle-Mode operation, a variable-frequency pulse-skipping mode that reduces transition and gate-charge losses. Each step-down, power-switching circuit consists of 2 N-channel MOSFETs, a rectifier, and an LC output filter. The output voltage is the average AC voltage at the switching node, which is regulated by changing the duty cycle of the MOSFET switches. The gate-drive signal to the N-channel high-side MOSFET must exceed the battery voltage, and is provided by a flying-capacitor boost circuit that uses a 100nF capacitor connected to BOOT.

Both SMPS1 and SMPS2 PWM controllers consist of a triple-mode feedback network and multiplexer, a multi-input PWM comparator, high-side and low-side gate drivers and

FN6373.6

April 29, 2010

Page 20

ISL6236

logic. In addition, SMPS2 can also use REFIN2 to track its output from 0.5V to 2.50V. The ISL6236 contains fault-protection circuits that monitor the main PWM outputs for undervoltage and overvoltage conditions. A power-on sequence block controls the power-up timing of the main PWMs and monitors the outputs for undervoltage faults. The ISL6236 includes an adjustable low drop-out linear regulator. The bias generator blocks include the linear regulator, 3.3V precision reference, 2V precision reference and automatic bootstrap switchover circuit.

The synchronous-switch gate drivers are directly powered from PVCC, while the high-side switch gate drivers are indirectly powered from PVCC through an external capacitor and an internal Schottky diode boost circuit.

An automatic bootstrap circuit turns off the LDO linear regulator and powers the device from BYP if LDOREFIN is set to GND or VCC. See Table 1.

TAB L E 1. LDO OUT P UT VOLTAGE TA B LE

LDO VOLTAGE CONDITIONS COMMENT

VOLTAGE at BYP LDOREFIN < 0.3V,

BYP > 4.63V

VOLTAGE at BYP LDOREFIN > VCC - 1V,

BYP > 3V

5V LDOREFIN < 0.3V,

BYP < 4.63V

3.3V LDOREFIN > VCC - 1V, BYP < 3V

2 x LDOREFIN 0.35V < LDOREFIN < 2.25V Internal LDO is

Internal LDO is disabled.

Internal LDO is active.

active.

FREE-RUNNING, CONSTANT ON-TIME PWM CONTROLLER WITH INPUT FEED-FORWARD

The constant on-time PWM control architecture is a pseudo-fixed-frequency, constant ON-time, current-mode type with voltage feed-forward. The constant ON-time PWM control architecture relies on the output ripple voltage to provide the PWM ramp signal; thus the output filter capacitor's ESR acts as a current-feedback resistor. The high-side switch ON-time is determined by a one-shot whose period is inversely proportional to input voltage and directly proportional to output voltage. Another one-shot sets a minimum OFF-time (300ns typ). The ON-time one-shot triggers when the following conditions are met: the error comparator's output is high, the synchronous rectifier current is below the current-limit threshold, and the minimum off time one-shot has timed out. The controller utilize the valley point of the output ripple to regulate and determine the OFF-time.

ON-TIME ONE-SHOT (t

)

Each PWM core includes a one-shot that sets the high-side switch ON-time for each controller. Each fast, low-jitter, adjustable one-shot includes circuitry that varies the

ON-time in response to battery and output voltage. The high-side switch ON-time is inversely proportional to the battery voltage as measured by the VIN input and proportional to the output voltage. This algorithm results in a nearly constant switching frequency despite the lack of a fixed-frequency clock generator. The benefit of a constant switching frequency is that the frequency can be selected to avoid noise-sensitive frequency regions:

OUTILOADrDS ON()LOWERQ()

----------------------------------------------------------------------------------------------------------

⋅+()

(EQ. 1)

See Table 2 for approximate K- factors. Switching frequency increases as a function of load current due to the increasing drop across the synchronous rectifier, which causes a faster inductor-current discharge ramp. ON-times translate only roughly to switching frequencies. The ON-times established in the “Electrical Specifications” table starting on page 3 are influenced by switching delays in the external high-side power MOSFET. Also, the dead-time effect increases the effective ON-time, reducing the switching frequency. It occurs only in PWM mode (SKIP

= VCC) and during dynamic output voltage transitions when the inductor current reverses at light or negative load currents. With reversed inductor current, the inductor's EMF causes PHASE to go high earlier than normal, extending the ON-time by a period equal to the UGATE-rising dead time.

TABLE 2. APPROXIMATE K-FACTOR ERRORS

APPROXIMATE

K-FACTOR

ERROR (%)

SMPS

= GND, REF,

or OPEN), V

= GND),

OUT2

= VCC),

OUT1

= VCC, REF,

or OPEN), V

OUT1

OUT2

SWITCHING

FREQUENCY

(kHz)

400 2.5 ±10

500 2.0 ±10

200 5.0 ±10

300 3.3 ±10

K-FACTOR

(µs)

For loads above the critical conduction point, the actual switching frequency is:

OUTVDROP1

-------------------------------------------------------

ONVINVDROP2

+()

(EQ. 2)

where:

•V

is the sum of the parasitic voltage drops in the

DROP1

inductor discharge path, including synchronous rectifier, inductor, and PC board resistances

•V

DROP2

is the sum of the parasitic voltage drops in the charging path, including high-side switch, inductor, and PC board resistances

is the ON-time calculated by the ISL6236

•t

FN6373.6

April 29, 2010

Page 21

OUT1 – PCI-e

1.25V/5A

C11

330µF

9mΩ

6.3V

VIN: 5.5V TO 25V

C10 10µF

SI4816BDY

L1: 3.3µH

7.87kΩ

10kΩ

Q3a

Q3b

FB1 TIED TO GND = 5V FB1 TIED TO VCC = 1.5V

GND

0.1µF

VCC

1µF

R3 200kΩ

PVCC

VIN

BOOT1

UGATE1

PHASE1

LGATE1

OUT1

EN1

BYP

FB1

AGND

ILIM1

SKIP

EN LDO

ISL6236

1µF

VCC

LDOREFIN

ISL6236

LDO

BOOT2

UGATE2

PHASE2

LGATE2

PGND

OUT2

EN2

REFIN2

ILIM2

VREF3

REF

GND

C1 10

10µF

0.22µF

VCC

REFIN2: DYNAMIC 0 TO 2.5V REFIN2 TIED TO VREF3 = 1.05V REFIN2 TIED TO VCC = 3.3V

200kΩ

OPEN

0.1µF

IRF7821

L2: 2.2µH

Q2 IRF7832

2 BITS

VCC

OUT2-GFX

TRACK REFIN2/10A

C2 2 x 330µF 4mΩ

6.3V

DAC

R4 200kΩ 200kΩ

DROOP

+-+-+

VCC

SECFB

TON

POK1

POK2

PAD

FREQUENCY-DEPENDENT COMPONENTS

1.25V/1.05V SMPS

=VCC

SWITCHING

FREQUENCY

200kHz/300kHz

L1 3.3µH

L2 2.7µH

C2 2 x 330µF

C11 330µF

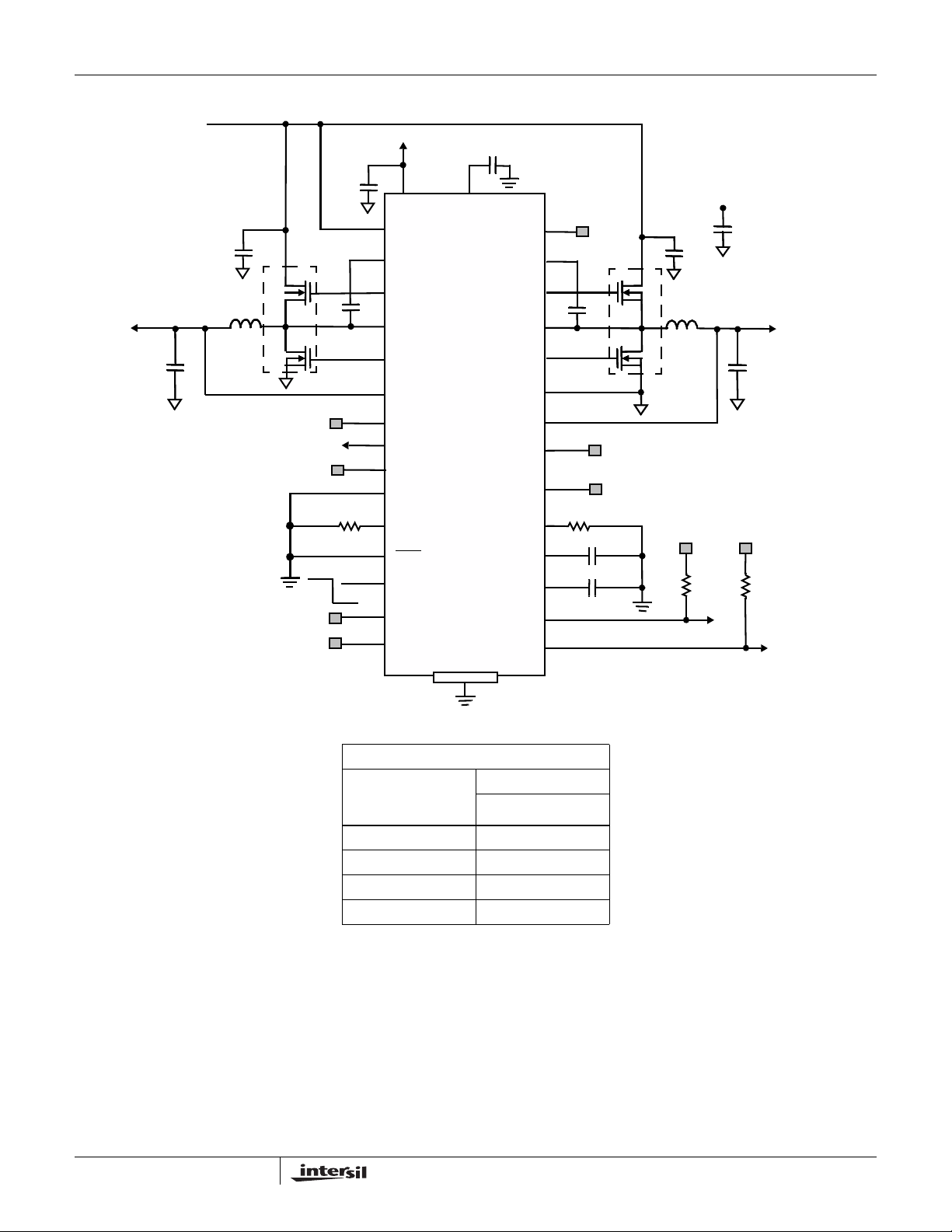

FIGURE 66. ISL6236 TYPICAL DYNAMIC GFX APPLICATION CIRCUIT

FN6373.6

April 29, 2010

Page 22

C11

330µF

9mΩ

6.3V

VIN: 5.5V TO 25V

C10 10µF

OUT1

1.5V/5A

L1: 3.3µH

FB1 TIED TO GND = 5V FB1 TIED TO VCC = 1.5V

Q3a

Q3b

SI4816BDY

0.1µF

3.3V

VCC

OFFONOFFOFF

1µF

R3 200kΩ

PVCC

VIN

BOOT1

UGATE1

PHASE1

LGATE1

OUT1

EN1

BYP

FB1

AGND

ILIM1

SKIP

EN LDO

SECFB

TON

ISL6236

1µF

VCC

LDOREFIN

BOOT2

UGATE2

PHASE2

LGATE2

ISL6236

REFIN2

VREF3

PAD

LDO

PGND

OUT2

EN2

ILIM2

REF

POK1

POK2

0.22µF

200kΩ

VCC

VREF3

0.01µF

0.1µF

LDOREFIN TIED TO GND = 5V LDOREFIN TIED TO VCC = 3.3V

Q1a

Q1b

REFIN2: DYNAMIC 0V TO 2.5V REFIN2 TIED TO VREF3 = 1.05V REFIN2 TIED TO VCC = 3.3V

C1 10

µF

L2: 2.2µF

SI4816BDY

VCC

R4 200kΩ

LDO

OUT2

1.05V/5A

4.7µF

VCC

C2 330µF

4mΩ

6.3V

200kΩ

FREQUENCY-DEPENDENT COMPONENTS

1.5V/1.05V SMPS SWITCHING

FREQUENCY

=VCC

200kHz/300kHz

L1 3.3µH

L2 2.7µH

C2 330µF

C11 330µF

FIGURE 67. ISL6236 TYPICAL SYSTEM REGULATOR APPLICATION CIRCUIT WITHOUT CHARGE PUMP

FN6373.6

April 29, 2010

Page 23

OUT1 5V/7A

C11

330µF

9mΩ

6.3V

C12

0.1µF

14V/10mA

C15

0.1µF

D1a D1b

D2a

D2b

C10 10µF

200kΩ

VIN: 5.5V TO 25V

IRF7807V

L1: 4.7µH

IRF7811AV

0.1µF

C14

0.1µF

39.2kΩ

0.1µF

VCC

FB1 TIED TO GND = 5V FB1 TIED TO VCC = 1.5V

200kΩ

OFFONOFFOFF

GND

PVCC

VIN

BOOT1

UGATE1

PHASE1

LGATE1

OUT1

EN1

BYP

FB1

AGND

ILIM1

SKIP

EN LDO

SECFB

TON

ISL6236

1µF

VCC

ISL6236

PAD

LDO

LDOREFIN

BOOT2

UGATE2

PHASE2

LGATE2

PGND

OUT2

EN2

REFIN2

ILIM2

VREF3

REF

POK1

POK2

150kΩ

LDOREFIN TIED TO GND = 5V LDOREFIN TIED TO VCC = 3.3V

C1 10µF

0.1µF

VCC

OPEN

0.1µF

IRF7821

L2: 4.7µH

Q2 IRF7832

REFIN2: DYNAMIC 0 TO 2V REFIN2 TIED TO VREF3 = 1.05V REFIN2 TIED TO VCC = 3.3V

VCC

LDO

R4 200kΩ

4.7µF

OUT2

3.3V/11A

C2 330µF

VCC

R6 200kΩ

9mΩ

FREQUENCY-DEPENDENT COMPONENTS

=REF

5V/3.3V SMPS

SWITCHING

FREQUENCY

=VCC

200kHz/300kHz 400kHz/300kHz 400kHz/500kHz

(OR OPEN) t

=GND

L1 6.8µH 6.8µH 4.7µH

L2 7.6µH 4.7µH 4.7µH

C2 2x470µF 2x330µF 2x330µF

C11 330µF 330µF 330µF

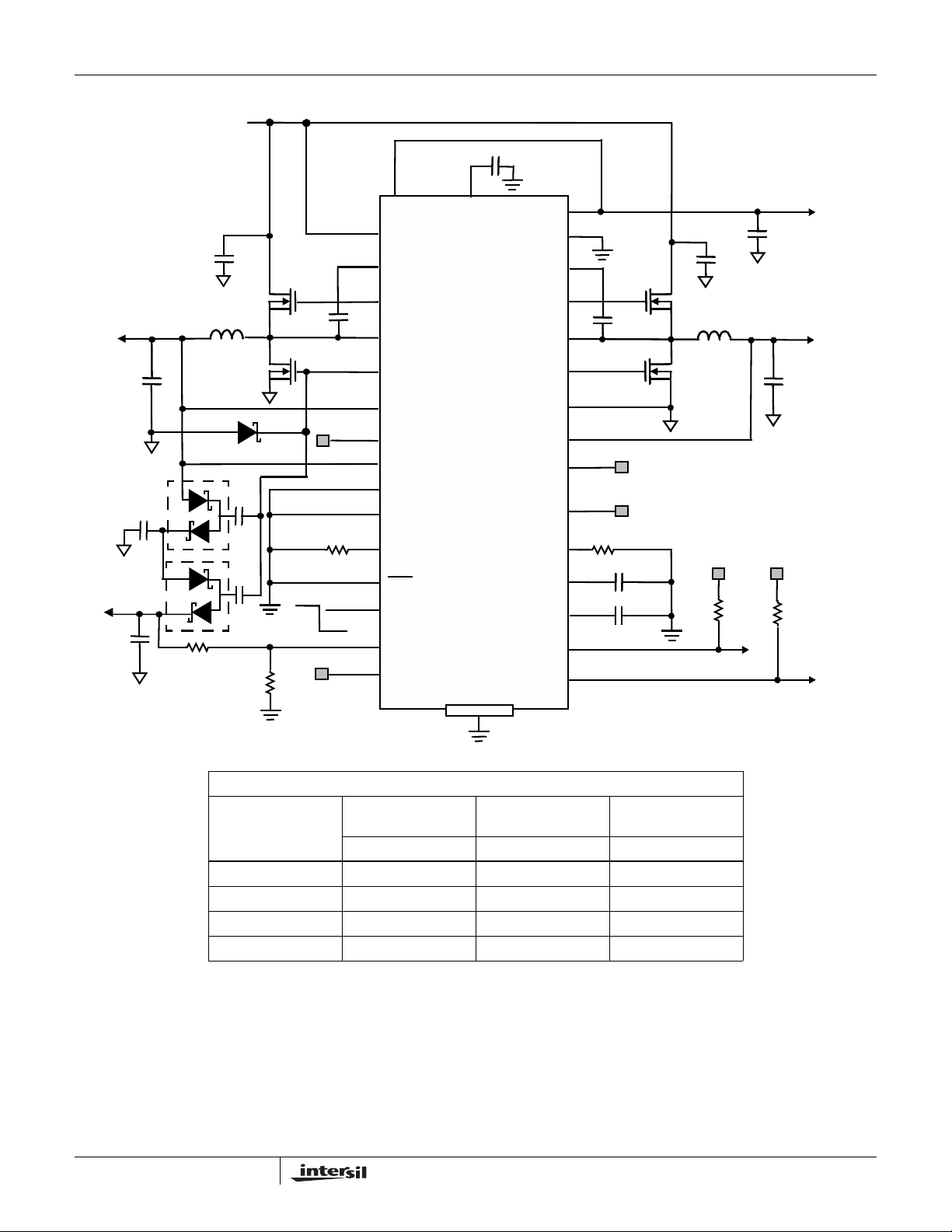

FIGURE 68. ISL6236 TYPICAL SYSTEM REGULATOR APPLICATION CIRCUIT WITH 14V CHARGE PUMP

FN6373.6

April 29, 2010

Page 24

ISL6236

TON

SKIP

BOOT1

UGATE1

PHASE1

LGATE1

GND

ILIM1

SECFB

FB1

OUT1

BYP

LDO

LDOREFIN

PVCC

SMPS1

SYNCHRONOUS

PWM BUCK

CONTROLLER

OUT1

SW THRESHOLD

-+-

LDO

EN1

POK1

SMPS2

SYNCHRONOUS

PWM BUCK

CONTROLLER

EN2

POK2

OUT2

INTERNAL

LOGIC

PVCC

BOOT2

UGATE2

PHASE2

LGATE2

PGND

ILIM2

REFIN2

OUT2

POK2

POK1

VCC

VIN

EN LDO

EN1

EN2

POWER-ON

POWER-ON SQUENCE

SEQUENCE

CLEAR FAULT

LATCH

VREF3

THERMAL

SHUTDOWN

REF

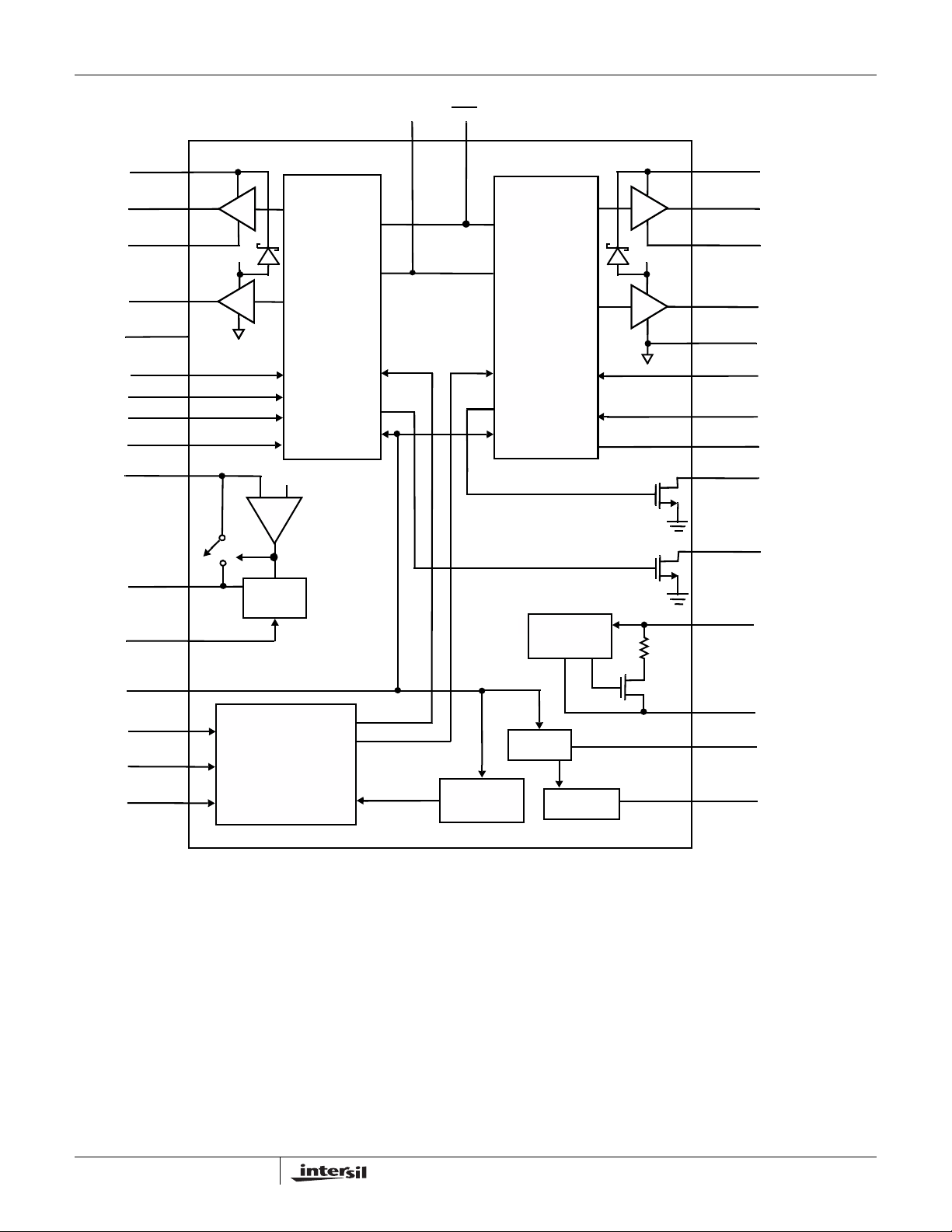

FIGURE 69. DETAILED FUNCTIONAL DIAGRAM ISL6236

PVCC

VREF3

REF

FN6373.6

April 29, 2010

Page 25

VIN

ILIM

5µA

OUT

REFIN2 (SMPS2) VREF

SLOPE COMP

ISL6236

+ +

COMP

MIN. t

ONE SHOT

BOOT

DETECT

OFF

R S

TRIG

Q Q

TO UGATE DRIVER

BOOT

PHASE

OUT

VCC

DECODER

0.9V

1.1V

0.7V

REF

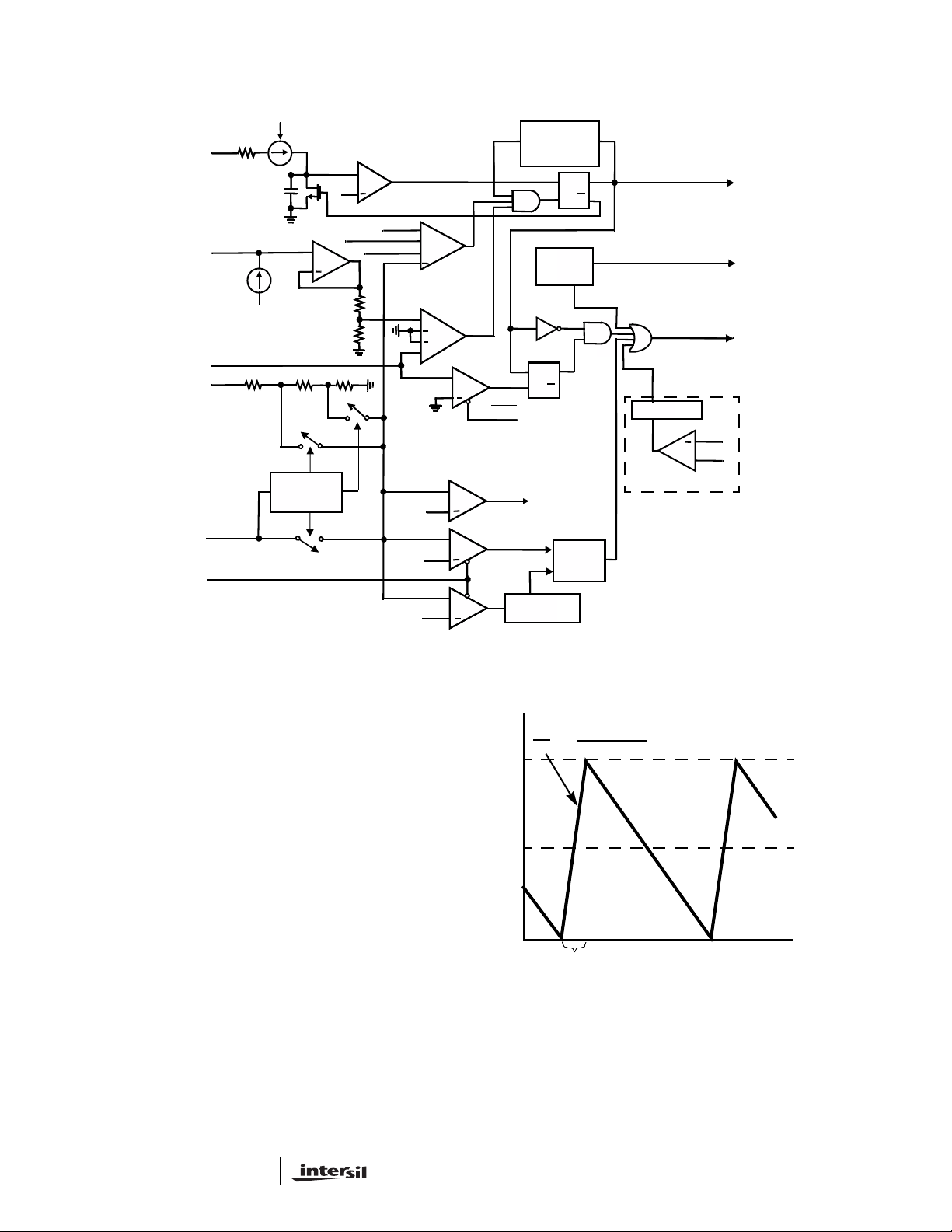

FIGURE 70. PWM CONTROLLER (ONE SIDE ONLY)

Automatic Pulse-Skipping Switchover (Idle Mode)

In Idle Mode (SKIP = GND), an inherent automatic switchover to PFM takes place at light loads. This switchover is affected by a comparator that truncates the low-side switch ON-time at the inductor current's zero crossing. This mechanism causes the threshold between pulse-skipping PFM and non-skipping PWM operation to coincide with the boundary between continuous and discontinuous inductor-current operation (also known as the critical conduction point):

⋅

VINV

LOAD SKIP()

OUT

------------------------

2L⋅

–

OUT

------------------------------- -

(EQ. 3)

OV LATCH

UV LATCH

SKIP

PGOOD

BLANKING

INDUCTOR CURRENT

S R

20ms

FAU LT

FAULT

LATCH

LOGIC

VIN-V

V-V

OUT

TO LGATE DRIVER

ONE-SHOT

SECFB

SMSP1 ONLY

PEAK

LOAD

= I

PEAK/2

where K is the ON-time scale factor (see “ON-TIME ONESHOT (t PFM/PWM crossover occurs, I

)” on page 20). The load-current level at which

LOAD(SKIP)

, is equal to half the peak-to-peak ripple current, which is a function of the inductor value (Figure 71). For example, in the ISL6236 typical application circuit with V

=5V, VIN=12V,

OUT1

L = 7.6µH, and K = 5µs, switchover to pulse-skipping operation occurs at I

= 0.96A or about on-fifth full load.

LOAD

The crossover point occurs at an even lower value if a swinging (soft-saturation) inductor is used.

ON-TIME TIME

FIGURE 71. ULTRASONIC CURRENT WAVEFORMS

The switching waveforms may appear noisy and asynchronous when light loading causes pulse-skipping operation, but this is a normal operating condition that results in high light-load efficiency. Trade-offs in PFM noise vs light-load efficiency are made by varying the inductor value. Generally, low inductor values produce a broader efficiency vs load curve, while higher values result in higher

FN6373.6

April 29, 2010

Page 26

ISL6236

full-load efficiency (assuming that the coil resistance remains fixed) and less output voltage ripple. Penalties for using higher inductor values include larger physical size and degraded load-transient response (especially at low input-voltage levels).

DC output accuracy specifications refer to the trip level of the error comparator. When the inductor is in continuous conduction, the output voltage has a DC regulation higher than the trip level by 50% of the ripple. In discontinuous conduction (SKIP

= GND, light load), the output voltage has

a DC regulation higher than the trip level by approximately

1.0% due to slope compensation.

Forced-PWM Mode

The low-noise, forced-PWM (SKIP = VCC) mode disables the zero-crossing comparator, which controls the low-side switch ON-time. Disabling the zero-crossing detector causes the low-side, gate-drive waveform to become the complement of the high-side, gate-drive waveform. The inductor current reverses at light loads as the PWM loop strives to maintain a duty ratio of V

OUT/VIN

. The benefit of forced-PWM mode is to keep the switching frequency fairly constant, but it comes at a cost: the no-load battery current can be 10mA to 50mA, depending on switching frequency and the external MOSFETs.

Forced-PWM mode is most useful for reducing audio-frequency noise, improving load-transient response, providing sink-current capability for dynamic output voltage adjustment, and improving the cross-regulation of multiple-output applications that use a flyback transformer or coupled inductor.

Enhanced Ultrasonic Mode (25kHz (min) Pulse Skipping)

Leaving SKIP unconnected or connecting SKIP to REF activates a unique pulse-skipping mode with a minimum switching frequency of 25kHz. This ultrasonic pulse-skipping mode eliminates audio-frequency modulation that would otherwise be present when a lightly loaded controller automatically skips pulses. In ultrasonic mode, the controller automatically transitions to fixed-frequency PWM operation when the load reaches the same critical conduction point (ILOAD(SKIP)).

An ultrasonic pulse occurs when the controller detects that no switching has occurred within the last 20µs. Once triggered, the ultrasonic controller pulls LGATE high, turning on the low-side MOSFET to induce a negative inductor current. After FB drops below the regulation point, the controller turns off the low-side MOSFET (LGATE pulled low) and triggers a constant ON-time (UGATE driven high). When the ON-time has expired, the controller re-enables the low-side MOSFET until the controller detects that the inductor current dropped below the zero-crossing threshold. Starting with a LGATE pulse greatly reduces the peak output

voltage when compared to starting with a UGATE pulse, as long as VFB < VREF, LGATE is off and UGATE is on, similar to pure SKIP mode.

40µs (MAX)

INDUCTOR

CURRENT

ZERO-CROSSING

Zero-Crossing

DETECTION

Detection

FB<REG.POINT

FB<Reg.Point

ON-TIME (t

ON-TIME (tON)

FIGURE 72. ULTRASONIC CURRENT WAVEFORMS

) ON

)

Reference and Linear Regulators (VREF3, REF, LDO and 14V Charge Pump)

The 3.3V reference (VREF3) is accurate to ±1.5% over-temperature, making VREF3 useful as a precision system reference. VREF3 can supply up to 5mA for external loads. Bypass VREF3 to GND with a 0.01µF capacitor. Leave it open if there is no load.

The 2V reference (REF) is accurate to ±1% over-temperature, also making REF useful as a precision system reference. Bypass REF to GND with a 0.1µF (min) capacitor. REF can supply up to 50µA for external loads.

An internal regulator produces a fixed 5V (LDOREFIN < 0.2V) or 3.3V (LDOREFIN > VCC - 1V). In an adjustable mode, the LDO output can be set from 0.7V to

4.5V. The LDO output voltage is equal to two times the LDOREFIN voltage. The LDO regulator can supply up to 100mA for external loads. Bypass LDO with a minimum

4.7µF ceramic capacitor. When the LDOREFIN < 0.2V and BYP voltage is 5V, the LDO bootstrap-switchover to an internal 0.7Ω P-Channel MOSFET switch connects BYP to LDO pin while simultaneously shutting down the internal linear regulator. These actions bootstrap the device, powering the loads from the BYP input voltages, rather than through internal linear regulators from the battery. Similarly, when the BYP = 3.3V and LDOREFIN = VCC, the LDO bootstrap-switchover to an internal 1.5Ω P-Channel MOSFET switch connects BYP to LDO pin while simultaneously shutting down the internal linear regulator. No switchover action in adjustable mode.

In Figure 68, the external 14V charge pump is driven by LGATE1. When LGATE1 is low, D1a charged C8 sourced from OUT1. C8 voltage is equal to OUT1 minus a diode drop. When LGATE1 transitions to high, the charges from C8 will transfer to C

through D1b and charge it to VLGATE1

FN6373.6

April 29, 2010

Page 27

ISL6236

plus VC8. As LGATE1 transitions low on the next cycle, C

will charge C14 to its voltage minus a diode drop through D2a. Finally, C

charges C15 through D2b when LAGET1

switched to high. CP output voltage is:

CP V

OUT1

LGATE1

⋅–⋅+=

(EQ. 4)

where:

•V

is the peak voltage of the LGATE1 driver

LGATE1

is the forward diode dropped across the Schottkys

SECFB is used to monitor the charge pump through resistive divider. In an event when SECFB dropped below 2V, the detection circuit force the highside MOSFET (SMPS1) off and the low-side MOSFET (SMPS1) on for 300ns to allow CP to recharge and SECFB rise above 2V. In the event of an overload on CP where SECFB can not reach more than 2V, the monitor will be deactivated. Special care should be taken to ensure enough normal voltage ripple on each cycle as to prevent CP shut-down. The SECFB pin has ~17mV of hysteresis, so the ripple should be enough to bring the SECFB voltage above the threshold by ~3x the hysteresis, or (2V + 3*17mV) = 2.051V. Reducing the CP decoupling capacitor and placing a small ceramic capacitor (10pF to 47pF) in parallel with the upper leg of the SECFB resistor feedback network (R

of Figure 68), will also increase the

robustness of the charge pump.

For lower power dissipation, the ISL6236 uses the ON-resistance of the synchronous rectifier as the current-sense element. Use the worst-case maximum value for r for the rise in r

from the MOSFET data sheet. Add some margin

DS(ON)

with temperature. A good general rule

DS(ON)

is to allow 0.5% additional resistance for each °C of temperature rise. The ISL6236 controller has a built-in 5µA current source, as shown in Figure 74. Place the hottest power MOSEFTs as close to the IC as possible for best thermal coupling. The current limit varies with the ON-resistance of the synchronous rectifier. When combined with the undervoltage-protection circuit, this current-limit method is effective in almost every circumstance.

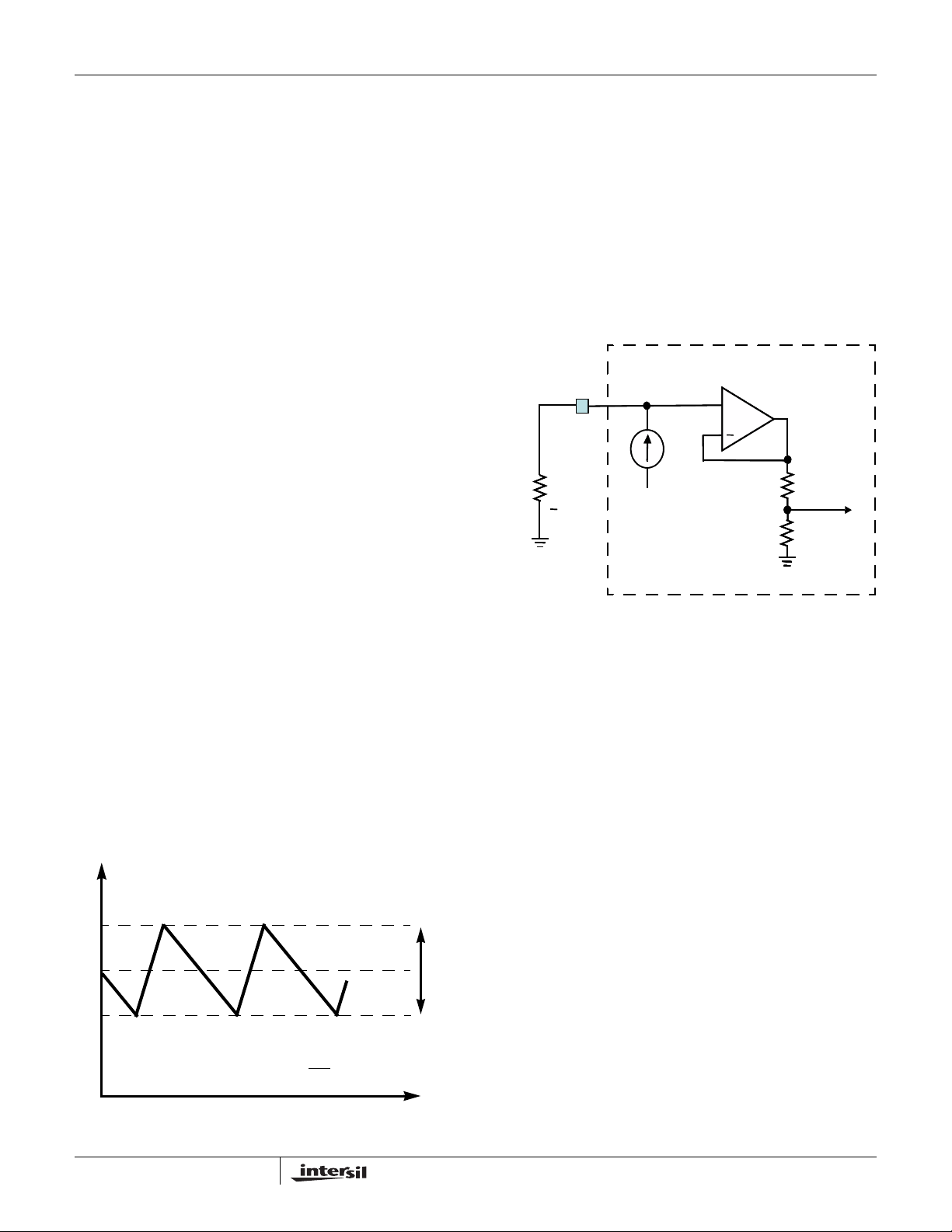

ILIM

VCC

5µA

TO CURRENT

LIMIT LOGIC

Current-Limit Circuit (ILIM) with r

DS(ON)

Temperature Compensation

The current-limit circuit employs a "valley" current-sensing algorithm. The ISL6236 uses the ON-resistance of the synchronous rectifier as a current-sensing element. If the magnitude of the current-sense signal at PHASE is above the current-limit threshold, the PWM is not allowed to initiate a new cycle. The actual peak current is greater than the current-limit threshold by an amount equal to the inductor ripple current. Therefore, the exact current-limit characteristic and maximum load capability are a function of the current-limit threshold, inductor value and input and output voltage.

PEAK

LOAD

LIMIT

LOAD(MAX)

INDUCTOR CURRENT

FIGURE 73. “VALLEY” CURRENT LIMIT THRESHOLD POINT

VALLIM

)(

LOAD

TIME

FIGURE 74. CURRENT LIMIT BLOCK DIAGRAM

A negative current limit prevents excessive reverse inductor currents when VOUT sinks current. The negative current-limit threshold is set to approximately 120% of the positive current limit and therefore tracks the positive current limit when ILIM is adjusted. The current-limit threshold is adjusted with an external resistor for ISL6236 at ILIM. The current-limit threshold adjustment range is from 20mV to 200mV. In the adjustable mode, the current-limit threshold voltage is 1/10th the voltage at ILIM. The voltage at ILIM pin is the product of 5µA*R

. The threshold defaults to

ILIM

100mV when ILIM is connected to VCC. The logic threshold for switch-over to the 100mV default value is approximately VCC -1V.

The PC board layout guidelines should be carefully observed to ensure that noise and DC errors do not corrupt the current-sense signals at PHASE.

MOSFET Gate Drivers (UGATE, LGATE)

The UGATE and LGATE gate drivers sink 2.0A and 3.3A respectively of gate drive, ensuring robust gate drive for high-current applications. The UGATE floating high-side MOSFET drivers are powered by diode-capacitor charge pumps at BOOT. The LGATE synchronous-rectifier drivers are powered by PVCC.

FN6373.6

April 29, 2010

Page 28

BOOT

ISL6236

where:

• PVCC is 5V

•C

VIN

is the gate capacitance of the high-side MOSFET

UGATE

BOOT

PHASE

ISL88732

ISL88732 ISL88733

ISL88733

ISL6236

ISL88734

FIGURE 75. REDUCING THE SWITCHING-NODE RISE TIME

OUT

The internal pull-down transistors that drive LGATE low have a 0.6Ω typical ON-resistance. These low ON-resistance pull-down transistors prevent LGATE from being pulled up during the fast rise time of the inductor nodes due to capacitive coupling from the drain to the gate of the low-side synchronous-rectifier MOSFETs. However, for high-current applications, some combinations of high- and low-side MOSFETs may cause excessive gate-drain coupling, which leads to poor efficiency and EMI-producing shoot-through currents. Adding a 1Ω resistor in series with BOOT increases the turn-on time of the high-side MOSFETs at the expense of efficiency, without degrading the turn-off time (Figure 75).

Adaptive dead-time circuits monitor the LGATE and UGATE drivers and prevent either FET from turning on until the other is fully off. This algorithm allows operation without shoot-through with a wide range of MOSFETs, minimizing delays and maintaining efficiency. There must be low resistance, low inductance paths from the gate drivers to the MOSFET gates for the adaptive dead-time circuit to work properly. Otherwise, the sense circuitry interprets the MOSFET gate as "off" when there is actually charge left on the gate. Use very short, wide traces measuring 10 to 20 squares (50 mils to 100 mils wide if the MOSFET is 1” from the device).

Boost-Supply Capacitor Selection (Buck)

The boost capacitor should be 0.1µF to 4.7µF, depending on the input and output voltages, external components, and PC board layout. The boost capacitance should be as large as possible to prevent it from charging to excessive voltage, but small enough to adequately charge during the minimum low-side MOSFET conduction time, which happens at maximum operating duty cycle (this occurs at minimum input voltage). The minimum gate to source voltage (V determined by:

BOOT

GS MIN()

PVCC

---------------------------------------

⋅=

BOOTCGS

GS(MIN)

) is

(EQ. 5)

Boost-Supply Refresh Monitor

In pure skip mode, the converter frequency can be very low with little to no output loading. This produces very long off times, where leakage can bleed down the BOOT capacitor voltage. If the voltage falls too low, the converter may not be able to turn on UGATE when the output voltage falls to the reference. To prevent this, the ISL6236 monitors the BOOT capacitor voltage, and if it falls below 3V, it initiates an LGATE pulse, which will refresh the BOOT voltage.

POR, UVLO and Internal Digital Soft-Start

Power-on reset (POR) occurs when VIN rises above approximately 3V, resetting the undervoltage, overvoltage, and thermal-shutdown fault latches. PVCC undervoltage-lockout (UVLO) circuitry inhibits switching when PVCC is below 4V. LGATE is low during UVLO. The output voltages begin to ramp up once PVCC exceeds its 4V UVLO and REF is in regulation. The internal digital soft-start timer begins to ramp up the maximum-allowed current limit during start-up. The 1.7ms ramp occurs in five steps. The step size are 20%, 40%, 60%, 80% and 100% of the positive current limit value.

Power-Good Output (POK)

The POK comparator continuously monitors both output voltages for undervoltage conditions. POK is actively held low in shutdown, standby, and soft-start. POK1 releases and digital soft-start terminates when V error-comparator threshold. POK1 goes low if V turns off or is 10% below its nominal regulation point. POK1 is a true open-drain output. Likewise, POK2 is used to monitor V

OUT2

Fault Protection

The ISL6236 provides overvoltage/undervoltage fault protection in the buck controllers. Once activated, the controller continuously monitors the output for undervoltage and overvoltage fault conditions.

OUT-OF-BOUND CONDITION

When the output voltage is 5% above the set voltage, the out-of-bound condition activates. LGATE turns on until output reaches within regulation. Once the output is within regulation, the controller will operate as normal. It is the "first line of defense" before OVP. The output voltage ripple must be sized low enough as to not nuisance trip the OOB threshold. The equations in “Output Capacitor Selection” on page 31 should be used to size the output voltage ripple below 3% of the nominal output voltage set point.

outputs reach the

OUT1

output

FN6373.6

April 29, 2010

Page 29

ISL6236

OVERVOLTAGE PROTECTION

When the output voltage of V

is 11% (16% for V

OUT1

OUT2

above the set voltage, the overvoltage fault protection activates. This latches on the synchronous rectifier MOSFET with 100% duty cycle, rapidly discharging the output capacitor until the negative current limit is achieved. Once negative current limit is met, UGATE is turned on for a minimum ON-time, followed by another LGATE pulse until negative current limit. This effectively regulates the discharge current at the negative current limit in an effort to prevent excessively large negative currents that cause potentially damaging negative voltages on the load. Once an overvoltage fault condition is set, it can only be reset by toggling SHDN

, EN, or cycling VIN (POR).

UNDERVOLTAGE PROTECTION

When the output voltage drops below 70% of its regulation voltage for at least 100µs, the controller sets the fault latch and begins the discharge mode (see “Shutdown Mode” on page 29 and “Discharge Mode (Soft-Stop)” on page 29). UVP is ignored for at least 20ms (typical), after start-up or after a rising edge on EN. Toggle EN or cycle VIN (POR) to clear the undervoltage fault latch and restart the controller. UVP only applies to the buck outputs.

THERMAL PROTECTION

The ISL6236 has thermal shutdown to protect the devices from overheating. Thermal shutdown occurs when the die temperature exceeds +150°C. All internal circuitry shuts down during thermal shutdown. The ISL6236 may trigger thermal shutdown if LDO is not bootstrapped from OUT while applying a high input voltage on V

and drawing the

maximum current (including short circuit) from LDO. Even if LDO is bootstrapped from OUT, overloading the LDO causes

large power dissipation on the bootstrap switches, which

)

may result in thermal shutdown. Cycling EN, EN LDO, or VIN (POR) ends the thermal-shutdown state.

Discharge Mode (Soft-Stop)

When a transition to standby or shutdown mode occurs, or the output undervoltage fault latch is set, the outputs discharge to GND through an internal 25Ω switch. The reference remains active to provide an accurate threshold and to provide overvoltage protection.

Shutdown Mode

The ISL6236 SMPS1, SMPS2 and LDO have independent enabling control. Drive EN1, EN2 and EN LDO below the precise input falling-edge trip level to place the ISL6236 in its low-power shutdown state. The ISL6236 consumes only 20µA of quiescent current while in shutdown. When shutdown mode activates, the 3.3V VREF3 remain on. Both SMPS outputs are discharged to 0V through a 25Ω switch.

Power-Up Sequencing and On/Off Controls (EN)

EN1 and EN2 control SMPS power-up sequencing. EN1 or EN2 rising above 2.4V enables the respective outputs. EN1 or EN2 falling below 1.6V disables the respective outputs.

Connecting EN1 or EN2 to REF will force its outputs off while the other output is below regulation. The sequenced SMPS will start once the other SMPS reaches regulation. The second SMPS remains on until the first SMPS turns off, the device shuts down, a fault occurs or PVCC goes into undervoltage lockout. Both supplies begin their power-down sequence immediately when the first supply turns off. Driving EN below 0.8V clears the overvoltage, undervoltage and thermal fault latches.

TABLE 3. OPERATING-MODE TRUTH TABLE

MODE CONDITION COMMENT

Power-Up PVCC < UVLO threshold. Transitions to discharge mode after a VIN POR and after REF becomes valid. LDO,

VREF3, and REF remain active.

Run EN LDO = high, EN1 or EN2

enabled.

Overvoltage Protection

Undervoltage Protection

Discharge Either SMPS output is still high in

Standby EN1, EN2 < startup threshold, EN

Shutdown EN1, EN2, EN LDO = low Discharge switch (25Ω) connects OUT to PGND. All circuitry off except VREF3.

Thermal Shutdown TJ > +150°C All circuitry off. Exited by VIN POR or cycling EN. VREF3 remain active.

Either output > 111% (VOUT1) or 116% (VOUT2) of nominal level.

Either output < 70% of nominal after 20ms time-out expires and output is enabled.

either standby mode or shutdown mode

LDO = High

Normal operation

LGATE is forced high. LDO, VREF3 and REF active. Exited by a VIN POR, or by toggling EN1 or EN2.

The internal 25Ω switch turns on. LDO, VREF3 and REF are active. Exited by a VIN POR or by toggling EN1 or EN2.

Discharge switch (25Ω) connects OUT to GND. One output may still run while the other is in discharge mode. Activates when PVCC is in UVLO, or transition to UVLO, standby, or shutdown has begun. LDO, VREF3 and REF active.

LDO, VREF3 and REF active.

FN6373.6

April 29, 2010

Page 30

ISL6236

TABLE 4. SHUTDOWN AND STANDBY CONTROL LOGIS

VEN LDO VEN1 (V) VEN2 (V) LDO SMPS1 SMPS2

Low Low Low Off Off Off

“>2.5” → High Low Low On Off Off

“>2.5” → High High High On On On

“>2.5” → High High Low On On Off

“>2.5” → High Low High On Off On

“>2.5” → High High REF On On On (after SMPS1 is up)

“>2.5” → High REF High On On (after SMPS2 is up) On

Adjustable-Output Feedback (Dual-Mode FB)

Connect FB1 to GND to enable the fixed 5V or tie FB1 to VCC to set the fixed 1.5V output. Connect a resistive voltage-divider at FB1 between OUT1 and GND to adjust the respective output voltage between 0.7V and 5.5V (Figure 76). Choose R for R

using Equation 6.

⎛⎞

OUT1

R1R

where V

-------------------

⋅=

⎜⎟

⎝⎠

FB1

= 0.7V nominal.

FB1

to be approximately 10k and solve

1–

(EQ. 6)

Likewise, connect REFIN2 to VCC to enable the fixed 3.3V or tie REFIN2 to VREF3 to set the fixed 1.05V output. Set REFIN2 from 0V to 2.50V for SMPS2 tracking mode (Figure 77).

⎛⎞

3R4

-------------------

⋅=

⎝⎠

1–

OUT2

(EQ. 7)

where:

• VR = 2V nominal (if tied to REF)

• VR = 3.3V nominal (if tied to VREF3)

Design Procedure

Establish the input voltage range and maximum load current before choosing an inductor and its associated ripple current ratio (LIR). The following four factors dictate the rest of the design:

1. Input Voltage Range. The maximum value (V

IN(MAX)

must accommodate the maximum AC adapter voltage. The minimum value (V

) must account for the

IN(MIN)

lowest input voltage after drops due to connectors, fuses and battery selector switches. Lower input voltages result in better efficiency.

2. Maximum Load Current. The peak load current

LOAD(MAX)

) determines the instantaneous component stress and filtering requirements and thus drives output capacitor selection, inductor saturation rating and the design of the current-limit circuit. The continuous load current (I

) determines the thermal stress and drives

LOAD

)

the selection of input capacitors, MOSFETs and other critical heat-contributing components.

3. Switching Frequency. This choice determines the basic

trade-off between size and efficiency. The optimal frequency is largely a function of maximum input voltage and MOSFET switching losses.

4. Inductor Ripple Current Ratio (LIR). LIR is the ratio of

the peak-peak ripple current to the average inductor current. Size and efficiency trade-offs must be considered when setting the inductor ripple current ratio. Low inductor values cause large ripple currents, resulting in the smallest size, but poor efficiency and high output noise. Also, total output ripple above 3.5% of the output regulation will cause the controller to trigger out-of-bound condition. The minimum practical inductor value is one that causes the circuit to operate at critical conduction (where the inductor current just touches zero with every cycle at maximum load). Inductor values lower than this grant no further size-reduction benefit.

The ISL6236 pulse-skipping algorithm (SKIP

= GND) initiates skip mode at the critical conduction point, so the inductor's operating point also determines the load current at which PWM/PFM switchover occurs. The optimum LIR point is usually found between 25% and 50% ripple current.

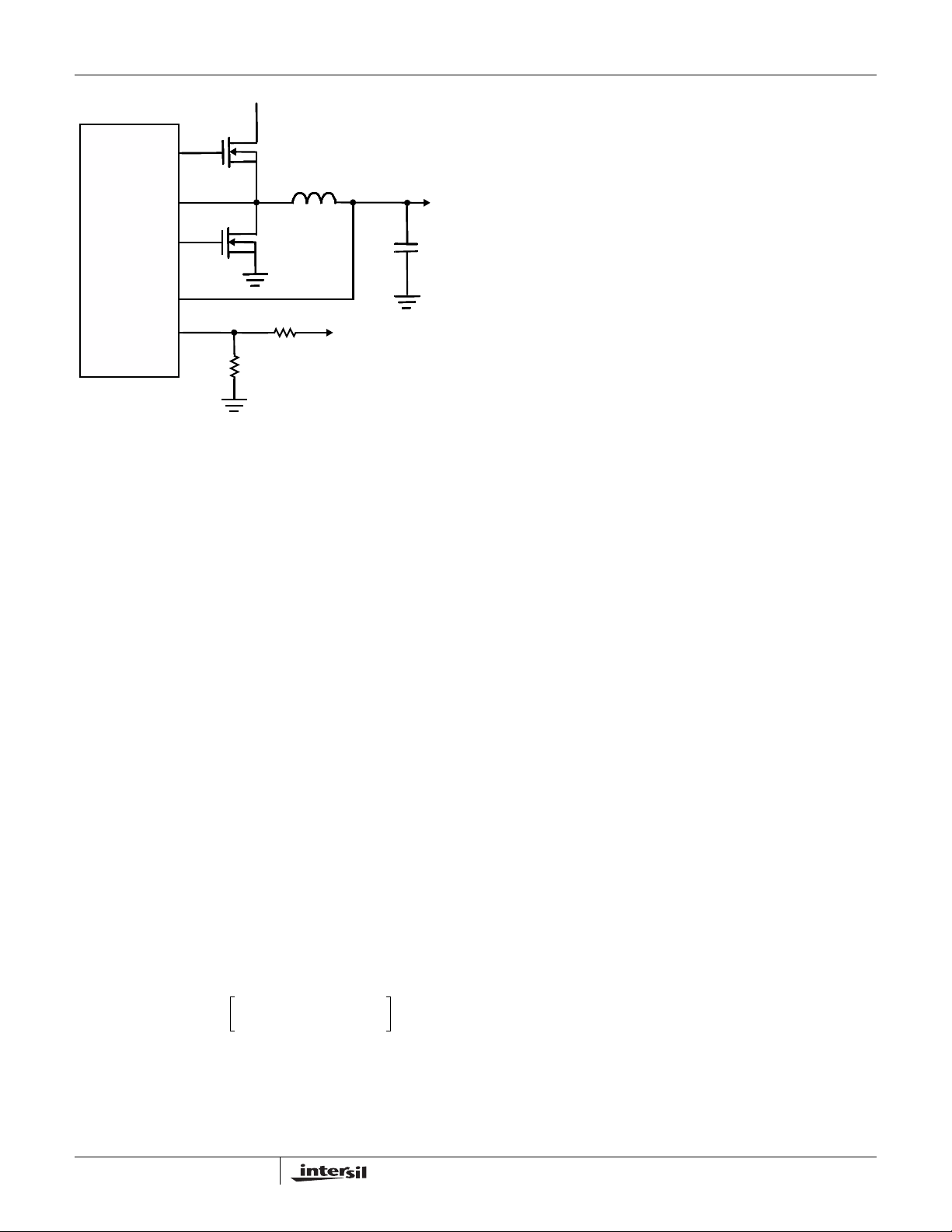

UGATE1

ISL6236

LGATE1

OUT1

FB1

FIGURE 76. SETTING V

WITH A RESISTOR DIVIDER

OUT1

FN6373.6

April 29, 2010

Page 31

ISL6236

UGATE2

UGATE

UGATE2

UGATE

ISL88732

ISL88732 ISL6236

ISL88733

ISL6236

ISL88733 ISL88734

ISL88734

LGATE

LGATE2

LGATE

LGATE2

VOUT

OUT2

VOUT

OUT2

REFIN2

FIGURE 77. SETTING V

TRACKING

WITH A VOLTAGE DIVIDER FOR

OUT2

Inductor Selection

The switching frequency (ON-time) and operating point (% ripple or LIR) determine the inductor value as follows:

OUT_VINVOUT_

---------------------------------------------------------------------

fLIRI

⋅⋅ ⋅

Example: I f = 200kHz, 35% ripple current or LIR = 0.35:

5V 12V 5V–()

-----------------------------------------------------------------

12V 200k H z 0.35 5A⋅⋅⋅

Find a low-loss inductor having the lowest possible DC resistance that fits in the allotted dimensions. Ferrite cores are often the best choice. The core must be large enough not to saturate at the peak inductor current (IPEAK):

IPEAK I

The inductor ripple current also impacts transient response performance, especially at low V inductor values allow the inductor current to slew faster, replenishing charge removed from the output filter capacitors by a sudden load step. The peak amplitude of the output transient (VSAG) is also a function of the maximum duty factor, which can be calculated from the ON-time and minimum OFF-time:

()

ΔI

----------------------------------------------------------------------------------------------------------------------------

VSAG

where minimum OFF-time = 0.35µs (max) and K is from Table 2.

+()

LOAD MAX()

LOAD(MAX)

LOAD MAX()

⋅⋅

OUTVOUT

=5A, VIN=12V, V

(EQ. 8)

=5V,

OUT2

8.3μ H==

LIR 2⁄()I

⋅[]+=

LOAD MAX()

IN-VOUT

⎛⎞

OUT_

-------------------

⋅

⎜⎟

⎝⎠

–

⎛⎞

INVOUT

------------------------------- -

⎜⎟

⎝⎠

differences. Low

OFF MIN()

(EQ. 9)

(EQ. 10)

(EQ. 11)

Determining the Current Limit

The minimum current-limit threshold must be great enough to support the maximum load current when the current limit is at the minimum tolerance value. The valley of the inductor current occurs at I

LOAD(MAX)

minus half of the ripple

current; therefore:

LIMIT LOW()ILOAD MAX()

where: I

LIMIT(LOW)

= minimum current-limit threshold

voltage divided by the r

DS(ON)

LIR 2⁄()I

⋅[]–>

of Q2/Q4.

LOAD MAX()

Use the worst-case maximum value for r MOSFET Q rise in r

DS(ON)

data sheet and add some margin for the

2/Q4

with temperature. A good general rule is to

DS(ON)

(EQ. 12)

from the

allow 0.2% additional resistance for each °C of temperature rise.

Examining the 5A circuit example with a maximum r

DS(ON)

=5mΩ at room temperature. At +125°C reveals the

following:

LIMIT LOW()

4.17A 4.12A>

25m V()5mΩ 1.2×()5A 0.35 2⁄()5A–>()⁄=

(EQ. 13)

(EQ. 14)

4.17A is greater than the valley current of 4.12A, so the circuit can easily deliver the full-rated 5A using the 30mV nominal current-limit threshold voltage.

Output Capacitor Selection

The output filter capacitor must have low enough equivalent series resistance (ESR) to meet output ripple and load-transient requirements, yet have high enough ESR to satisfy stability requirements. The output capacitance must also be high enough to absorb the inductor energy while transitioning from full-load to no-load conditions without tripping the overvoltage fault latch. In applications where the output is subject to large load transients, the output capacitor's size depends on how much ESR is needed to prevent the output from dipping too low under a load transient. Ignoring the sag due to finite capacitance:

DIP

----------------------------------

≤

SER

LOAD MAX()

where V

is the maximum-tolerable transient voltage drop.

DIP

In non-CPU applications, the output capacitor's size depends on how much ESR is needed to maintain an acceptable level of output voltage ripple:

PP–

-----------------------------------------------

≤

ESR

LIRI

⋅

LOAD MAX()

where V

is the peak-to-peak output voltage ripple. The

P-P

actual capacitance value required relates to the physical size needed to achieve low ESR, as well as to the chemistry of the capacitor technology. Thus, the capacitor is usually

(EQ. 15)

(EQ. 16)

FN6373.6

April 29, 2010

Page 32

) )

)

ISL6236

selected by ESR and voltage rating rather than by capacitance value (this is true of tantalum, OS-CON, and other electrolytic-type capacitors).

When using low-capacity filter capacitors such as polymer types, capacitor size is usually determined by the capacity required to prevent V

SAG

and V

from tripping the

SOAR

undervoltage and overvoltage fault latches during load transients in ultrasonic mode.

For low input-to-output voltage differentials (V

IN/VOUT

< 2), additional output capacitance is required to maintain stability and good efficiency in ultrasonic mode. The amount of overshoot due to stored inductor energy can be calculated as:

SOAR

where I

PEAK

------------------------------------------------

⋅⋅

is the peak inductor current.

PEAK

L⋅

OUTVOUT_

(EQ. 17

Input Capacitor Selection

The input capacitors must meet the input-ripple-current (I

) requirement imposed by the switching current. The

RMS

ISL6236 dual switching regulator operates at different frequencies. This interleaves the current pulses drawn by the two switches and reduces the overlap time where they add together. The input RMS current is much smaller in comparison than with both SMPSs operating in phase. The input RMS current varies with load and the input voltage.

The maximum input capacitor RMS current for a single SMPS is given by:

⎛⎞

OUTVINVOUT_

≈

RMSILOAD

When , I current of .

------------------------------------------------------------

⎜⎟ ⎝⎠

LOAD

OUT_

2⁄

–()

D50%=()⋅=

RMS

(EQ. 18)

has maximum

The ESR of the input-capacitor is important for determining capacitor power dissipation. All the power (I

RMS

x ESR) heats up the capacitor and reduces efficiency. Nontantalum chemistries (ceramic or OS-CON) are preferred due to their low ESR and resilience to power-up surge currents. Choose input capacitors that exhibit less than +10°C temperature rise at the RMS input current for optimal circuit longevity. Place the drains of the high-side switches close to each other to share common input bypass capacitors.

Power MOSFET Selection

Most of the following MOSFET guidelines focus on the challenge of obtaining high load-current capability (>5A) when using high-voltage (>20V) AC adapters. Low-current applications usually require less attention.

Choose a high-side MOSFET (Q losses equal to the switching losses at the typical battery voltage for maximum efficiency. Ensure that the conduction losses at the minimum input voltage do not exceed the package thermal limits or violate the overall thermal budget.

) that has conduction

1/Q3

Ensure that conduction losses plus switching losses at the maximum input voltage do not exceed the package ratings or violate the overall thermal budget.

Choose a synchronous rectifier (Q possible r

. Ensure the gate is not pulled up by the

DS(ON)

) with the lowest

2/Q4

high-side switch turning on due to parasitic drain-to-gate capacitance, causing cross-conduction problems. Switching losses are not an issue for the synchronous rectifier in the buck topology since it is a zero-voltage switched device when using the buck topology.

MOSFET Power Dissipation

Worst-case conduction losses occur at the duty-factor extremes. For the high-side MOSFET, the worst-case power dissipation (PD) due to the MOSFET's r minimum battery voltage:

⎛⎞

OUT_

Resistance()

PD Q

------------------------

⎜⎟

⎝⎠

IN MIN()

()2r

LOAD

Generally, a small high-side MOSFET reduces switching losses at high input voltage. However, the r to stay within package power-dissipation limits often limits how small the MOSFET can be. The optimum situation occurs when the switching (AC) losses equal the conduction (r

DS(ON)

) losses.

Switching losses in the high-side MOSFET can become an insidious heat problem when maximum battery voltage is applied, due to the squared term in the CV equation. Reconsider the high-side MOSFET chosen for adequate r

at low battery voltages if it becomes

DS(ON)

extraordinarily hot when subjected to V

Calculating the power dissipation in NH (Q1/Q3) due to switching losses is difficult since it must allow for quantifying factors that influence the turn-on and turn-off times. These factors include the internal gate resistance, gate charge, threshold voltage, source inductance, and PC board layout characteristics. The following switching-loss calculation provides only a very rough estimate and is no substitute for bench evaluation, preferably including verification using a thermocouple mounted on NH (Q

PD QH Switching()V

where C (Q

1/Q3

is the reverse transfer capacitance of QH

RSS

) and I

GATE

()

IN MAX()

is the peak gate-drive source/sink

1/Q3

⎛⎞

RSSfSWILOAD

-----------------------------------------------------

⎜⎟ ⎝⎠

current.

For the synchronous rectifier, the worst-case power dissipation always occurs at maximum battery voltage:

PD QL() 1

⎛⎞ ⎜⎟ ⎝⎠

OUT

--------------------------

–

IN MAX()

LOAD

⋅=

DS ON()

occurs at the

DS(ON)

⋅=

DS ON()

DS(ON)

f switching-loss

IN(MAX)

⋅⋅

GATE

(EQ. 19

required

(EQ. 20

(EQ. 21)

FN6373.6

April 29, 2010

Page 33

ISL6236

The absolute worst case for MOSFET power dissipation occurs under heavy overloads that are greater than I

LOAD(MAX)

but are not quite high enough to exceed the current limit and cause the fault latch to trip. To protect against this possibility, "overdesign" the circuit to tolerate:

LOADILIMIT HIGH()

where I

LIMIT(HIGH)

is the maximum valley current allowed

LIR()2⁄()I

⋅+=

LOAD MAX()

(EQ. 22)

by the current-limit circuit, including threshold tolerance and resistance variation.

Rectifier Selection

Current circulates from ground to the junction of both MOSFETs and the inductor when the high-side switch is off. As a consequence, the polarity of the switching node is negative with respect to ground. This voltage is approximately

-0.7V (a diode drop) at both transition edges while both switches are off (dead time). The drop is I

x r

DS(ON)

when

the low-side switch conducts.

The rectifier is a clamp across the synchronous rectifier that catches the negative inductor swing during the dead time between turning the high-side MOSFET off and the synchronous rectifier on. The MOSFETs incorporate a high-speed silicon body diode as an adequate clamp diode if efficiency is not of primary importance. Place a Schottky diode in parallel with the body diode to reduce the forward voltage drop and prevent the Q2/Q4 MOSFET body diodes from turning on during the dead time. Typically, the external diode improves the efficiency by 1% to 2%. Use a Schottky diode with a DC current rating equal to one-third of the load current. For example, use an MBR0530 (500mA-rated) type for loads up to 1.5A, a 1N5817 type for loads up to 3A, or a 1N5821 type for loads up to 10A. The rectifier's rated reverse breakdown voltage must be at least equal to the maximum input voltage, preferably with a 20% derating factor.

Applications Information

Dropout Performance

The output voltage-adjust range for continuous-conduction operation is restricted by the nonadjustable 350ns (max) minimum OFF-time one-shot. Use the slower 5V SMPS for the higher of the two output voltages for best dropout performance in adjustable feedback mode. The duty-factor limit must be calculated using worst-case values for on - and OFF-times, when working with low input voltages. Manufacturing tolerances and internal propagation delays introduce an error to the t transient-response performance of buck regulators operated close to dropout is poor, and bulk output capacitance must often be added (see Equation 11 on page 31).

The absolute point of dropout occurs when the inductor current ramps down during the minimum OFF-time (ΔI

) as much as it ramps up during the ON-time

DOWN

K-factor. Also, keep in mind that

). The ratio h = ΔIUP/ΔI

( ΔI

indicates the ability to

DOWN

slew the inductor current higher in response to increased load, and must always be greater than 1. As h approaches 1, the absolute minimum dropout point, the inductor current is less able to increase during each switching cycle and V

SAG

greatly increases unless additional output capacitance is used.

A reasonable minimum value for h is 1.5, but this can be adjusted up or down to allow trade-offs between V

SAG,

output capacitance and minimum operating voltage. For a given value of h, the minimum operating voltage can be calculated as:

IN MIN()

where V

OUT_VDROP

---------------------------------------------------

OFF MIN()

⎛⎞

----------------------------------- -

–

⎝⎠

and V

DROP1

DROP2

h⋅

–+=

DROP2VDROP1

are the parasitic voltage drops in

(EQ. 23)

+()

the discharge and charge paths (see “ON-TIME ONE-SHOT (t

)” on page 20), t

OFF(MIN)

is from the “Electrical Specifications” table, which starts on page 3 and K is taken from Table 2. The absolute minimum input voltage is calculated with h = 1.

Operating frequency must be reduced or h must be increased and output capacitance added to obtain an acceptable V required minimum input voltage. Calculate V

if calculated V

SAG

is greater than the

IN(MIN)

to be sure

SAG

of adequate transient response if operation near dropout is anticipated.

DROPOUT DESIGN EXAMPLE

ISL6236: With V t

OFF(MIN)

= 350ns, V

h = 1.5, the minimum V

IN MIN()

----------------------------------------------

–

=5V, fSW= 400kHz, K = 2.25µs,

OUT2

DROP1=VDROP2

is:

5V 0.1V+()

0.35μ s1.5⋅

⎛⎞

-------------------------------

⎝⎠

2.25μ s

0.1V 0.1V 6.65V=–+=

= 100mV, and

(EQ. 24)

Calculating with h = 1 yields:

IN MIN()

Therefore, V

5V 0.1V+()

-----------------------------------------

0.35μ s1⋅

⎛⎞

--------------------------

–

⎝⎠

2.25μ s

must be greater than 6.65V. A practical input

0.1V 0.1V 6.04V=–+=

(EQ. 25)

voltage with reasonable output capacitance would be 7.5V.

PC Board Layout Guidelines

Careful PC board layout is critical to achieve minimal switching losses and clean, stable operation. This is especially true when multiple converters are on the same PC board where one circuit can affect the other. Refer to the ISL6236 Evaluation Kit Application Notes (AN1271 and AN1272) for a specific layout example.

FN6373.6

April 29, 2010

Page 34

ISL6236

Mount all of the power components on the top side of the board with their ground terminals flush against one another, if possible. Follow these guidelines for good PC board layout:

• Isolate the power components on the top side from the sensitive analog components on the bottom side with a ground shield. Use a separate PGND plane under the OUT1 and OUT2 sides (called PGND1 and PGND2). Avoid the introduction of AC currents into the PGND1 and PGND2 ground planes. Run the power plane ground currents on the top side only, if possible.

• Use a star ground connection on the power plane to minimize the crosstalk between OUT1 and OUT2.

• Keep the high-current paths short, especially at the ground terminals. This practice is essential for stable, jitter-free operation.

• Keep the power traces and load connections short. This practice is essential for high efficiency. Using thick copper PC boards (2oz vs 1oz) can enhance full-load efficiency by 1% or more. Correctly routing PC board traces must be approached in terms of fractions of centimeters, where a single mΩ of excess trace resistance causes a measurable efficiency penalty.

• PHASE (ISL6236) and GND connections to the synchronous rectifiers for current limiting must be made using Kelvin-sense connections to guarantee the current-limit accuracy with 8 Ld SO MOSFETs. This is best done by routing power to the MOSFETs from outside using the top copper layer, while connecting PHASE traces inside (underneath) the MOSFETs.

• When trade-offs in trace lengths must be made, it is preferable to allow the inductor charging path to be made longer than the discharge path. For example, it is better to allow some extra distance between the input capacitors and the high-side MOSFET than to allow distance between the inductor and the synchronous rectifier or between the inductor and the output filter capacitor.

• Ensure that the OUT connection to COUT is short and direct. However, in some cases it may be desirable to deliberately introduce some trace length between the OUT connector node and the output filter capacitor.

• Route high-speed switching nodes (BOOT, UGATE, PHASE, and LGATE) away from sensitive analog areas (REF, ILIM, and FB). Use PGND1 and PGND2 as an EMI shield to keep radiated switching noise away from the IC's feedback divider and analog bypass capacitors.

• Make all pin-strap control input connections (SKIP

, ILIM,

etc.) to GND or VCC of the device.

Layout Procedure

Place the power components first with ground terminals adjacent (Q these connections on the top layer with wide, copper-filled areas.

Mount the controller IC adjacent to the synchronous rectifier MOSFETs close to the hottest spot, preferably on the back side in order to keep UGATE, GND, and the LGATE gate drive lines short and wide. The LGATE gate trace must be short and wide, measuring 50 mils to 100 mils wide if the MOSFET is 1” from the controller device.

Group the gate-drive components (BOOT capacitor, VIN bypass capacitor) together near the controller device.

Make the DC/DC controller ground connections as follows:

1. Near the device, create a small analog ground plane.

2. Connect the small analog ground plane to GND and use the plane for the ground connection for the REF and VCC bypass capacitors, FB dividers and ILIM resistors (if any).

3. Create another small ground island for PGND and use the plane for the VIN bypass capacitor, placed very close to the device.

4. Connect the GND and PGND planes together at the metal tab under device.

On the board's top side (power planes), make a star ground to minimize crosstalk between the two sides. The top-side star ground is a star connection of the input capacitors and synchronous rectifiers. Keep the resistance low between the star ground and the source of the synchronous rectifiers for accurate current limit. Connect the top-side star ground (used for MOSFET, input, and output capacitors) to the small island with a single short, wide connection (preferably just a via). Create PGND islands on the layer just below the topside layer (refer to the ISL6236 Evaluation Kit Application Notes, AN1271 and AN1272) to act as an EMI shield if multiple layers are available (highly recommended). Connect each of these individually to the star ground via, which connects the top side to the PGND plane. Add one more solid ground plane under the device to act as an additional shield, and also connect the solid ground plane to the star ground via.

Connect the output power planes (VCORE and system ground planes) directly to the output filter capacitor positive and negative terminals with multiple vias.

source, CIN, C

2/Q4

). If possible, make all

OUT

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN6373.6

April 29, 2010

Page 35

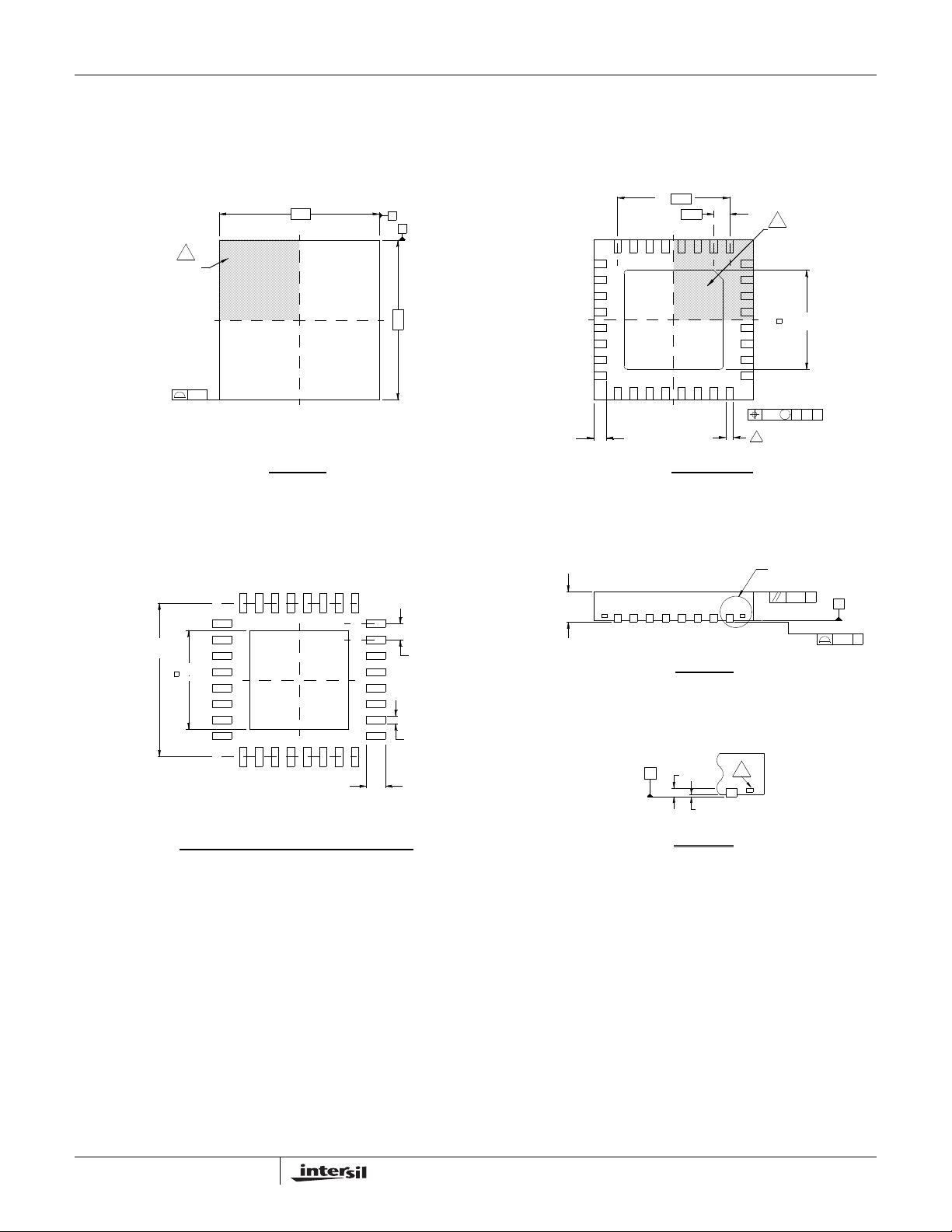

Package Outline Drawing

L32.5x5B

32 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE Rev 2, 11/07

5.00

PIN 1

INDEX AREA

ISL6236

3.5

0.50

28X

PIN #1 INDEX AREA

(4X) 0.15

( 4. 80 TYP )

TOP VIEW

( 3. 30 )

TYPICAL RECOMMENDED LAND PATTERN

5.00

( 28X 0 . 5 )

(32X 0 . 23 )

( 32X 0 . 60)

0 . 90 ± 0.1

32X 0.40 ± 0.10 4

BOTTOM VIEW

SIDE VIEW

0 . 2 REF

0 . 00 MIN. 0 . 05 MAX.

DETAIL "X"

3 .30 ± 0 . 15

M0.10 C B

32X 0.23

SEE DETAIL "X"

0.10

BASE PLANE

+ 0.07

- 0.05

SEATING PLANE

0.08 C

NOTES:

Dimensions are in millimeters.1. Dimensions in ( ) for Reference Only.

Dimensioning and tolerancing conform to AMSE Y14.5m-1994.

Unless otherwise specified, tolerance : Decimal ± 0.05

Dimension b applies to the metallized terminal and is measured between 0.15mm and 0.30mm from the terminal tip.

Tiebar shown (if present) is a non-functional feature.

The configuration of the pin #1 identifier is optional, but must be

6. located within the zone indicated. The pin #1 identifier may be

either a mold or mark feature.

FN6373.6

April 29, 2010

Page 36
