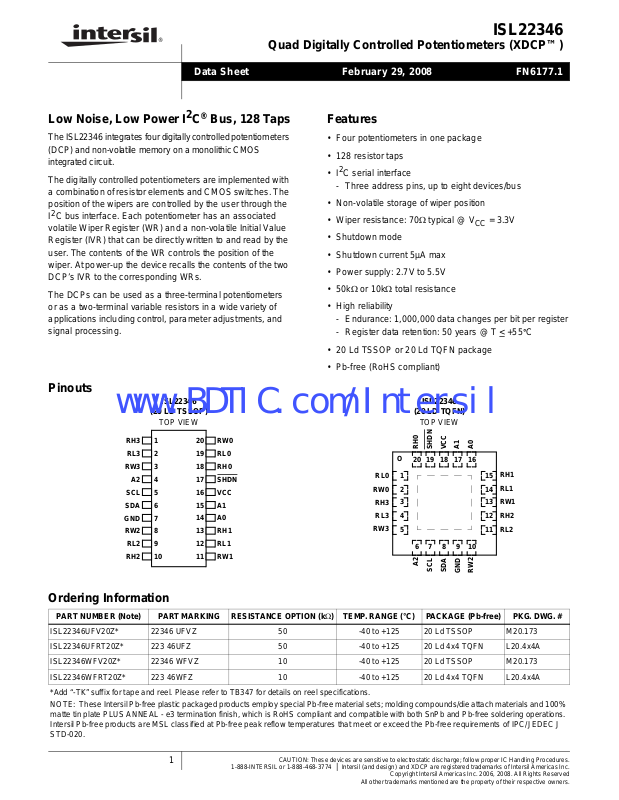

Quad Digitally Controlled Potentiometers (XDCP™)

ISL22346

Data Sheet February 29, 2008

Low Noise, Low Power I2C® Bus, 128 Taps

The ISL22346 integrates four digitally controlled potentiometers
(DCP) and non-volatile memory on a monolithic CMOS
integrated circuit.

The digitally controlled potentiometers are implemented with
a combination of resistor elements and CMOS switches. The
position of the wipers are controlled by the user through the

2

I

C bus interface. Each potentiometer has an associated
volatile Wiper Register (WR) and a non-volatile Initial Value
Register (IVR) that can be directly written to and read by the
user. The contents of the WR controls the position of the
wiper. At power-up the device recalls the contents of the two
DCP’s IVR to the corresponding WRs.

The DCPs can be used as a three-terminal potentiometers
or as a two-terminal variable resistors in a wide variety of
applications including control, parameter adjustments, and
signal processing.

FN6177.1

Features

• Four potentiometers in one package

• 128 resistor taps

•I2C serial interface

- Three address pins, up to eight devices/bus

• Non-volatile storage of wiper position

• Wiper resistance: 70Ω typical @ V

• Shutdown mode

• Shutdown current 5µA max

• Power supply: 2.7V to 5.5V

•50kΩ or 10kΩ total resistance

• High reliability

- Endurance: 1,000,000 data changes per bit per register

- Register data retention: 50 years @ T <

• 20 Ld TSSOP or 20 Ld TQFN package

• Pb-free (RoHS compliant)

CC

= 3.3V

+55°C

Pinouts

RH3

RL3

RW3

A2

SCL
SDA
GND
RW2

RL2

RH2

ISL22346

(20 LD TSSOP)

TOP VIEW

1
2
3
4
5
6
7
8
9
10

20
19
18
17
16
15
14
13
12
11

RW0
RL0
RH0
SHDN
VCC
A1
A0
RH1
RL1
RW1

RL0

RW0

RH3

RL3

RW3

ISL22346

(20 LD TQFN)

TOP VIEW

RH0

O

20 19

1
2
3
4
5

6

A2

SHDN

7

SCL

VCC

18

8179

SDA

A1

GND

A0

16

RH1

15

RL1

14
13

RW1
RH2

12

RL2

11

10

RW2

Ordering Information

PART NUMBER (Note) PART MARKING RESISTANCE OPTION (kΩ) TEMP. RANGE (°C) PACKAGE (Pb-free) PKG. DWG. #

ISL22346UFV20Z* 22346 UFVZ 50 -40 to +125 20 Ld TSSOP M20.173
ISL22346UFRT20Z* 223 46UFZ 50 -40 to +125 20 Ld 4x4 TQFN L20.4x4A
ISL22346WFV20Z* 22346 WFVZ 10 -40 to +125 20 Ld TSSOP M20.173
ISL22346WFRT20Z* 223 46WFZ 10 -40 to +125 20 Ld 4x4 TQFN L20.4x4A
*Add “-TK” suffix for tape and reel. Please refer to TB347 for details on reel specifications.

NOTE: These Intersil Pb-free plastic packaged products employ special Pb-free material sets; molding compounds/die attach materials and 100%
matte tin plate PLUS ANNEAL - e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations.
Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J
STD-020.

1

1-888-INTERSIL or 1-888-468-3774

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

| Intersil (and design) and XDCP are registered trademarks of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Copyright Intersil Americas Inc. 2006, 2008. All Rights Reserved

Block Diagram

www.BDTIC.com/Intersil

Pin Descriptions

SCL

SDA

A0
A1
A2

SHDN

I2C

INTERFACE

ISL22346

V

POWER-UP

INTERFACE,

CONTROL

AND STA TUS

LOGIC

NON-

VOLATILE

REGISTERS

CC

GND

WR3

WR2

WR1

WR0

RH3

RW3

RL3
RH2

RW2

RL2
RH1

RW1
RL1

RH0

RW0
RL0

TSSOP PIN

NUMBER

TQFN PIN

NUMBER PIN NAME DESCRIPTION

1 3 RH3 “High” terminal of DCP3
2 4 RL3 “Low” terminal of DCP3
3 5 RW3 “Wiper” terminal of DCP3

2

4 6 A2 Device address input for the I

2

5 7 SCL Open drain I

C interface clock input

C interface

6 8 SDA Open drain Serial data I/O for the I2C interface
7 9 GND Device ground pin
8 10 RW2 “Wiper” terminal of DCP2

9 11 RL2 “Low” terminal of DCP2
10 12 RH2 “High” terminal of DCP2
11 13 RW1 “Wiper” terminal of DCP1
12 14 RL1 “Low” terminal of DCP1
13 15 RH1 “High” terminal of DCP1

2

14 16 A0 Device address input for the I
15 17 A1 Device address input for the I

C interface

2

C interface
16 18 VCC Power supply pin
17 19 SHDN

Shutdown active low input
18 20 RH0 “High” terminal of DCP0
19 1 RL0 “Low” terminal of DCP0
20 2 RW0 “Wiper” terminal of DCP0

EPAD* Exposed Die Pad internally connected to GND

*Note: PCB thermal land for QFN EPAD should be connected to GND plane or left floating. For more information refer to
http://www.intersil.com/data/tb/TB389.pdf

2

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Absolute Maximum Ratings Thermal Information

Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C

Voltage at any Digital Interface Pin

with Respect to GND . . . . . . . . . . . . . . . . . . . . -0.3V to V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to +6V

V

CC

Voltage at any DCP Pin with Respect to GND. . . . . . . -0.3V to V

IW (10s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±6mA

Latchup (Note 3) . . . . . . . . . . . . . . . . . . Class II, Level B @ +125°C

ESD Ratings

Human Body Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5kV

Machine Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .350V

CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product reliability and
result in failures not covered by warranty.

NOTES:

1.

θ

is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.

JA

2. For θ

3. Jedec Class II pulse conditions and failure criterion used. Level B exceptions are: using a max positive pulse of 6.5V on the SHDN

Analog Specifications Over recommended operating conditions, unless otherwise stated.

SYMBOL PARAMETER TEST CONDITIONS

R

V

C

H/CL/CW

(Note 19)

I

VOLTAGE DIVIDER MODE (0V @ R

(Note 9)

(Note 8)
ZSerror

(Note 6)

FSerror
(Note 7)

V

(Note 10)

(Note 11)

, the “case temp” location is the center of the exposed metal pad on the package underside.

JC

a max negative pulse of -0.8V for all pins.

TOTAL

RH

R

LkgDCP

INL

DNL

MATCH

TC

RH to RL Resistance W option 10 kΩ

to RL Resistance Tolerance W and U option -20 +20 %

R

H

End-to-End Temperature Coefficient W option ±50 ppm/°C

, VRLVRH and VRL Terminal Voltages VRH and VRL to GND 0 V

Wiper Resistance VCC = 3.3V, wiper current = VCC/R

W

Potentiometer Capacitance 10/10/25 pF

Leakage on DCP Pins Voltage at pin from GND to V

i; VCC @ RHi; measured at RWi, unloaded; i = 0, 1, 2, or 3)

L

Integral Non-linearity Monotonic over all tap positions -1 1 LSB

Differential Non-linearity Monotonic over all tap positions -0.5 0.5 LSB

Zero-scale Error W option 0 1 5 LSB

Full-scale error W option -5 -1 0 LSB

DCP to DCP Matching Any two DCPs at same tap position, same

Ratiometric Temperature Coefficient DCP register set to 40 hex ±4 ppm/°C

V

+ 0.3

CC

CC

U option 50 kΩ

U option ±80 ppm/°C

U option 0 0.5 2

U option -2 -1 0

voltage at all RH terminals, and same voltage

terminals

at all R

L

Thermal Resistance (Typical, Notes 1, 2) θ

20 Lead TSSOP. . . . . . . . . . . . . . . . . . 95 N/A

20 Lead TQFN . . . . . . . . . . . . . . . . . . 40 3.0

Maximum Junction Temperature (Plastic Package). . . . . . . .+150°C

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

Recommended Operating Conditions

Temperature Range (Extended Industrial). . . . . . . .-40°C to +125°C

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 5.5V

V

CC

Power Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15mW

Wiper Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±3.0mA

MIN

(Note 20)

TOTAL

CC

-2 2 LSB

TYP

(Note 4)

70 200 Ω

0.1 1 µA

(°C/W) θJC (°C/W)

JA

pin, and using

MAX

(Note 20) UNIT

(Note 17)

(Note 17)

CC

(Note 5)

(Note 5)

(Note 5)

(Note 5)

(Note 5)

V

3

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Analog Specifications Over recommended operating conditions, unless otherwise stated. (Continued)

SYMBOL PARAMETER TEST CONDITIONS

RESISTOR MODE (Measurements between RWi and RLi with RHi not connected, or between RWi and RHi with RLi not connected. i = 0, 1, 2 or 3)

RINL

(Note 15)

RDNL

(Note 14)

Roffset

(Note 13)

R

MATCH

(Note 16)

Integral Non-linearity DCP register set between 10h and 7Fh;

Differential Non-linearity DCP register set between 10h and 7Fh;

Offset W option 0 1 5 MI

DCP to DCP Matching Any two DCPs at the same tap position with

monotonic over all tap positions

monotonic over all tap positions, W option
DCP register set between 10h and 7Fh;

monotonic over all tap positions, U option

U option 0 0.5 2 MI

the same terminal voltages

MIN

(Note 20)

-1 1 MI

-1 1 MI

-0.5 0.5 MI

-2 2 MI

Operating Specifications Over the recommended operating conditions, unless otherwise specified.

MIN

SYMBOL PARAMETER TEST CONDITIONS

I

CC1

I

CC2

I

SB

I

SD

I

LkgDig

t

WRT

(Note 19)

t

ShdnRec

(Note 19)

Vpor Power-on Recall Voltage Minimum V

Ramp VCC Ramp Rate 0.2 V/ms

V

CC

VCC Supply Current (Volatile
Write/Read)

VCC Supply Current (Non-volatile
Write/Read)

VCC Current (Standby) V

VCC Current (Shutdown) V

Leakage Current, at Pins A0, A1, A2,
SHDN

, SDA and SCL

DCP Wiper Response Time SCL falling edge of last bit of DCP data byte

DCP Recall Time from Shutdown
Mode

f

= 400kHz; SDA = Open; (for I2C, active,

SCL

read and write states)
f

= 400kHz; SDA = Open; (for I2C, active,

SCL

read and write states)

= +5.5V @ +85°C, I2C interface in

CC

standby state

= +5.5V @ +125°C, I2C interface in

V

CC

standby state

= +3.6V @ +85°C, I2C interface in

V

CC

standby state

= +3.6V @ +125°C, I2C interface in

V

CC

standby state

= +5.5V @ +85°C, I2C interface in

CC

standby state

= +5.5V @ +125°C, I2C interface in

V

CC

standby state

= +3.6V @ +85°C, I2C interface in

V

CC

standby state

= +3.6V @ +125°C, I2C interface in

V

CC

standby state
Voltage at pin from GND to V

to wiper new position
From rising edge of SHDN

stored position and RH connection
SCL falling edge of last bit of ACR data byte

to wiper stored position and RH connection

at which memory recall occurs 2.0 2.6 V

CC

CC

signal to wiper

(Note 20)

-1 1 µA

TYP

(Note 4)

TYP

(Note 4)

1.5 µs

1.5 µs

1.5 µs

MAX

(Note 20) UNIT

MAX

(Note 20) UNIT

0.5 mA

3mA

5µA

7µA

3µA

5µA

3µA

5µA

2µA

4µA

(Note 12)

(Note 12)

(Note 12)

(Note 12)

(Note 12)

(Note 12)

4

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Operating Specifications Over the recommended operating conditions, unless otherwise specified. (Continued)

SYMBOL PARAMETER TEST CONDITIONS

t

Power-up Delay VCC above Vpor, to DCP Initial Value

D

Register recall completed, and I
in standby state

EEPROM SPECIFICATION

EEPROM Endurance 1,000,000 Cycles

+55°C 50 Years

t

WC

EEPROM Retention Temperature T <
Non-volatile Write Cycle Time 12 20 ms

(Note 18)

SERIAL INTERFACE SPECIFICATIONS

V

V

Hysteresis

V

OL

Cpin

(Note 19)

f

SCL

t

sp

t

AA

t

BUF

A2, A1, A0, SHDN, SDA, and SCL

IL

Input Buffer LOW Voltage
A2, A1, A0, SHDN, SDA, and SCL

IH

Input Buffer HIGH Voltage
SDA and SCL Input Buffer Hysteresis 0.05*V
SDA Output Buffer LOW Voltage,

Sinking 4mA
A2, A1, A0, SHDN

, SDA, and SCL Pin

Capacitance
SCL Frequency 400 kHz
Pulse Width Suppression Time at SDA

and SCL Inputs
SCL Falling Edge to SDA Output Data

Valid

Time the Bus Must be Free Before the

Start of a New Transmission

Any pulse narrower than the max spec is
suppressed

SCL falling edge crossing 30% of VCC, until
SDA exits the 30% to 70% of V

SDA crossing 70% of VCC during a STOP
condition, to SDA crossing 70% of V
during the following START condition

t

LOW

t

HIGH

t

SU:STA

t

HD:STA

t

SU:DAT

t

HD:DAT

Clock LOW Time Measured at the 30% of VCC crossing 1300 ns
Clock HIGH Time Measured at the 70% of VCC crossing 600 ns
START Condition Setup Time SCL rising edge to SDA falling edge; both

crossing 70% of V

CC

STAR T Condition Hold Time From SDA falling edge crossing 30% of VCC

to SCL falling edge crossing 70% of V

Input Data Setup Time From SDA exiting the 30% to 70% of VCC

window, to SCL rising edge crossing 30% of
V

CC

Input Data Hold Time From SCL rising edge crossing 70% of VCC

to SDA entering the 30% to 70% of V
window

t

SU:STO

STOP Condition Setup Time From SCL rising edge crossing 70% of VCC,

to SDA rising edge crossing 30% of V

t

HD:STO

t

DH

STOP Condition Hold Time for Read,
or Volatile Only Write

Output Data Hold Time From SCL falling edge crossing 30% of VCC,

From SDA rising edge to SCL falling edge;
both crossing 70% of V

CC

until SDA enters the 30% to 70% of V
window

t

t

SDA and SCL Rise Time From 30% to 70% of V

R

SDA and SCL Fall Time From 70% to 30% of V

F

CC

CC

2

C Interface

window

CC

CC

CC

CC

CC

CC

MIN

(Note 20)

-0.3 0.3*V

0.7*V

CC

00.4V

1300 ns

600 ns

600 ns

100 ns

0ns

600 ns

1300 ns

0ns

20 +

0.1*Cb
20 +

0.1*Cb

TYP

(Note 4)

CC

10 pF

MAX

(Note 20) UNIT

3ms

V

V

+ 0.3 V

CC

CC

V

50 ns

900 ns

250 ns

250 ns

5

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Operating Specifications Over the recommended operating conditions, unless otherwise specified. (Continued)

MIN

SYMBOL PARAMETER TEST CONDITIONS

Cb Capacitive Loading of SDA or SCL Total on-chip and off-chip 10 400 pF

Rpu

t

SU:A

t

HD:A

NOTES:

4. Typical values are for T

5. LSB: [V(R
incremental voltage when changing from one tap to an adjacent tap.

6. ZS error = V(RW)

7. FS error = [V(RW)

8. DNL = [V(RW)

9. INL = [V(RW)

10. V

MATCH

11. for i = 16 to 112 decimal, T = -40°C to +125°C. Max( ) is the maximum value of the wiper

TC

12. MI =

13. Roffset = RW
Roffset = RW

14. RDNL = (RW

15. RINL = [RW

16. R

MATCH

17. for i = 16 to 112, T = -40°C to +125°C. Max( ) is the maximum value of the resist ance and Min ( ) is

TC

18. t

WC

write cycle.

19. Limits should be considered typical and are not production tested.

20. Parts are 100% tested at +25°C. Temperature limits established by characterization and are not production tested.

SDA and SCL Bus Pull-up Resistor
Off-chip

A2, A1 and A0 Setup Time Before START condition 600 ns
A2, A1 and A0 Hold Time After STOP condition 600 ns

= +25°C and 3.3V supply voltage.

A

– V(RW)0]/127. V(RW)

W)127

/LSB.

0

– VCC]/LSB.

127

– V(RW)

i

– i • LSB – V(RW)0]/LSB for i = 1 to 127.

i

= [V(RWx)i – V(RWy)i]/LSB, for i = 1 to 127, x = 0 to 3 and y = 0 to 3.

Max V RW()

()Min V RW()

----------------------------------------------------------------------------------------------

V

|RW

R

is the time from a valid STOP condition at the end of a Write sequence of I2C serial interface, to the end of the self-timed internal non-volatile

()Min V RW()

Max V RW()

– RW

127

/MI, when measuring between RW and RL.

0

/MI, when measuring between RW and RH.

127

– RW

i

– (MI • i) – RW0]/MI, for i = 16 to 127.

i

= (RW

--------------------------------------------------------------- -

– RW

i,x

Max Ri()Min Ri()–[]

Max R i()Min Ri()+[]2⁄

]/LSB-1, for i = 1 to 127. i is the DCP register setting.

i-1

i

()+[]2⁄

i

|/127. RW

0

i-1

127

)/MI - 1, for i = 16 to 127.

)/MI, for i = 1 to 127, x = 0 to 3 and y = 0 to 3.

i,y

127

()–

i

i

and RW0 are the measured resistances for the DCP register set to 7F hex and 00 hex respectively.

6

10

-------------------- -

×=

+165°C

Maximum is determined by tR and t
For Cb = 400pF, max is about 2kΩ~2.5kΩ
For Cb = 40pF, max is about 15kΩ~20kΩ

and V(RW)0 are V(RW) for the DCP register set to 7F hex and 00 hex respectively. LSB is the

6

10

-------------------- -

×=

+165°C

voltage and Min ( ) is the minimum value of the wiper voltage over the temperature range.

the minimum value of the resistance over the temperature range.

F

(Note 20)

1kΩ

TYP

(Note 4)

MAX

(Note 20) UNIT

6

FN6177.1

February 29, 2008

SDA vs SCL Timing

www.BDTIC.com/Intersil

ISL22346

t

t

F

t

HIGH

t

LOW

t

R

sp

SCL

t

SU:STA

(INPUT TIMING)

(OUTPUT TIMING)

SDA

SDA

A0, A1, and A2 Pin Timing

SCL

SDA

A0, A1, OR A2

t

HD:STA

START

t

SU:DAT

t

SU:A

CLK 1

t

HD:DAT

t

SU:STO

t

t

DH

AA

STOP

t

HD:A

t

BUF

Typical Performance Curves

100

VCC = 3.3V, T = +125°C

90
80
70
60
50
40
30

VCC = 3.3V, T = +20°C

20

WIPER RESISITANCE (Ω)

10

0

020406080100120

TAP POSITI ON (DECIMAL)

FIGURE 1. WIPER RESISTANCE vs T AP POSITION

[ I(RW) = V

CC/RTOTAL

] FOR 10kΩ (W)

= 3.3V, T = -40°C

V

CC

1.4

1.2

1.0

0.8

(µA)

0.6

SB

I

0.4

0.2

0

2.7 3.2 3.7 4.2 4.7 5.2

T = +125°C

T = +25°C

V

CC

FIGURE 2. STANDBY I

(V)

CC

vs V

CC

7

FN6177.1

February 29, 2008

Typical Performance Curves (Continued)

www.BDTIC.com/Intersil

0.2
T = +25°C

VCC = 2.7V

0.1

ISL22346

0.2

0.1

T = +25°C

VCC = 2.7V

0

DNL (LSB)

-0.1

VCC = 5.5V

-0.2
0 20406080100120

TAP POSITION (DECIMAL)

FIGURE 3. DNL vs TAP POSITION IN VOL TAGE DIVIDER

MODE FOR 10kΩ (W)

1.3

1.1

0.9

0.7

(LSB)

0.5

ERROR

0.3

ZS

0.1

-0.1

-0.3

-40 -20 0 20 40 60 80 100 120

FIGURE 5. ZS

10k

VCC = 5.5V

VCC = 2.7V

50k

TEMPERATURE (°C)

vs TEMPERATURE FIGURE 6. FS

ERROR

0

INL (LSB)

-0.1

VCC = 5.5V

-0.2
0 20 40 60 80 100 120

TAP POSITION (DECIMAL)

FIGURE 4. INL vs TAP POSITION IN VOLTAGE DIVIDER

MODE FOR 10kΩ (W)

0.0

-0.3

VCC = 2.7V

-0.6

(LSB)

-0.9

ERROR

ZS

-1.2

-1.5

-40 -20 0 20 40 60 80 100 120

ERROR

50k

10k

TEMPERATURE (ºC)

vs TEMPERATURE

VCC = 5.5V

0.4

0.2

0

-0.2

DNL (LSB)

-0.4
VCC = 2.7V

-0.6

16 36 56 76 96 116

VCC = 5.5V

TAP POSITION (DECIMAL)

T = +25°C

FIGURE 7. DNL vs TAP POSITION IN RHEOSTAT MODE FOR

0.4

0.2

0

-0.2

INL (LSB)

-0.4

-0.6
16 36 56 76 96 116

FIGURE 8. INL vs TAP POSITION IN RHEOST AT MODE FOR

10kΩ (W)

8

10kΩ (W)

VCC = 5.5V

VCC = 2.7V

TAP POSITI ON (DECIMAL)

T = +25°C

FN6177.1

February 29, 2008

Typical Performance Curves (Continued)

www.BDTIC.com/Intersil

1.0

0.5

CHANGE (%)

0.0

VCC = 5.5V

TOTAL

-0.5

END TO END R

-1.0

-40 -20 0 20 40 60 80 100 120

FIGURE 9. END TO END R

TEMPERATURE

VCC = 2.7V

10k

TEMPERATURE (ºC)

TOTAL

50k

% CHANGE vs

ISL22346

105

90

75

60

45

TCv (ppm/°C)

50k

30

15

0

16 36 56 76 96

10k

TAP POSITION (DECIMAL)

FIGURE 10. TC FOR VOLTAGE DIVIDER MODE IN ppm

OUTPUT

300

250

200

150

TCr (ppm/°C)

100

50

0

16 36 56 76 96

50k

TAP POSITION (DECIMAL)

10k

INPUT

WIPER AT MID POINT (POSITION 40h)
R

= 9.5kΩ

TOTAL

FIGURE 11. TC FOR RHEOSTAT MODE IN ppm FIGURE 12. FREQUENCY RESPONSE (2.6MHz)

SCL

SIGNAL AT WIPER
(WIPER UNLOADED)

WIPER MID POINT MOVEMENT
FROM 3Fh TO 40h

FIGURE 13. MIDSCALE GLITCH, CODE 3Fh TO 40h FIGURE 14. LARGE SIGNAL SETTLING TIME

9

SIGNAL AT WIPER
(WIPER UNLOADED MOVEMENT
FROM 7Fh TO 00h)

February 29, 2008

FN6177.1

ISL22346

www.BDTIC.com/Intersil

Pin Descriptions

Potentiometers Pins

RHI AND RLI (i = 0, 1, 2 OR 3)

The high (RHi) and low (RLi) terminals of the ISL22346 are
equivalent to the fixed terminals of a mechanical
potentiometer. RHi and RLi are referenced to the relative
position of the wiper and not the voltage potential on the
terminals. With WRi set to 127 decimal, the wiper will be
closest to RHi, and with the WRi set to 0, the wiper is closest
to RLi.

RWI (i = 0, 1, 2 OR 3)

RWi is the wiper terminal and is equivalent to the movable
terminal of a mechanical potentiometer. The position of the
wiper within the array is determined by the WRi register.

SHDN

The SHDN pin forces the resistor to end-to-end open circuit
condition on RHi and shorts RWi to RLi. When SHDN
returned to logic high, the previous latch settings put RWi at
the same resistance setting prior to shutdown. This pin is
logically OR’d with SHDN bit in ACR register. I
still available in shutdown mode and all registers are
accessible. This pin must remain HIGH for normal operation.

RH

RW

RL

FIGURE 15. DCP CONNECTION IN SHUTDOWN MODE

2

Bus Interface Pins

SERIAL DATA INPUT/OUTPUT (SDA)

The SDA is a bidirectional serial data input/output pin for I
interface. It receives device address, operation code, wiper
address and data from an I
rising edge of the serial clock SCL, and it shifts out data after
each falling edge of the serial clock.

SDA requires an external pull-up resistor, since it is an open
drain input/output.

SERIAL CLOCK (SCL)

This is the serial clock input of the I
requires an external pull-up resistor, since it is an open drain
input.

DEVICE ADDRESS (A2 - A0)

The address inputs are used to set the least significant 3 bits
of the 7-bit I
address serial data stream must match with the Address

2

C interface slave address. A match in the slave

2

C external master device at the

2

C serial interface. SCL

is

C interface is

2

C

input pins in order to initiate communication with the
ISL22346. A maximum of 8 ISL22346 devices may occupy

2

the I

C serial bus.

Principles of Operation

The ISL22346 is an integrated circuit incorporating four
DCPs with their associated registers, non-volatile memory
and an I
between a host and the potentiometers and memory. The
resistor arrays are comprised of individual resistors
connected in series. At either end of the array and between
each resistor is an electronic switch that transfers the
potential at that point to the wiper.

The electronic switches on the device operate in a “make
before break” mode when the wiper changes tap positions.

When the device is powered down, the last value stored in
IVRi will be maintained in the non-volatile memory. When
power is restored, the contents of the IVRi are recalled and
loaded into the corresponding WRi to set the wipers to the
initial value.

DCP Description

Each DCP is implemented with a combination of resistor
elements and CMOS switches. The physical ends of each
DCP are equivalent to the fixed terminals of a mechanical
potentiometer (RH and RL pins). The RW pin of each DCP is
connected to intermediate nodes, and is equivalent to the
wiper terminal of a mechanical potentiometer. The position
of the wiper terminal within the DCP is controlled by volatile
Wiper Register (WR). Each DCP has its own WR. When the
WR of a DCP contains all zeroes (WR[6:0]= 00h), its wiper
terminal (RW) is closest to its “Low” terminal (RL). When the
WR register of a DCP contains all ones (WR[6:0]= 7Fh), its
wiper terminal (RW) is closest to its “High” terminal (RH). As
the value of the WR increases from all zeroes (0) to all ones
(127 decimal), the wiper moves monotonically from the
position closest to RL to the closest to RH. At the same time,
the resistance between RW and RL increases monotonically,
while the resistance between RH and RW decreases
monotonically.

While the ISL22346 is being powered up, all four WRs are
reset to 40h (64 decimal), which locates RW roughly at the
center between RL and RH. After the power supply voltage
becomes large enough for reliable non-volatile memory
reading, all WRs will be reload with the value stored in
corresponding non-volatile Initial Value Registers (IVRs).

The WRs can be read or written to directly using the I
serial interface as described in the following sections. The
I
03h to access the WR of DCP0, DCP1, DCP2 or DCP3
respectively.

2

C serial interface providing direct communication

2

C

2

C interface Address Byte has to be set to 00h, 01h, 02h or

10

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Memory Description

The ISL22346 contains seven non-volatile and five volatile
8-bit registers. The memory map of ISL22346 is on Table 1.
The four non-volatile registers (IVRi) at address 0, 1, 2 and 3
contain initial wiper value and volatile registers (WRi) contain
current wiper position. In addition, three non-volatile General
Purpose registers from address 4 to address 6 are available.

TABLE 1. MEMORY MAP

ADDRESS NON-VOLATILE VOLATILE

8— ACR
7 Reserved
6

5
4

3
2
1
0

General Purpose
General Purpose
General Purpose

IVR3
IVR2
IVR1
IVR0

Not Available
Not Available
Not Available

WR3
WR2
WR1
WR0

The non-volatile IVRi and volatile WRi registers are
accessible with the same address.

The Access Control Register (ACR) contains information
and control bits described in Table 2. The VOL bit at access
control register (ACR[7]) determines whether the access is
to wiper registers WRi or initial value registers IVRi.

TABLE 2. ACCESS CONTROL REGISTER (ACR)

VOL SHDN WIP

00000

If VOL bit is 0, the non-v ola tile IVRi regi ster s a re ac cess ib le.
If VOL bit is 1, only the volatile WRi are accessible. Note,
value is written to IVRi register also is written to the
corresponding WRi. The default value of this bit is 0.

The SHDN bit (ACR[6]) disables or enables Shutdown
mode. This bit is logically OR’d with SHDN

pin. When this bit
is 0, all DCPs are in Shutdown mode. Default value of SHDN
bit is 1.

The WIP bit (ACR[5]) is read only bit. It indicates that
non-volatile write operation is in progress. It is impossible to
write to the WRi or ACR while WIP bit is 1.

I2C Serial Interface

The ISL22346 supports an I2C bidirectional bus oriented
protocol. The protocol defines any device that sends data
onto the bus as a transmitter and the receiving device as the
receiver. The device controlling the transfer is a master and
the device being controlled is the slave. The master always
initiates data transfers and provides the clock for both
transmit and receive operations. Therefore, the ISL22346
operates as a slave device in all applications.

All communication over the I
sending the MSB of each byte of data first.

2

C interface is conducted by

Protocol Conventions

Data states on the SDA line must change only during SCL
LOW periods. SDA state changes during SCL HIGH are
reserved for indicating START and STOP conditions (see
Figure 16). On power-up of the ISL22346, the SDA pin is in
the input mode.

2

All I

C interface operations must begin with a START
condition, which is a HIGH to LOW transition of SDA while
SCL is HIGH. The ISL22346 continuously monitors the SDA
and SCL lines for the START condition and does not
respond to any command until this condition is met (see
Figure 16). A START condition is ignored during the
power-up of the device.

2

All I

C interface operations must be terminated by a STOP
condition, which is a LOW to HIGH transition of SDA while
SCL is HIGH (see Figure 16). A STOP condition at the end
of a read operation, or at the end of a write operation places
the device in its standby mode.

An ACK, Acknowledge, is a software convention used to
indicate a successful data transfer. The transmitting device,
either master or slave, releases the SDA bus after
transmitting eight bits. During the ninth clock cycle, the
receiver pulls the SDA line LOW to acknowledge the
reception of the eight bits of data (see Figure 17).

The ISL22346 responds with an ACK after recognition of a
START condition followed by a valid Identification Byte, and
once again after successful receipt of an Address Byte. The
ISL22346 also responds with an ACK after receiving a Data
Byte of a write operation. The master must respond with an
ACK after receiving a Data Byte of a read operation.

A valid Identification Byte contains 1010 as the four MSBs,
and the following three bits matching the logic values
present at pins A2, A1, and A0. The LSB is the Read/Write
bit. Its value is “1” for a Read operation, and “0” for a Write
operation (see Tab le 3).

TABLE 3. IDENTIFICATION BYTE FORMAT

Logic values at pins A2, A1, and A0 respectively

1010A2A1A0R/W

(MSB) (LSB)

11

FN6177.1

February 29, 2008

SCL

www.BDTIC.com/Intersil

SDA

ISL22346

SCL FROM

MASTER

SDA OUTPUT FROM

TRANSMITTER

SDA OUTPUT FROM

RECEIVER

SIGNALS FROM

START DATA DATA STOP

STABLE CHANGE

DATA

STABLE

FIGURE 16. VALID DATA CHANGES, START AND STOP CONDITIONS

81 9

HIGH IMPEDANCE

START ACK

FIGURE 17. ACKNOWLEDGE RESPONSE FROM RECEIVER

WRITE

S

THE MASTER

T

A

IDENTIFICATION

R

T

BYTE

ADDRESS

BYTE

DATA
BYTE

HIGH IMPEDANCE

S
T
O
P

SIGNALS

FROM THE

MASTER

SIGNAL AT SDA

SIGNALS FROM

THE SLAVE

SIGNAL AT SDA

SIGNALS FROM

S
T
A

IDENTIFICATION

R

BYTE WITH

T

R/W

10100

10100

THE SLAVE

FIGURE 18. BYTE WRITE SEQUENCE

S
T
A

ADDRESS

= 0

A0A1A2 A0A1A2

A
C
K

BYTE

0000

R
T

A
C
K

FIGURE 19. READ SEQUENCE

12

0000A0A1A2 0

A
C
K

IDENTIFICATION

BYTE WITH

R/W

= 1

11100

A
C
K

A
C
K

FIRST READ

DATA BYTE

A
C
K

A

A

C

C

K

K

LAST READ
DATA BYTE

February 29, 2008

S
T

A

O

C

P

K

FN6177.1

ISL22346

www.BDTIC.com/Intersil

Write Operation

A Write operation requires a START condition, followed by a
valid Identification Byte, a valid Address Byte, a Data Byte,
and a STOP condition. After each of the three bytes, the
ISL22346 responds with an ACK. At this time, the device
enters its standby state (see Figure 18). Device can receive
more than one byte of data by auto incrementing the
address after each received byte. Note after reaching the
address 08h, the internal pointer “rolls over” to address 00h.
The non-volatile write cycle starts after STOP condition is
determined and it requires up to 20ms delay for the next
non-volatile write. Thus, non-volatile registers must be
written individually.

Read Operation

A Read operation consist of a three byte instruction followed
by one or more Data Bytes (See Figure 19). The master
initiates the operation issuing the following sequence: a
START, the Identification byte with the R/W
Address Byte, a second START, and a second Identification
byte with the R/W
the ISL22346 responds with an ACK. Then the ISL22346
transmits Data Bytes as long as the master responds with an
ACK during the SCL cycle following the eighth bit of each
byte. The master terminates the read operation (issuing a
ACK

and a STOP condition) following the last bit of the last

Data Byte (see Figure 19).
The Data Bytes are from the registers indicated by an

internal pointer. This pointer initial value is determined by the
Address Byte in the Read operation instruction, and
increments by one during transmission of each Data Byte.
After reaching the memory location 08h, the pointer “rolls
over” to 00h, and the device continues to output data for
each ACK received.

In order to read back the non-volatile IVR, it is recommended
that the application reads the ACR first to verify the WIP bit
is 0. If the WIP bit (ACR[5]) is not 0, the host should repeat
its reading sequence again.

bit set to “1”. After each of the three bytes,

bit set to “0”, an

13

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Thin Micro Lead FramePlastic Package
(TMLFP)

L20.4x4A

20 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
(COMPLIANT TO JEDEC MO-220WGGD-1 ISSUE I)

MILLIMETERS

SYMBOL

A 0.70 0.75 0.80 -

A1 - 0.02 0.05 -

A2 - 0.55 0.80 9

A3 0.20 REF 9

b 0.18 0.25 0.30 5, 8

D 4.00 BSC -

D1 3.75 BSC 9

D2 1.95 2.10 2.25 7, 8

E 4.00 BSC -

E1 3.75 BSC 9

E2 1.95 2.10 2.25 7, 8

e 0.50 BSC -

k0.20 - - -

L 0.35 0.60 0.75 8

N202

Nd 5 3

Ne 5 3

P- -0.609

θ --129

NOTES:

1. Dimensioning and tolerancing conform to ASME Y14.5-1994.

2. N is the number of terminals.

3. Nd and Ne refer to the number of terminals on each D and E.

4. All dimensions are in millimeters. Angles are in degrees.

5. Dimension b applies to the metallized terminal and is measured
between 0.15mm and 0.30mm from the terminal tip.

6. The configuration of the pin #1 identifier is optional, but must be
located within the zone indicated. The pin #1 identifier may be
either a mold or mark feature.

7. Dimensions D2 and E2 are for the exposed pads which provide
improved electrical and thermal performance.

8. Nominal dimensions are provided to assist with PCB Land Pattern
Design efforts, see Intersil Technical Brief TB389.

9. Features and dimensions A2, A3, D1, E1, P & θ are present when
Anvil singulation method is used and not present for saw
singulation.

NOTESMIN NOMINAL MAX

Rev. 0 11/04

14

FN6177.1

February 29, 2008

ISL22346

www.BDTIC.com/Intersil

Thin Shrink Small Outline Plastic Packages (TSSOP)

N

INDEX
AREA

123

0.05(0.002)

-A­D

e

b

0.10(0.004) C AM BS

NOTES:

1. These package dimensions are within allowable dimensions of
JEDEC MO-153-AC, Issue E.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs.
Mold flash, protrusion and gate burrs shall not exceed 0.15mm
(0.006 inch) per side.

4. Dimension “E1” does not include interlead flash or protrusions. Inter­lead flash and protrusions shall not exceed 0.15mm (0.006 inch) per
side.

5. The chamfer on the body is optional. If it is not present, a visual index
feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. Dimension “b” does not include dambar protrusion. Allowable dambar

protrusion shall be 0.08mm (0.003 inch) total in excess of “b” dimen­sion at maximum material condition. Minimum space between protru­sion and adjacent lead is 0.07mm (0.0027 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions
are not necessarily exact. (Angles in degrees)

E1

-B-

SEATING PLANE

A

-C-

M

0.25(0.010) BM M

E

α

A1

0.10(0.004)

GAUGE

PLANE

0.25

0.010

A2

L

c

M20.173

20 LEAD THIN SHRINK SMALL OUTLINE PLASTIC
PACKAGE

INCHES MILLIMETERS

SYMBOL

A - 0.047 - 1.20 -

A1 0.002 0.006 0.05 0.15 -

A2 0.031 0.051 0.80 1.05 -

b 0.0075 0.0118 0.19 0.30 9

c 0.0035 0.0079 0.09 0.20 -

D 0.252 0.260 6.40 6.60 3

E1 0.169 0.177 4.30 4.50 4

e 0.026 BSC 0.65 BSC -

E 0.246 0.256 6.25 6.50 -

L 0.0177 0.0295 0.45 0.75 6

N20 207

o

α

0

o

8

o

0

o

8

Rev. 1 6/98

NOTESMIN MAX MIN MAX

-

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implic atio n or other wise u nde r any p a tent or patent rights of Intersil or it s sub sidi ari es.

For information regarding Intersil Corporation and its products, see www.intersil.com

15

FN6177.1

February 29, 2008
