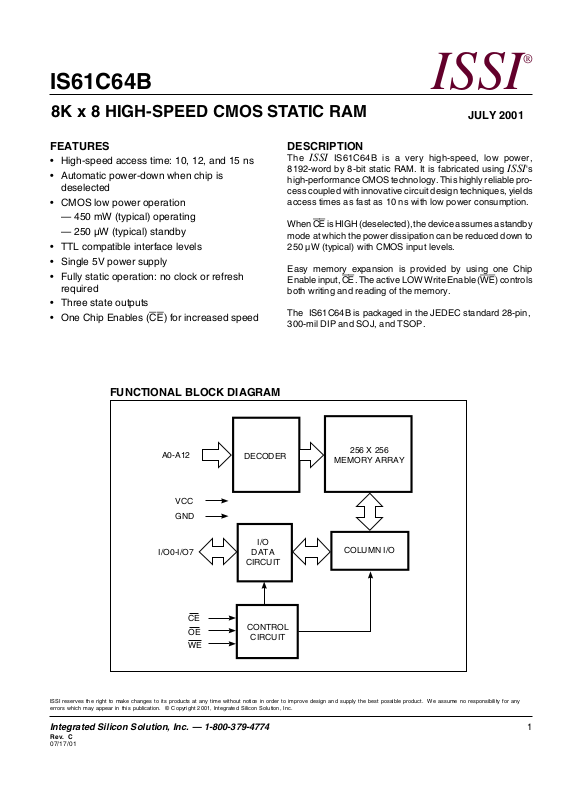

IS61C64B ISSI
®
Integrated Silicon Solution, Inc. — 1-800-379-4774
1
Rev. C
07/17/01
ISSI reserves the right to make changes to its products at any time without notice in order to improve design and supply the best possible product. We assume no responsibility for any
errors which may appear in this publication. © Copyright 2001, Integrated Silicon Solution, Inc.
FEATURES
• High-speed access time: 10, 12, and 15 ns
• Automatic power-down when chip is
deselected
• CMOS low power operation
— 450 mW (typical) operating
— 250 µW (typical) standby
• TTL compatible interface levels
• Single 5V power supply
• Fully static operation: no clock or refresh
required
• Three state outputs
• One Chip Enables (CE) for increased speed
8K x 8 HIGH-SPEED CMOS STATIC RAM
DESCRIPTION
The ISSI IS61C64B is a very high-speed, low power,
8192-word by 8-bit static RAM. It is fabricated using ISSI's
high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields
access times as fast as 10 ns with low power consumption.
When CE is HIGH (deselected), the device assumes a standby
mode at which the power dissipation can be reduced down to
250 µW (typical) with CMOS input levels.
Easy memory expansion is provided by using one Chip
Enable input, CE. The active LOW Write Enable (WE) controls
both writing and reading of the memory.
The IS61C64B is packaged in the JEDEC standard 28-pin,
300-mil DIP and SOJ, and TSOP.
FUNCTIONAL BLOCK DIAGRAM
A0-A12
CE
OE
WE
256 X 256
MEMORY ARRAY
DECODER
COLUMN I/O
CONTROL
CIRCUIT
GND
VCC
I/O
DATA
CIRCUIT
I/O0-I/O7
JULY 2001
Page 2
IS61C64B ISSI
®
2
Integrated Silicon Solution, Inc. — 1-800-379-4774
Rev. C
07/17/01
PIN CONFIGURATION
28-Pin DIP and SOJ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
NC
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O0
I/O1
I/O2
GND
VCC
WE
*
A8
A9
A11
OE
A10
CE
I/O7
I/O6
I/O5
I/O4
I/O3
PIN DESCRIPTIONS
A0-A12 Address Inputs
CE Chip Enable 1 Input
OE Output Enable Input
WE Write Enable Input
I/O0-I/O7 Input/Output
* Must be tied to either
Vcc or GND
Vcc Power
GND Ground
TRUTH TABLE
Mode WE CE OE I/O Operation Vcc Current
Not Selected X H X High-Z ISB1, ISB2
(Power-down) X X X High-Z ISB1, ISB2
Output Disabled H L H High-Z ICC
Read H L L DOUT ICC
Write L L X DIN ICC
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol Parameter Value Unit
VTERM Terminal Voltage with Respect to GND –0.5 to +7.0 V
TBIAS Temperature Under Bias –10 to +85 °C
TSTG Storage Temperature –65 to +150 °C
PT Power Dissipation 1.0 W
IOUT DC Output Current (LOW) 20 mA
Notes:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation of the
device at these or any other conditions above those indicated in the operational sections of
this specification is not implied. Exposure to absolute maximum rating conditions for extended
periods may affect reliability.
22
23
24
25
26
27
28
1
2
3
4
5
6
7
21
20
19
18
17
16
15
14
13
12
11
10
9
8
OE
A11
A9
A8
*
WE
VCC
NC
A12
A7
A6
A5
A4
A3
A10
CE
I/O7
I/O6
I/O5
I/O4
I/O3
GND
I/O2
I/O1
I/O0
A0
A1
A2
PIN CONFIGURATION
28-Pin TSOP (Type 1)
OPERATING RANGE
Range Ambient Temperature Speed VCC
Commercial 0°C to +70°C 10 ns 5V ± 5%
12 ns 5V ± 10%
15 ns 5V ± 10%
Page 3
1
2
3
4
5
6
7
8
9
10
11
12
IS61C64B ISSI
®
Integrated Silicon Solution, Inc. — 1-800-379-4774
3
Rev. C
07/17/01
DC ELECTRICAL CHARACTERISTICS (Over Operating Range)
Symbol Parameter Test Conditions Min. Max. Unit
VOH Output HIGH Voltage VCC = Min., IOH = –4.0 mA 2.4 — V
VOL Output LOW Voltage VCC = Min., IOL = 8.0 mA — 0.4 V
VIH Input HIGH Voltage 2.2 VCC + 0.5 V
VIL Input LOW Voltage
(1)
–0.5 0.8 V
ILI Input Leakage GND - VIN - VCC –22µA
ILO Output Leakage GND - VOUT - VCC, Outputs Disabled –22µA
Notes:
1. VIL = –3.0V for pulse width less than 10 ns.
POWER SUPPLY CHARACTERISTICS
(1)
(Over Operating Range)
-10 ns -12 ns -15 ns
Symbol Parameter Test Conditions Min. Max. Min. Max. Min. Max. Unit
ICC Vcc Dynamic Operating VCC = Max., — 185 — 175 — 135 mA
Supply Current IOUT = 0 mA, f = fMAX
ISB1 TTL Standby Current VCC = Max., — 30 — 30 — 30 mA
(TTL Inputs) VIN = VIH or VIL
CE1 • VIH or
CE2 - VIL, f = 0
ISB2 CMOS Standby VCC = Max., — 10 — 10 — 10 mA
Current (CMOS Inputs) CE1 • VCC – 0.2V,
CE2 - 0.2V,
VIN • VCC – 0.2V, or
VIN - 0.2V, f = 0
Notes:
1. At f = f
MAX, address and data inputs are cycling at the maximum frequency, f = 0 means no input lines change.
CAPACITANCE
(1,2)
Symbol Parameter Conditions Max. Unit
CIN Input Capacitance VIN = 0V 8 pF
COUT Output Capacitance VOUT = 0V 10 pF
Notes:
1. Tested initially and after any design or process changes that may affect these parameters.
2. Test conditions: T
A = 25°C, f = 1 MHz, Vcc = 5.0V.
Page 4
IS61C64B ISSI
®
4
Integrated Silicon Solution, Inc. — 1-800-379-4774
Rev. C
07/17/01

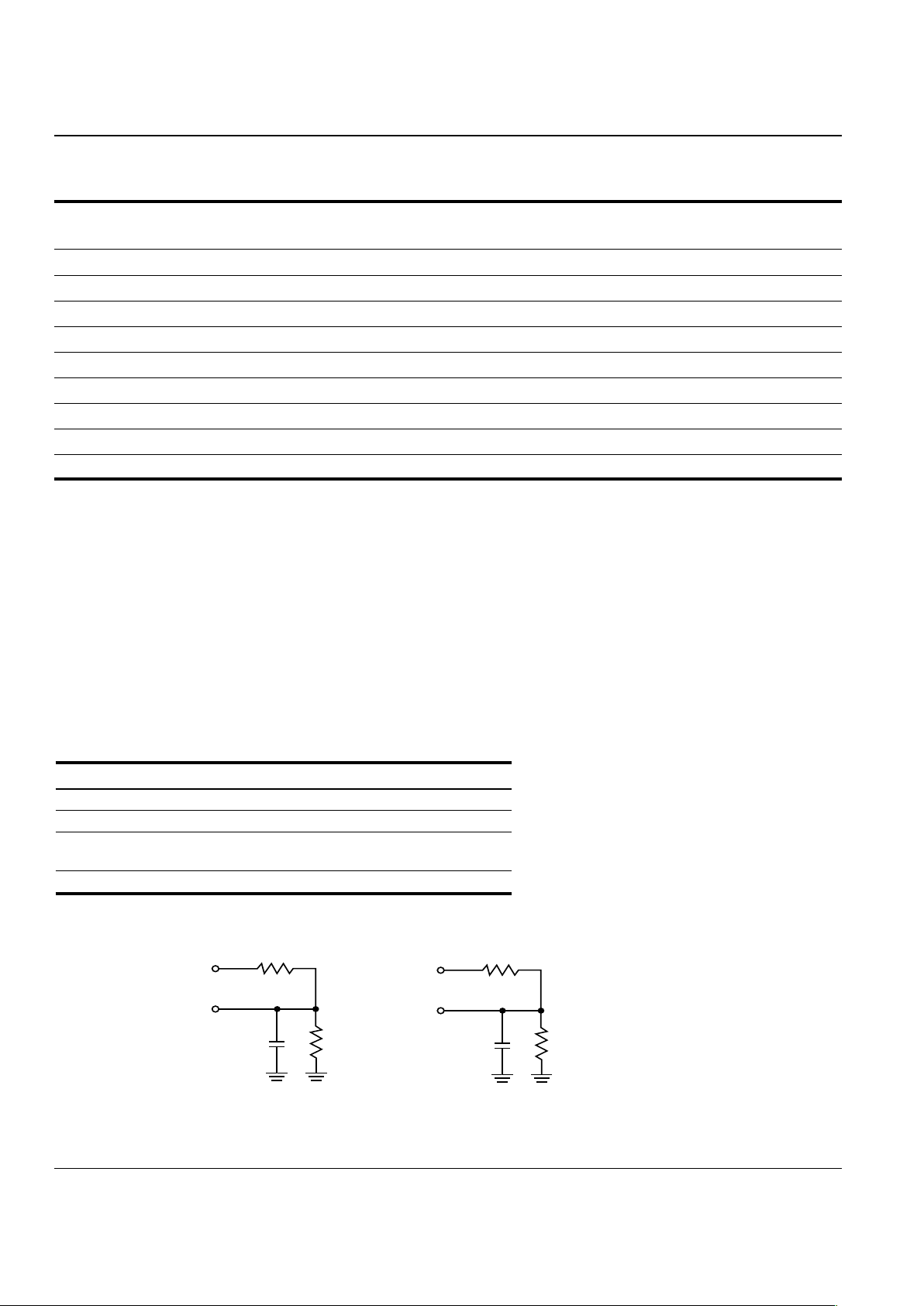

READ CYCLE SWITCHING CHARACTERISTICS
(1)
(Over Operating Range)
–10 ns -12 ns -15 ns
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit
tRC Read Cycle Time 10 — 12 — 15 — ns
tAA Address Access Time — 10 — 12 — 15 ns
tOHA Output Hold Time 2 — 2 — 2 — ns
tACE CE Access Time — 10 — 12 — 15 ns
tDOE OE Access Time — 5 — 6 — 7ns
tLZOE
(2)
OE to Low-Z Output 0 — 0 — 0 — ns
tHZOE
(2)
OE to High-Z Output — 5 — 6 — 6ns
tLZCE1
(2)
CE to Low-Z Output 2 — 3 — 3 — ns
tHZCE
(2)
CE to High-Z Output — 5 — 7 — 8ns
Notes:
1. Test conditions assume signal transition times of 5 ns or less, timing reference levels of 1.5V, input pulse levels of 0 to 3.0V and
output loading specified in Figure 1a.
2. Tested with the load in Figure 1b. Transition is measured ±500 mV from steady-state voltage. Not 100% tested.
AC TEST CONDITIONS
Parameter Unit
Input Pulse Level 0V to 3.0V
Input Rise and Fall Times 3 ns
Input and Output Timing 1.5V
and Reference Level
Output Load See Figures 1a and 1b
AC TEST LOADS
Figure 1a. Figure 1b.
480 Ω
30 pF
Including
jig and
scope
255 Ω
OUTPUT
5V
480 Ω
5 pF
Including
jig and
scope
255 Ω
OUTPUT
5V
Page 5
1
2
3
4
5
6
7
8
9
10
11
12
IS61C64B ISSI
®
Integrated Silicon Solution, Inc. — 1-800-379-4774
5
Rev. C
07/17/01
DATA VALID
PREVIOUS DATA VALID
t
AA
t
OHA
t
OHA
t
RC
D
OUT
ADDRESS
t
RC
t
OHA
t
AA
t
DOE
t
LZOE
t
ACE
t
LZCE
t
HZOE
HIGH-Z
DATA VALID
t
HZCE
ADDRESS
OE
CE
D
OUT
Notes:
1. WE is HIGH for a Read Cycle.
2. The device is continuously selected. OE, CE = V
IL.
3. Address is valid prior to or coincident with CE LOW transitions.

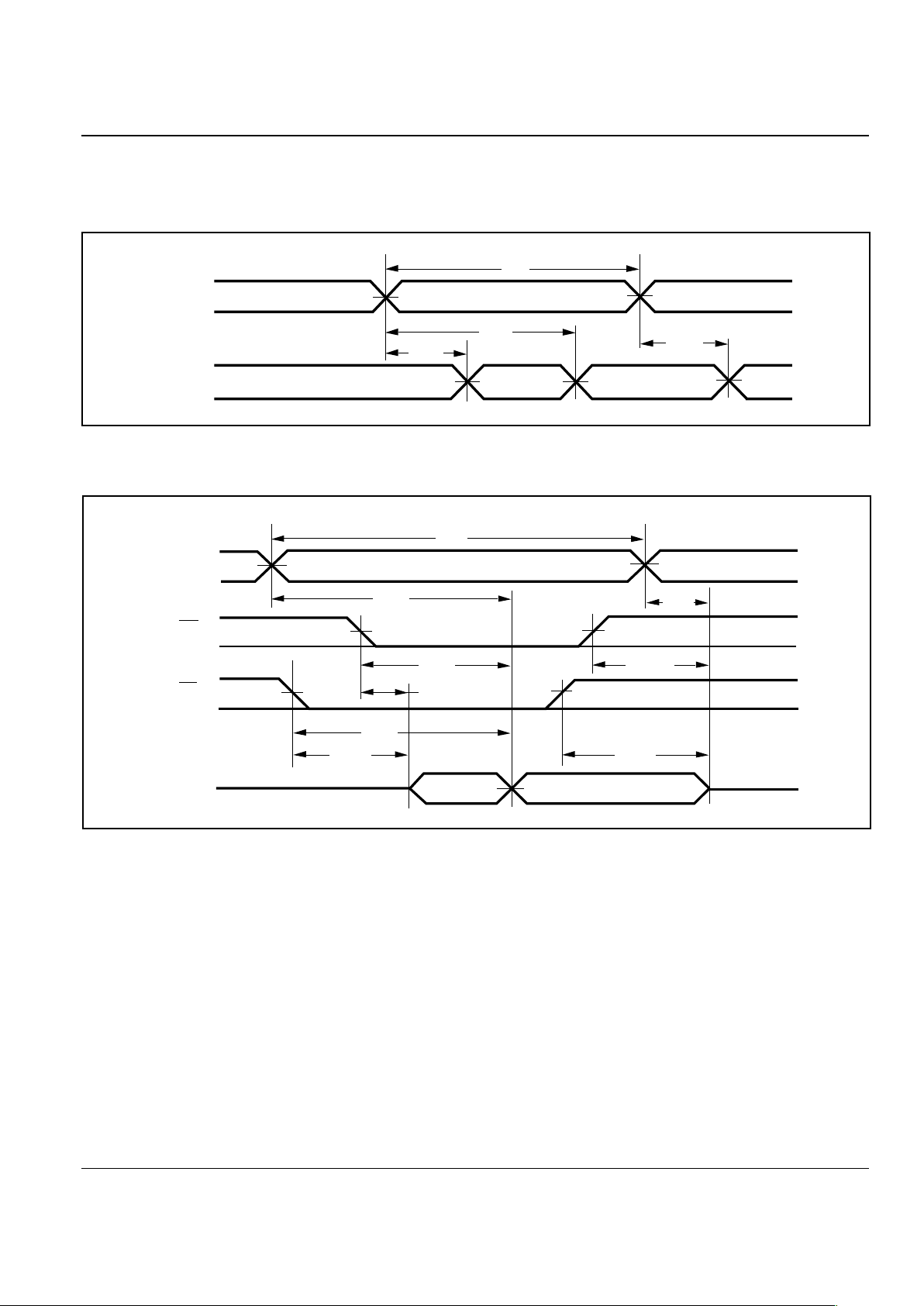

READ CYCLE NO. 2
(1,3)
AC WAVEFORMS
READ CYCLE NO. 1
(1,2)
Page 6
IS61C64B ISSI
®
6
Integrated Silicon Solution, Inc. — 1-800-379-4774
Rev. C
07/17/01

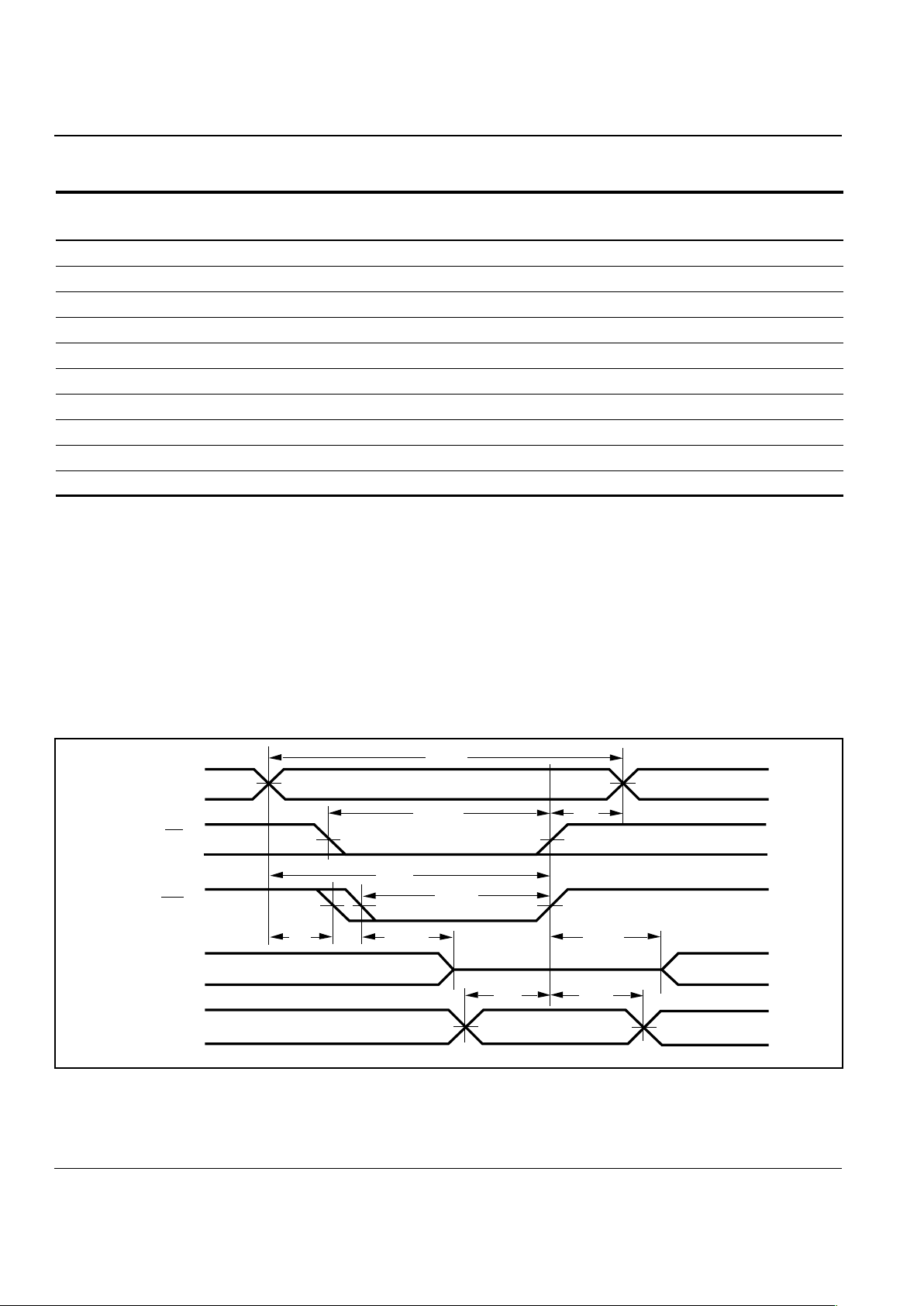

WRITE CYCLE SWITCHING CHARACTERISTICS
(1,3)
(Over Operating Range)
–10 ns -12 ns -15 ns
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit
tWC Write Cycle Time 10 — 12 — 15 — ns
tSCE CE to Write End 9 — 10 — 12 — ns
tAW Address Setup Time to Write End 9 — 10 — 12 — ns
tHA Address Hold from Write End 0 — 0 — 0 — ns
tSA Address Setup Time 0 — 0 — 0 — ns
tPWE
(4)
WE Pulse Width 8 — 8 — 10 — ns
tSD Data Setup to Write End 8 — 8 — 9 — ns
tHD Data Hold from Write End 0 — 0 — 0 — ns
tHZWE
(2)
WE LOW to High-Z Output — 6 — 6 — 7ns
tLZWE
(2)
WE HIGH to Low-Z Output 0 — 0 — 0 — ns
Notes:
1. Test conditions assume signal transition times of 5 ns or less, timing reference levels of 1.5V, input pulse levels of 0 to 3.0V and
output loading specified in Figure 1a.
2. Tested with the load in Figure 1b. Transition is measured ±500 mV from steady-state voltage. Not 100% tested.
3. The internal write time is defined by the overlap of CE LOW and WE LOW. All signals must be in valid states to initiate a Write,
but any one can go inactive to terminate the Write. The Data Input Setup and Hold timing are referenced to the rising or falling
edge of the signal that terminates the write.
AC WAVEFORMS
WRITE CYCLE NO. 1 (WE Controlled)
(1,2)
DATA-IN VALID
DATA UNDEFINED
t
WC
t
SCE
t
AW
t
HA
t
PWE
t
HZWE
HIGH-Z
t
LZWE
t
SA
t
SD
t
HD
ADDRESS
CE
WE
D
OUT
D
IN
Page 7
1
2
3
4
5
6
7
8
9
10
11
12
IS61C64B ISSI
®
Integrated Silicon Solution, Inc. — 1-800-379-4774
7
Rev. C
07/17/01

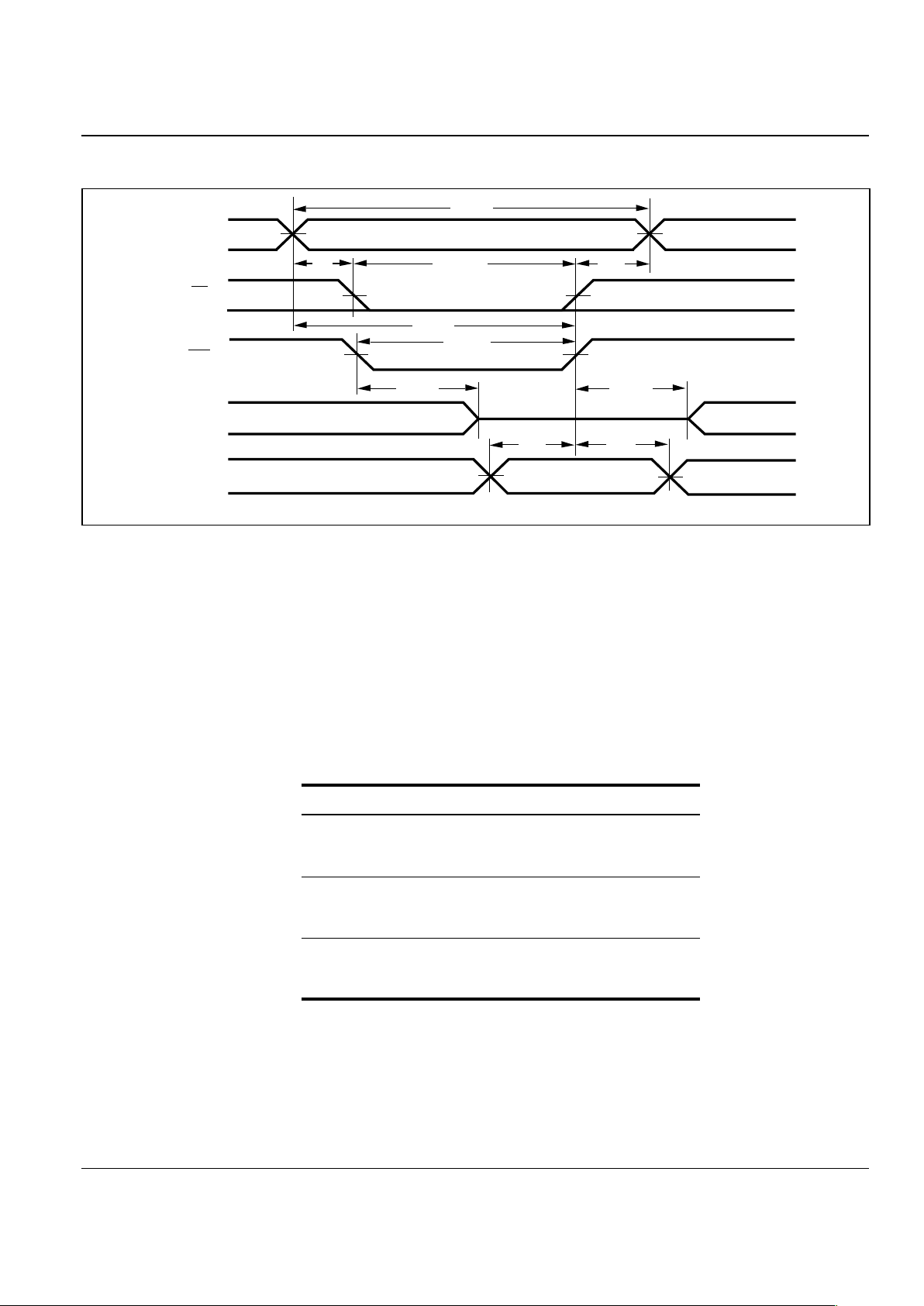

WRITE CYCLE NO. 2 (CE1, CE2 Controlled)
(1,2)
HIGH-Z
DATA UNDEFINED
DATA-IN VALID
t
WC
t
SCE
t
SA
t
HA
t
PWE
t
AW
t
HZWE
t
SD
t
HD
t
LZWE
ADDRESS
D
IN
CE
WE
D
OUT
Notes:
1. The internal write time is defined by the overlap of CE LOW and WE LOW. All signals must be in valid states to initiate a Write,
but any one can go inactive to terminate the Write. The Data Input Setup and Hold timing are referenced to the rising or falling
edge of the signal that terminates the write.
2. I/O will assume the High-Z state if OE = V
IH.
ORDERING INFORMATION
Commercial Range: 0°C to +70°C
Speed (ns) Order Part No. Package
10 IS61C64B-10N 300-mil Plastic DIP
IS61C64B-10J 300-mil Plastic SOJ
IS61C64B-10T Plastic TSOP
12 IS61C64B-12N 300-mil Plastic DIP
IS61C64B-12J 300-mil Plastic SOJ
IS61C64B-12T Plastic TSOP
15 IS61C64B-15N 300-mil Plastic DIP
IS61C64B-15J 300-mil Plastic SOJ
IS61C64B-15T Plastic TSOP
