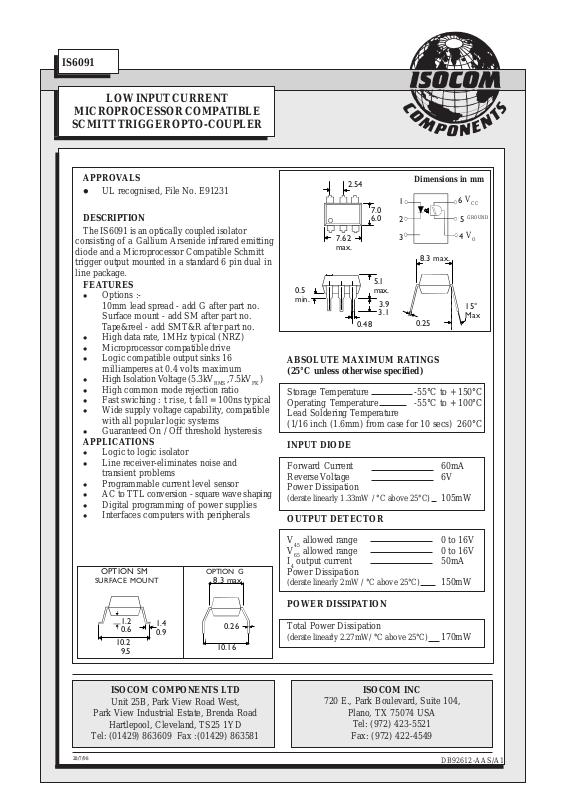

ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, Cleveland, TS25 1YD
Tel: (01429) 863609 Fax :(01429) 863581
ISOCOM INC
720 E., Park Boulevard, Suite 104,
Tel: (972) 423-5521
Fax: (972) 422-4549
28/7/98
DB92612-AAS/A1
APPROVALS
l UL recognised, File No. E91231
DESCRIPTION
The IS6091 is an optically coupled isolator consisting of a Gallium Arsenide infrared emitting diode and a Microprocessor Compatible Schmitt trigger output mounted in a standard 6 pin dual in line package.
FEATURES
l Options :-
10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no.
l High data rate, 1MHz typical (NRZ)
l Microprocessor compatible drive
l Logic compatible output sinks 16
milliamperes at 0.4 volts maximum
l High Isolation Voltage (5.3kV
RMS
,7.5kV
PK
)
l High common mode rejection ratio
l Fast swiching : t rise, t fall = 100ns typical
l Wide supply voltage capability, compatible
with all popular logic systems
l Guaranteed On / Off threshold hysteresis
APPLICATIONS
l Logic to logic isolator
l Line receiver-eliminates noise and
transient problems
l Programmable current level sensor
l AC to TTL conversion - square wave shaping
l Digital programming of power supplies
l Interfaces computers with peripherals
LOW INPUT CURRENT
MICROPROCESSOR COMPA TIBLE
SCMITT TRIGGER OPTO-COUPLER
ABSOLUTE MAXIMUM RATINGS (25°C unless otherwise specified)
Storage Temperature -55°C to + 150°C Operating Temperature -55°C to + 100°C Lead Soldering Temperature (1/16 inch (1.6mm) from case for 10 secs) 260°C
INPUT DIODE
Forward Current 60mA Reverse Voltage 6V Power Dissipation
(derate linearly 1.33mW / °C above 25°C) 105mW
OUTPUT DETECTOR
V45 allowed range 0 to 16V V65 allowed range 0 to 16V I4 output current 50mA Power Dissipation
(derate linearly 2mW / °C above 25°C) 150mW
POWER DISSIPATION
Total Power Dissipation
(derate linearly 2.27mW/ °C above 25°C) 170mW

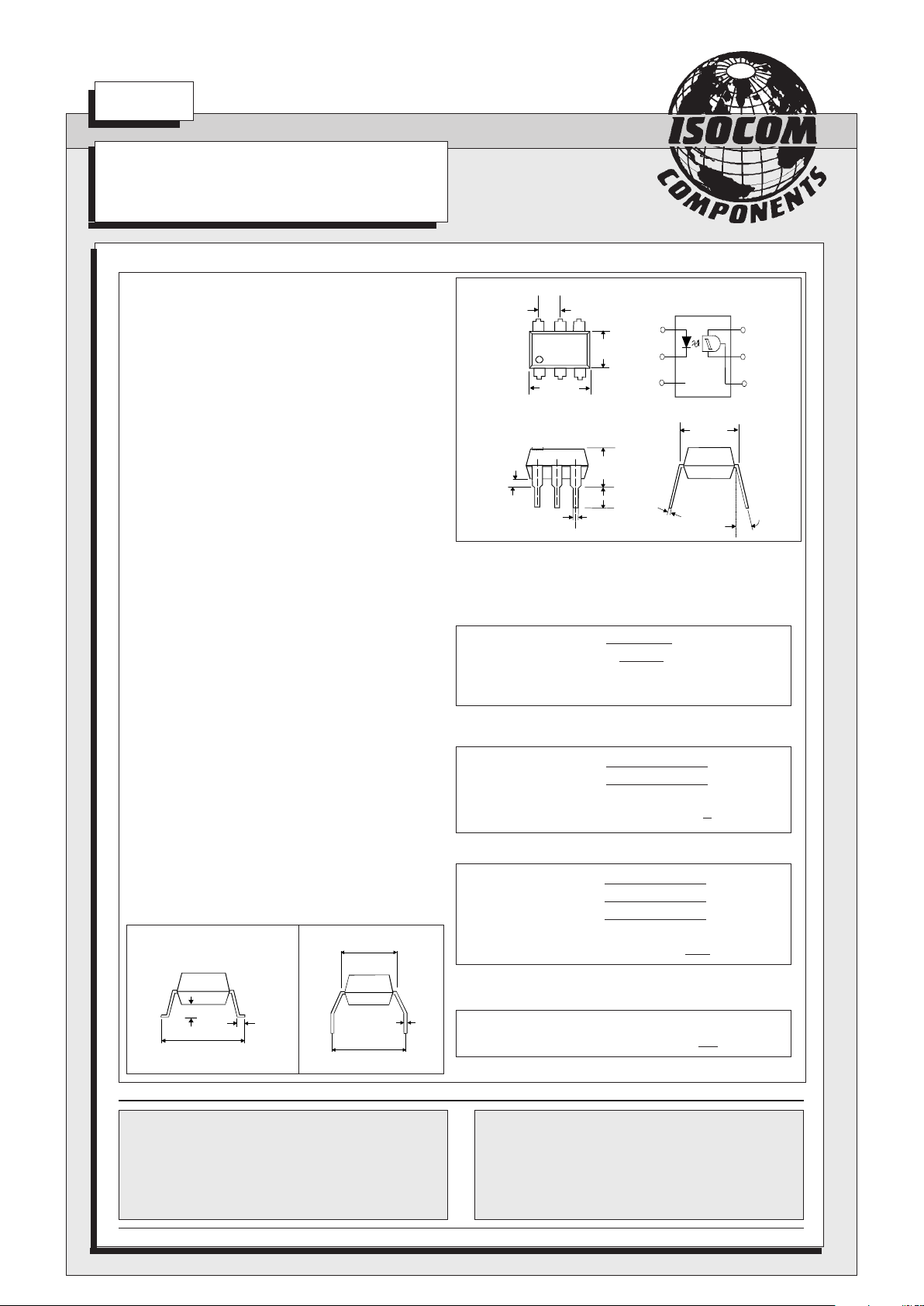

Dimensions in mm
2.54
7.0
6.0
7.62 max.
0.5 min.
3.9
3.1
5.1 max.
15° Max
0.25
0.48
8.3 max.
OPTION G
8.3 max
SURFACE MOUNT
OPTION SM
10.16
10.2
9.5
0.26
1.2
0.6
1.4
0.9
6
5
GROUND
4
1
2
3
V
CC
V
O
IS6091
Page 2
DB92612-AAS/A1
28/7/98
C
I
F
1
2
R
E
6
5
4
R
L
V
O
270
5V
I
6
V
IN
5V
0
V
O
t
on
t
off
t
r
t
f

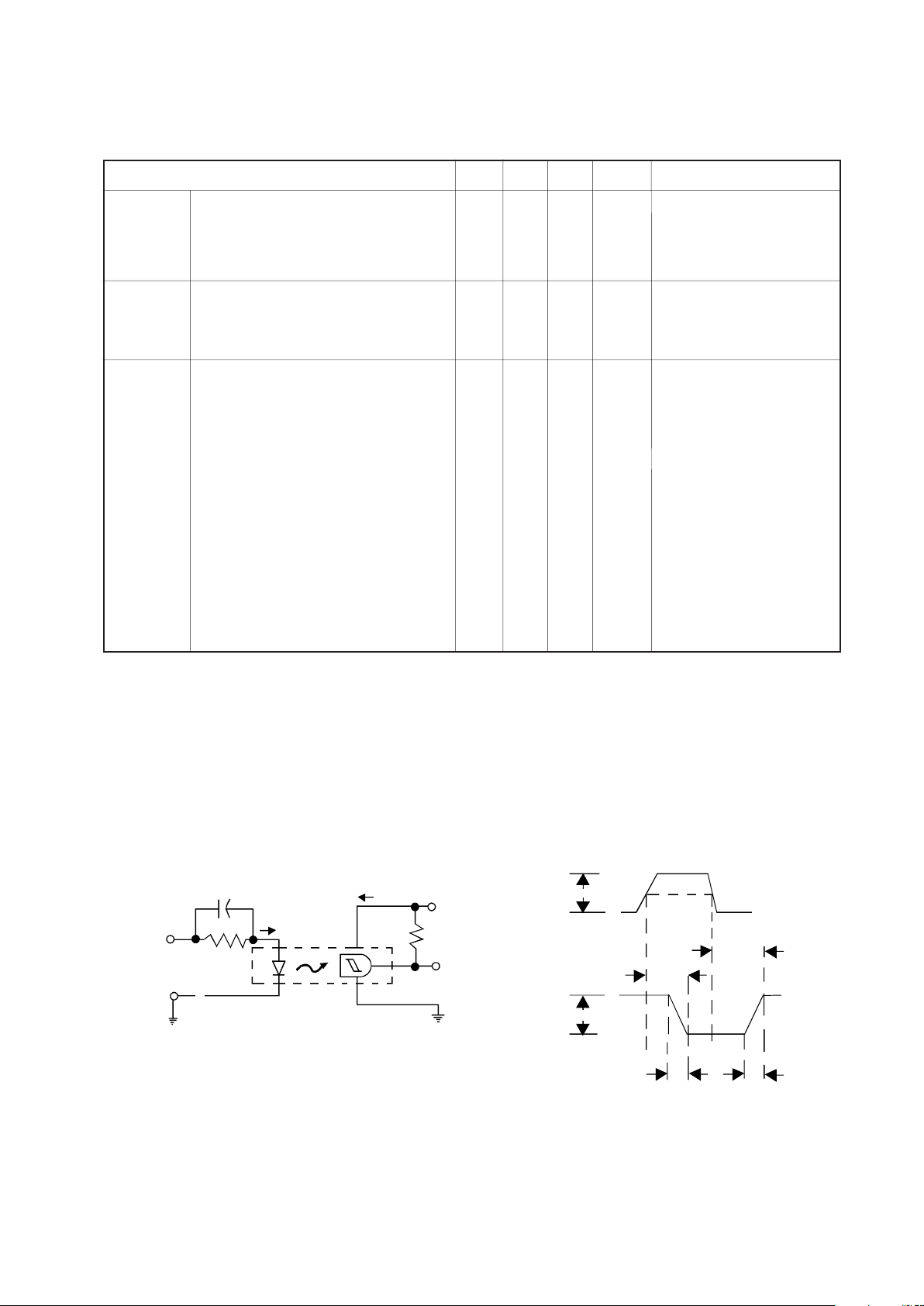

SWITCHING CHARACTERISTICS
SWITCHING TEST CIRCUIT
PARAMETER MIN TYP MAX UNITS TEST CONDITION
Input Forward Voltage (VF ) 0.75 V IF = 0.3mA
Forward V oltage (VF ) 1.5 V IF = 10mA Reverse Current (IR )10µAV
R
= 3V
Capacitance (CJ ) 1 00 pF V = 0, f = 1MHz
Output Operating Voltage Range (V
CC
)3 15V
Supply Current I6 (off ) 1 5 mA IF = 0mA, V
CC
= 5V
Output Current High ( I
OH
) 100 µAI
F
= 0mA,VCC= VO=15V
Coupled Supply Current I6 (on ) 1 . 6 5 m A IF = 10mA, V
CC
= 5V
Output V oltage, Low (VOL ) 0.4 V RL= 270Ω, V
CC
= 5V
Turn-on Threshold Current IF (on ) 1 m A RL= 270Ω, V
CC
= 5V
Turn-off Threshold Current IF (off ) 0 . 3 m A RL= 270Ω, V
CC
= 5V
Hysteresis Ratio IF (off ) / IF (on ) 0.5 0.9 RL= 270Ω, V
CC
= 5V
Input to Output Isolation Voltage V
IS0
5300 V
RMS
See note 1
7500 V
PK
See note 1
Turn-on Time t
on
0.57 µsR
E
= 1200
Fall Time t
f
0.09 µs C =270pF
Turn-off Time t
off
1.40 µsf ≤100kHz
Rise Time t
r
0.05 µs tp = 1µs or greater
Note 1 Measured with input leads shorted together and output leads shorted together. Note 2 Special Selections are available on request. Please consult the factory.
ELECTRICAL CHARACTERISTICS ( TA= 25°C Unless otherwise noted )
V
IN
tr = tf = 0.01µs Z = 50
