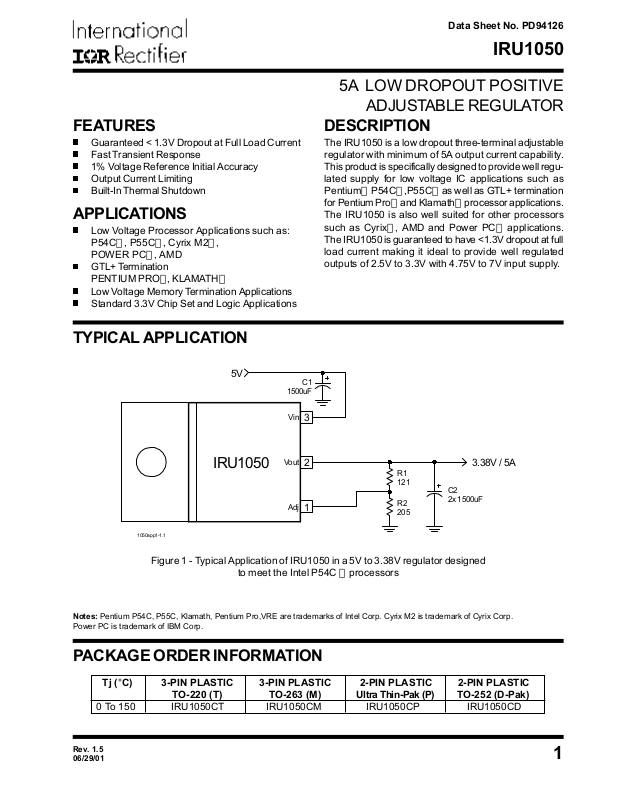

Page 1
Data Sheet No. PD94126
IRU1050
5A LOW DROPOUT POSITIVE
ADJUSTABLE REGULATOR
FEATURES
Guaranteed < 1.3V Dropout at Full Load Current
Fast Transient Response
1% Voltage Reference Initial Accuracy
Output Current Limiting
Built-In Thermal Shutdown
APPLICATIONS
Low Voltage Processor Applications such as:
P54C, P55C, Cyrix M2,
POWER PC, AMD
GTL+ Termination
PENTIUM PRO, KLAMATH
Low Voltage Memory Termination Applications
Standard 3.3V Chip Set and Logic Applications
TYPICAL APPLICATION
5V
C1
1500uF
Vin
3
DESCRIPTION
The IRU1050 is a low dropout three-terminal adjustable
regulator with minimum of 5A output current capability.
This product is specifically designed to provide well regulated supply for low voltage IC applications such as
Pentium P54C,P55C as well as GTL+ termination
for Pentium Pro and Klamath processor applications.
The IRU1050 is also well suited for other processors
such as Cyrix, AMD and Power PC applications.
The IRU1050 is guaranteed to have <1.3V dropout at full
load current making it ideal to provide well regulated
outputs of 2.5V to 3.3V with 4.75V to 7V input supply.
Vout
Adj
2
R1
121
1
R2
205
IRU1050
1050app1-1. 1
Figure 1 - Typical Application of IRU1050 in a 5V to 3.38V regulator designed
to meet the Intel P54C processors
Notes: Pentium P54C, P55C, Klamath, Pentium Pro,VRE are trademarks of Intel Corp. Cyrix M2 is trademark of Cyrix Corp.
Power PC is trademark of IBM Corp.
3.38V / 5A
C2
2x 1500uF
PACKAGE ORDER INFORMATION
Tj (°C) 3-PIN PLASTIC 3-PIN PLASTIC 2-PIN PLASTIC 2-PIN PLASTIC
TO-220 (T) TO-263 (M) Ultra Thin-Pak (P) TO-252 (D-Pak)
0 To 150 IRU1050CT IRU1050CM IRU1050CP IRU1050CD
Rev. 1.5
06/29/01
1
Page 2
IRU1050
ABSOLUTE MAXIMUM RATINGS
Input Voltage (Vin) .................................................... 7V
Power Dissipation ..................................................... Internally Limited
Storage Temperature Range ...................................... -65°C To 150°C
Operating Junction Temperature Range ..................... 0°C To 150°C
PACKAGE INFORMATION
3-PIN PLASTIC TO-220 (T) 3-PIN PLASTIC TO-263 (M) 2-PIN PLASTIC ULTRA THIN-PAK (P) 2-PIN PLASTIC TO-252 (D-Pak)
Tab is
Vout
FRONT VIEW
FRONT VIEW
3
2
1
Vin
Vout
Adj
Tab i s
Vout
3
Vin
2
Vout
1
Adj
Ta b i s
Vout
FRONT VIEW
3
Vin
1
Adj
θJT=2.7°C/W θJA=60°C/W θJA=35°C/W for 1" Square pad θJA=70°C/W for 1" Square pad θJA=70°C/W for 0.5" Sq pad
ELECTRICAL SPECIFICATIONS
Unless otherwise specified, these specifications apply over Cin=1µF, Cout=10µF, and Tj=0 to 150!C.
Typical values refer to Tj=25!C.
PARAMETER SYM TEST CONDITION MIN TYP MAX UNITS
Reference Voltage Vref Io=10mA, Tj=25!C, (Vin-Vo)=1.5V 1.238 1.250 1.262 V
Io=10mA, (Vin-Vo)=1.5V 1.225 1.250 1.275
Line Regulation Io=10mA,1.3V<(Vin-Vo)<7V 0.2 %
Load Regulation (Note 1) Vin=3.3V, Vadj=0, 10mA<Io<5A 0.4 %
Dropout Voltage ∆Vo Io=4A 1.2 V
(Note 2) Io=5A 1.1 1.3
Current Limit Vin=3.3V, dVo=100mV 5.1 A
Minimum Load Current Vin=3.3V, Vadj=0V 5 10 mA
(Note 3)
Thermal Regulation 30ms Pulse, Vin-Vo=3V, Io=5A 0.01 0.02 %/W
Ripple Rejection f=120Hz, Co=25µF Tantalum,
Io=2.5A, Vin-Vo=3V 60 70 dB
Adjust Pin Current Iadj Io=10mA, Vin-Vo=1.5V, Tj=25!C,
Io=10mA, Vin-Vo=1.5V 55 120 µA
Adjust Pin Current Change Io=10mA, Vin-Vo=1.5V, Tj=25!C 0.2 5 µA
Temperature Stability Vin=3.3V, Vadj=0V, Io=10mA 0.5 %
Long Term Stability Tj=125!C, 1000 Hrs 0.3 1 %
RMS Output Noise Tj=25!C, 10Hz<f<10KHz 0.003 %Vo
Tab i s
Vou t
FRONT VIEW
3
Vin
1
Adj
Note 1: Low duty cycle pulse testing with Kelvin connections is required in order to maintain accurate data.
Note 2: Dropout voltage is defined as the minimum differential voltage between Vin and Vout required to maintain regulation at Vout. It is measured when the output
voltage drops 1% below its nominal value.
2
Note 3: Minimum load current is defined as the mini-
mum current required at the output in order for the output voltage to maintain regulation. Typically the resistor
dividers are selected such that it automatically maintains this current.
Rev. 1.5
06/29/01
Page 3
PIN DESCRIPTIONS
PIN # PIN SYMBOL PIN DESCRIPTION
1
Adj
A resistor divider from this pin to the Vout pin and ground sets the output voltage.
IRU1050
2
3
Vout
Vin
The output of the regulator. A minimum of 10µF capacitor must be connected from this pin
to ground to insure stability.
The input pin of the regulator. Typically a large storage capacitor is connected from this
pin to ground to insure that the input voltage does not sag below the minimum drop out
voltage during the load transient response. This pin must always be 1.3V higher than Vout
in order for the device to regulate properly.
BLOCK DIAGRAM
Vin 3
CURRENT
LIMIT
2 Vout
+
1.25V
+
THERMAL
SHUTDOWN
Figure 2 - Simplified block diagram of the IRU1050
APPLICATION INFORMATION
Introduction
The IRU1050 adjustable Low Dropout (LDO) regulator
is a three-terminal device which can easily be programmed with the addition of two external resistors to
any voltages within the range of 1.25 to 5.5 V. This regulator unlike the first generation of the three-terminal regulators such as LM117 that required 3V differential between the input and the regulated output, only needs
1.3V differential to maintain output regulation. This is a
key requirement for today’s microprocessors that need
typically 3.3V supply and are often generated from the
5V supply. Another major requirement of these micro-
processors such as the Intel P54C is the need to switch
the load current from zero to several amps in tens of
1050blk1-1.0
nanoseconds at the processor pins, which translates to
an approximately 300 to 500ns current step at the regulator. In addition, the output voltage tolerances are also
extremely tight and they include the transient response
as part of the specification.For example Intel VRE
specification calls for a total of ±100mV including initial
tolerance, load regulation and 0 to 4.6A load step.
The IRU1050 is specifically designed to meet the fast
current transient needs as well as providing an accurate
initial voltage, reducing the overall system cost with the
need for fewer output capacitors.
1 Adj
Rev. 1.5
06/29/01
3
Page 4
IRU1050
Output Voltage Setting
The IRU1050 can be programmed to any voltages in the
range of 1.25V to 5.5V with the addition of R1 and R2
external resistors according to the following formula:
R2
OUT = VREF ×
V
oo
o1 +
oo
Where:
VREF = 1.25V Typically
IADJ = 50µA Typically
R1 and R2 as shown in figure 3:
pp
p + IADJ × R2
pp
R1
regulator and the load is gained up by the factor of (1+R2/
R1), or the effective resistance will be, Rp(eff)=Rp*(1+R2/
R1). It is important to note that for high current applications, this can represent a significant percentage of the
overall load regulation and one must keep the path from
the regulator to the load as short as possible to minimize this effect.
PARASITIC LINE
RESISTANCE
Rp
Vin
Vou tVin
Vin
IRU1050
Adj
Vou tVin
IAdj = 50uA
Vre f
R1
R2
Vou t
1050app2-1. 0

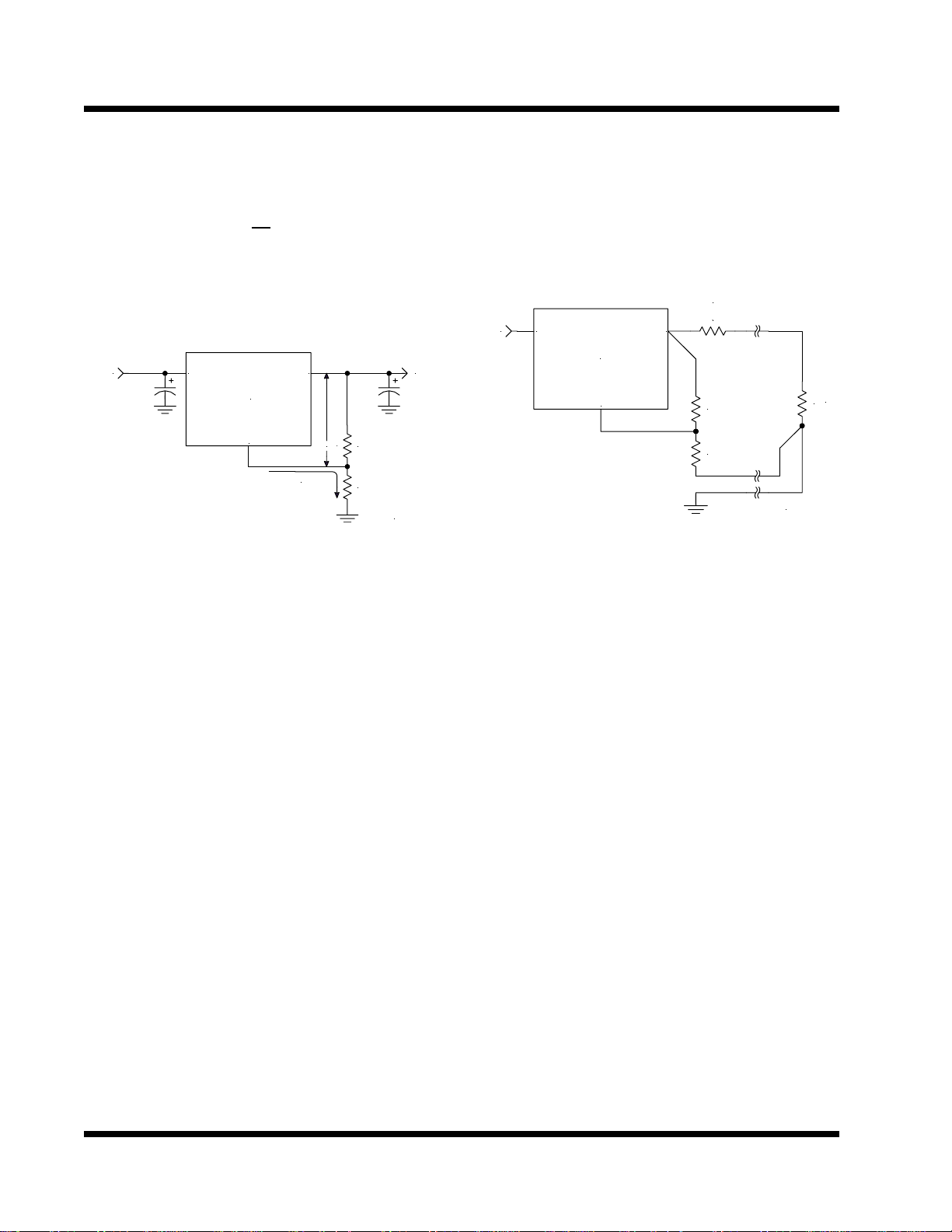

Figure 3 - Typical application of the IRU1050
for programming the output voltage
The IRU1050 keeps a constant 1.25V between the output pin and the adjust pin. By placing a resistor R1 across
these two pins a constant current flows through R1, adding to the Iadj current and into the R2 resistor producing
a voltage equal to the (1.25/R1)*R2 + Iadj*R2 which will
be added to the 1.25V to set the output voltage. This is
summarized in the above equation. Since the minimum
load current requirement of the IRU1050 is 10mA, R1 is
typically selected to be 121Ω resistor so that it automatically satisfies the minimum current requirement.
Notice that since Iadj is typically in the range of 50µA it
only adds a small error to the output voltage and should
only be considered when a very precise output voltage
setting is required. For example, in a typical 3.3V application where R1=121Ω and R2=200Ω the error due to
Iadj is only 0.3% of the nominal set point.
Load Regulation
Since the IRU1050 is only a three-terminal device, it is
not possible to provide true remote sensing of the output
voltage at the load. Figure 4 shows that the best load
regulation is achieved when the bottom side of R2 is
connected to the load and the top side of R1 resistor is
connected directly to the case or the Vout pin of the
regulator and not to the load. In fact, if R1 is connected
to the load side, the effective resistance between the
IRU1050
Adj
R1
R2
1050app3-1.0
R
L
Figure 4 - Schematic showing connection
for best load regulation
Stability
The IRU1050 requires the use of an output capacitor as
part of the frequency compensation in order to make the
regulator stable. Typical designs for microprocessor applications use standard electrolytic capacitors with a
typical ESR in the range of 50 to 100mΩ and an output
capacitance of 500 to 1000µF. Fortunately as the capacitance increases, the ESR decreases resulting in a
fixed RC time constant. The IRU1050 takes advantage
of this phenomena in making the overall regulator loop
stable. For most applications a minimum of 100µF aluminum electrolytic capacitor such as Sanyo MVGX series, Panasonic FA series as well as the Nichicon PL
series insures both stability and good transient response.
Thermal Design
The IRU1050 incorporates an internal thermal shutdown
that protects the device when the junction temperature
exceeds the maximum allowable junction temperature.
Although this device can operate with junction temperatures in the range of 150!C, it is recommended that the
selected heat sink be chosen such that during maximum continuous load operation the junction temperature is kept below this number. The example below
shows the steps in selecting the proper regulator heat
sink for the worst case current consumption using Intel
200MHz microprocessor as the load.
4
Rev. 1.5
06/29/01
Page 5
IRU1050
Assuming the following specifications:
VIN = 5V
VOUT = 3.5V
IOUT(MAX) = 4.6A
T
A = 35!C
The steps for selecting a proper heat sink to keep the
junction temperature below 135!C is given as:
1) Calculate the maximum power dissipation using:
PD = IOUT × (VIN - VOUT)
PD = 4.6 × (5 - 3.5) = 6.9W
2) Select a package from the regulator data sheet and
record its junction to case (or tab) thermal resistance.
Selecting TO-220 package gives us:
θJC = 2.7!C/W
3) Assuming that the heat sink is black anodized, calculate the maximum heat sink temperature allowed:
Assume, θcs=0.05°C/W (heat-sink-to-case thermal
resistance for black anodized)
TS = TJ - PD × (θJC + θCS)
TS = 135 - 6.9 × (27 + 0.05) = 116!C
4) With the maximum heat sink temperature calculated
in the previous step, the heat-sink-to-air thermal re-
sistance (θ
SA) is calculated by first calculating the
temperature rise above the ambient as follows:
∆T = TS - TA = 116 - 35 = 81!C
∆T = Temperature Rise Above Ambient
θSA = = = 11.7!C/W
PD
6.9
81
∆T
5) Next, a heat sink with lower θsa than the one calcu-
lated in Step 4 must be selected. One way to do this
is to simply look at the graphs of the “Heat Sink Temp
Rise Above the Ambient” vs. the “Power Dissipation”
and select a heat sink that results in lower temperature rise than the one calculated in previous step.
The following heat sinks from AAVID and Thermalloy
meet this criteria.
Air Flow (LFM)
0 100 200 300 400
Thermalloy 6021PB 6021PB 6073PB 6109PB 7141D
AAVID 534202B 534202B 507302 575002 576802B
Note: For further information regarding the above companies and their latest product offerings and application
support contact your local representative or the numbers listed below:
AAVID.................PH# (603) 528 3400
Thermalloy...........PH# (214) 243-4321
Designing for Microprocessor Applications
As it was mentioned before, the IRU1050 is designed
specifically to provide power for the new generation of
the low voltage processors requiring voltages in the range
of 2.5V to 3.6V generated by stepping down the 5V supply. These processors demand a fast regulator that supports their large load current changes. The worst case
current step seen by the regulator is anywhere in the
range of 1 to 7A with the slew rate of 300 to 500ns which
could happen when the processor transitions from “Stop
Clock” mode to the “Full Active” mode. The load current
step at the processor is actually much faster, in the order of 15 to 20ns, however, the decoupling capacitors
placed in the cavity of the processor socket handle this
transition until the regulator responds to the load current
levels. Because of this requirement the selection of high
frequency low ESR and low ESL output capacitor is
imperative in the design of these regulator circuits.
Figure 5 shows the effects of a fast transient on the
output voltage of the regulator. As shown in this figure,
the ESR of the output capacitor produces an instanta-
neous drop equal to the (∆VESR=ESR*∆I) and the ESL
effect will be equal to the rate of change of the output
current times the inductance of the capacitor. (∆VESL
=L*∆I/∆t). The output capacitance effect is a droop in
the output voltage proportional to the time it takes for
the regulator to respond to the change in the current,
(∆VC = ∆t * ∆I / C ) where ∆t is the response time of the
regulator.
Rev. 1.5
06/29/01
5
Page 6
IRU1050
V
ESR
V
ESL
T
LOAD
CURRENT
LOAD CURRENT RISE TIME
1050plt1-1.0

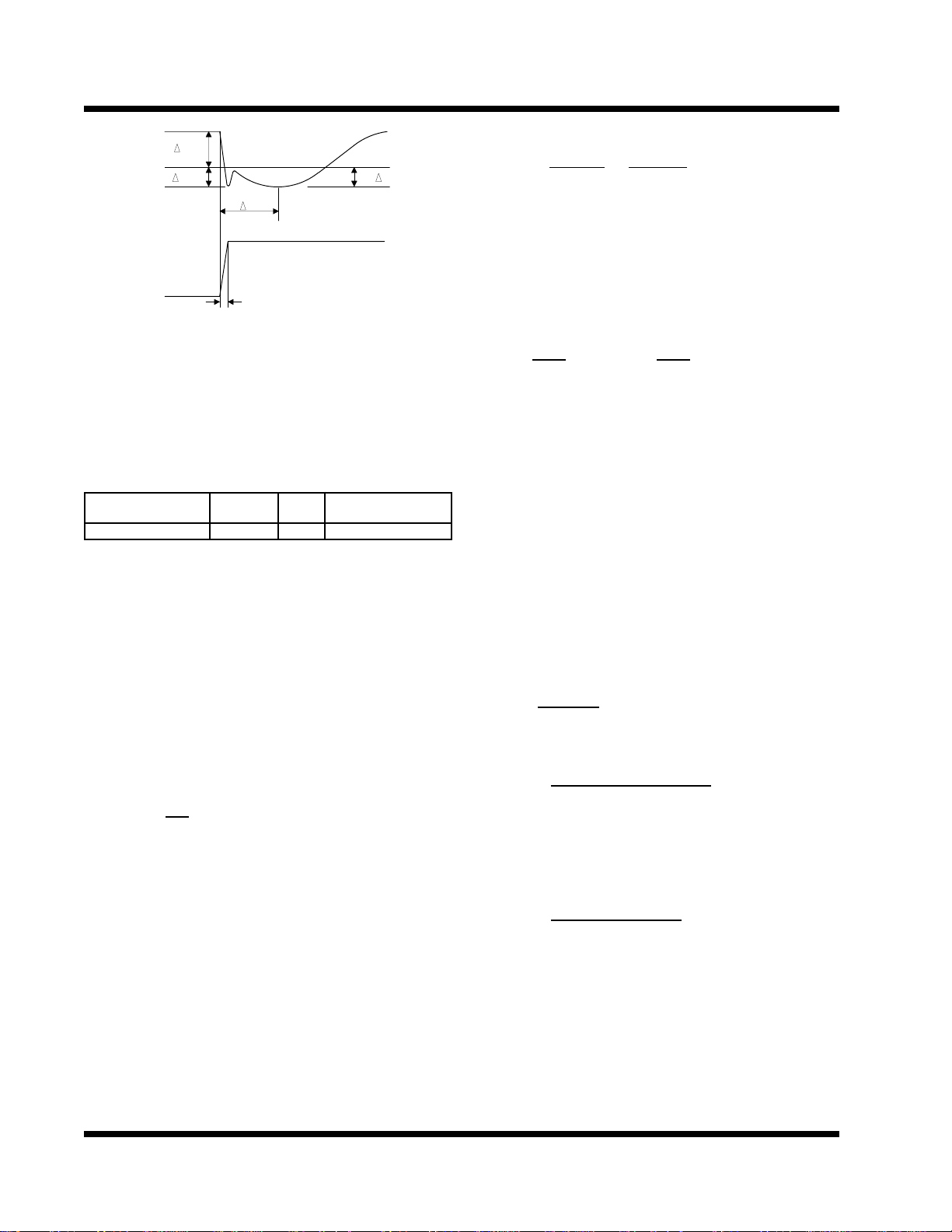

Figure 5 - Typical regulator response to
the fast load current step
An example of a regulator design to meet the Intel P54C
VRE specification is given below.
V
C
2) The output capacitance is 5 × 1500µF = 7500µF
∆Vc = = = 1.2mV
∆t × ∆I 2 × 4.6
C 7500
Where:
∆t = 2µs is the regulator response time
To set the output DC voltage, we need to select R1
and R2:
3) Assuming R1 = 121Ω, 0.1%
R2 =
VOUT
oo
o - 1
oo
VREF
pp
p× R1 =
pp
3.5
oo
o - 1
oo
1.25
pp
p× 121 = 217.8Ω
pp
Select R2 = 218Ω, 0.1%
Assume the specification for the processor as shown in
Table 1:
Type of Vout Imax Max Allowed
Processor Nominal Output Tolerance
Intel-P54C VRE 3.50 V 4.6 A ±100 mV
Table 1 - Processor Specification
The first step is to select the voltage step allowed in the
output due to the output capacitor’s ESR:
1) Assuming the regulator’s initial accuracy plus the re-
sistor divider tolerance is ≈ ±53mV (±1.5% of 3.5V
nominal), then the total step allowed for the ESR and
the ESL, is −47mV.
Assuming that the ESL drop is −10mV, the remain-
ing ESR step will be −37mV. Therefore the output
capacitor ESR must be:
ESR ≤ = 8mΩ
37
4.6
The Sanyo MVGX series is a good choice to achieve
both price and performance goals. The 6MV1500GX,
1500µF, 6.3V has an ESR of less than 36mΩ typi-
cal. Selecting 5 of these capacitors in parallel has an
ESR of ≈ 7.2mΩ which achieves our design goal.
Selecting both R1 and R2 resistors to be 0.1% tolerance, results in the least amount of error introduced
by the resistor dividers leaving ≈ ±1.3% error budget
for the IRU1050 reference which is within the initial
accuracy of the device.
Finally, the input capacitor is selected as follows:
4) Assuming that the input voltage can drop 150mV before the main power supply responds, and that the
main power supply response time is ≈ 50µs, then
the minimum input capacitance for a 4.6A load step
is given by:
4.6 × 50
CIN = = 1530µF
0.15
The ESR should be less than:
ESR =
(VIN - VOUT - ∆V - VDROP)
∆I
Where:
V
DROP L Input voltage drop allowed in step 4
∆V L Maximum regulator dropout voltage
∆I L Load current step
ESR = = 0.032Ω
(5 - 3.5 - 1.2 - 0.15)
4.6
The next step is to calculate the drop due to the capacitance discharge and make sure that this drop in
voltage is less than the selected ESL drop in the
previous step.
6
Selecting two Sanyo 1500µF, the same type as the
output capacitors, meets our requirements.
Rev. 1.5
06/29/01
Page 7
IRU1050

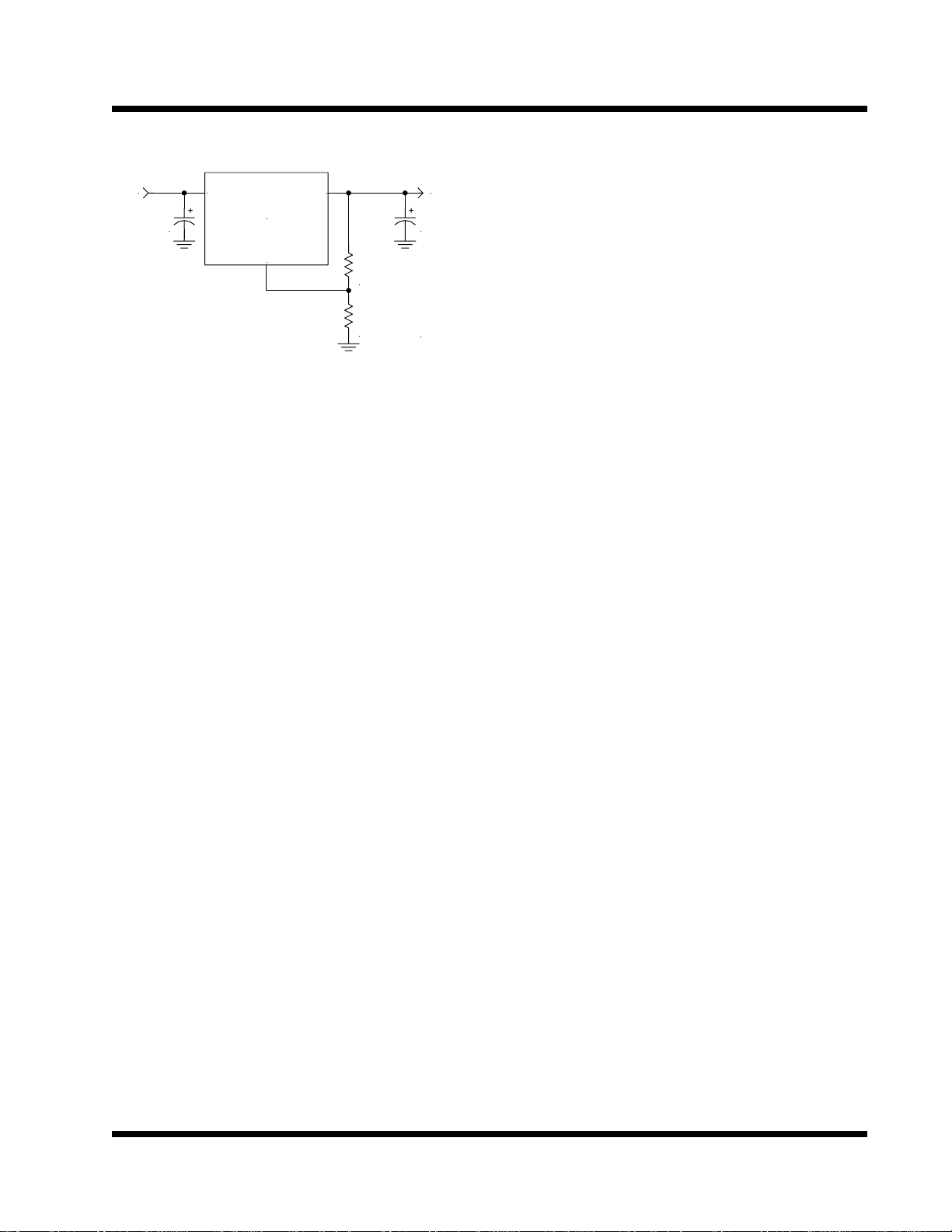

Figure 6 shows the completed schematic for our example.
5V
1500uF
C1
IRU1050
Adj
Vou tVin
R1
121
0.1%
R2
218
0.1%
C2
5x 1500uF
1050app4-1.1
3.50V
Figure 6 - Final schematic for the
Intel VRE application
Layout Consideration
The output capacitors must be located as close to the
Vout terminal of the device as possible. It is recommended to use a section of a layer of the PC board as a
plane to connect the Vout pin to the output capacitors to
prevent any high frequency oscillation that may result
due to excessive trace inductance.
Rev. 1.5
06/29/01
7
Page 8
IRU1050
Notes
8
IR WORLD HEADQUARTERS : 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.
Data and specifications subject to change without notice. 02/01
Rev. 1.5
06/29/01
Loading...
