HEXFET® Power MOSFET
PD - 90869A
IRLL110
l Surface Mount
l Available in Tape & Reel
l Dynamic dv/dt Rating
D
V
= 100V
DSS
l Repetitive Avalanche Rated
l Logic-Level Gate Drive
l RDS(on)Specified at VGS= 4V & 5V
G
R
DS(on)
= 0.54Ω
l Fast Switching
ID = 1.5A
Description
Third Generation HEXFETs from International Rectifier
provide the designer with the best combination of fast
switching, ruggedized device design, low on-resistance
and cost-effectiveness.
The SOT-223 package is designed for surface-mount using
vapor phase, infra red, or wave soldering techniques. Its
unique package design allows for easy automatic pick-andplace as with other SOT or SOIC packages but has the
added advantage of improved thermal performance due to
an enlarged tab for heatsinking. Power dissipation of
grreater than 1.25W is possible in a typical surface mount
application.
Absolute Maximum Ratings
Parameter Max. Units
ID @ Tc = 25°C Continuous Drain Current, VGS @ 5.0 V 1.5
ID @ Tc = 100°C Continuous Drain Current, VGS @ 5.0 V 0.93
I
DM
PD @Tc = 25°C Power Dissipation 3.1
PD @TA = 25°C Power Dissipation (PCB Mount)** 2..0 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 5.5 V/ns
T
J, TSTG
Pulsed Drain Current 12
Linear Derating Factor 0.025
Linear Derating Factor (PCB Mount)** 0.017 W/°C
Gate-to-Source Voltage -/+10 V
Single Pulse Avalanche Energy 50 mJ
Avalanche Current 1.5 A
Repetitive Avalanche Energy 0.31 mJ
Junction and Storage Temperature Range -55 to + 150 °C
Soldewring Temperature, for 10 seconds
S
SOT-223
300 (1.6mm from case)
A
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θJA
** When mounted on 1'' square PCB (FR-4 or G-10 Material).
For recommended footprint and soldering techniques refer to application note #AN-994.
Junction-to-PCB ––– 40
Junction-to-Ambient. (PCB Mount)** ––– 60
°C/W
www.irf.com 1
1/27/99
Page 2
IRLL110
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
tf Fall Time ––– 18 ––– RD = 8.4 Ω,
L
D
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage 100 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.12 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance
––– ––– 0.54 VGS = 5.0V, ID = 0.90A
––– ––– 0.76 Ω VGS = 4.0V, ID = 0.75A
Gate Threshold Voltage 1.0 –– – 2.0 V VDS = VGS, ID = 250µA
Forward Transconductance 0.57 ––– ––– S VDS = 25V, ID = 0.90 A
Drain-to-Source Leakage Current
––– ––– 25
––– ––– 250 VDS = 80V, VGS = 0V, TJ = 125°C
Gate-to-Source Forward Leakage ––– ––– 100
Gate-to-Source Reverse Leakage ––– ––– -100 VGS = -10V
VDS = 100V, VGS = 0V
µA
VGS = 10V
nA
Total Gate Charge ––– ––– 6.1 ID = 5.6A
Gate-to-Source Charge ––– ––– 2. 6 nC VDS = 80V
Gate-to-Drain ("Miller") Charge ––– ––– 3.3 VGS = 5.0V, See Fig. 6 and 13
Turn-On Delay Time ––– 9.3 ––– VDD = 50V
Rise Time ––– 47 –––
Turn-Off Delay Time ––– 16 ––– RG = 12 Ω
Internal Drain Inductance
Internal Source Inductance
––– 4.0 –––
––– 6.0 –––
ID = 5.6A
ns
Between lead, 6mm(0.25in)
nH
from package and center
of die contact.
Input Capacitance ––– 250 –– – VGS = 0V
Output Capacitance –– – 80 ––– pF VDS = 25V
Reverse Transfer Capacitance ––– 15 ––– ƒ = 1.0MHz, See Fig. 5
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Continuous Source Current MOSFET symbol
(Body Diode) showing the
Pulsed Source Current integral reverse
(Body Diode) p-n junction diode.
––– –––
–––
–––
1.5
A
12
Diode Forward Voltage ––– ––– 2.5 V TJ = 25°C, IS = 1.5A, VGS = 0V
Reverse Recovery Time –– – 110 130 ns TJ = 25°C, IF = 5.6A
Reverse RecoveryCharge ––– 0.50 0.65 µC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
V
=25V, starting TJ = 25°C, L = 25 mH
DD
RG = 25Ω, I
= 1.5A. (See Figure 12)
AS
I
≤5.6A, di/dt ≤ 75A/µs, V
SD
DD
≤ V
(BR)DSS
TJ ≤ 150°C
Pulse width ≤ 300µs; duty cycle ≤ 2%.
,
2 www.irf.com
Page 3
IRLL110
www.irf.com 3
Page 4
IRLL110
4 www.irf.com
Page 5
IRLL110
www.irf.com 5
Page 6
IRLL110
6 www.irf.com
Page 7

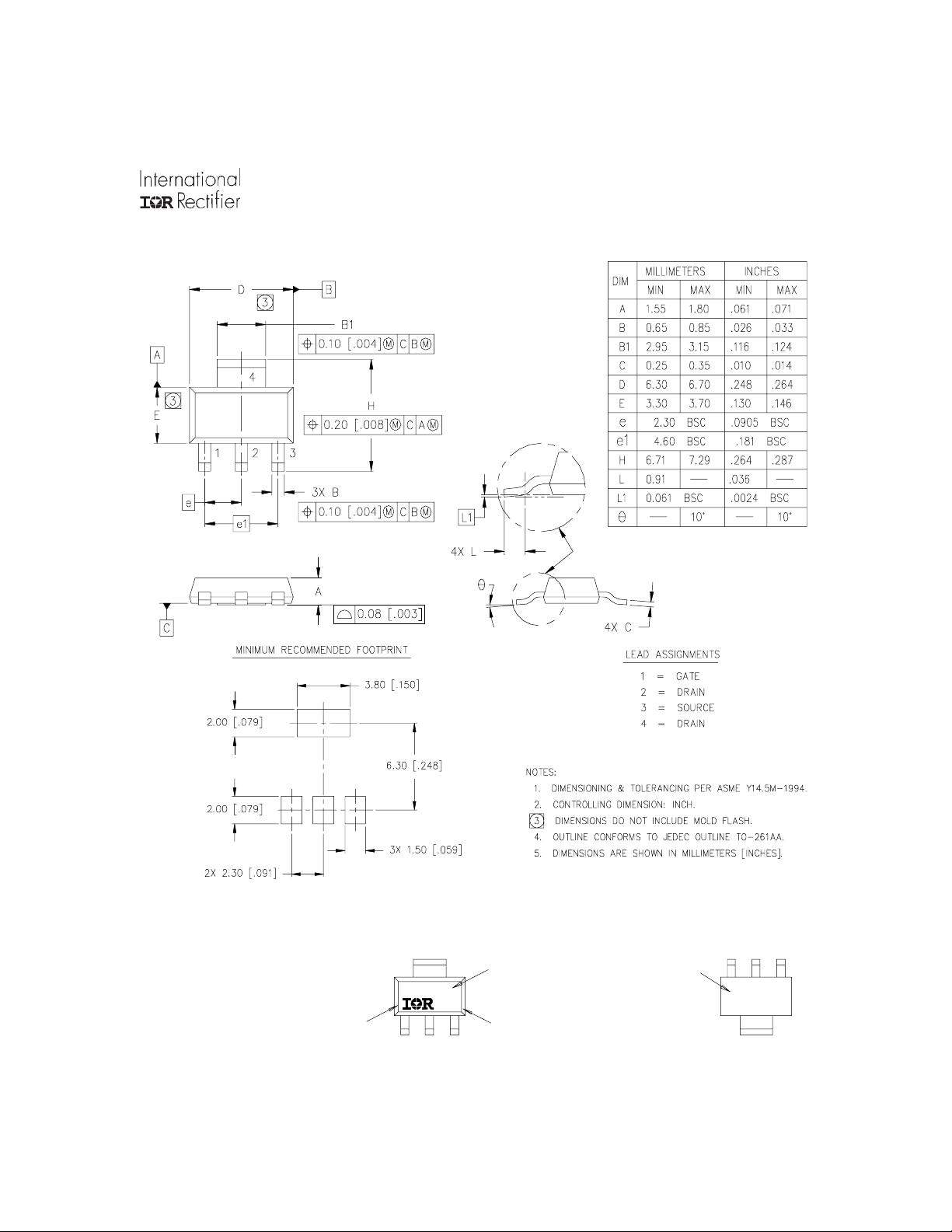

Package Outline
SOT-223 (TO-261AA) Outline
IRLL110
Part Marking Information
SOT-223
www.irf.com 7
EX AMP LE : T HIS IS A N IR F L01 4
FL014
INTERNATIONAL
R EC TIF IER
L OGO
314
TOP
PART NU MBE R
DATE CODE (YW W)
Y = LAST D IGIT OF THE YEAR
WW = WEEK
W AFE R
L OT C ODE
XXXXXX
BOTTOM
Page 8
IRLL110
Tape & Reel Information
SOT-223 Outline
4.10 (.161)
2.05 (.080)
330.00
(13.000)
MAX.
1.95 (.077)
12.10 (.475)
11.90 (.469)
13.20 (.519)
12.80 (.504)
TR
FEED DIRECTION
NOTES :
1. CONTROLLING DIMENSION: MILLIMETER.
2. OUTLINE CONF O RM S TO E IA-481 & EIA-541.
3. EACH O 330.00 (13.00) REE L CO N TAINS 2,500 DE VICES.
3.90 (.154)
1.85 (.072)
1.65 (.065)
7.55 (.297)
7.45 (.294)
1.60 (.062)
1.50 (.059)
TY P .
7.10 (.279)
6.90 (.272)
15.40 (.607)
11.90 (.469)
4
7.60 (.299)
7.40 (.292)
0.35 (.013)
0.25 (.010)
16.30 (.641)
15.70 (.619)
2.30 (.090)
2.10 (.083)
50.00 (1.969)
MIN.
NOTES :
1. OUTLINE CO M FO R M S TO E IA-418-1.
2. CONTR OLLING DIMENSION: MILLIM ETER..
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
14.40 (.566)
12.40 (.488)
3
18.40 (.724)
M A X .
4
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
IR GREAT BRITAIN: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 15 Lincoln Court, Brampton, Ontario L6T3Z2, Tel: (905) 453 2200
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 1 Kim Seng Promenade, Great World City West Tower, 13-11, Singapore 237994 Tel: ++ 65 838 4630
IR TAIWAN:16 Fl. Suite D. 207, Sec. 2, Tun Haw South Road, Taipei, 10673, Taiwan Tel: 886-2-2377-9936
http://www.irf.com/ Data and specifications subject to change without notice. 1/99
8 www.irf.com
