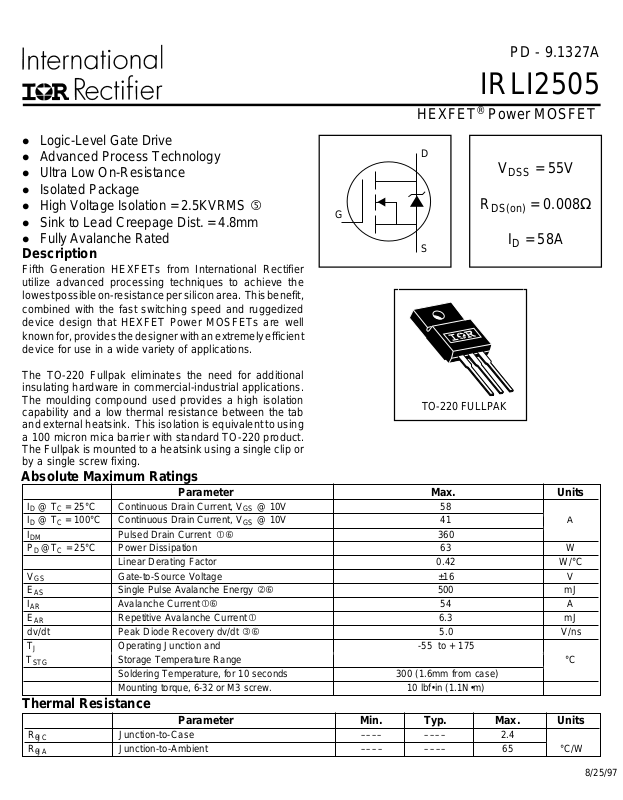

Page 1
PD - 9.1327A
TO-220 FULLPAK
IRLI2505
HEXFET® Power MOSFET
l Logic-Level Gate Drive
l Advanced Process Technology
l Ultra Low On-Resistance
l Isolated Package
l High Voltage Isolation = 2.5KVRMS
l Sink to Lead Creepage Dist. = 4.8mm
l Fully Avalanche Rated
Description
G
D
V
= 55V
DSS
DS(on)
ID = 58A
= 0.008Ω
R
S
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve the
lowest possible on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized
device design that HEXFET Power MOSFETs are well
known for, provides the designer with an extremely efficient
device for use in a wide variety of applications.
The TO-220 Fullpak eliminates the need for additional
insulating hardware in commercial-industrial applications.
The moulding compound used provides a high isolation
capability and a low thermal resistance between the tab
and external heatsink. This isolation is equivalent to using
a 100 micron mica barrier with standard TO-220 product.
The Fullpak is mounted to a heatsink using a single clip or
by a single screw fixing.
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 58
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 41 A
I
DM
PD @TC = 25°C Power Dissipation 63 W
V
GS
E
AS
I
AR
E
AR
dv/d t Peak Diode Recovery dv/dt 5.0 V/ns
T
J
T
STG
Pulsed Drain Current 360
Linear Derating Factor 0.42 W/°C
Gate-to-Source Voltage ±16 V
Single Pulse Avalanche Energy 500 mJ
Avalanche Current 54 A
Repetitive Avalanche Current 6.3 mJ
Operating Junction and -55 to + 175
Storage Temperature Range °C
Soldering Temperature, for 10 seconds 300 (1.6mm from case)
Mounting torque, 6-32 or M3 screw. 10 lbf•in (1.1N•m)
Thermal Resistance
Parameter Min. Typ. Max. Units
R
θJC
R
θJA
Junction-to-Case –––– –––– 2.4
Junction-to-Ambient –––– –––– 65 °C/W
8/25/97
Page 2
IRLI2505
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
C Drain to Sink Capacitance ––– 12 ––– ƒ = 1.0MHz
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Drain-to-Source Breakdown Voltage 55 –– – ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.035 – –– V/° C Reference to 25°C, ID = 1mA
J
––– ––– 0.008 VGS = 10V, ID = 31A
Static Drain-to-Source On-Resistance
––– ––– 0.010 Ω V
= 5.0V, ID = 31A
GS
––– ––– 0.013 VGS = 4.0V, ID = 26A
Gate Threshold Voltage 1.0 ––– 2.0 V VDS = VGS, ID = 250µA
Forward Transconductance 59 ––– ––– S VDS = 25V, ID = 54A
Drain-to-Source Leakage Current
––– ––– 25 VDS = 55V, VGS = 0V
––– ––– 250 VDS = 44V, VGS = 0V, TJ = 150°C
Gate-to-Source Forward Leakage ––– ––– 100 VGS = 16V
Gate-to-Source Reverse Leakage ––– ––– -100 VGS = -16V
µA
nA
Total Gate Charge ––– –– – 130 ID = 54A
Gate-to-Source Charge –– – ––– 25 nC VDS = 44V
Gate-to-Drain ("Miller") Charge ––– ––– 67 VGS = 5.0V, See Fig. 6 and 13
Turn-On Delay Time ––– 12 ––– VDD = 28V
Rise Time ––– 160 –– – ID = 54A
Turn-Off Delay Time ––– 43 ––– RG = 1.3Ω, VGS = 5.0V
ns
Fall Time ––– 84 ––– RD = 0.50Ω, See Fig. 10
Internal Drain Inductance ––– 4.5 –––
Internal Source Inductance ––– 7.5 – ––
Between lead,
6mm (0.25in.)
nH
from package
and center of die contact
Input Capacitance ––– 5000 ––– VGS = 0V
Output Capacitance ––– 1100 ––– pF VDS = 25V
Reverse Transfer Capacitance ––– 390 – –– ƒ = 1.0MHz, See Fig. 5
Parameter Min. Typ. Max. Units Conditions
Continuous Source Current MOSFET symbol
(Body Diode) showing the
Pulsed Source Current integral reverse
(Body Diode) p-n junction diode.
––– ––– 58
A
––– ––– 360
Diode Forward Voltage ––– ––– 1.3 V TJ = 25°C, IS = 31A, VGS = 0V
Reverse Recovery Time ––– 140 2 10 ns TJ = 25°C, IF = 54A
Reverse RecoveryCharge ––– 650 97 0 nC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
D
G
S
D
G
S
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
V
= 25V, starting TJ = 25°C, L = 240µH
DD
RG = 25Ω, I
= 54A. (See Figure 12)
AS
I
≤ 54A, di/dt ≤ 230A/µs, V
SD
DD
≤ V
(BR)DSS
TJ ≤ 175°C
Pulse width ≤ 300µs; duty cycle ≤ 2%.
,
t=60s, ƒ=60Hz
Use IRL2505 data and test conditions
Page 3
IRLI2505
1000
VGS
TOP 15V
12V
10V
8.0V
6.0V
4.0V
3.0V
BOTT OM 2.5V
100
10
D
I , Drain-to-Source Current (A )
2.5V
20µs PULSE WIDTH
T = 25°C
1
0.1 1 10 100
V , Dra in-to-So urc e V olta ge (V )
DS
J
Fig 1. Typical Output Characteristics
1000
1000
VGS
TO P 15V
12V
10V
8.0V
6.0V
4.0V
3.0V
BOTTOM 2.5V
100
10
D
I , Drain- to-S o urce C u rrent ( A)
2.5V
20µs PULSE WIDTH
T = 175°C
A
1
0.1 1 10 100
V , Drain-to-Source Voltage (V)
DS
J
A
Fig 2. Typical Output Characteristics
3.0
I = 90A
D
T = 25°C
J
T = 175°C
100
10
D
I , Dra in-to -Sou rce C urr en t (A)
1
2.5 3.5 4.5 5.5 6.5 7.5
V , Ga te-to-S o urce Voltage (V)
GS
J
V = 2 5V
DS
20µs PULSE W IDTH
Fig 3. Typical Transfer Characteristics
2.5
2.0
1.5
(No rm alized)
1.0
0.5
DS(on)
R , D rain -to-S o urc e O n R e si stan ce
A
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180
T , Ju nc tio n T em peratu r e (° C)
J
V = 10V
GS
A
Fig 4. Normalized On-Resistance
Vs. Temperature
Page 4
IRLI2505
10000
8000
6000
4000
V = 0V, f = 1MHz
GS
C = C + C , C SH ORTED
iss gs gd ds
C = C
rss gd
C = C + C
oss ds gd
C
iss
C
oss
C, C apac itance (pF)
2000
C
rs s
0
1 10 100
V , Dr ain-to-Source Volt a ge (V)
DS
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
1000
15
I = 5 4 A
D
V = 44V
DS
V = 28V
DS
V , Gate-to-Source Voltage (V )
12
GS
9
6
3
FOR TEST CIRCUIT
A
0
0 40 80 120 160 200
Q , Total Ga te C harg e (nC)
G
SE E FIGUR E 13
A
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
O PERA T ION IN THIS A REA L IMITED
BY R
DS(on)
100
T = 175 °C
J
T = 25 °C
J
SD
I , Rev ers e Dr ain C u rren t (A)
10
0.4 0.8 1.2 1.6 2.0 2.4 2.8
V , Source-to-Drain Voltage (V)
SD
V = 0V
Fig 7. Typical Source-Drain Diode
Forward Voltage
GS
10µs
100
100µs
1ms
10
D
I , Dra in C ur rent (A )
T = 25°C
C
T = 175° C
J
A
Single Pulse
1
1 10 100
V , Drain-to-So urc e Vo ltag e (V)
DS
10ms
A
Fig 8. Maximum Safe Operating Area
Page 5
IRLI2505
+
-
60
50
40
30
20
D
I , Drain Current (A)
10
0
25 50 75 100 125 150 175
T , Case Temperature ( C)
C
°
Fig 9. Maximum Drain Current Vs.
Case Temperature
10
R
V
DS
V
GS
R
G
D
D.U.T.
5.0V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
V
DS
90%
10%
V
GS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
V
DD
thJC
D = 0.50
1
0.20
0.10
P
1 2
DM
t
1
t
2
0.05
0.1
0.02
Thermal Response (Z )
0.01
SINGLE PULSE
(THERMAL RESPONSE)
0.01
0.00001 0.0001 0.001 0.01 0.1 1 10
t , Rectangular Pulse Duration (sec)
1
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
Notes:
1. Duty factor D = t / t
2. Peak T =P x Z + T
J DM thJC C
Page 6
IRLI2505
D.U.T.
I
AS
L
0.01Ω
+
V
DD
-
R
5.0 V
V
DS
G
t
p
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
V
DD
V
DS
I
AS
1200
1000
800
600
400
200
AS
V = 25V
E , S in gle Pu lse Ava lanche E nergy (m J)
DD
0
25 50 75 100 125 150 175
Starting T , Junction Temperature (°C)
J
I
TOP 22 A
38A
BOTTOM 54 A
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
D
A
Fig 12b. Unclamped Inductive Waveforms
Q
G
5.0 V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
Current Regulator
Same Type as D.U.T.
50KΩ
12V
.2µF
V
GS
.3µF
D.U.T.
3mA
I
G
Current Sampling Resistors
I
+
-
D
Fig 13b. Gate Charge Test Circuit
V
DS
Page 7
IRLI2505
+
-
Peak Diode Recovery dv/dt Test Circuit
+
D.U.T
-
R
G
Driver Gate Drive
P.W.
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
• dv/dt controlled by R
• Driver same type as D.U.T.
controlled by Duty Factor "D"
• I
SD
• D.U.T. - Device Under Test
Period
-
D =
G
P.W.
Period
+
V
DD
VGS=10V
*
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. ISDWaveform
Body Diode Forward
Current
D.U.T. VDSWaveform
Body Diode Forward Drop
Inductor Curent
Ripple ≤ 5%
* V
= 5V for Logic Level Devices
GS
Fig 14. For N-Channel HEXFETS
Diode Recovery
dv/dt
di/dt
V
DD
I
SD
Page 8
IRLI2505
Package Outline
TO-220 FullPak Outline
Dimensions are shown in millimeters (inches)
10.60 (.417)
10.40 (.409)
16.00 (.630)
15.80 (.622)
1 2 3
13.70 (.540)
13.50 (.530)
1.40 (.055)
3X
1.05 (.042)
2.54 (.100)
2X
Part Marking Information
TO-220 FullPak
EXAMPLE : THIS IS A N IRFI840G
WITH AS SEM BL Y
LOT C OD E E401
3.70 (.145)
3.20 (.126)
1.15 (.045)
MIN .
3.30 (.130)
3.10 (.122)
0.90 (.035)
3X
0.70 (.028)
0.25 (.010)
ø
3.40 (.133)
3.10 (.123)
- A -
- B -
M
4.80 (.189)
4.60 (.181)
7.10 (.280)
6.70 (.263)
A M B
INT ERNA TIONAL
RE CTIFIER
LOGO
AS SE M BL Y
LO T CO D E
2.80 (.110)
2.60 (.102)
NOTES:
1 DIMEN SIONING & TOLERA NCING
PER AN S I Y14.5M, 1982
2 CO N TR OLLING D IMEN S ION: INCH.
0.48 (.019)
3X
0.44 (.017)
2.85 (.112)
2.65 (.104)
LEAD ASSI G NMENTS
1 - G A TE
2 - D R A IN
3 - SO URCE
MINIMUM CREEPAGE
DISTANC E BETW EEN
A-B-C -D = 4.80 (.189)
PART NU MBE R
IRFI840G
E401 9245
DATE CODE
(YYWW)
YY = YE AR
WW = WEEK
C
D
A
B
A
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 3-30-4 Nishi-Ikeburo 3-Chome, Toshima-Ki, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: 65 221 8371
http://www.irf.com/ Data and specifications subject to change without notice. 8/97
Loading...
