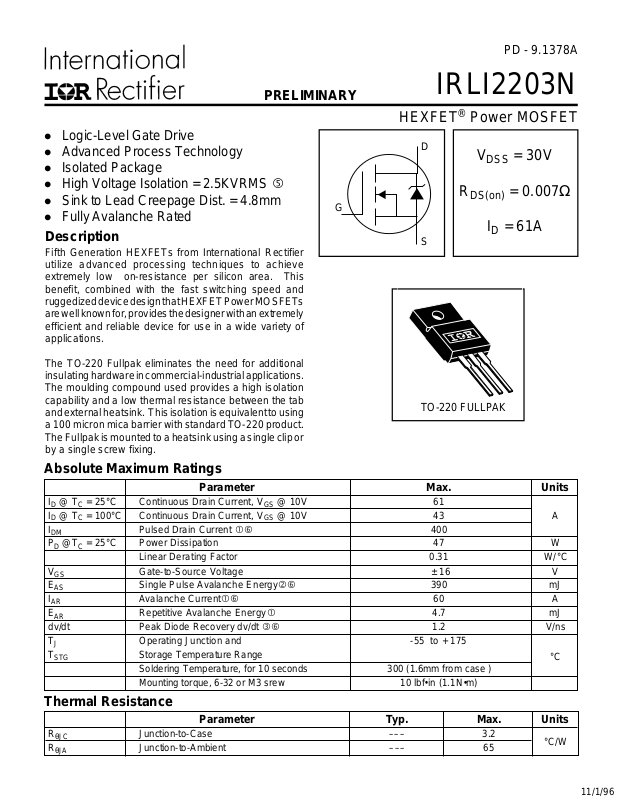

Page 1
PD - 9.1378A
TO-220 FULLPAK
PRELIMINARY
IRLI2203N
HEXFET® Power MOSFET
l Logic-Level Gate Drive
l Advanced Process Technology
l Isolated Package
l High Voltage Isolation = 2.5KVRMS
l Sink to Lead Creepage Dist. = 4.8mm
l Fully Avalanche Rated
G
Description
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This
benefit, combined with the fast switching speed and
ruggedized device design that HEXFET Power MOSFETs
are well known for, provides the designer with an extremely
efficient and reliable device for use in a wide variety of
applications.
The TO-220 Fullpak eliminates the need for additional
insulating hardware in commercial-industrial applications.
The moulding compound used provides a high isolation
capability and a low thermal resistance between the tab
and external heatsink. This isolation is equivalent to using
a 100 micron mica barrier with standard TO-220 product.
The Fullpak is mounted to a heatsink using a single clip or
by a single screw fixing.
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 61
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 43 A
I
DM
PD @TC = 25°C Power Dissipation 47 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 1.2 V/ns
T
J
T
STG
Pulsed Drain Current 400
Linear Derating Factor 0.31 W/°C
Gate-to-Source Voltage ± 16 V
Single Pulse Avalanche Energy 390 mJ
Avalanche Current 60 A
Repetitive Avalanche Energy 4.7 mJ
Operating Junction and -55 to + 175
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
Mounting torque, 6-32 or M3 srew 10 lbf•in (1.1N•m)
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θJA
Junction-to-Case ––– 3.2
Junction-to-Ambient ––– 65
D
R
DS(on)
V
DSS
= 30V
= 0.007Ω
ID = 61A
S
°C/W
°C
11/1/96
Page 2
IRLI2203N
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
C Drain to Sink Capacitance ––– 12 ––– ƒ = 1.0MHz
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Specification changes
Rev. # Parameters Old spec. New spec. Comments Revision Date
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
V
DD
RG = 25Ω, I
Drain-to-Source Breakdown Voltage 30 –– – ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.035 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance
Gate Threshold Voltage 1.0 ––– ––– V VDS = VGS, ID = 250µA
Forward Transconductance 47 ––– ––– S VDS = 25V, ID = 60A
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage ––– ––– 100
Gate-to-Source Reverse Leakage ––– ––– -100 VGS = -16V
Total Gate Charge ––– – – – 110 ID = 60A
Gate-to-Source Charge ––– ––– 3 1 nC VDS = 24V
Gate-to-Drain ("Miller") Charge ––– ––– 57 VGS = 4.5V, See Fig. 6 and 13
Turn-On Delay Time ––– 15 ––– VDD = 15V
Rise Time ––– 210 –– –
Turn-Off Delay Time ––– 29 ––– RG = 1.8Ω, VGS = 4.5V
Fall Time ––– 54 ––– RD = 0.25Ω, See Fig. 10
Internal Drain Inductance ––– 4.5 –––
Internal Source Inductance ––– 7.5 –––
Input Capacitance ––– 3500 ––– VGS = 0V
Output Capacitance ––– 1400 ––– VDS = 25V
Reverse Transfer Capacitance ––– 690 –– – ƒ = 1.0MHz, See Fig. 5
Parameter Min. Typ. Max. Units Conditions
Continuous Source Current MOSFET symbol
(Body Diode)
Pulsed Source Current integral reverse
(Body Diode)
Diode Forward Voltage ––– –– – 1.3 V TJ = 25°C, IS = 37A, VGS = 0V
Reverse Recovery Time – – – 9 4 14 0 ns TJ = 25°C, IF = 60A
Reverse RecoveryCharge ––– 280 41 0 µ C di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
1V
1V
(Max.) 2.5V No spec. Removed V
GS(th)
(Max.) ±20 ±16 Decrease V
GS
= 15V, starting TJ = 25°C, L = 220µH
= 60A. (See Figure 12)
AS
––– ––– 0.007 V
––– ––– 0.01 VGS = 4.5V, ID = 31A
––– ––– 25
––– ––– 250 VDS = 24V, VGS = 0V, TJ = 150°C
Ω
µA
nA
ns
= 10V, ID = 37A
GS
= 30V, VGS = 0V
V
DS
= 16V
V
GS
ID = 60A
Between lead,
6mm (0.25in.)
nH
from package
and center of die contact
pF
––– –––
––– –––
I
≤ 60A, di/dt ≤ 140A/µs, V
SD
61
400
GS(th)
GS
showing the
A
p-n junction diode.
Max. Specification 11/1/96
Max. Specification 11/1/96
DD
≤ V
(BR)DSS
,
G
TJ ≤ 175°C
Pulse width ≤ 300µs; duty cycle ≤ 2%.
t=60s, ƒ=60Hz
Uses IRL2203N data and test conditions
G
D
S
D
S
Page 3
IRLI2203N
1000
VGS
TOP 15V
12V
10V
8.0V
6.0V
4.0V
3.0V
BOTT OM 2.5V
100
10
D
I , Drain-to-Source Current (A )
2.5V
20µs PULSE W IDTH
T = 25°C
1
0.1 1 10 100
V , Dra in-to-So urc e V olta ge (V )
DS
J
Fig 1. Typical Output Characteristics
1000
1000
VGS
TOP 15V
12V
10V
8.0V
6.0V
4.0V
3.0V
BOTT OM 2.5V
100
10
D
I , Drain-to-Source Current (A )
2.5V
20µs PULSE W IDTH
T = 175°C
A
1
0.1 1 10 100
V , Dra in-to-So urc e V olta ge (V )
DS
J
A
Fig 2. Typical Output Characteristics
2.0
I = 100A
D
T = 25°C
J
100
10
D
I , D rain-to - Source Cu r re nt (A )
1
2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0
V , Ga te-to-S o urce Voltage (V)
GS
T = 175°C
J
V = 15 V
DS
20µs PULSE WIDTH
Fig 3. Typical Transfer Characteristics
1.5
1.0
( N ormalized)
0.5
DS (on )
R , D ra in-to-Source On Res istanc e
A
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180
T , Junction Te mp era ture (°C)
J
V = 10V
GS
A
Fig 4. Normalized On-Resistance
Vs. Temperature
Page 4
IRLI2203N
8000
6000
4000
C, Capacitance (pF)
2000
0
1 10 100
V = 0V, f = 1MHz
GS
C = C + C , C SHORTED
iss gs gd ds
C = C
rss gd
C = C + C
oss ds gd
C
iss
C
oss
C
rs s
V , Drai n-to -Sourc e V olt ag e (V )
DS
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
1000
15
I = 60A
D
12
9
6
3
GS
V , Gate -to-Sou rce Voltage (V )
A
0
0 30 60 90 120 150
Q , To tal Gate Ch arge (n C)
G
V = 2 4V
DS
V = 1 5V
DS
FOR TEST CIRCUIT
SEE FIGURE 13
A
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
10µs
T = 25 °C
J
T = 175°C
J
100
SD
I , Re ve rse D rain C u rren t (A)
10
0.5 1.0 1.5 2.0 2.5 3.0 3.5
V , Source-to-Drain Voltage (V)
SD
V = 0V
Fig 7. Typical Source-Drain Diode
Forward Voltage
GS
100
10
D
I , D rain Cu rren t (A )
T = 25°C
C
T = 175°C
J
A
Single Pulse
1
1 10 100
V , Drain-to-So urc e Vo ltag e (V)
DS
100µs
1ms
10ms
A
Fig 8. Maximum Safe Operating Area
Page 5
IRLI2203N
+
-
70
60
50
40
30
20
D
I , D rain Cu rren t (Am ps)
10
0
25 50 75 100 125 150 175
T , C ase T empe rature (°C)
C
Fig 9. Maximum Drain Current Vs.
Case Temperature
10
R
D.U.T.
D
V
DD
V
DS
V
GS
R
G
5.0V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
V
DS
90%
A
10%
V
GS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
D = 0.50
thJC
1
0.20
0.10
0.05
0.1
0.02
T herm al Response (Z )
0.01
0.01
SINGLE PU LSE
(THERM AL R ESPON SE )
0.00001 0.0001 0.001 0.01 0.1 1 10 1 00
t , R ectangular Pulse Duration (sec)
1
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
Notes:
1. Duty factor D = t / t
2. Peak T = P x Z + T
J
DM
P
12
thJC
DM
t
1
t
2
C
A
Page 6
IRLI2203N
15V
DRIVER
+
-
R
V
G
20V
DS
L
D.U.T
I
AS
Ω
0.01
t
p
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
1000
800
600
V
DD
A
400
200
AS
V = 15V
E , Single Pu lse A valanche Energ y (mJ)
DD
0
25 50 75 100 125 150 175
Starting T , Junction Temperature (°C)
J
I
TOP 24A
42A
BOTTOM 60 A
D
A
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
I
AS
Fig 12b. Unclamped Inductive Waveforms
Q
G
4.5 V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
Current Regulator
Same Type as D.U.T.
50KΩ
12V
.2µF
V
GS
.3µF
D.U.T.
3mA
I
G
Current Sampling Resistors
I
+
-
D
Fig 13b. Gate Charge Test Circuit
V
DS
Page 7
IRLI2203N
+
-
Peak Diode Recovery dv/dt Test Circuit
+
D.U.T
-
R
G
Driver Gate Drive
P.W.
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
• dv/dt controlled by R
• Driver same type as D.U.T.
controlled by Duty Factor "D"
• I
SD
• D.U.T. - Device Under Test
Period
-
D =
G
P.W.
Period
+
V
DD
VGS=10V
*
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. ISDWaveform
Body Diode Forward
D.U.T. VDSWaveform
Body Diode Forward Drop
Inductor Curent
Ripple ≤ 5%
* V
= 5V for Logic Level Devices
GS
Fig 14. For N-Channel HEXFETS
Current
di/dt
Diode Recovery
dv/dt
V
DD
I
SD
Page 8
IRLI2203N
Package Outline
TO-220 Fullpak Outline
Dimensions are shown in millimeters (inches)
10.60 (.417)
10.40 (.409)
16.00 (.630)
15.80 (.622)
1 2 3
13.70 (.540)
13.50 (.530)
1.40 (.055)
3X
1.05 (.042)
2.54 (.100)
2X
3X
Part Marking Information
TO-220 Fullpak
EXAMPLE : THIS IS A N IRFI840G
EXAMPLE : THIS IS AN IRF1010
WITH A S SEMBL Y
W ITH ASSEMBLY
LOT C OD E E 4 01
LOT COD E 9 B 1 M
ø
3.70 (.145)
3.20 (.126)
1.15 (.045)
MIN.
3.30 (.130)
3.10 (.122)
0.90 (.035)
0.70 (.028)
0.25 (.010)
3.40 (.133)
3.10 (.123)
- A -
- B -
M
4.80 (.189)
4.60 (.181)
7.10 (.280)
6.70 (.263)
A M B
INTERNATIONAL
INT ERNATIONAL
R ECT IF IER
RE CTIFIER
LOGO
LOGO
ASSEMBLY
AS SE M BL Y
LOT COD E
LO T CO D E
2.80 (.110)
2.60 (.102)
NOTES:
1 DIMENSIONING & TOLERANCING
PER A N SI Y1 4.5M, 1982
2 CO NTROLLING DIMENSION: INCH.
0.48 (.019)
3X
0.44 (.017)
2.85 (.112)
2.65 (.104)
IRF1010
IRFI840G
LEA D ASSIGNM EN T S
1 - G A TE
2 - D R A IN
3 - SO URCE
MINIMUM CREEPAGE
DISTA NCE BETW E EN
A-B-C -D = 4.80 (.189)
PART NUM BER
PART NU MBE R
9246
E401 9245
9B 1M
DATE CODE
DATE CODE
(YYWW)
(YYWW)
YY = YEAR
YY = YE AR
WW = WEEK
WW = WEEK
C
D
A
B
A
A
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 3-30-4 Nishi-Ikeburo 3-Chome, Toshima-Ki, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: 65 221 8371
http://www.irf.com/ Data and specifications subject to change without notice. 11/96
Loading...
