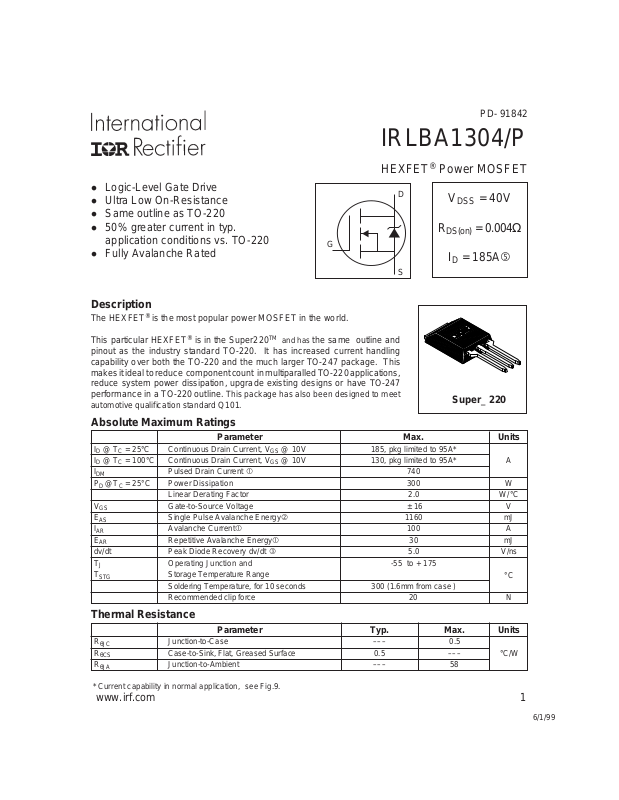

PD- 91842
IRLBA1304/P
HEXFET® Power MOSFET
l Logic-Level Gate Drive
l Ultra Low On-Resistance
l Same outline as TO-220
l 50% greater current in typ.
application conditions vs. TO-220
l Fully Avalanche Rated
G
D
R
DS(on)
V
DSS
= 40V
= 0.004Ω
ID = 185A
S
Description
The HEXFET® is the most popular power MOSFET in the world.
This particular HEXFET® is in the Super220
TM
and has
the same outline and
pinout as the industry standard TO-220. It has increased current handling
capability over both the TO-220 and the much larger TO-247 package. This
makes it ideal to reduce component count in multiparalled TO-220 applications,
reduce system power dissipation, upgrade existing designs or have TO-247
performance in a TO-220 outline. This package has also been designed to meet
automotive qualification standard Q101.
Super_ 220
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 185, pkg limited to 95A*
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 130, pkg limited to 95A* A
I
DM
PD @TC = 25°C Power Dissipation 300 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 5.0 V/ns
T
J
T
STG
Pulsed Drain Current 740
Linear Derating Factor 2.0 W/°C
Gate-to-Source Voltage ± 16 V
Single Pulse Avalanche Energy 1160 mJ
Avalanche Current 100 A
Repetitive Avalanche Energy 30 mJ
Operating Junction and -55 to + 175
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
Recommended clip force 20 N
°C
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θCS
R
θJA
* Current capability in normal application, see Fig.9.
Junction-to-Case ––– 0.5
Case-to-Sink, Flat, Greased Surface 0.5 ––– °C/W
Junction-to-Ambient ––– 58
www.irf.com 1
6/1/99
Page 2
IRLBA1304/P
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage 40 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.043 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance
––– ––– 0.0040 VGS = 10V, ID = 110A
––– ––– 0.0065 VGS = 4.5V, ID = 93
Ω
Gate Threshold Voltage 1.0 ––– ––– V VDS = VGS, ID = 250µA
Forward Transconductance 120 ––– ––– S VDS = 25V, ID = 110A
Drain-to-Source Leakage Current
––– ––– 25
––– ––– 250 VDS = 32V, VGS = 0V, TJ = 150°C
Gate-to-Source Forward Leakage ––– ––– 100 VGS = 16V
Gate-to-Source Reverse Leakage ––– ––– -100
VDS = 40V, VGS = 0V
µA
nA
VGS = -16V
Total Gate Charge ––– ––– 14 0 ID = 110A
Gate-to-Source Charge – –– –– – 39 nC VDS = 32V
Gate-to-Drain ("Miller") Charge ––– ––– 79 VGS = 4.5V, See Fig. 6 and 13
Turn-On Delay Time ––– 21 – –– VDD = 20V
Rise Time ––– 350 ––– ID = 110A
Turn-Off Delay Time ––– 45 ––– RG = 0.9Ω
Fall Time ––– 103 ––– RD = 0.18Ω,See Fig. 10
Internal Drain Inductance 2.0
––– –––
Internal Source Inductance ––– 5.0 –––
Between lead,
nH
6mm (0.25in.)
from package
and center of die contact
Input Capacitance ––– 7660 ––– VGS = 0V
Output Capacitance ––– 2150 ––– pF VDS = 25V
Reverse Transfer Capacitance ––– 460 ––– ƒ = 1.0MHz, See Fig. 5
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Continuous Source Current MOSFET symbol
(Body Diode)
Pulsed Source Current integral reverse
(Body Diode)
––– –––
––– –––
185*
740
showing the
A
p-n junction diode.
G
Diode Forward Voltage ––– ––– 1.3 V TJ = 25°C, IS = 110A, VGS = 0V
Reverse Recovery Time ––– 100 150 ns TJ = 25°C, IF = 110A
Reverse RecoveryCharge ––– 250 380 nC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
I
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
Starting T
RG = 25Ω, I
= 25°C, L = 230µH
J
= 100A. (See Figure 12)
AS
≤ 110A, di/dt ≤ 170A/µs, V
SD
TJ ≤ 175°C
Pulse width ≤ 300µs; duty cycle ≤ 2%.
DD
≤ V
(BR)DSS
,
2 www.irf.com
D
S
Page 3
IRLBA1304/P
1000
100
10
1
D
I , Drain-to-Source Current (A)
0.1
0.1 1 10 100
1000
100
VGS
TOP
15V
10V
5.0V
4.5V
3.5V
3.0V
2.7V
BOTTOM
2.5V
2.5V
V , Drain-to-Source Voltage (V)
DS
°
T = 25 C
J
20µs PULSE WIDTH
T = 25 C
J
T = 175 C
J
°
°
1000
100
D
I , Drain-to-Source Current (A)
10
0.1 1 10 100
VGS
TOP
15V
10V
5.0V
4.5V
3.5V
3.0V
2.7V
BOTTOM
2.5V
2.5V
20µs PULSE WIDTH
T = 175 C
J
V , Drain-to-Source Voltage (V)
DS
°
Fig 2. Typical Output CharacteristicsFig 1. Typical Output Characteristics
2.5
2.0
I =
D
170A
1.5
10
1.0
(Normalized)
1
D
I , Drain-to-Source Current (A)
V = 25V
DS
0.1
2.0 4.0 6.0 8.0 10.0
V , Gate-to-Source Voltage (V)
GS
20µs PULSE WIDTH
Fig 3. Typical Transfer Characteristics
0.5
DS(on)
R , Drain-to-Source On Resistance
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180
T , Junction Temperature ( C)
J
Fig 4. Normalized On-Resistance
V =
GS
°
10V
Vs. Temperature
www.irf.com 3
Page 4
IRLBA1304/P
12000
10000
8000
6000
4000
C, Capacitance (pF)
2000
0
1 10 100
V
=
0V,
GS
C
=
issgsgd , ds
C
=
rssgd
C
=
oss dsgd
V , Drain-to-Source Voltage (V)
DS
f = 1MHz
C
+ C
C
C
C
iss
C
oss
C
rss
C SHORTED
+ C
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
1000
15
I =
110A
D
V = 32V
DS
12
9
6
3
GS
V , Gate-to-Source Voltage (V)
0
0 40 80 120 160 200
Q , Total Gate Charge (nC)
G
V = 20V
DS
V = 8V
DS
FOR TEST CIRCUIT
SEE FIGURE
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
10000
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
13
°
T = 175 C
J
100
°
T = 25 C
J
SD
I , Reverse Drain Current (A)
V = 0 V
10
0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
V ,Source-to-Drain Voltage (V)
SD
GS
Fig 7. Typical Source-Drain Diode
1000
100
D
I , Drain Current (A)I , Drain Current (A)
°
= 25 C
C
T T= 175 C
Single Pulse
10
1 10 100
°
J
V , Drain-to-Source Voltage (V)
DS
Fig 8. Maximum Safe Operating Area
10us
100us
1ms
10ms
Forward Voltage
4 www.irf.com
Page 5
200
LIMITED BY PACKAGE
160
120
80
D
I , Drain Current (A)
40
0
25 50 75 100 125 150 175
T , Case Temperature ( C)
C
°
Fig 9. Maximum Drain Current Vs.
Case Temperature
IRLBA1304/P
R
D.U.T.
t
d(off)tf
D
V
DS
V
GS
R
G
4.5V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
V
DS
90%
10%
V
GS
t
d(on)tr
Fig 10b. Switching Time Waveforms
+
V
DD
-
1
D = 0.50
thJC
Thermal Response (Z )
0.001
0.20
0.1
0.10
0.05
0.02
0.01
0.01
0.00001 0.0001 0.001 0.01 0.1 1
SINGLE PULSE
(THERMAL RESPONSE)
Notes:
1. Duty factor D = t / t
2. Peak T =P x Z + T
t , Rectangular Pulse Duration (sec)
1
J DM thJC C
1 2
P
DM
t
1
t
2
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com 5
Page 6
IRLBA1304/P
A
15V
DRIVER
+
-
R
20V
V
DS
G
t
L
D.U.T
I
AS
0.01
p
Ω
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
V
DD
3000
TOP
2500
2000
1500
1000
500
AS
E , Single Pulse Avalanche Energy (mJ)
0
25 50 75 100 125 150 175
Starting T , Junction Temperature ( C)
J
BOTTOM
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
I
D
41A
71A
100A
°
I
AS
Fig 12b. Unclamped Inductive Waveforms
Q
G
4.5 V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
Current Regulator
Same Type as D.U.T.
50KΩ
12V
.2µF
V
GS
.3µF
D.U.T.
3mA
I
G
Current Sampling Resistors
I
+
V
-
D
Fig 13b. Gate Charge Test Circuit
DS
6 www.irf.com
Page 7
IRLBA1304/P
Peak Diode Recovery dv/dt Test Circuit
D.U.T
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
+
-
-
+
R
G
Driver Gate Drive
P.W.
• dv/dt controlled by R
• Driver same type as D.U.T.
G
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
Period
D =
Period
P.W.
+
-
VGS=10V
V
DD
*
D.U.T. ISDWaveform
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. VDSWaveform
Inductor Curent
* V
= 5V for Logic Level Devices
GS
Body Diode Forward
Current
di/dt
Diode Recovery
dv/dt
Body Diode Forward Drop
Ripple ≤ 5%
V
DD
I
SD
Fig 14. For N-Channel HEXFETS
www.irf.com 7
Page 8
IRLBA1304/P

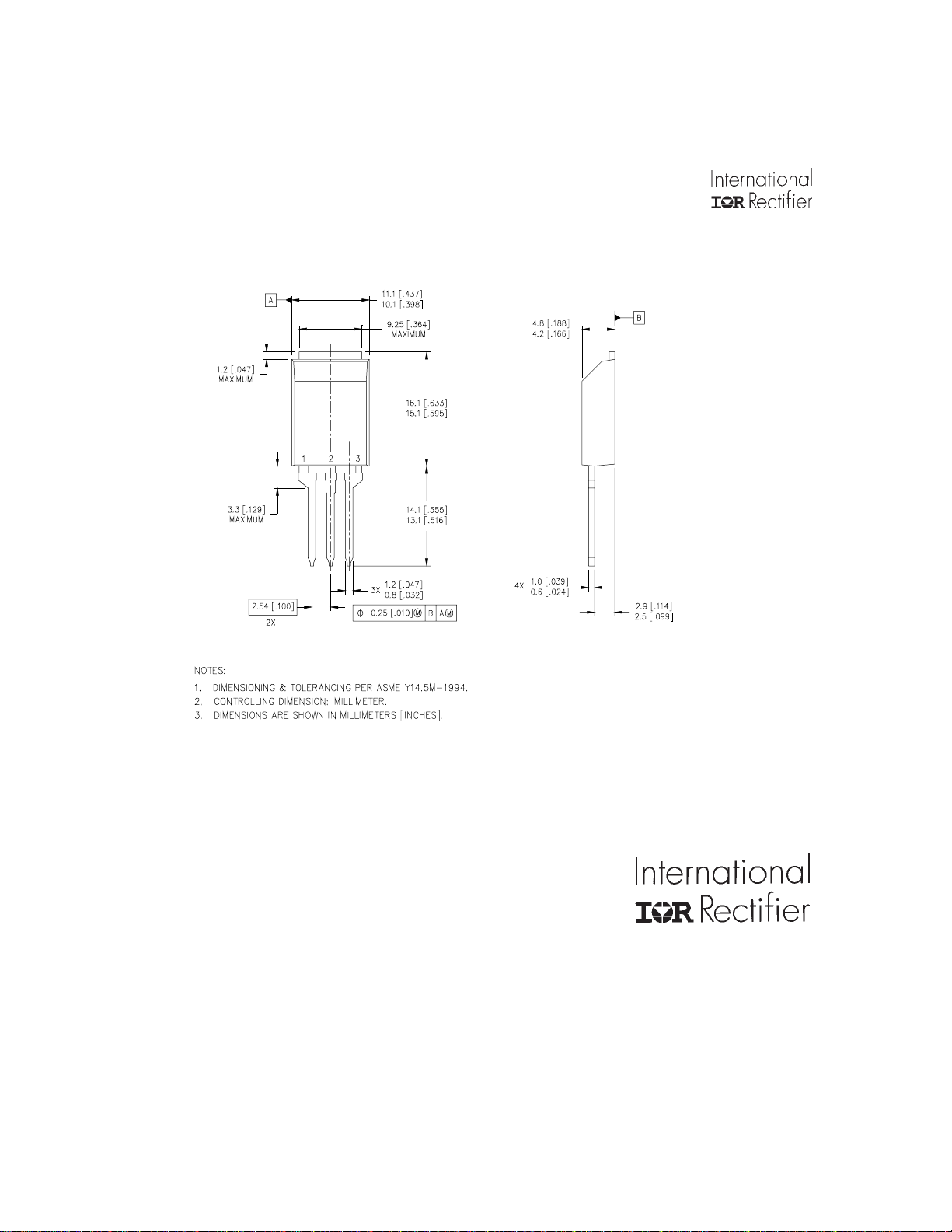

Super_220 Package Outline
