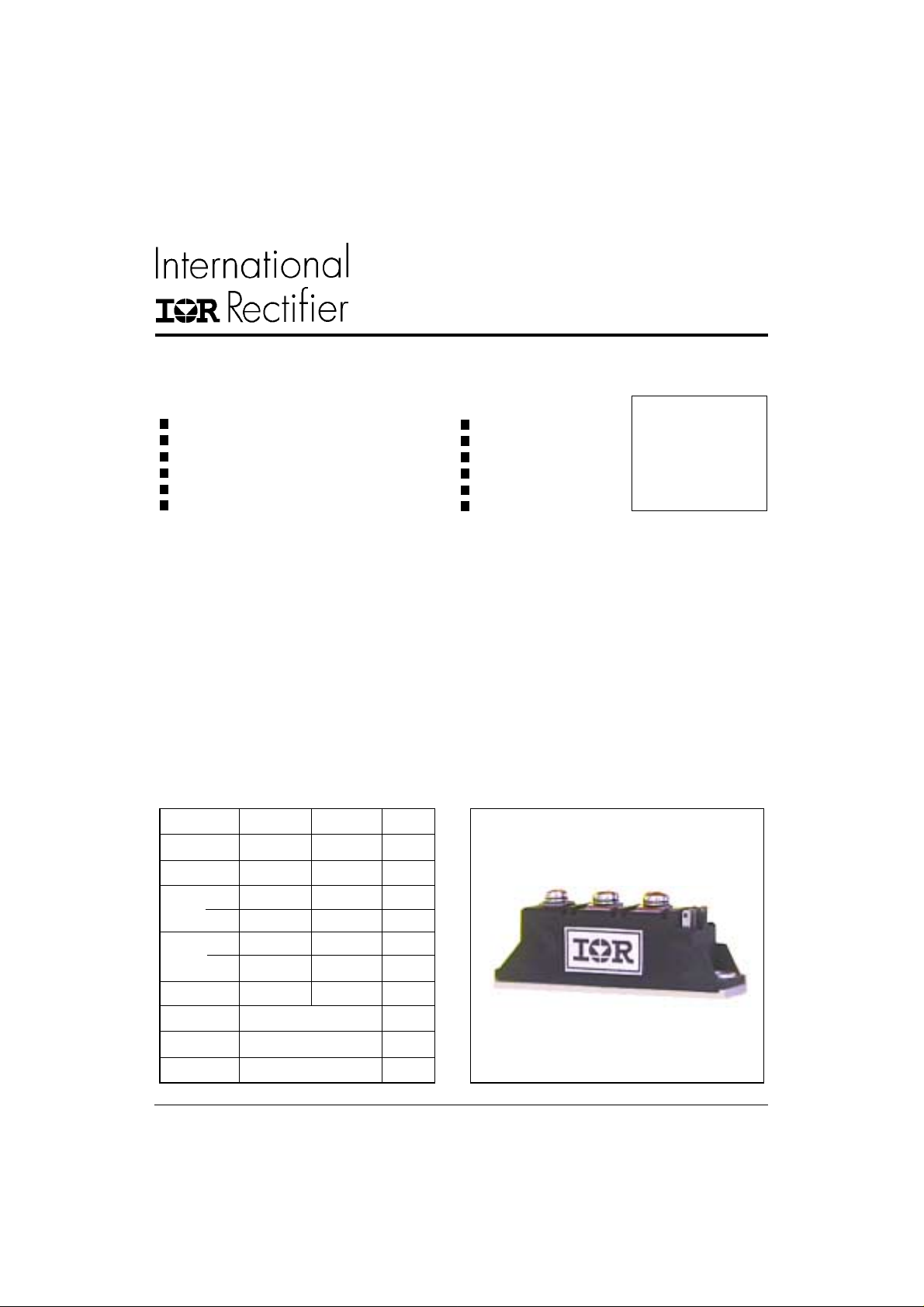

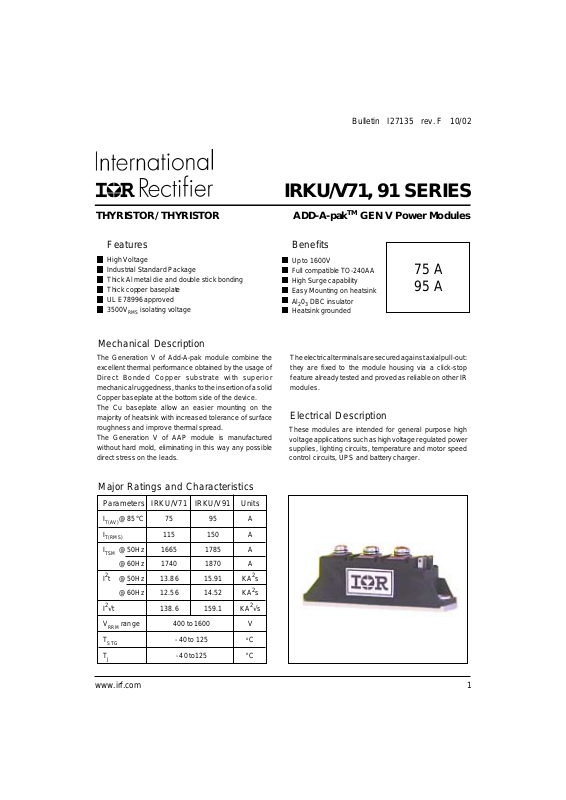

Bulletin I27135 rev. F 10/02
IRKU/V71, 91 SERIES
ADD-A-pakTM GEN V Power ModulesTHYRISTOR/ THYRISTOR
Features
High Voltage
Industrial Standard Package
Thick Al metal die and double stick bonding
Thick copper baseplate
UL E78996 approved
3500V
isolating voltage
RMS
Mechanical Description
The Generation V of Add-A-pak module combine the
excellent thermal performance obtained by the usage of
Direct Bonded Copper substrate with superior
mechanical ruggedness, thanks to the insertion of a solid
Copper baseplate at the bottom side of the device.
The Cu baseplate allow an easier mounting on the
majority of heatsink with increased tolerance of surface
roughness and improve thermal spread.
The Generation V of AAP module is manufactured
without hard mold, eliminating in this way any possible
direct stress on the leads.
Major Ratings and Characteristics
Parameters IRKU/V71 IRKU/V91 Units
I
@ 85°C 75 95 A
T(AV)
I
T(RMS)
I
@ 50Hz 1665 1785 A
TSM
@ 60Hz 1740 1870 A
I2t @ 50Hz 13.86 15.91 KA2s
@ 60Hz 12.56 14.52 KA2s
I2√t 138.6 159.1 KA2√s
V
range 400 to 1600 V
RRM
T
STG
T
J
115 150 A
- 40 to 125
- 40 to125
o
C
o
C
Benefits
Up to 1600V
Full compatible TO-240AA
High Surge capability
Easy Mounting on heatsink
Al20
DBC insulator
3
Heatsink grounded
The electrical terminals are secured against axial pull-out:
they are fixed to the module housing via a click-stop
feature already tested and proved as reliable on other IR
modules.
75 A
95 A
Electrical Description
These modules are intended for general purpose high
voltage applications such as high voltage regulated power
supplies, lighting circuits, temperature and motor speed
control circuits, UPS and battery charger.
www.irf.com
1
Page 2
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
ELECTRICAL SPECIFICATIONS
Voltage Ratings
V
, maximum V
RRM
Type number
Voltage repetitive non-repetitive peak off-state voltage, I
Code peak reverse voltage peak reverse voltage gate open circuit 125°C
-VVVmA
04 400 500 400
IRKU/V71, 91 08 800 900 80 0 15
12 1200 1300 1200
16 1600 1700 1600
On-state Conduction
Parameters IRKU/V71 IRKU/V91 Units Conditions
I
Max. average on-state 75 95 180o conduction, half sine wave,
T(AV)
current T
Max. RMS on-state 115 150 DC
I
T(RMS
)
current
@T
Max. peak, one cycle 1665 1785 t=10ms No voltage
I
TSM
C
non-repetitive on-state 1740 1870 t=8.3ms reapplied
current 1400 1500 t=10ms 100% V
2
I
t Max. I2t for fusing 13.86 15.91 t=10ms No voltage
2
I
√t Max. I2√t for fusing (1) 138.6 159.1 KA2√s t=0.1 to 10ms, no voltage reapplied
Max. value of threshold 0.82 0.80 Low level (3)
V
T(TO)
voltage (2) 0.85 0.85 High level (4)
r
Max. value of on-state 3.00 2.40 Low level (3)
t
slope resistance (2) 2.90 2.25 High level (4)
V
Max. peak on-state I
TM
voltage I
di/dt Max. non-repetitive rate TJ = 25oC, from 0.67 V
of rise of turned on I
current t
IHMax. holding current 200
I
Max. latching current 400 TJ = 25oC, anode supply = 6V,resistive load
L
< I < π x I
AV
x √t
. (2) Average power = V
x
AV
(1) I2t for time tx = I2√t
(3) 16.7% x π x I
80 75 °C
1470 1570 t=8.3ms reapplied
1850 2000 t=10ms T
1940 2100 t=8.3ms no voltage reapplied
12.56 14.52 t=8.3ms reapplied
9.80 11.25 t=10ms 100% V
8.96 10.27 t=8.3ms reapplied
17.11 20.00 t=10ms T
15.60 18.30 t=8.3ms no voltage reapplied
1.59 1.58 V
150 A/µs
x I
(4) I > π x I
AV
T(TO)
, maximum V
RSM
A
A
KA2s
V
mΩ
mA
+ r
T(AV)
t
, max. repetitive I
DRM
= 85oC
C
= 25oC,
J
= 25oC,
J
= π x I
TM
T(AV)
= π x I
FM
F(AV)
=π x I
TM
< 0.5 µs, tp > 6 µs
r
= 25oC, anode supply = 6V,
T
J
, I
T(AV)
g
resistive load, gate open circuit
T(RMS)
2
)
x (I
RRM
RRM
DRM
= 500mA,
Sinusoidal
half wave,
Initial T
Initial T
TJ = TJ max
T
= TJ max
J
TJ = 25°C
,
= TJ max.
J
= TJ max.
J
RRM
DRM
2
www.irf.com
Page 3
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
Triggering
Parameters IRKU/V71 IRKU/V91 Units Conditions
P
Max. peak gate power 12 12
GM
P
Max. average gate power 3.0 3.0
G(AV)
I
Max. peak gate current 3.0 3.0 A
GM
-V
Max. peak negative
GM
gate voltage
Max. gate voltage
V
GT
required to trigger
Max. gate current
I
GT
required to trigger
VGDMax. gate voltage
that will not trigger
I
Max. gate current
GD
that will not trigger
10
4.0 T
2.5 T
1.7 T
270 T
150 mA T
80 T
0.25 V
6mA
Blocking
Parameters IRKU/V71, 91 Units Conditions
I
Max. peak reverse and
RRM
I
off-state leakage current
DRM
at V
, V
RRM
DRM
V
RMS isolation voltage V
INS
dv/dt Max. critical rate of rise T
of off-state voltage (5) gate open circuit
(5) Available with dv/dt = 1000V/µs, to complete code add S90 i.e. IRKU91/16AS90.
15 mA T
2500 (1 min) 50 Hz, circuit to base, all terminals
3500 (1 sec) shorted
500 V/µs
Thermal and Mechanical Specifications
Parameters IRK.71 IRK.91 Units Conditions
T
Junction operating
J
temperature range
Storage temper. range - 40 to 125
T
stg
Max. internal thermal
R
thJC
resistance, junction 0.165 0.135 Per module, DC operation
to case
Typical thermal resistance
R
thCS
case to heatsink
T Mounting torque ± 10%
to heatsink
busbar 3
wt Approximate weight 110 (4) gr (oz)
Case style TO-240AA JEDEC
∆R Conduction (per Junction)
(The following table shows the increment of thermal resistance R
Devices Units
180
Sine half wave conduction Rect. wave conduction
o
120
o
IRKU/V71 0.06 0.07 0.09 0.12 0.18 0.04 0.08 0.10 0.13 0.18
IRKU/V91 0.04 0.05 0.06 0.08 0.12 0.03 0.05 0.06 0.08 0.12
- 40 to 125
0.1
5
when devices operate at different conduction angles than DC)
thJC
o
90
o
60
o
30
W
V
°C
K/W
Nm
180o120
= - 40°C
J
= 25°C
J
= 125°C
J
= - 40°C
J
= 25°C
J
= 125°C
J
T
= 125oC,
J
rated V
= 125oC,
T
J
rated V
= 125 oC, gate open circuit
J
= 125oC, linear to 0.67 V
J
DRM
DRM
applied
applied
Anode supply = 6V
resistive load
Anode supply = 6V
resistive load
DRM
Mounting surface flat, smooth and greased
A mounting compound is recommended
and the torque should be rechecked after
a period of 3 hours to allow for the spread
of the compound
o
o
90
o
60
o
30
,
°C/W
www.irf.com
3

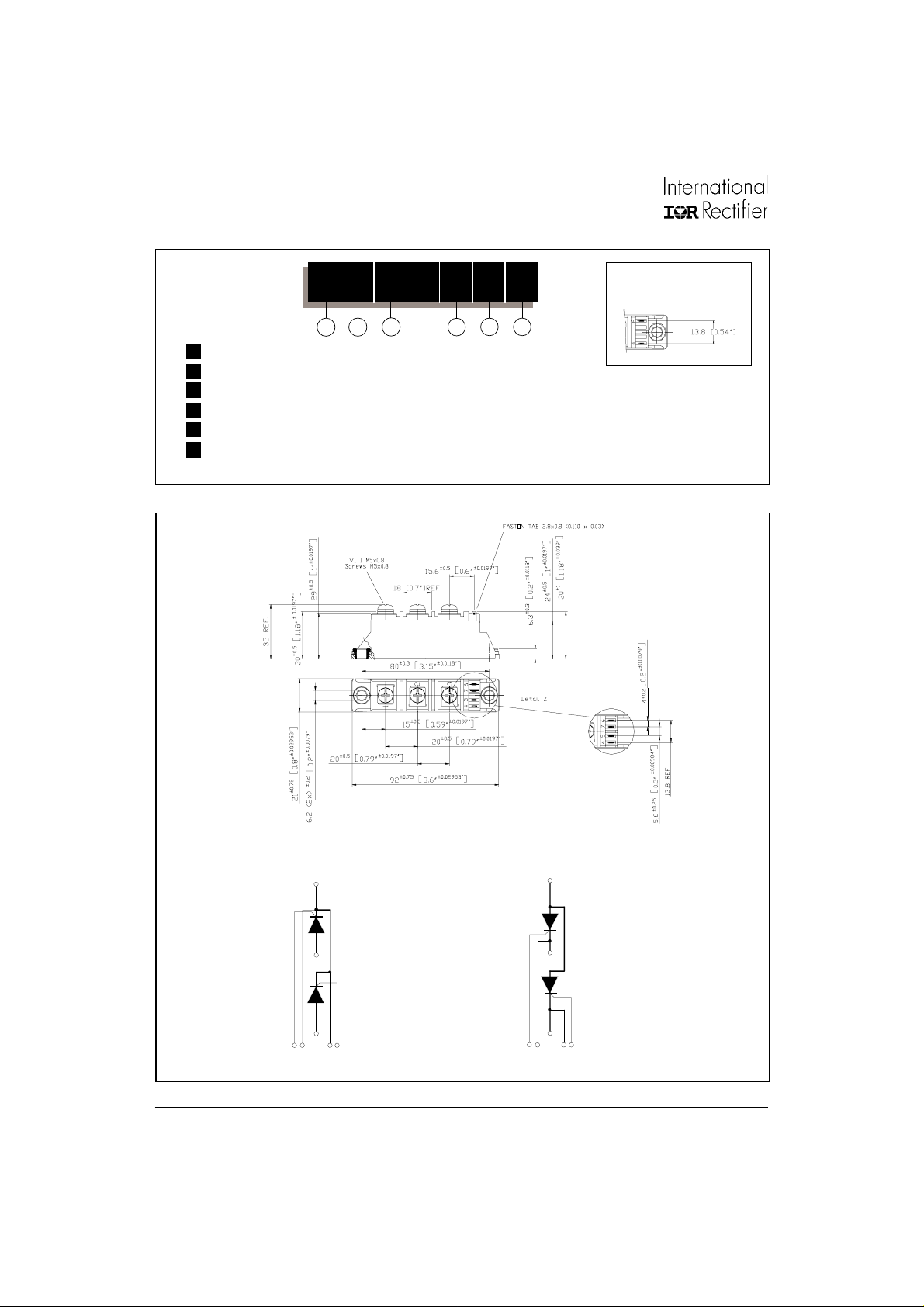

Page 4
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
Ordering Information Table
Device Code
IRK U 91 / 16 A S90
1
2 3
1 - Module type
2 - Circuit configuration (See Circuit Configuration table)
3 - Current code * *
4 - Voltage code (See Voltage Ratings table)
5 - A : Gen V
6 - dv/dt code: S90 = dv/dt 1000 V/µs
No letter = dv/dt 500 Vµs
Outline Table
IRK.92 types
With no auxiliary cathode
5
4
6
* * Available with no auxiliary cathode.
To specify change: 91 to 92
71 to 72
e.g. : IRKU92/16A etc.
Dimensions are in millimeters and [inches]
IRKU
G1
(4) (5)
(1)
+
-
(2)
-
(3)
K1
K2
G2
(7)
(6)
IRKV
