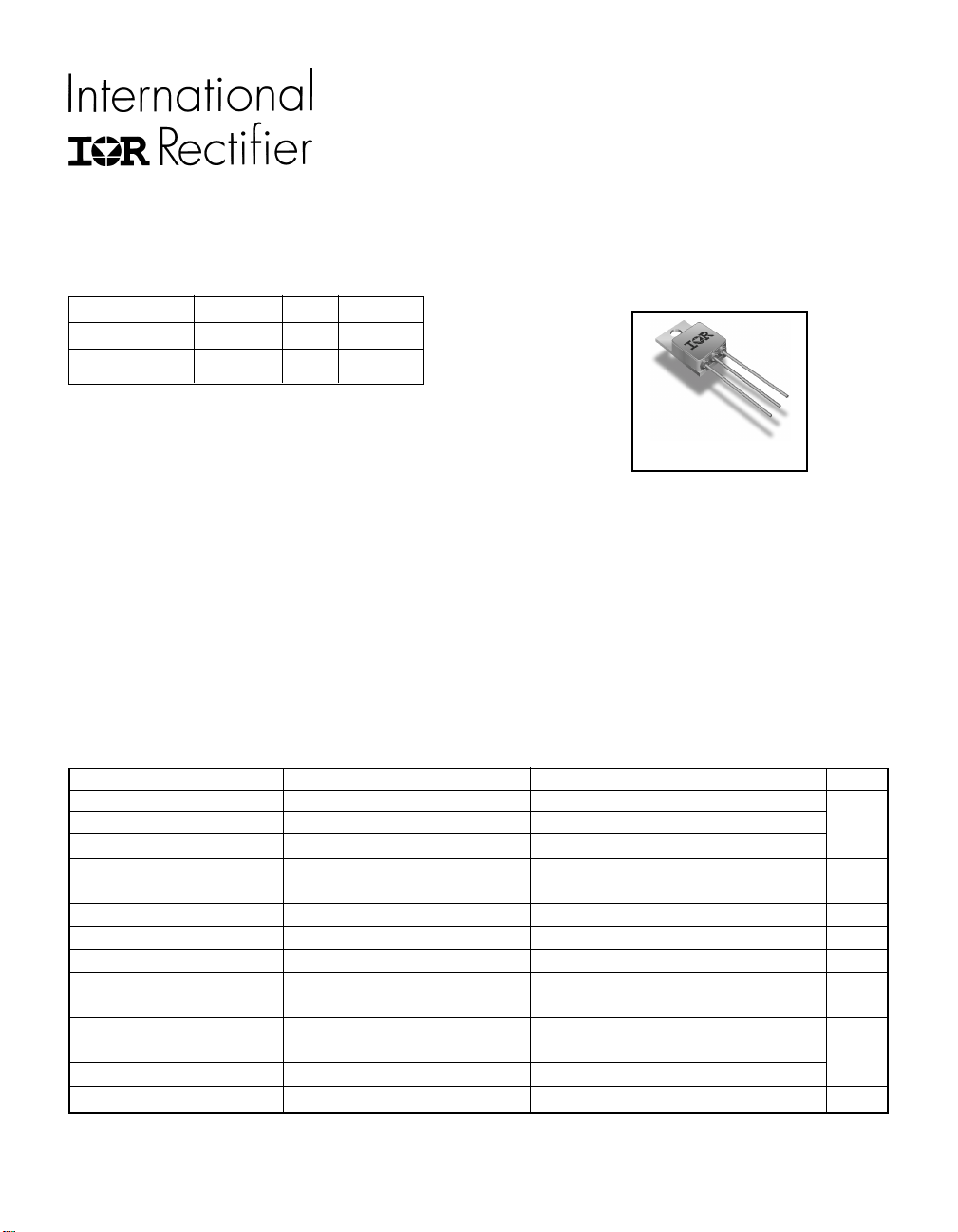

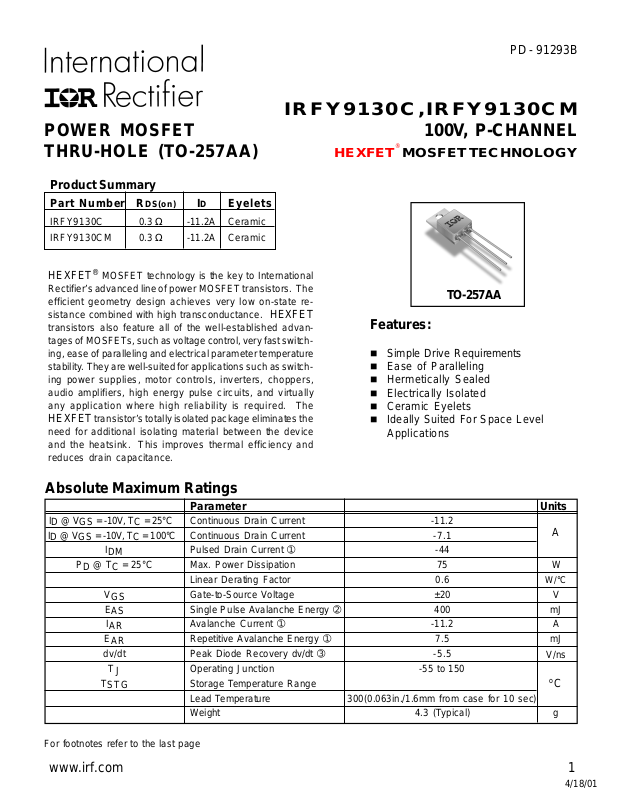

POWER MOSFET
THRU-HOLE (TO-257AA)
Product Summary
Part Number RDS(on) ID Eyelets
IRFY9130C 0.3 Ω -11.2A Ceramic
IRFY9130CM 0.3 Ω -11.2A Ceramic
IRFY9130C,IRFY9130CM
100V, P-CHANNEL
HEXFET
®
MOSFET TECHNOLOGY
PD - 91293B
HEXFET
Rectifier’s advanced line of power MOSFET transistors. The
efficient geometry design achieves very low on-state resistance combined with high transconductance. HEXFET
transistors also feature all of the well-established advantages of MOSFETs, such as voltage control, very fast switching, ease of paralleling and electrical parameter temperature
stability . They are well-suited f or applications such as switching power supplies, motor controls, inverters, choppers,
audio amplifiers, high energy pulse circuits, and virtually
any application where high reliability is required. The
HEXFET transistor’s totally isolated package eliminates the
need for additional isolating material between the device
and the heatsink. This improves thermal efficiency and
reduces drain capacitance.
®
MOSFET technology is the key to International
TO-257AA
Features:
n Simple Drive Requirements
n Ease of Paralleling
n Hermetically Sealed
n Electrically Isolated
n Ceramic Eyelets
n Ideally Suited For Space Level
Applications
Absolute Maximum Ratings
Parameter Units
ID @ VGS = -10V, TC = 25°C Continuous Drain Current -11.2
ID @ VGS = -10V, TC = 100°C Continuous Drain Current -7.1
I
DM
PD @ TC = 25°C Max. Power Dissipation 75 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt ➂ -5.5
T
J
T
STG
Pulsed Drain Current ➀ -44
Linear Derating Factor 0.6 W/°C
Gate-to-Source Voltage ±20 V
Single Pulse Avalanche Energy ➁ 400 mJ
Avalanche Current ➀ -11.2 A
Repetitive Avalanche Energy ➀ 7.5 mJ
Operating Junction -55 to 150
Storage Temperature Range
Lead Temperature 300(0.063in./1.6mm from case for 10 sec)
Weight 4.3 (Typical) g
A
V/ns
o
C
For footnotes refer to the last page
www.irf.com 1
4/18/01
Page 2
IRFY9130C, IRFY9130CM
Electrical Characteristics @ Tj = 25°C (Unless Otherwise Specified)
Parameter M in T yp Max Uni ts T es t Co nd itions
BV
DSS
∆BV
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
LS + L
C
iss
C
oss
C
rss
DSS
D
Drain-to-Source Breakdown Voltage -100 — — V VGS = 0V, ID = -1.0mA
/∆TJTemperature Coefficient of Breakdown — -0.1 — V/°C Reference to 25°C, ID = -1.0mA
Voltage
Static Drain-to-Source On-State — — 0.30 Ω VGS = -10V, ID = -7.1A
Resistance
Gate Threshold Voltage -2.0 — -4.0 V VDS = VGS, ID = -250µA
Forward Transconductance 2.5 — — S ( )VDS > -15V, IDS = -7.1A ➃
Zero Gate Voltage Drain Current — — -2 5 VDS= -80V ,VGS=0V
— — -250 VDS = -80V,
Gate-to-Source Leakage Forward — — -100 VGS = -20V
Gate-to-Source Leakage Reverse — — 100 VGS = 20V
Total Gate Charge — — 30 VGS = -10V, ID = -11.2A
Gate-to-Source Charge — — 7.1 nC VDS = -50V
Gate-to-Drain (‘Miller’) Charge — — 2. 1
Turn-On Delay Time — — 60 VDD = -50V, ID = -11.2A,
Rise Time — — 140 RG = 7.5Ω
Turn-Off Delay Time — — 14 0
Fall Time — — 140
Total Inductance — 6.8 —
Input Capacitance — 800 — VGS = 0V, VDS = -25V
Output Capacitance — 350 — pF f = 1.0MHz
Reverse Transfer Capacitance — 125 —
Ω
µA
nA
ns
Measured from drain lead (6mm/0.25in. from
nH
package) to source lead (6mm/0.25in. from
package)
➃
VGS = 0V, TJ = 125°C
Source-Drain Diode Ratings and Characteristics
Parameter Min Typ Max Units T est Conditions
I
Continuous Source Current (Body Diode) — — -11.2
S
I
Pulse Source Current (Body Diode) ➀ — — -44
SM
V
Diode Forward Voltage — — -4.7 V Tj = 25°C, IS = -11.2A, VGS = 0V ➃
SD
t
Reverse Recovery Time — — 250 nS Tj = 25°C, IF = -11.2A, di/dt ≤ -100A/µs
rr
Q
Reverse Recovery Charge — — 3.0 µC VDD ≤ -50V ➃
RR
t
Forward Turn-On Time Intrinsic turn-on time is negligible. Turn-on speed is substantially controlled by L
on
A
S
Thermal Resistance
Parameter Min Typ Max Units Test Conditions
R
thJC
R
thCS
R
thJA
Note: Corresponding Spice and Saber models are available on the G&S Website.
For footnotes refer to the last page
2 www.irf.com
Junction-to-Case — — 1.67
Case-to-sink — 0.21 —
Junction-to-Ambient — — 80 Typical socket mount
°C/W
+ LD.
Page 3
IRFY9130C, IRFY9130CM

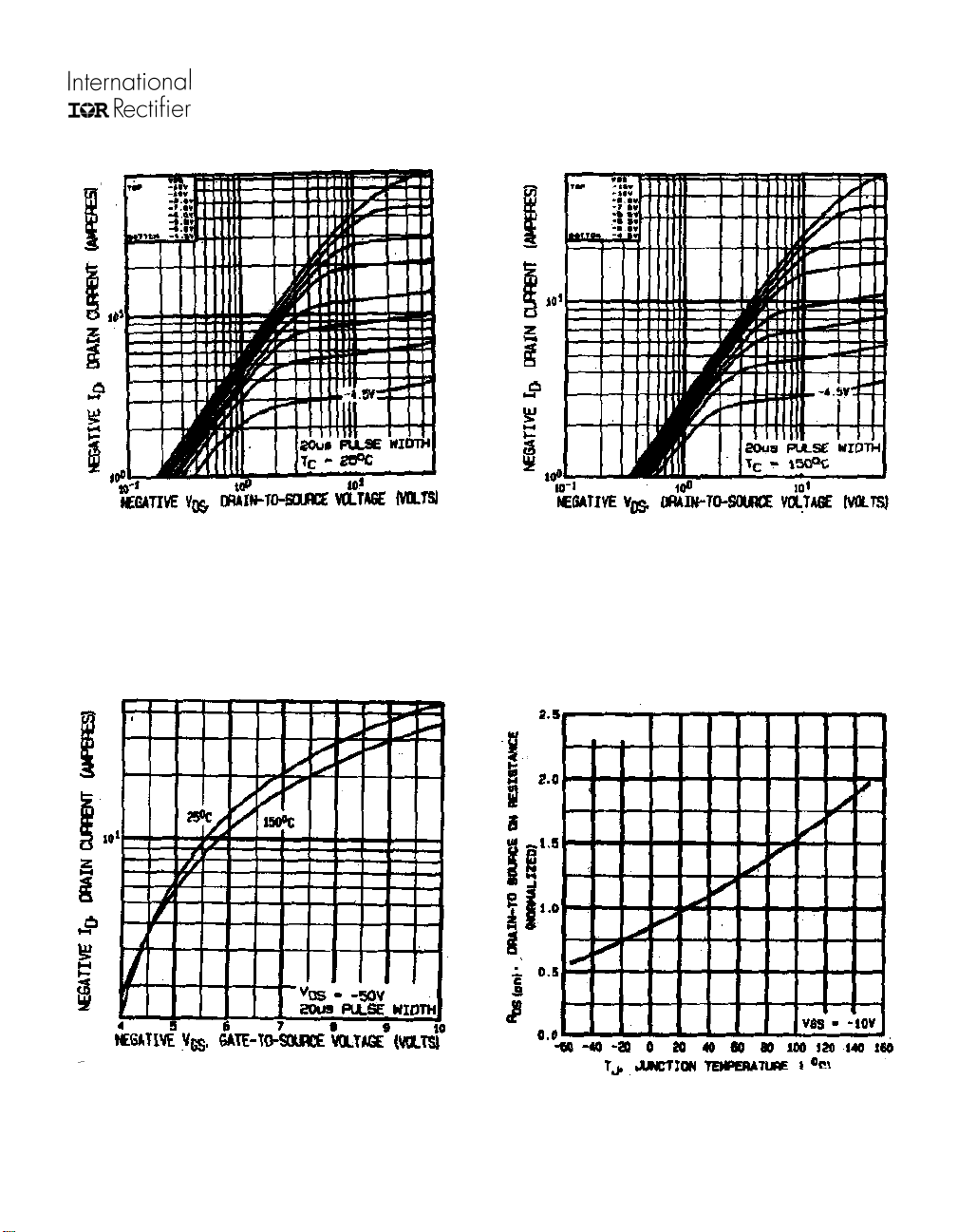

Fig 2. Typical Output CharacteristicsFig 1. Typical Output Characteristics
ID=-11.2A
Fig 3. Typical Transfer Characteristics
Fig 4. Normalized On-Resistance
Vs. Temperature
www.irf.com 3
Page 4
IRFY9130C, IRFY9130CM
ID=-11.2A
3a

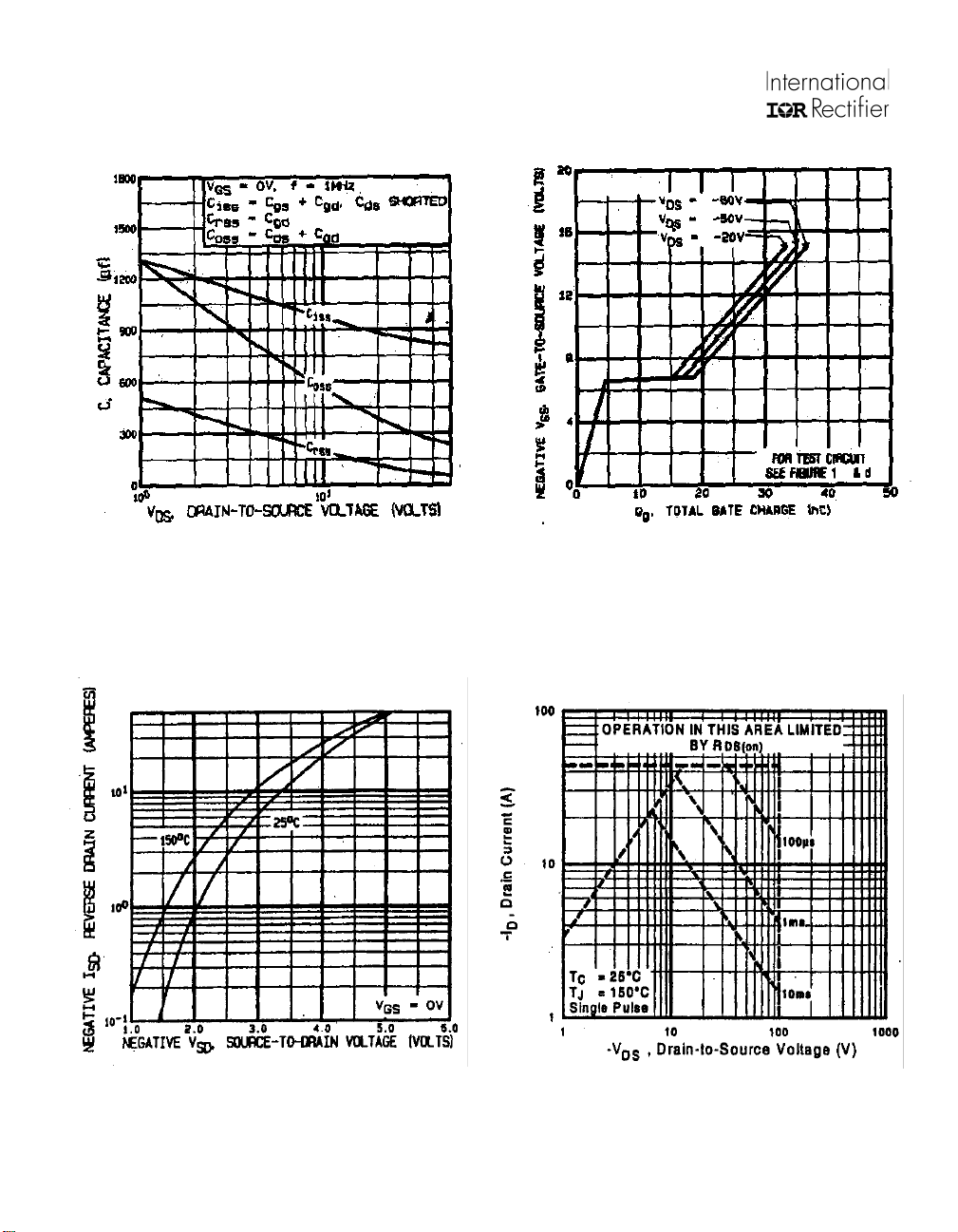

Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 7. Typical Source-Drain Diode
Forward Voltage
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
Fig 8. Maximum Safe Operating Area
4 www.irf.com
Page 5
IRFY9130C, IRFY9130CM
R
V
DS
V
GS
R
G
-10V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
D
D.U.T.
-
+
V
DD

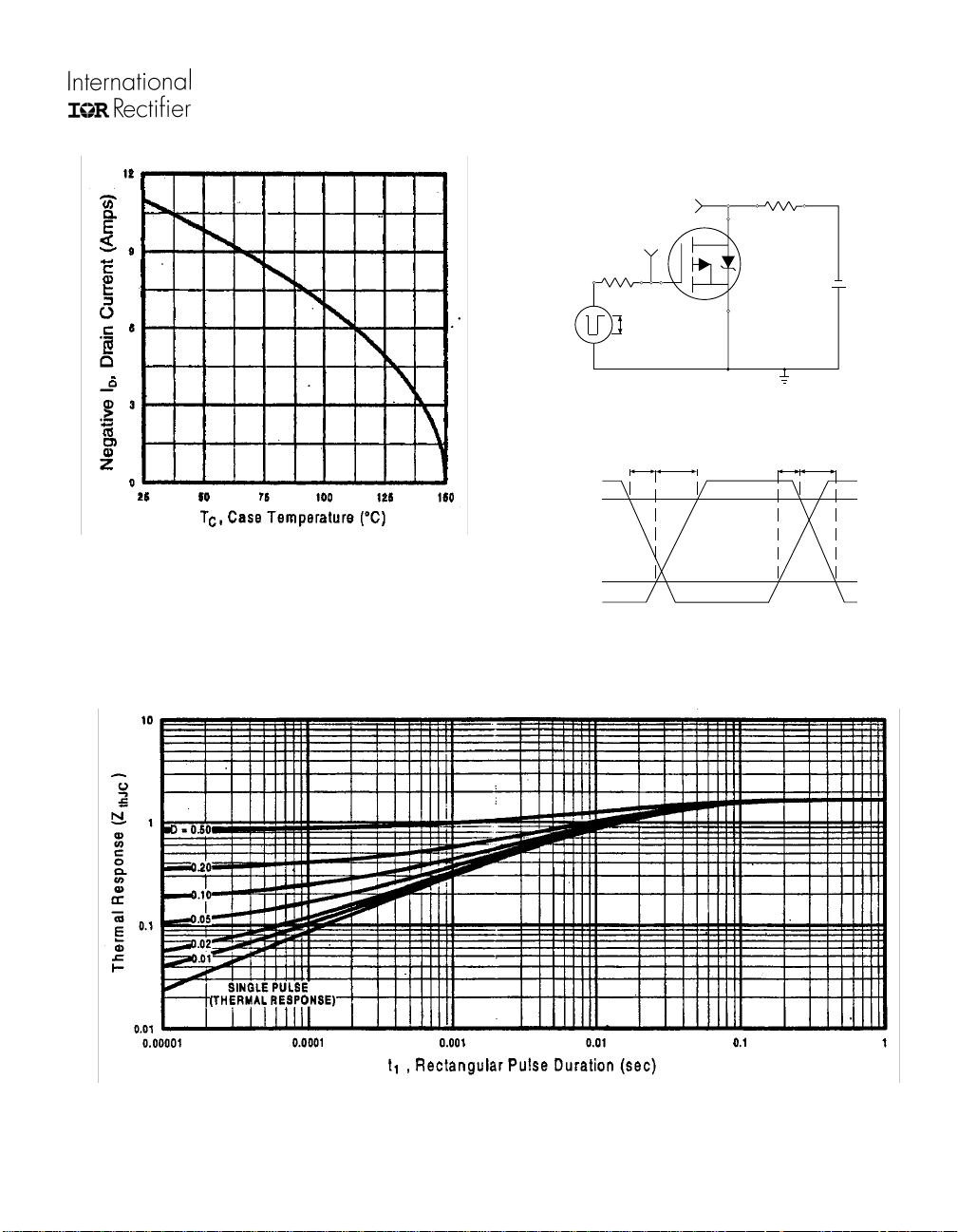

Fig 9. Maximum Drain Current Vs.
Case Temperature
V
GS
10%
90%
V
DS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com 5
Page 6
IRFY9130C, IRFY9130CM
(BR)
L
D.U.T
I
AS
0.01
t
p
DRIVER
Ω
15V
V
DD
R
V
G
-20V
-10V
DS

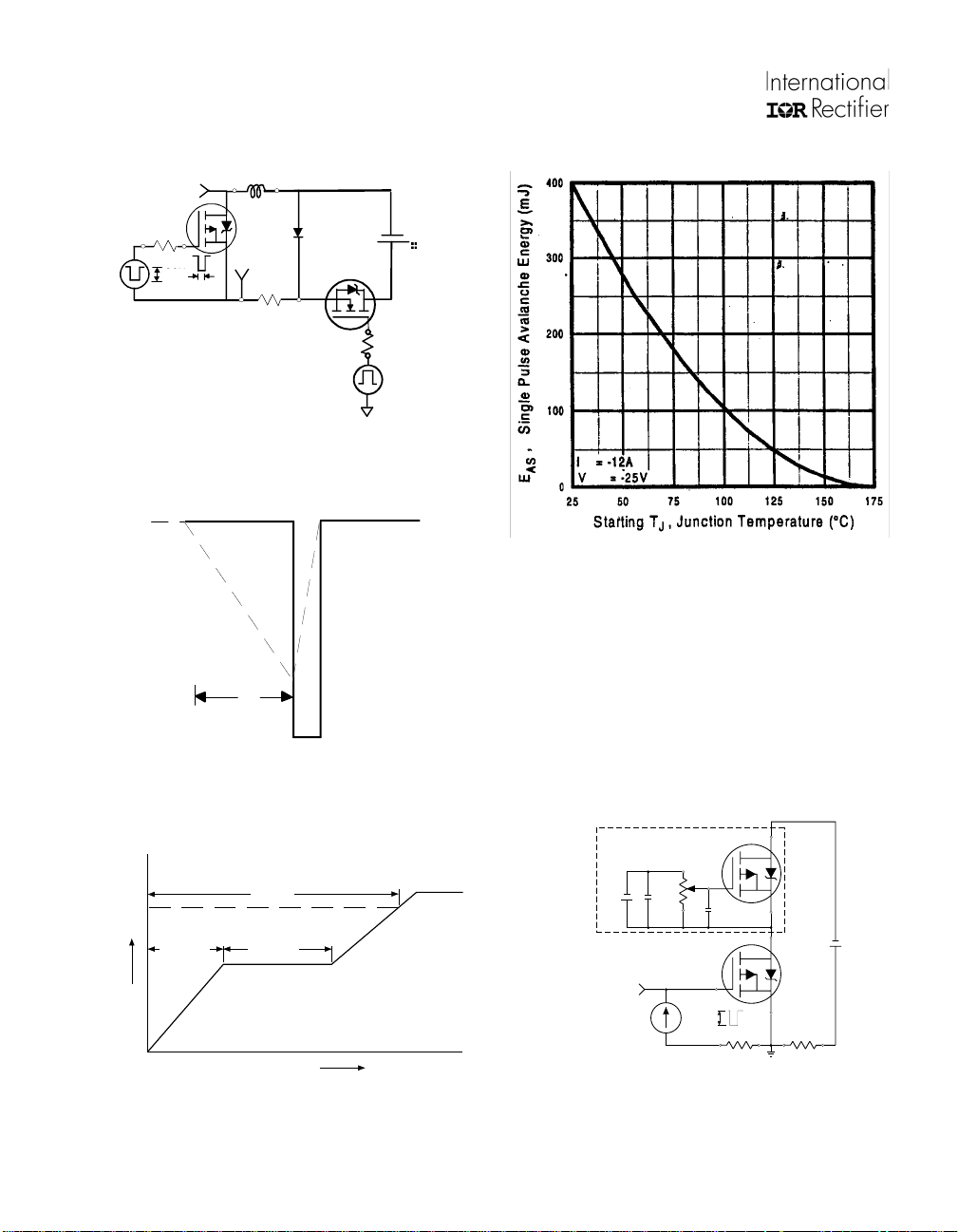

Fig 12a. Unclamped Inductive Test Circuit
I
AS
t
p
V
DSS
A
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
Fig 12b. Unclamped Inductive Waveforms
Current Regulator
Same Type as D.U.T.
Q
G
-10V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
-10V
12V
V
GS
Fig 13b. Gate Charge Test Circuit
50KΩ
.2µF
.3µF
-3mA
Current Sampling Resistors
I
G
6 www.irf.com
D.U.T.
I
V
DS
+
D
Page 7
Foot Notes:
➀ Repetitive Rating; Pulse width limited by
maximum junction temperature.
➁ V
= -25V, starting TJ = 25°C, L= 6.4mH
DD
Peak IL = -11.2A, VGS = -10V
➂ I
➃ Pulse width ≤ 300 µs; Duty Cycle ≤ 2%

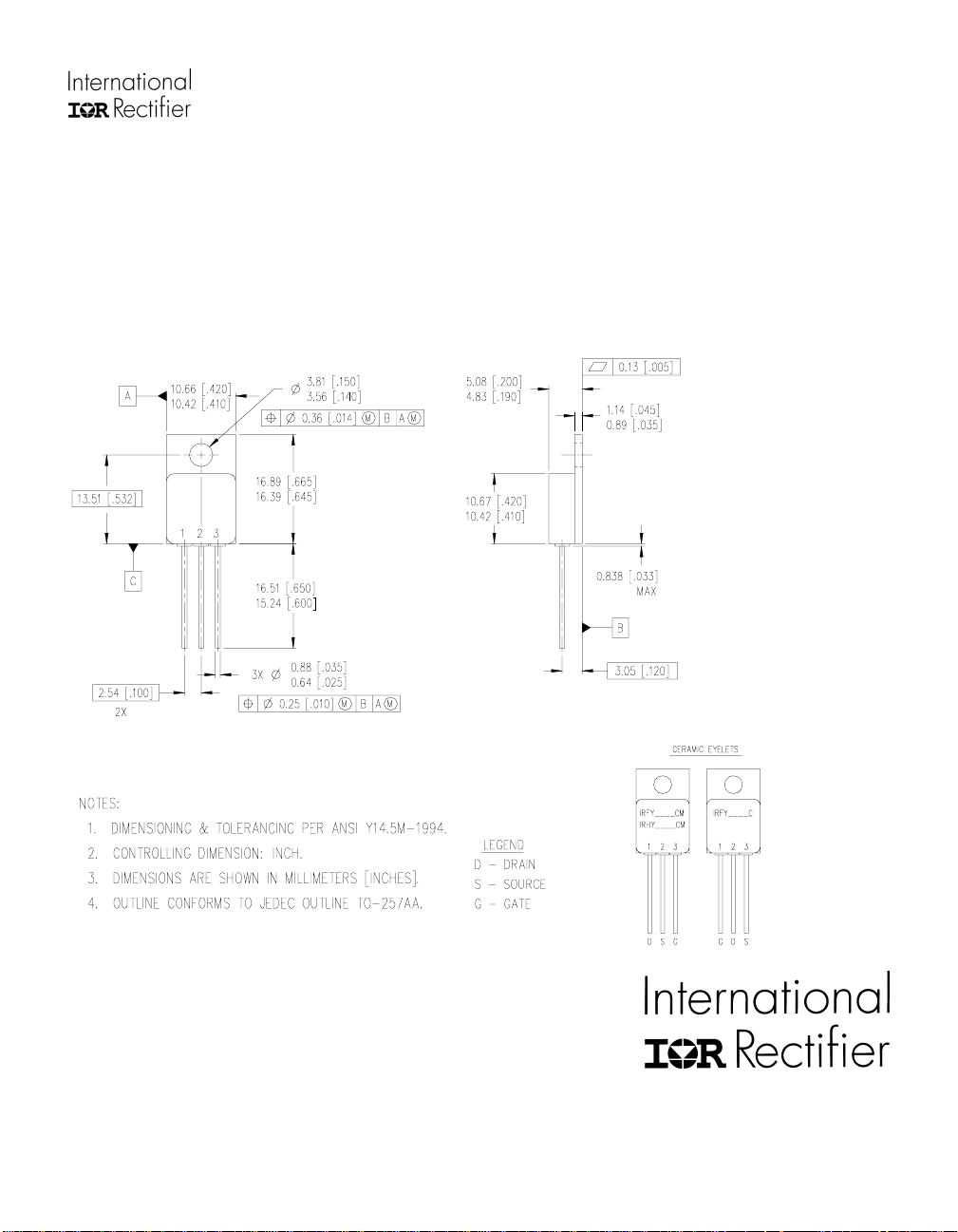

Case Outline and Dimensions — TO-257AA
IRFY9130C, IRFY9130CM
≤ -11.2A, di/dt ≤ -140A/µs,
SD
VDD ≤ -100V, TJ ≤ 150°C
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.
Data and specifications subject to change without notice. 04/01
www.irf.com 7
