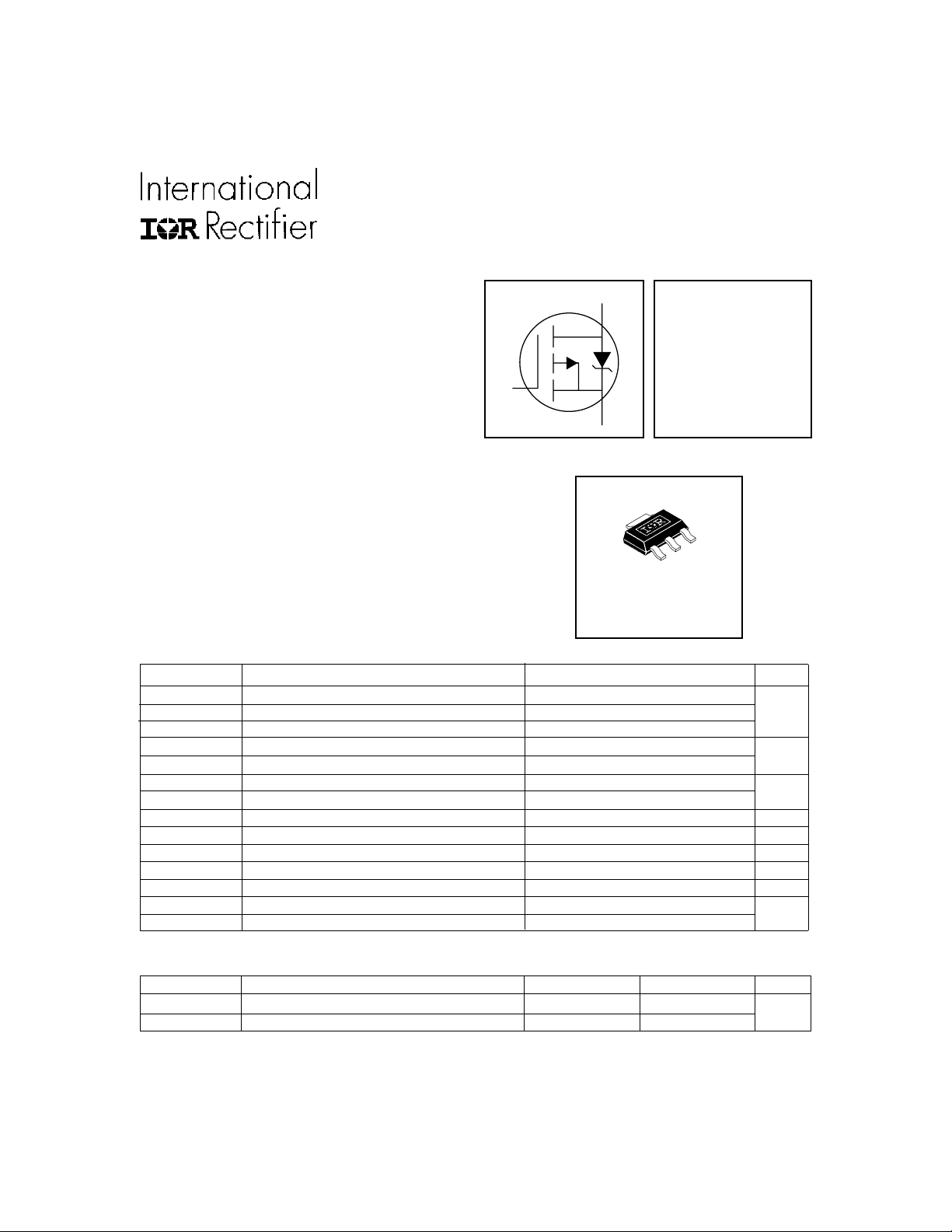

PD - 95153
Document Number: 91195
www.vishay.com
1

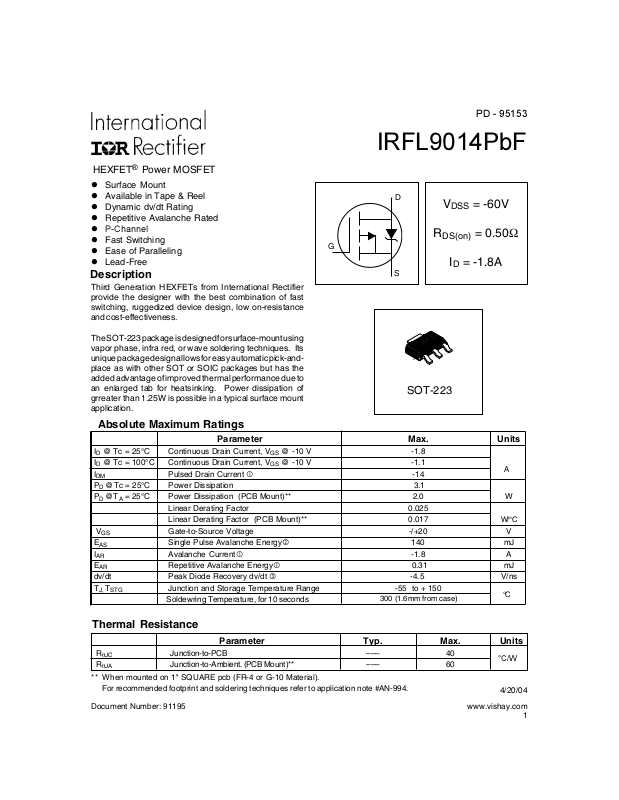

IRFL9014PbF
HEXFET® Power MOSFET
l Surface Mount
l Available in Tape & Reel
l Dynamic dv/dt Rating
l Repetitive Avalanche Rated
l P-Channel
l Fast Switching
l Ease of Paralleling
G
l Lead-Free
Description
Third Generation HEXFETs from International Rectifier
provide the designer with the best combination of fast
switching, ruggedized device design, low on-resistance
and cost-effectiveness.
The SOT-223 package is designed for surface-mount using
vapor phase, infra red, or wave soldering techniques. Its
unique package design allows for easy automatic pick-andplace as with other SOT or SOIC packages but has the
added advantage of improved thermal performance due to
an enlarged tab for heatsinking. Power dissipation of
grreater than 1.25W is possible in a typical surface mount
application.
Absolute Maximum Ratings
Parameter Max. Units
ID @ Tc = 25°C Continuous Drain Current, VGS @ -10 V -1.8
ID @ Tc = 100°C Continuous Drain Current, VGS @ -10 V -1.1
I
DM
PD @Tc = 25°C Power Dissipation 3.1
PD @TA = 25°C Power Dissipation (PCB Mount)** 2.0 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt -4.5 V/ns
T
J, TSTG
Pulsed Drain Current -14
Linear Derating Factor 0.025
Linear Derating Factor (PCB Mount)** 0.017 W/°C
Gate-to-Source Voltage -/+20 V
Single Pulse Avalanche Energy 140 mJ
Avalanche Current -1.8 A
Repetitive Avalanche Energy 0.31 mJ
Junction and Storage Temperature Range -55 to + 150
Soldewring Temperature, for 10 seconds
D
V
R
DS(on)
ID = -1.8A
S
SOT-223
300 (1.6mm from case)
DSS
= -60V
= 0.50Ω
°C
A
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θJA
** When mounted on 1'' SQUARE pcb (FR-4 or G-10 Material).
For recommended footprint and soldering techniques refer to application note #AN-994.
Junction-to-PCB ––– 40
Junction-to-Ambient. (PCB Mount)** ––– 60
°C/W
4/20/04
Page 2
IRFL9014PbF
Document Number: 91195
www.vishay.com
2

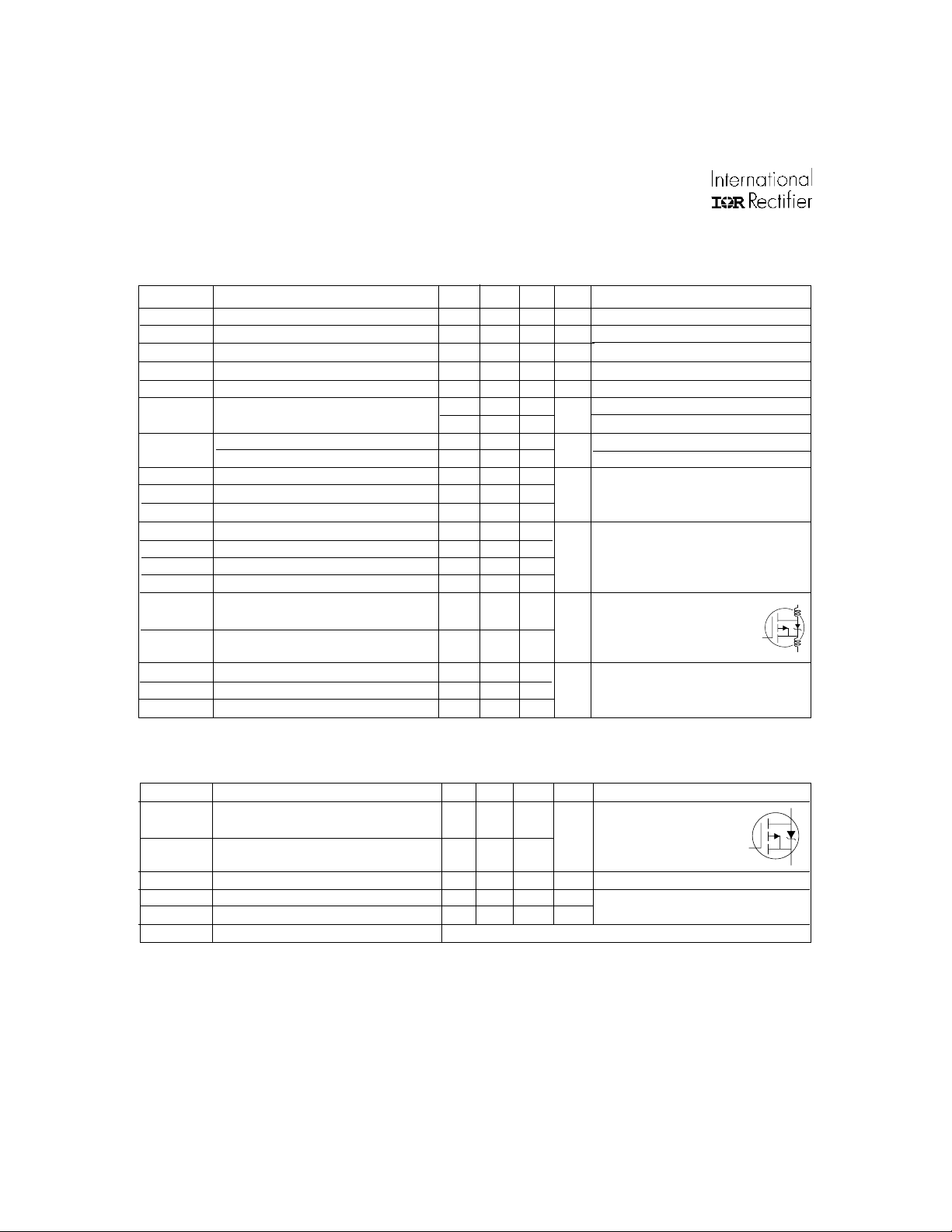

Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
tf Fall Time ––– 31 ––– RD = 4.0 Ω, See Fig. 10
L
D
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage -60 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– -0.059 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance ––– ––– 0.50 Ω VGS = -10V, ID = 1.1A
Gate Threshold Voltage -2.0 ––– -4.0 V VDS = VGS, ID = 250µA
Forward Transconductance 1.3 ––– ––– S VDS = -25V, ID = 1.1A
Drain-to-Source Leakage Current
––– ––– -100
––– ––– -500 VDS = -48V, VGS = 0V, TJ = 125°C
Gate-to-Source Forward Leakage ––– ––– -100
Gate-to-Source Reverse Leakage ––– ––– 100 VGS = 20V
VDS = -60V, VGS = 0V
µA
VGS = -20V
nA
Total Gate Charge ––– ––– 12 ID =-6.7A
Gate-to-Source Charge ––– ––– 3.8 nC VDS =-48V
Gate-to-Drain ("Miller") Charge ––– ––– 5.1 VGS = -10V, See Fig. 6 and 13
Turn-On Delay Time ––– 11 ––– VDD = -30V
Rise Time ––– 63 –––
Turn-Off Delay Time ––– 9.6 ––– RG = 24 Ω
Internal Drain Inductance
Internal Source Inductance
––– 4.0 –––
––– 6.0 –––
ID = -6.7A
ns
Between lead, 6mm(0.25in)
nH
from package and center
of die contact.
Input Capacitance ––– 270 ––– VGS = 0V
Output Capacitance ––– 170 ––– pF VDS = 25V
Reverse Transfer Capacitance ––– 31 ––– ƒ = 1.0MHz, See Fig. 5
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
V
DD=
RG = 25Ω, I
Continuous Source Current MOSFET symbol
(Body Diode) showing the
Pulsed Source Current integral reverse
(Body Diode) p-n junction diode.
Diode Forward Voltage ––– ––– -5.5 V TJ = 25°C, IS = -1.8A, VGS = 0V
Reverse Recovery Time ––– 80 160 ns TJ = 25°C, IF =-6.7A
Reverse RecoveryCharge ––– 0.096 0.19 µC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
I
≤ -6.7A, di/dt ≤90A/µs, V
SD
TJ ≤ 150°C
-25V, starting TJ = 25°C, L =50 mH
= -1.8A. (See Figure 12)
AS
Pulse width ≤ 300µs; duty cycle ≤ 2%.
-1.8
-14
D
A
DD
≤ V
(BR)DSS
,
G
S

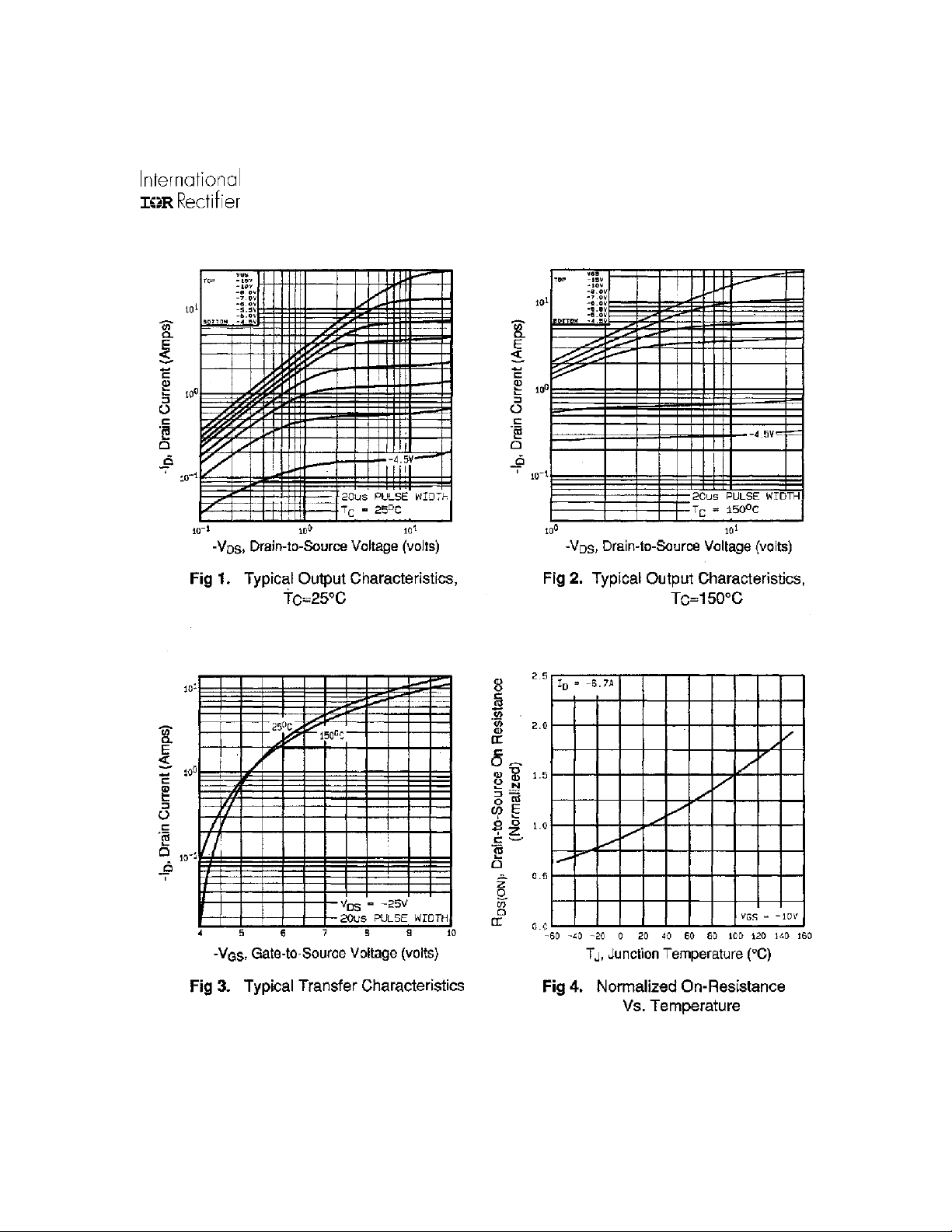

Page 3
IRFL9014PbF
Document Number: 91195
www.vishay.com
3

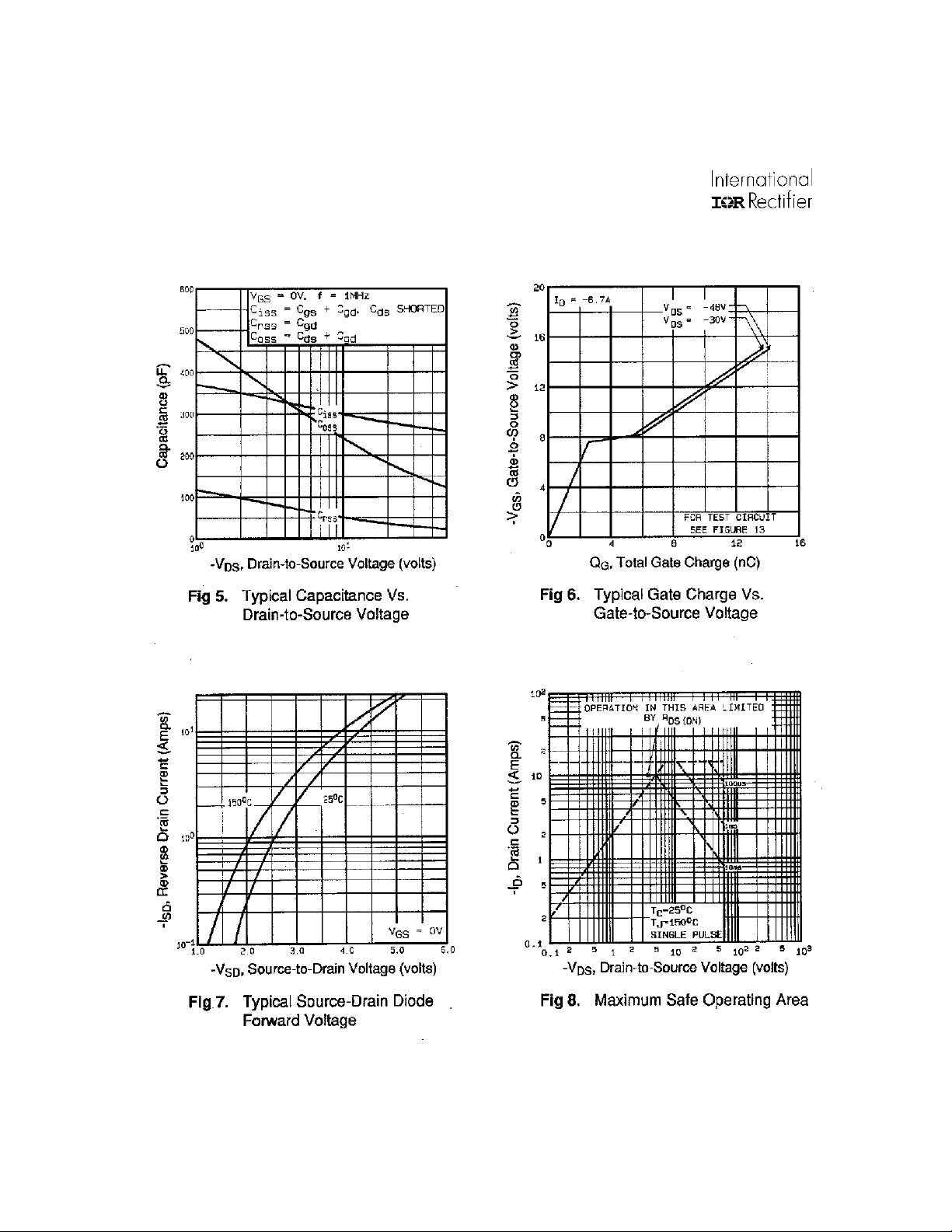

Page 4
IRFL9014PbF
Document Number: 91195
www.vishay.com
4

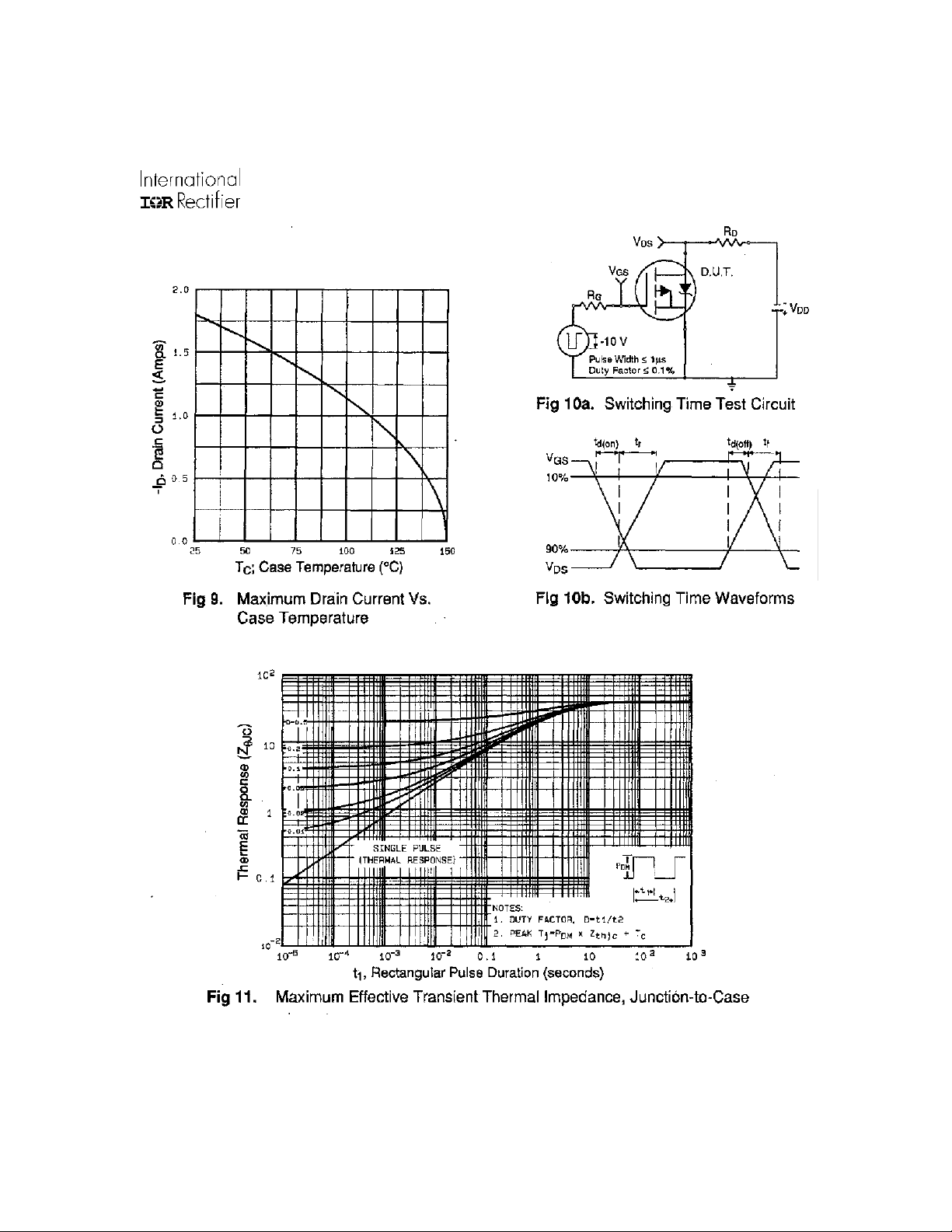

Page 5
IRFL9014PbF
Document Number: 91195
www.vishay.com
5

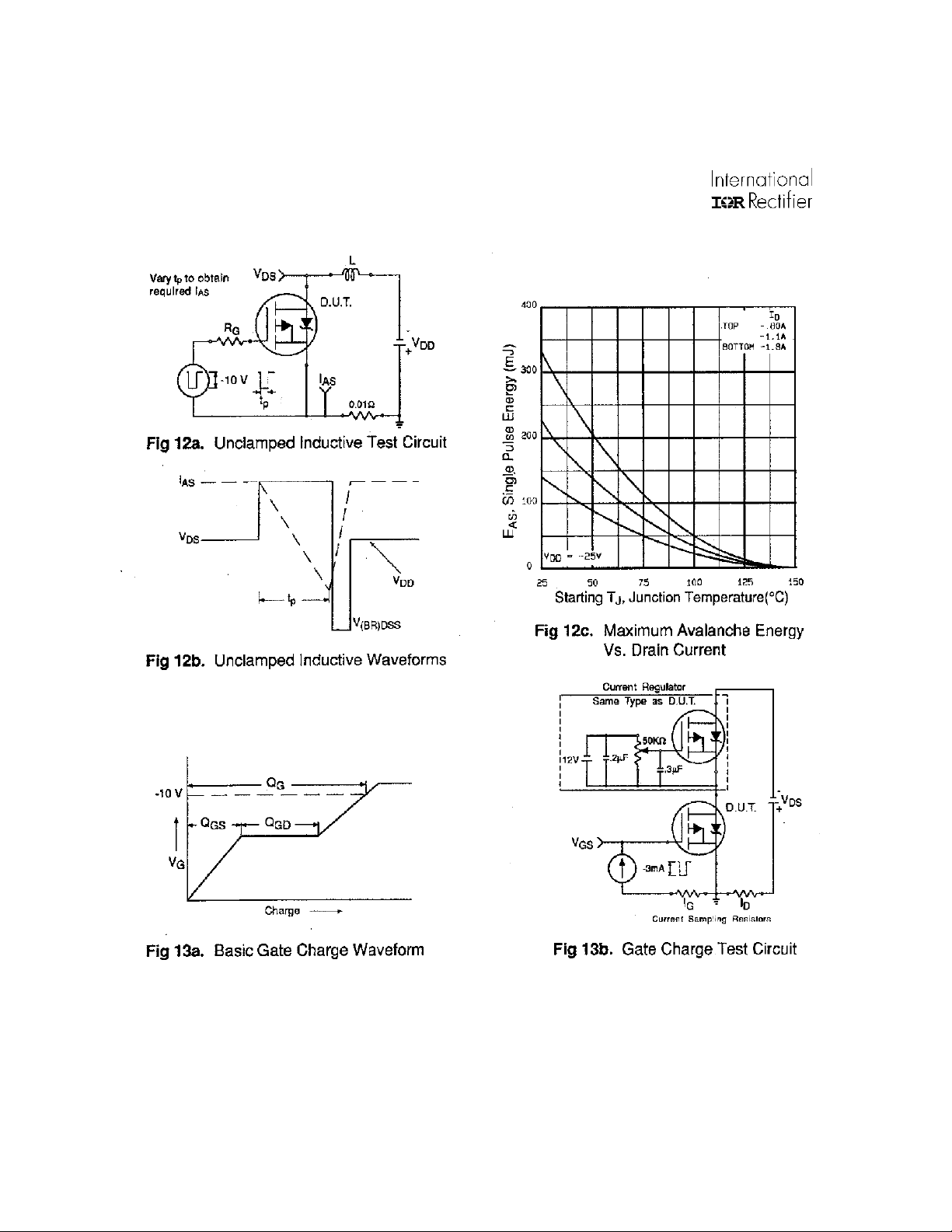

Page 6
IRFL9014PbF
Document Number: 91195
www.vishay.com
6
Page 7

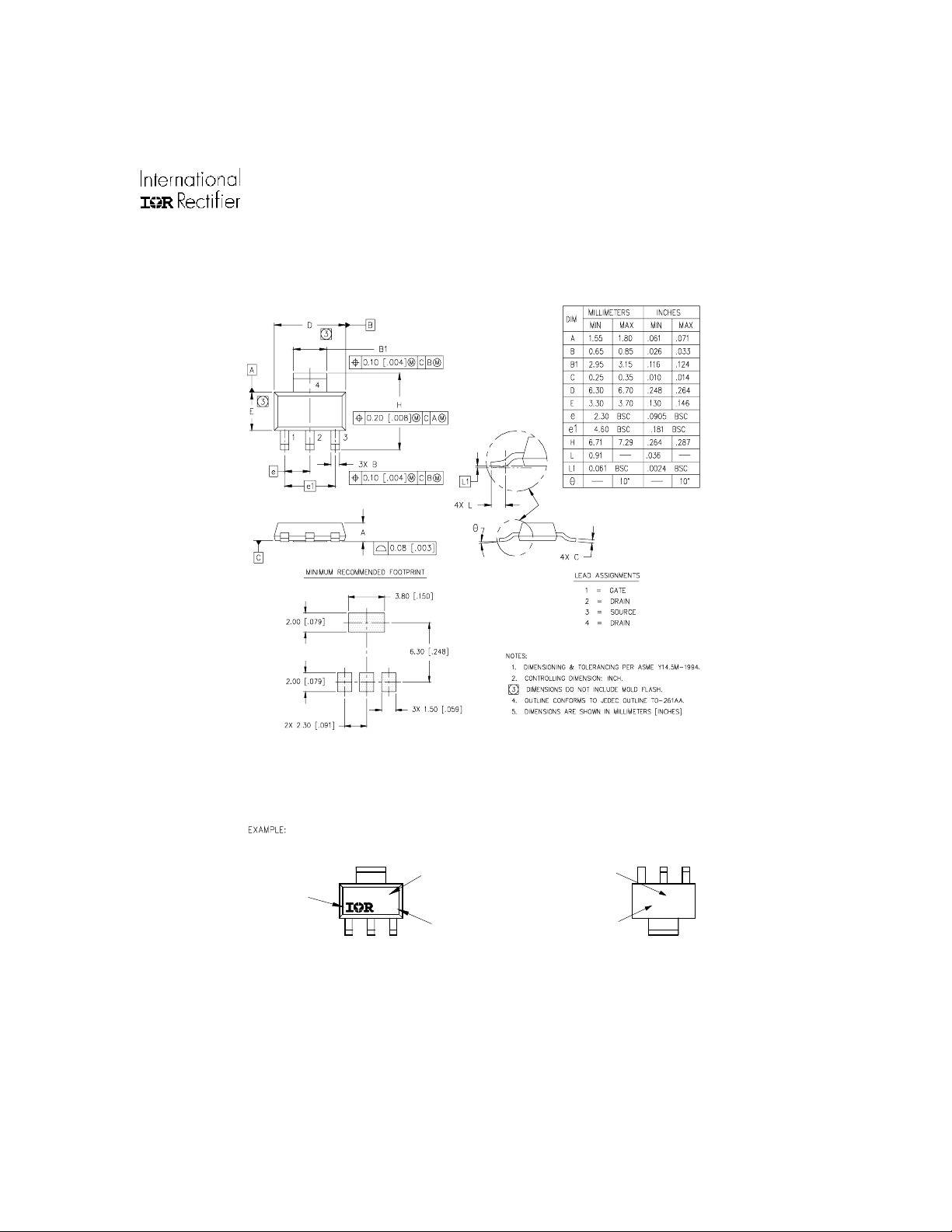

SOT-223 (TO-261AA) Package Outline
Document Number: 91195
www.vishay.com
7
Dimensions are shown in milimeters (inches)
IRFL9014PbF
SOT-223 (TO-261AA) Part Marking Information
HEXFET PRODUCT MARKING
THIS IS AN IRF L014
INTERNAT IONAL
RECTIF IER
LOGO
FL014
TOP
314P
PAR T NUMB ER
DAT E CODE
(YYWW)
YY = YEAR
WW = WEEK
P = DE S IGNAT ES L EAD- F RE E
PRODUCT (OPTIONAL)
LOT CODE
A = ASSEMBLY SITE
CODE
AXXXX
BOT TOM
Page 8
IRFL9014PbF
Document Number: 91195
www.vishay.com
8

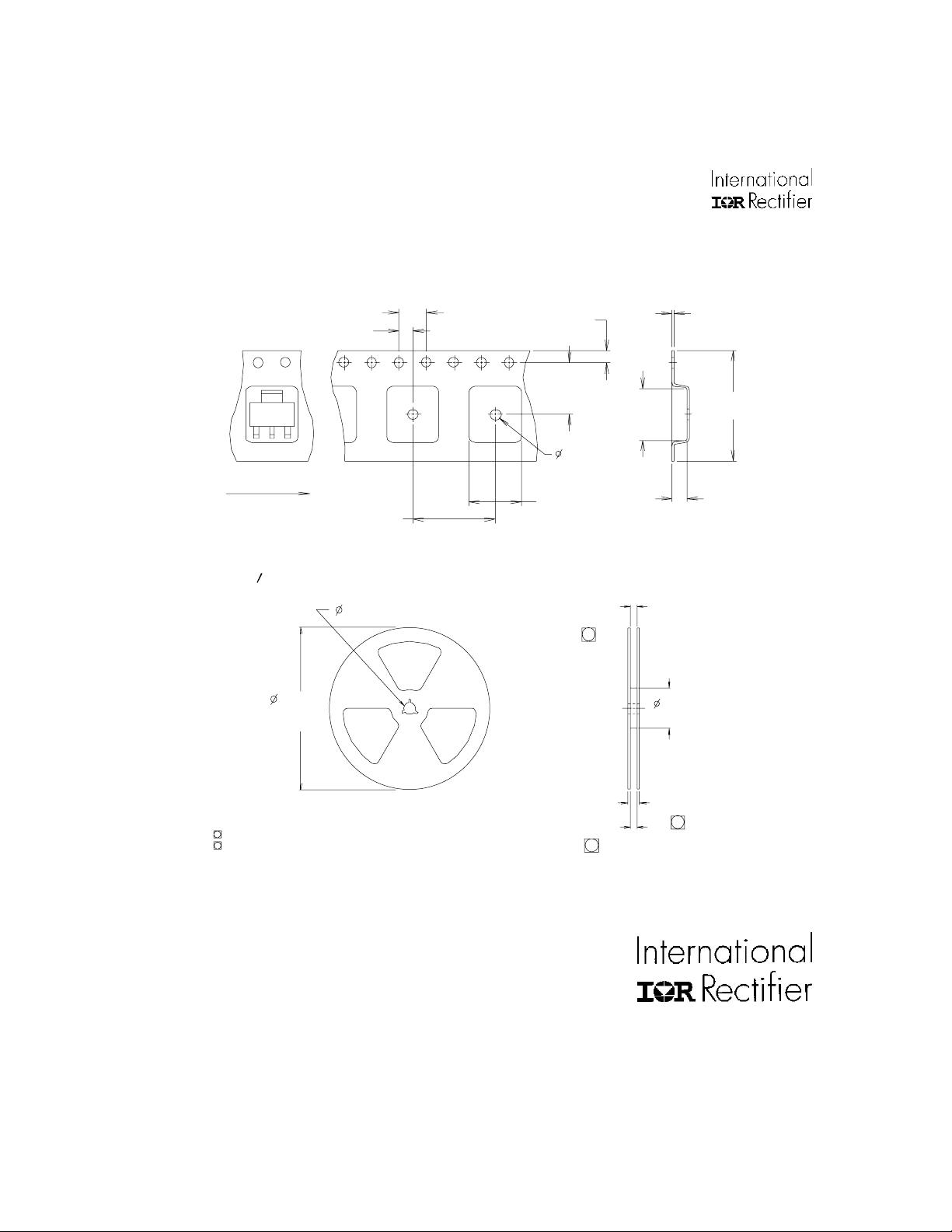

SOT-223 (TO-261AA) Tape & Reel Information
Dimensions are shown in milimeters (inches)
4.10 (.161)
2.05 (.080)
330.00
(13.000)
MAX.
1.95 (.077)
12.10 (.475)
11.90 (.469)
13.20 (.519)
12.80 (.504)
TR
FEED DIRECTION
NOTES :
1. CONTROLLING DIMENSION: MILLIMETER.
2. OUTLINE CONFORMS TO EIA-481 & EIA-541.
3. EACH O330.00 (13.00) REEL CONTAINS 2, 500 DEVICES.
3.90 (.154)
1.85 (.072)
1.65 (.065)
7.55 (.297)
7.45 (.294)
1.60 (.062)
1.50 (.059)
TYP.
7.10 (.279)
6.90 (.272)
15.40 (.607)
11.90 (.469)
4
7.60 (.299)
7.40 (.292)
0.35 (.013)
0.25 (.010)
2.30 (.090)
2.10 (.083)
50.00 (1.969)
MIN.
16.30 (.641)
15.70 (.619)
NOTES :
1. OUTLINE COMFORMS TO EIA-418-1.
2. CONTROLLING DIMENSION: MILLIMETER..
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
14.40 (.566)
12.40 (.488)
3
18.40 (.724)
MAX.
4
