Page 1

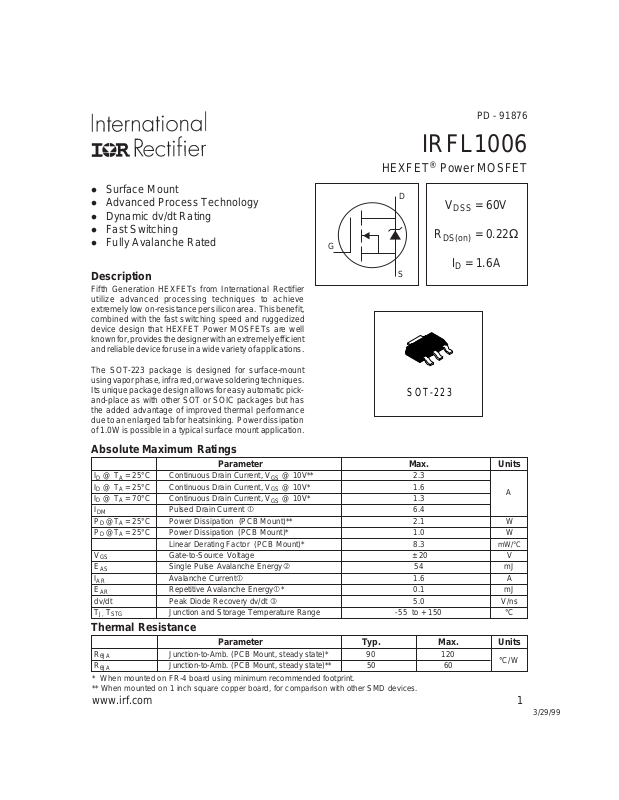

PD - 91876
IRFL1006
HEXFET® Power MOSFET
l Surface Mount
l Advanced Process Technology
l Dynamic dv/dt Rating
l Fast Switching
l Fully Avalanche Rated
G
D
V
= 60V
DSS
R
DS(on)
= 0.22Ω
ID = 1.6A
Description
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized
device design that HEXFET Power MOSFETs are well
known for, provides the designer with an extremely efficient
and reliable device for use in a wide variety of applications.
The SOT-223 package is designed for surface-mount
using vapor phase, infra red, or wave soldering techniques.
Its unique package design allows for easy automatic pickand-place as with other SOT or SOIC packages but has
the added advantage of improved thermal performance
due to an enlarged tab for heatsinking. Power dissipation
of 1.0W is possible in a typical surface mount application.
Absolute Maximum Ratings
Parameter Max. Units
ID @ TA = 25°C Continuous Drain Current, VGS @ 10V** 2.3
ID @ TA = 25°C Continuous Drain Current, VGS @ 10V* 1.6
ID @ TA = 70°C Continuous Drain Current, VGS @ 10V* 1.3
I
DM
PD @TA = 25°C Power Dissipation (PCB Mount)** 2.1 W
PD @TA = 25°C Power Dissipation (PCB Mount)* 1.0 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 5.0 V/ns
T
J, TSTG
Pulsed Drain Current 6.4
Linear Derating Factor (PCB Mount)* 8.3 mW/°C
Gate-to-Source Voltage ± 20 V
Single Pulse Avalanche Energy 54 mJ
Avalanche Current 1.6 A
Repetitive Avalanche Energy* 0.1 mJ
Junction and Storage Temperature Range -55 to + 150 °C
Thermal Resistance
Parameter Typ. Max. Units
R
θJA
R
θJA
* When mounted on FR-4 board using minimum recommended footprint.
** When mounted on 1 inch square copper board, for comparison with other SMD devices.
Junction-to-Amb. (PCB Mount, steady state)* 90 120
Junction-to-Amb. (PCB Mount, steady state)** 50 60
www.irf.com 1
S
SOT-223
A
°C/W
3/29/99
Page 2
IRFL1006
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage 60 ––– – –– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.057 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance ––– ––– 0.22 Ω VGS = 10V, ID = 1.6A
Gate Threshold Voltage 2.0 – –– 4.0 V VDS = VGS, ID = 250µA
Forward Transconductance 3.0 ––– ––– S VDS = 25V, ID = 1.6A
Drain-to-Source Leakage Current
––– ––– 25
––– ––– 250 VDS = 48V, VGS = 0V, TJ = 125°C
Gate-to-Source Forward Leakage ––– ––– 100 VGS = 20V
Gate-to-Source Reverse Leakage ––– ––– -100
VDS = 60V, VGS = 0V
µA
nA
VGS = -20V
Total Gate Charge ––– ––– 8.0 ID = 1.6A
Gate-to-Source Charge ––– – –– 1.7 nC VDS = 48V
Gate-to-Drain ("Miller") Charge ––– ––– 3.3 VGS = 10V, See Fig. 6 and 9
Turn-On Delay Time ––– 7.4 ––– VDD = 30V
Rise Time ––– 18 ––– ID = 1.6A
Turn-Off Delay Time ––– 18 ––– RG = 49Ω
ns
Fall Time ––– 17 ––– RD = 19Ω, See Fig. 10
Input Capacitance ––– 160 ––– VGS = 0V
Output Capacitance ––– 55 –– – pF VDS = 25V
Reverse Transfer Capacitance ––– 19 ––– ƒ = 1.0MHz, See Fig. 5
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Continuous Source Current MOSFET symbol
(Body Diode) showing the
Pulsed Source Current integral reverse
(Body Diode) p-n junction diode.
––– –––
1.6
––– ––– 6.4
A
Diode Forward Voltage ––– ––– 1.3 V TJ = 25°C, IS = 1.6A, VGS = 0V
Reverse Recovery Time ––– 31 47 ns TJ = 25°C, IF = 1.6A
Reverse RecoveryCharge ––– 46 68 nC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
Starting T
RG = 25Ω, I
= 25°C, L = 42 mH
J
= 1.6A. (See Figure 12)
AS
I
≤ 1.6A, di/dt ≤ 260A/µs, V
SD
DD
≤ V
(BR)DSS
TJ ≤ 150°C
Pulse width ≤ 300µs; duty cycle ≤ 2%.
,
2 www.irf.com
Page 3
IRFL1006
10
1
TOP
BOTTOM
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
4.5V
4.5V
D
I , Drain-to-Source Current (A)
20µs PULSE WIDTH
°
T = 150 C
0.1
0.1 1 10 100
V , Drain-to-Source Voltage (V)
DS
10
T = 25 C
J
J
°
T = 150 C
J
10
1
D
I , Drain-to-Source Current (A)
0.1
0.1 1 10 100
VGS
TOP
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM
4.5V
4.5V
20µs PULSE WIDTH
T = 150 C
J
V , Drain-to-Source Voltage (V)
DS
°
Fig 2. Typical Output CharacteristicsFig 1. Typical Output Characteristics
2.5
°
2.0
I =
D
1.6A
1.5
1
1.0
(Normalized)
D
I , Drain-to-Source Current (A)
V = 25V
DS
0.1
4.0 5.0 6.0 7.0 8.0
V , Gate-to-Source Voltage (V)
GS
20µs PULSE WIDTH
Fig 3. Typical Transfer Characteristics
0.5
DS(on)
R , Drain-to-Source On Resistance
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160
T , Junction Temperature ( C)
J
Fig 4. Normalized On-Resistance
V =
GS
°
10V
Vs. Temperature
www.irf.com 3
Page 4
IRFL1006
300
240
180
120
C, Capacitance (pF)
60
0
1 10 100
V
=
0V,
GS
C
=
issgsgd , ds
C
=
rssgd
C
=
oss dsgd
C
iss
C
oss
C
rss
V , Drain-to-Source Voltage (V)
DS
f = 1MHz
C
+ C
C
C
C SHORTED
+ C
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
10
20
I =
1.6A
D
V = 48V
DS
16
12
8
4
GS
V , Gate-to-Source Voltage (V)
0
0 2 4 6 8 10
V = 30V
DS
V = 12V
DS
FOR TEST CIRCUIT
SEE FIGURE
Q , Total Gate Charge (nC)
G
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
100
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
13
°
T = 150 C
J
10
1
°
T = 25 C
J
SD
I , Reverse Drain Current (A)
V = 0 V
0.1
0.4 0.6 0.8 1.0 1.2
V ,Source-to-Drain Voltage (V)
SD
GS
Fig 7. Typical Source-Drain Diode
1
D
I , Drain Current (A)I , Drain Current (A)
°
= 25 C
C
T T= 150 C
Single Pulse
0.1
1 10 100 1000
°
J
V , Drain-to-Source Voltage (V)
DS
Fig 8. Maximum Safe Operating Area
100us
1ms
10ms
Forward Voltage
4 www.irf.com
Page 5
IRFL1006
2.0
1.5
1.0
D
I , Drain Current (A)
0.5
0.0
25 50 75 100 125 150
T , Case Temperature ( C)
C
°
Fig 9. Maximum Drain Current Vs.
Case Temperature
1000
R
V
DS
V
GS
R
G
D
D.U.T.
10V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
V
DS
90%
10%
V
GS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
+
V
DD
-
100
thJA
D = 0.50
0.20
0.10
10
0.05
P
1 2
DM
t
1
t
2
0.02
0.01
1
Thermal Response (Z )
0.1
0.00001 0.0001 0.001 0.01 0.1 1 10 100
SINGLE PULSE
(THERMAL RESPONSE)
Notes:
1. Duty factor D = t / t
2. Peak T = P x Z + T
t , Rectangular Pulse Duration (sec)
1
J DM thJA A
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com 5
Page 6
IRFL1006
A
15V
DRIVER
+
-
V
DD
R
V
G
20V
DS
L
D.U.T
I
AS
Ω
0.01
t
p
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
140
120
TOP
BOTTOM
100
80
60
40
20
AS
E , Single Pulse Avalanche Energy (mJ)
0
25 50 75 100 125 150
Starting T , Junction Temperature ( C)
J
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
I
D
0.72A
1.0A
1.6A
°
I
AS
Fig 12b. Unclamped Inductive Waveforms
Q
G
10 V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
Current Regulator
Same Type as D.U.T .
50KΩ
12V
.2µF
V
GS
.3µF
D.U.T .
3mA
I
G
Current Sampling Resistors
I
+
V
-
D
Fig 13b. Gate Charge Test Circuit
DS
6 www.irf.com
Page 7
IRFL1006
Peak Diode Recovery dv/dt Test Circuit
+
D.U.T
-
R
G
Driver Gate Drive
P.W.
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
-
• dv/dt controlled by R
G
• Driver same type as D.U.T.
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
Period
D =
Period
P.W.
+
+
V
DD
-
VGS=10V
*
D.U.T. ISDWaveform
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. VDSWaveform
Inductor Curent
* V
= 5V for Logic Level Devices
GS
Body Diode Forward
Current
di/dt
Diode Recovery
dv/dt
Body Diode Forward Drop
Ripple ≤ 5%
V
DD
I
SD
Fig 14. For N-Channel HEXFETS
www.irf.com 7
Page 8
IRFL1006

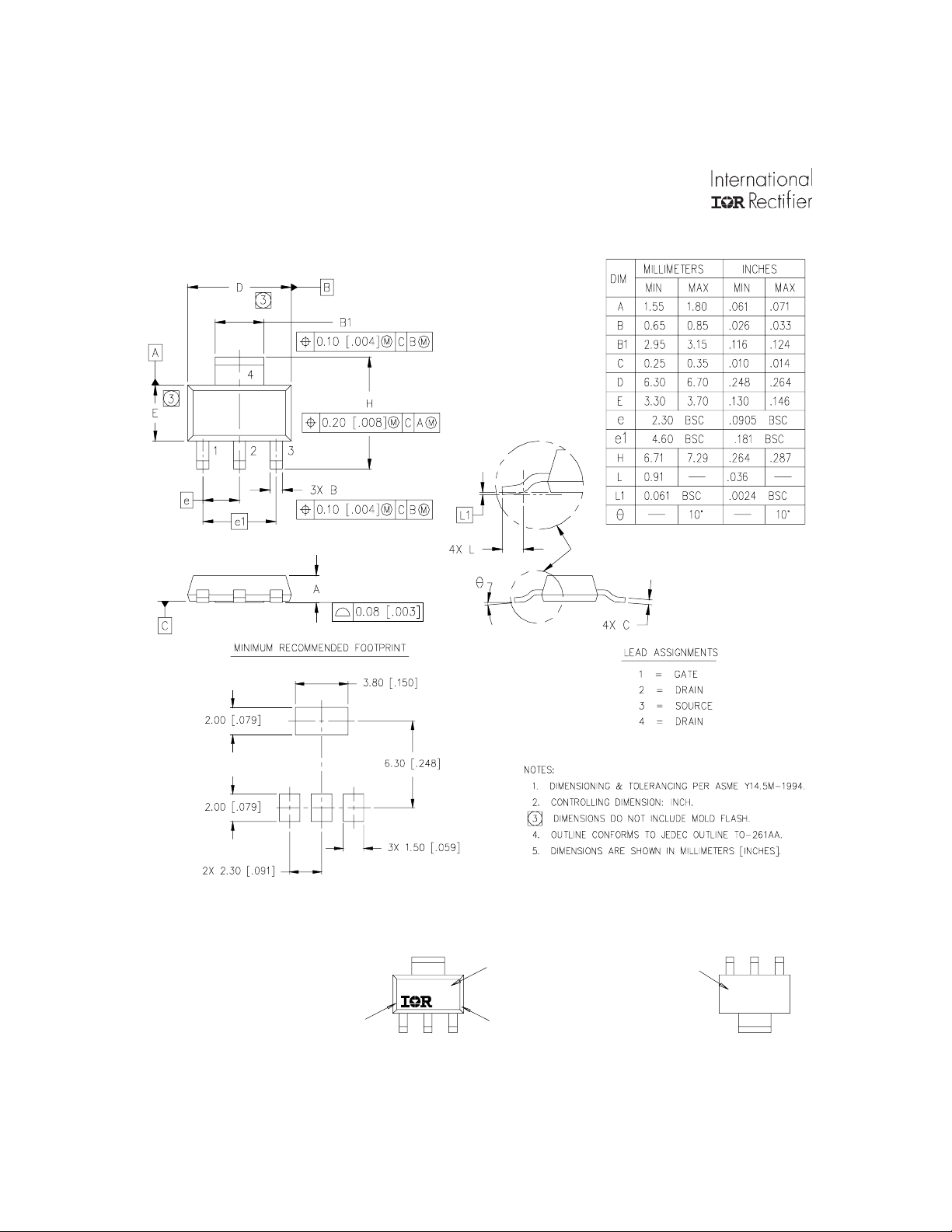

Package Outline
SOT-223 (TO-261AA) Outline
Part Marking Information
SOT-223
8 www.irf.com
EX AMP LE : T HIS IS A N IR F L01 4
FL014
INTERNATIONAL
R EC TIF IER
L OGO
314
TOP
PART NU MBE R
DATE CODE (YWW)
Y = LAST D IGIT OF THE YEAR
WW = WEEK
W A F ER
L OT C ODE
XXXXXX
BOTTOM
Page 9
Tape & Reel Information
SOT-223 Outline
IRFL1006
4.10 (.161)
2.05 (.080)
330.00
(13.000)
MAX.
1.95 (.077)
12.10 (.475)
11.90 (.469)
13.20 (.51 9)
12.80 (.50 4)
TR
FEED DIRECTION
NOTES :
1. CONTROLLING DIMENSION: MILLIMETER.
2. OUTLINE CONF O RM S TO E IA-481 & EIA-541.
3. EACH O 330.00 (13.0 0) REEL C ONTA INS 2,500 D EVICE S.
3.90 (.154)
1.85 (.072)
1.65 (.065)
7.55 (.297)
7.45 (.294)
1.60 (.062)
1.50 (.059)
TY P .
7.10 (.279)
6.90 (.272)
15.40 (.607)
11.90 (.469)
4
7.60 (.299)
7.40 (.292)
0.35 (.013)
0.25 (.010)
16.30 (.641)
15.70 (.619)
2.30 (.090)
2.10 (.083)
50.00 (1.969)
MIN.
NOTES :
1. OUTLINE CO M FO R M S TO E IA-418-1.
2. CO NTRO LLING DIMENSIO N: MILLIMETER..
3. DIMENSIO N MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
14.40 (.566)
12.40 (.488)
3
18.40 (.724)
M A X .
4
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
IR GREAT BRITAIN: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 15 Lincoln Court, Brampton, Ontario L6T3Z2, Tel: (905) 453 2200
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 1 Kim Seng Promenade, Great World City West Tower, 13-11, Singapore 237994 Tel: ++ 65 838 4630
IR TAIWAN:16 Fl. Suite D. 207, Sec. 2, Tun Haw South Road, Taipei, 10673, Taiwan Tel: 886-2-2377-9936
http://www.irf.com/ Data and specifications subject to change without notice. 3/99
