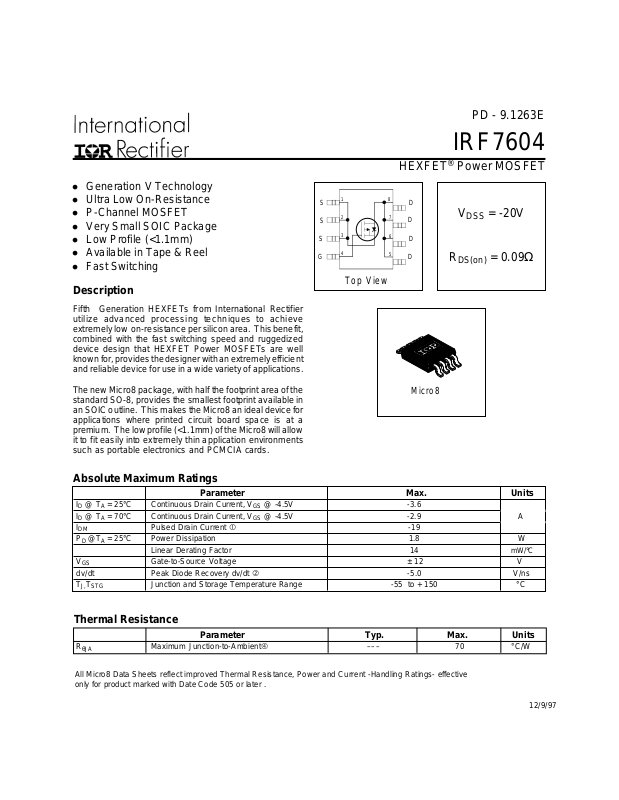

PD - 9.1263E
IRF7604
HEXFET® Power MOSFET
l Generation V Technology
l Ultra Low On-Resistance
l P-Channel MOSFET
l Very Small SOIC Package
l Low Profile (<1.1mm)
l Available in Tape & Reel
l Fast Switching
1
S
2
S
3
S
4
A
8
D
V
7
D
6
D
5
DG
R
DSS
DS(on)
= -20V
= 0.09Ω
Top View
Description
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This benefit,
combined with the fast switching speed and ruggedized
device design that HEXFET Power MOSFETs are well
known for, provides the designer with an extremely efficient
and reliable device for use in a wide variety of applications.
The new Micro8 package, with half the footprint area of the
Micro8
standard SO-8, provides the smallest footprint available in
an SOIC outline. This makes the Micro8 an ideal device for
applications where printed circuit board space is at a
premium. The low profile (<1.1mm) of the Micro8 will allow
it to fit easily into extremely thin application environments
such as portable electronics and PCMCIA cards.
Absolute Maximum Ratings
Parameter Max. Units
ID @ TA = 25°C Continuous Drain Current, VGS @ -4.5V -3.6
ID @ TA = 70°C Continuous Drain Current, VGS @ -4.5V -2.9 A
I
DM
PD @TA = 25°C Power Dissipation 1.8 W
V
GS
dv/dt Peak Diode Recovery dv/dt -5.0 V/ns
T
J, TSTG
Pulsed Drain Current -19
Linear Derating Factor 14 mW/°C
Gate-to-Source Voltage ± 12 V
Junction and Storage Temperature Range -55 to + 150 °C
Thermal Resistance
Parameter Typ. Max. Units
R
θJA
All Micro8 Data Sheets reflect improved Thermal Resistance, Power and Current -Handling Ratings- effective
only for product marked with Date Code 505 or later .
Maximum Junction-to-Ambient ––– 70 °C/W
12/9/97
Page 2
IRF7604
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(ON)
V
GS(th)
g
fs
I
DSS
I
GSS
Gate-to-Source Reverse Leakage ––– ––– 100 VGS = 12V
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage -20 ––– ––– V VGS = 0V, ID = -250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– -0.022 ––– V/°C Reference to 25°C, ID = -1mA
J
Static Drain-to-Source On-Resistance
––– ––– 0.090 VGS = -4.5V, ID = -2.4A
––– ––– 0.13 VGS = -2.7V, ID = -1.2A
Ω
Gate Threshold Voltage -0.70 ––– ––– V VDS = VGS, ID = -250µA
Forward Transconductance 2.6 ––– ––– S VDS = -10V, ID = -1.2A
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage ––– ––– -100 VGS = -12V
––– ––– -1.0 VDS = -16V, VGS = 0V
––– ––– -25 VDS = -16V, VGS = 0V, TJ = 125°C
µA
nA
Total Gate Charge ––– 13 20 ID = -2.4A
Gate-to-Source Charge ––– 2.6 3.9 nC VDS = -16V
Gate-to-Drain ("Miller") Charge ––– 5.6 9.0 VGS = -4.5V, See Fig. 6 and 9
Turn-On Delay Time ––– 17 ––– VDD = -10V
Rise Time ––– 53 ––– ID = -2.4A
Turn-Off Delay Time ––– 31 ––– RG = 6.0Ω
ns
Fall Time ––– 38 ––– RD = 4.0Ω, See Fig. 10
Input Capacitance ––– 590 ––– VGS = 0V
Output Capacitance ––– 330 ––– pF VDS = -15V
Reverse Transfer Capacitance ––– 170 ––– ƒ = 1.0MHz, See Fig. 5
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
I
SD
TJ ≤ 150°C
Continuous Source Current MOSFET symbol
(Body Diode) showing the
Pulsed Source Current integral reverse
(Body Diode) p-n junction diode.
––– ––– -1.8
––– ––– -19
Diode Forward Voltage ––– ––– -1.2 V TJ = 25°C, IS = -2.4A, VGS = 0V
Reverse Recovery Time ––– 41 62 ns TJ = 25°C, IF = -2.4A
Reverse Recovery Charge ––– 38 57 nC di/dt = 100A/µs
Pulse width ≤ 300µs; duty cycle ≤ 2%.
≤ -2.4A, di/dt ≤ -96A/µs, V
DD
≤ V
(BR)DSS
,
Surface mounted on FR-4 board, t
D
A
≤ 10sec.
G
S
Page 3
IRF7604
A
A
A
)
A
100
VGS
TOP - 7.5V
- 5.0V
- 4.0V
- 3.5V
- 3.0V
- 2.5V
- 2.0V
10
BOTTOM - 1.5V
1
0.1
D
-I , Drain-to-Source Current (A)
-1.5 V
20µs PULS E WIDTH
T = 25°C
0.01
0.1 1 10
-V , D ra in-to-S o u rce V o ltage (V)
DS
J
Fig 1. Typical Output Characteristics
100
100
VGS
TOP - 7.5V
- 5.0V
- 4.0V
- 3.5V
- 3.0V
- 2.5V
- 2.0V
10
BOTTOM - 1.5V
1
-1.5 V
0.1
D
-I , Dra in-to-S ou rc e Curre nt (A )
20µs PULS E WIDTH
T = 150°C
0.01
0.1 1 10
-V , D ra in-to-S o u rce V o ltage (V)
DS
J
Fig 2. Typical Output Characteristics
2.0
I = -2 .4 A
D
10
T = 150°C
J
1
T = 25°C
J
0.1
D
-I , Drain - to-So ur c e Cu r r e n t ( A )
0.01
1.5 2.5 3.5 4.5
-V , G a te - to -S o urc e V o ltage (V
GS
V = -10V
DS
20µs PULSE WIDTH
Fig 3. Typical Transfer Characteristics
1.5
1.0
(N o rma liz ed )
0.5
DS(on)
R , D ra in -to -S o u rc e On Re s ista n c e
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160
T , Junction Tem pe rature (°C)
J
Fig 4. Normalized On-Resistance
Vs. Temperature
V = -4 .5 V
GS
Page 4
IRF7604
A
A
A
A
1200
1000
800
600
400
C, Capacitance (pF)
200
0
1 10 100
V = 0V, f = 1MH z
GS
C = C + C , C SH ORTED
iss g s gd d s
C = C
rss g d
C = C + C
oss d s g d
C
iss
C
oss
C
rss
-V , Drain-to-Source Voltage (V)
DS
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
100
10
I = -2.4 A
D
V = -16 V
DS
8
6
4
2
GS
-V , Ga te- to- S ou rc e V o lta ge (V)
FOR TEST CIRCUIT
0
048121620
Q , To ta l Ga te Ch a rg e (n C)
G
SEE FIGURE 9
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
100
O P E R A T IO N IN TH IS A RE A L IMITED
BY R
DS(on)
10
T = 150°C
J
T = 25°C
1
SD
-I , R e ve rs e D ra in C u rre nt (A )
0.1
0.4 0.6 0.8 1.0 1.2
-V , Source-to-Drain Voltage (V)
SD
J
V = 0V
Fig 7. Typical Source-Drain Diode
Forward Voltage
GS
10
1
D
-I , Drain Current (A)
T = 2 5°C
A
T = 150°C
J
Single Pulse
0.1
0.1 1 10 100
-V , Drain-to-Source Voltage (V)
DS
Fig 8. Maximum Safe Operating Area
100µs
1ms
10ms
Page 5
-4.5
IRF7604
V
V
G
V
-4.5
GS
DS
D.U.T.
-
+
V
DD
Q
G
V
Q
GS
V
G
Q
GD
Charge
R
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 9a. Basic Gate Charge Waveform
Current Regulator
Same Type as D.U.T.
50KΩ
.2µF
12V
V
GS
.3µF
D.U.T.
-3mA
I
G
Current Sampling Resistors
I
D
Fig 9b. Gate Charge Test Circuit
100
D = 0.50
thJA
10
0.20
0.10
0.05
Fig 10a. Switching Time Test Circuit
t
V
V
DS
+
10%
90%
V
d(on)tr
GS
DS
t
d(off)tf
Fig 10b. Switching Time Waveforms
0.02
1
0.01
Thermal Response (Z )
0.1
0.00001 0.0001 0.001 0.01 0.1 1 10 100
SINGLE PULSE
(THERMAL RESPONSE)
Notes:
1. Duty factor D = t / t
2. Peak T =P x Z + T
t , Rectangular Pulse Duration (sec)
1
J DM thJA A
1 2
P
DM
t
1
t
2
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Ambient
Page 6
IRF7604
Peak Diode Recovery dv/dt Test Circuit
D.U.T
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
+
-
**
• dv/dt controlled by R
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
VGS*
R
G
* Reverse Polarity for P-Channel
** Use P-Channel Driver for P-Channel Measurements
Driver Gate Drive
P.W.
Period
-
D =
G
P.W.
Period
+
VGS=10V
[ ] ***
+
*
V
DD
-
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. ISDWaveform
Body Diode Forward
Current
D.U.T. VDSWaveform
Body Diode Forward Drop
Inductor Curent
Ripple ≤ 5%
*** V
= 5.0V for Logic Level and 3V Drive Devices
GS
di/dt
Diode Recovery
dv/dt
Fig 12. For P-Channel HEXFETS
V
DD
[ ]
I
[ ]
SD
Page 7
Package Outline
Micro8 Outline
Dimensions are shown in millimeters (inches)
D
3
- B -
3
- A -
- C B 8X
NOTES:
1 DIMENSIONING AND TOLERANCING PER ANSI Y14.5M-1982.
2 CONTROLLING DIMENSION : INCH.
3 DIMENSIONS DO NOT INCLUDE MOLD FLASH.
8 7 6 5
E
0.2 5 (.01 0 ) M A M
1 2 3 4
e
6X
e 1
A
A 1
0.0 8 (.0 0 3 ) M C A S B S
H
0.10 (.004)
LEAD ASSIGNM EN TS
D D D D
8 7 6 5
SING LE
1 2 3 4
S S S G
θ
L
8X
D1 D1 D2 D2
8 7 6 5
DUAL
1 2 3 4
S1 G1 S2 G2
C
8X
IRF7604
INCHES MILLIMETERS
DIM
MIN MA X M IN M A X
A .0 36 .04 4 0.9 1 1.1 1
A1 .0 04 .00 8 0.1 0 0.2 0
B .0 10 .01 4 0.2 5 0.3 6
C .005 .0 07 0 .13 0.1 8
D .116 .1 20 2 .95 3.0 5
e .0256 BASIC 0.65 BASIC
e1 .0128 BASIC 0.33 BASIC
E .1 16 .12 0 2.9 5 3.0 5
H .188 .1 98 4 .78 5.0 3
L .01 6 .02 6 0.4 1 0 .66
0° 6° 0° 6°
θ
RECOMMENDED FOOTPRINT
1.04
( .041 )
8X
3.20
( .126 )
0.38
( .015 )
4.24
( .167 )
0.65
( .0256 )
8X
5.28
( .208 )
6X
Part Marking Information
Micro8
EXAMPLE : THIS IS AN IRF7501
PART NUMBER
451
7501
TOP
DATE CODE (YW W )
A
Y = L A ST D IGIT OF Y E AR
W W = WEEK
Page 8
IRF7604
Tape & Reel Information
Micro8
Dimensions are shown in millimeters (inches)
T ERMINAL NUMB ER 1
12 .3 ( . 484 )
11 .7 ( . 461 )
8.1 ( .318 )
7.9 ( .312 )
NOTES:
1. O UTLINE CONFOR M S TO EIA-481 & EIA-541.
2. CONTROLLING DIMENSION : MILLIMETER.
330.00
(12.992)
MAX.
NOTES :
1. CONTRO LLING DIMENSION : MILLIMETER.
2. OUTLINE CON FO RM S TO EIA-481 & EIA-541.
FEED DIRECTION
14.40 ( .5 6 6 )
12.40 ( .4 8 8 )
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: 65 221 8371
http://www.irf.com/ Data and specifications subject to change without notice. 12/97
