• Lead-Free
Document Number: 91048
www.vishay.com
1

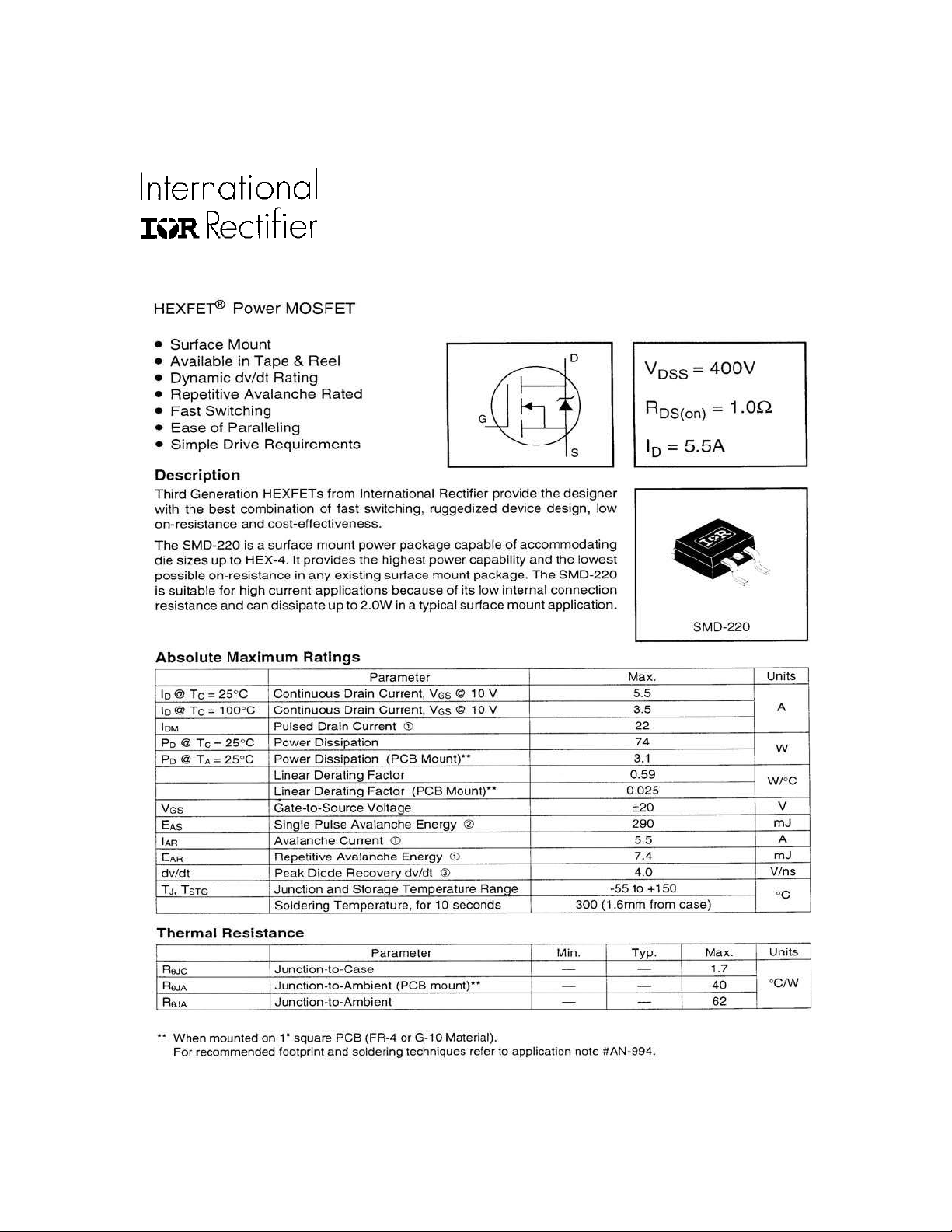

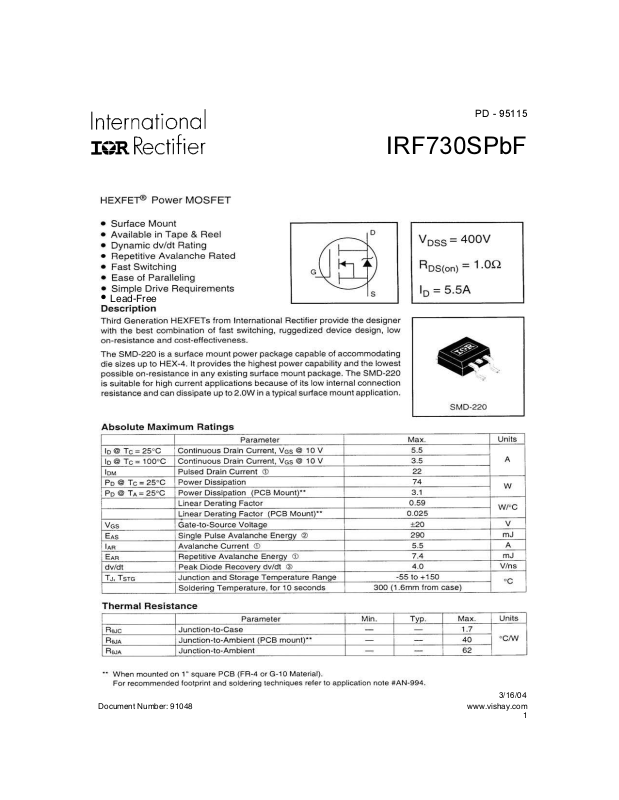

PD - 95115
IRF730SPbF
3/16/04

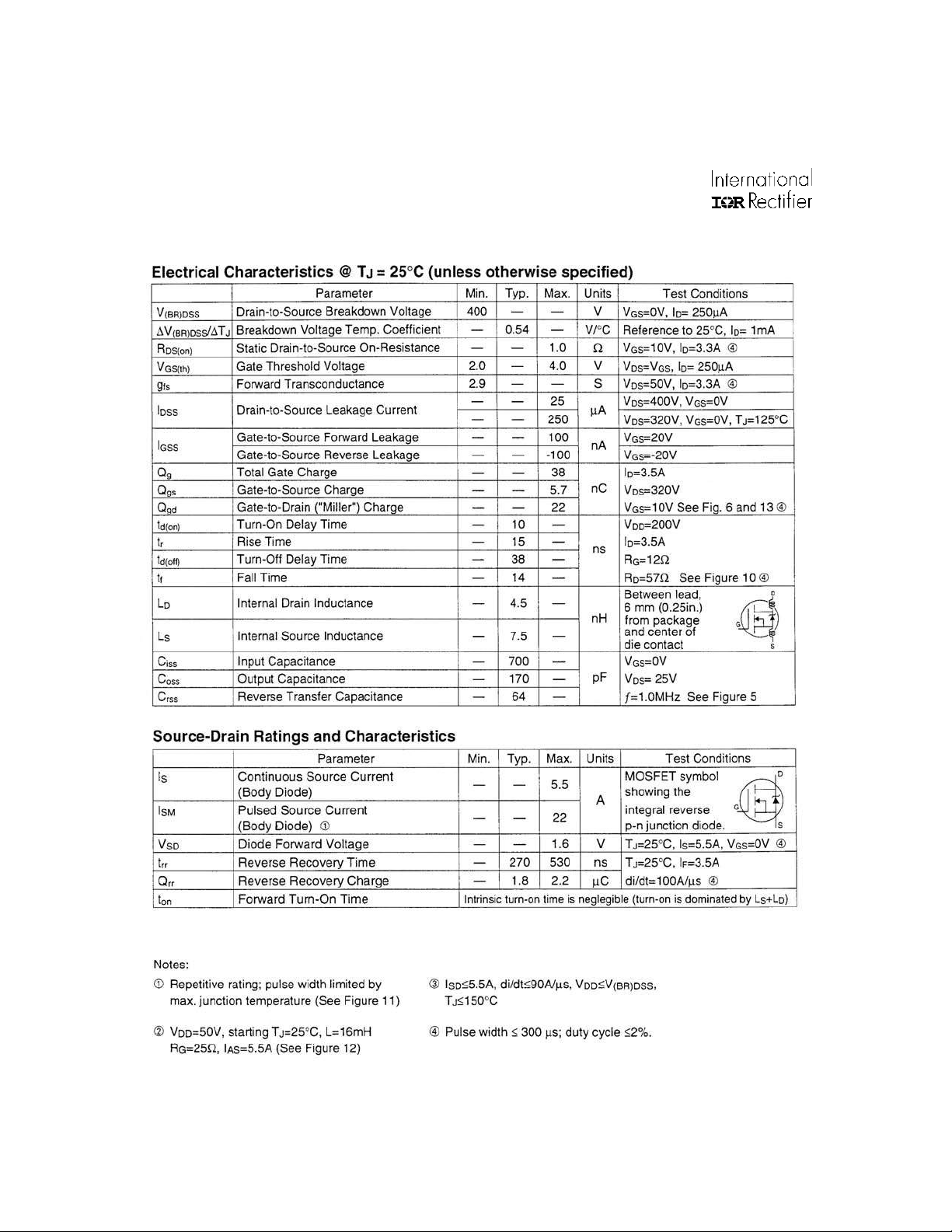

Page 2
IRF730SPbF
Document Number: 91048
www.vishay.com
2

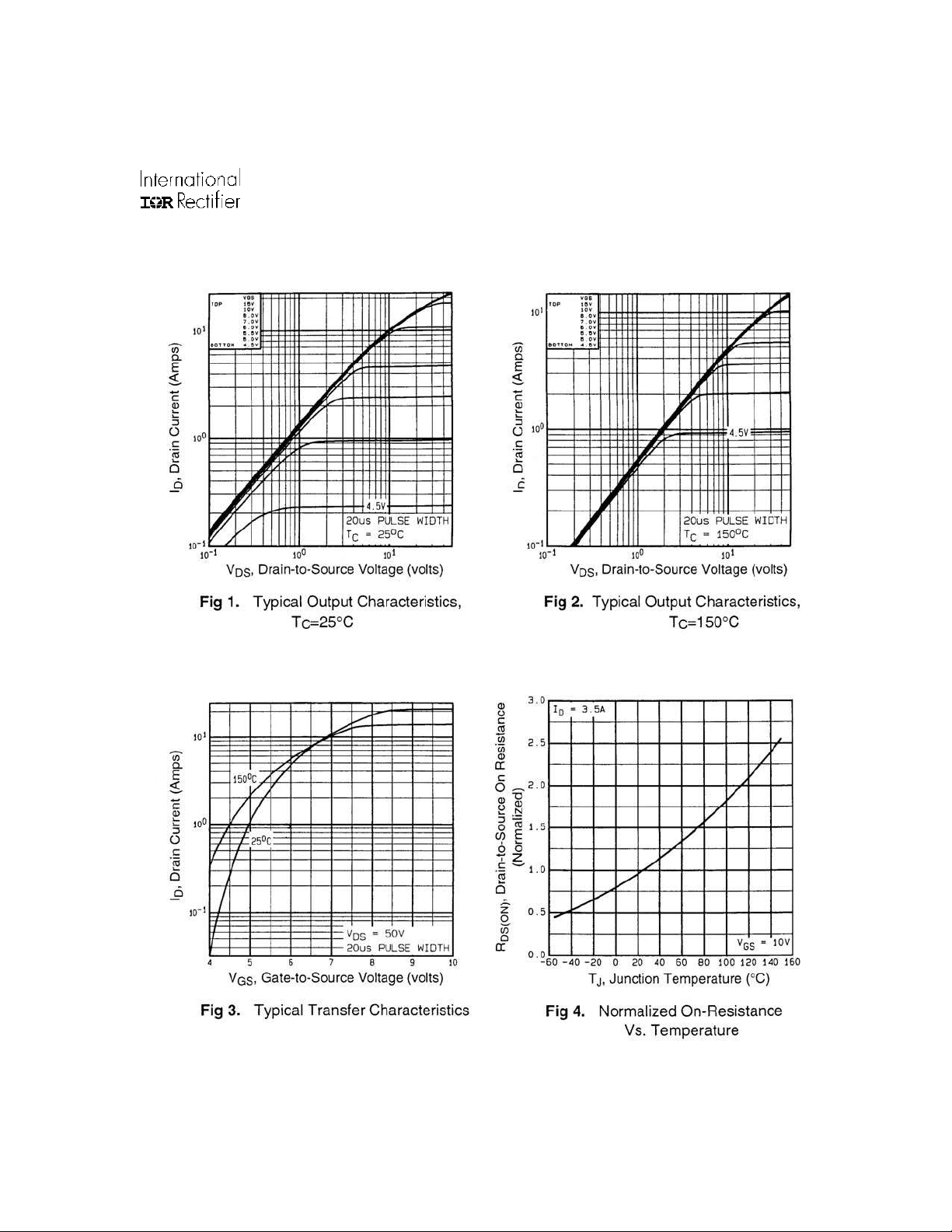

Page 3
IRF730SPbF
Document Number: 91048
www.vishay.com
3

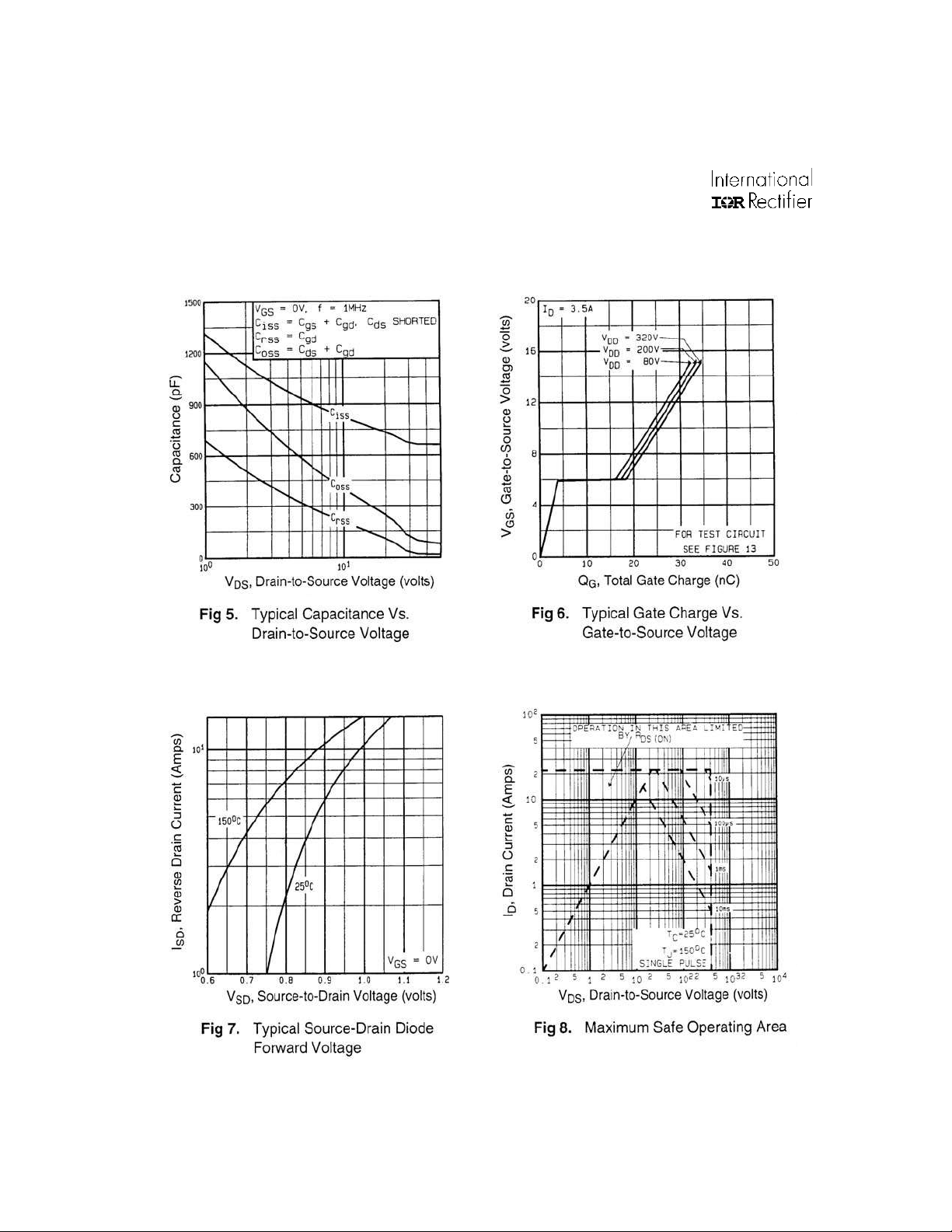

Page 4
IRF730SPbF
Document Number: 91048
www.vishay.com
4
Page 5
IRF730SPbF
Document Number: 91048
www.vishay.com
5

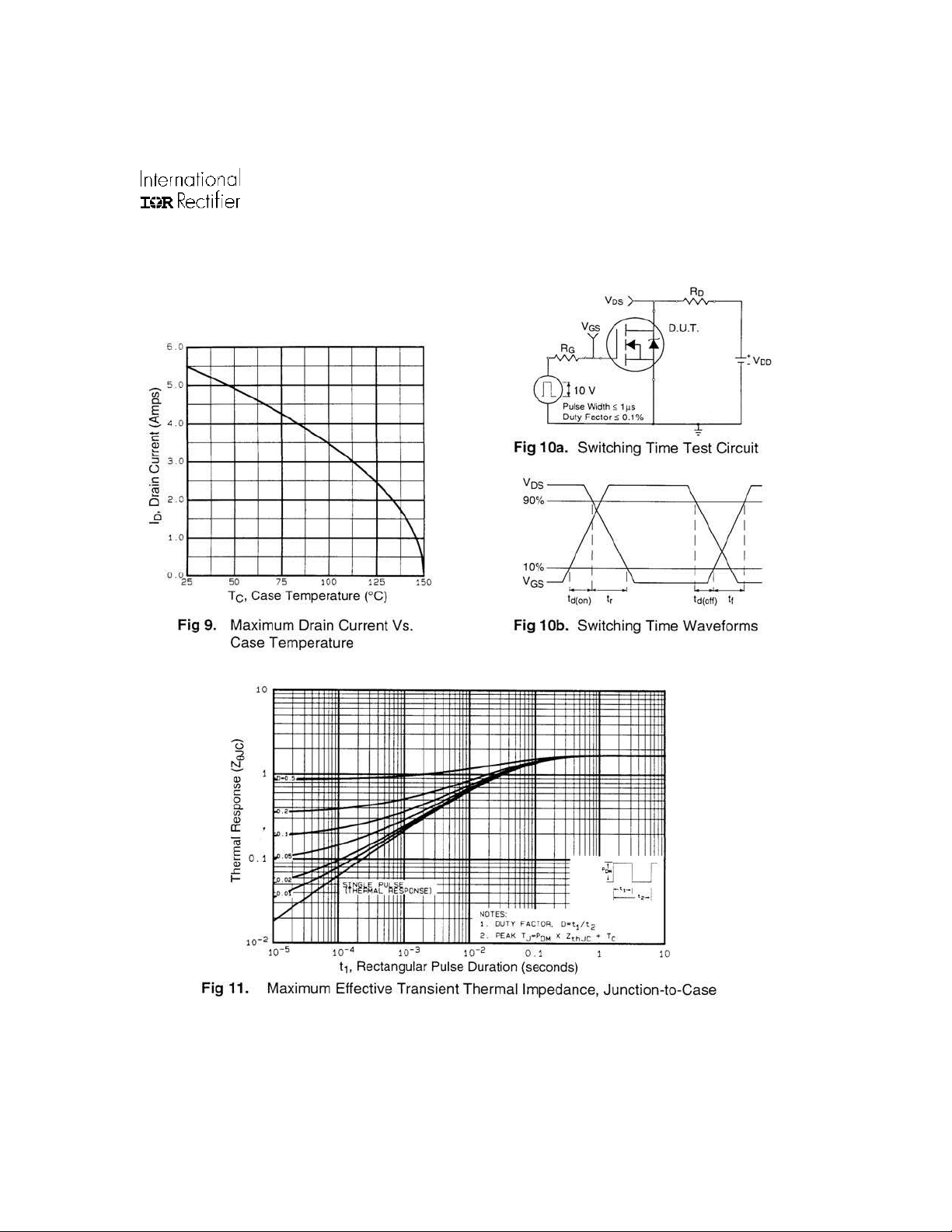

Page 6
IRF730SPbF
Document Number: 91048
www.vishay.com
6

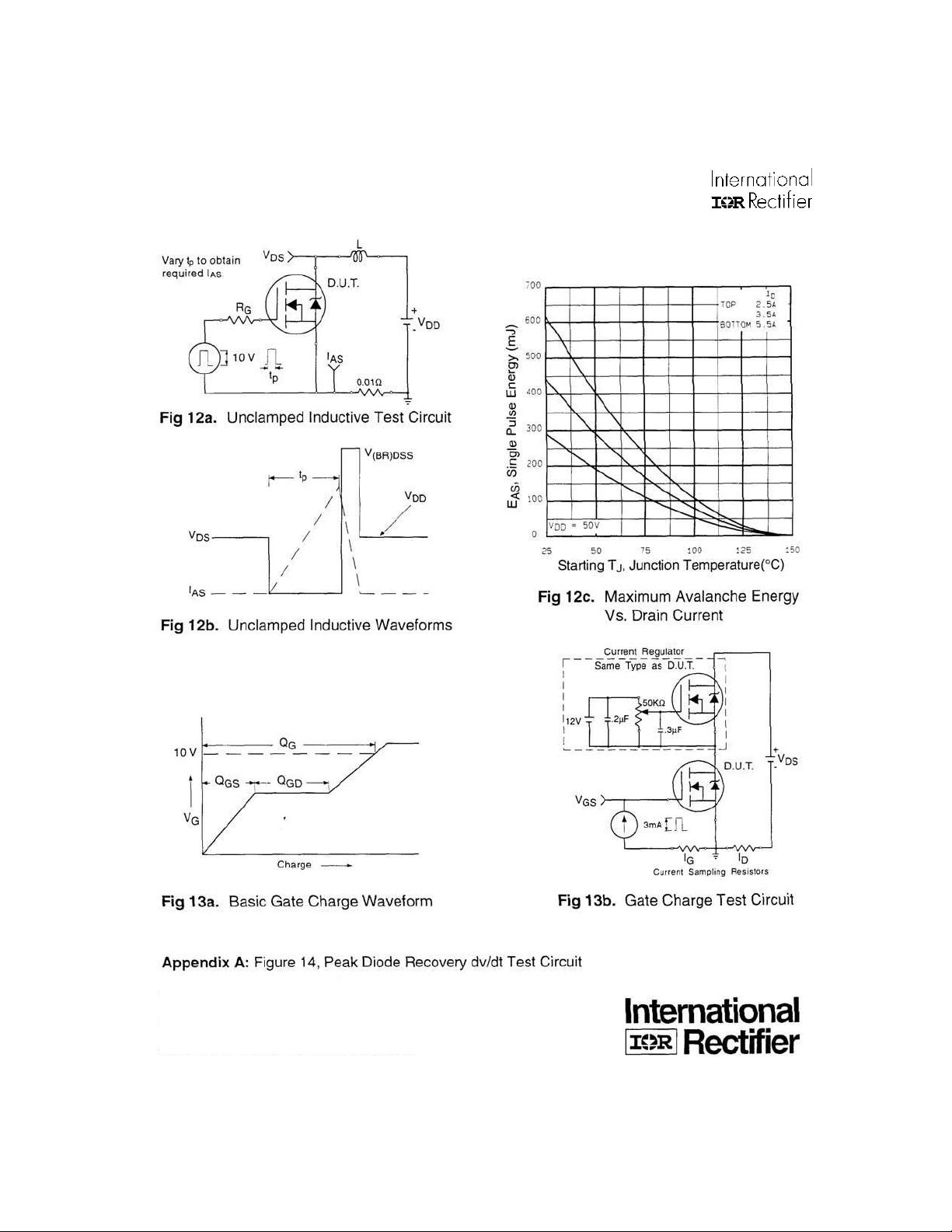

Page 7
2
Document Number: 91048
www.vishay.com
7
D

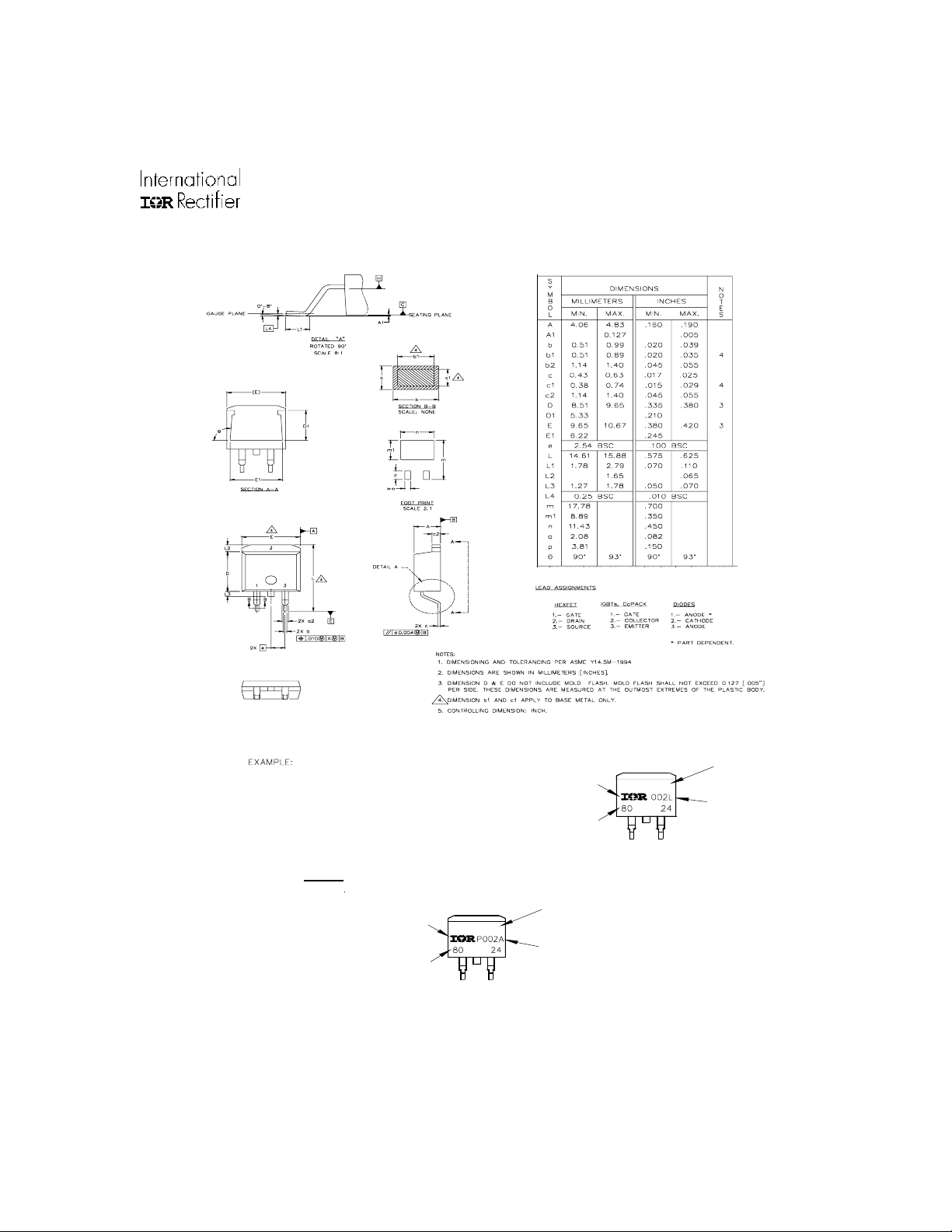

Pak Package Outline
Dimensions are shown in millimeters (inches)
IRF730SPbF
D2Pak Part Marking Information (Lead-Free)
T H IS IS AN IR F 5 30S WIT H
LOT CODE 8024
AS S E MB LE D ON WW 0 2, 2000
IN THE ASS EMBLY LINE "L"
N ote: "P" in as sem bly line
po s i tio n i nd icates "L ead- F ree"
INT ER NAT ION AL
R E CT IF IER
LOGO
ASSEMBLY
LOT CODE
OR
IN T ER NA T IONA L
RECTIFIER
LOGO
AS S EM B LY
LOT CODE
F 530S
PART NUMB ER
DATE CODE
P = DESIGNATE S LEAD-F RE E
PRODUCT (OPTIONAL)
YEAR 0 = 2000
WEEK 02
A = ASSEMBLY SITE CODE
F530S
PAR T NUMBE R
DATE CODE
YE AR 0 = 2000
WEE K 02
LINE L
Page 8
IRF730SPbF
Document Number: 91048
www.vishay.com
8

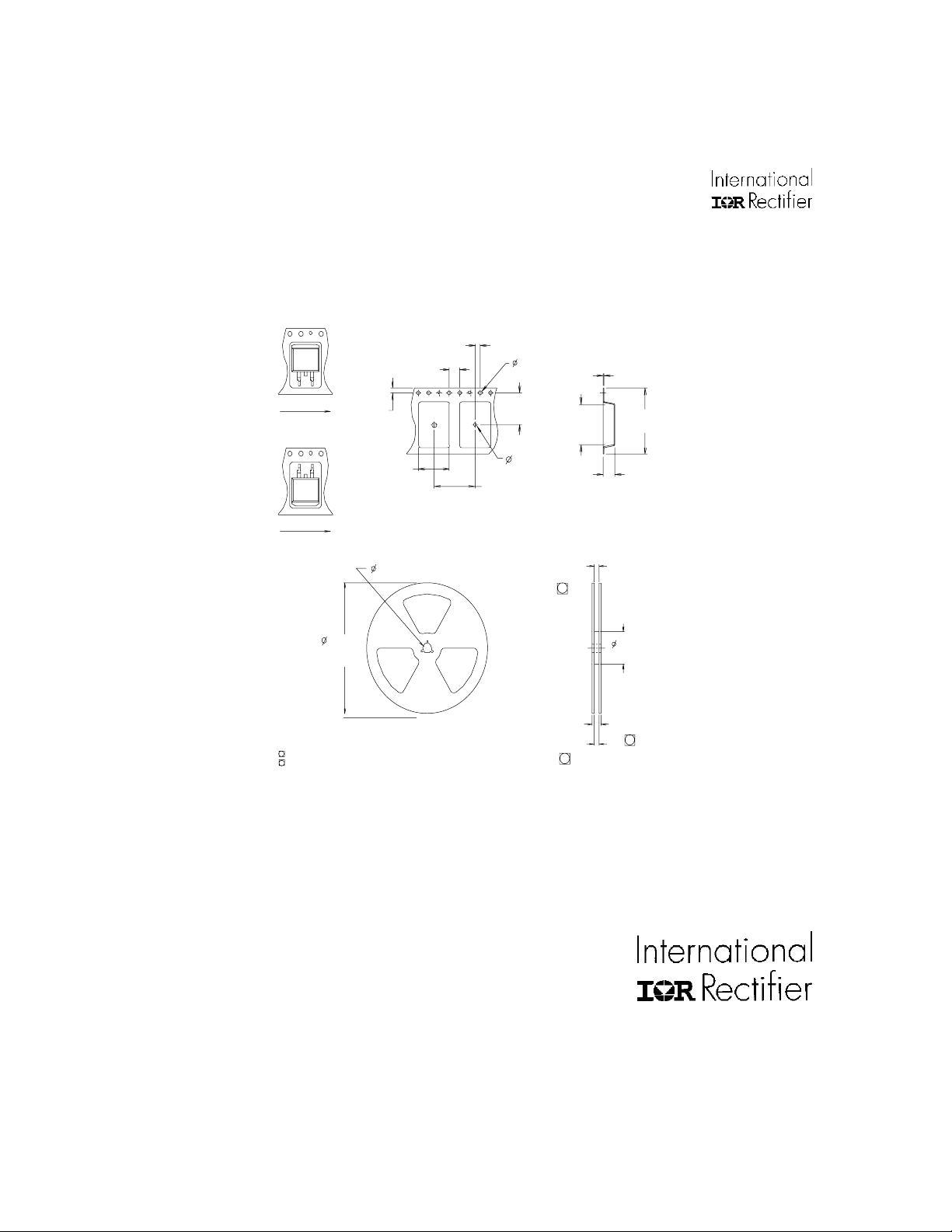

D2Pak Tape & Reel Infomation
Dimensions are shown in millimeters (inches)
TRR
FEED DI RECTION
TRL
FEED DI RECTION
1.85 (.073)
1.65 (.065)
10.90 (.429)
10.70 (.421)
4.10 (.161)
3.90 (.153)
1.60 (.063)
1.50 (.059)
11.60 (.457)
11.40 (.449)
16.10 (.634)
15.90 (.626)
1.60 (.063)
1.50 (.059)
1.75 (.069)
1.25 (.049)
15.42 (.609)
15.22 (.601)
0.368 (.0145)
0.342 (.0135)
24.30 (.957)
23.90 (.941)
4.72 (.136)
4.52 (.178)
13.50 ( .532)
12.80 ( .504)
330.00
(14.173)
MAX.
NOTES :
1. COMFORMS TO EIA-418.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
Data and specifications subject to change without notice.
27.40 ( 1.079)
23.90 ( .941)
4
26.40 ( 1.03 9)
24.40 ( .961 )
3
60.00 (2.362)
MIN.
30.40 ( 1.197)
MAX.
4
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
03/04
