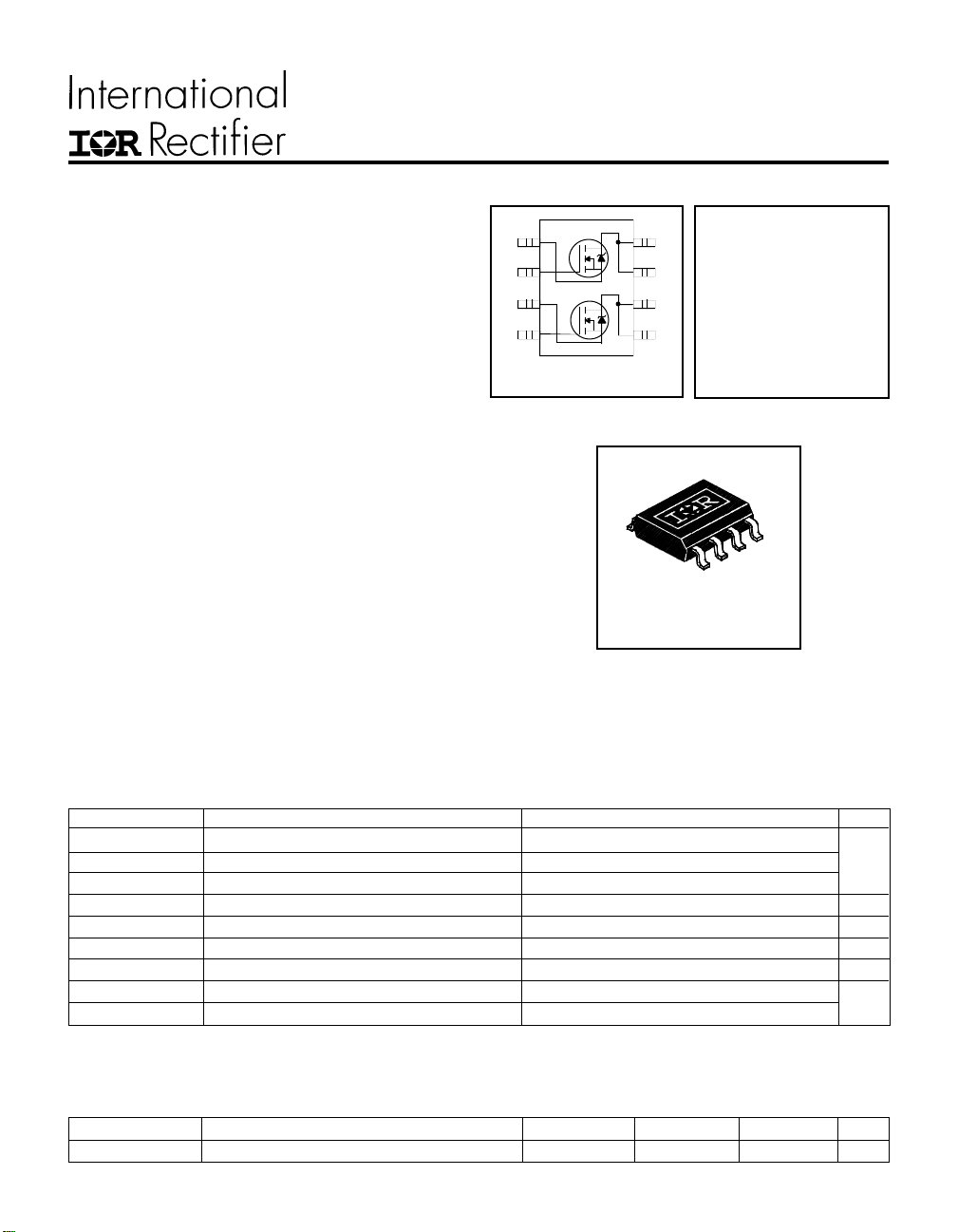

Page 1
l Adavanced Process Technology
l Ultra Low On-Resistance
l Dual N-Channel MOSFET
l Surface Mount
l Available in Tape & Reel
l Dynamic dv/dt Rating
l Fast Switching
Description
Fourth Generation HEXFETs from International
Rectifier utilize advanced processing techniques to
achieve the lowest possible on-resistance per silicon
area. This benefit, combined with the fast switching
speed and ruggedized device design that HEXFET
Power MOSFETs are well known for, provides the
designer with an extremely efficient device for use in
a wide variety of applications.
S1
G1
S2
G2
1
2
3
4
Top View

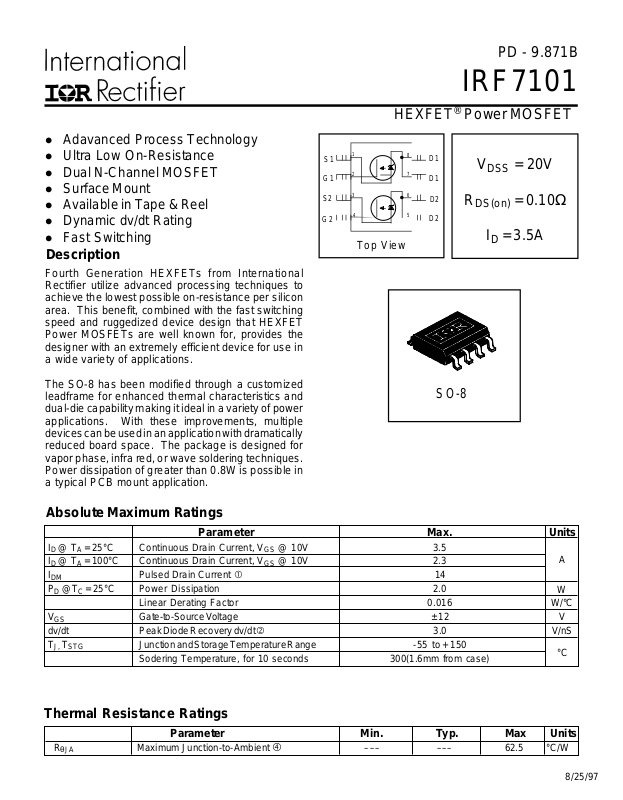

PD - 9.871B
IRF7101
HEXFET® Power MOSFET
8
D1
7
D1
6
D2
5
D2
V
DSS
R
DS(on)
ID = 3.5A
= 20V
= 0.10Ω
The SO-8 has been modified through a customized
leadframe for enhanced thermal characteristics and
SO-8
dual-die capability making it ideal in a variety of power
applications. With these improvements, multiple
devices can be used in an application with dramatically
reduced board space. The package is designed for
vapor phase, infra red, or wave soldering techniques.
Power dissipation of greater than 0.8W is possible in
a typical PCB mount application.
Absolute Maximum Ratings
Parameter Max. Units
ID @ TA = 25°C Continuous Drain Current, VGS @ 10V 3.5
ID @ TA = 100°C Continuous Drain Current, VGS @ 10V 2.3
I
DM
PD @TC = 25°C Power Dissipation 2.0
V
GS
dv/dt Peak Diode Recovery dv/dt 3.0 V/nS
T
J, TSTG
Pulsed Drain Current 14
Linear Derating Factor 0.016 W/°C
Gate-to-Source Voltage ± 12 V
Junction and Storage Temperature Range -55 to + 150
Sodering Temperature, for 10 seconds 300(1.6mm from case)
Thermal Resistance Ratings
Parameter Min. Typ. Max Units
R
Maximum Junction-to-Ambient –––
θJA
–––
62.5 °C/W
A
W
°C
8/25/97
Page 2
IRF7101

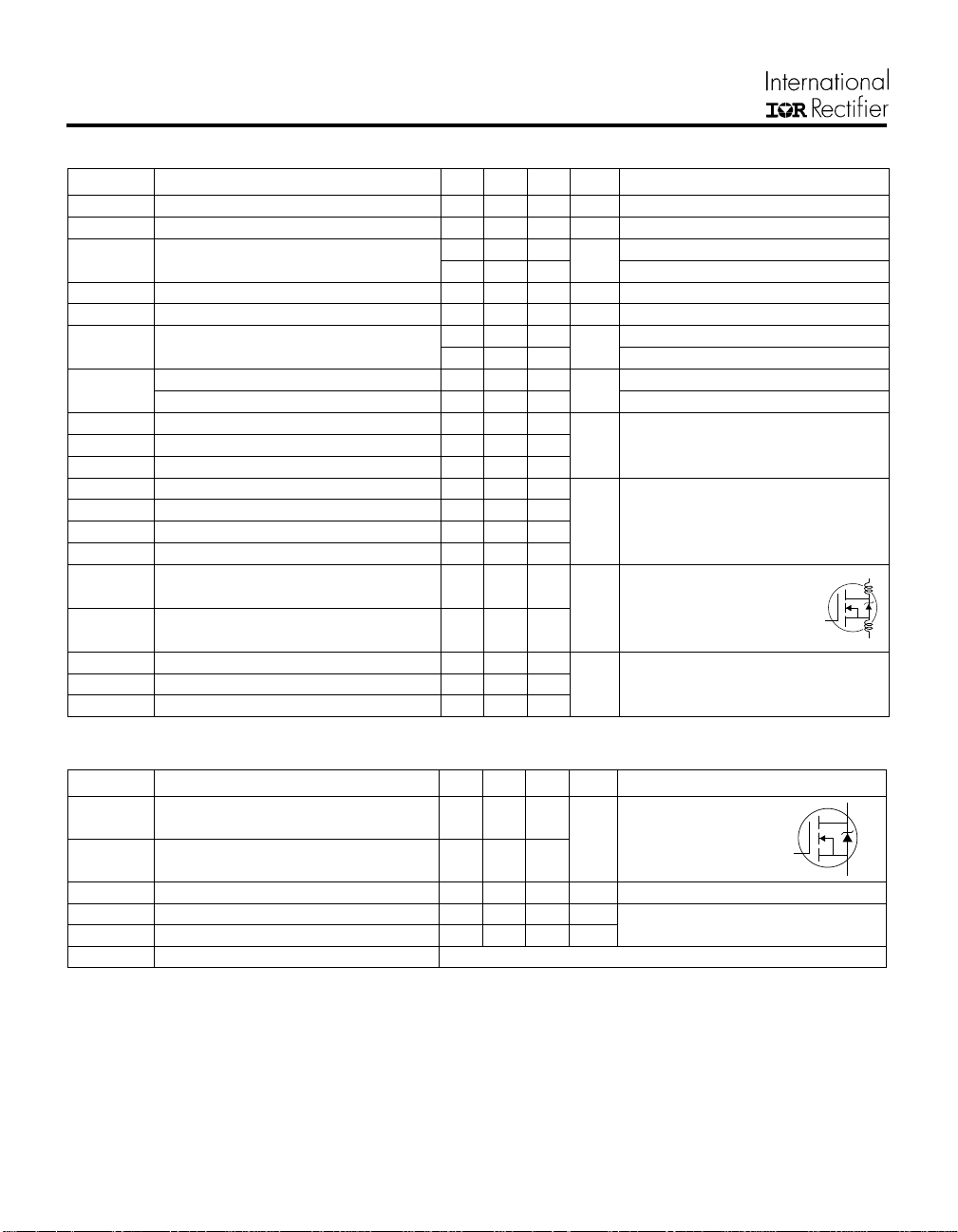

Electrical Characteristics @ T
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
DS(ON)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage 20 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.025 ––– V/° C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance
Gate Threshold Voltage 1.0 ––– 3.0 V VDS = VGS, ID = 250µA
Forward Transconductance 1.1 ––– ––– S VDS = 15V, ID = 3.5A
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage ––– ––– 1 00 V
Gate-to-Source Reverse Leakage ––– ––– -100 V
Total Gate Charge ––– ––– 15 ID = 1.8A
Gate-to-Source Charge ––– ––– 2.0 nC VDS = 16V
Gate-to-Drain ("Miller") Charge ––– ––– 3.6 VGS = 10V
Turn-On Delay Time ––– 7.0 ––– VDD = 10V
Rise Time ––– 10 – –– ID = 1.8A
Turn-Off Delay Time ––– 24 ––– RG = 8.2Ω
Fall Time ––– 30 ––– RD = 26Ω
Internal Drain Inductance ––– 4.0 –––
Internal Source Inductance ––– 6.0 – – –
Input Capacitance ––– 320 ––– VGS = 0V
Output Capacitance ––– 250 ––– pF VDS = 15V
Reverse Transfer Capacitance ––– 75 ––– ƒ = 1.0MHz
= 25°C (unless otherwise specified)
J
––– ––– 0.10 V
––– ––– 0.15 V
––– ––– 2.0 VDS = 20V, VGS = 0V
––– ––– 250 V
ΩR
µA
nA
= 10V, ID = 1.8A
GS
= 4.5V, ID = 1.0A
GS
= 16V, VGS = 0V, TJ = 125 °C
DS
= 12V
GS
= - 12V
GS
ns
Between lead,6mm(0.25in.)
nH
from package and center
of die contact
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Repetitive rating; pulse width limited by
max. junction temperature.
I
SD
TJ ≤ 150°C
Continuous Source Current MOSFET symbol
(Body Diode) showing the
Pulsed Source Current integral reverse
(Body Diode) p-n junction diode.
––– ––– 2.0
––– ––– 14
Diode Forward Voltage ––– ––– 1.2 V TJ = 25°C, IS = 1.7A, VGS = 0V
Reverse Recovery Time ––– 36 54 n s TJ = 25°C, IF = 1.7A
Reverse RecoveryCharge ––– 41 62 nC di/dt = 100A/µs
Forward Turn-On Time
Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Pulse width ≤ 300µs; duty cycle ≤ 2%.
≤ 3.5A, di/dt ≤ 90A/µs, V
DD
≤ V
(BR)DSS
,
Surface mounted on FR-4 board, t ≤ 10sec.
D
A
G
S

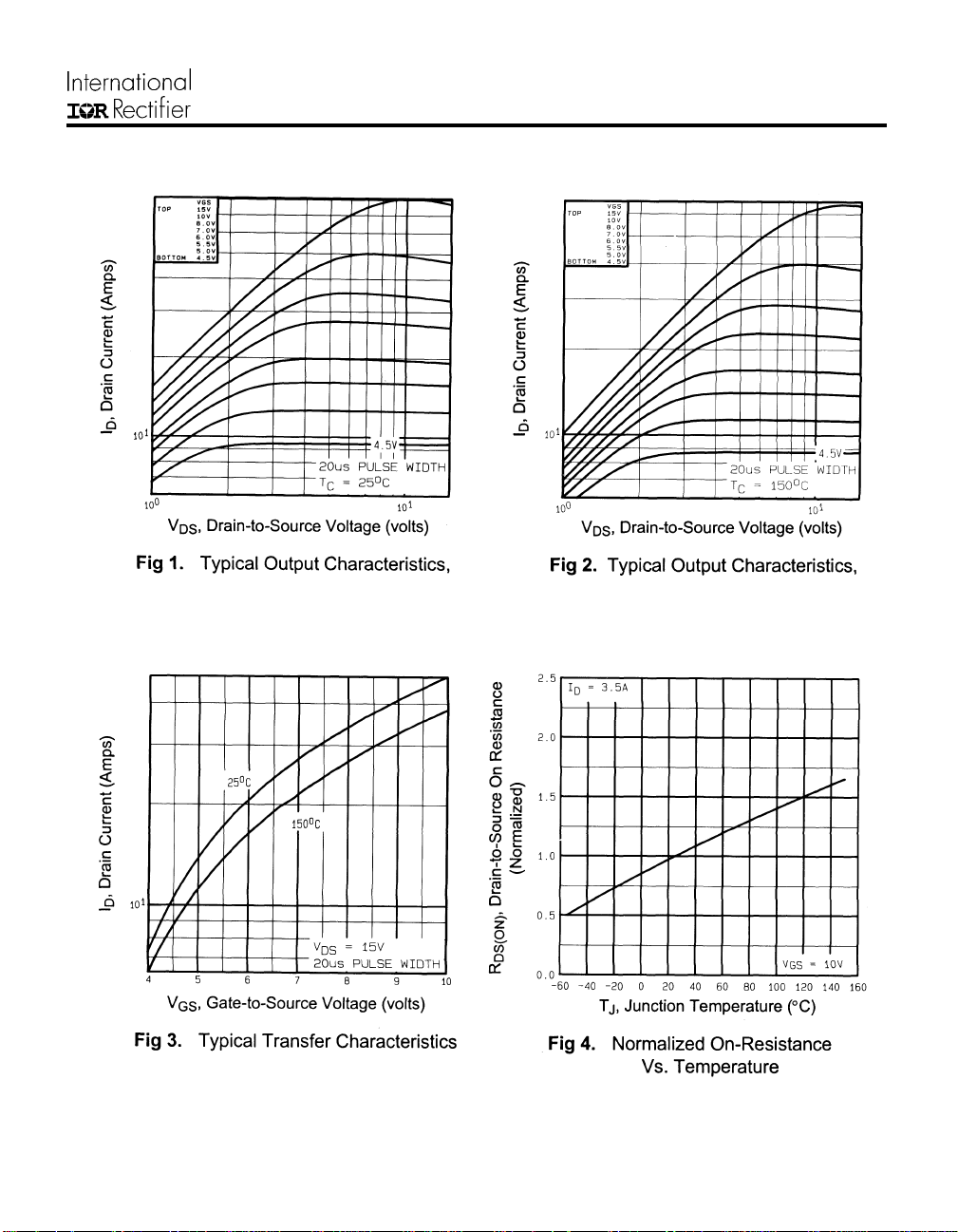

Page 3
IRF7101

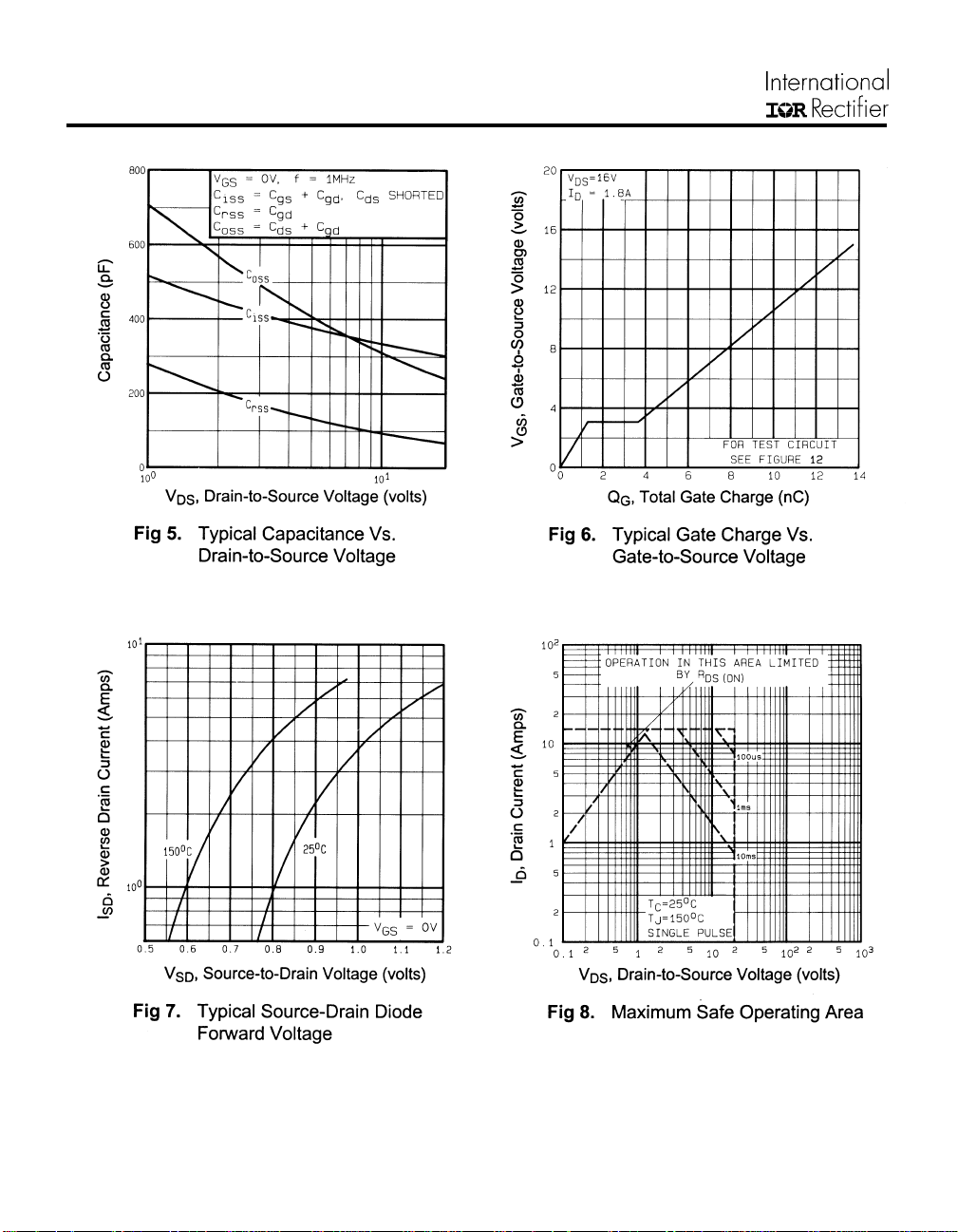

Page 4
IRF7101
C,
Page 5
100
IRF7101
D = 0.50
thJA
Thermal Response (Z )
0.20
10
0.10
0.05
0.02
0.01
1
0.1
0.0001 0.001 0.01 0.1 1 10 100
10
SINGLE PULSE
(THERMAL RESPONSE)
1. Duty factor D = t / t
2. Peak T =P x Z + T
t , Rectangular Pulse Duration (sec)
1
Notes:
J DM thJA A
1 2
P
DM
t
1
t
2

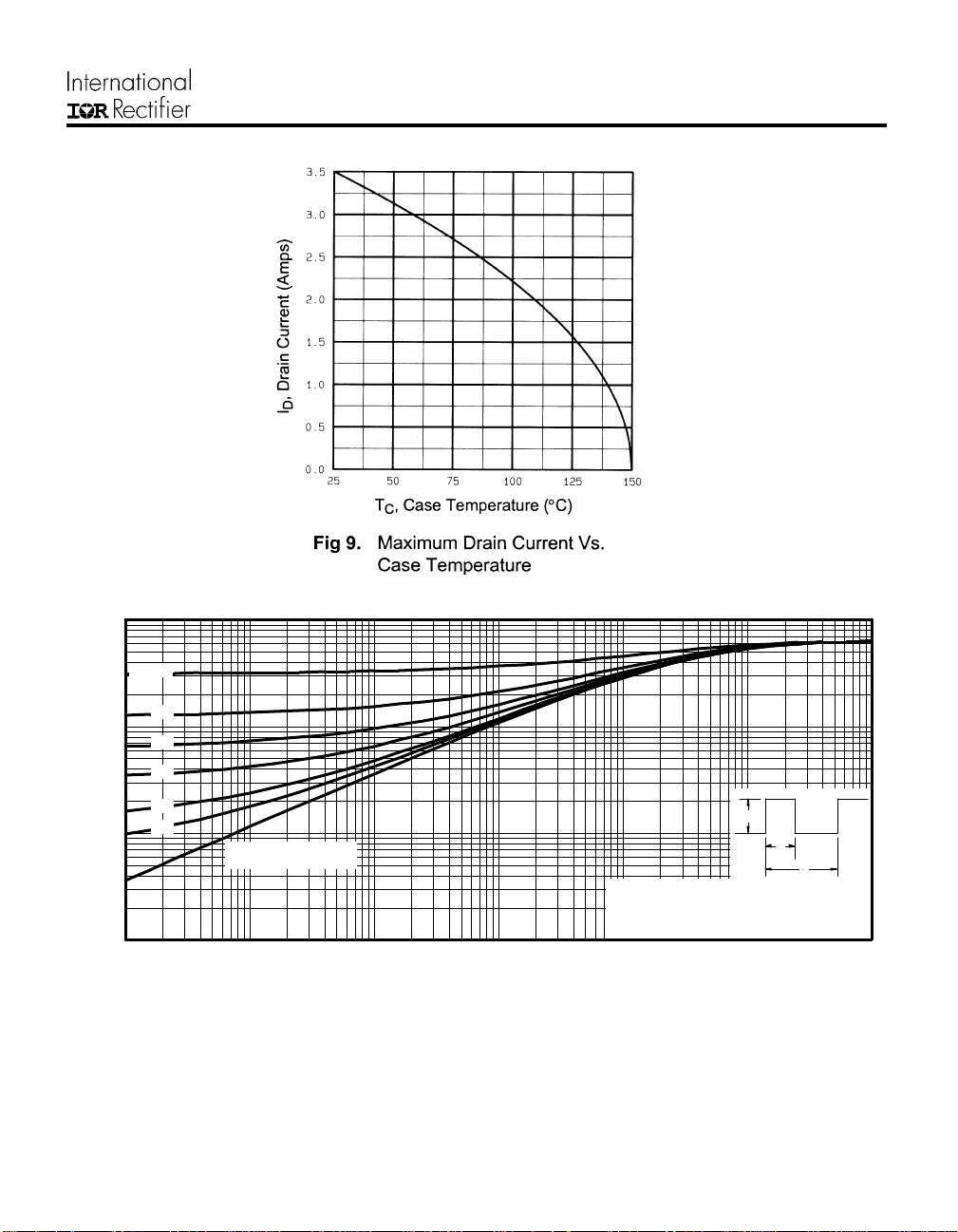

Fig 10. Maximum Effective Transient Thermal Impedance, Junction-to-Ambient
Page 6
IRF7101
+
-
V
GS
R
G
10V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
R
V
DS
D
V
DS
90%
D.U.T.
V
DD
10%
V
GS
t
d(on)tr
t
d(off)tf

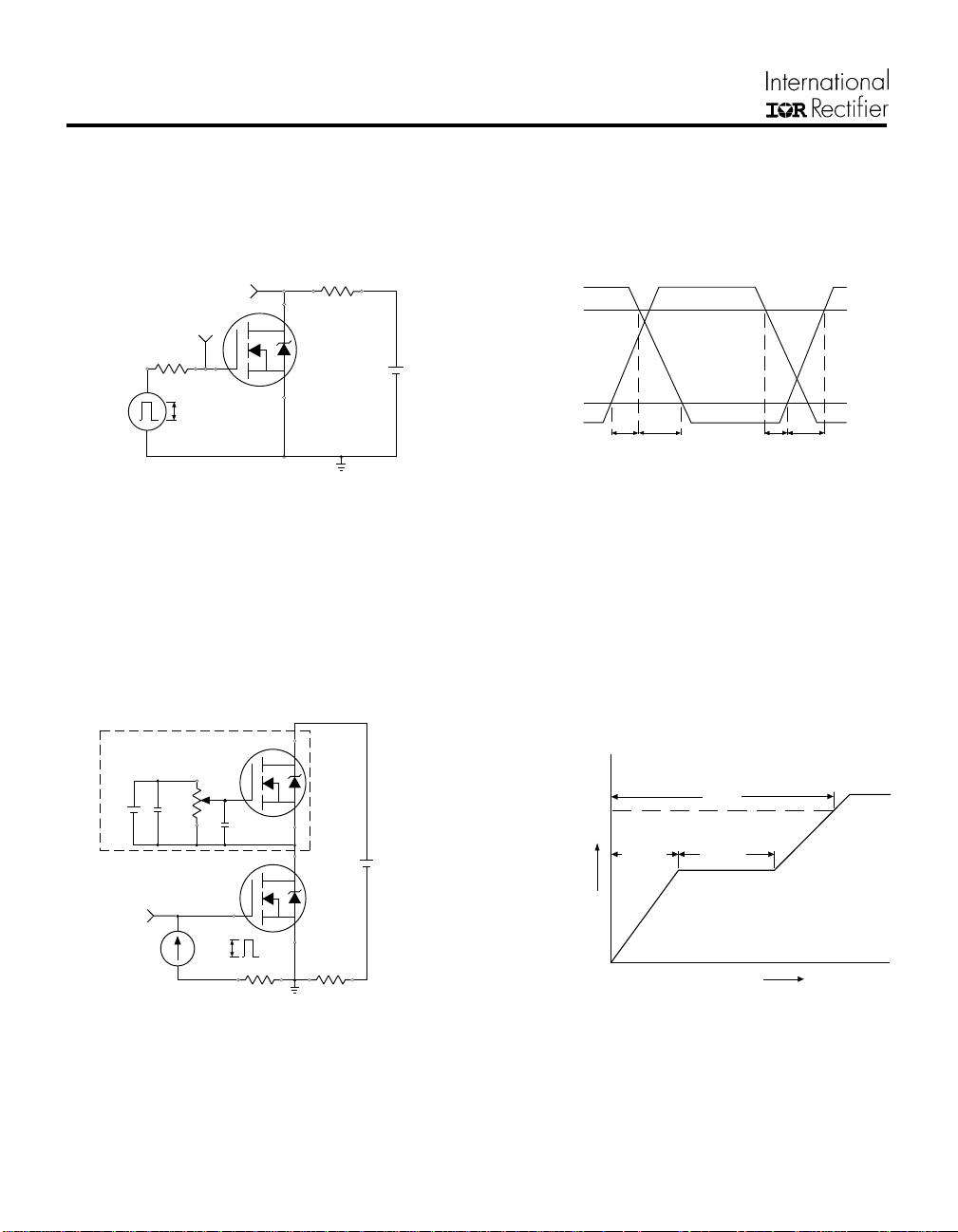

Fig 11a. Switching Time Test Circuit
Current Regulator
Same Type as D.U.T.
50KΩ
12V
.2µF
V
GS
.3µF
D.U.T .
3mA
I
G
Current Sampling Resistors
I
+
V
DS
-
D
Fig 11b. Switching Time Waveforms
Q
G
10V
Q
GS
V
G
Q
GD
Charge
Fig 12a. Gate Charge Test Circuit
Fig 12b. Basic Gate Charge Waveform
Page 7
IRF7101
+
-

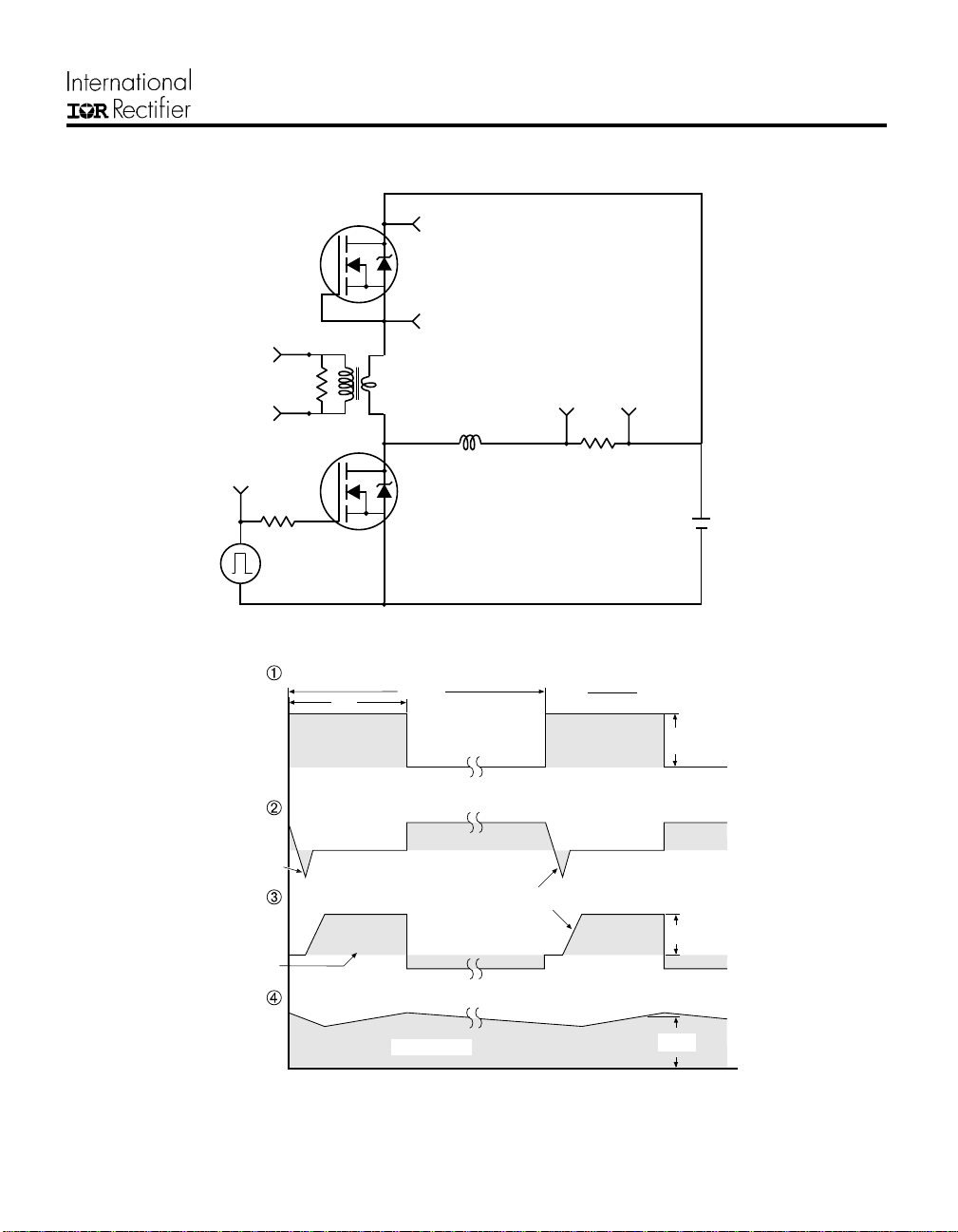

Peak Diode Recovery dv/dt Test Circuit
D.U.T
+
-
R
G
Driver Gate Drive
P.W.
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
• dv/dt controlled by R
• Driver same type as D.U.T.
controlled by Duty Factor "D"
• I
SD
• D.U.T. - Device Under Test
Period
-
D =
G
Period
P.W.
+
V
DD
VGS=10V
*
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. ISDWaveform
Body Diode Forward
Current
D.U.T. VDSWaveform
Body Diode Forward Drop
Inductor Curent
Ripple ≤ 5%
Diode Recovery
di/dt
dv/dt
* VGS = 5V for Logic Level Devices
Fig 13. For N-Channel HEXFETS
V
DD
I
SD
Page 8
IRF7101

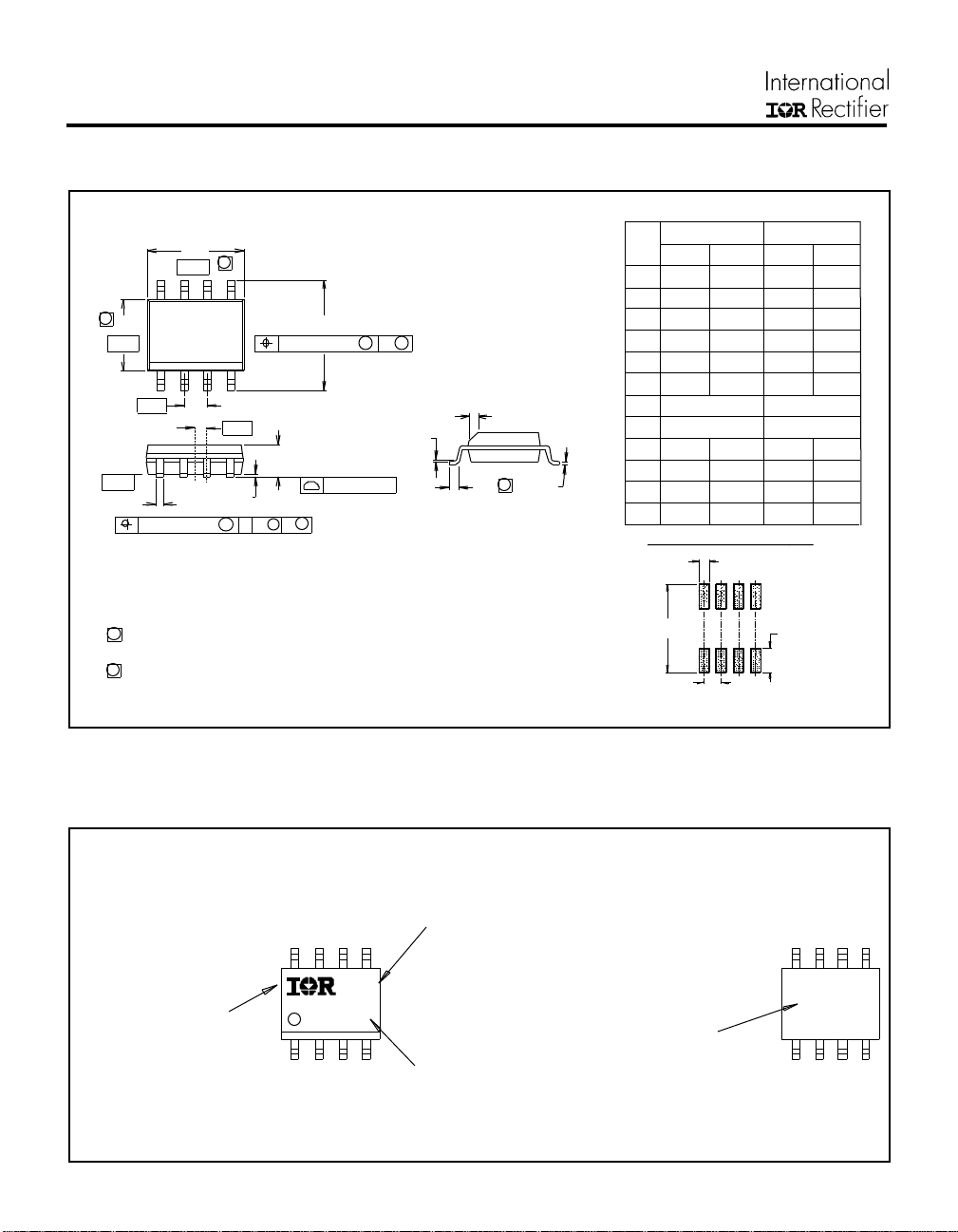

Package Outline
SO8 Outline
D
5
- B -
8 7 6 5
5
E
- A 1 2 3 4
e
6X
- C -
0.25 (.010) M C A S B S
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M-1982.
2. CONTROLLING DIMENSION : INCH.
3. DIMENSIONS ARE SHOWN IN MILLIMETERS (INCHES).
4. OUTLINE CONFORMS TO JEDEC OUTLINE MS-012AA.
DIMENSION DOES NOT INCLUDE MOLD PROTRUSIONS
5
MOLD PROTRUSIONS NOT TO EXCEED 0.25 (.006).
DIMENSIONS IS THE LENGTH OF LEAD FOR SOLDERING TO A SUBSTRATE..
6
B 8X
e1
A1
H
0.25 (.010) M A M
A
0.10 (.004)
K x 45°
θ
6
L
8X
C
8X
INCHES MILLIMETERS
DIM
MIN MAX MIN MAX
A .0532 .0688 1.35 1.75
A1 .0040 .0098 0.10 0.25
B .014 .018 0.36 0.46
C .0075 .0098 0.19 0.25
D .189 .196 4.80 4.98
E .150 .157 3.81 3.99
e .050 BASIC 1.27 BASIC
e1 .025 BASIC 0.635 BASIC
H .2284 .2440 5.80 6.20
K .011 .019 0.28 0.48
L 0.16 .050 0.41 1.27
0° 8° 0° 8°
θ
RECOMMENDED FOOTPRINT
0.72 (.028 )
8X
6.46 ( .255 )
1.27 ( .050 )
3X
1.78 (.070)
8X
Part Marking Information
SO8
EXAMPLE : TH IS IS AN IRF7101
312
INTERNATIONAL
R E CT IFIE R
L OGO
F7 101
TOP
DATE CODE (YW W)
Y = LAST DIG IT OF THE YEAR
WW = WEEK
W AF ER
PART NUMBER
LOT CODE
(LAST 4 DIGITS)
XXXX
BOTTOM
Page 9

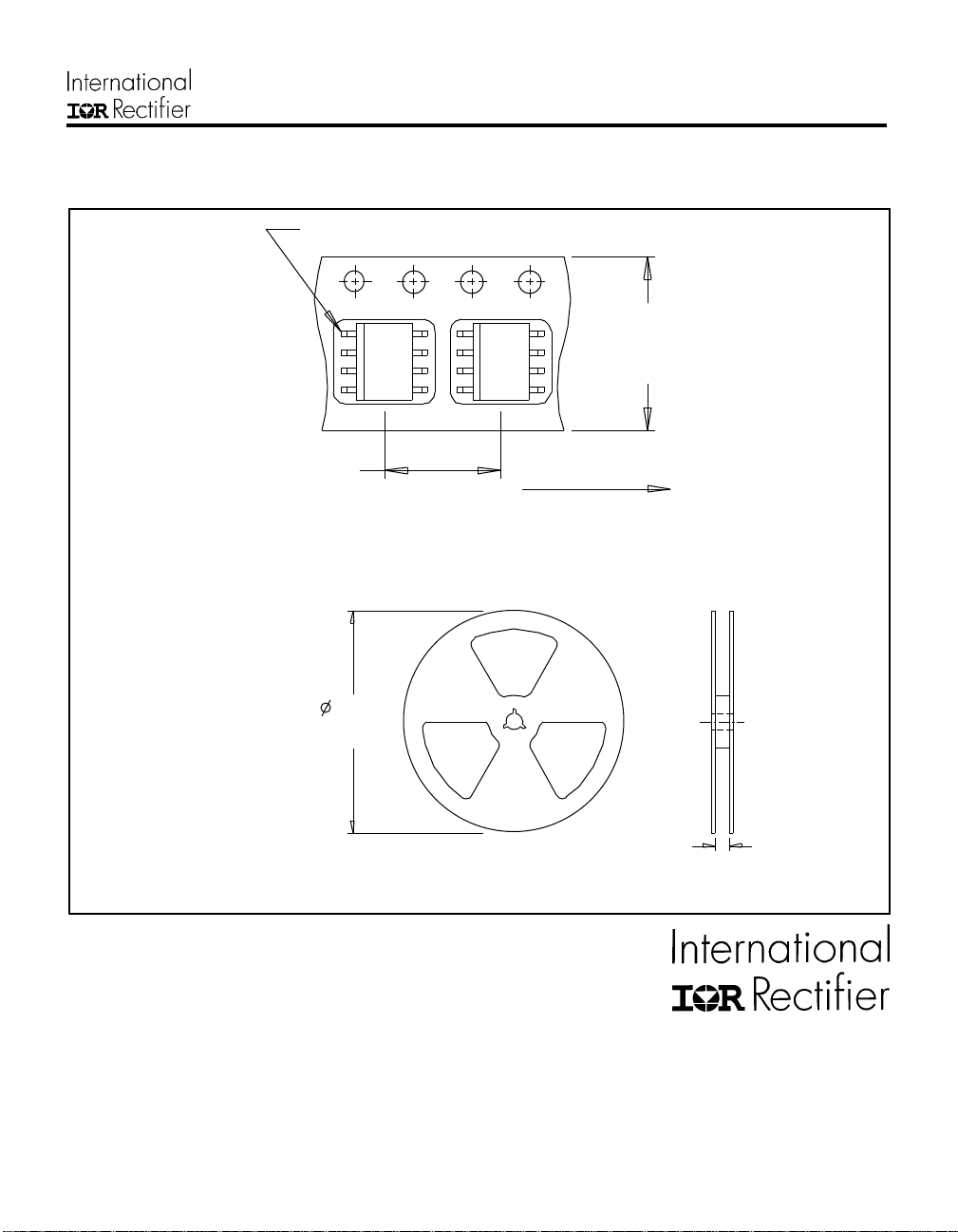

Tape & Reel Information
SO8
Dimensions are shown in millimeters (inches)
TERMINAL NUMBER 1
12.3 ( .48 4 )
11.7 ( .46 1 )
IRF7101
8.1 ( .3 18 )
7.9 ( .3 12 )
NOTES:
1. CONTROLLING DIMENSION : MILLIMETER.
2. ALL DIMENSIONS AR E SHOW N IN MILL IMETERS(INCHES).
3. OUT LINE CONFORMS TO EIA-481 & EIA-541.
330. 00
(12.99 2)
M A X.
NOT ES :
1. CONTRO LLING DIME NS ION : MILLIME TER .
2. OUTLINE CONFORMS TO EIA-481 & EIA-541.
FEED D IRECT ION
14.40 ( .566 )
12.40 ( .488 )
