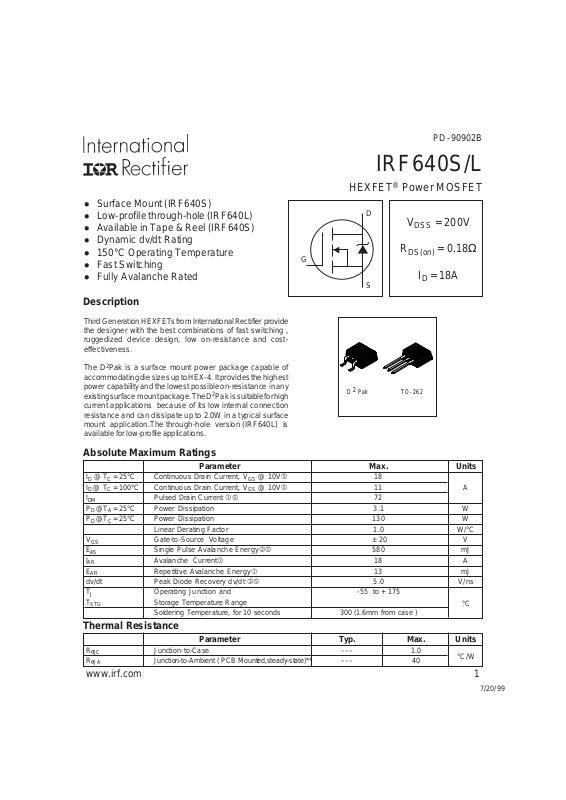

IRF640S/L
HEXFET® Power MOSFET
PD -90902B
S
D
G
Description
7/20/99
Parameter Typ. Max. Units
R
θJC
Junction-to-Case ––– 1.0
R
θJA
Junction-to-Ambient ( PCB Mounted,steady-state)** ––– 40
Thermal Resistance
°C/W
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 18
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 11 A
I
DM
Pulsed Drain Current 72
PD @TA = 25°C Power Dissipation 3.1 W
PD @TC = 25°C Power Dissipation 130 W
Linear Derating Factor 1.0 W/°C
V
GS
Gate-to-Source Voltage ± 20 V
E
AS
Single Pulse Avalanche Energy 580 mJ
I
AR
Avalanche Current 18 A
E
AR
Repetitive Avalanche Energy 13 mJ
dv/dt Peak Diode Recovery dv/dt 5.0 V/ns
T
J
Operating Junction and -55 to + 175
T
STG
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
°C
Absolute Maximum Ratings
l Surface Mount (IRF640S)
l Low-profile through-hole (IRF640L)
l Available in Tape & Reel (IRF640S)
l Dynamic dv/dt Rating
l 150°C Operating Temperature
l Fast Switching
l Fully Avalanche Rated
2
D Pak
TO-262
V
DSS
= 200V
R
DS(on)
= 0.18Ω
ID = 18A
Third Generation HEXFETs from International Rectifier provide
the designer with the best combinations of fast switching ,
ruggedized device design, low on-resistance and costeffectiveness.
The D
2
Pak is a surface mount power package capable of
accommodating die sizes up to HEX-4. It provides the highest
power capability and the lowest possible on-resistance in any
existing surface mount package. The D
2
Pak is suitable for high
current applications because of its low internal connection
resistance and can dissipate up to 2.0W in a typical surface
mount application.The through-hole version (IRF640L) is
available for low-profile applications.
www.irf.com 1
Page 2
IRF640S/L
2 www.irf.com
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
Drain-to-Source Breakdown Voltage 200 ––– ––– V VGS = 0V, ID = 250µA
∆V
(BR)DSS
/∆T
J
Breakdown Voltage Temp. Coefficient ––– 0.29 ––– V/°C Reference to 25°C, ID = 1mA
R
DS(on)
Static Drain-to-Source On-Resistance ––– ––– 0.18 Ω VGS = 10V, ID = 11A
V
GS(th)
Gate Threshold Voltage 2.0 ––– 4.0 V VDS = VGS, ID = 250µA
g
fs
Forward Transconductance 6.7 ––– ––– S VDS = 50V, ID = 11A
––– ––– 25
µA
VDS = 200V, VGS = 0V
––– ––– 250 VDS = 160V, VGS = 0V, TJ = 125°C
Gate-to-Source Forward Leakage ––– ––– 100 VGS = 20V
Gate-to-Source Reverse Leakage ––– ––– -100
nA
VGS = -20V
Q
g
Total Gate Charge ––– ––– 70 ID = 18A
Q
gs
Gate-to-Source Charge ––– ––– 13 nC VDS =160V
Q
gd
Gate-to-Drain ("Miller") Charge ––– ––– 39 VGS = 10V, See Fig. 6 and 13
t
d(on)
Turn-On Delay Time ––– 14 ––– VDD =100V
t
r
Rise Time ––– 51 ––– ID = 18A
t
d(off)
Turn-Off Delay Time ––– 45 –– – RG = 9.1Ω
t
f
Fall Time ––– 36 ––– RD = 5.4Ω, See Fig. 10
Between lead,
––– –––
and center of die contact
C
iss
Input Capacitance ––– 1300 ––– VGS = 0V
C
oss
Output Capacitance ––– 430 ––– pF VDS = 25V
C
rss
Reverse Transfer Capacitance ––– 130 ––– ƒ = 1.0MHz, See Fig. 5
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
I
GSS
ns
I
DSS
Drain-to-Source Leakage Current
nH
7.5
L
S
Internal Source Inductance
V
DD
= 50V, starting TJ = 25°C, L = 2.7mH
RG = 25Ω, I
AS
= 18A. (See Figure 12)
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
Notes:
** When mounted on 1" square PCB ( FR-4 or G-10 Material ).
For recommended footprint and soldering techniques refer to application note #AN-994.
I
SD
≤ 18A, di/dt ≤ 150A/µs, V
DD
≤ V
(BR)DSS
,
TJ ≤ 150°C
Pulse width ≤ 300µs; duty cycle ≤ 2%.
Uses IRF640 data and test conditions
Parameter Min. Typ. Max. Units Conditions
I
S
Continuous Source Current MOSFET symbol
(Body Diode)
––– –––
showing the
I
SM
Pulsed Source Current integral reverse
(Body Diode)
––– –––
p-n junction diode.
V
SD
Diode Forward Voltage ––– ––– 2.0 V TJ = 25°C, IS = 18A, VGS = 0V
t
rr
Reverse Recovery Time ––– 300 610 n s TJ = 25°C, IF = 18A
Q
rr
Reverse Recovery Charge ––– 3 .4 7.1 µC di/dt = 100A/µs
Source-Drain Ratings and Characteristics
S
D
G
A
18
72
t
on
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Page 3
IRF640S/L
www.irf.com 3
Fig 1. Typical Output Characteristics,
TJ = 25oC
Fig 3. Typical Transfer Characteristics
Fig 4. Normalized On-Resistance
Vs. Temperature
Fig 2. Typical Output Characteristics,
TJ = 175oC
Page 4
IRF640S/L
4 www.irf.com

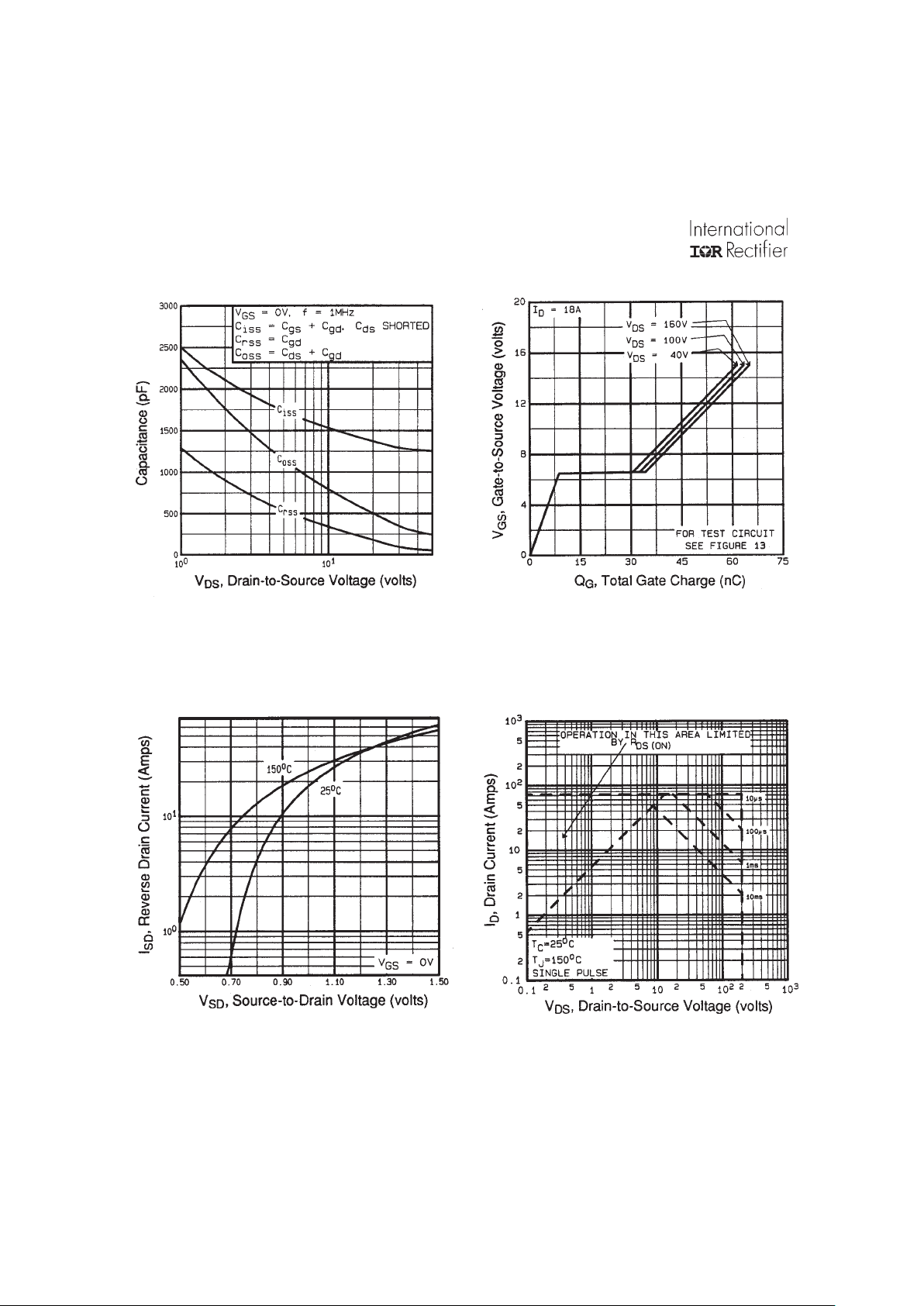

Fig 7. Typical Source-Drain Diode
Forward Voltage
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 8. Maximum Safe Operating Area
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
Page 5
IRF640S/L
www.irf.com 5

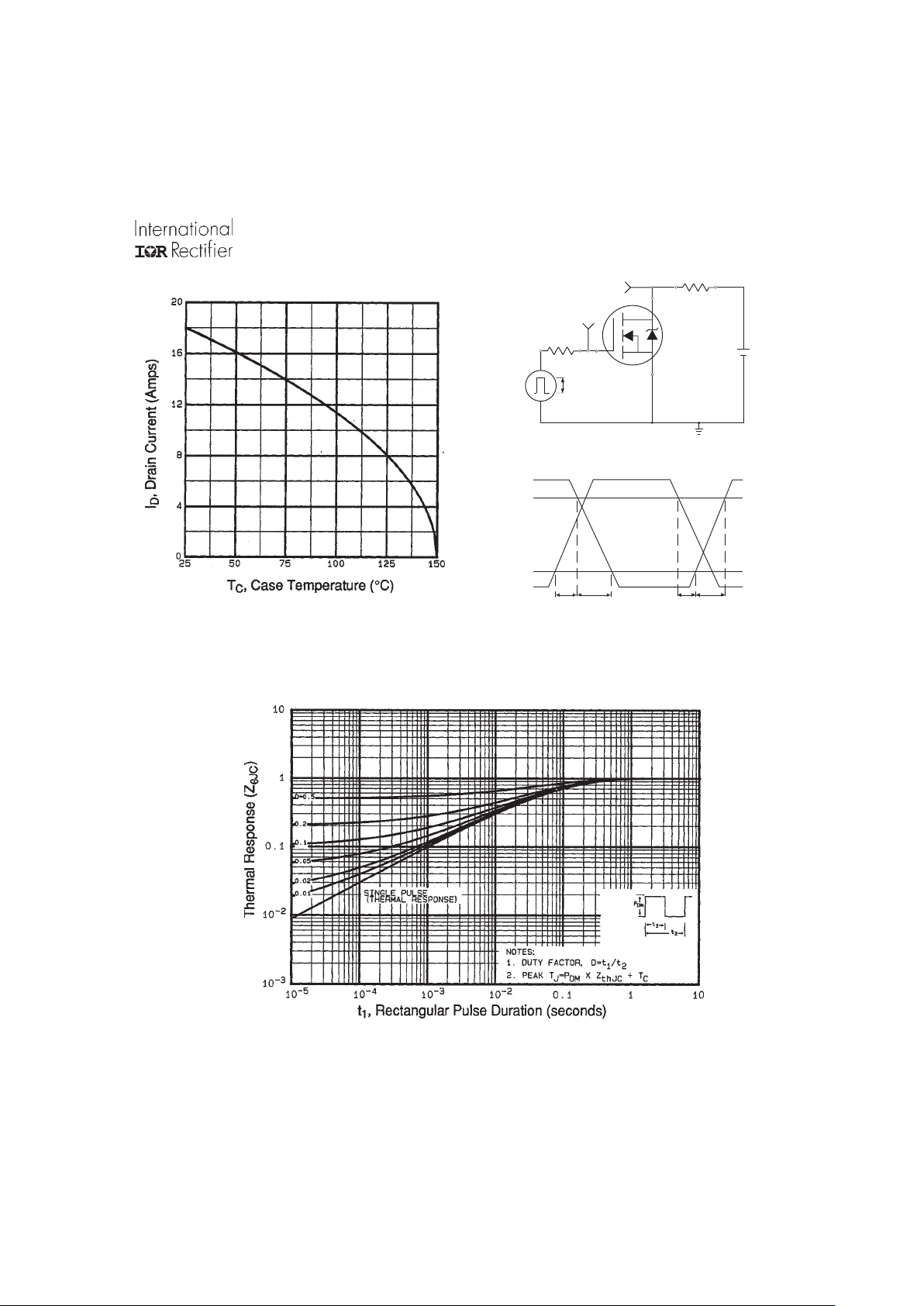

Fig 9. Maximum Drain Current Vs.
Case Temperature
Fig 10a. Switching Time Test Circuit
V
DS
90%
10%
V
GS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
V
DS
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
R
D
V
GS
R
G
D.U.T.
10V
+
-
V
DD
Page 6
IRF640S/L
6 www.irf.com
Q
G
Q
GS
Q
GD
V
G
Charge
D.U.T.
V
DS
I
D
I
G
3mA
V
GS
.3µF
50KΩ
.2µF
12V
Current Regulator
Same Type as D.U.T.
Current Sampling Resistors
+
-
10 V

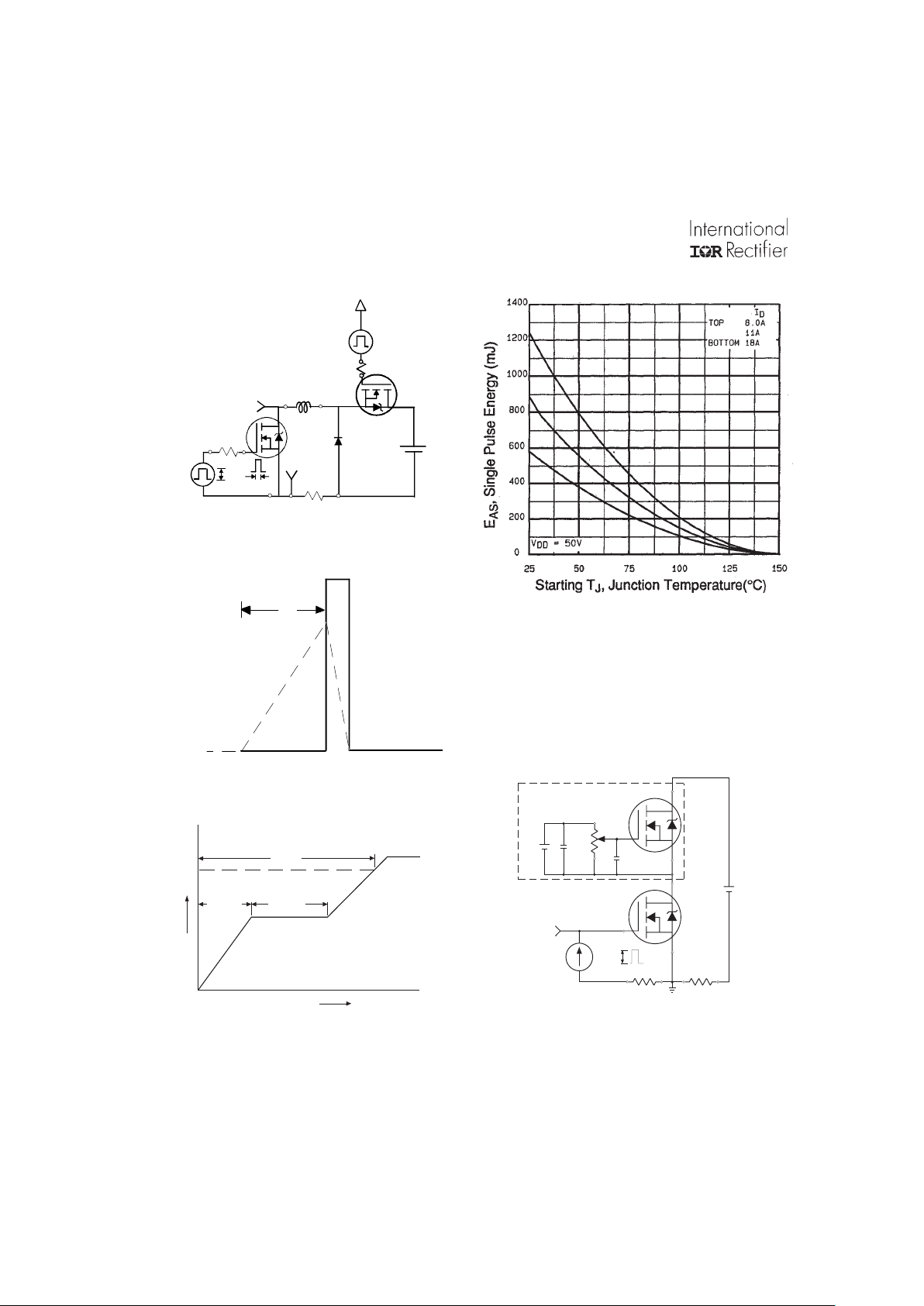

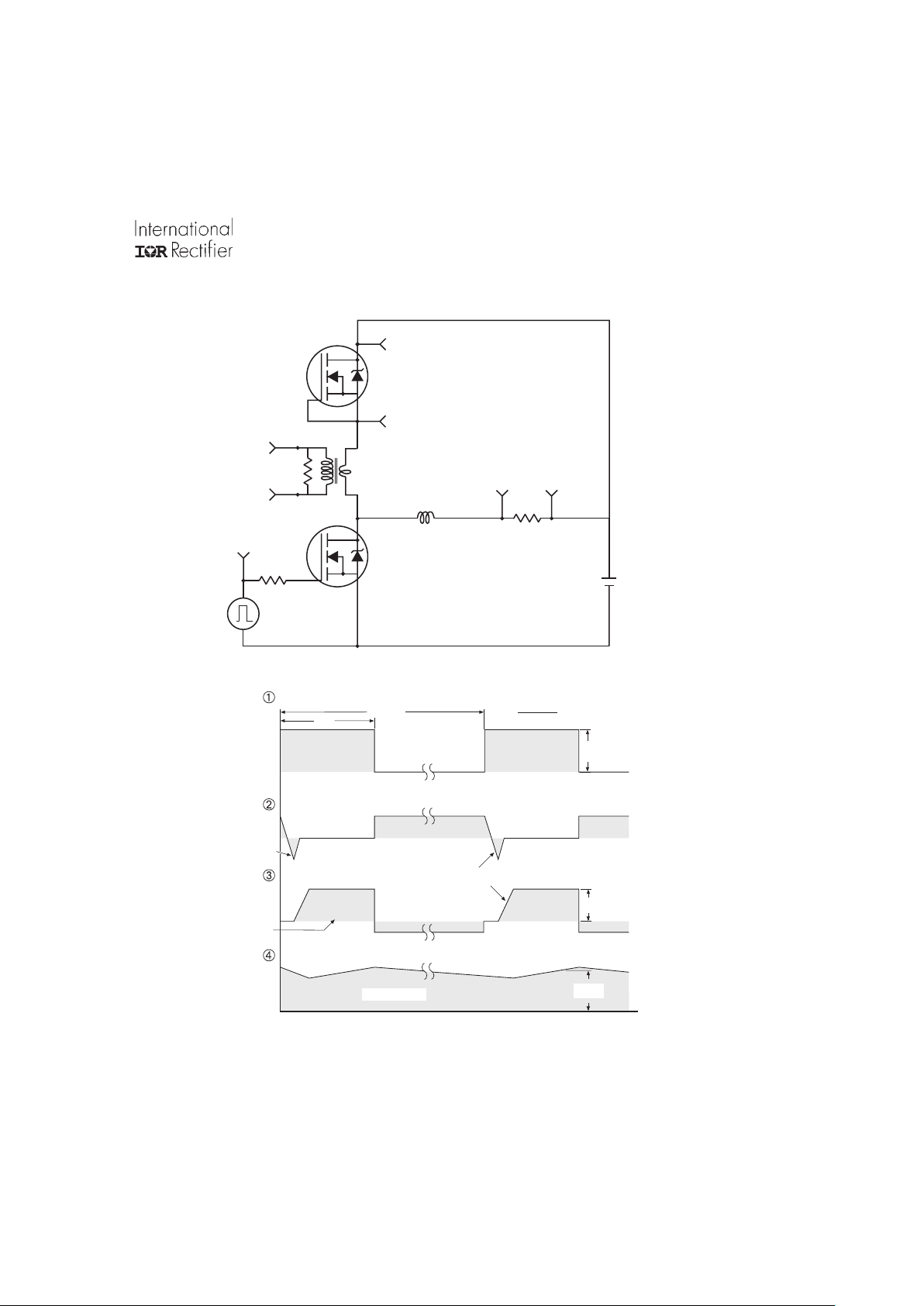

Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
Fig 13b. Gate Charge Test Circuit
Fig 13a. Basic Gate Charge Waveform
Fig 12b. Unclamped Inductive Waveforms
Fig 12a. Unclamped Inductive Test Circuit
t
p
V
(BR)DSS
I
AS
R
G
I
AS
0.01
Ω
t
p
D.U.T
L
V
DS
+
-
V
DD
DRIVER
A
15V
20V
Page 7
IRF640S/L
www.irf.com 7
P.W.
Period
di/dt
Diode Recovery
dv/dt
Ripple ≤ 5%
Body Diode Forward Drop
Re-Applied
Voltage
Reverse
Recovery
Current
Body Diode Forward
Current
VGS=10V
V
DD
I
SD
Driver Gate Drive
D.U.T. ISDWaveform
D.U.T. VDSWaveform
Inductor Curent
D =
P.W.
Period
+
-
+
+
+
-
-
-
Fig 14. For N-Channel HEXFETS
* V
GS
= 5V for Logic Level Devices
Peak Diode Recovery dv/dt Test Circuit
R
G
V
DD
• dv/dt controlled by R
G
• Driver same type as D.U.T.
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
D.U.T
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
*
Page 8
IRF640S/L
8 www.irf.com

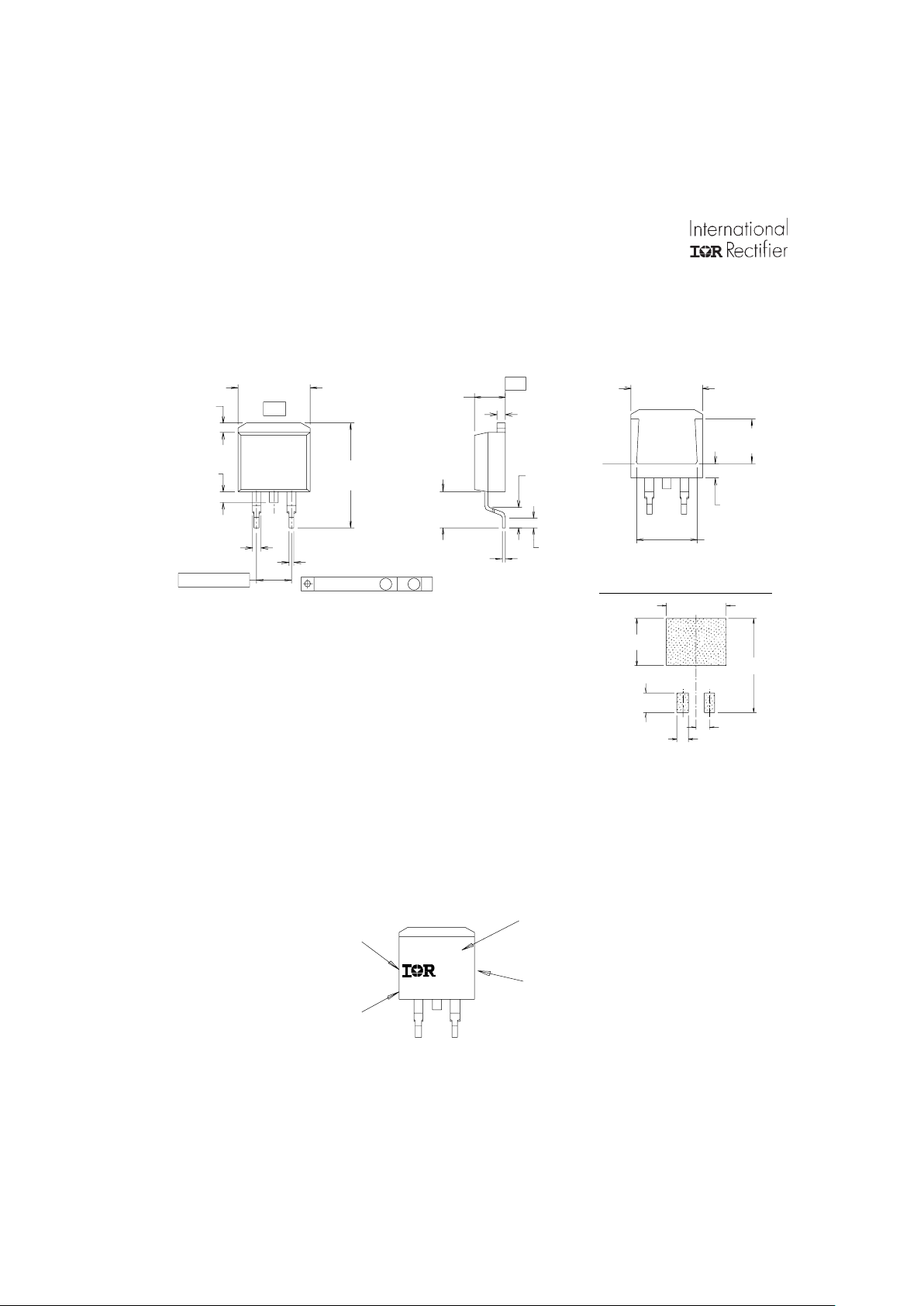

D2Pak Package Outline
D2Pak
Part Marking Information
10.16 (.400)
REF.
6.47 (.255)
6.18 (.243)
2.61 (.103)
2.32 (.091)
8.89 (.350)
REF.
- B -
1.32 (.052)
1.22 (.048)
2.79 (.110)
2.29 (.090)
1.39 (.055)
1.14 (.045)
5.28 (.208)
4.78 (.188)
4.69 (.185)
4.20 (.165)
10.54 (.415)
10.29 (.405)
- A 2
1 3
15.49 (.610)
14.73 (.580)
3X
0.93 (.037)
0.69 (.027)
5.08 (.200)
3X
1.40 (.055)
1.14 (.045)
1.78 (.070)
1.27 (.050)
1.40 (.055)
MA X.
NOTE S:
1 DIMENSIONS AFTER SOLDER DIP.
2 DIMENSIONING & TOLERANCING PER ANS I Y14.5M, 1982.
3 CONTROLLING DIMENSION : INCH.
4 HEATSINK & LEAD DIMENSIONS DO NOT INCLUDE BURRS.
0.55 (.022)
0.46 (.018)
0.2 5 ( .0 10) M B A M
MINIMUM RECOMMENDED FOOTPRINT
11.43 (.450)
8.89 (.350)
17.78 (.700)
3.81 (.150)
2.08 (.082)
2X
LEAD ASSIGNMENTS
1 - G ATE
2 - D RAIN
3 - S OU R CE
2.54 (.100)
2X
PART NUM B ER
INTERNATIONAL
RE CTIFIER
LOG O
DATE CODE
(YYW W )
YY = YEAR
WW = WEEK
A S SEMBLY
LO T CO D E
F530S
9 B 1 M
9246
A
Page 9
IRF640S/L
www.irf.com 9
Package Outline

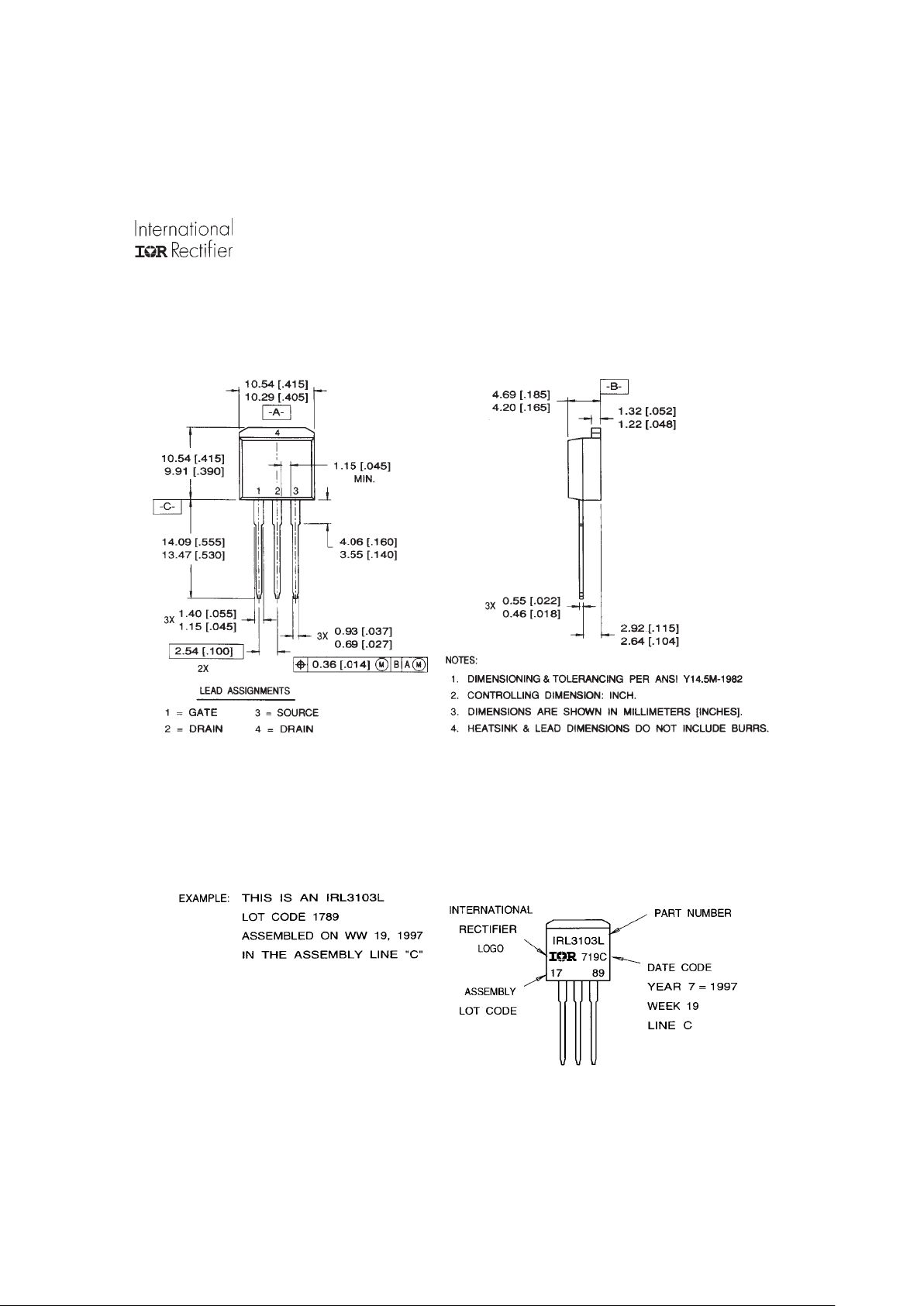

TO-262 Outline
TO-262
Part Marking Information
Page 10
IRF640S/L
10 www.irf.com

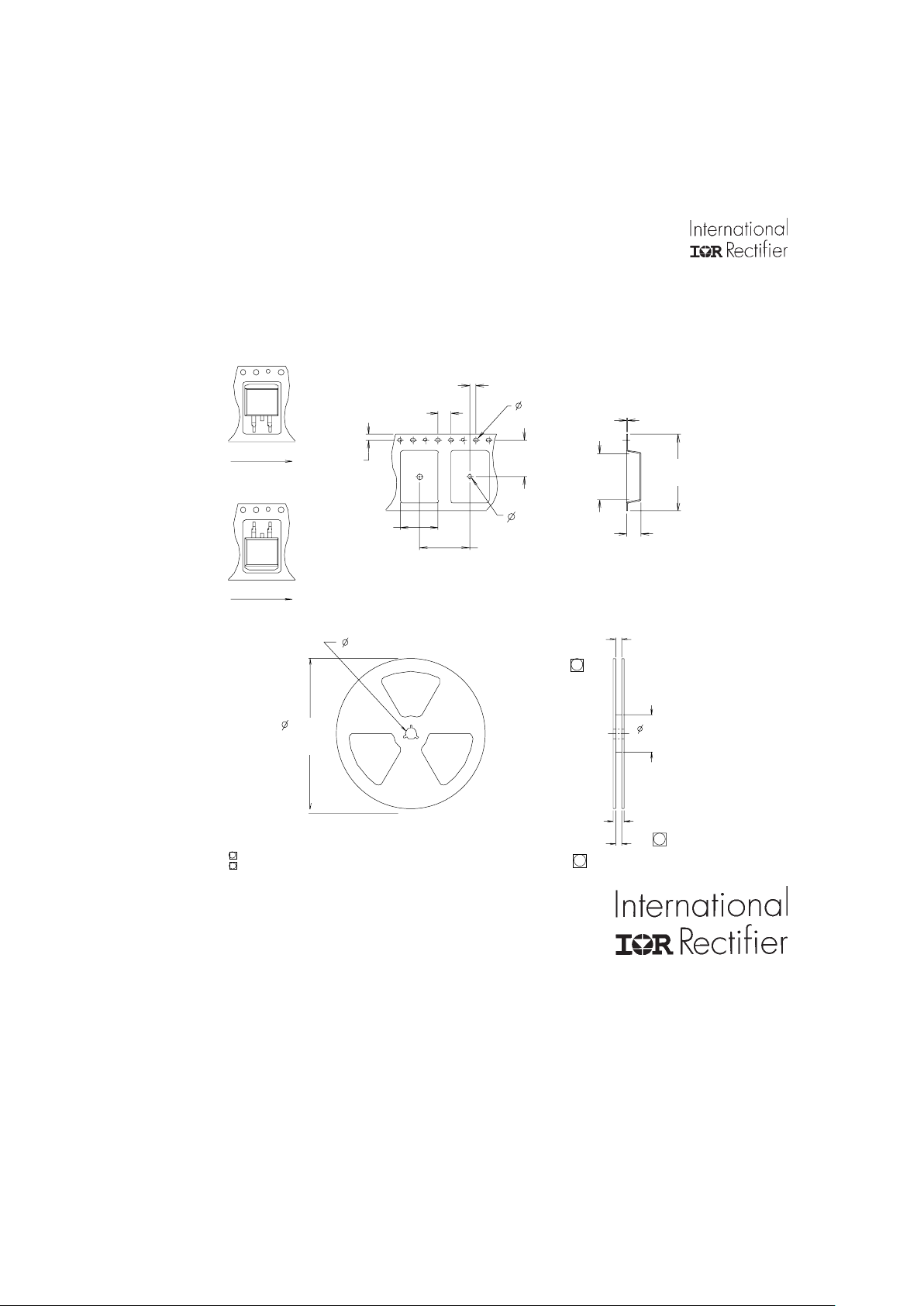

Tape & Reel Information
D2Pak
3
4
4
TRR
FEED DIRECTION
1.85 (.073)
1.65 (.065)
1.60 (.063)
1.50 (.059)
4.10 (.161)
3.90 (.153)
TRL
FEED DIRECTION
10.90 (.429)
10.70 (.421)
16.10 (.634)
15.90 (.626)
1.75 (.069)
1.25 (.049)
11.60 (.457)
11.40 (.449)
15.42 (.609)
15.22 (.601)
4.72 (.136)
4.52 (.178)
24.30 (.957)
23.90 (.941)
0.368 (.0145)
0.342 (.0135)
1.60 (.063)
1.50 (.059)
13.50 (.532)
12.80 (.504)
330.00
(14.173)
MAX.
27.40 (1.079)
23.90 (.941)
60.00 (2.362)
M IN .
30.40 (1.197)
MAX .
26.40 (1.039)
24.40 (.961)
NOTES :
1. COMF O R M S T O EIA-418.
2. CO N TR O L L IN G D IMENS IO N : M ILLIMET ER.
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
