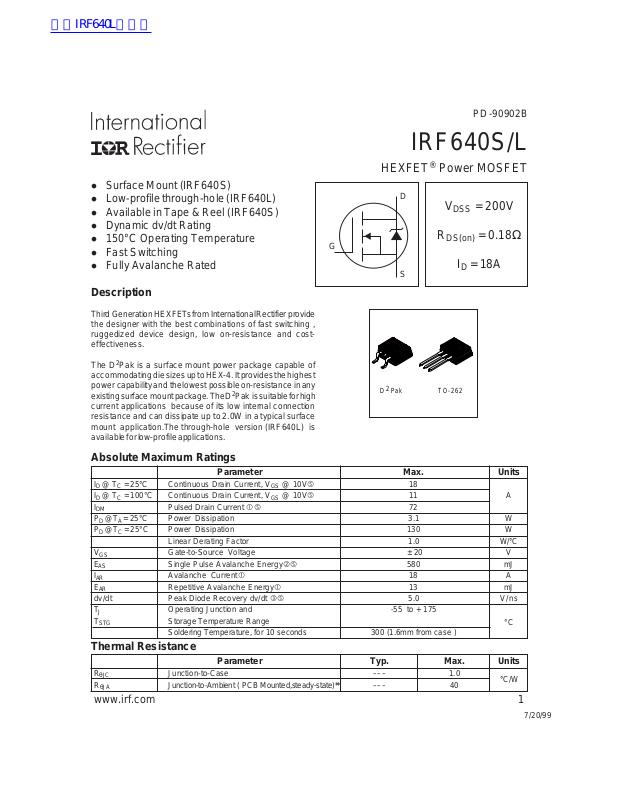

l Surface Mount (IRF640S)
l Low-profile through-hole (IRF640L)
l Available in Tape & Reel (IRF640S)
l Dynamic dv/dt Rating
l 150°C Operating Temperature
l Fast Switching
l Fully Avalanche Rated
Description
Third Generation HEXFETs from International Rectifier provide
the designer with the best combinations of fast switching ,
ruggedized device design, low on-resistance and costeffectiveness.
PD -90902B
IRF640S/L
HEXFET® Power MOSFET
D
V
= 200V
DSS
R
G
S
DS(on)
ID = 18A
= 0.18Ω
2
Pak is a surface mount power package capable of
The D
accommodating die sizes up to HEX-4. It provides the highest
power capability and the lowest possible on-resistance in any
existing surface mount package. The D
current applications because of its low internal connection
resistance and can dissipate up to 2.0W in a typical surface
mount application.The through-hole version (IRF640L) is
available for low-profile applications.
2
Pak is suitable for high
2
D Pak
TO-262
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 18
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 11 A
I
DM
PD @TA = 25°C Power Dissipation 3.1 W
PD @TC = 25°C Power Dissipation 130 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 5.0 V/ns
T
J
T
STG
Pulsed Drain Current 72
Linear Derating Factor 1.0 W/°C
Gate-to-Source Voltage ± 20 V
Single Pulse Avalanche Energy 580 mJ
Avalanche Current 18 A
Repetitive Avalanche Energy 13 mJ
Operating Junction and -55 to + 175
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
°C
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θJA
Junction-to-Case ––– 1.0
Junction-to-Ambient ( PCB Mounted,steady-state)** ––– 40
°C/W
www.irf.com 1
7/20/99
Page 2
IRF640S/L
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage 200 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.29 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance ––– ––– 0.18 Ω VGS = 10V, ID = 11A
Gate Threshold Voltage 2.0 ––– 4.0 V VDS = VGS, ID = 250µA
Forward Transconductance 6.7 ––– ––– S VDS = 50V, ID = 11A
Drain-to-Source Leakage Current
––– ––– 25
––– ––– 250 VDS = 160V, VGS = 0V, TJ = 125°C
Gate-to-Source Forward Leakage ––– ––– 100 VGS = 20V
Gate-to-Source Reverse Leakage ––– ––– -100
VDS = 200V, VGS = 0V
µA
nA
VGS = -20V
Total Gate Charge ––– ––– 70 ID = 18A
Gate-to-Source Charge ––– ––– 13 nC VDS =160V
Gate-to-Drain ("Miller") Charge ––– ––– 39 VGS = 10V, See Fig. 6 and 13
Turn-On Delay Time ––– 14 ––– VDD =100V
Rise Time ––– 51 ––– ID = 18A
Turn-Off Delay Time ––– 45 ––– RG = 9.1Ω
ns
Fall Time ––– 36 ––– RD = 5.4Ω, See Fig. 10
Internal Source Inductance
––– –––
7.5
Between lead,
nH
and center of die contact
Input Capacitance ––– 1300 ––– VGS = 0V
Output Capacitance ––– 430 ––– pF VDS = 25V
Reverse Transfer Capacitance ––– 130 ––– ƒ = 1.0MHz, See Fig. 5
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Continuous Source Current MOSFET symbol
(Body Diode)
Pulsed Source Current integral reverse
(Body Diode)
––– –––
––– –––
18
72
showing the
A
p-n junction diode.
G
Diode Forward Voltage ––– ––– 2.0 V TJ = 25°C, IS = 18A, VGS = 0V
Reverse Recovery Time ––– 300 610 ns TJ = 25°C, IF = 18A
Reverse Recovery Charge ––– 3.4 7.1 µC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
Repetitive rating; pulse width limited by
Pulse width ≤ 300µs; duty cycle ≤ 2%.
max. junction temperature. ( See fig. 11 )
V
= 50V, starting TJ = 25°C, L = 2.7mH
DD
RG = 25Ω, I
I
≤ 18A, di/dt ≤ 150A/µs, V
SD
= 18A. (See Figure 12)
AS
DD
≤ V
(BR)DSS
Uses IRF640 data and test conditions
,
TJ ≤ 150°C
** When mounted on 1" square PCB ( FR-4 or G-10 Material ).
For recommended footprint and soldering techniques refer to application note #AN-994.
2 www.irf.com
D
S
Page 3
IRF640S/L
Fig 1. Typical Output Characteristics,
TJ = 25oC
Fig 3. Typical Transfer Characteristics
Fig 2. Typical Output Characteristics,
TJ = 175oC
Fig 4. Normalized On-Resistance
Vs. Temperature
www.irf.com 3
Page 4
IRF640S/L

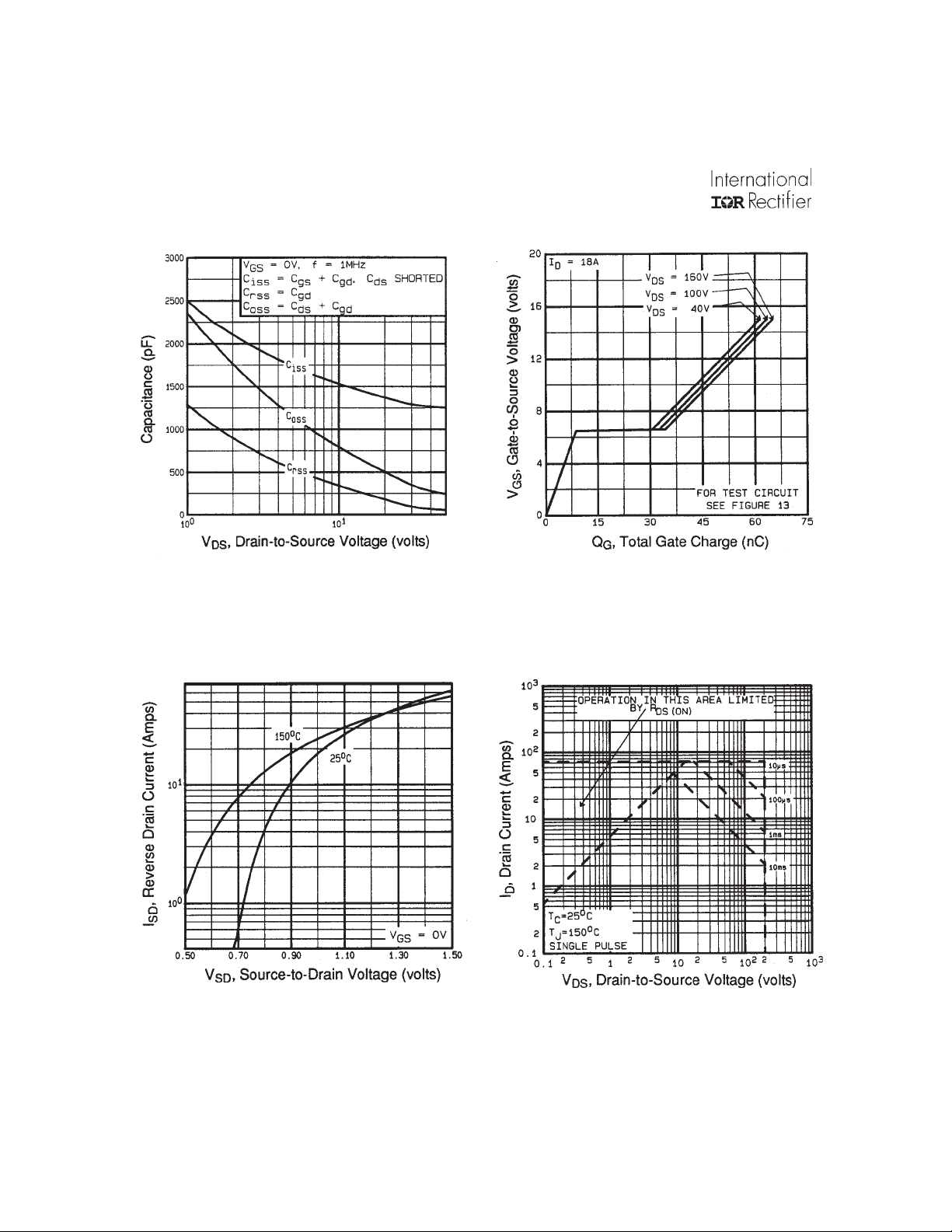

Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 7. Typical Source-Drain Diode
Forward Voltage
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
Fig 8. Maximum Safe Operating Area
4 www.irf.com
Page 5
IRF640S/L
R
D.U.T.
t
d(off)tf
D
V
DS
V
GS
R
G
10V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
V
DS
90%
10%
V
GS
t
d(on)tr
+
V
DD
-

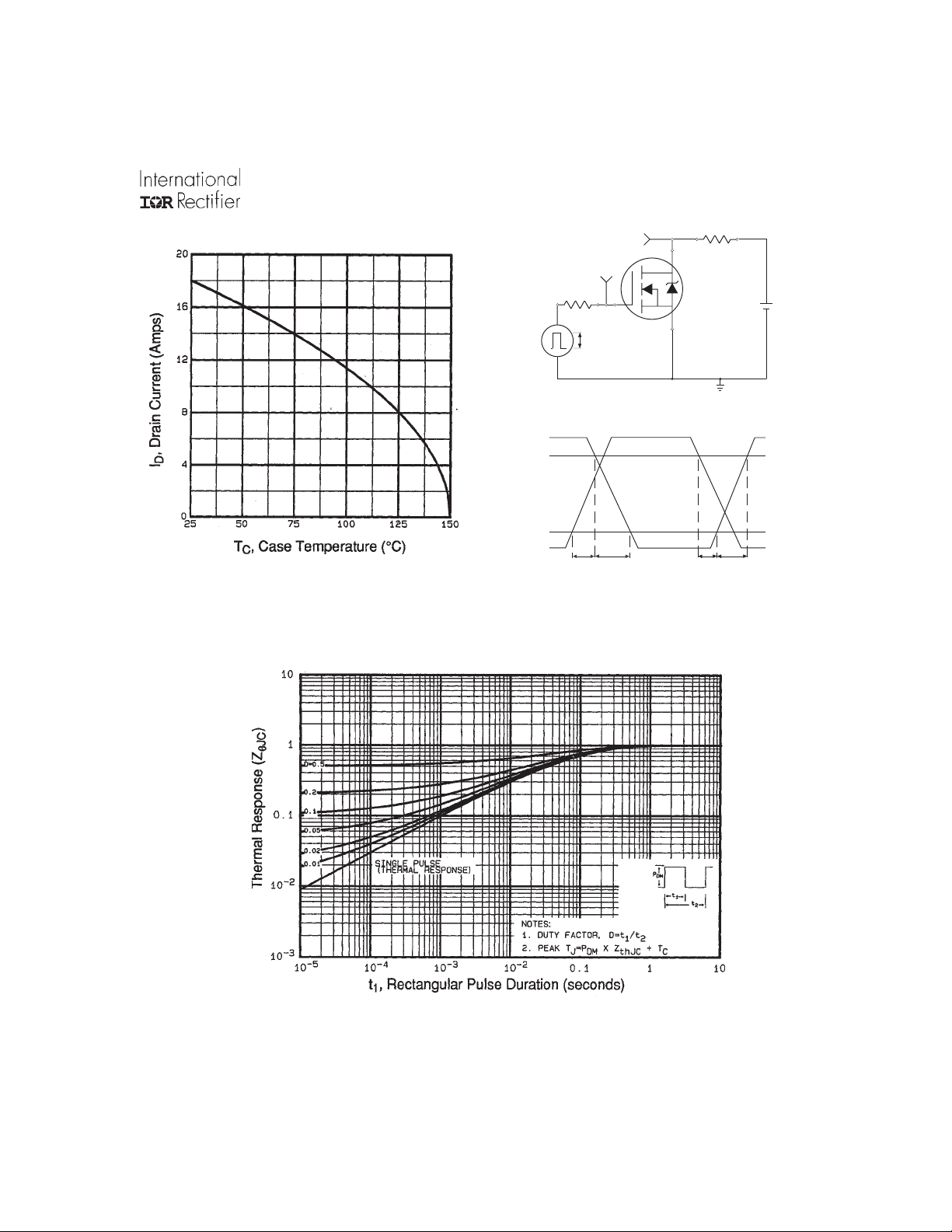

Fig 9. Maximum Drain Current Vs.
Case Temperature
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
Fig 10b. Switching Time Waveforms
www.irf.com 5
Page 6
IRF640S/L
A
15V
DRIVER
+
-
R
20V
V
DS
G
t
L
D.U.T
I
AS
0.01
p
Ω
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
I
AS
Fig 12b. Unclamped Inductive Waveforms
V
DD
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
Current Regulator
Same Type as D.U.T.
50KΩ
Q
G
10 V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
12V
Fig 13b. Gate Charge Test Circuit
.2µF
V
GS
.3µF
D.U.T.
3mA
I
G
Current Sampling Resistors
I
+
V
DS
-
D
6 www.irf.com
Page 7
IRF640S/L
Peak Diode Recovery dv/dt Test Circuit
+
D.U.T
-
R
G
Driver Gate Drive
P.W.
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
-
• dv/dt controlled by R
• Driver same type as D.U.T.
G
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
Period
D =
P.W.
Period
+
+
V
DD
-
VGS=10V
*
D.U.T. ISDWaveform
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. VDSWaveform
Inductor Curent
* V
= 5V for Logic Level Devices
GS
Body Diode Forward
Current
di/dt
Diode Recovery
dv/dt
Body Diode Forward Drop
Ripple ≤ 5%
V
DD
I
SD
Fig 14. For N-Channel HEXFETS
www.irf.com 7
Page 8
IRF640S/L
A
D2Pak Package Outline
10.54 (.415)
1.40 (.055)
MAX.
1.78 (.070)
1.27 (.050)
1.40 (.055)
3X
1.14 (.045)
5.08 (.200)
NOTE S:
1 DIMENSIONS AFTER SOLDER DIP.
2 DIMENSIONING & TOLERANCING PER A NSI Y14.5M, 1982.
3 CONTROLLING DIMENSION : INCH.
4 HEATSINK & LEAD DIMENSIONS DO NOT INCLUDE BURRS.
10.29 (.405)
- A 2
1 3
15.49 (.610)
14.73 (.580)
0.93 (.037)
3X
0.69 (.027)
0.2 5 ( .0 10) M B A M
Part Marking Information
D2Pak
4.69 (.185)
4.20 (.165)
5.28 (.208)
4.78 (.188)
0.55 (.022)
0.46 (.018)
- B -
1.32 (.052)
1.22 (.048)
2.79 (.110)
2.29 (.090)
1.39 (.055)
1.14 (.045)
LEAD ASSIGNMENTS
1 - G ATE
2 - D RAIN
3 - S OU R CE
10.16 (.400)
REF.
6.47 (.255)
6.18 (.243)
2.61 (.103)
2.32 (.091)
8.89 (.350)
REF.
MINIMUM RECOMMENDED FOOTPRINT
11.43 (.450)
8.89 (.350)
17.78 (.700)
3.81 (.150)
2.08 (.082)
2X
2.54 (.100)
2X
INTERNATIONAL
RE CTIFIER
LOG O
A S SEMBLY
LO T CO D E
F530S
9246
9 B 1 M
PART NUM B ER
DATE CODE
(YYW W )
YY = YEAR
WW = WEEK
8 www.irf.com
Page 9
Package Outline

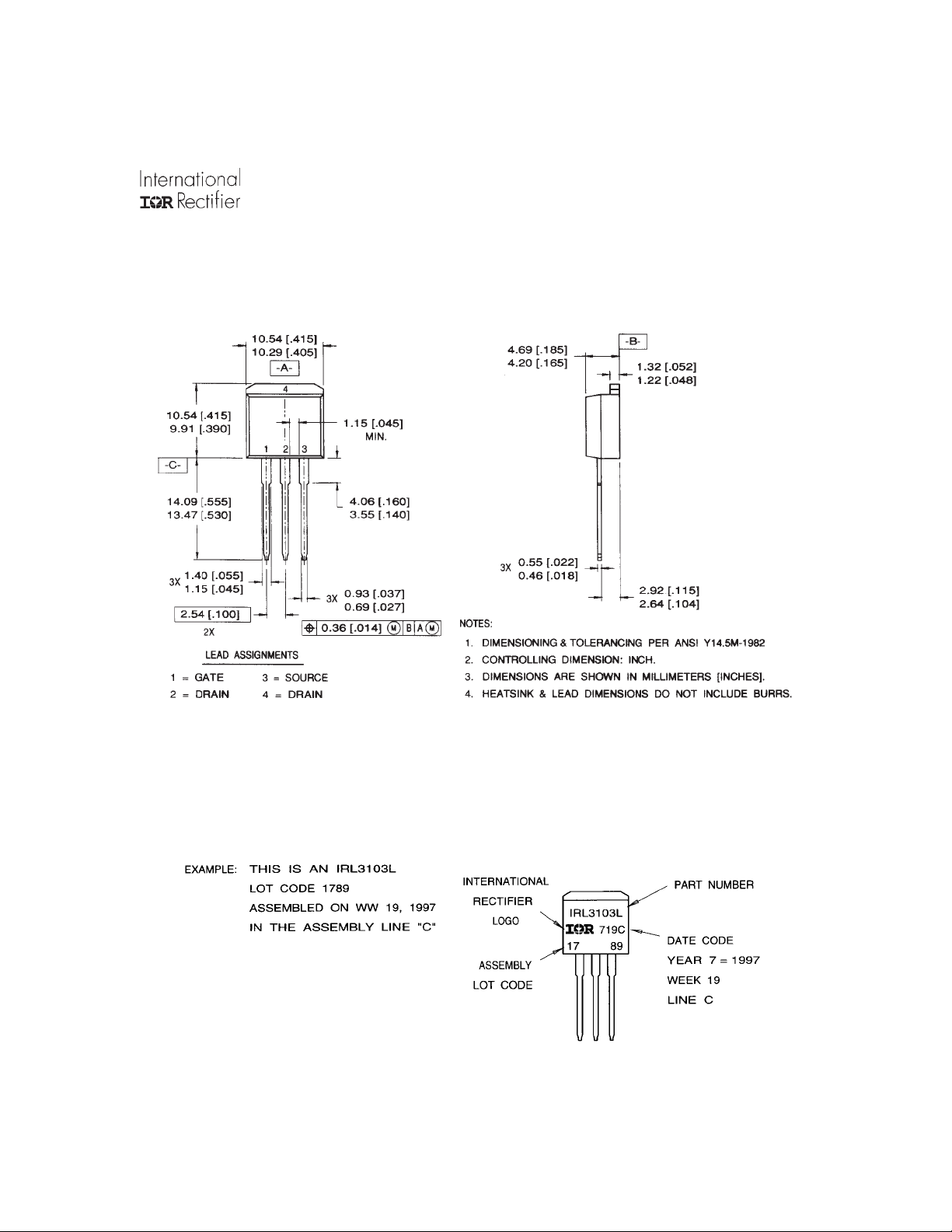

TO-262 Outline
IRF640S/L
Part Marking Information
TO-262
www.irf.com 9
Page 10
IRF640S/L
Tape & Reel Information
D2Pak
TRR
1.60 (.063)
1.50 (.059)
4.10 (.161)
3.90 (.153)
1.60 (.063)
1.50 (.059)
0.368 (.0145)
0.342 (.0135)
FEED D IRECTION
1.85 (.073)
1.65 (.065)
TRL
10.90 (.429)
10.70 (.421)
FEED D IRECTION
13.50 (.532)
12.80 (.504)
330.00
(14.173)
MAX.
NOTES :
1. COMF O R M S T O EIA-418.
2. C O N TR O LL ING DIM ENSIO N : M ILLIM ETER.
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
11.60 (.457)
11.40 (.449)
1.75 (.069)
1.25 (.049)
16.10 (.634)
15.90 (.626)
15.42 (.609)
15.22 (.601)
27.40 (1.079)
23.90 (.941)
4
26.40 (1.039)
24.40 (.961)
3
24.30 (.957)
23.90 (.941)
4.72 (.136)
4.52 (.178)
60.00 (2.362)
M IN .
30.40 (1.197)
MAX .
4
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
IR GREAT BRITAIN: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 15 Lincoln Court, Brampton, Ontario L6T3Z2, Tel: (905) 453 2200
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 1 Kim Seng Promenade, Great World City West Tower, 13-11, Singapore 237994 Tel: ++ 65 838 4630
IR TAIWAN:16 Fl. Suite D. 207, Sec. 2, Tun Haw South Road, Taipei, 10673, Taiwan Tel: 886-2-2377-9936
http://www.irf.com/ Data and specifications subject to change without notice. 7/99
10 www.irf.com
